18" x 120" Lansing G20, 12" Swing Over Carriage, 16" Chuck, 4.25" Spdl Bore, 2-Axis DRO, Threading, 25HP, #43926

Manufacturer

Lansing

Category

Lathes

Type

LATHES, ENGINE

Stock

43926

Model

G20

Dealer Location

New York

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Reference #43926

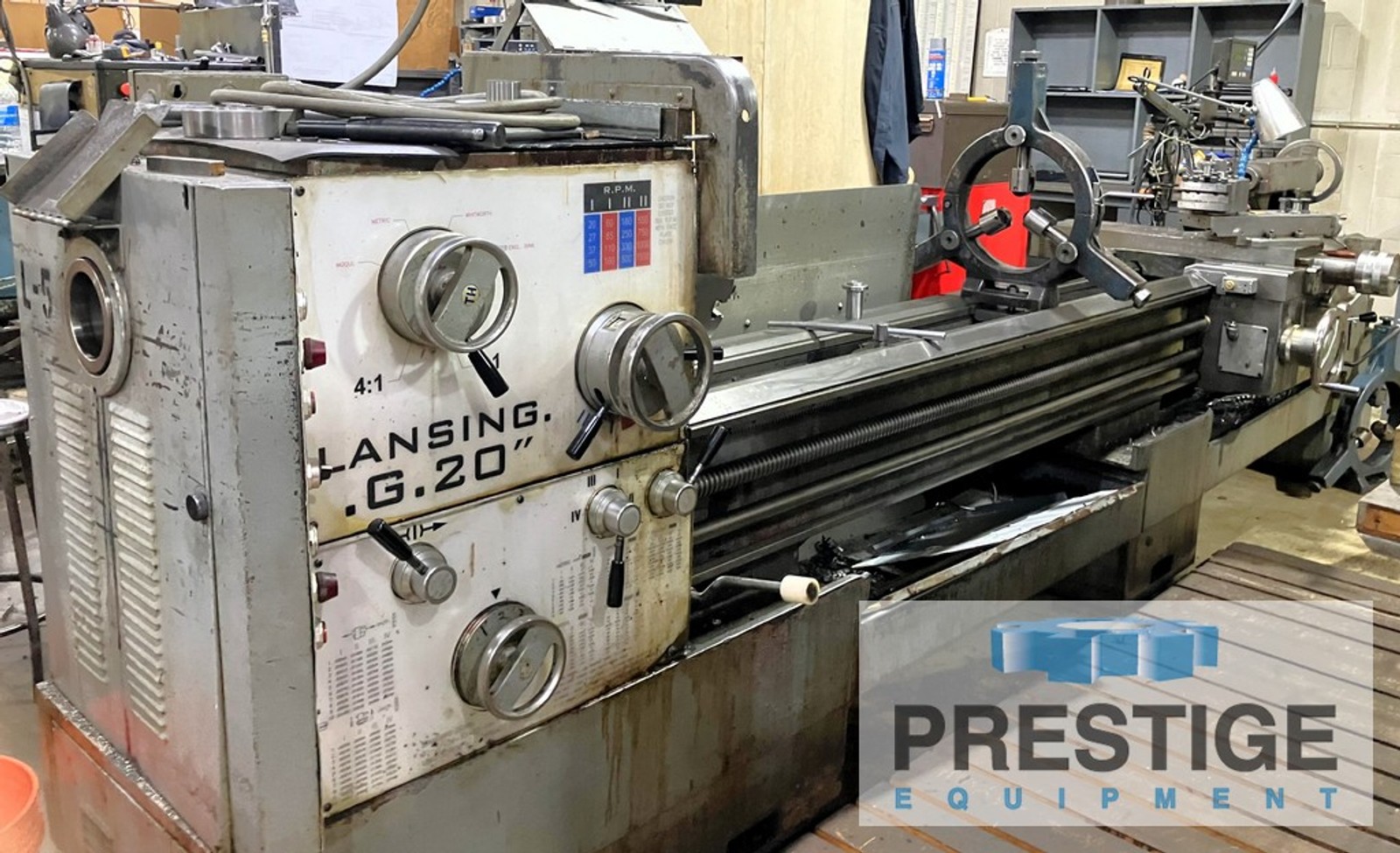

18" x 120" Lansing G20 Manual Lathe

FEATURES:

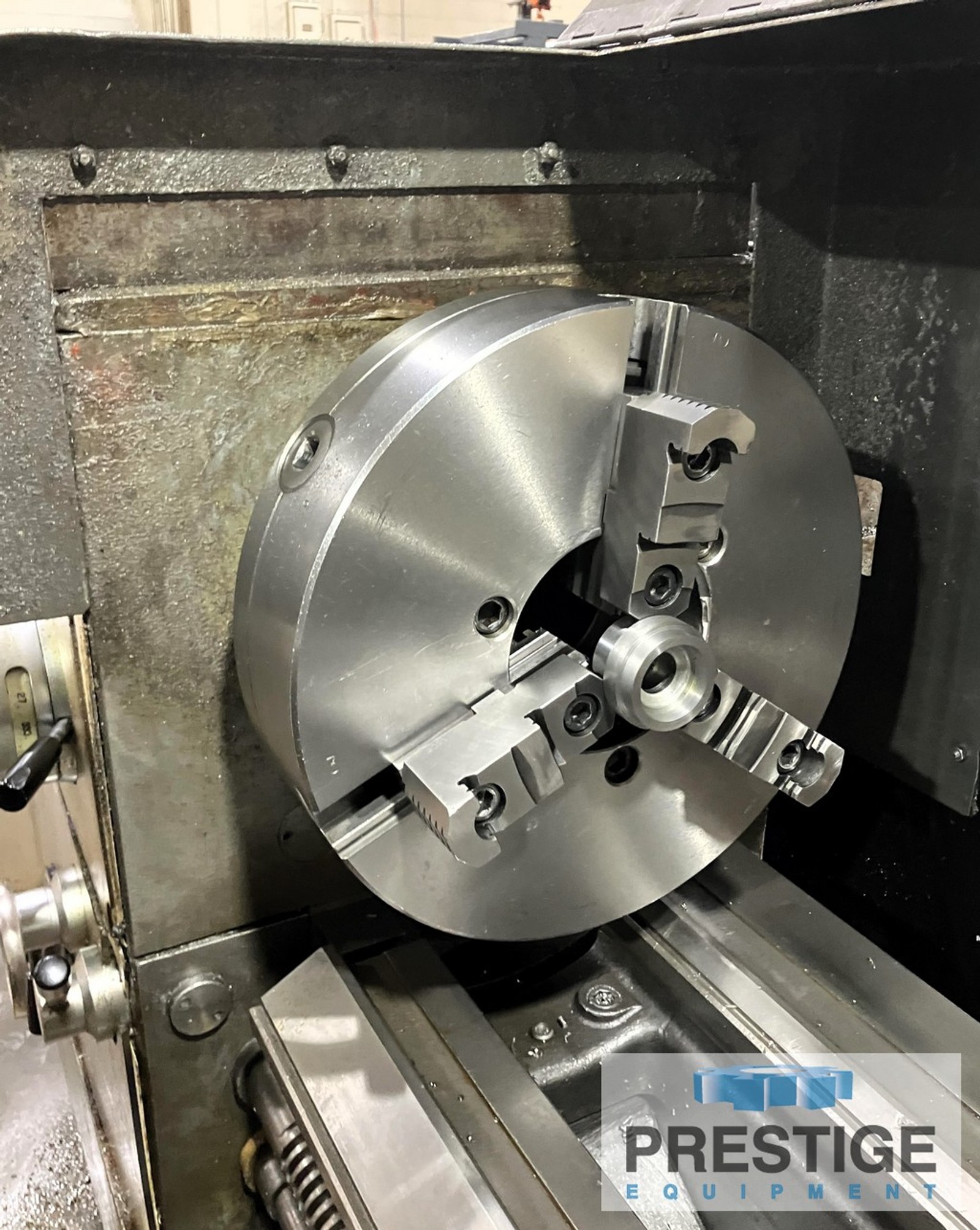

16" 3-Jaw Chuck
2-Axis Digital Readout

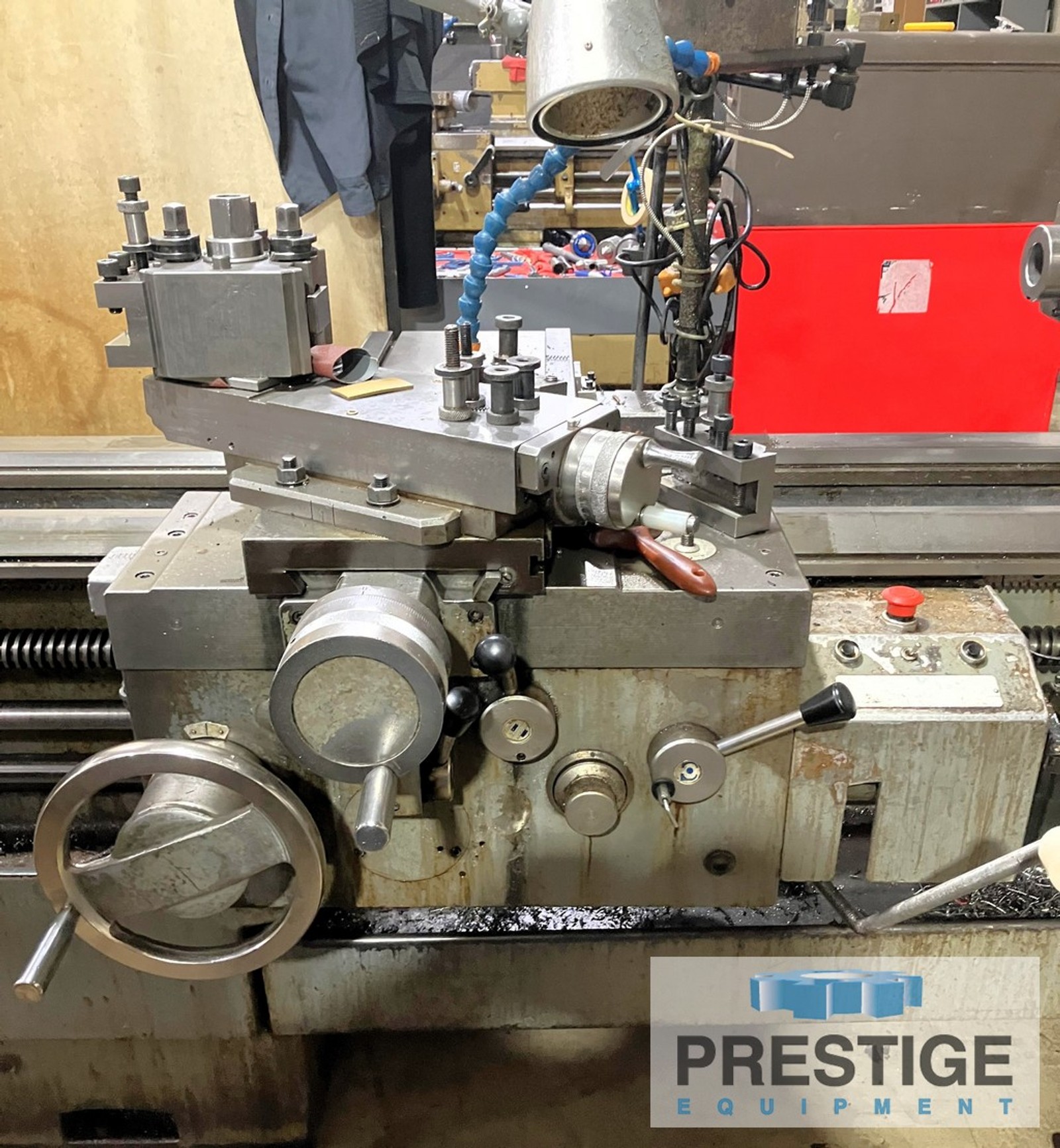

Aloris 2-Way Quick Change Tool Holder

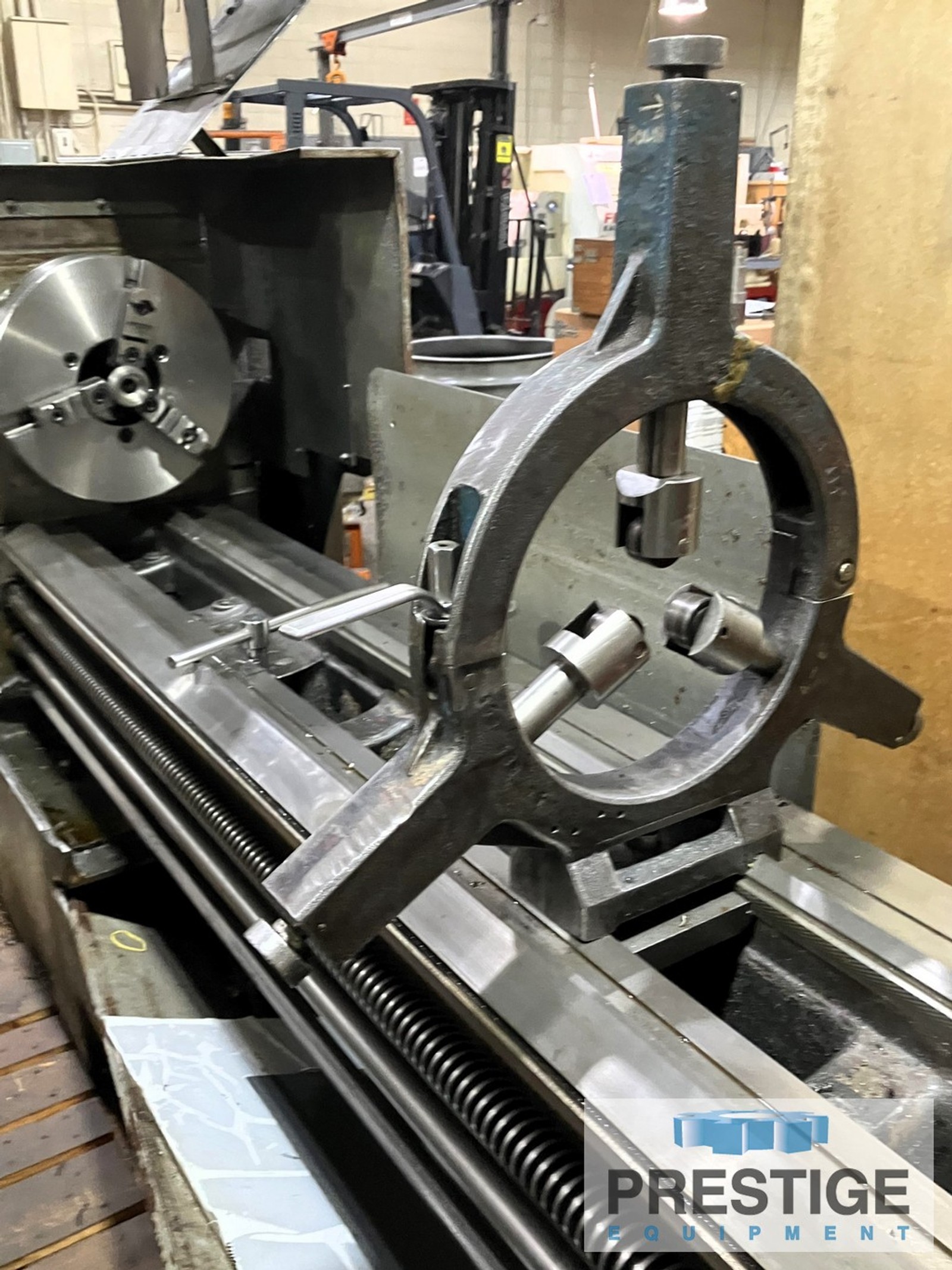

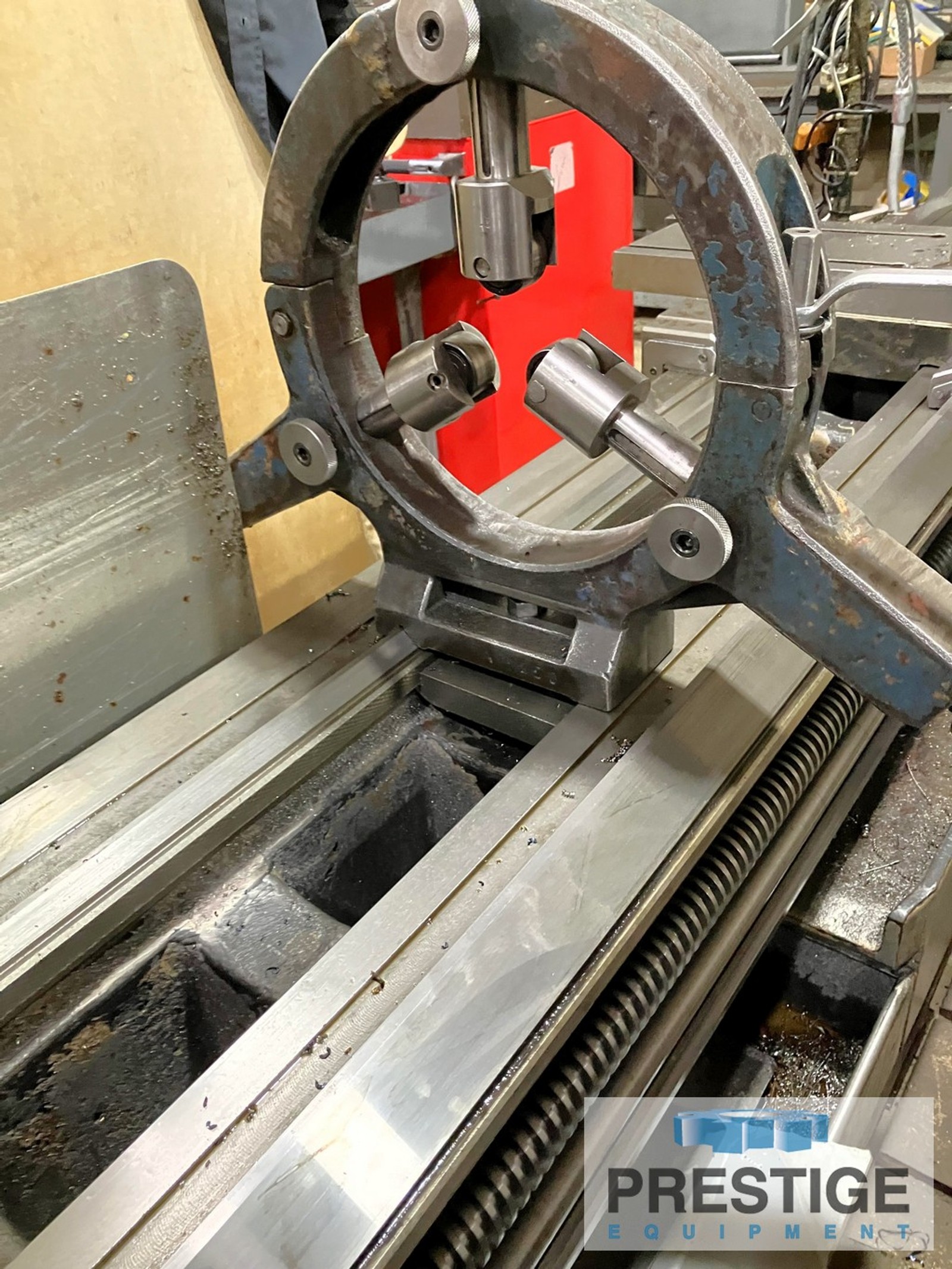

2 - Roller Type Ready Rests
1 - Follow Rest

SPECIFICATION:
Swing Over Bed ........................ 18"
Swing Over Carriage ................... 12"
Center Distance ....................... 120"
Spindle Speeds ........................ 20 - 1500 RPM
Spindle Bore .......................... 4.25"
Motor ................................. 25 HP
Approx. Machine Dimensions ............ 155" x 60" x 57"
Approx. Machine Weight ................ 12,000 Lbs
Electrics ............................. 220V/440V, 3PH

EQUIPPED WITH:
16" 3-Jaw Chuck
2-Axis Digital Readout
Aloris 2-Way Quick Change Tool Holder
Inch/Metric Threading
2 - Roller Type Steady Rests
1 - Follow Rest
Tailstock
Assorted Tooling
Chuck Jaws
Chip/Coolant Catch Pan
