Amada LCG 3015 AJ 6 KW High Precision Fiber Laser, 2018 #43949

Manufacturer

AMADA

Category

Laser Cutting

Type

LASERS

Stock

43949

Model

LCG 3015 AJ

Dealer Location

New York

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Reference #43949

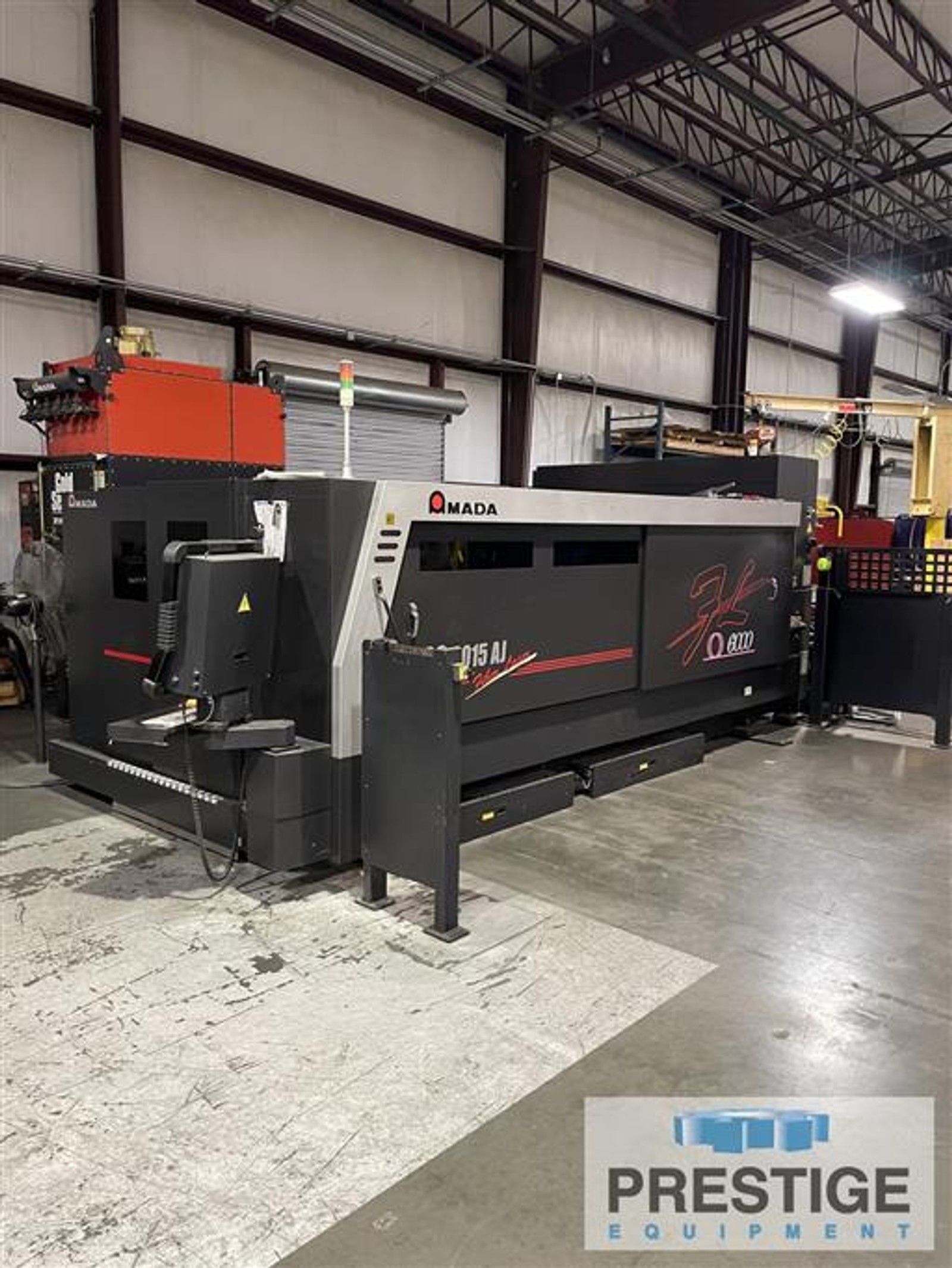

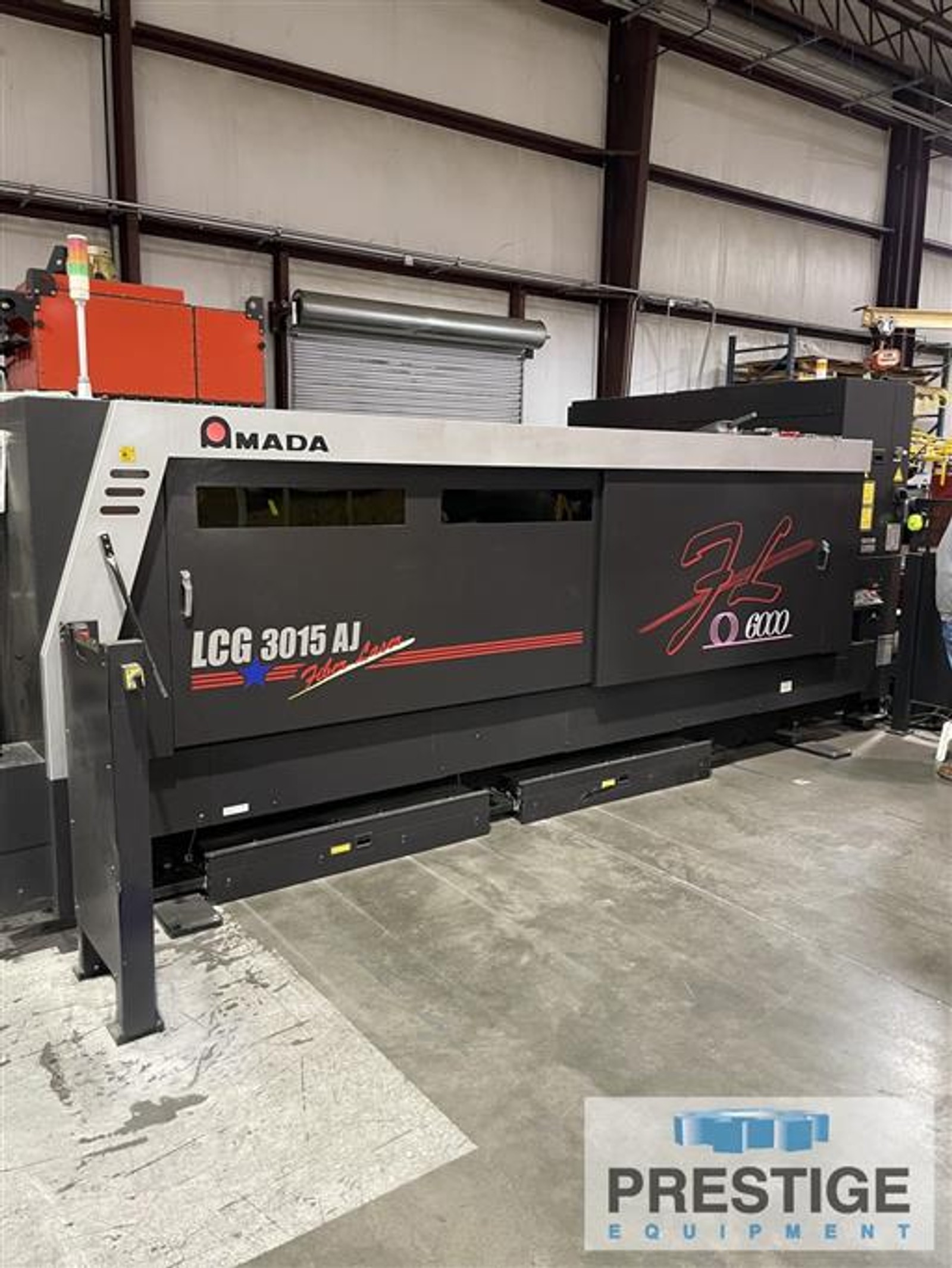

Amada LCG 3015 AJ 6 KW High Precision Fiber Laser

FEATURES:

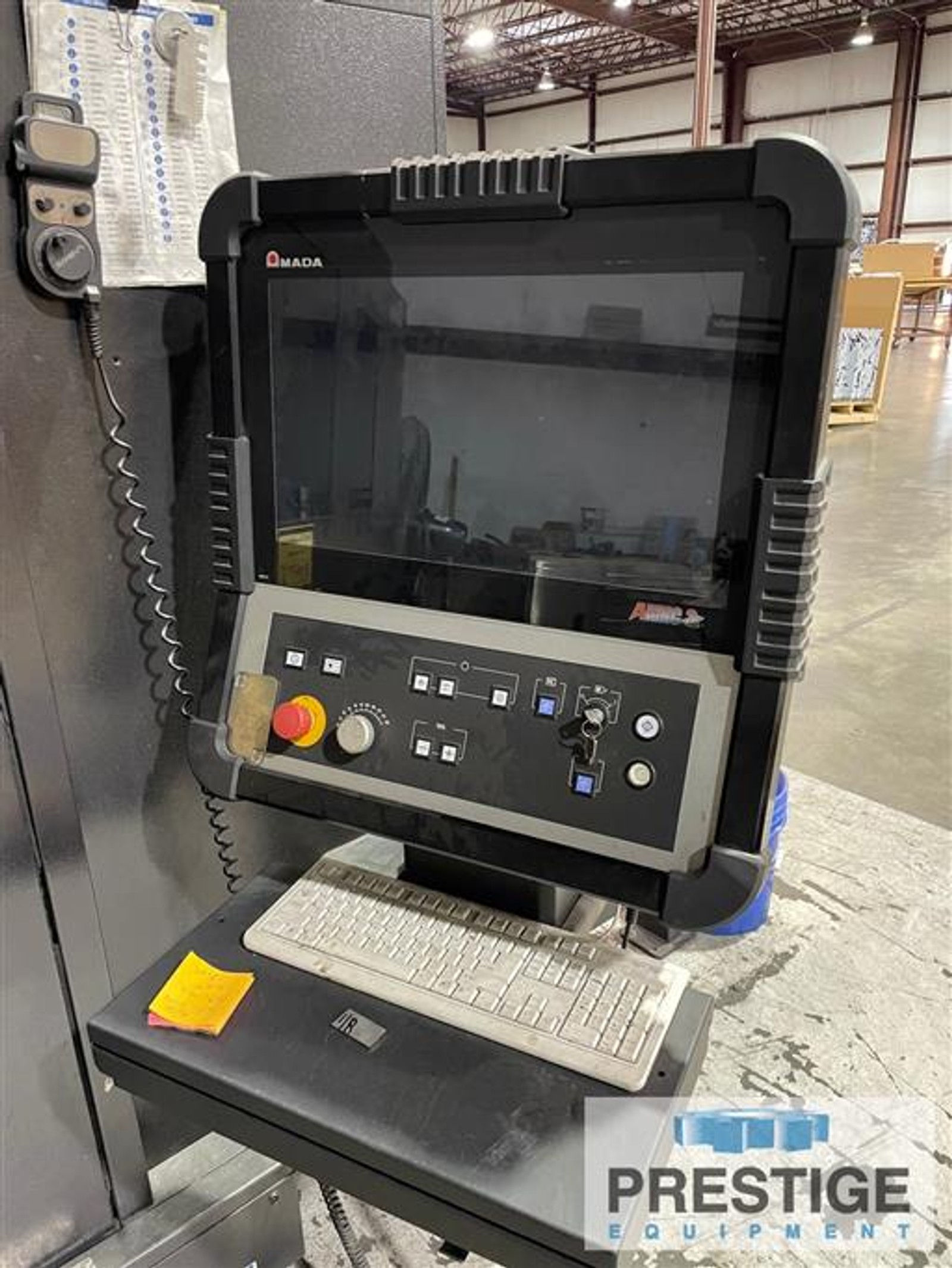

Amada AMNC 3i CNC Control With Color LCD Touchscreen

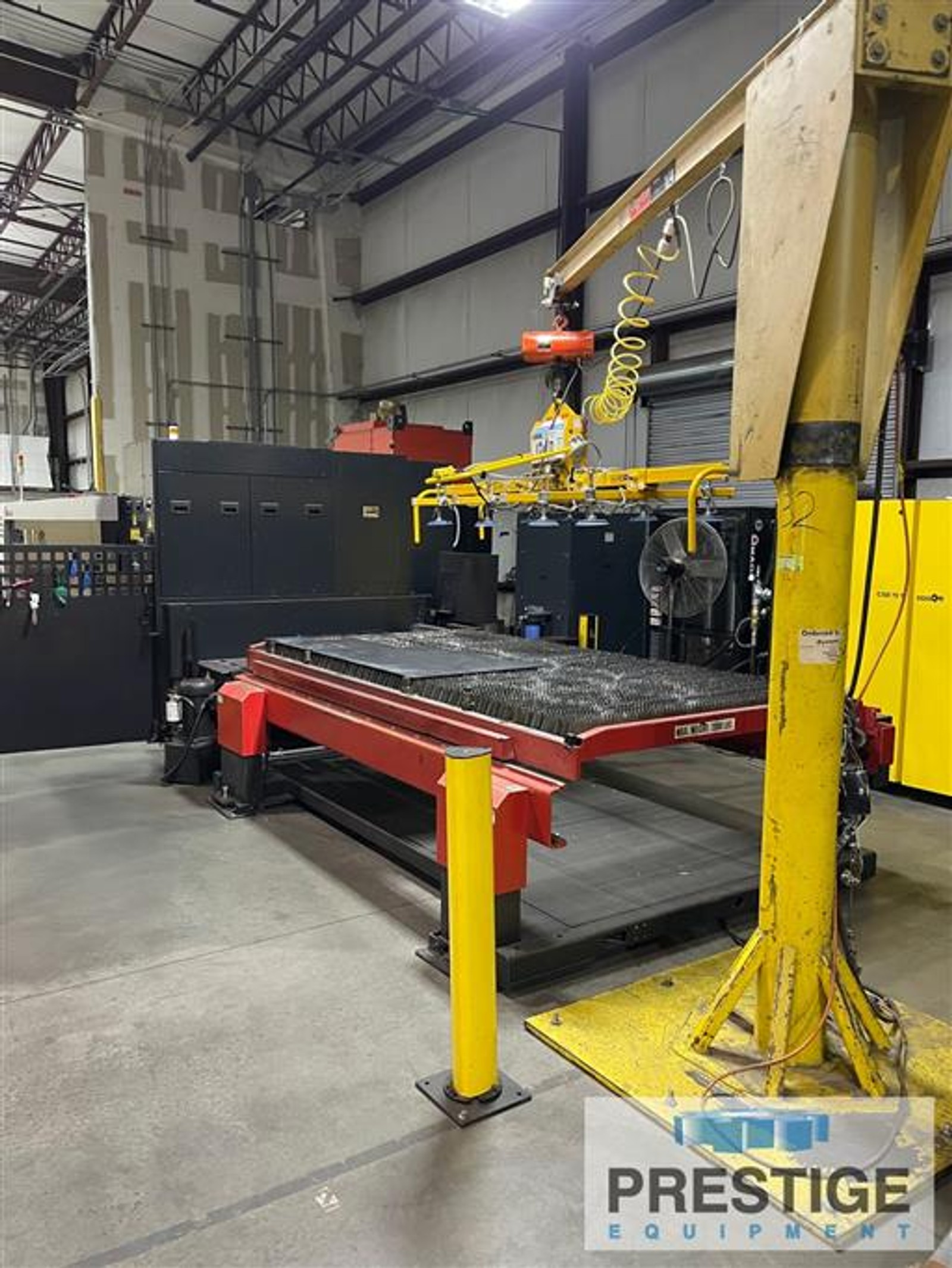

Dual Pallet Shuttle Tables
Amada AJ6000 6.3 KW Fiber Laser Engine
Automatic Nozzle Changer

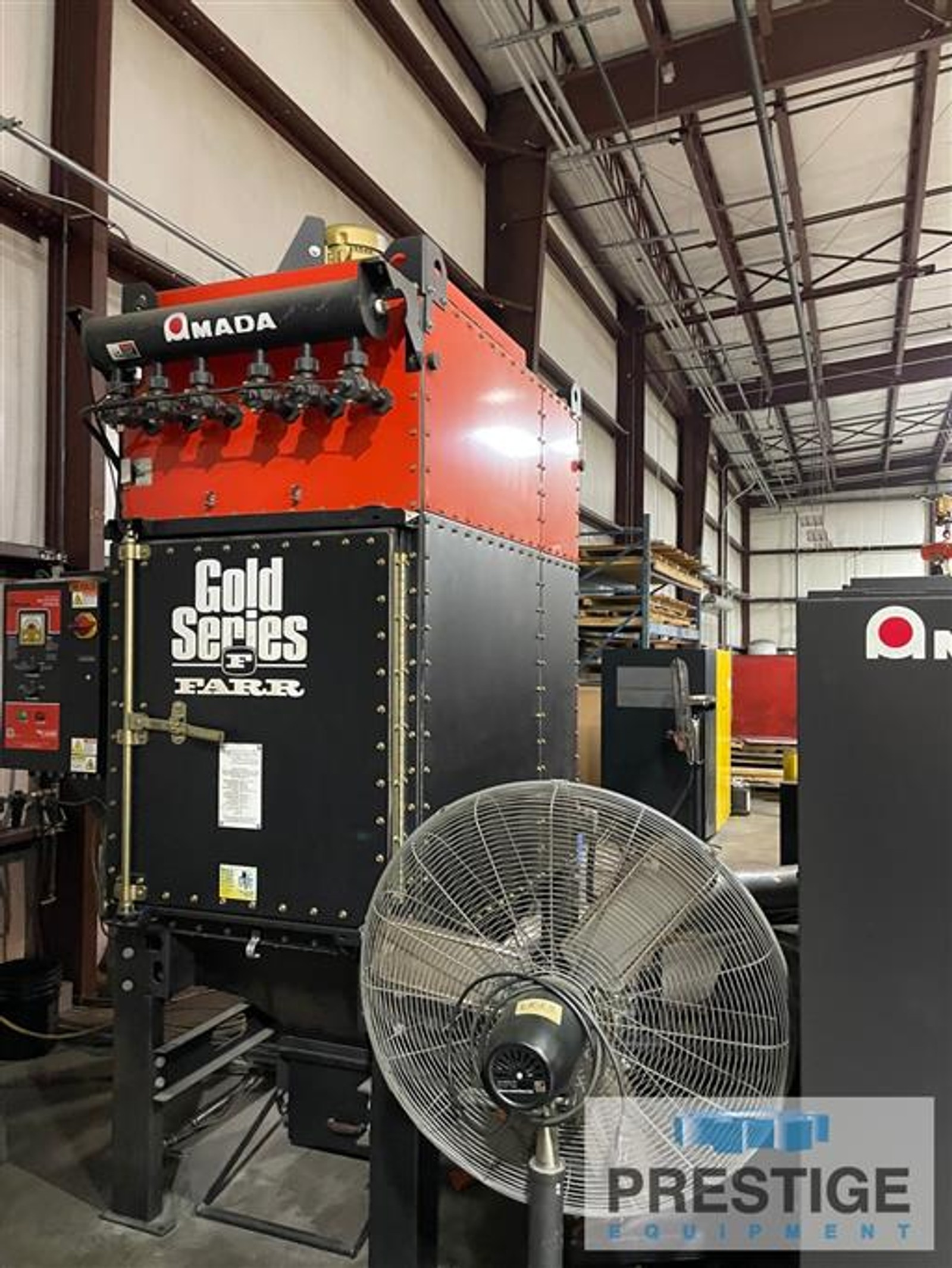

Camfil Gold Series X-FLO Dust Collector
Orion Chiller Unit
Nitrogen Generator

CAPACITY:
Maximum Laser Output .................. 6.3 KW
X-Axis Carriage Travel ................ 121"
Y-Axis Laser Head Travel .............. 61"
Z-Axis Laser Head Travel .............. 3.93"
Maximum Sheet Size .................... 60" x 120"
Maximum Material Weight ............... 2,000 Lbs
Max. Material Thickness, Mild ......... 0.98"
Max. Material Thickness, Stainless .... 0.98"
Max. Material Thickness, Aluminum ..... 0.98"
Max. Positioning Speed, X & Y Axis .... 4,724 IPM
Repeatability ......................... +/-0.0002"

EQUIPPED WITH:
Amada AMNC 3i CNC Control With Color LCD Touchscreen
Dual Pallet Shuttle Tables
Amada AJ6000 6.3 KW Fiber Laser Engine
Automatic Nozzle Changer
Camfil Gold Series X-FLO Dust Collector
Orion Chiller Unit
Nitrogen Generator

HOURS:
Approx.1,800 Cutting Hours

NOTE:
Inspect in Plant Under Power
