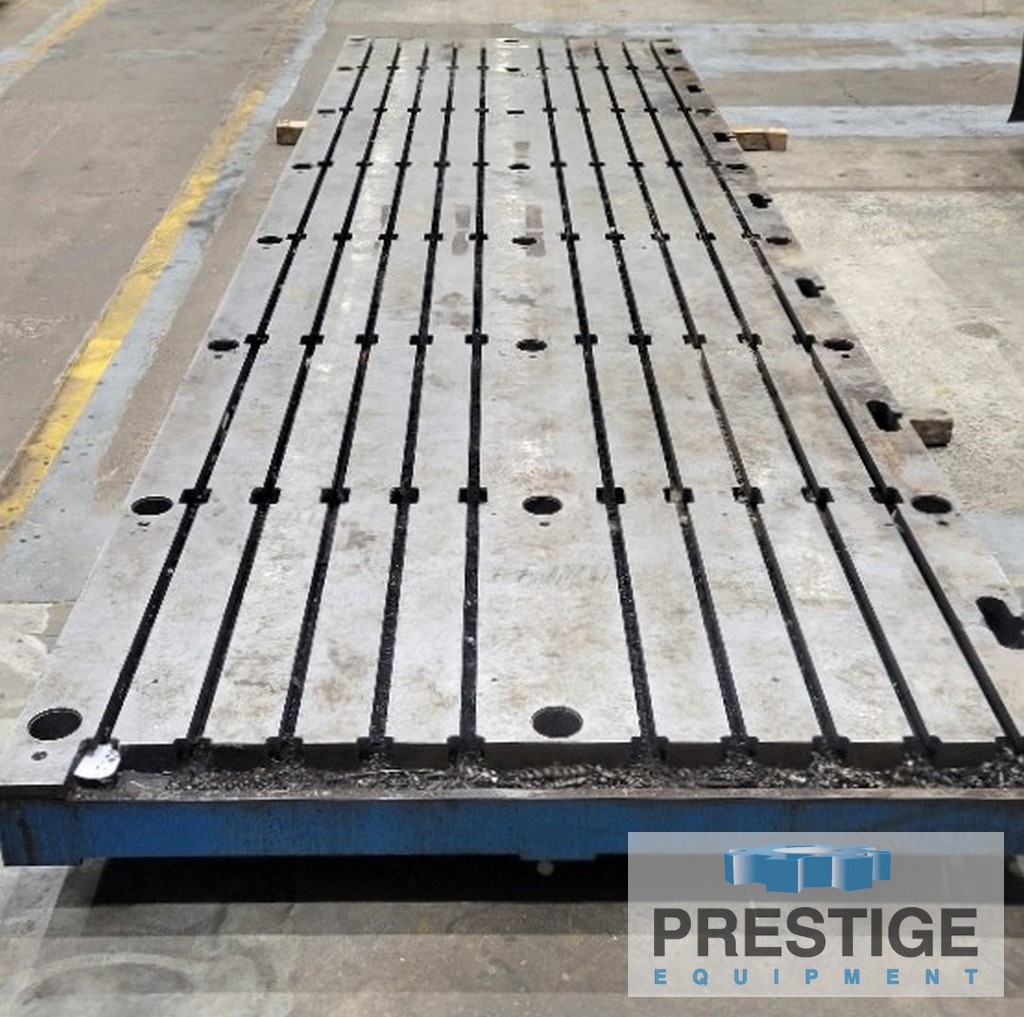

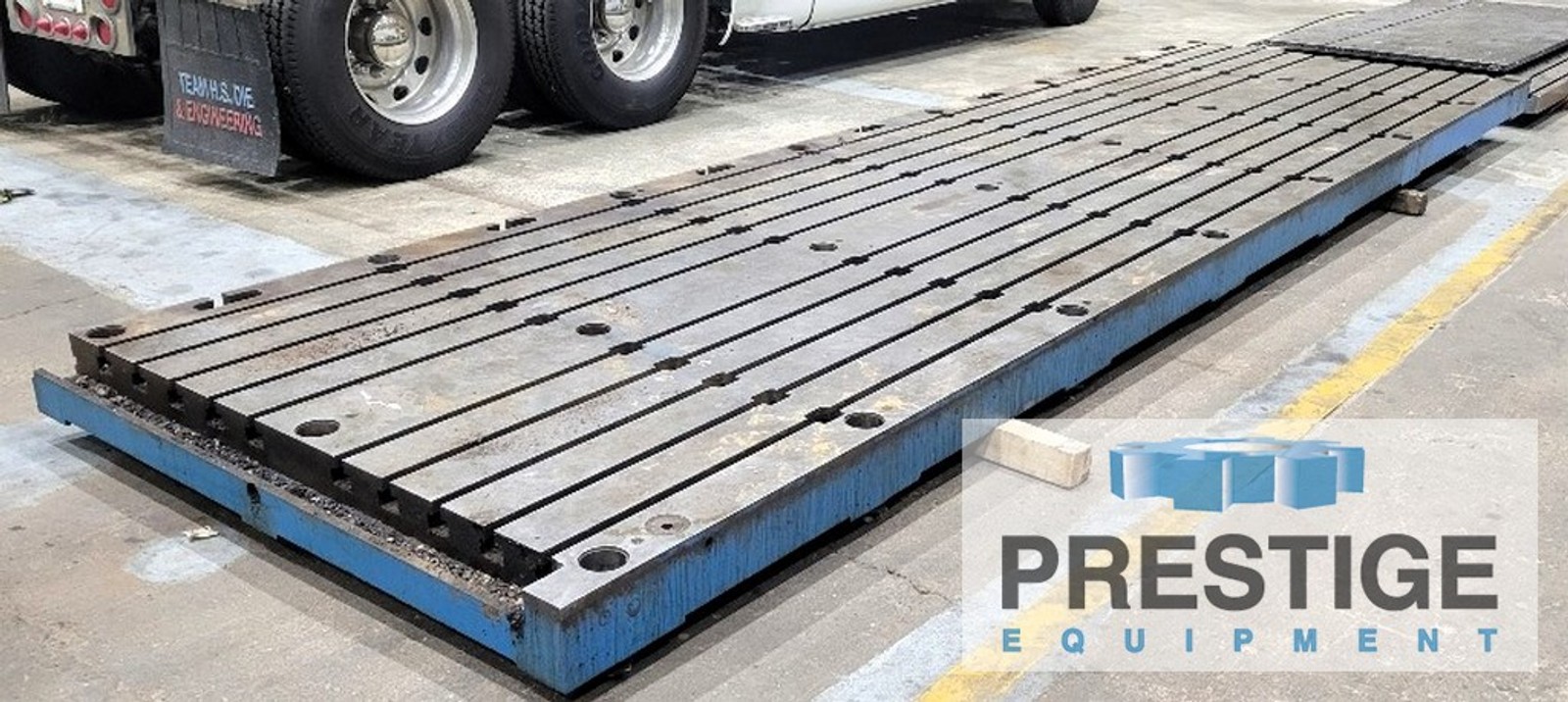

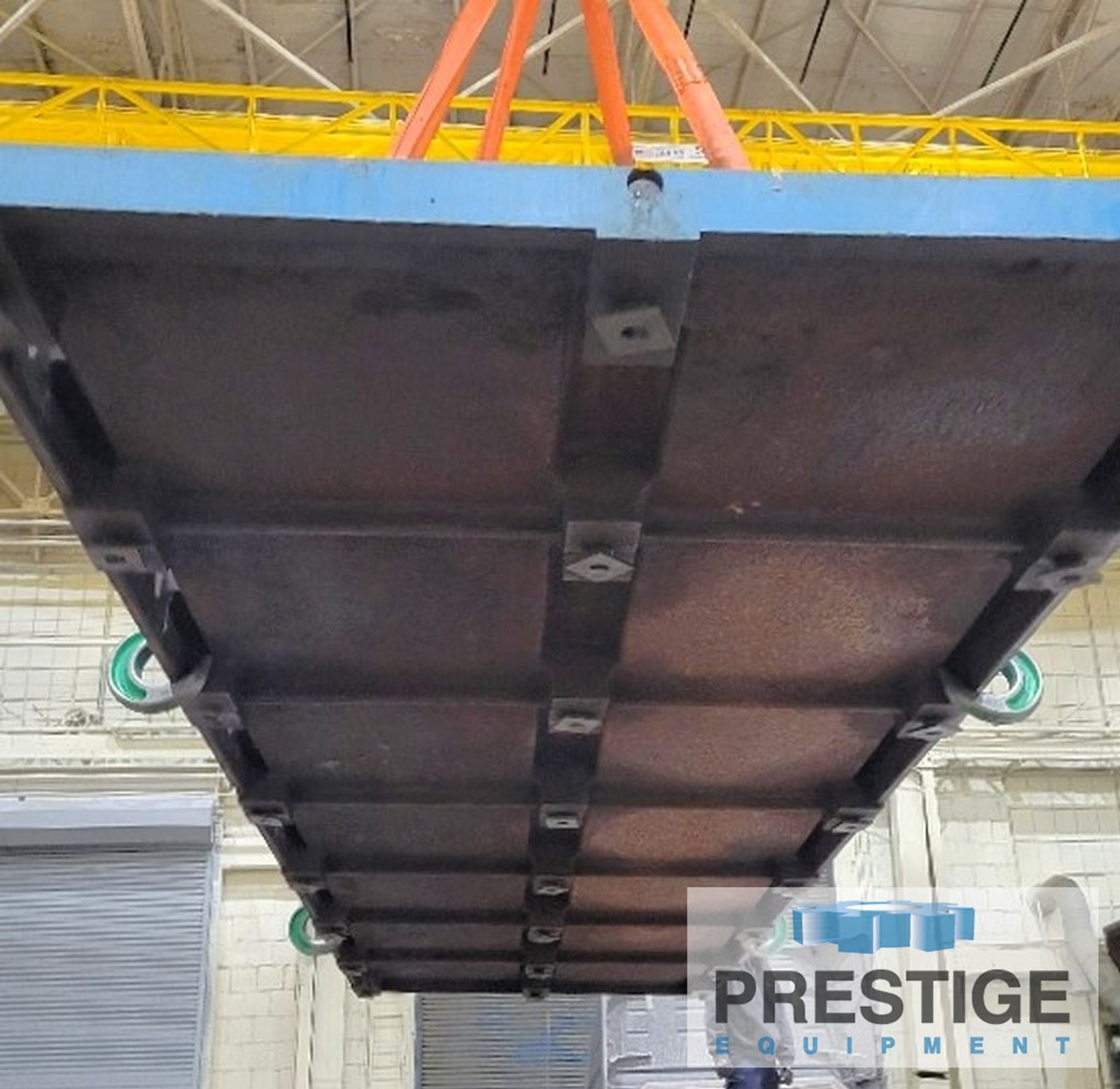

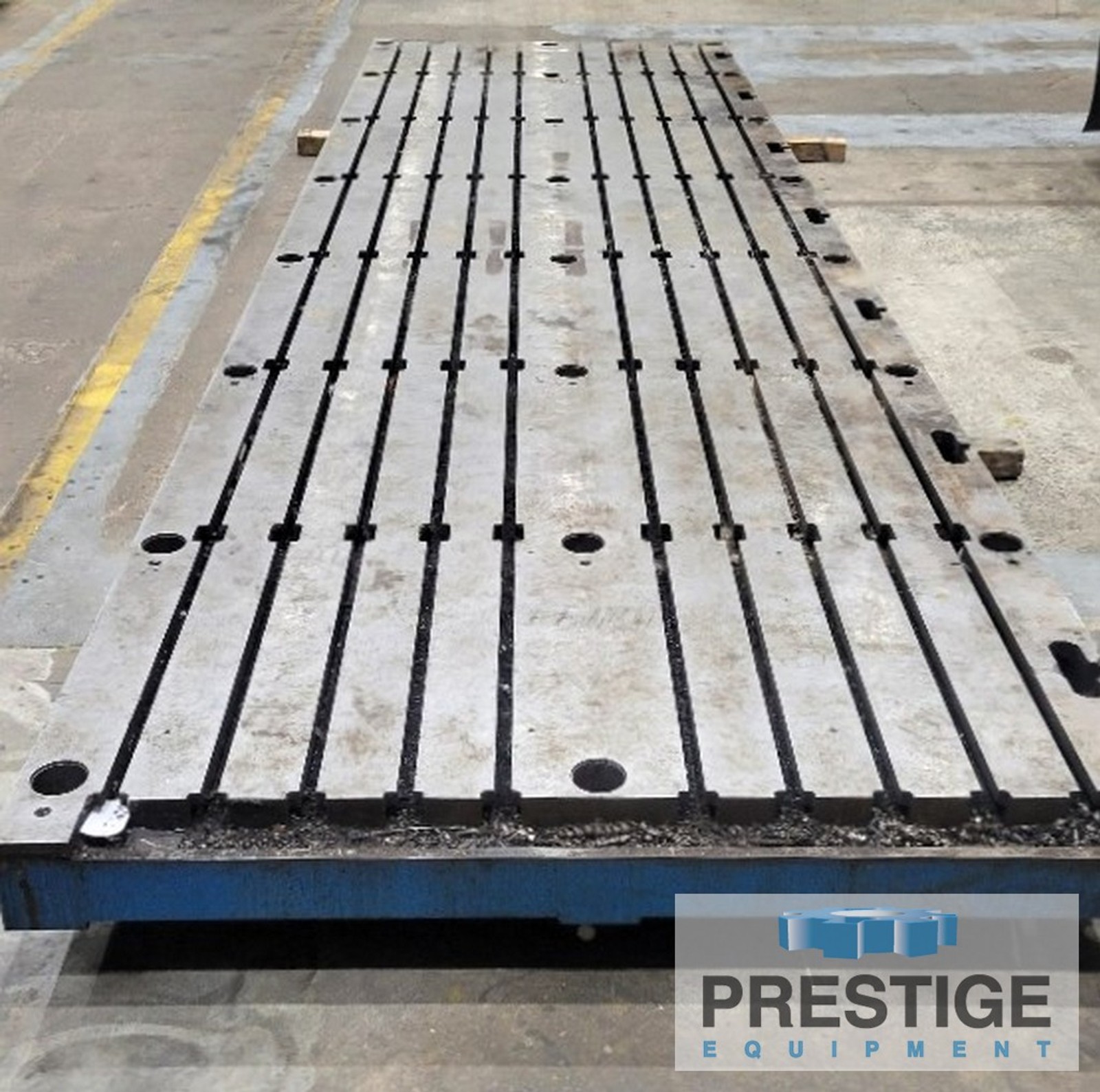

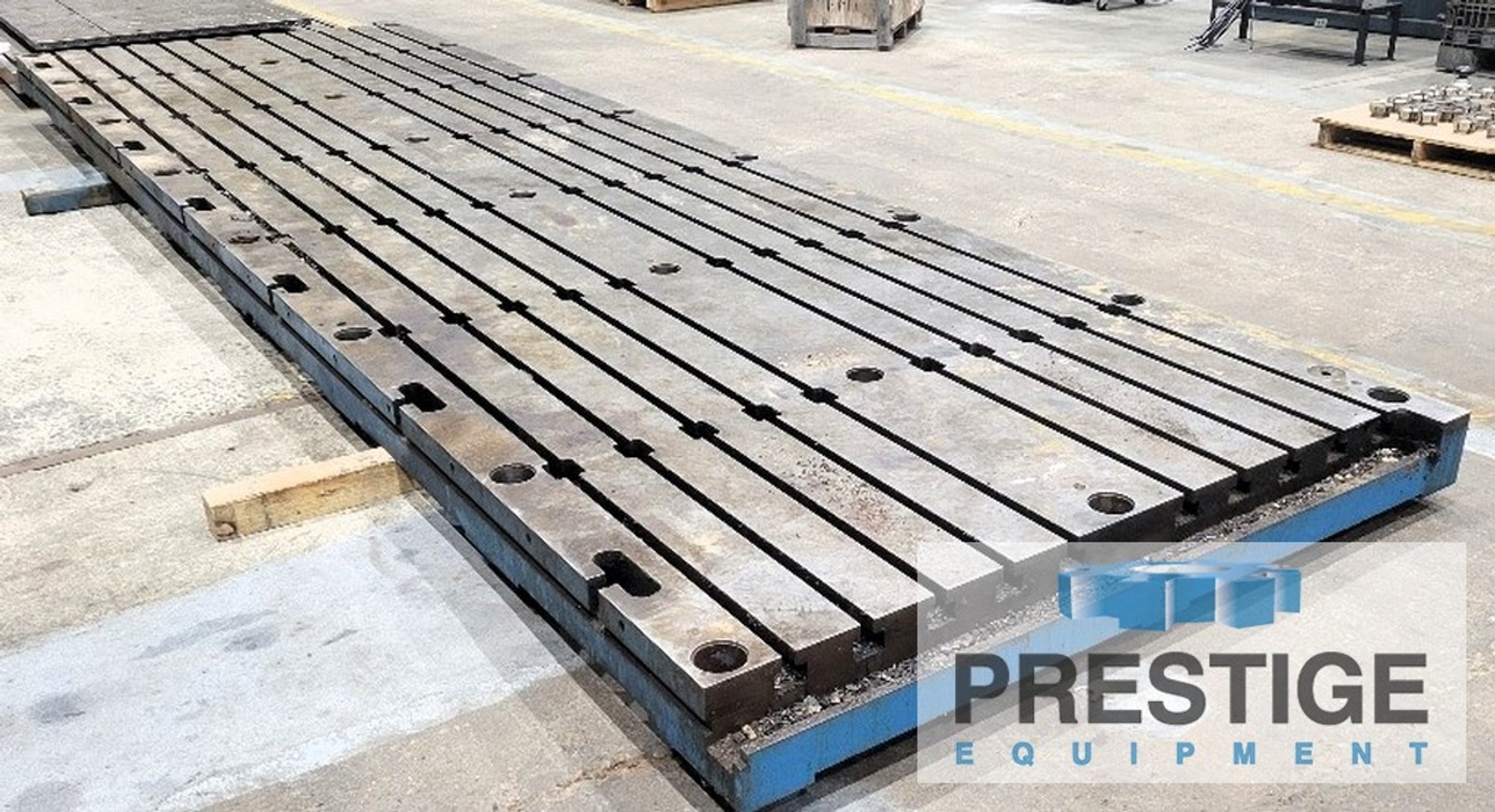

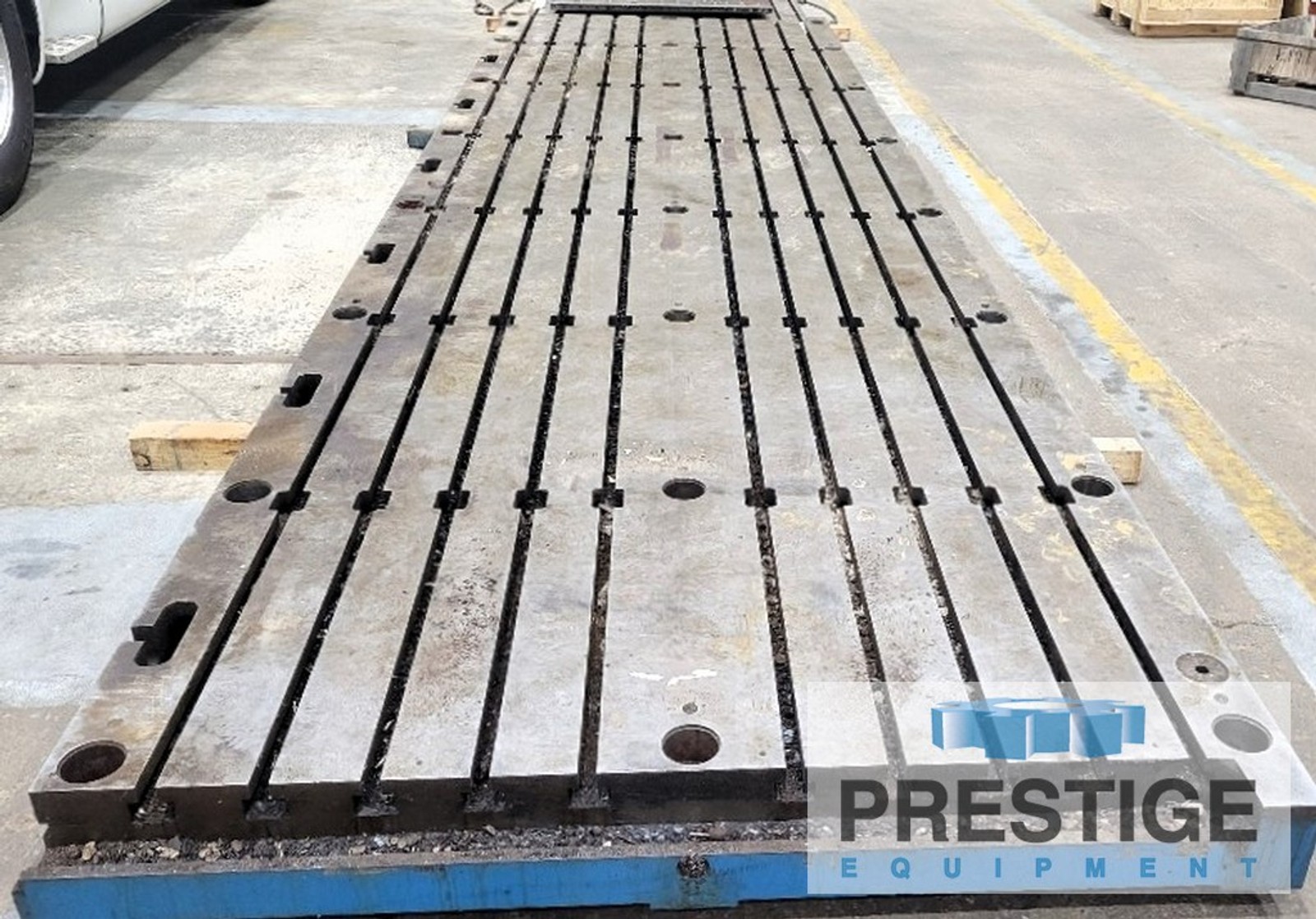

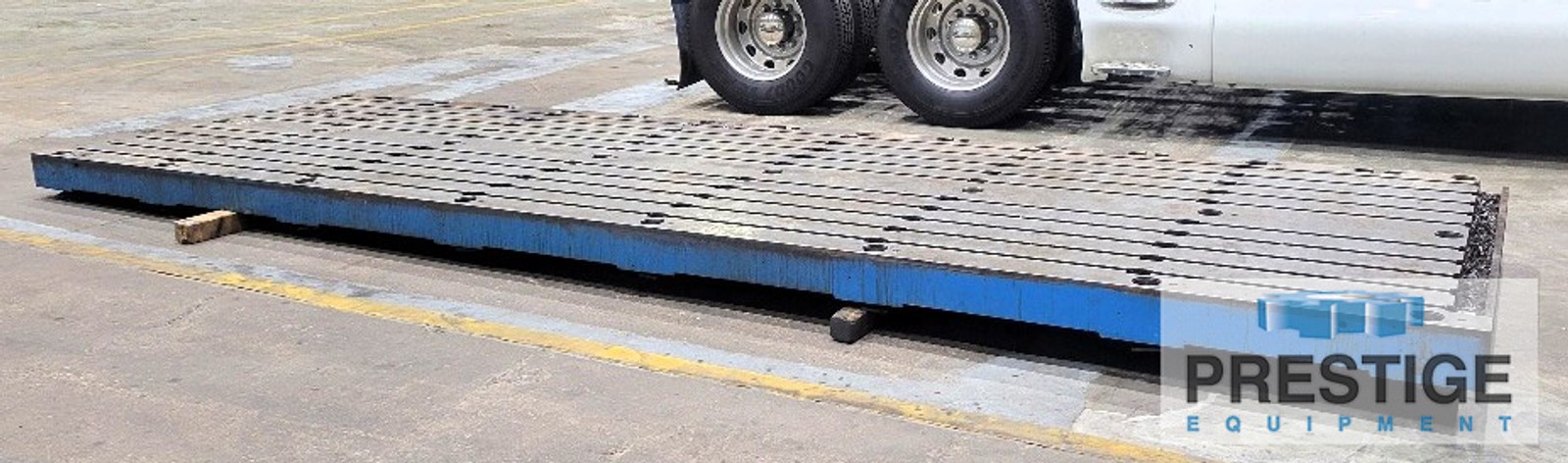

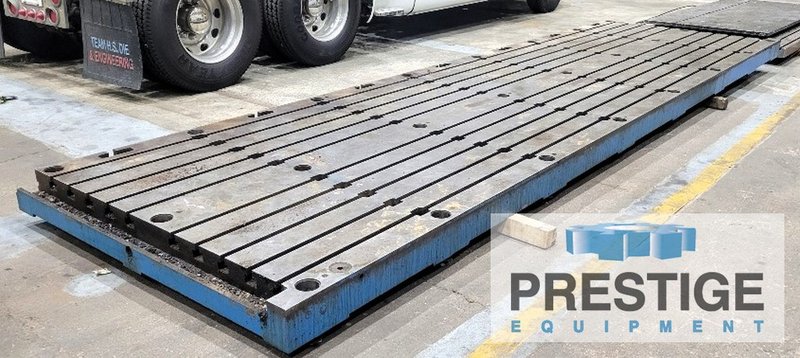

72" x 252" x 7" T-Slotted Floor Plate, Cast Iron Construction, #43738

Manufacturer

BAY CAST

Category

Tables

Type

TABLES, FLOOR & LAYOUT PLATES, (Radial & Boring Mill)

Stock

43738

Model

Level Tite

Dealer Location

New York

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Reference #43738
Bay Cast Level Tite 72" x 252" T-Slotted Table

SPECIFICATION:
Width ................................. 72"
Length ................................ 252"
Thickness ............................. 7"
T-Slot Center Distance ................ 12"
T-Slot Center Distance from Edge ...... 6"
Number of T-Slots, Longitudinal ....... 10
T-Slot Depth .......................... 2.5"
T-Slot Width, Top ..................... 1"
T-Slot Width, Bottom .................. 1.5"
Approximate Weight .................... 15,600 Lbs

EQUIPPED WITH:
T-Slots
Cast Iron Construction
