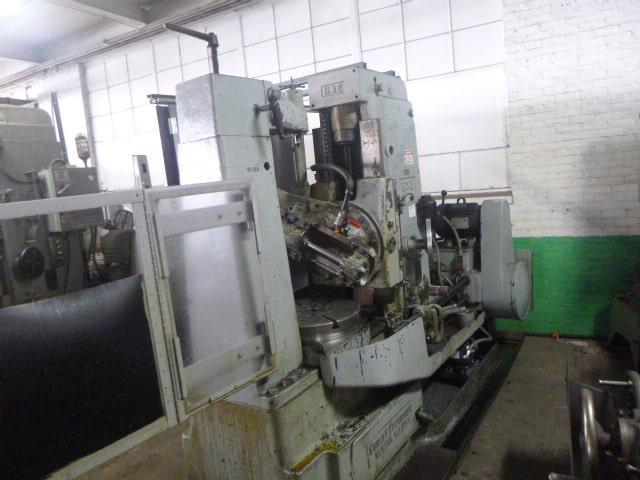

Gould & Eberhardt Model 36H Universal Vertical Gear Hobber

Manufacturer

GOULD & EBERHARDT

Category

Gear Machines

Type

GEAR HOBBERS, VERTICAL, CNC

Stock

GH36HAX

Model

36H

Dealer Location

Illinois

Request a Quote
View Contact Information

Spec Sheet

Rated Pitch in Steel, Maximum - 3 DP
Face Capacity-Spur - 15”
Face Capacity-45° Helical Gear - 12”
Max. Diameter Spur Gear-w/o Support - 36”
Max. Diameter Spur Gear w/Support - 24”
Max Diameter 45° Helical Gear - 36”
Hob Diameter, Max - 7”
Work Table Diameter - 24”
Index Worm Gear Diameter - 24”
Index Range (Per Catalog)-Including Primes - 15-100
Index Range (Per Catalog)-Excluding Primes - 100-400
Hob Speeds (12) - 30-175 RPM
Overall Dimensions (Approx.) - 131" x 82" x 90" Height
Weight (Est.) - 14,000 lbs.


EQUIPPED WITH:
Differential.

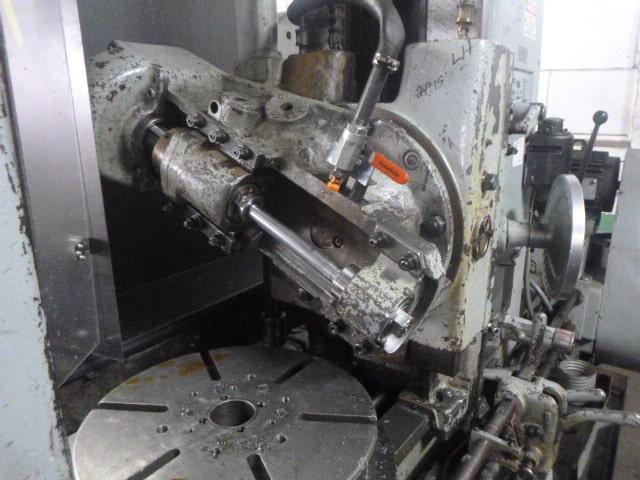

Standard Swivel Hob-Head.
Single Thread Index Worm.
Power Rapid Traverse.
Auto Infeed.
Outboard Support Column w/Tailstock.
Climb & Conventional Hobbing Capability.

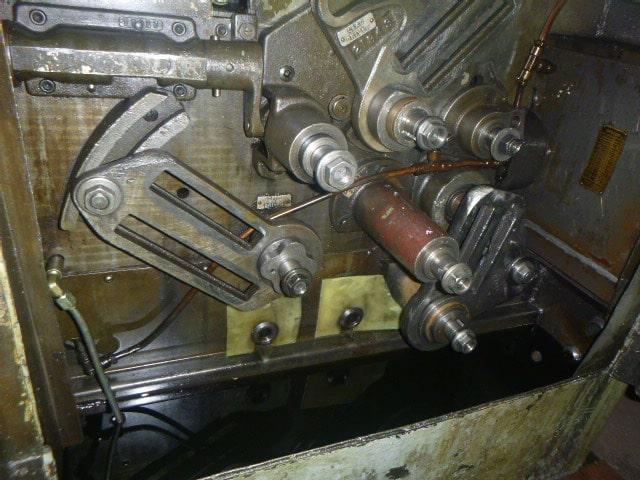

Change Gears in Machine.
Coolant System.
