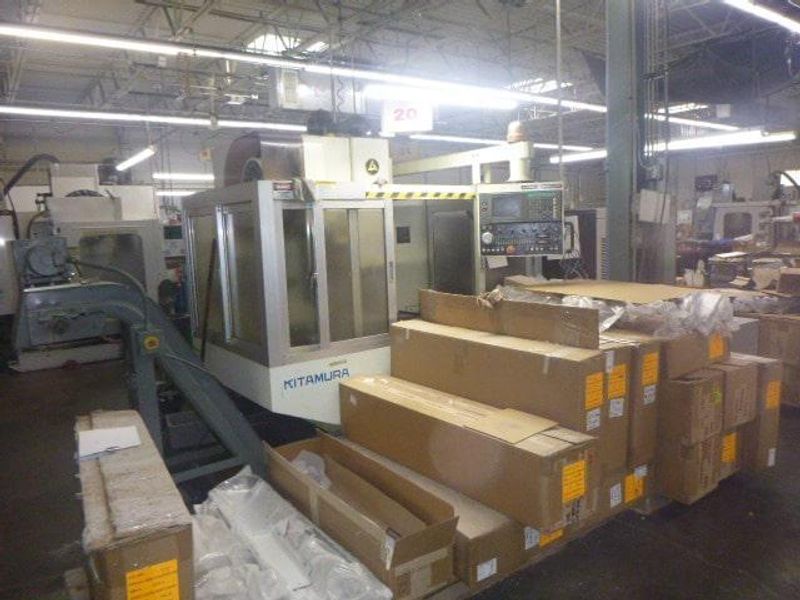

Kitamura MyCenter 3X CNC Vertical Machining Center

Manufacturer

KITAMURA

Category

Machining Centers

Type

MACHINING CENTERS, VERTICAL, CNC, (Multiple Spindle)

Stock

VMCKIT3X

Model

MyCenter 3X

Dealer Location

Illinois

Request a Quote
View Contact Information

Spec Sheet

Table Size - 16” x 35 1/2”
X-axis Travel (Longitudinal) - 30”
Y-axis Travel (Cross) - 18”
Z-axis Travel (Vertical) - 18”
Spindle Nose to Top of Table - 5”-23”
Spindle Speeds - 20-10,000 RPM
Spindle Taper - CAT40
Spindle Drive - 15 HP
ATC - 20-Positions
Approximate Dimensions - 102” x 98” x 104” Height
Approximate Weight - 11,000 lbs.
*Specifications subject to verification* - *Specifications subject to verification*


EQUIPPED WITH:

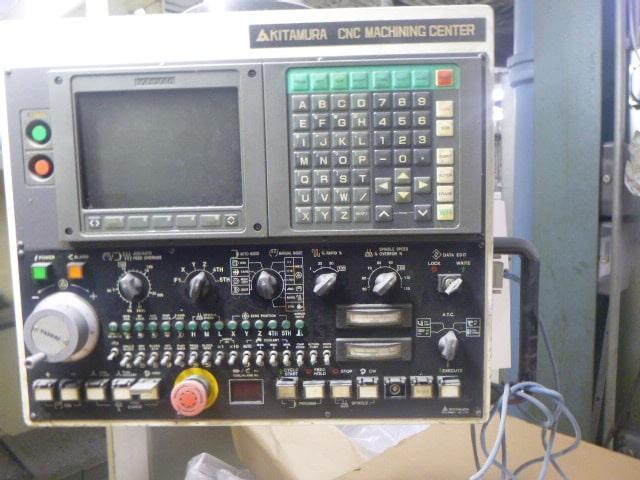

Kitamura Yasnac CNC Control.
RS-232C Port.
20-Position Automatic Tool Changer.
Chiller.

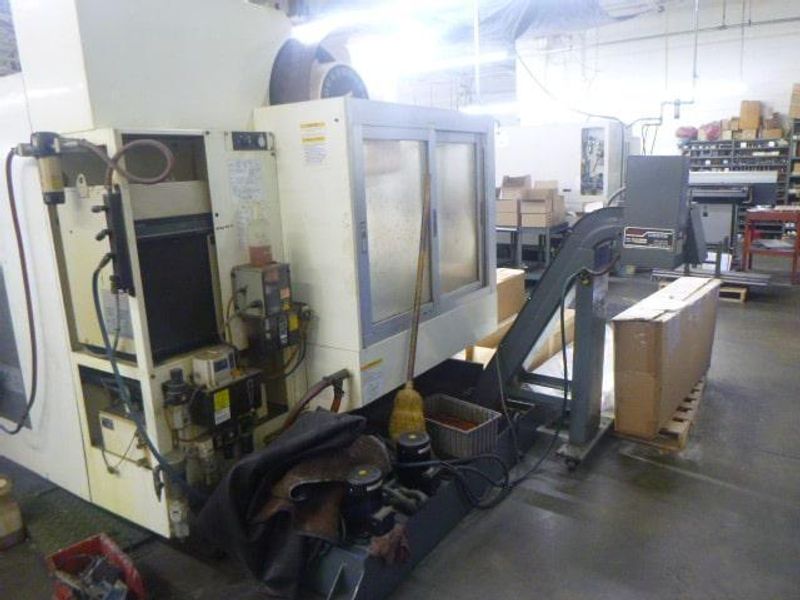

Chip Conveyor.
Coolant System.
Worklight.
Full Enclosure.
Manuals and Drawings.
