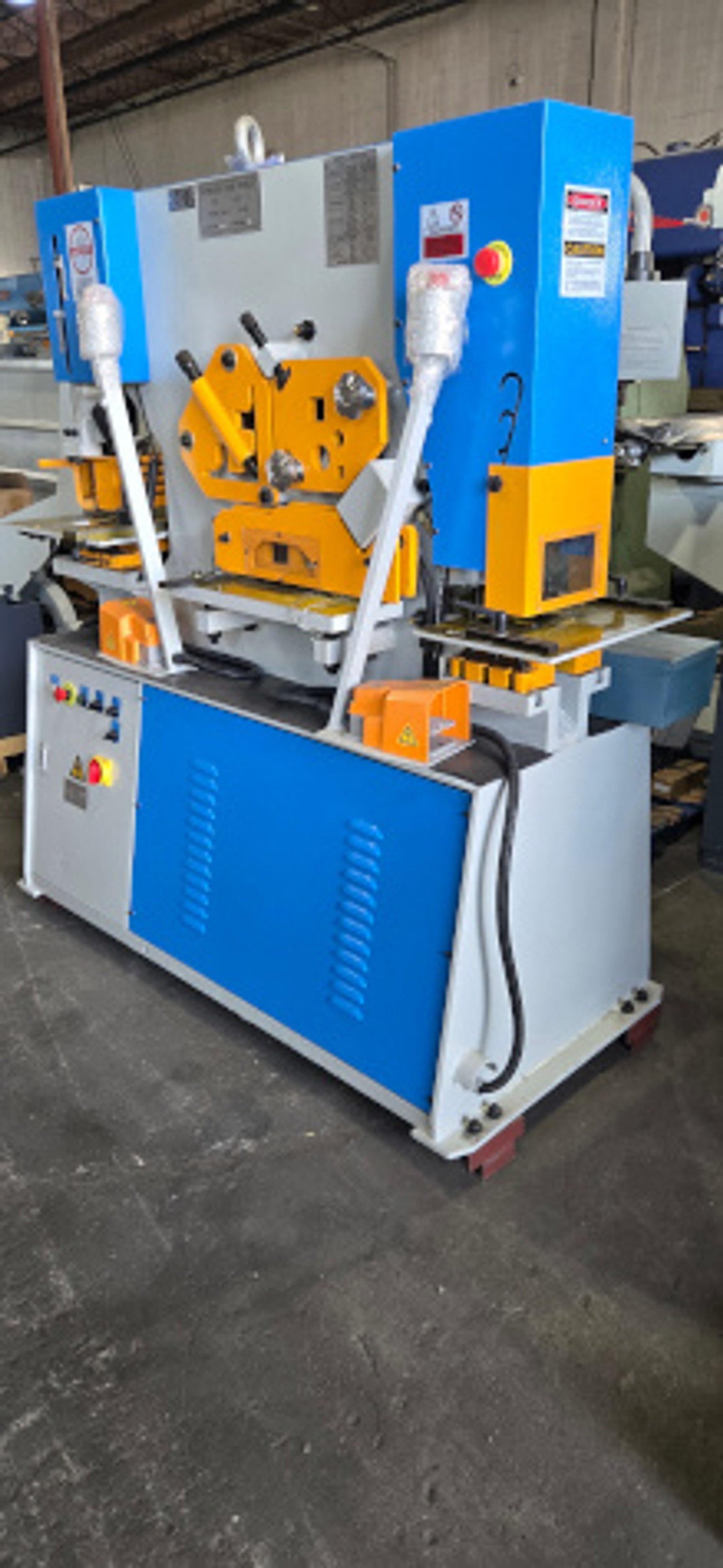

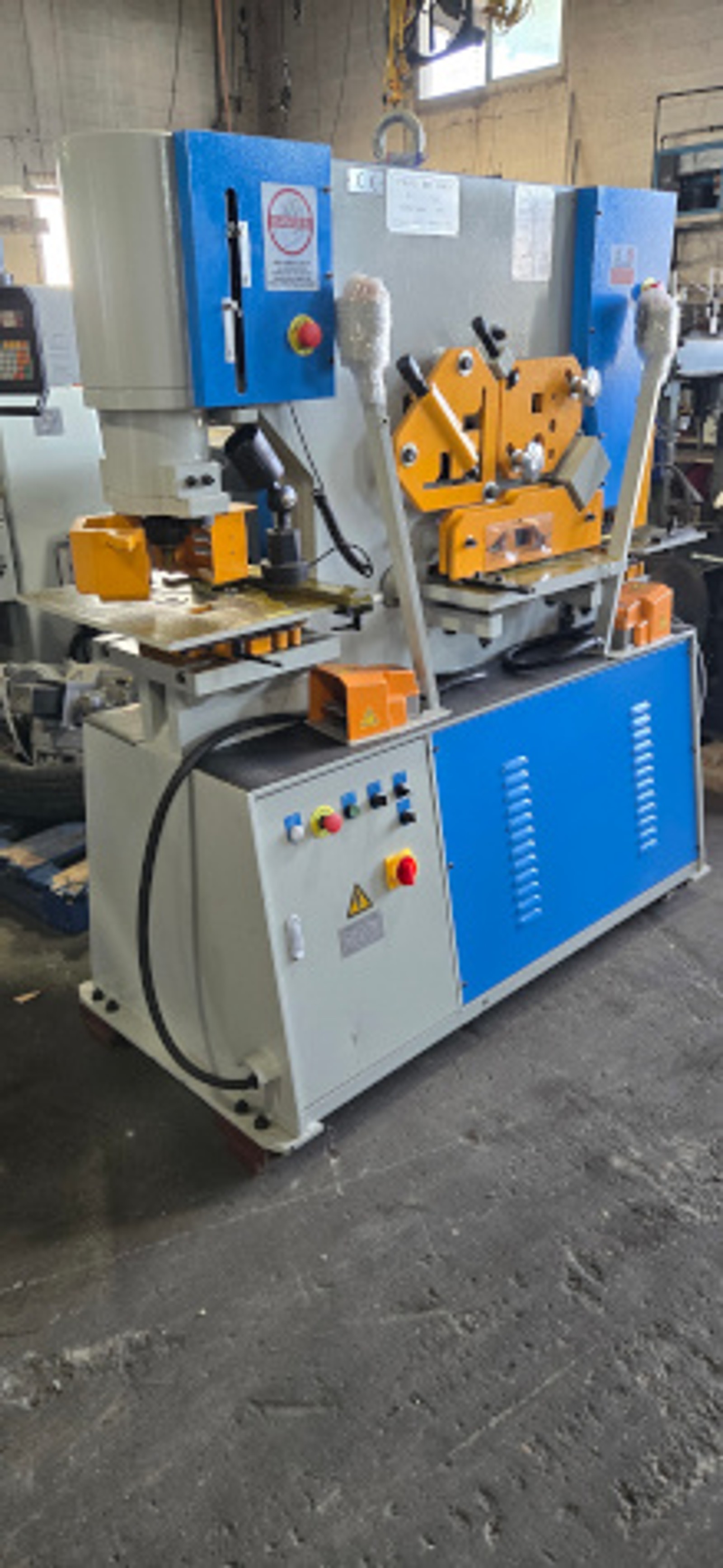

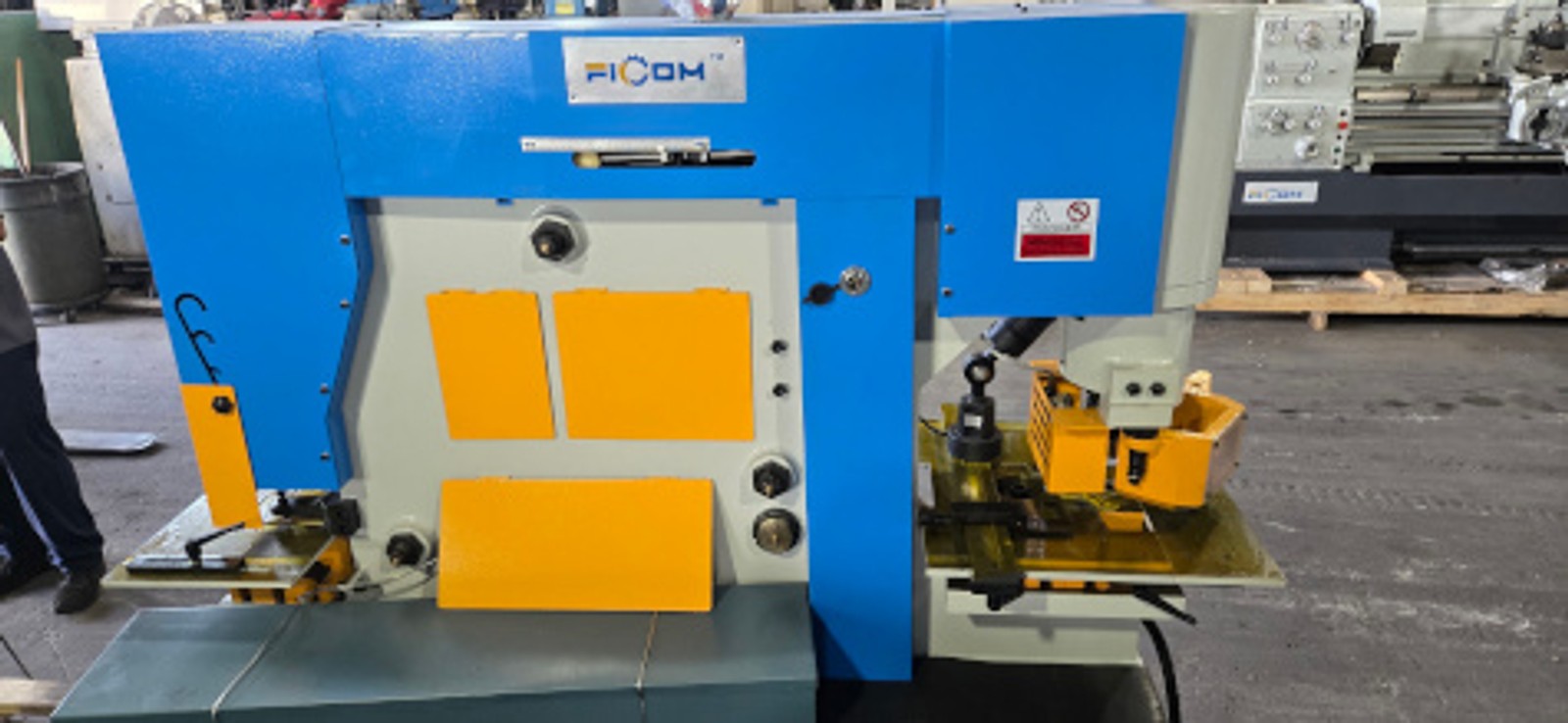

FICOM, #IW-66, 66 ton, dual station, 5.3 HP, 5 stations, NEW Our stock number: 7198

Manufacturer

FICOM

Category

Punches

Type

PUNCH-SHEARS, IRONWORKERS

Stock

7198

Model

I#I66

Dealer Location

Florida

Request a Quote
View Contact Information

Spec Sheet

STANDARD FEATURES:
Dual hydraulic cylinders for two man operation with two moveable foot pedals
Five workstations: punch, plate shear, angle shear, rod shear and notcher
Punch station has large two-piece gauging table with fence
Punch station is quick acting swing away stripper with safety microswitch
Punch station has removable sections for punch leg of channel and/or I-beams
Quick change coupling nut and sleeve for punch
Electric backguage, 3' long, for automatic operation
Electrically interlocked safety guard for notching station
Movable workstation light with magnetic base
Includes 12" press brake attachment
Includes 6 sets of punch and die
Includes spare parts, tools and manaul

SPECIFICATIONS:
PUNCH STATION:
Tonnage 66 tons
Throat 11-13/16" (300mm)
Capacity 1" hole thru 5/8" plate

(30mm thru 16mm)
Stroke 3-1/8" (80mm)

BAR SHEAR:
Cutting capacity--maximum width 5/16" x 15-3/4" (8mm x 400mm)
--maximum thickness 5/8" x 10" (16mm x 250mm)

SECTION CUTTING:
Round--solid 1-3/4" (45mm)
Square--solid 1-9/16" (40mm)
Channel 1/2" (12mm)
Angle 4-59/64" x 1/2" (125mm x 12mm)
