Union BP 150 5.9" Spindle, 40 ATCX-393", Y-118", Z-31.5", W-29.5" Column, 2,800 RPM, 67 HP, Heidenhain 430, 2000 #43883

Manufacturer

UNION

Category

Boring Mills

Type

BORING MILLS, HORIZONTAL, FLOOR TYPE, CNC

Stock

43883

Model

PC 150

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43883

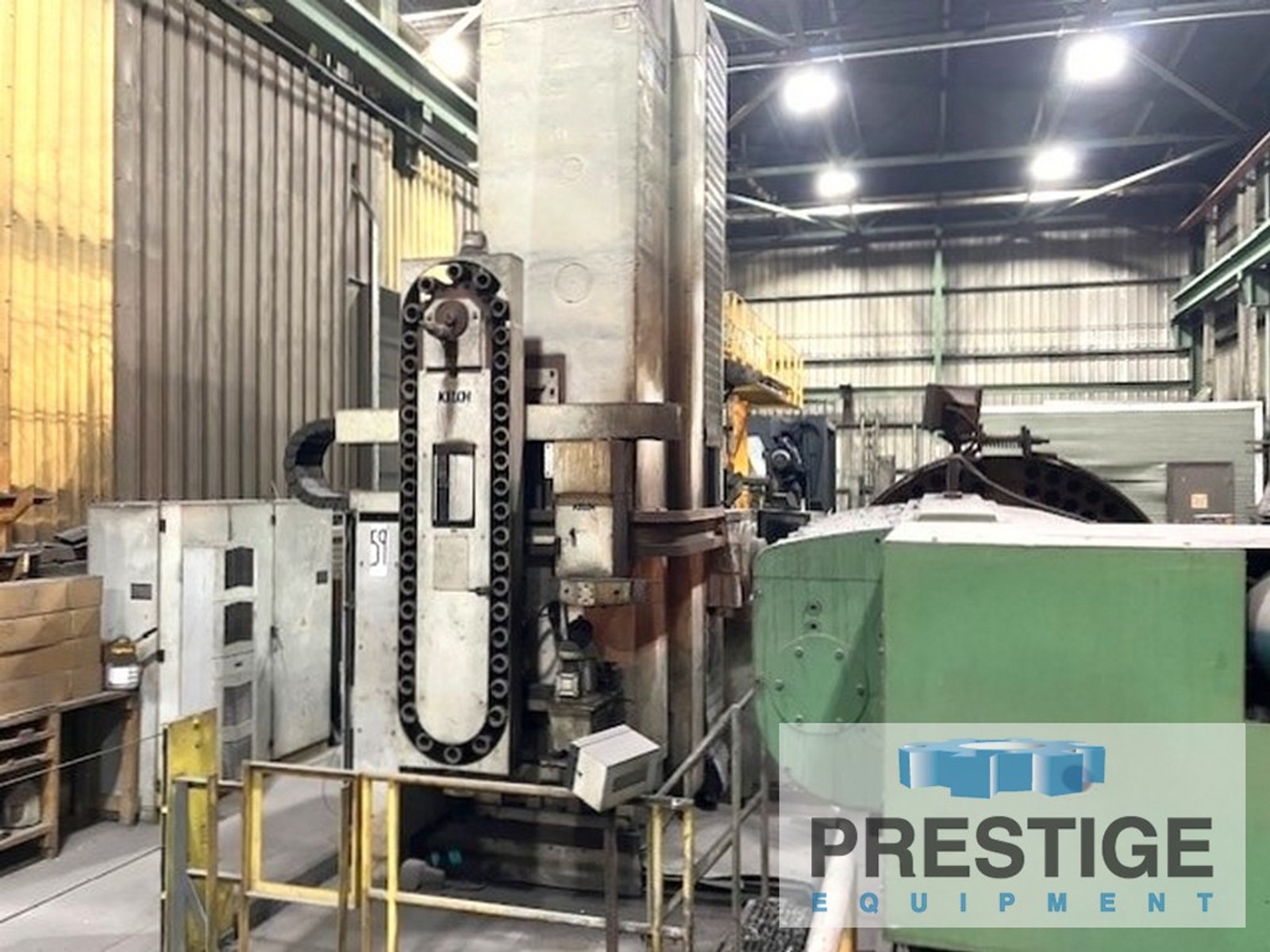

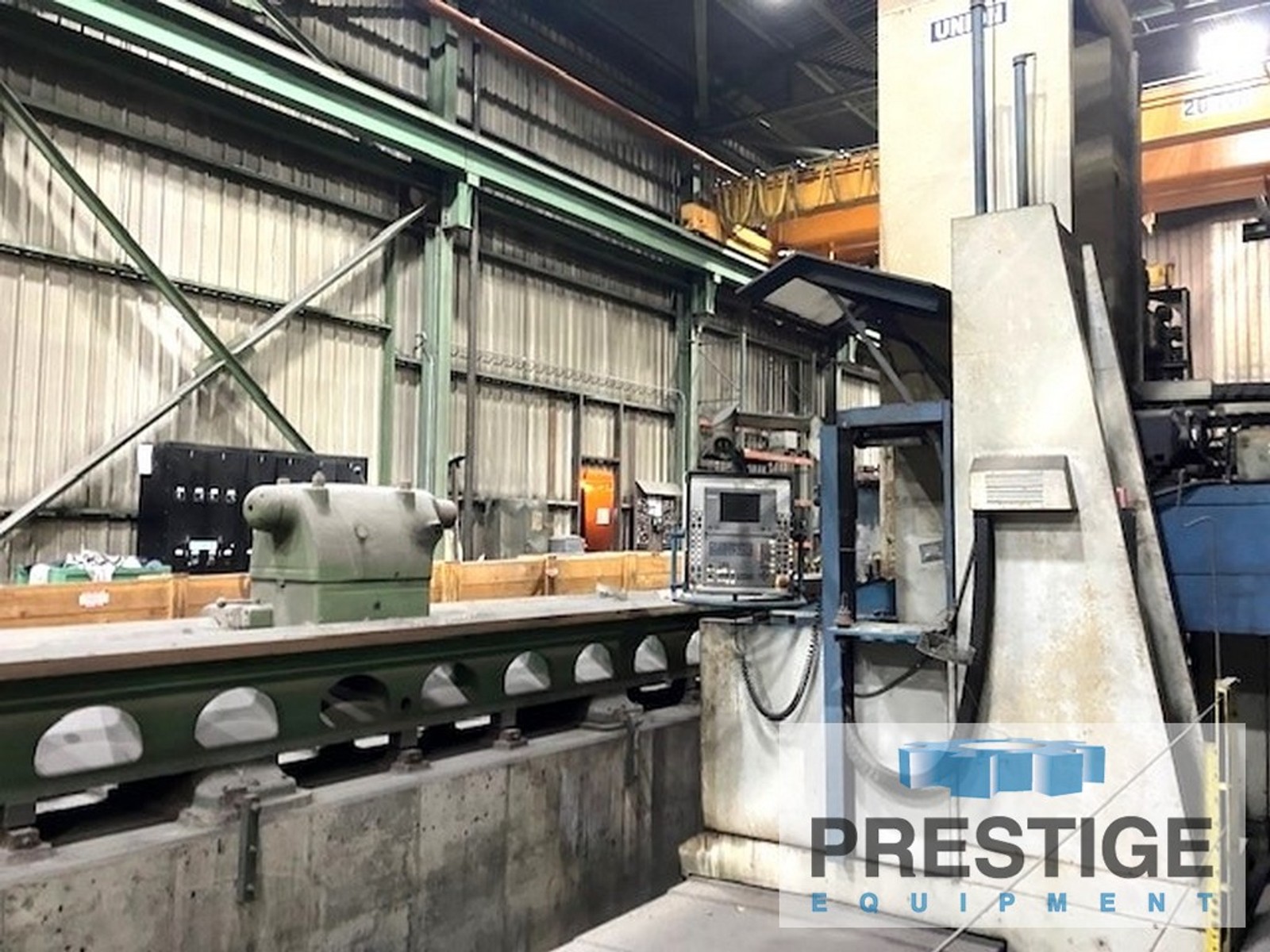

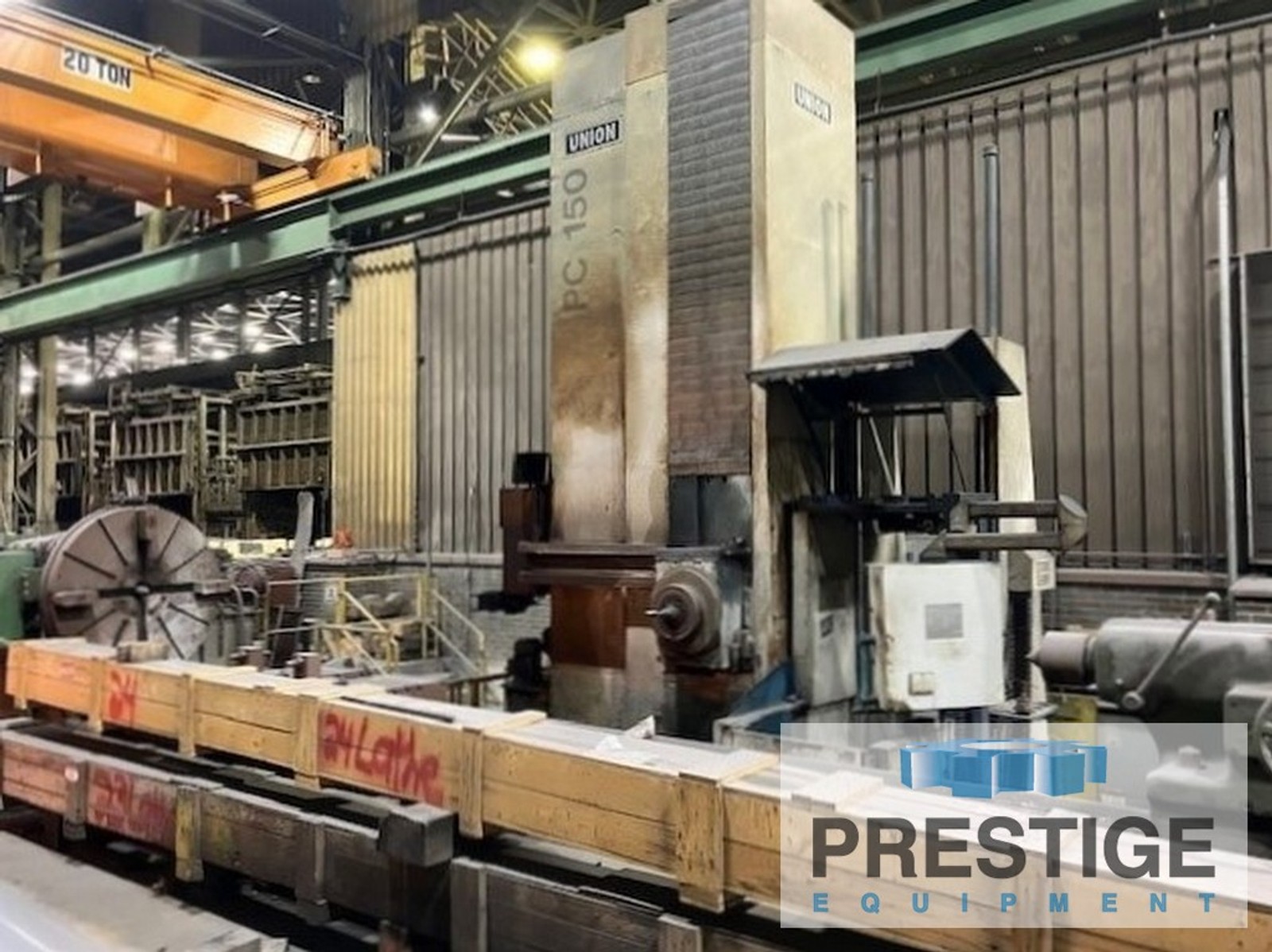

Union PC 150 5.9" Travelling Column CNC Horizontal Boring Mill

FEATURES:
Heidenhain iTNC 430 CNC Control
40 Station Automatic Toolchanger
Infeeding Column Travel

SPECIFICATIONS:
Spindle Diameter ...................... 5.90"
Taper In Spindle ...................... #50 ISO
Vertical Head Travel, Y-Axis .......... 137.79"
Column Infeed Travel, X-Axis .......... 393.37"
Spindle Travel, Z-Axis ................ 31.5"
Column Infeed, W-Axis ................. 29.5"
Spindle Speeds, Inf. Variable ......... 5-2800 RPM
Speed Ranges .......................... 2
Feeds: X,Y,Z,W Axes ................... 0-236.22 IPM
Maximum Feed Power X,Z,W Axes ......... 25 KN
Maximum Feed Power Y Axis ............. 16-25 KN
Feed Rate X,Y,Z,W Axes ................ 0-236.22"
Rapid Feed Rate X,Y,Z,W Axes .......... 590.55 IPM
Main Cutting Force .................... 30 KN
Maximum Spindle Torque ................ 2.500 Nm
Spindle Motor ......................... 50 HP/ 67 HP

EQUIPPED WITH:

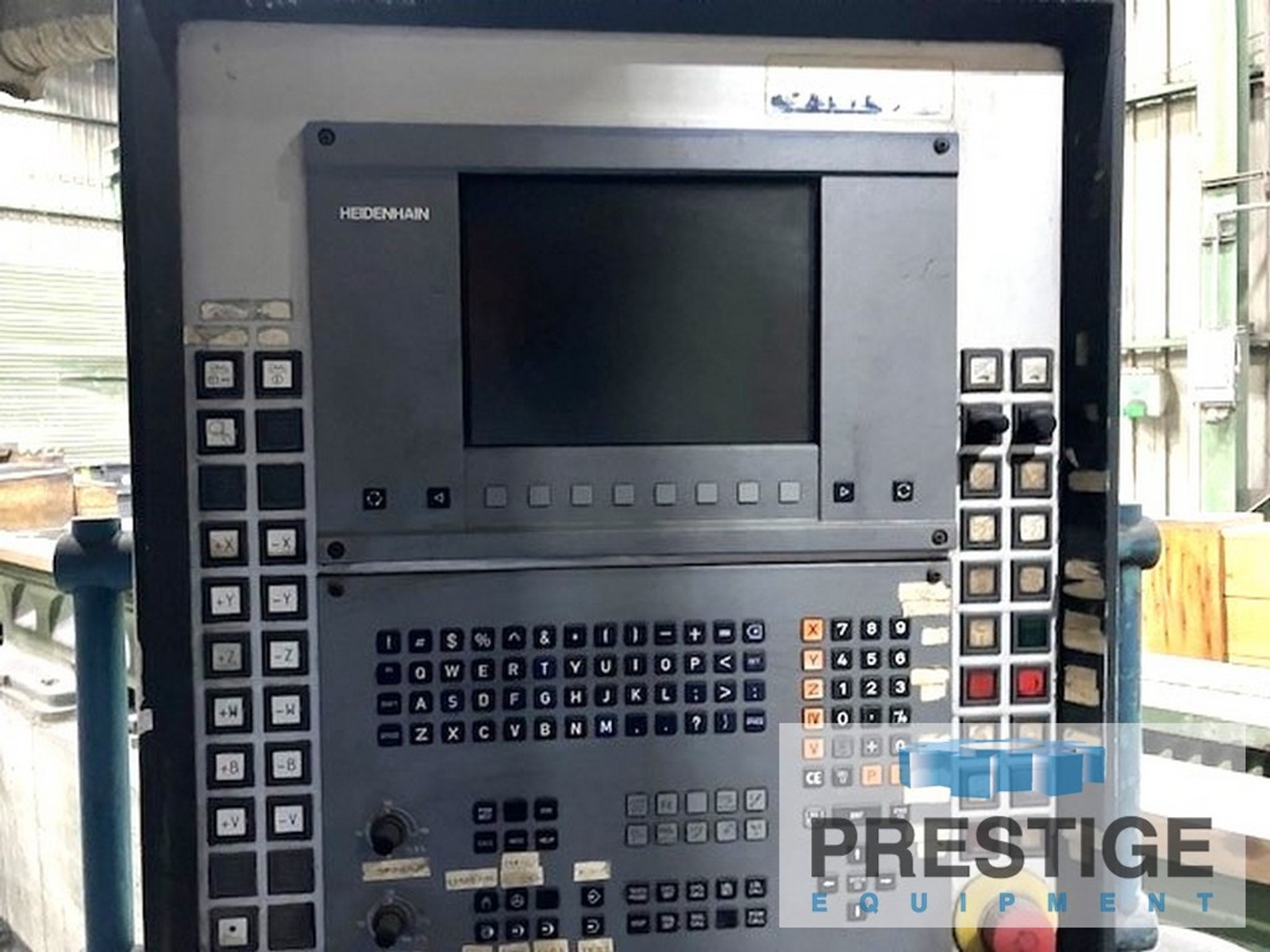

HEIDENHAIN iTNC 430 CNC Control
Remote Pendant
Coolant Thru Spindle 3 BAR
Elevating Operators Platform
Telescoping Steel Way Covers On Bedways
Steel Way Covers on Column
Full Length Chip Conveyor
