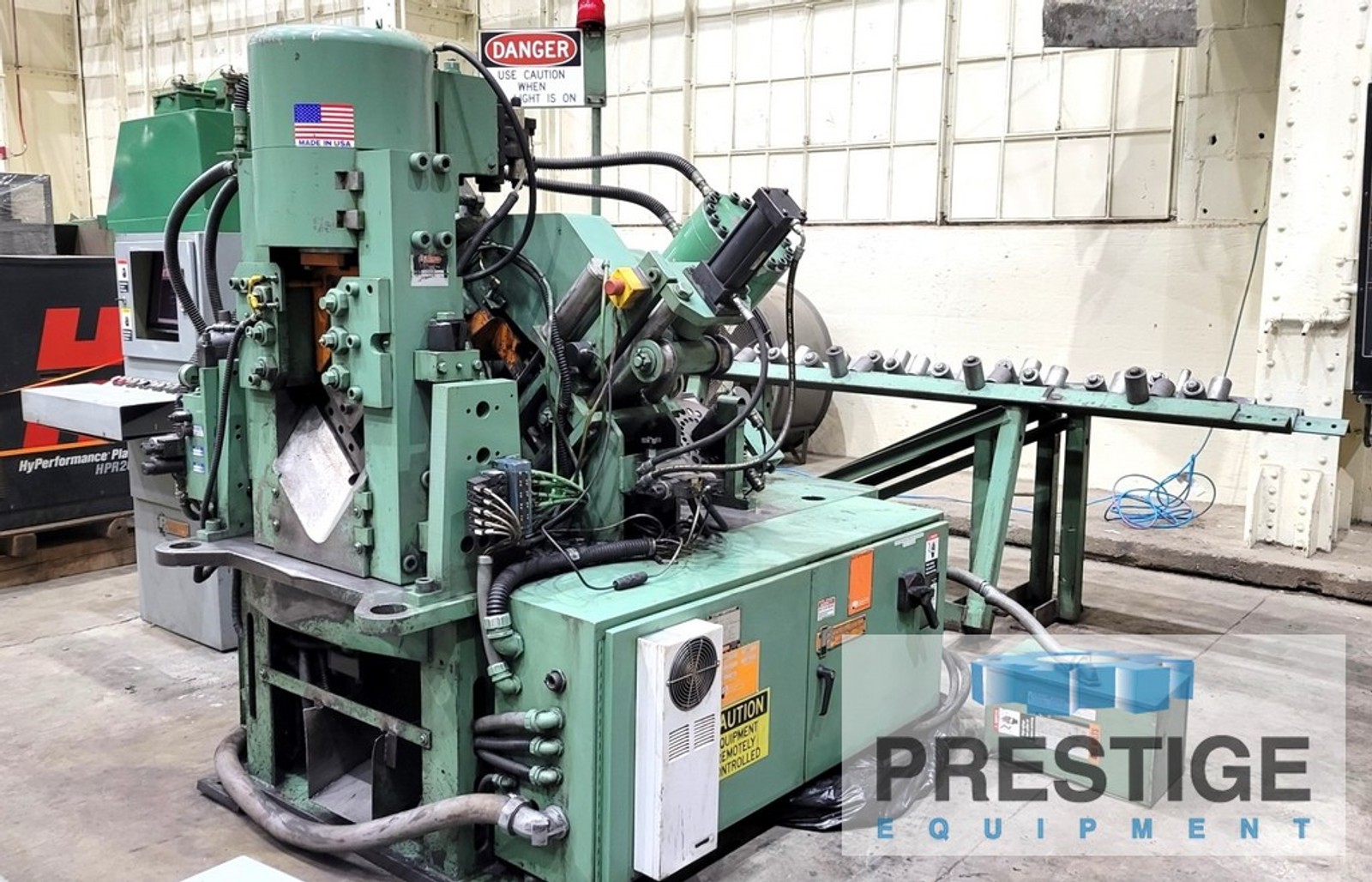

Peddinghaus AFPS 623L 6" x 6" x 1/2" CNC Anglemaster Punch & Shear Line

FEATURES:
250 Ton Single Cut Shear
Pinch Drive Feed, Pulls Material Through Machine
40'In-Feed Roller Conveyor

CAPACITY:
Punch Tonnage Capacity ............... 80 Tons
Shear Tonnage Capacity ............... 250 Tons
Max. Angle Size ...................... 6" x 6" x 1/2"
Min. Angle Size ...................... 1-1/2" x 1-1/2" x 1/8"
Flat Maximum ......................... 6" x 5/8"
Flat Minimum ......................... 2" x 1/4"
Max. Flat Bar (Shear & Punch) ........ 6" x 1/2"
Throat ............................... 5-1/4"
Stroke ............................... 1-3/4"
Max. Hole Size ....................... 1-1/4"
Material Feed Rate ................... 150 FPM

EQUIPPED WITH:

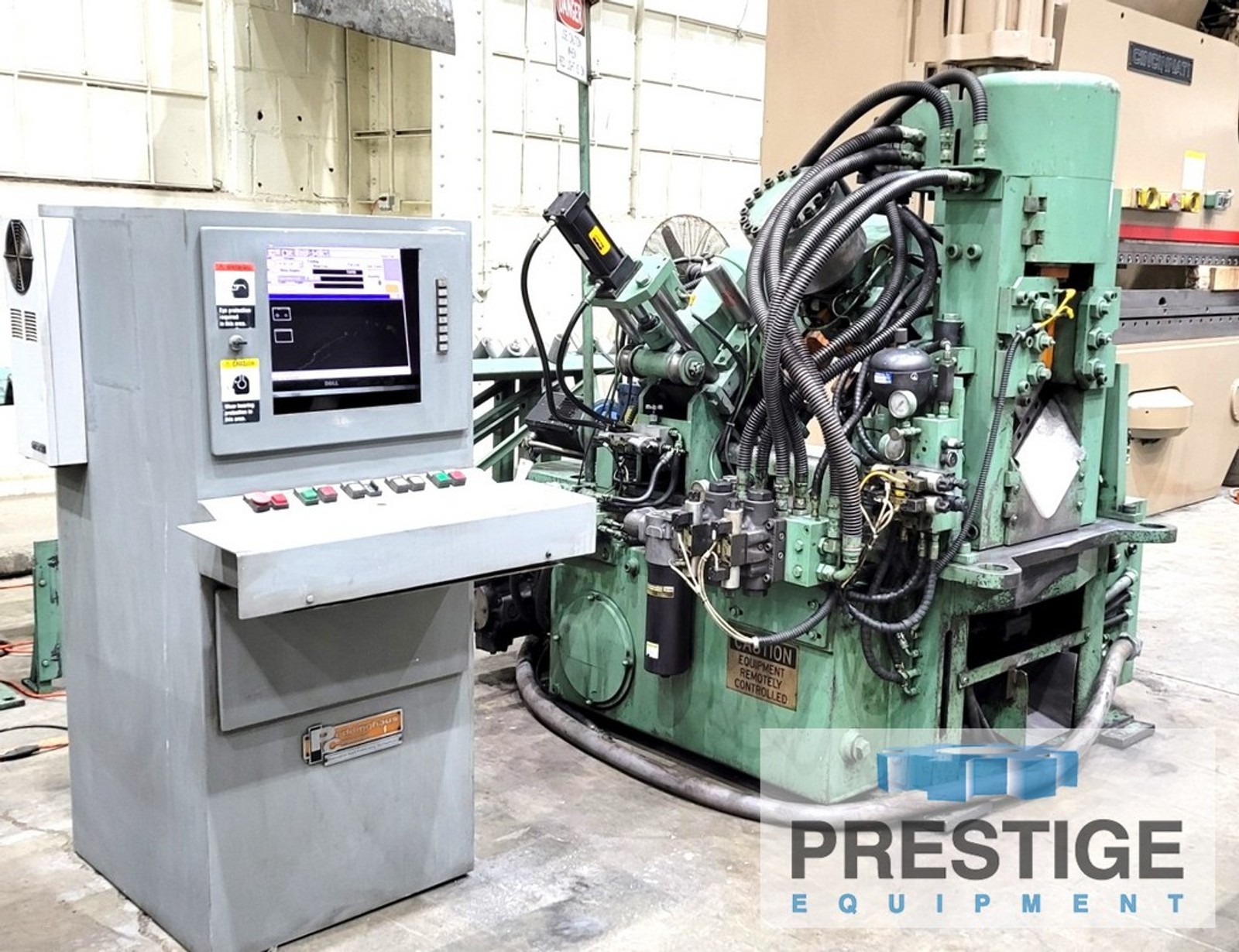

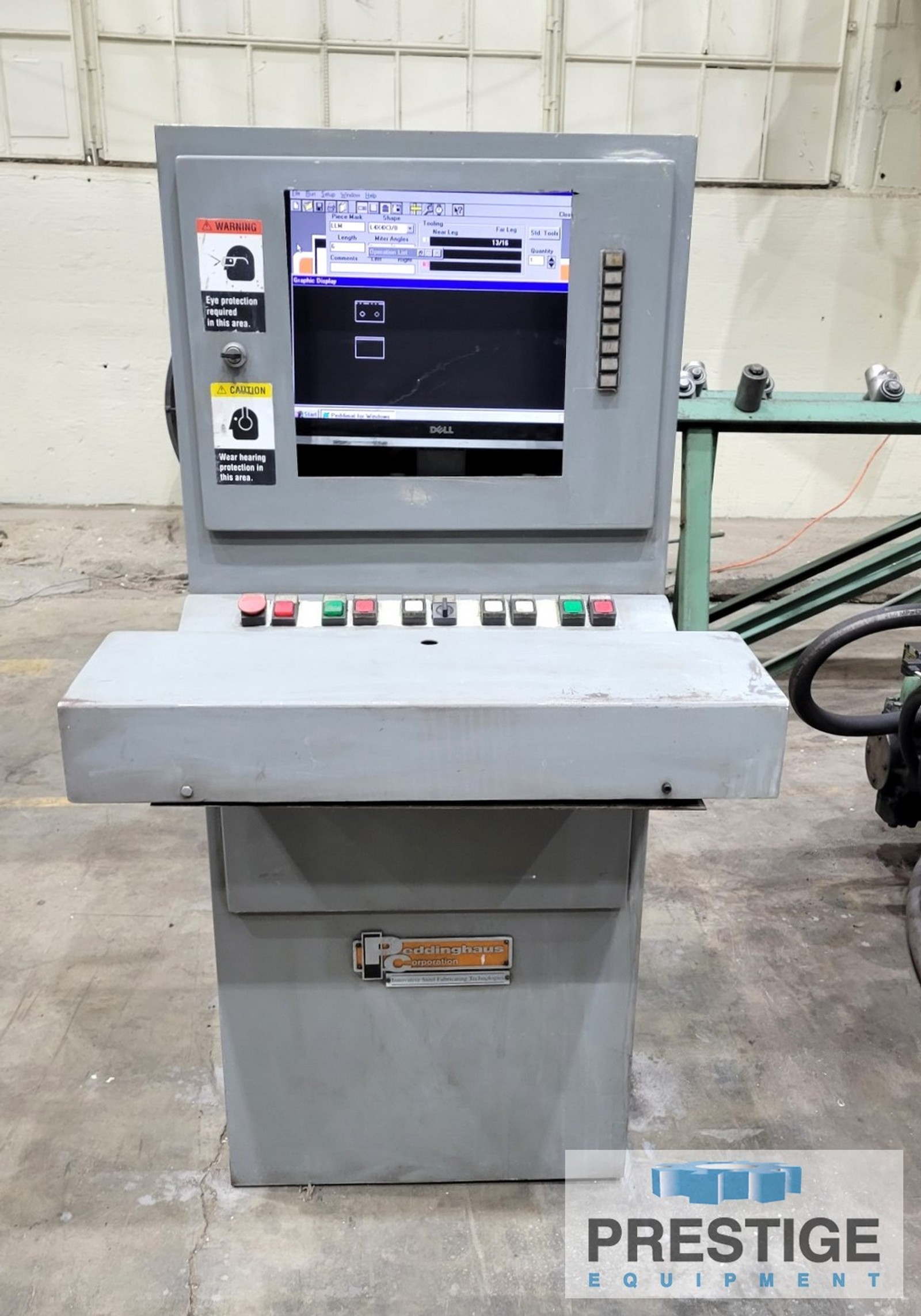

Siemens PC Based CNC Control
Pinch Drive Feed, Pulls Material Through Machine
250 Ton Single Cut Shear

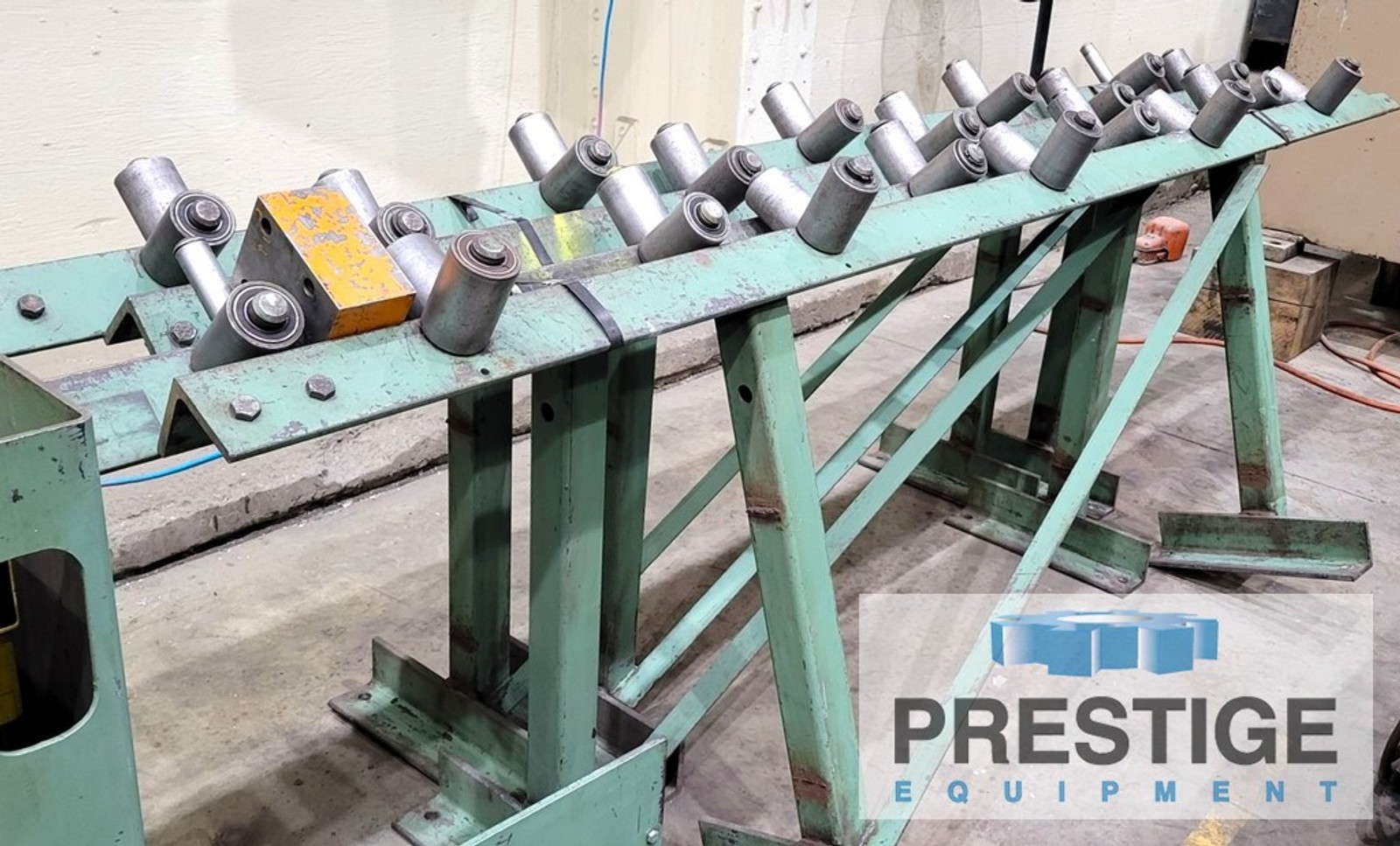

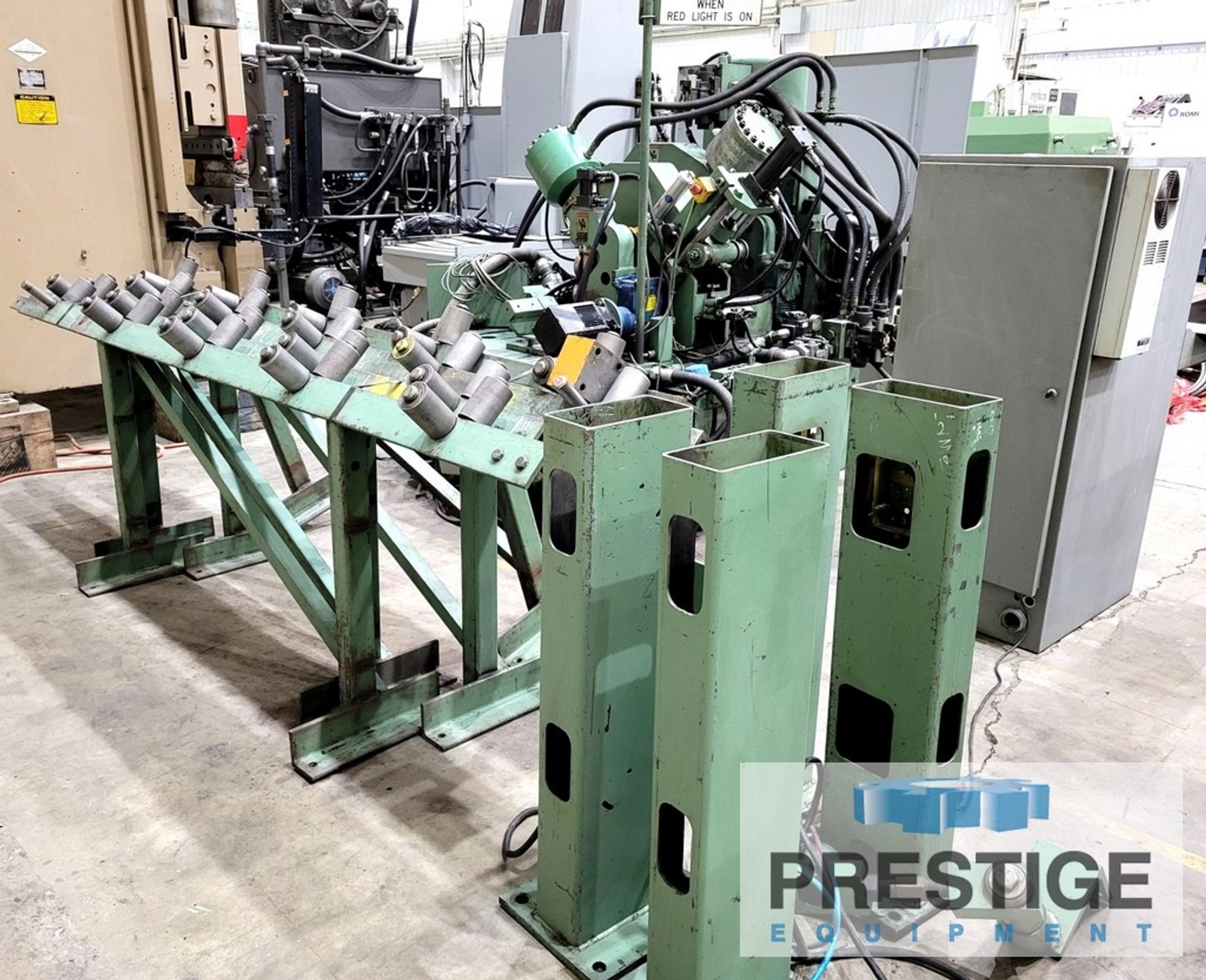

40' In-Feed Roller Conveyor
