15,000 lbs. x 18" Wide Coe Press Equipment Coil Reel and Coe Powered Straightener For Sale

15,000 lbs. x 18" Wide Coe Press Equipment Coil Reel and Coe Powered Straightener For Sale

Manufacturer

COE

Spec Sheet

Coil Weight - 15000 pounds
Coil Width - 18 inches
Coil Thickness - .110 inches

Coe Press Equipment Coil Reel and Powered Straightener Combination
Material Specifications rated at MCRS - 50,000 PSI Yield
15,000 lbs. Maximum Coil Weight
18" Maximum Coil Width
.110" x 18" Maximum Coil Thickness at Full Width
.020" x 18" Minimum Coil Thickness at Full Width
.125" x 10" Coil Thickness
19.25" to 24.75" Mandrel Expansion Range
72" Maximum Coil O.D.

Coe Press Equipment Coil Reel and Straightener Combination Equipment and Features:

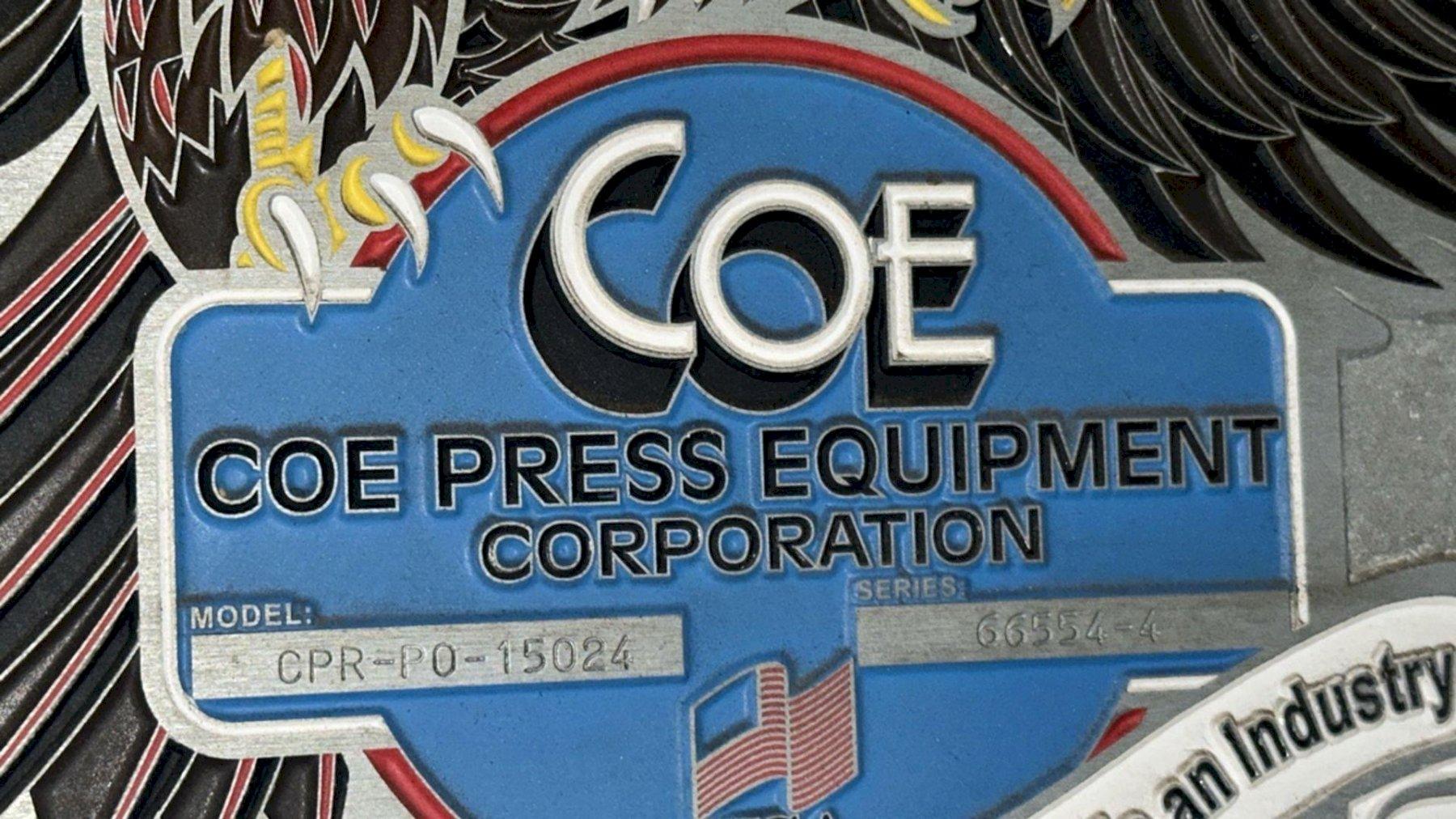

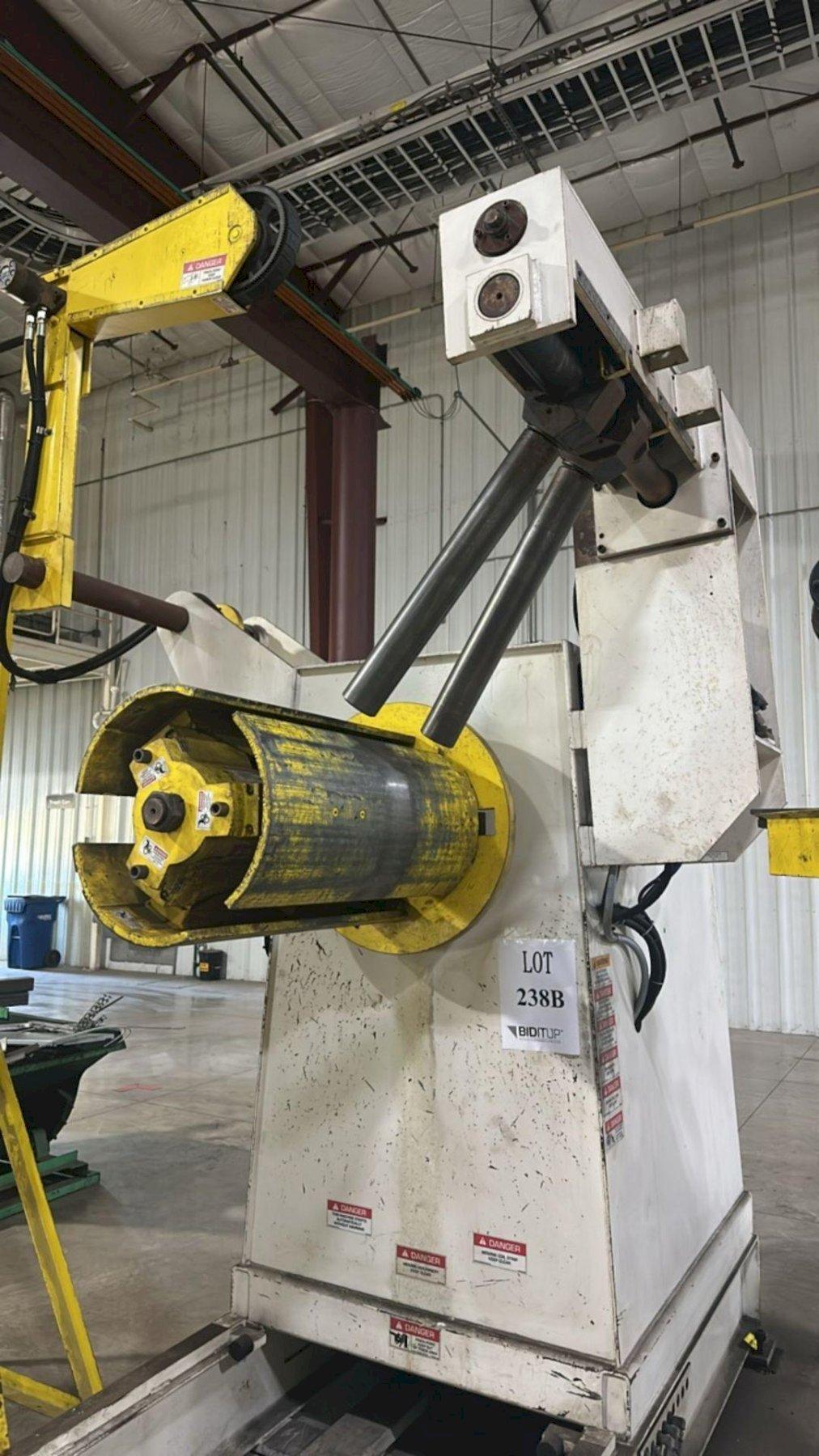

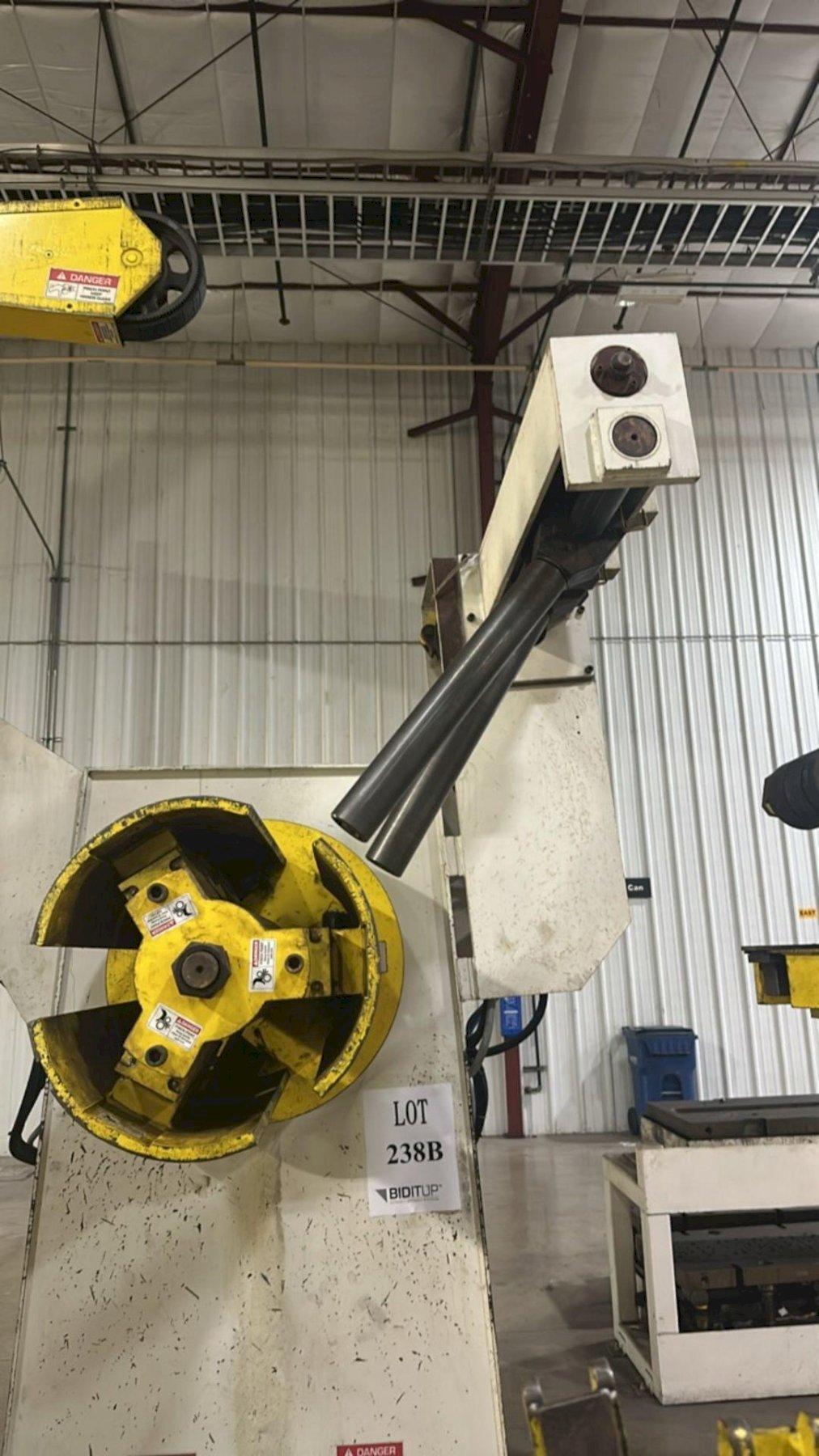

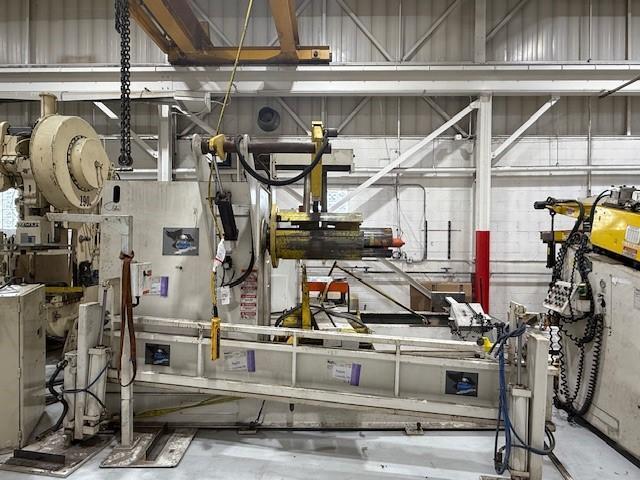

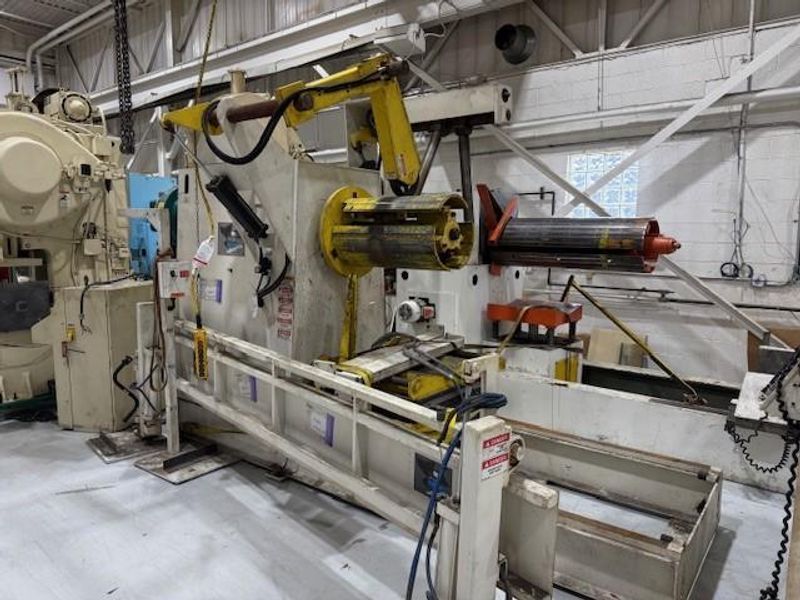

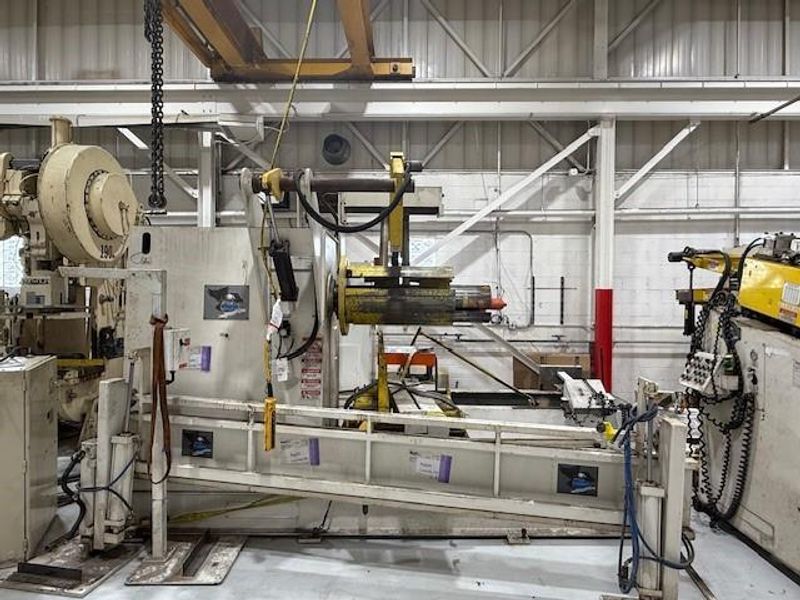

Coe Press Equipment Pull Off Coil Reel with Coil Car Model #: CPR-PO-15024 sn/ 66554-4
Three Pad Mandrel Construction
Full Radius Mandrel Pads
Hydraulic Mandrel Expansion
Hydraulic Thread Drive
Air Disc Drag Brake to Prevent Coil Over Run

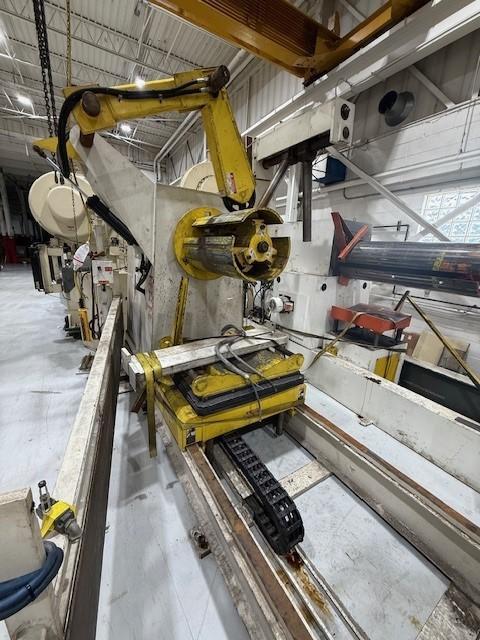

Hydraulic Traveling Coil Car

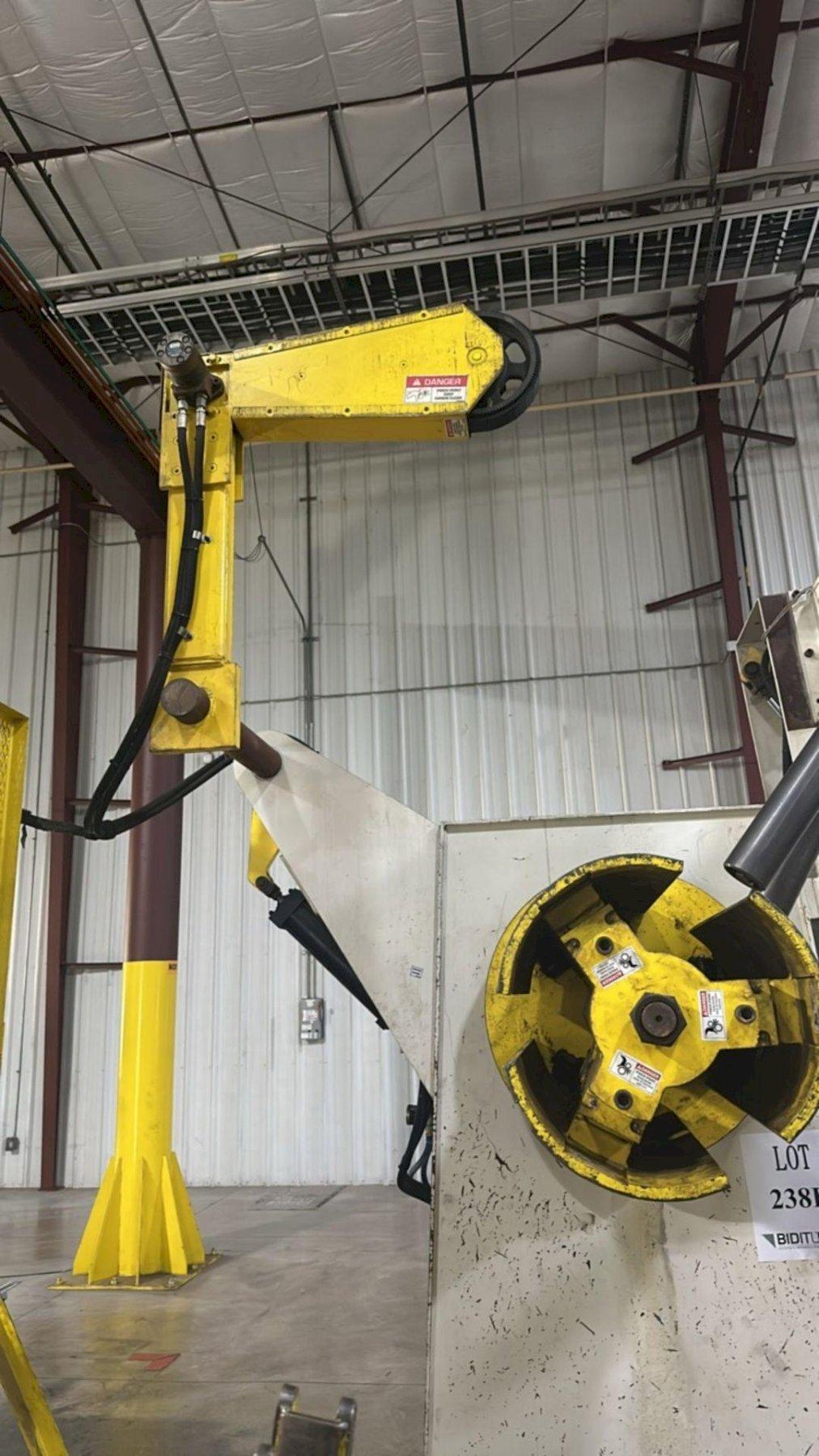

LD Hold Down Arm with Motorized End Wheel
Automatic Drag Brake Compensation

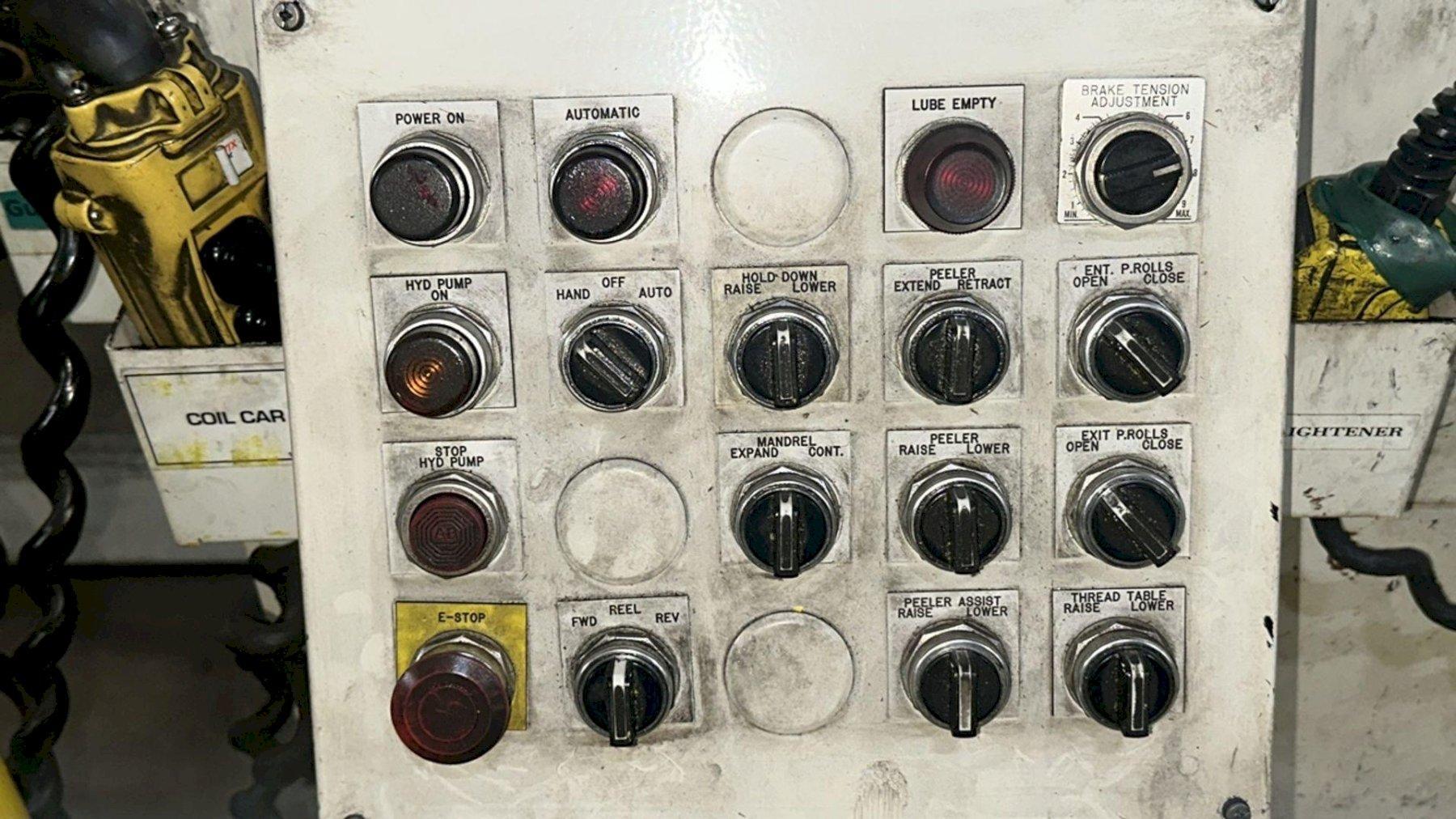

Centralized Controls for Straightener and Coil Reel

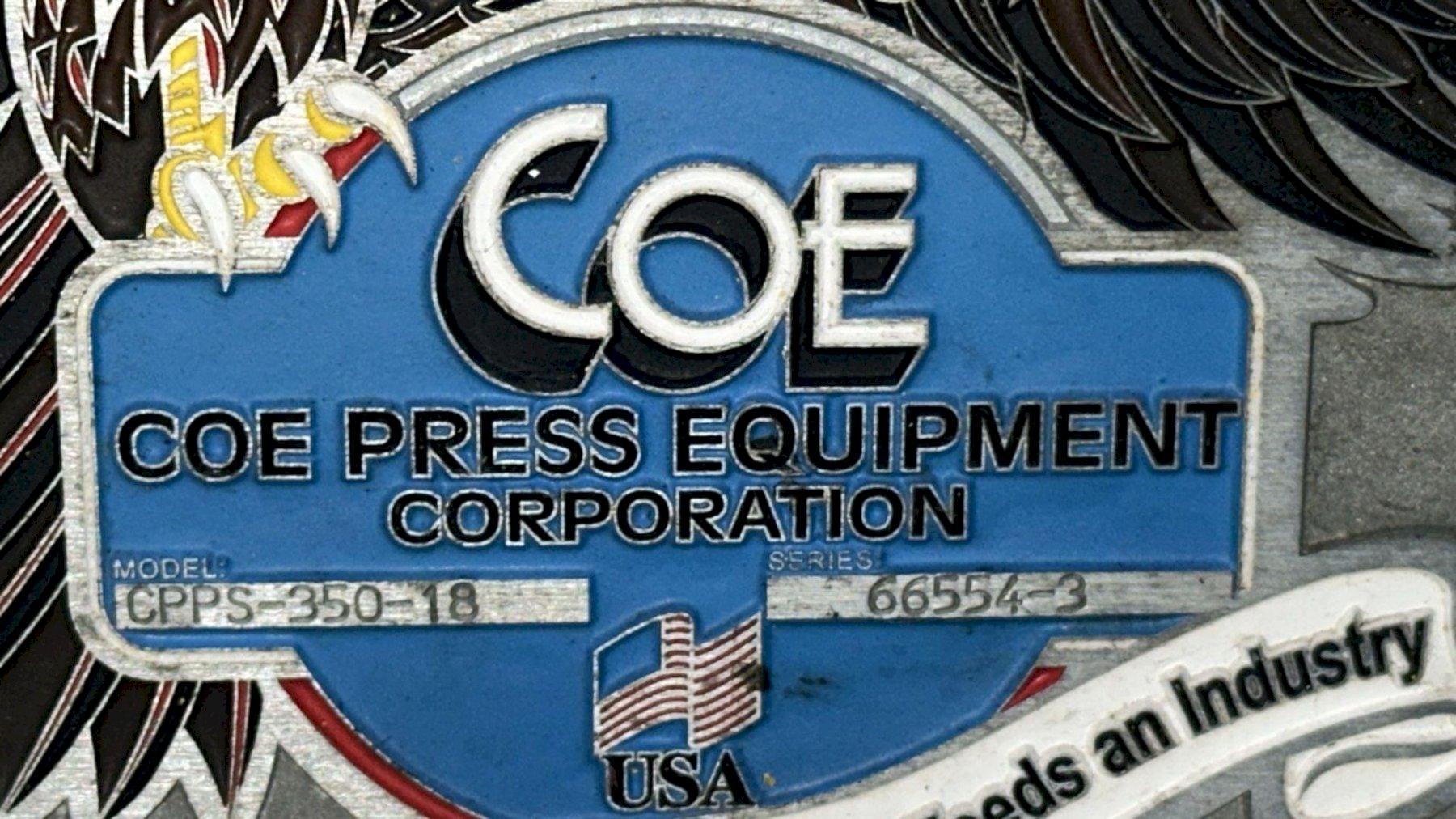

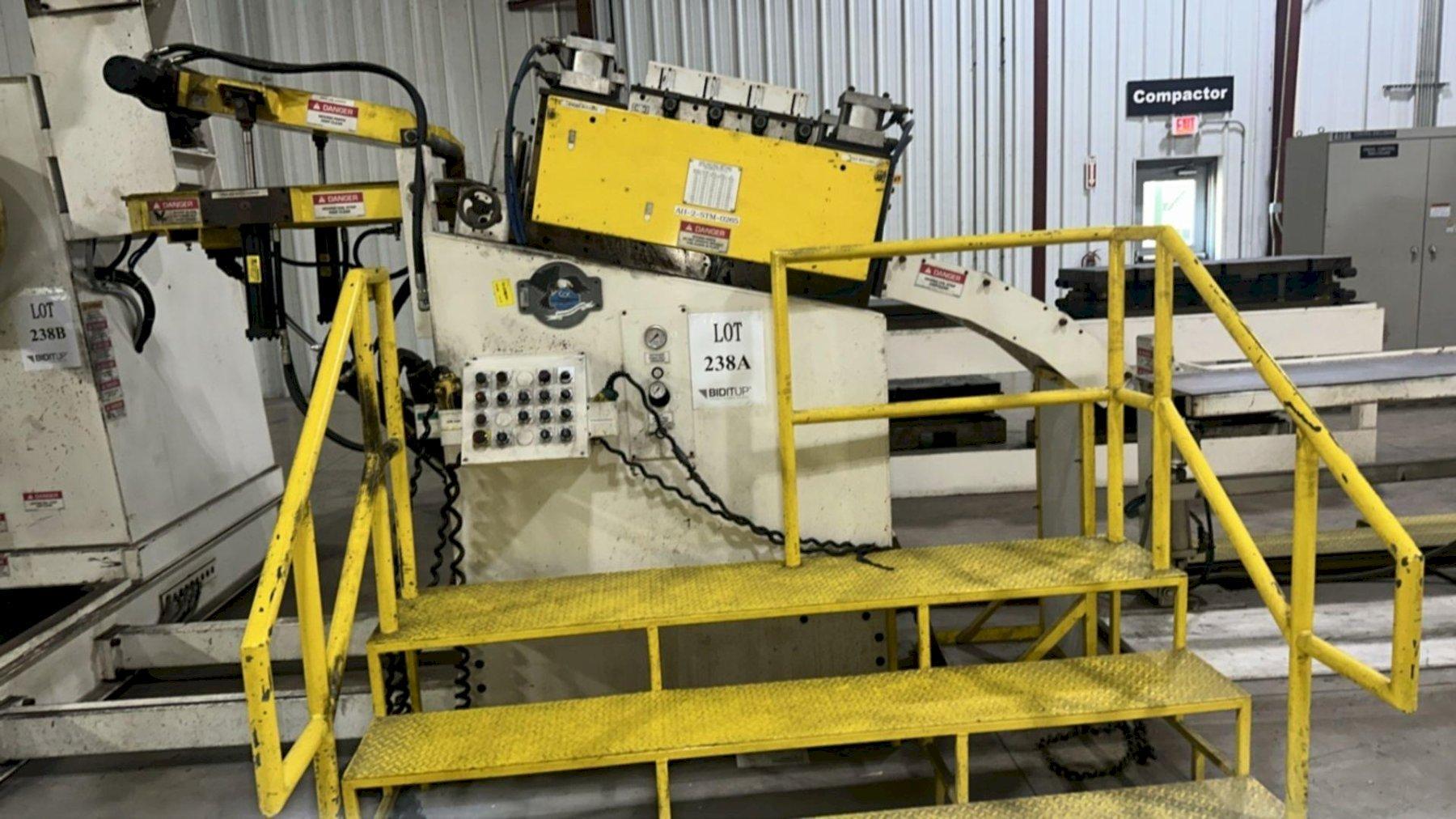

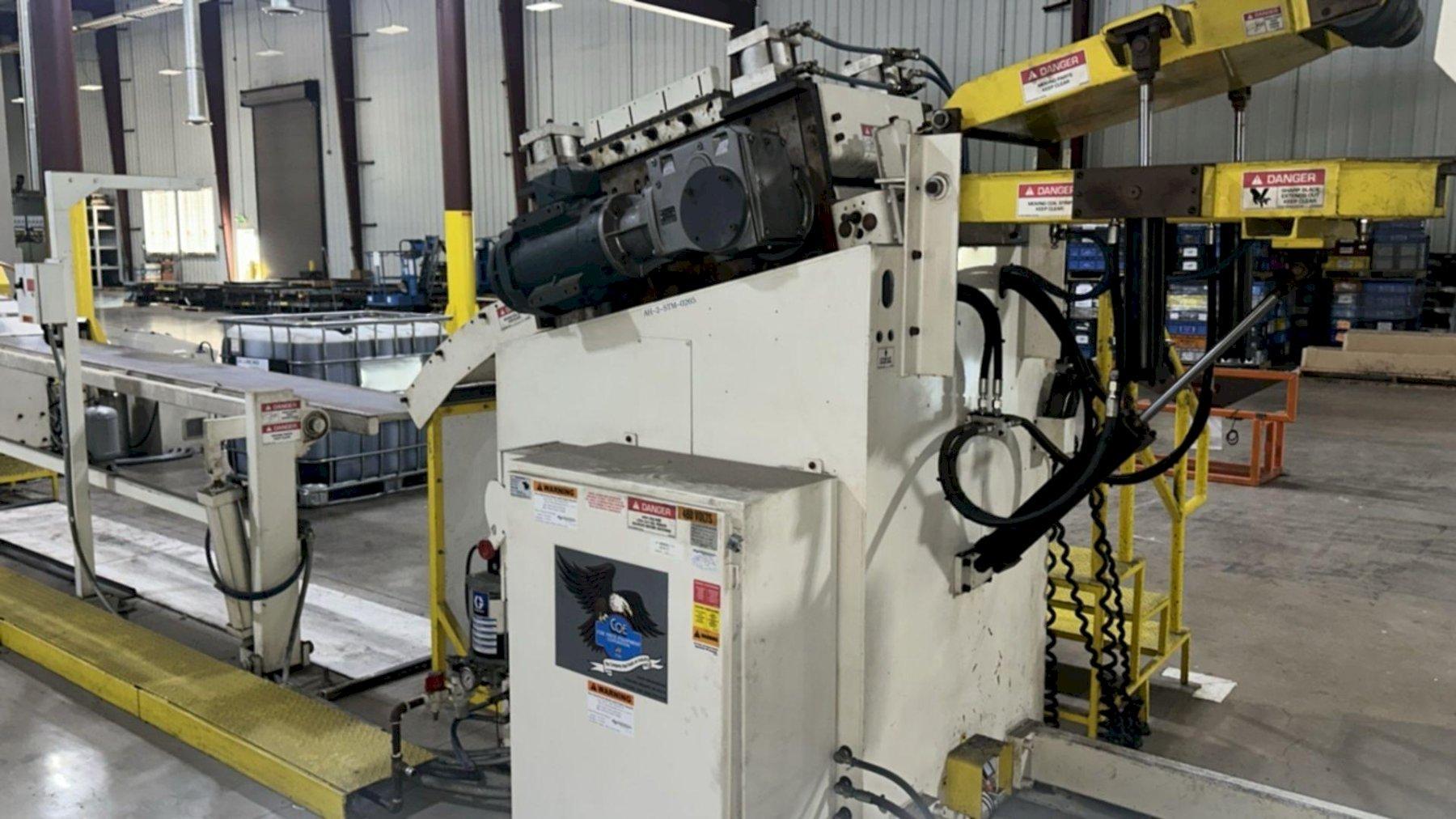

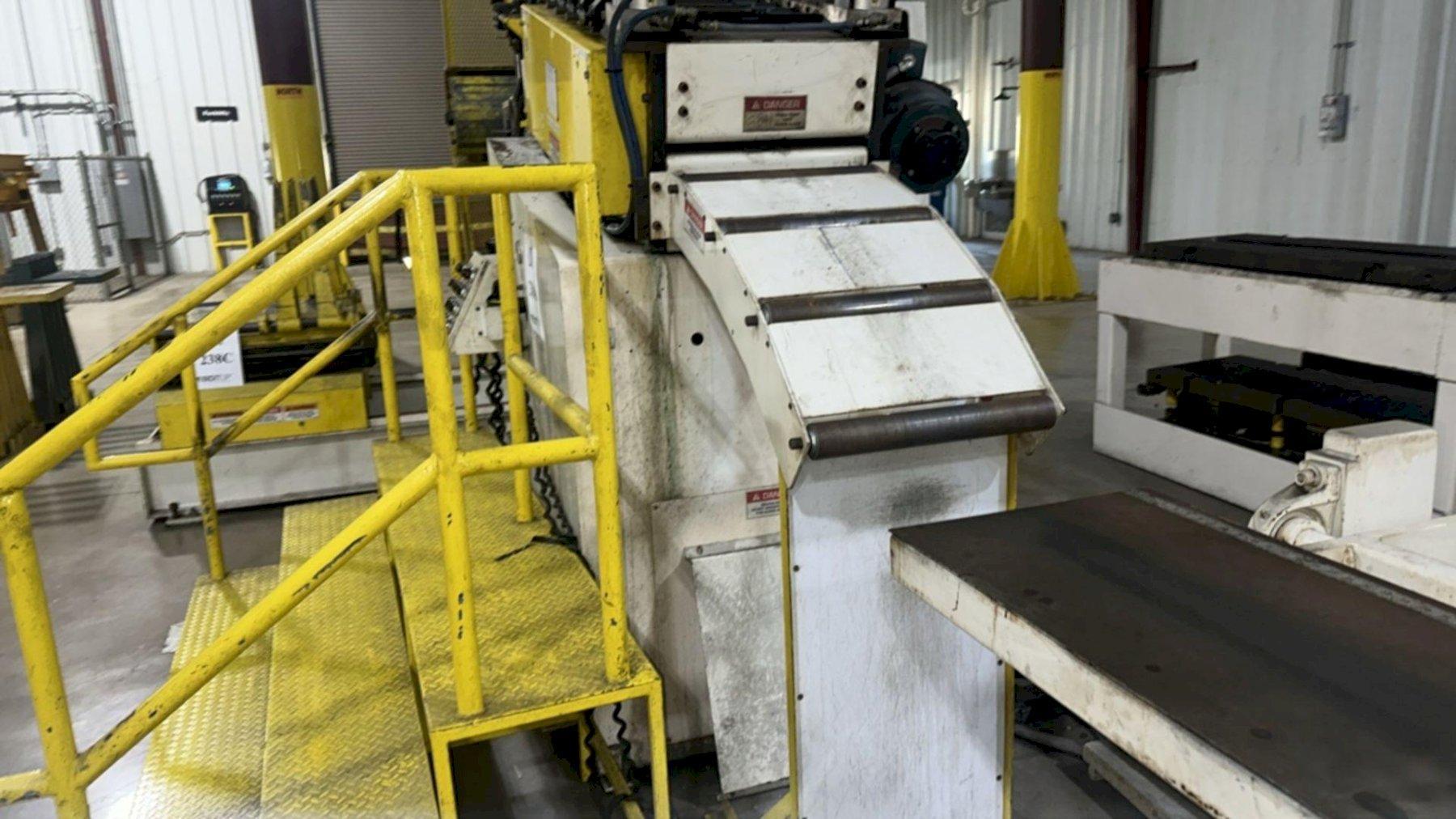

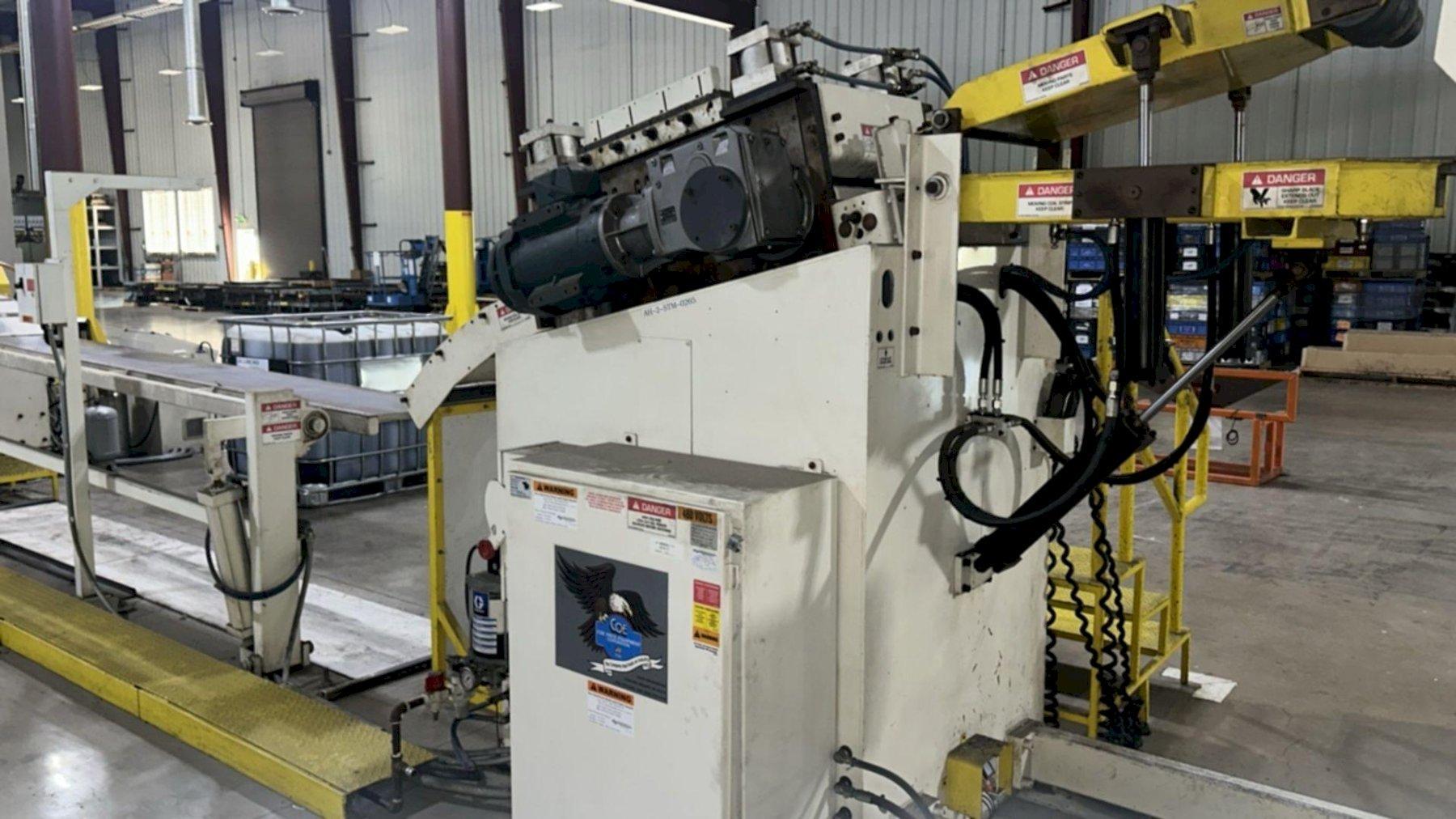

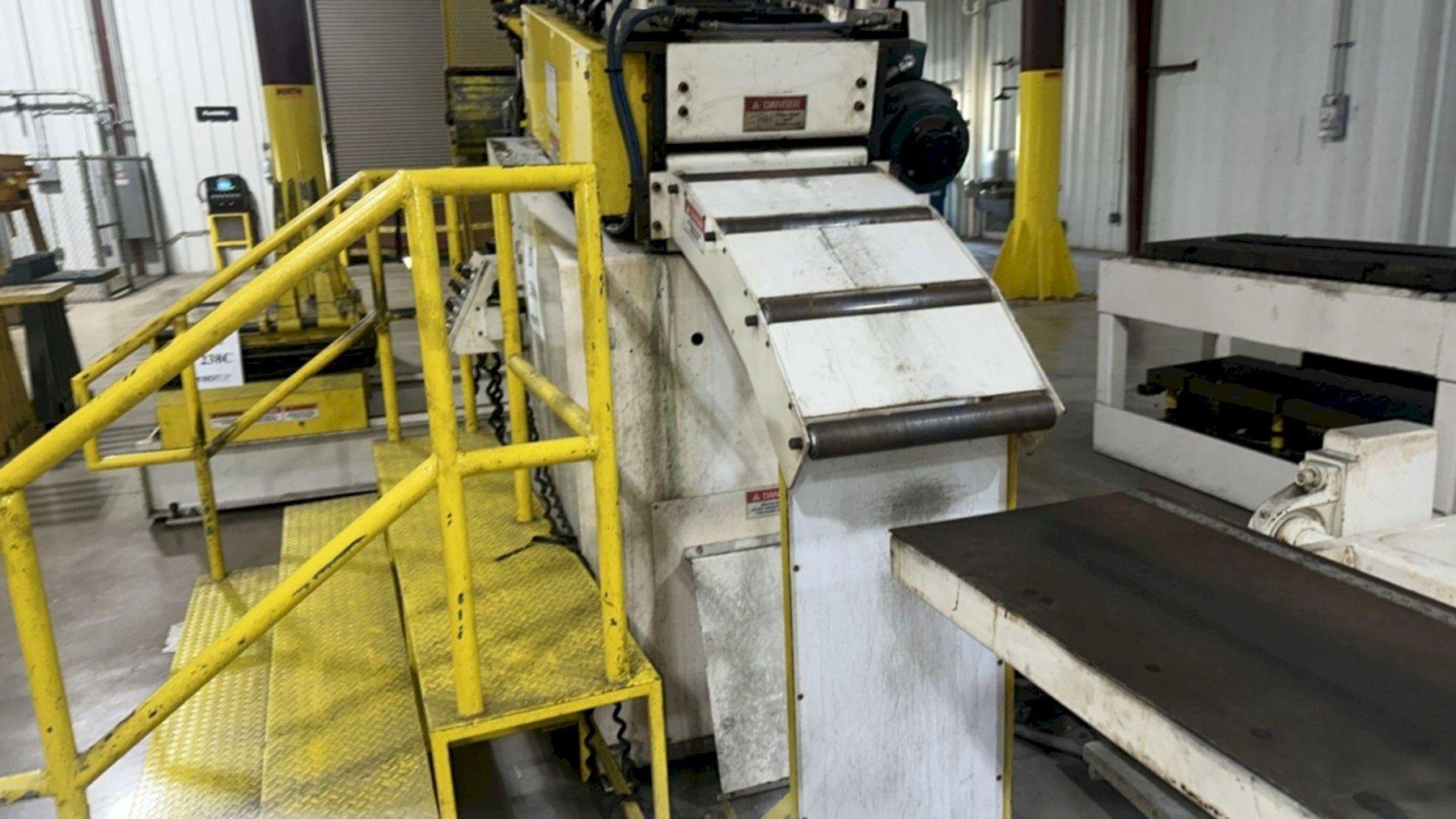

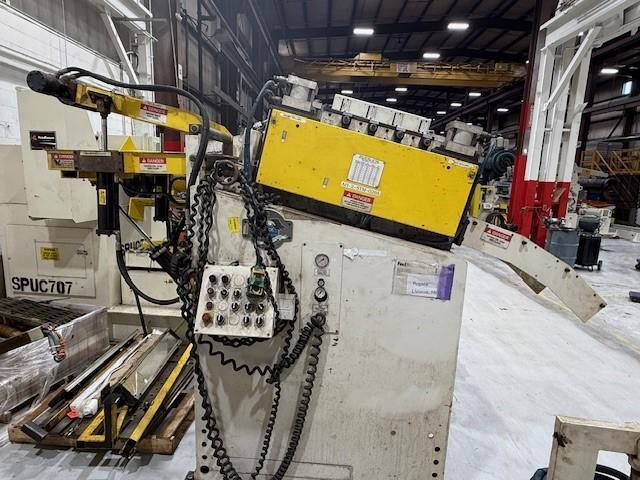

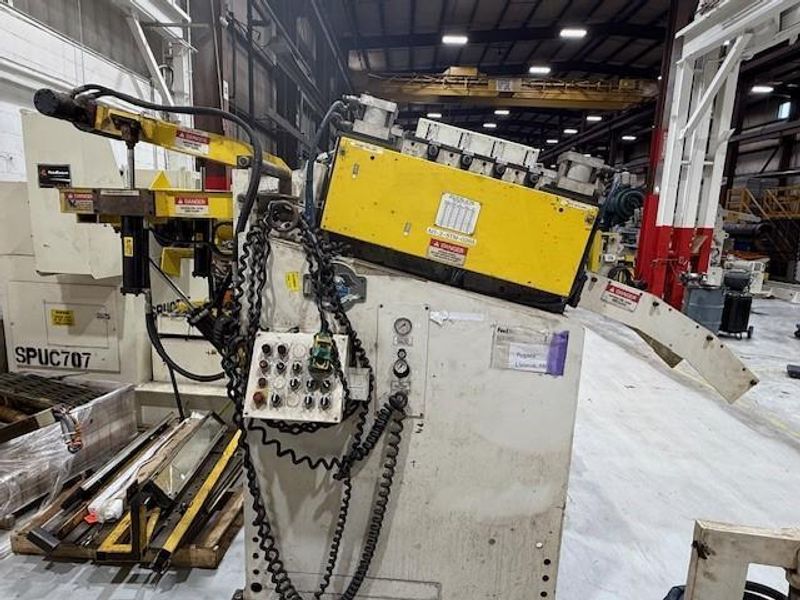

Coe Press Equipment Powered Straightener Model #: CPPS-350-18 sn/ 66554-3

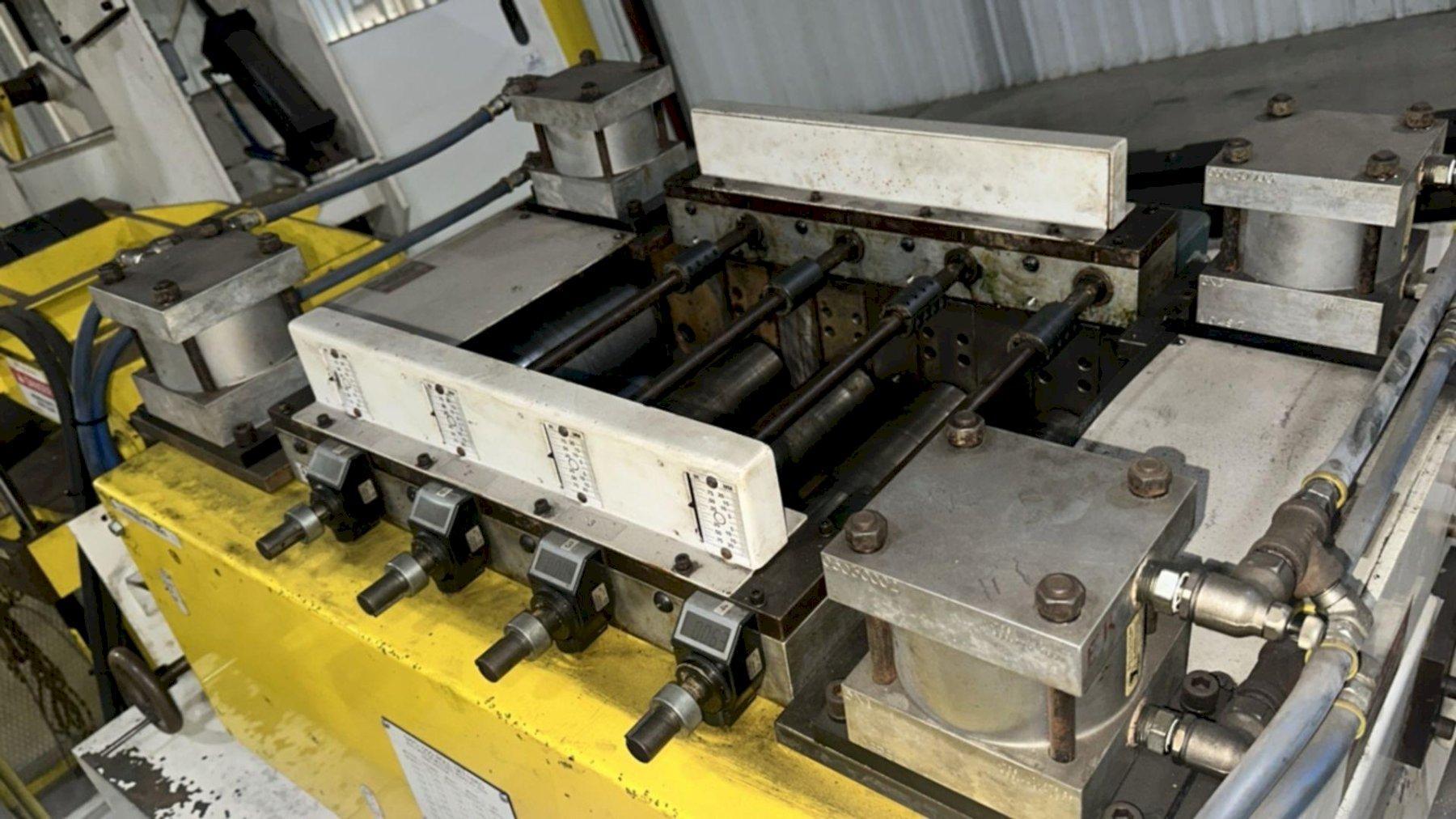

Air Operated Entry Side and Exit Side Pinch Rolls - 5" Diameter
Independent Adjustment of Upper Straightening Rolls
Nine (9) Roll Straightener Package

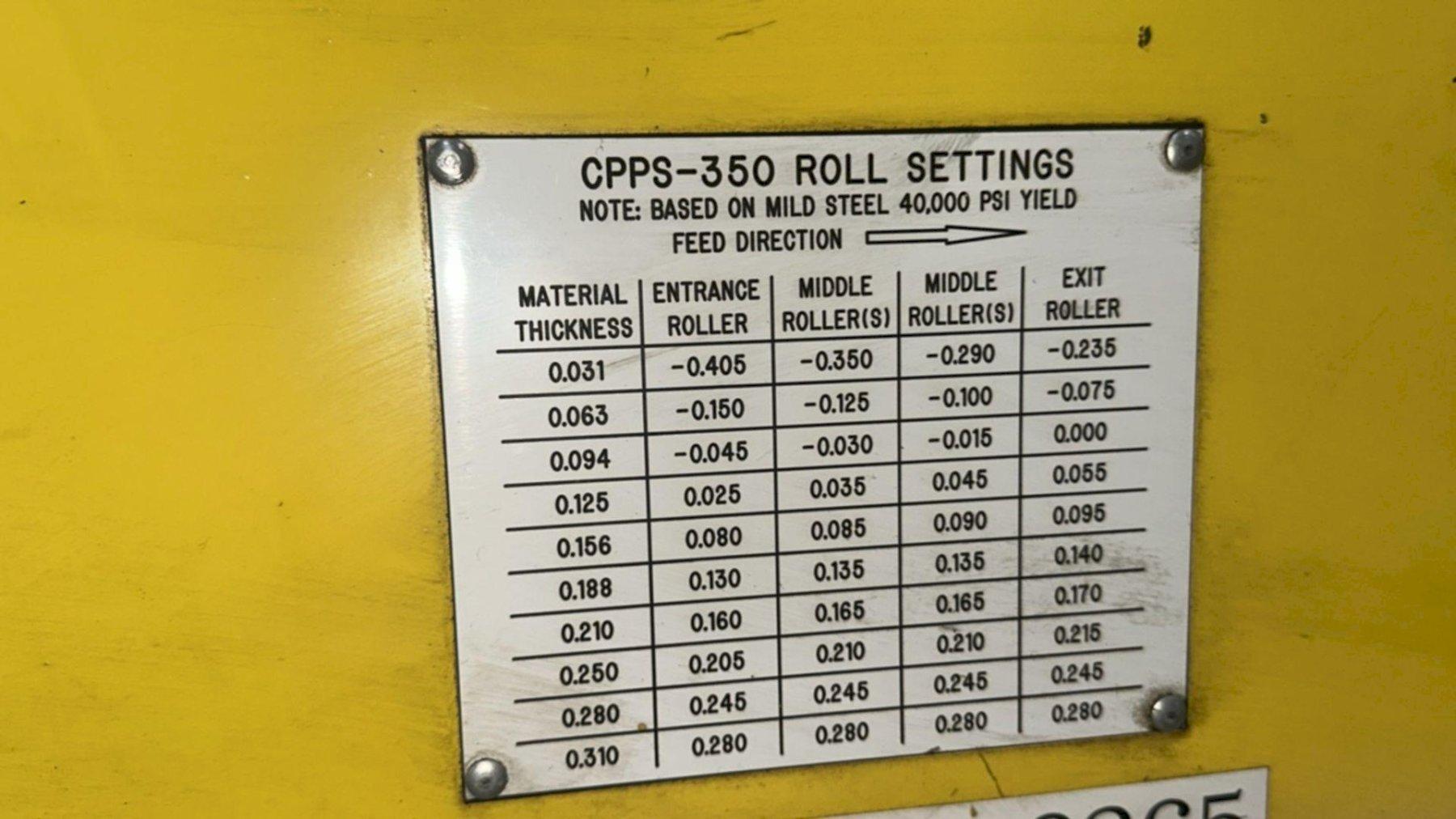

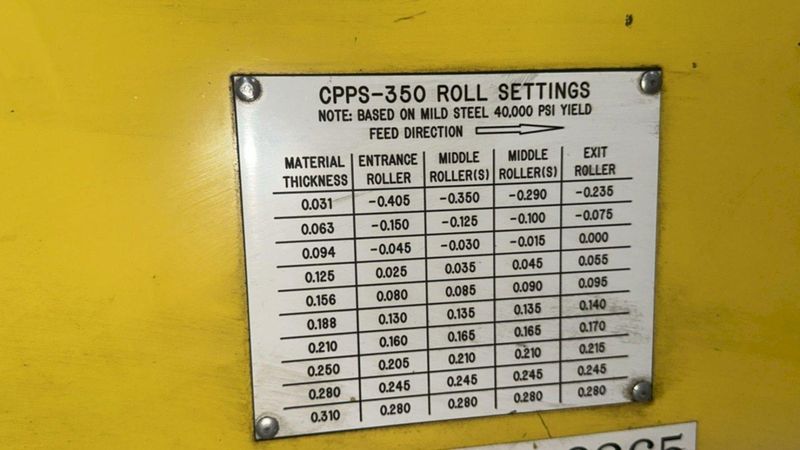

Straightening Roll Adjustment by precision Worm Gear Arrangement
Digital Upper Straightener Roll Height Indicators
Direct Mount Drive System for efficient torque transfer
Self Centering Hand Crank Entrance Edge Guides

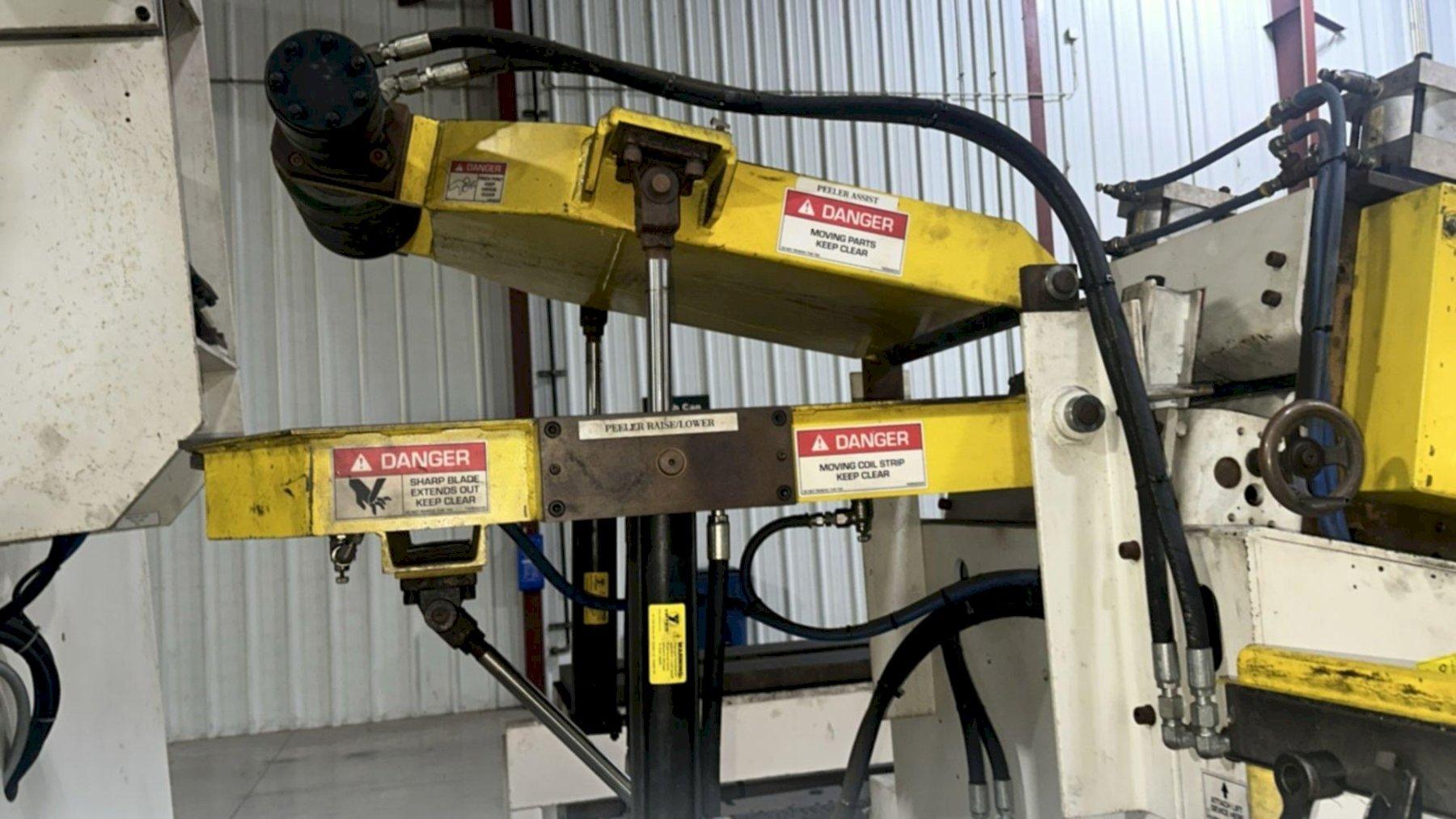

LD Alligator Peeler-Dekinker Station
Cluster Gear Drivetrain for all lower straightener rolls
Funneled Stock Path for Threading and Safety
Four (4) Roll Catenary Section for Proper Material Support
Remote Jog Pendant for Material Threading
Automatic Lubrication System
Payoff Rate: Up to 95 FPM
Ultra Sonic Variable Speed Loop Controls

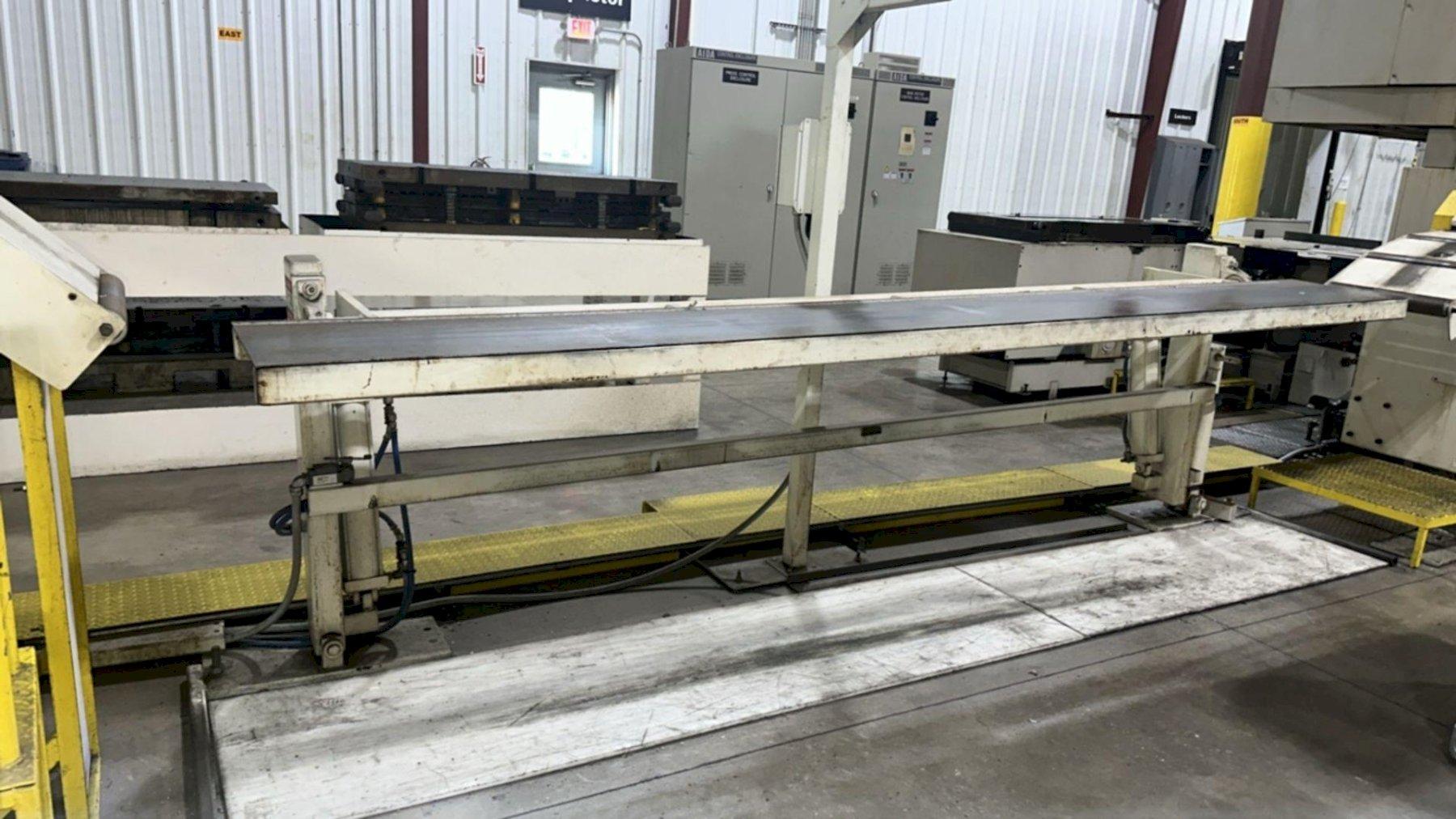

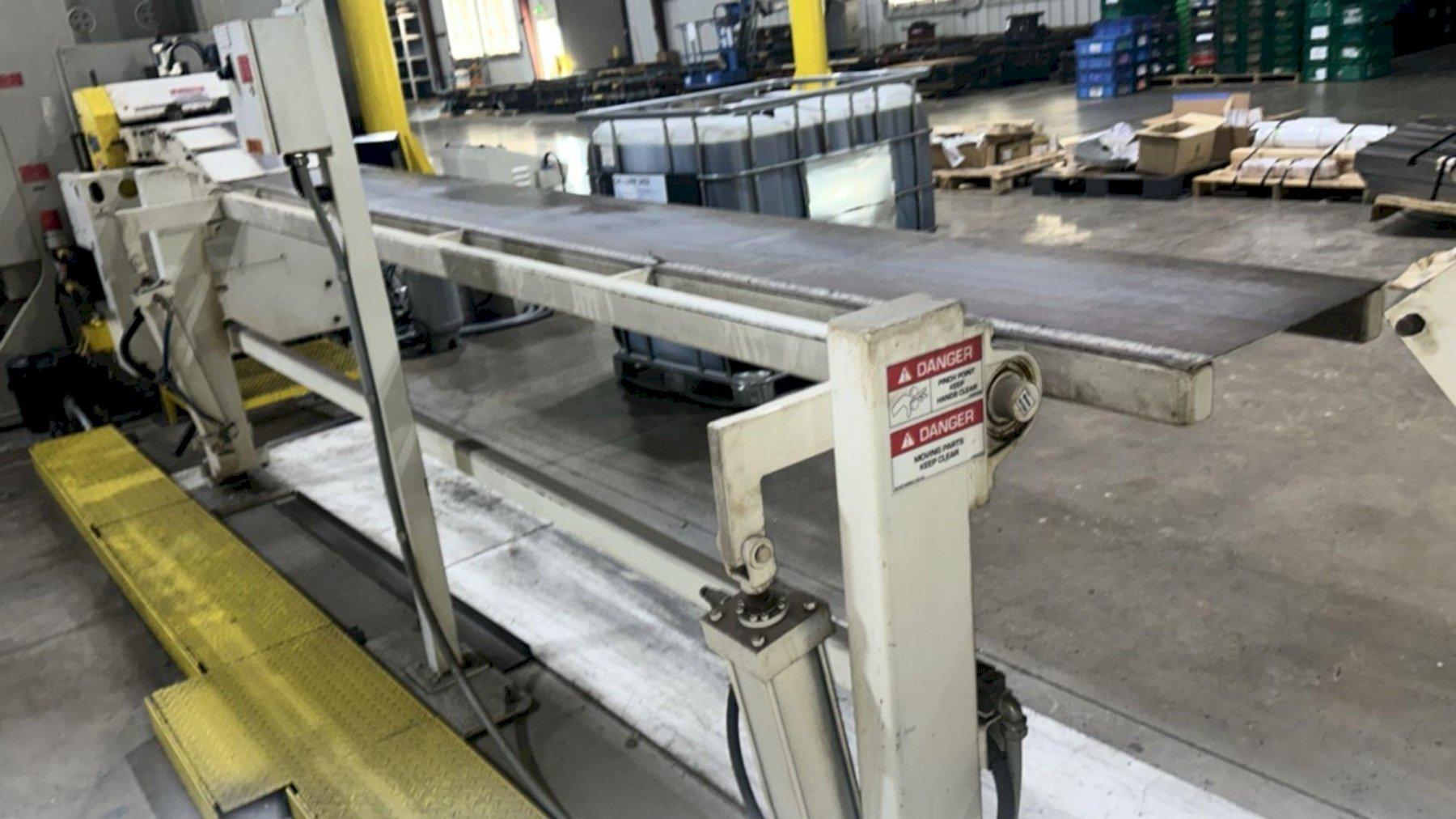

Coe Press Equipment Threading Table Model # CPTT-1818
Heavy Duty Steel Solid Top Construction
Single Sided Table

Adjustable Passline Feature
Air Raise and Lower of Threading Table

Available to be seen under power at S&G Press Livonia Michigan Warehouse.

Click here to see addition Coe Press Equipment options available from S&G Press.

For Sale at S&G Press: Used Coe Coil Handling Equipment, New 2015, available immediately. This integrated coil handling line features a robust 15,000 lb x 24-inch Coe Pull-Off Coil Reel (Model CPR-PO-15024), complete with hydraulic expansion for efficient coil loading. It's paired with a versatile 18-inch Coe Powered Straightener (Model CPPS-350-18), designed for reliable material flattening. Ideal for metal stamping, fabrication, and general metal processing, this well-maintained 2015 Coe coil line offers a cost-effective solution. Enhance your productivity with this quality used Coe Reel and Coe Straightener combination. Contact S&G Press for complete specifications and pricing.
