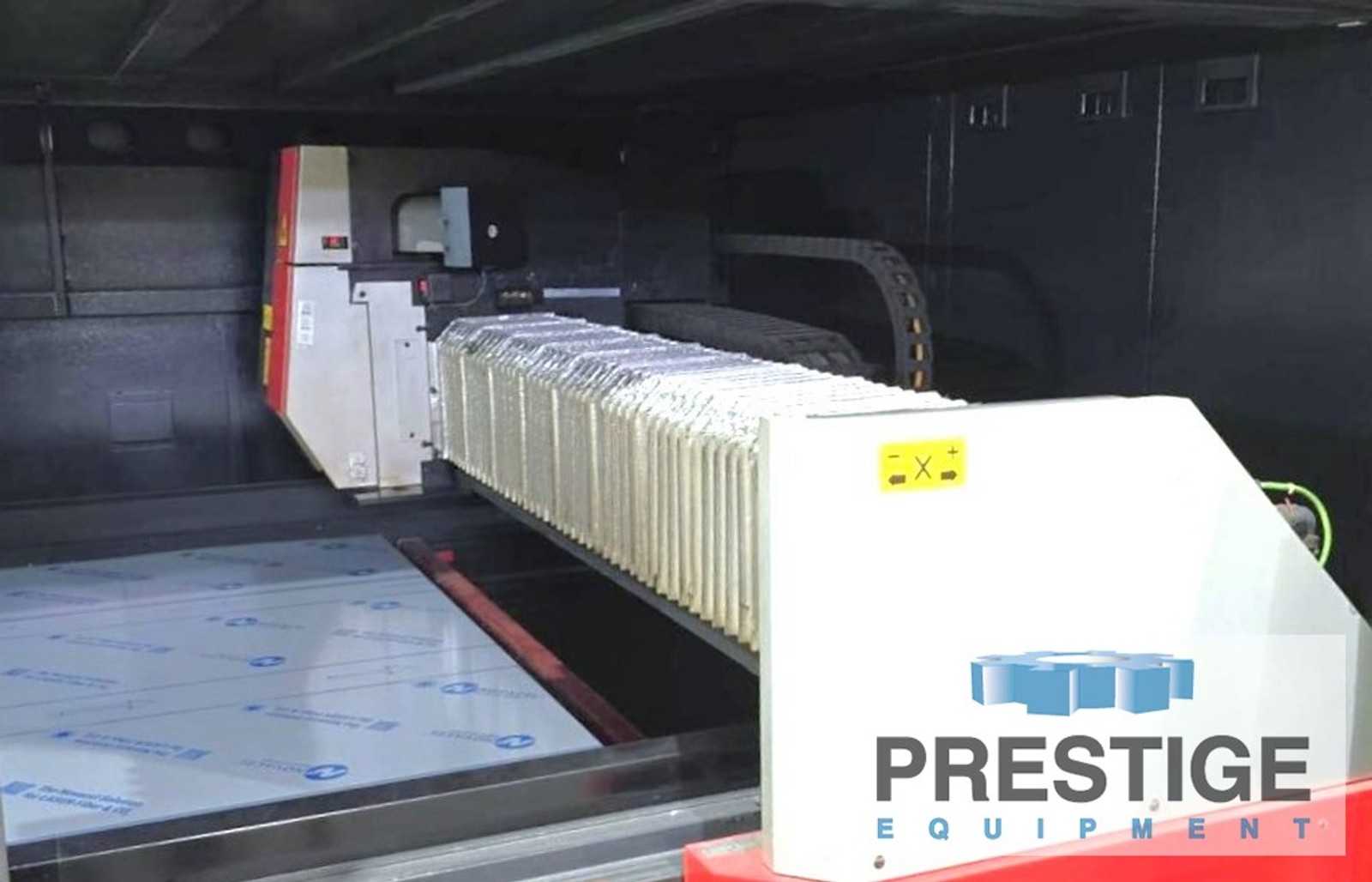

Amada Ensis 3015AJ, 60" x 120" Travel, Dual Pallet, 3KW Fiber Laser, 2020 #44127

Manufacturer

AMADA

Category

Laser Cutting

Type

LASERS

Stock

44127

Model

Ensis 3015 AJ MII

Dealer Location

New York

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Reference #44127

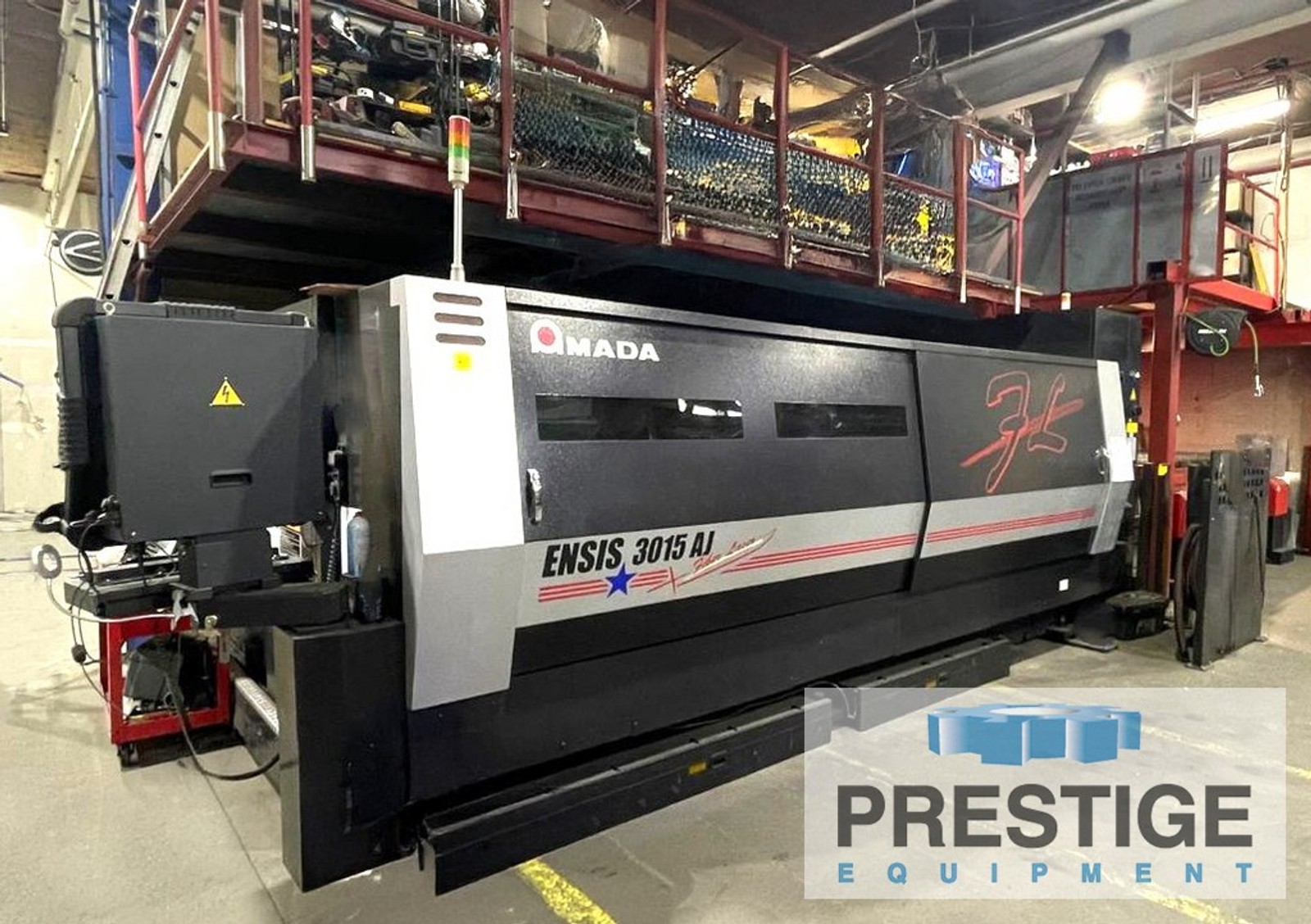

Amada Ensis 3015 AJ 3 KW High Precision Fiber Laser

FEATURES:

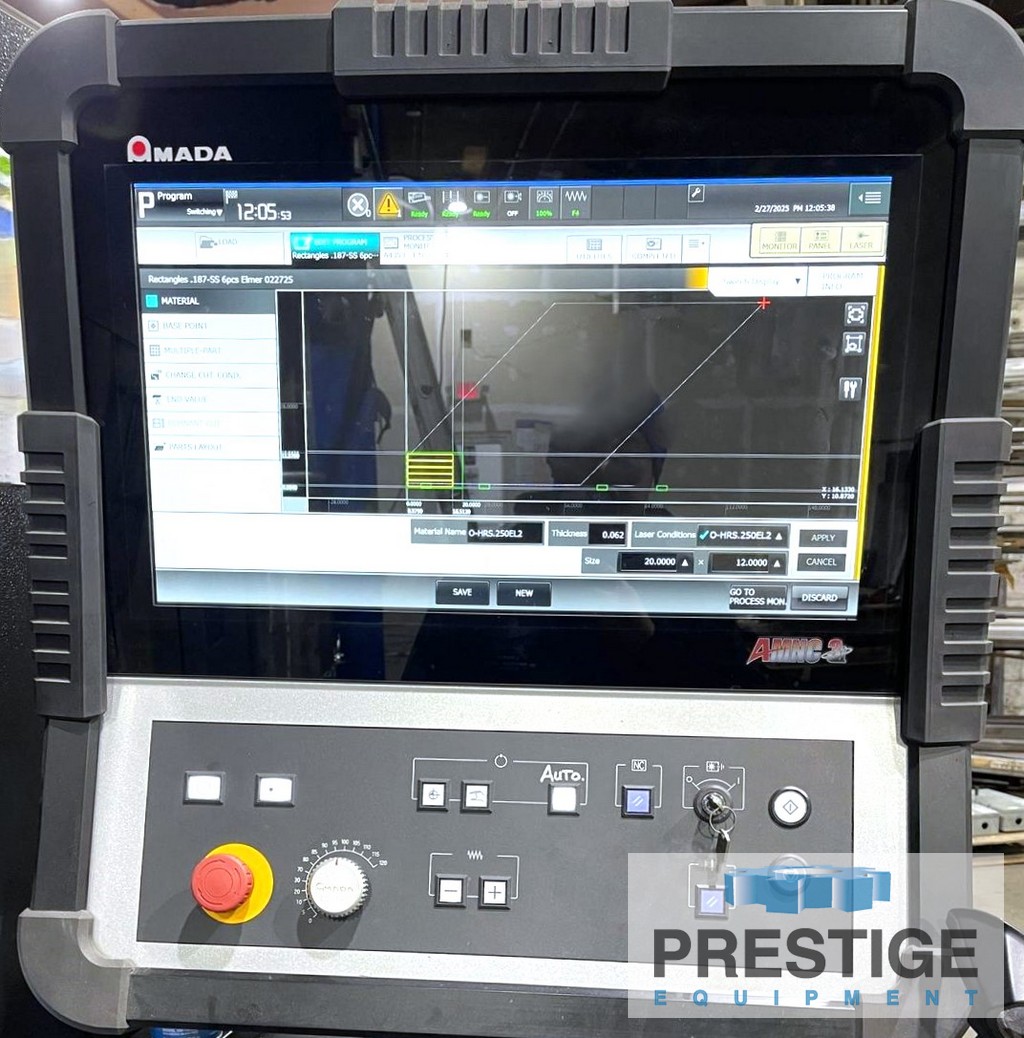

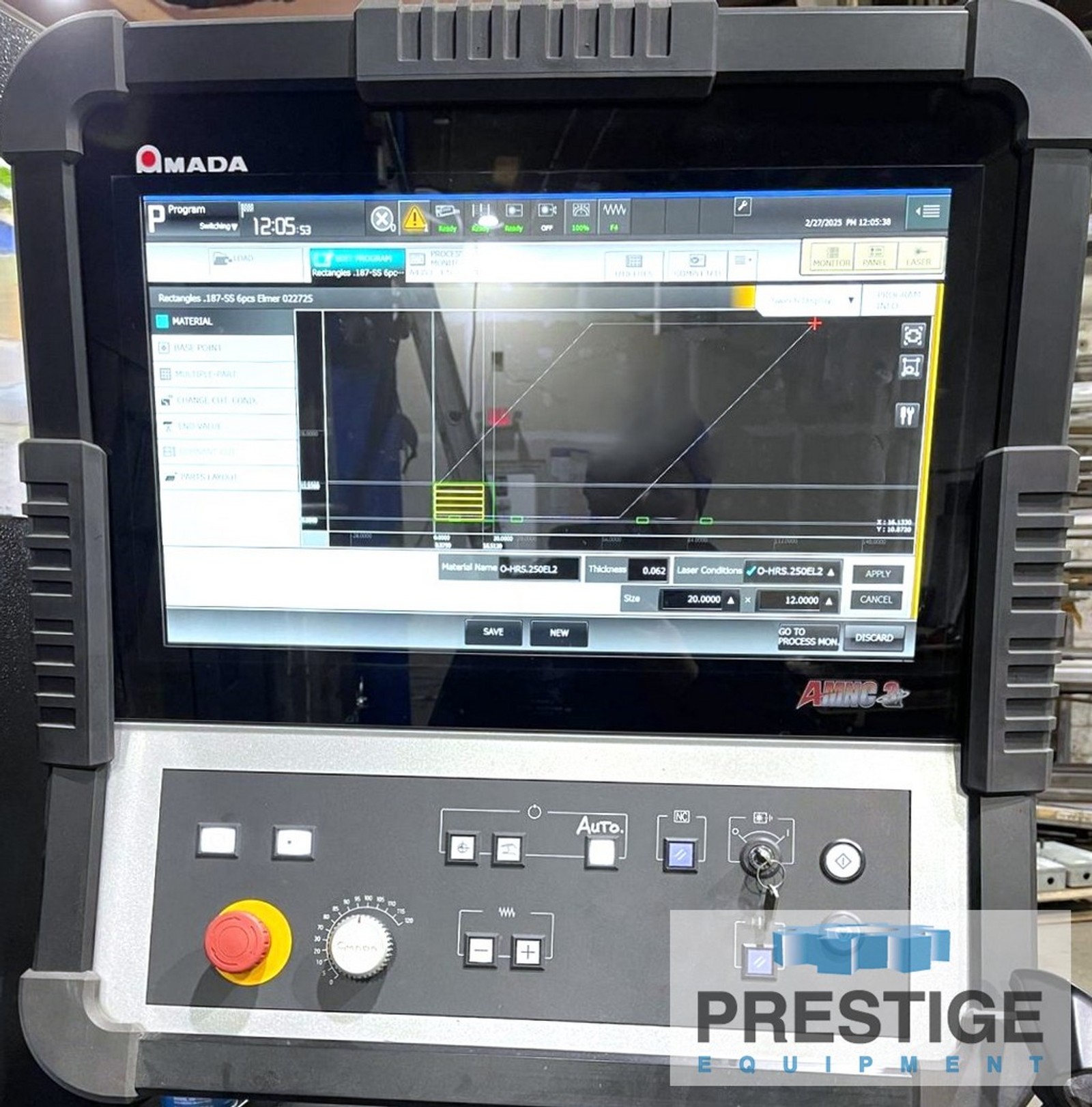

Amada AMNC 3i CNC Control With Color LCD Touchscreen

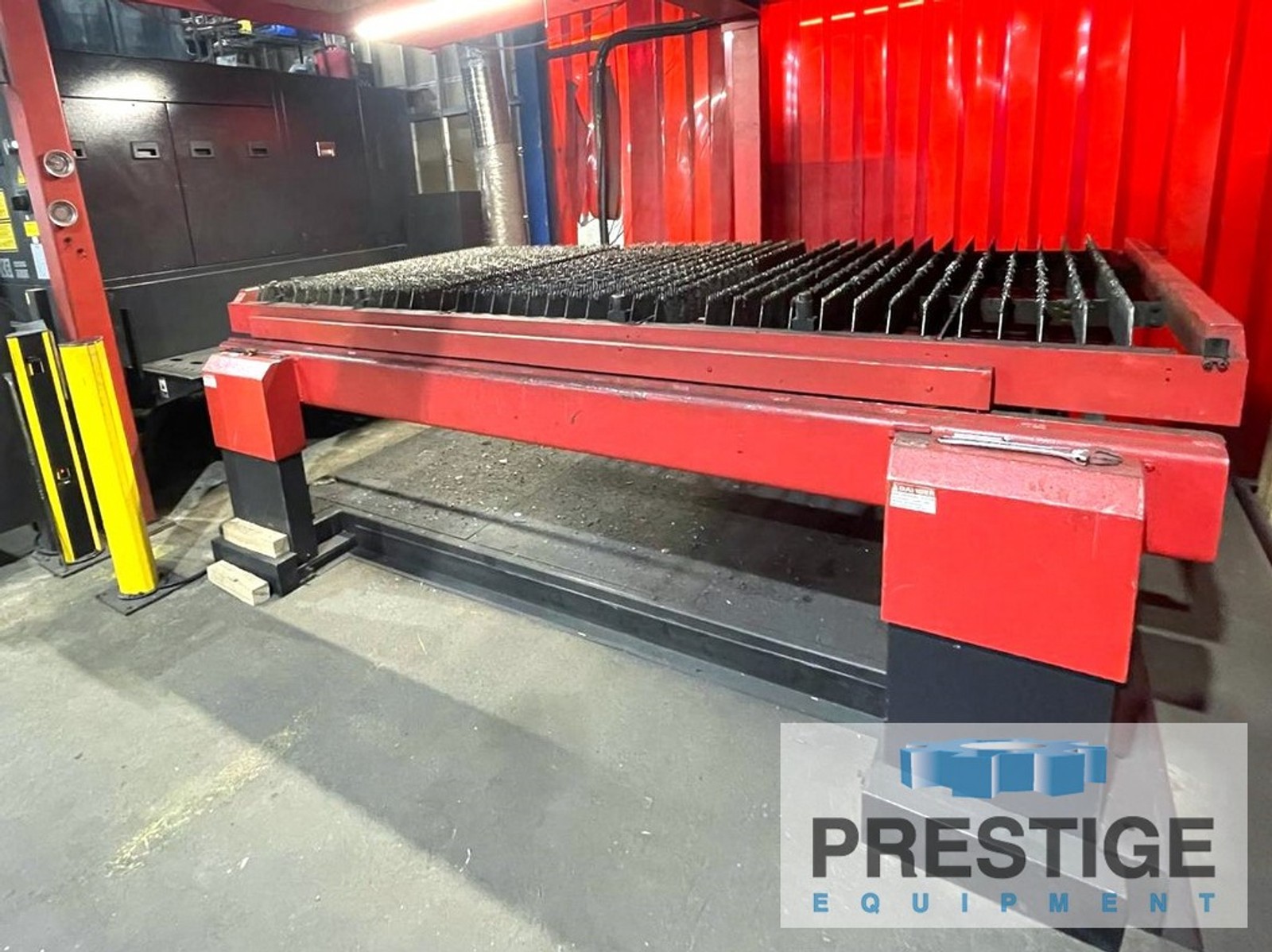

Dual Pallet Shuttle Tables
Amada Ensis 3000 3KW Oscillator

CAPACITY:
Maximum Laser Output .................. 3 KW
X-Axis Carriage Travel ................ 121"
Y-Axis Laser Head Travel .............. 61"
Z-Axis Laser Head Travel .............. 3.93"
Maximum Sheet Size .................... 60" x 120"
Max. Material Thickness, Mild ......... 1"
Max. Material Thickness, Stainless .... .5"
Max. Material Thickness, Aluminum ..... .5"
Max. Positioning Speed, X & Y Axis .... 4,724 IPM
Repeatability ......................... +/-0.0002"
Max. Material Weight .................. 2,000 Lbs

EQUIPPED WITH:
Amada AMNC 3i CNC Control With Color LCD Touchscreen
Dual Pallet Shuttle Tables
Amada Ensis 3000 3KW Oscillator
Automatic Nozzle Changer
Clean Cut Feature

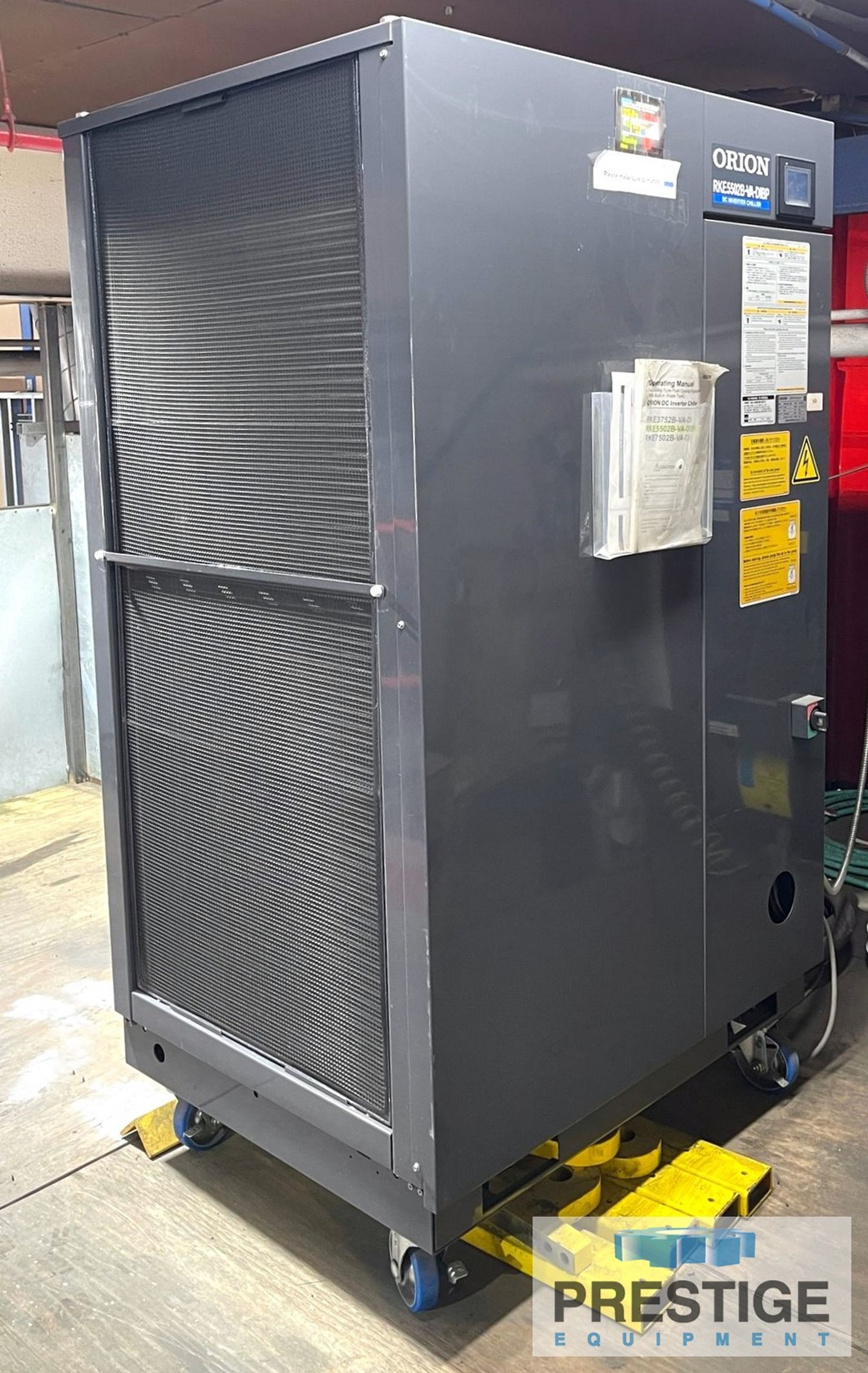

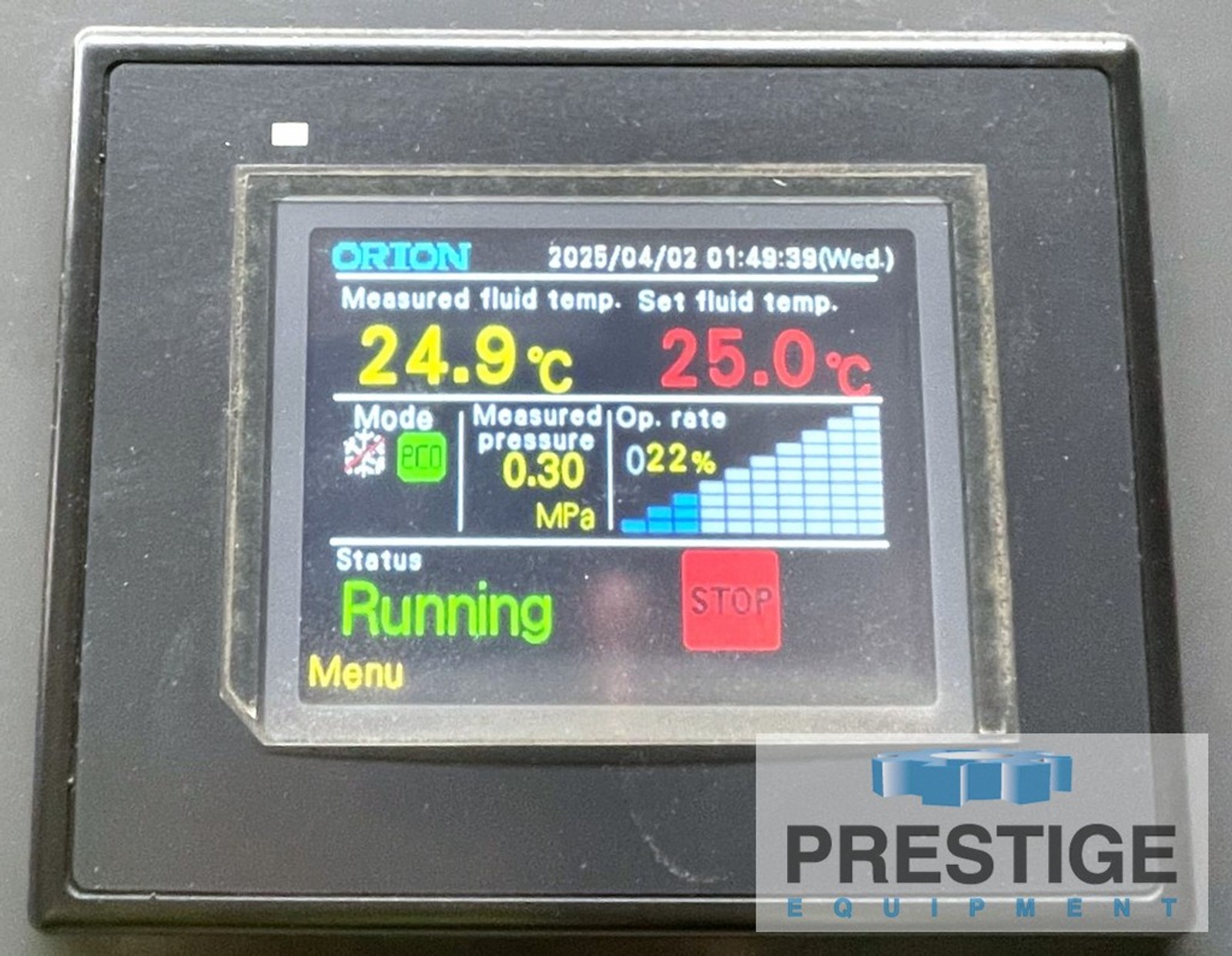

Orion Chiller

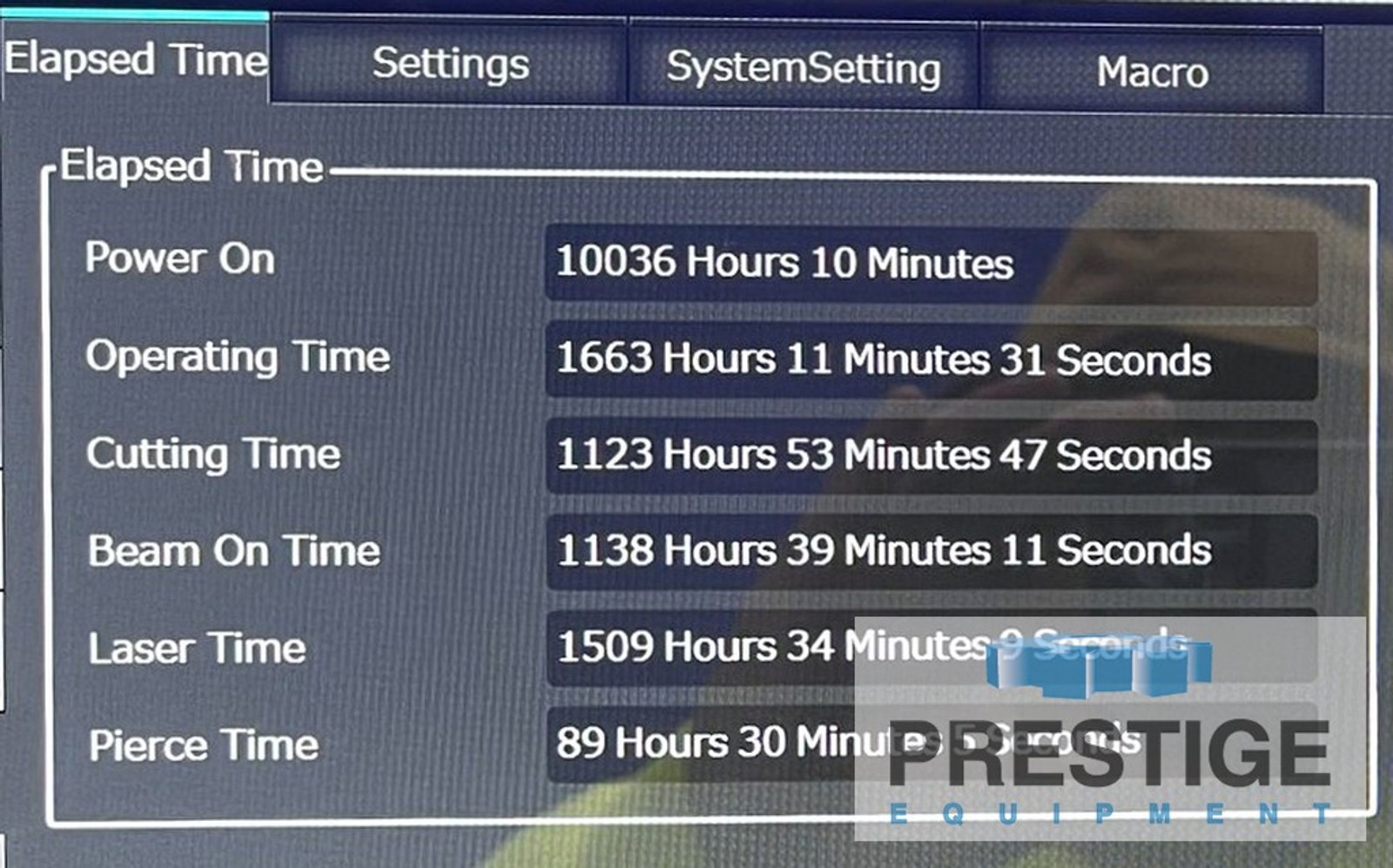

HOURS:
Power On:10,036 Hours
Operating Time: 1,663 Hours
Cutting Time: 1,123 Hours

NOTE:
Inspect In Plant Under Power
