25 Ton Accurpress 7254 5-Axis CNC Press Brake, 48" Bend Length, 51" BH, 6" Stroke, ETS3000 5-Axis CNC, 2006 #44018

Manufacturer

ACCURPRESS

Category

Brakes (including Press Brakes)

Type

BRAKES, PRESS, HYDRAULIC (Inch/Ton)

Stock

44018

Model

7254 5-Axis

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #44018

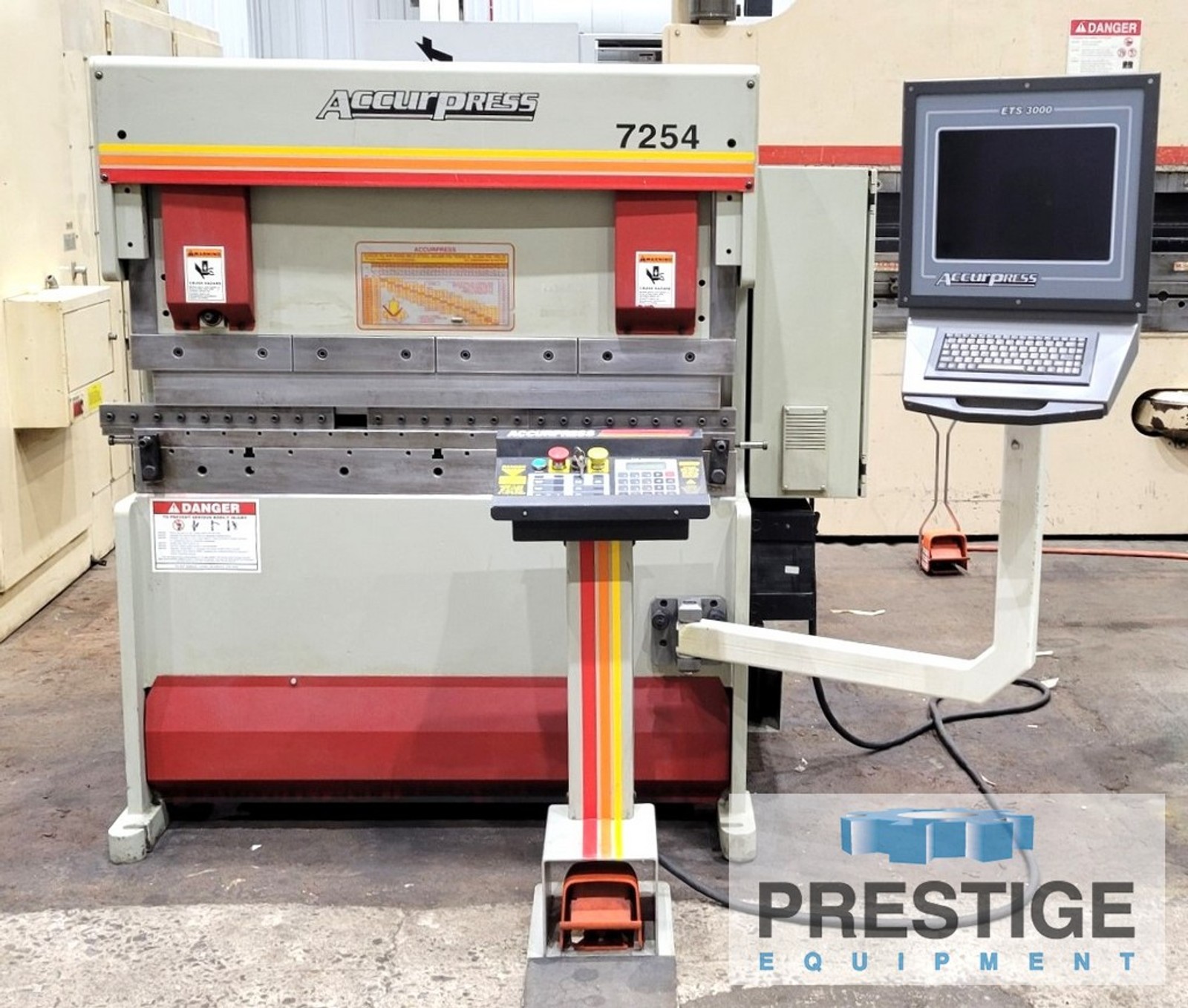

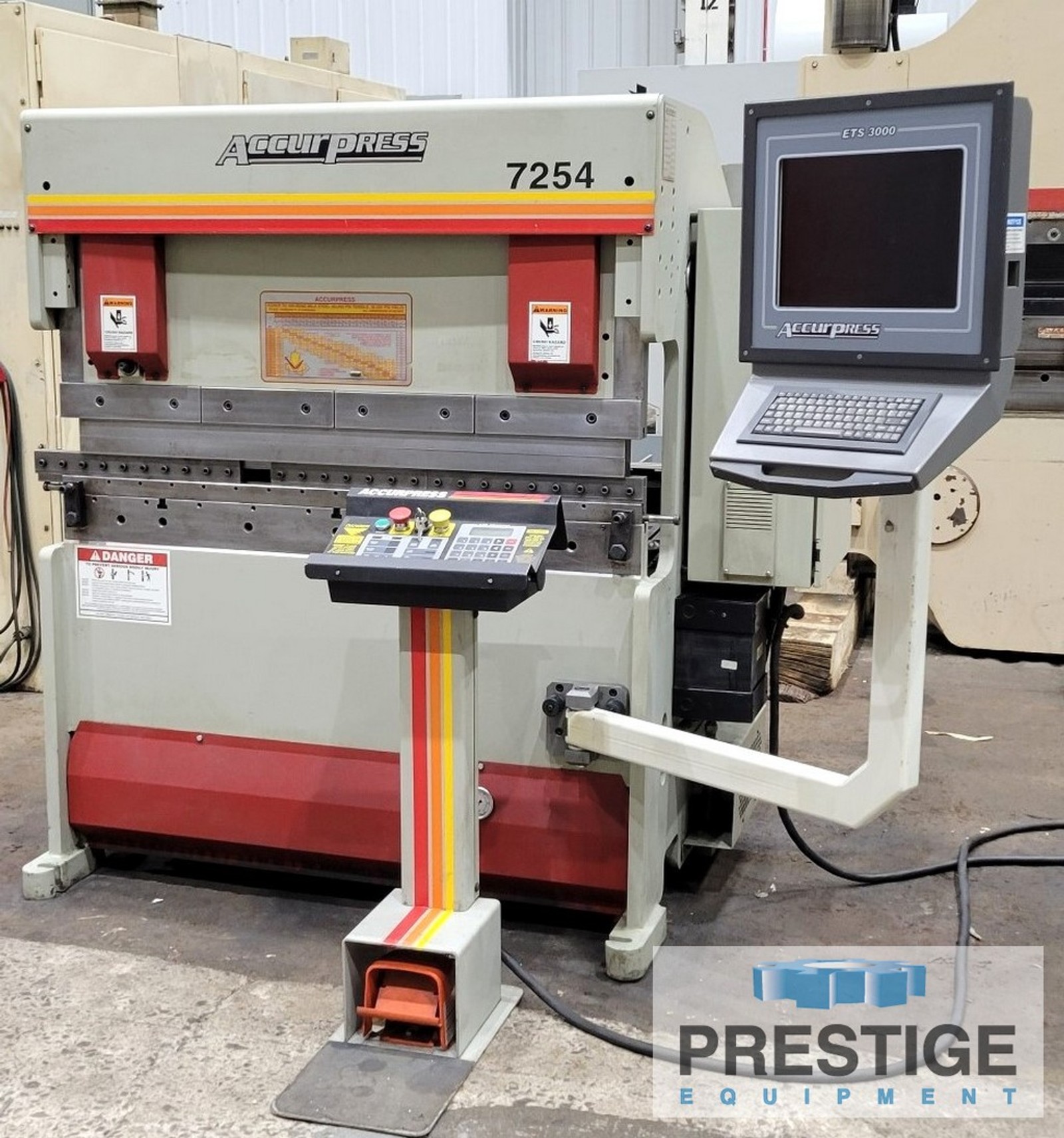

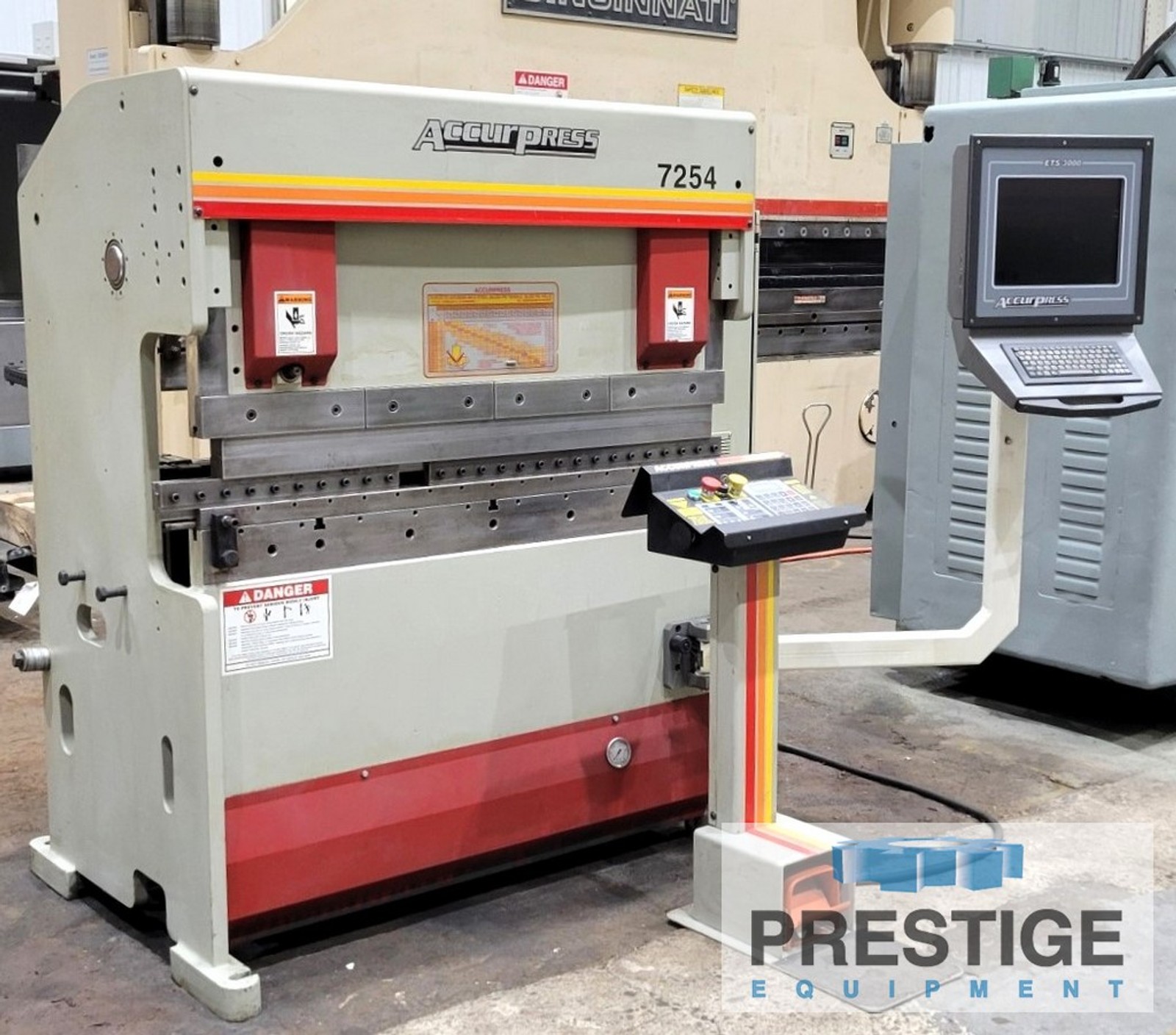

Accurpress 7254 5-Axis CNC Press Brake

FEATURES:
ETS 3000 5-Axis CNC Control
4-Axis Back Gauge, X,R,Z1,Z2

SPECIFICATIONS:
Tonnage Capacity ...................... 25 Ton
Overall Bed Length .................... 51"
Distance Between Housings ............. 51"
Stroke Length ......................... 6"
Throat Depth .......................... 5.75"
Shut height .......................... 6"
Open Height ........................... 12"
Motor ................................. 7.5 HP
Machine Dimensions (L-R x D) .......... 61" x 43"
Machine Height ........................ 66"
Machine Weight ........................ 4,300 lbs.

EQUIPPED WITH:

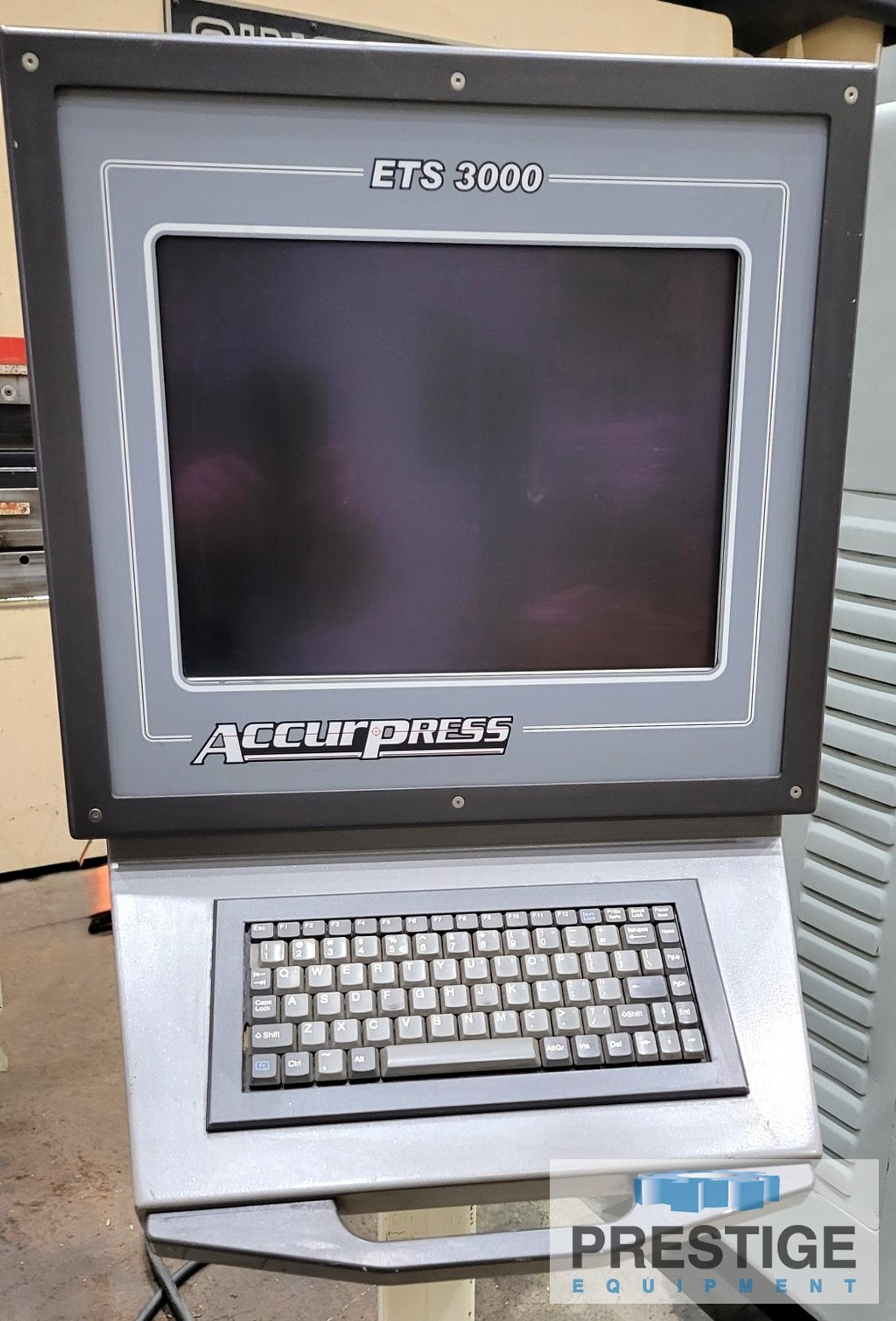

ETS 3000 5-Axis CNC Control

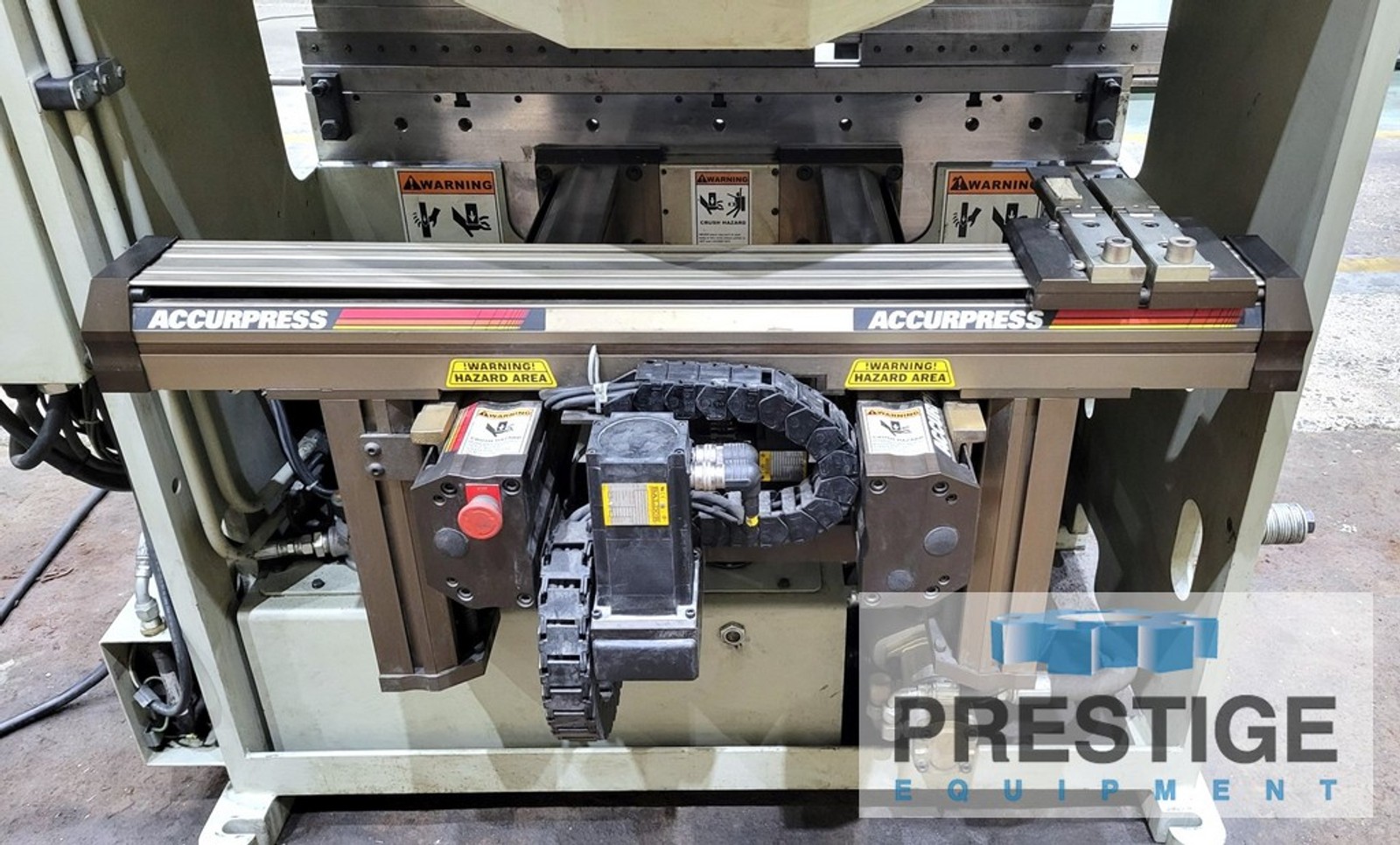

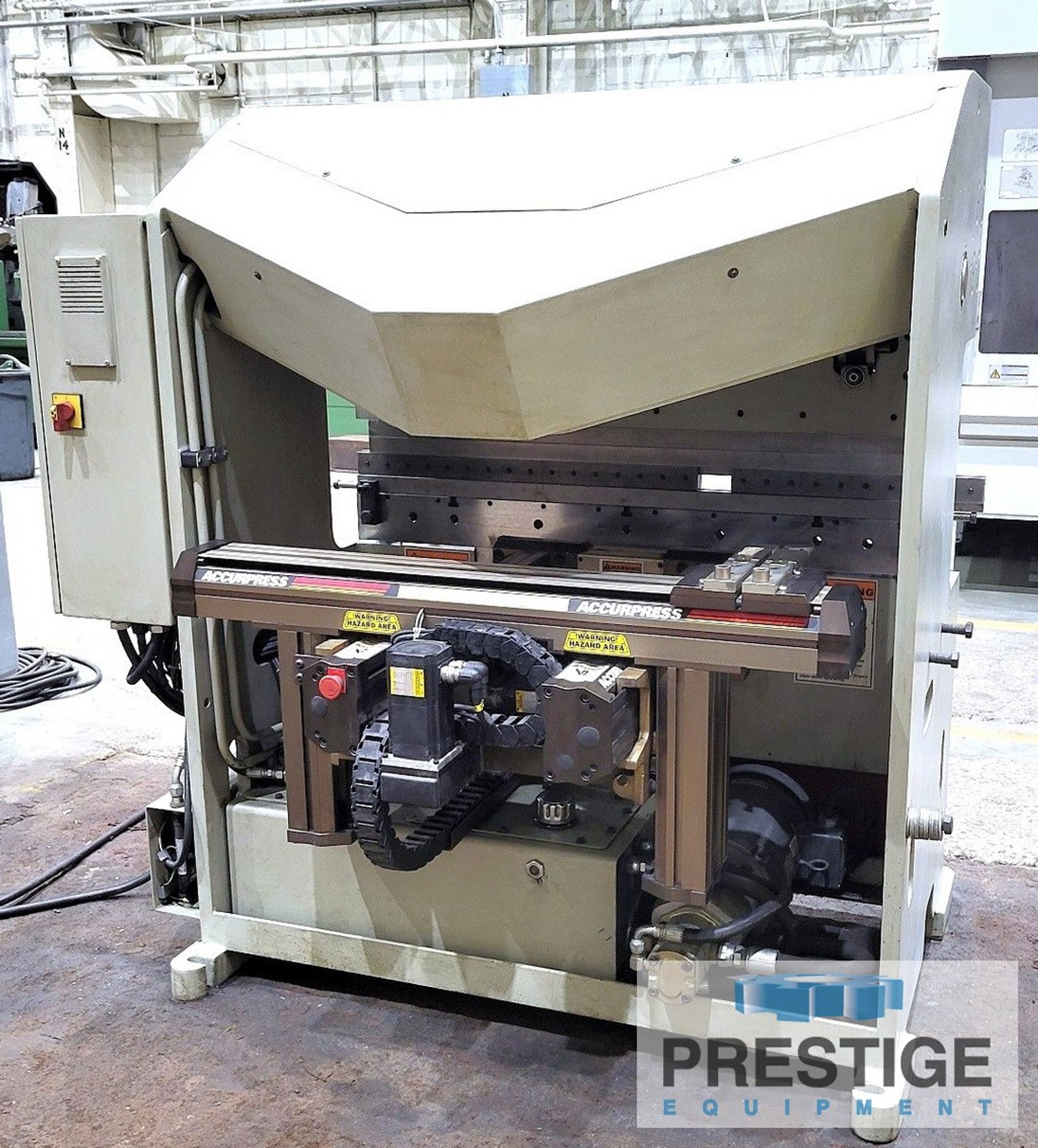

4-Axis Back Gauge, X,R,Z1,Z2

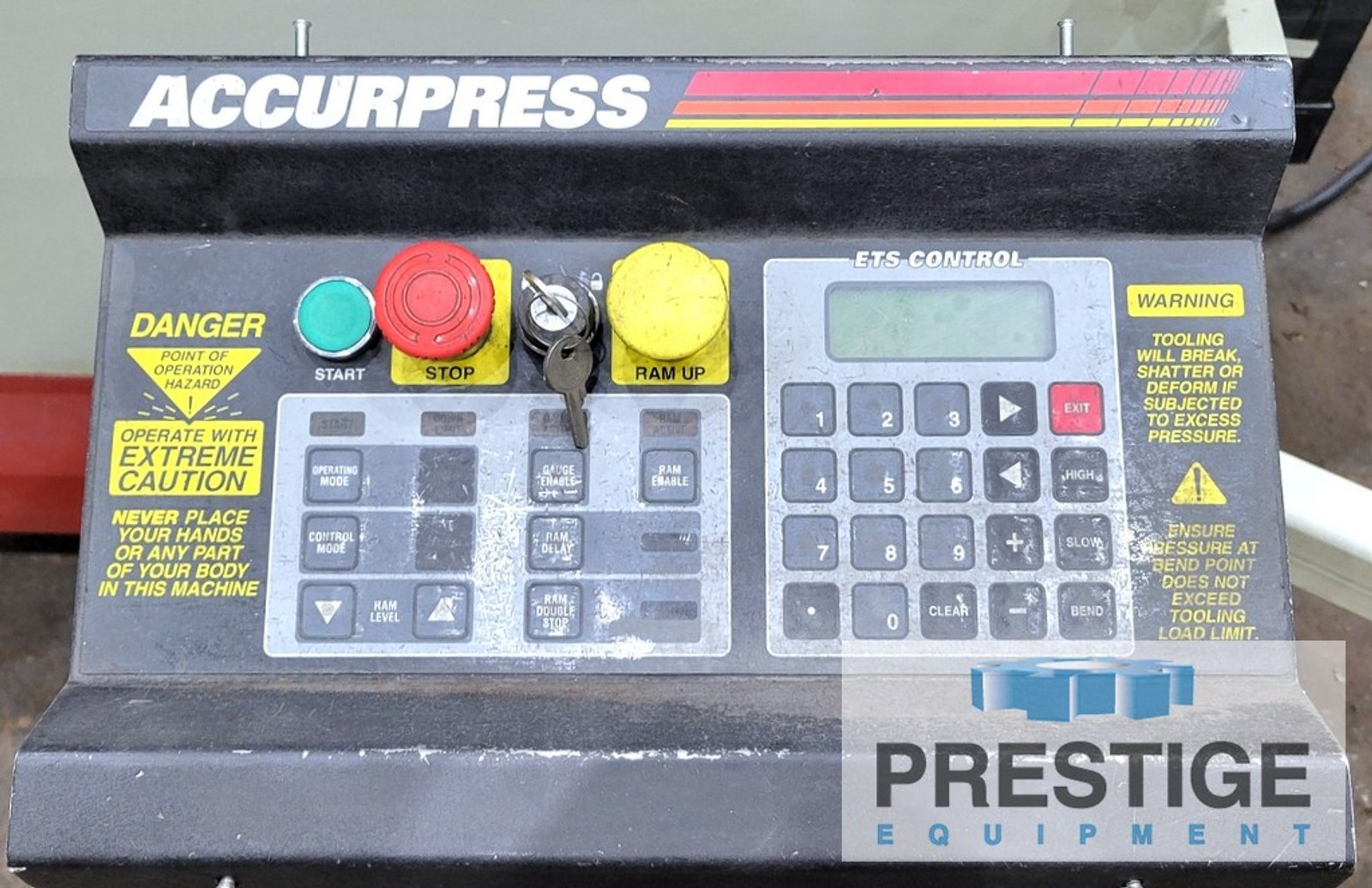

ETS Pedestal Control
Electric Foot Switch Control

NOTE:
Inspect Under Power in Philadelphia, PA Warehouse
