TOYODA WELE AA956 CNC VERTICAL MACHINING CENTER - NEW: 2012

Manufacturer

TOYODA

Category

Machining Centers

Type

MACHINING CENTERS, VERTICAL, CNC (Incl. Pallet Changers)

Stock

69143

Model

WELE AA965

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

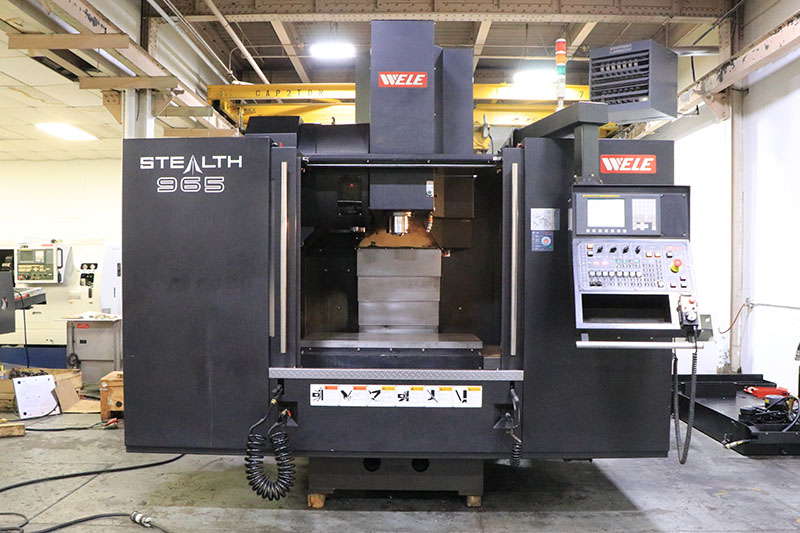

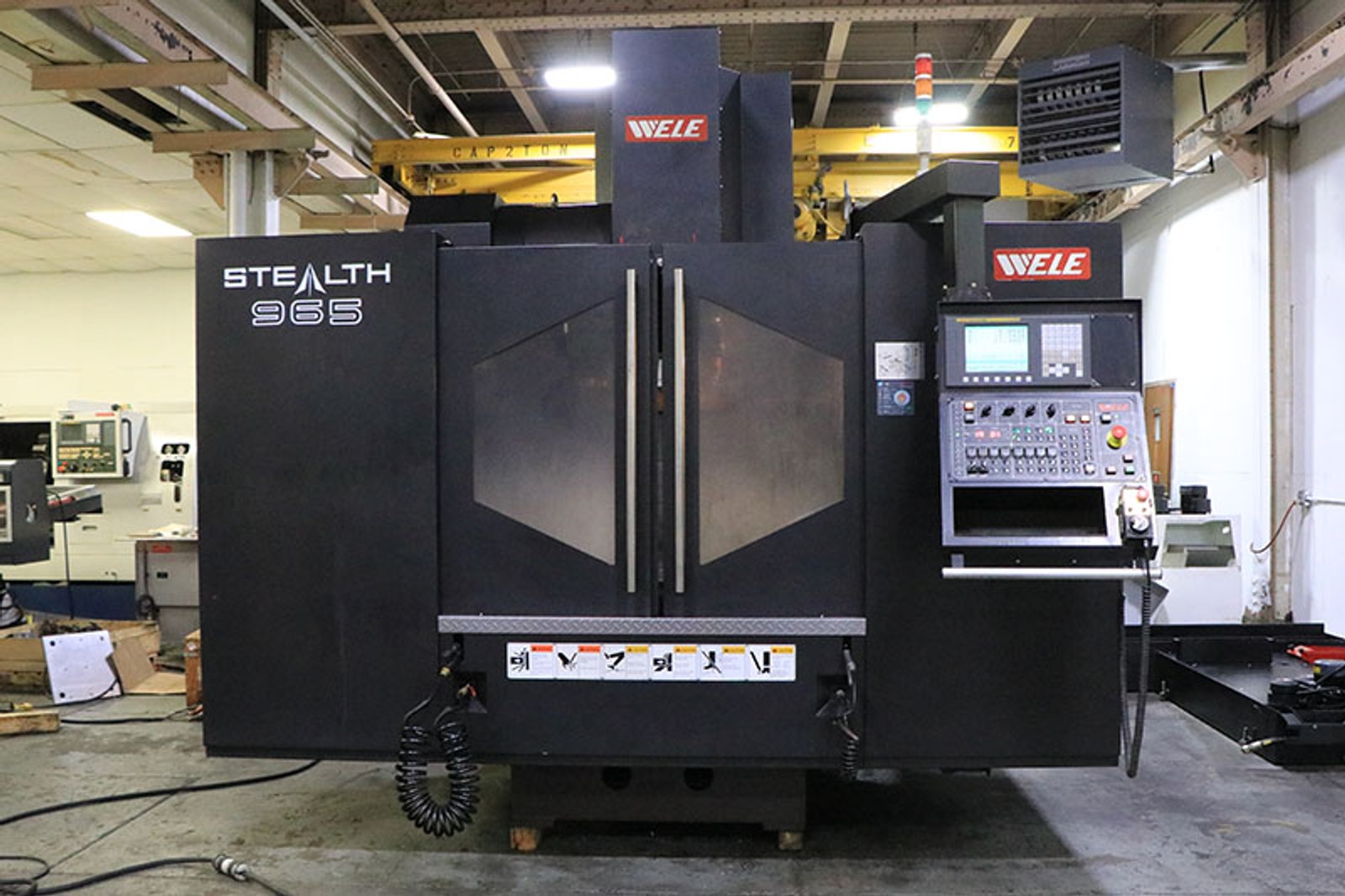

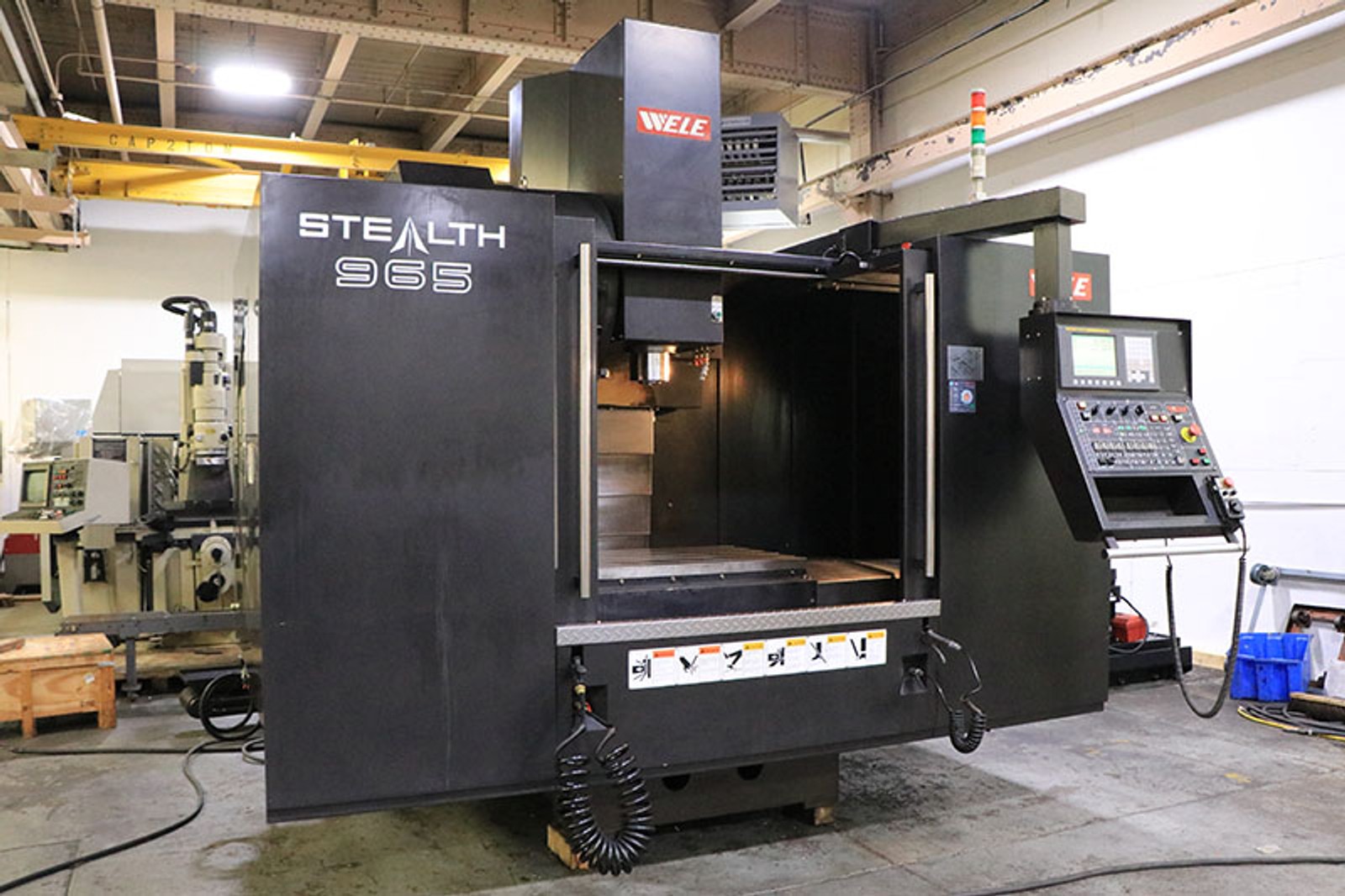

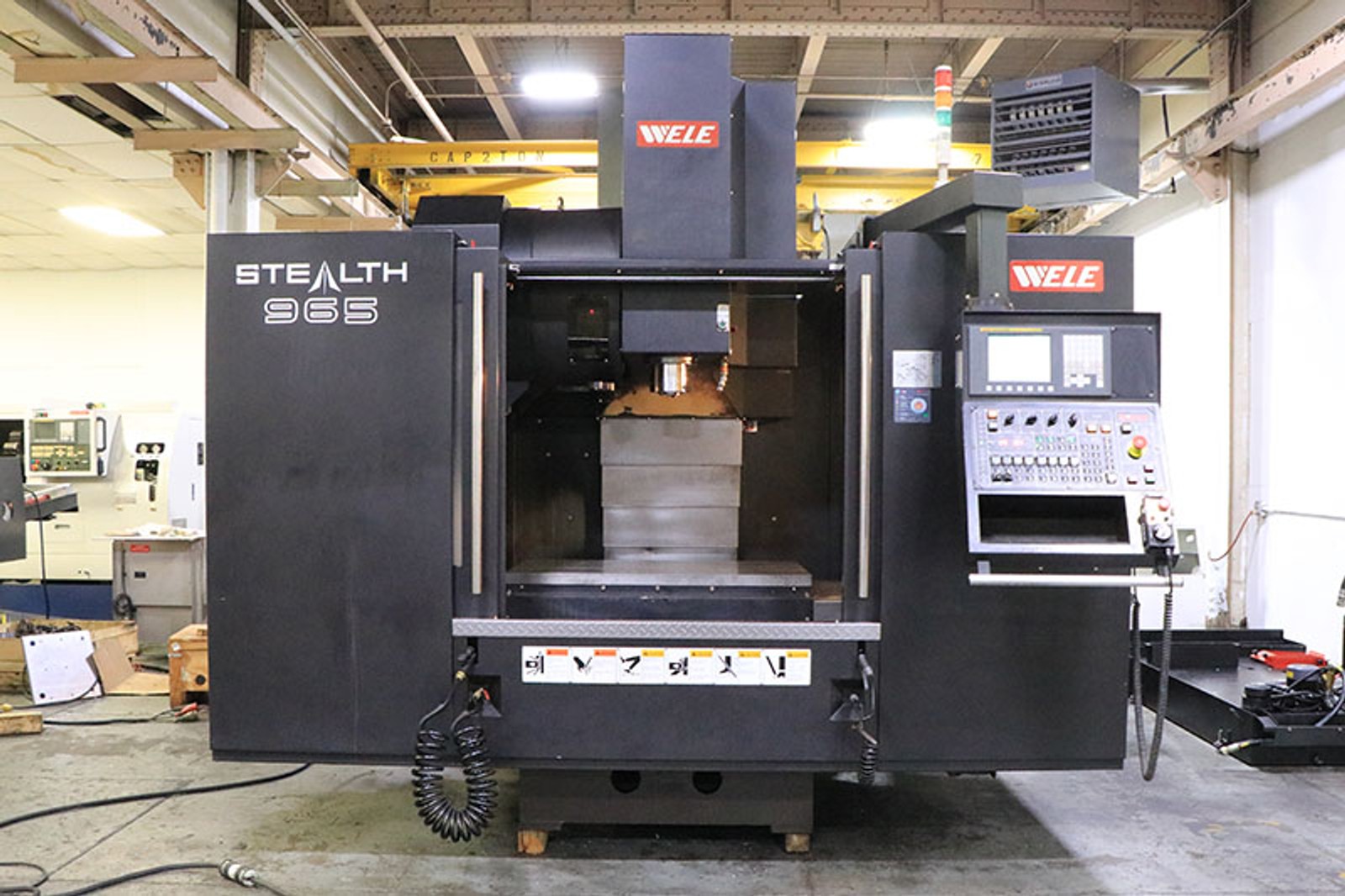

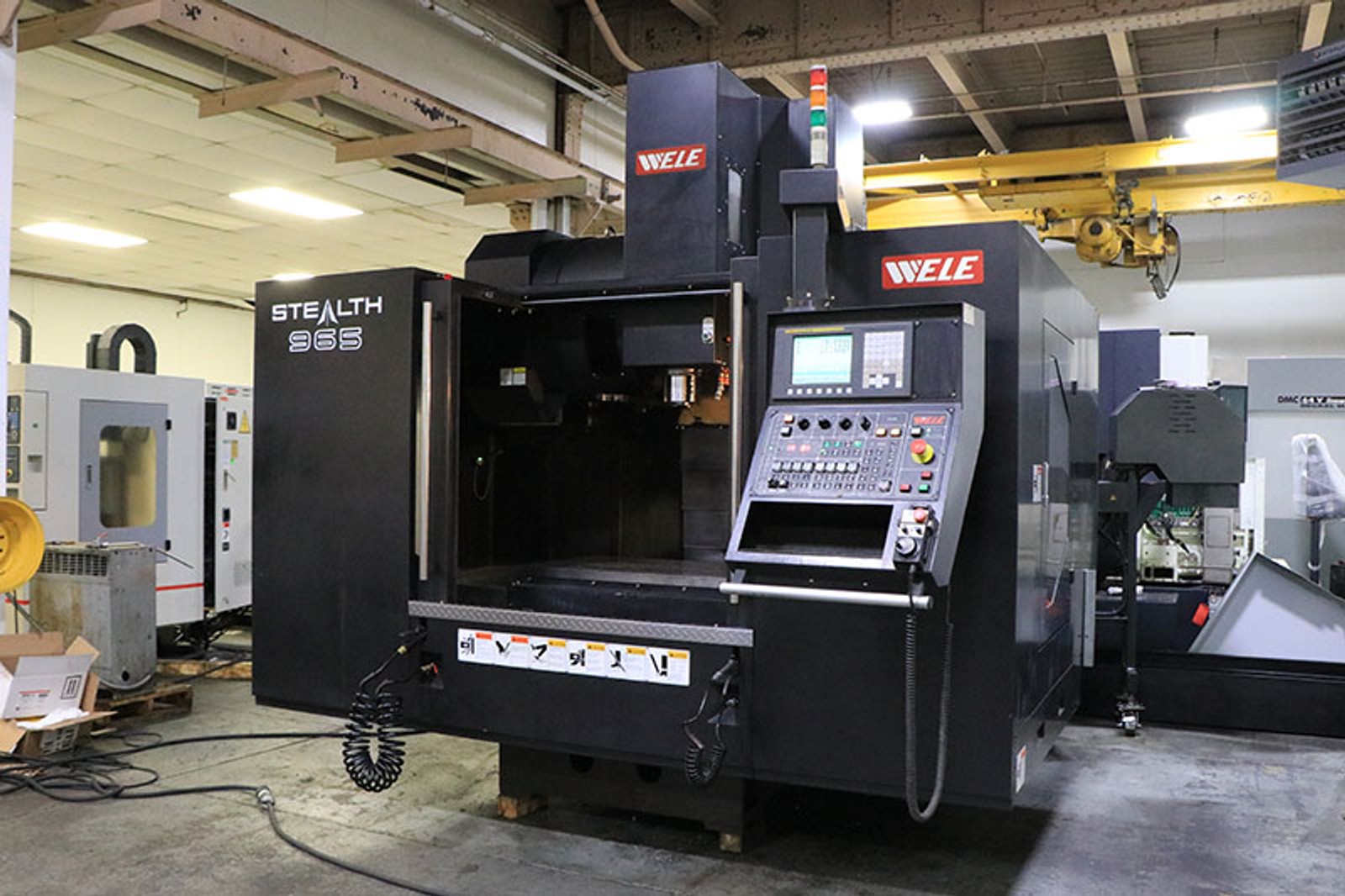

TOYODA-WELE VERTICAL MACHINING CENTER

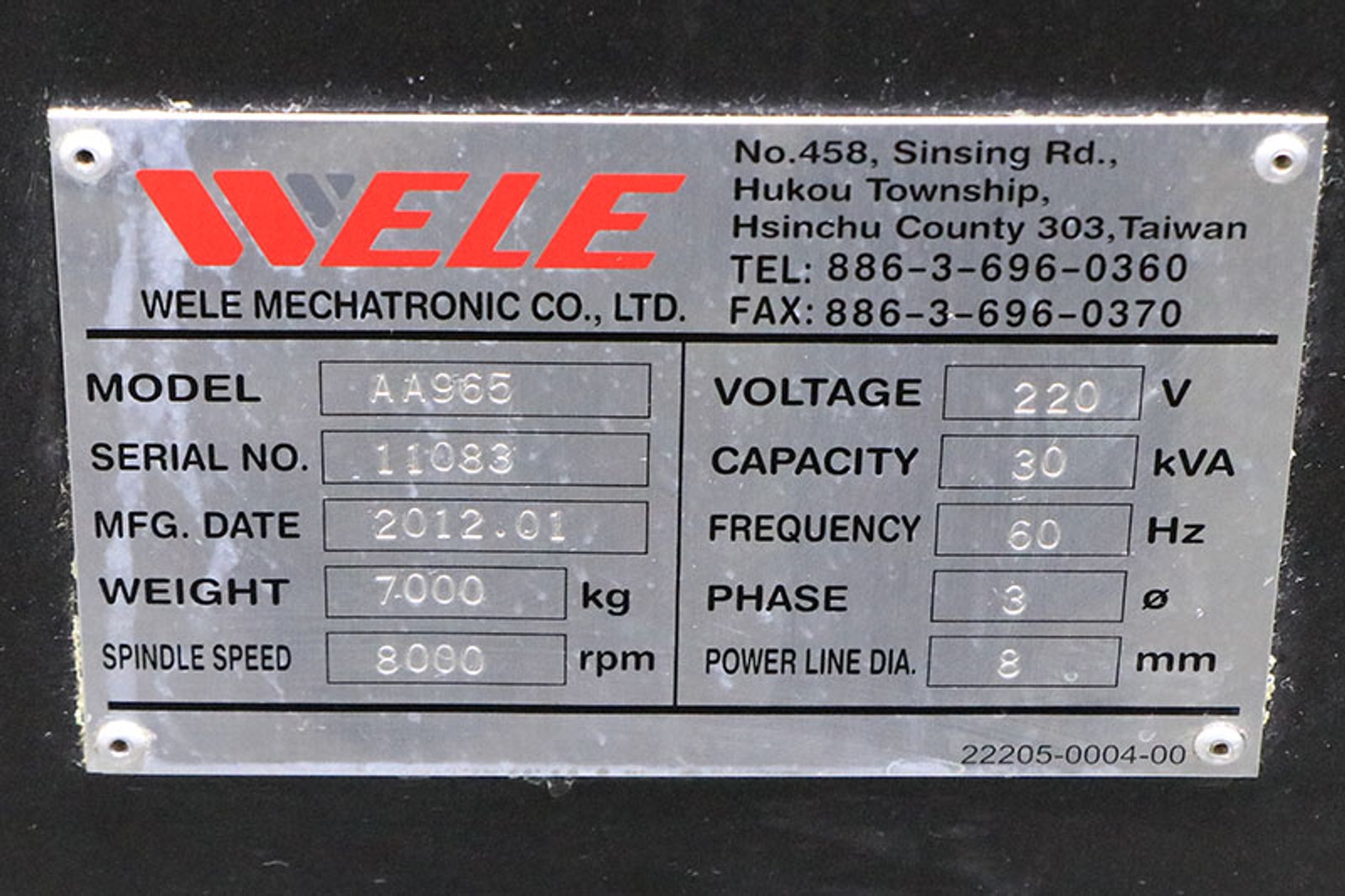

MODEL: AA965, S/N: 11083, NEW: 2012

SPECIFICATIONS:

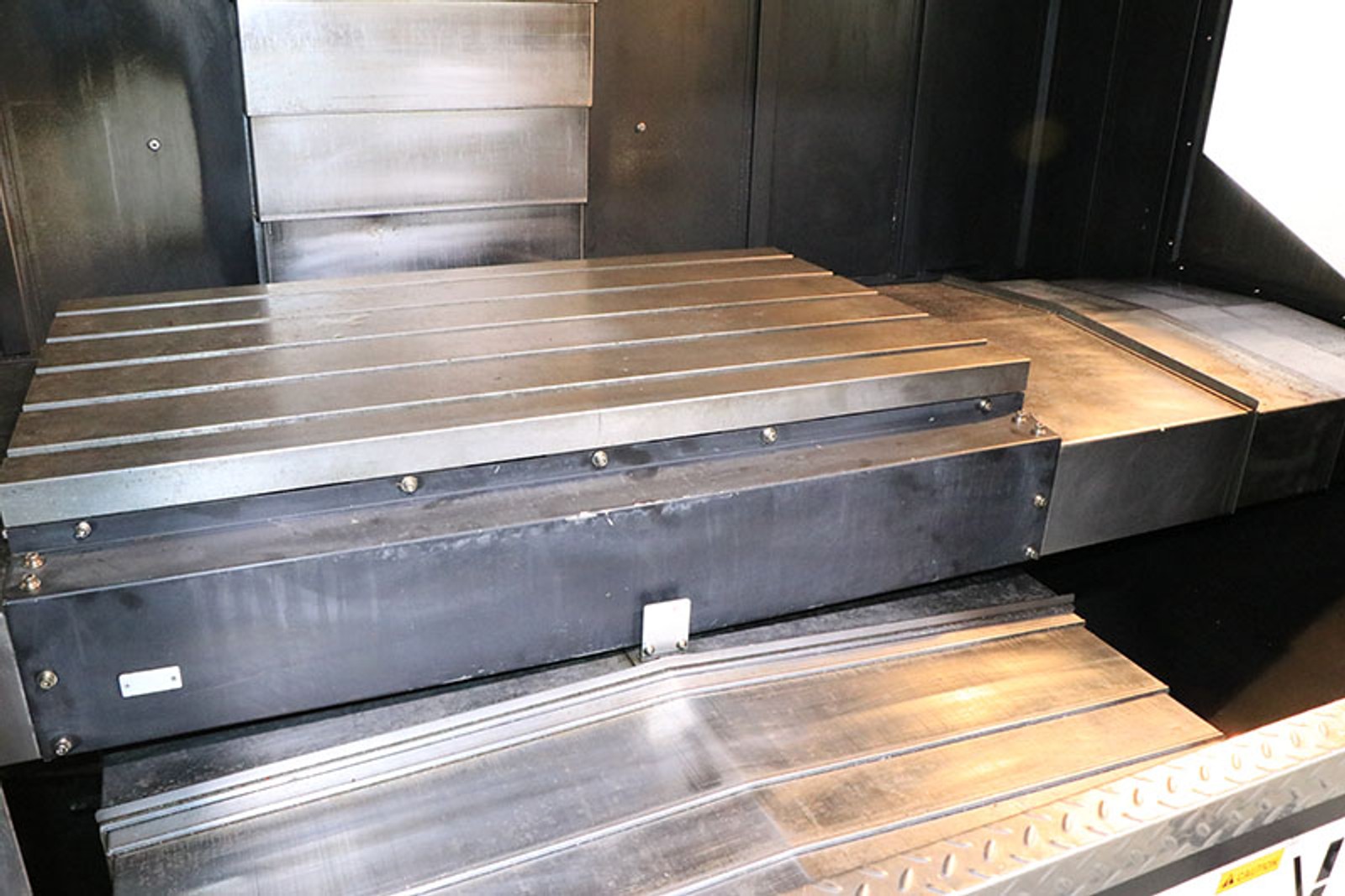

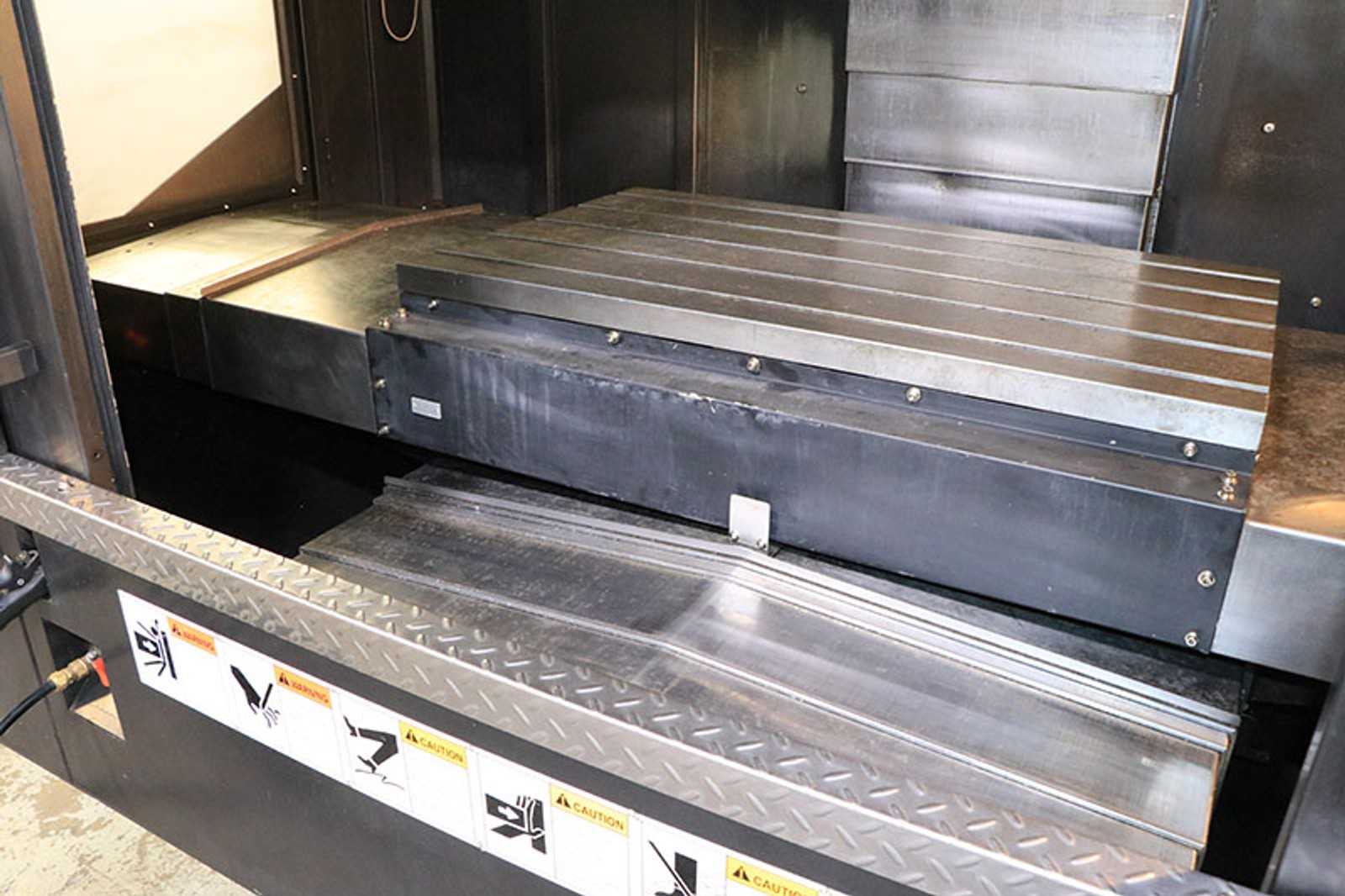

TABLE SIZE ....................... 43.3" x 25.6"
X AXIS TRAVEL .................... 35.4" 900mm
Y AXIS TRAVEL .................... 25.6" 650mm
Z AXIS TRAVEL .................... 23.6" 600mm
MAXIMUM TABLE LOAD ............... 1980 LBS
SPINDLE TAPER .................... CAT 40
MAXIMUM SPEED SPEED .............. 8000 RPM
TOOL MAGAZINE CAPACITY ........... 20 ATC
RAPID TRAVERSE RATE .............. 988.8 IPM
SPINDLE NOSE TO TABLE............. 4.9" MIN TO 28.5" MAX
APPROX FLOOR SPACE REQUIRED ...... 116"L X 88"W X 115.7"H
MACHINE WEIGHT ................... 15,400 LBS

INCLUDES:

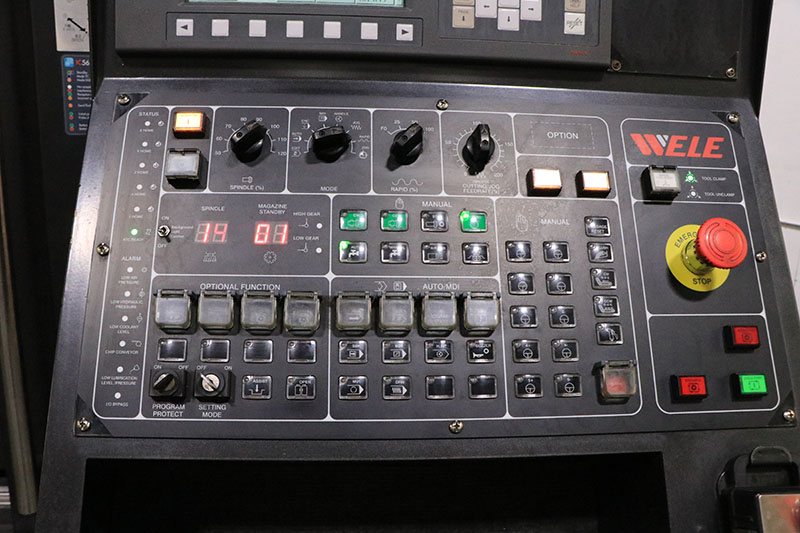

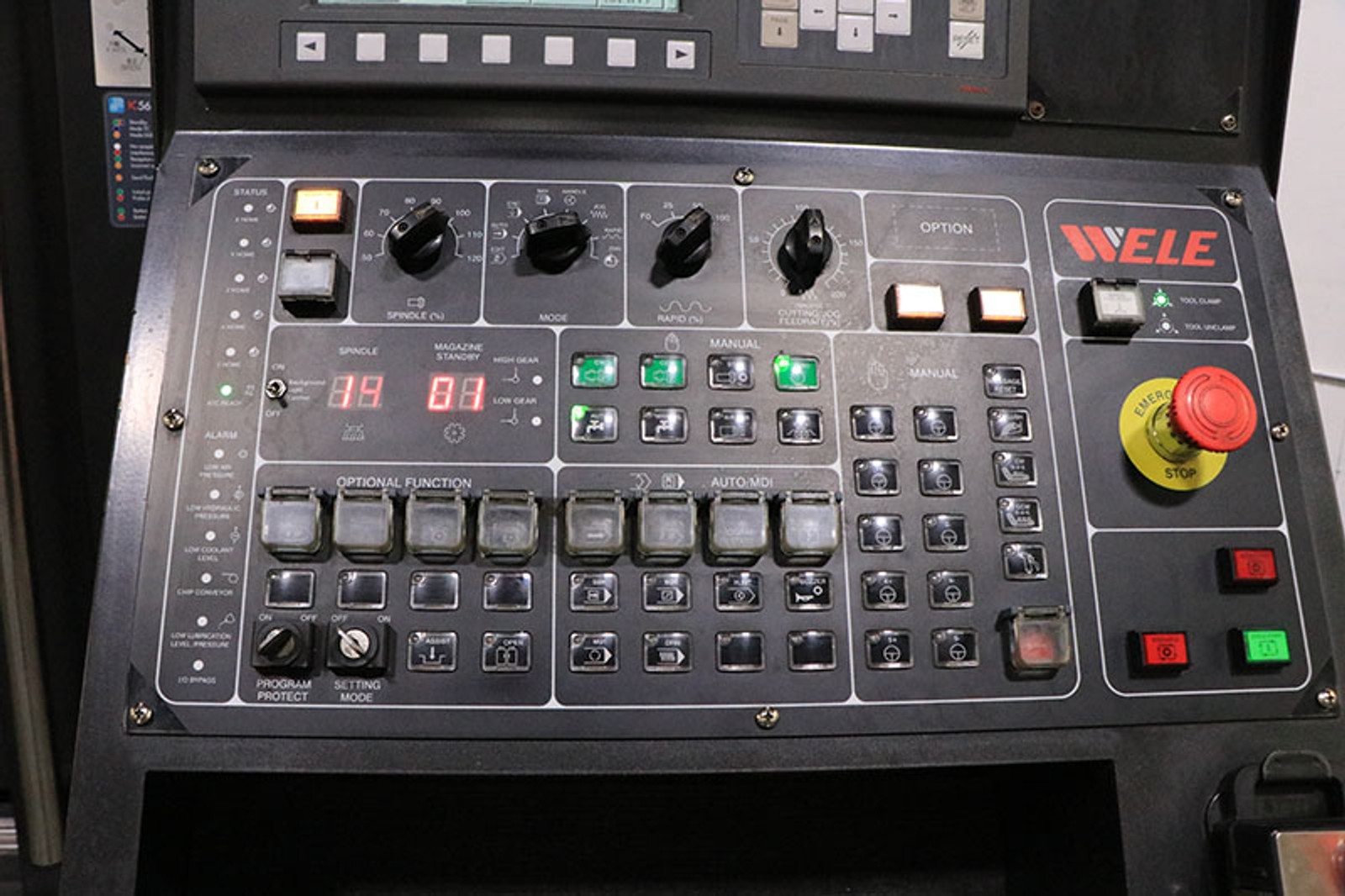

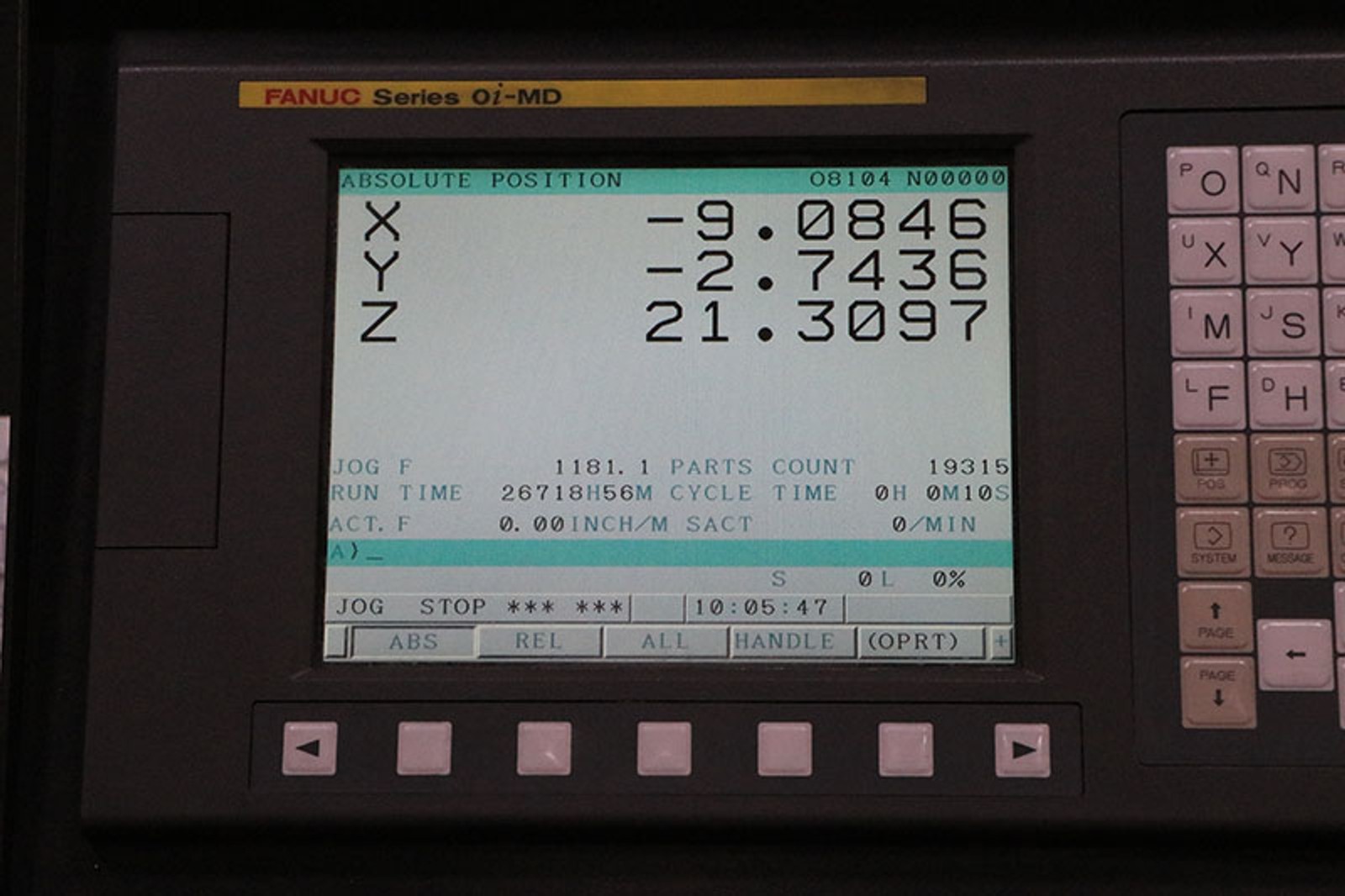

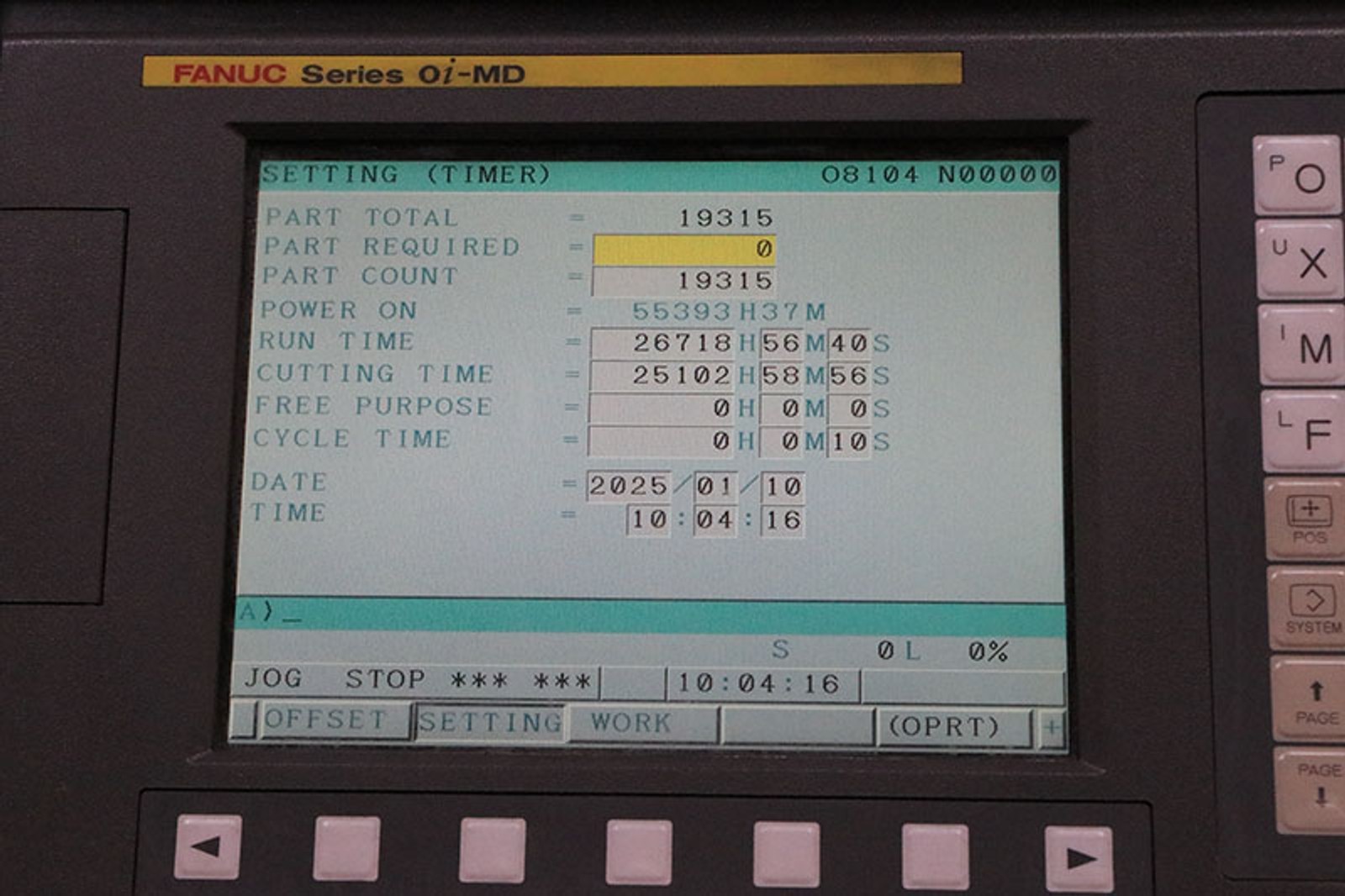

FANUC MODEL: OI-MD CONTROL
SET UP FOR RENISHAW PART PROBE
BOX WAYS

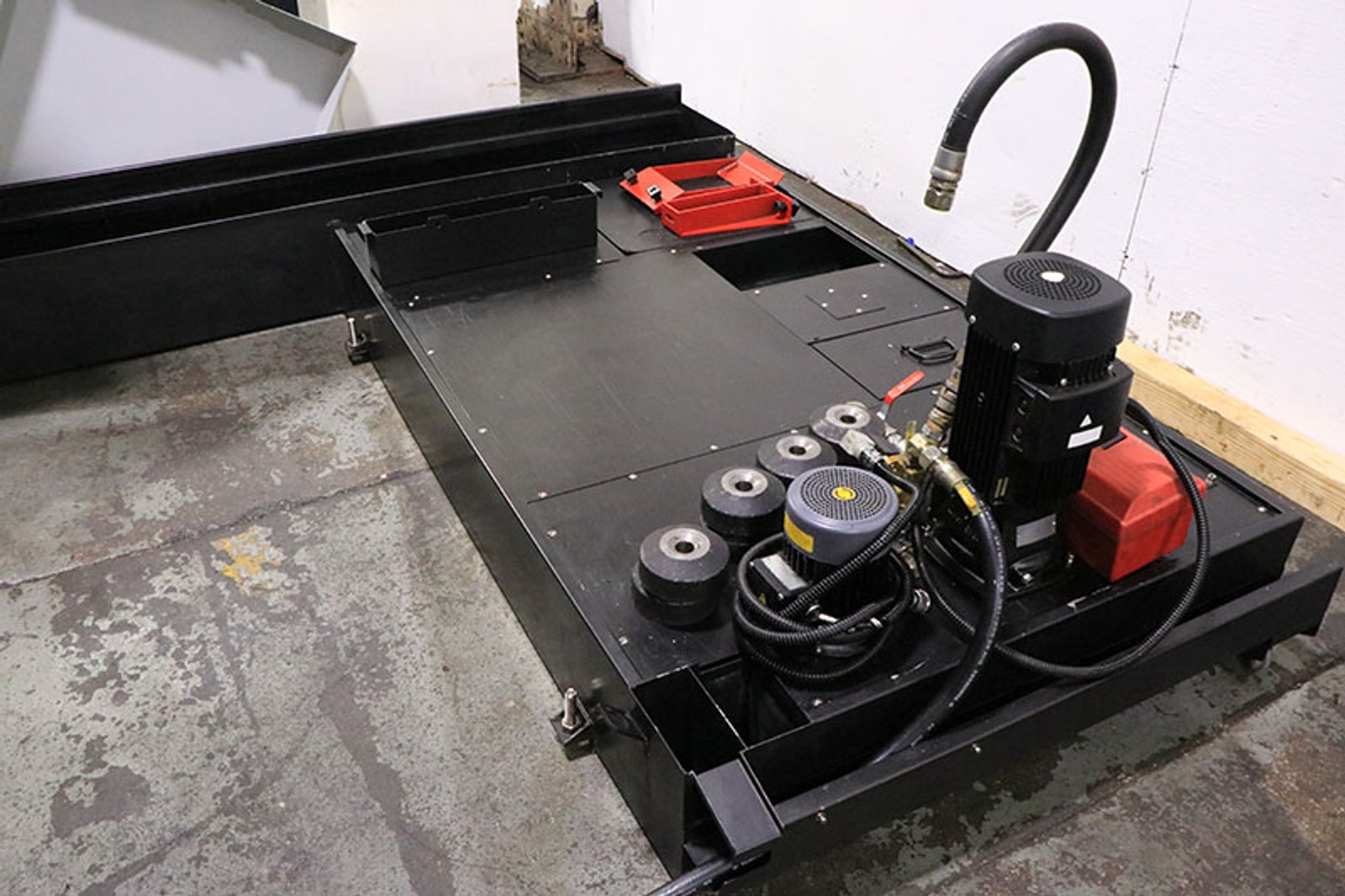

CHIP CONVEYOR

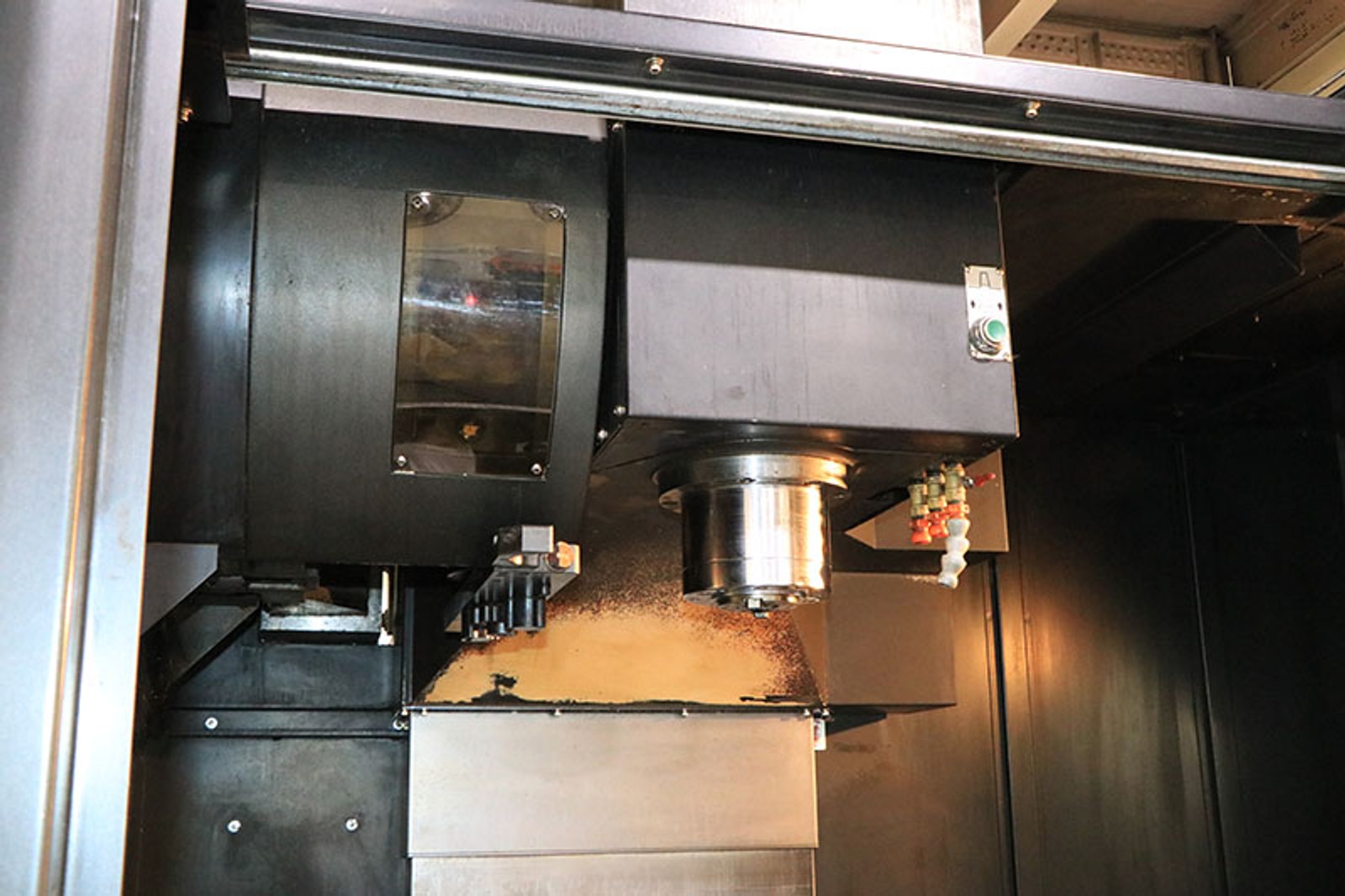

SIDE MOUNTED TOOL CHANGER
10/15 SPINDLE MOTOR

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
