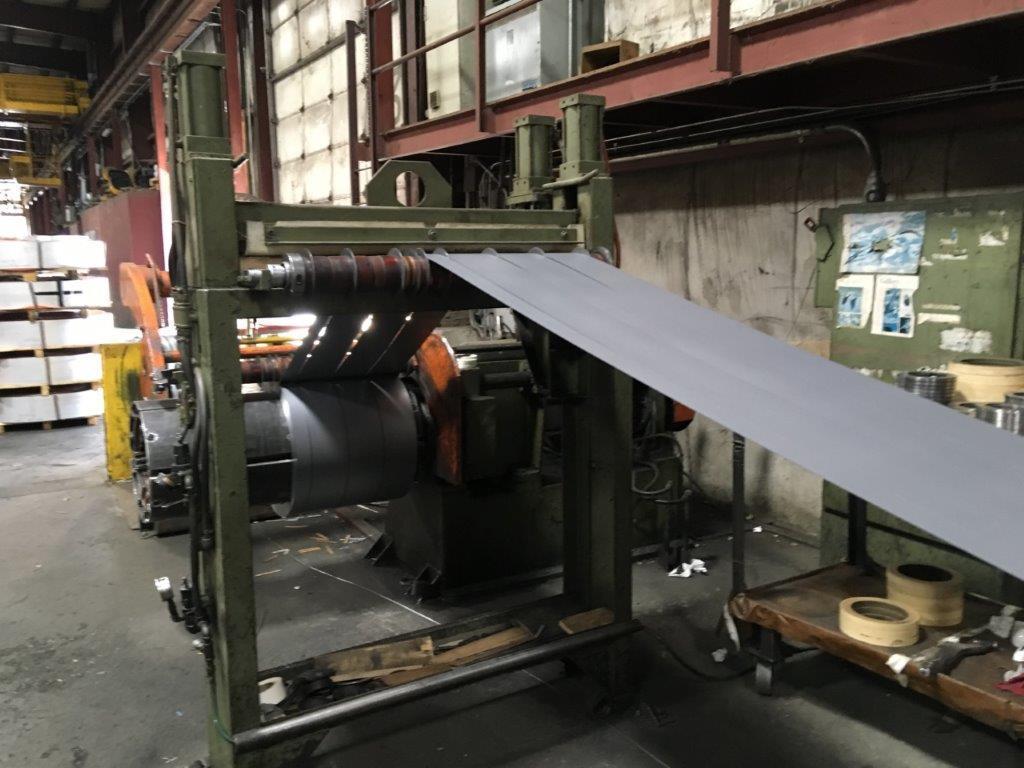

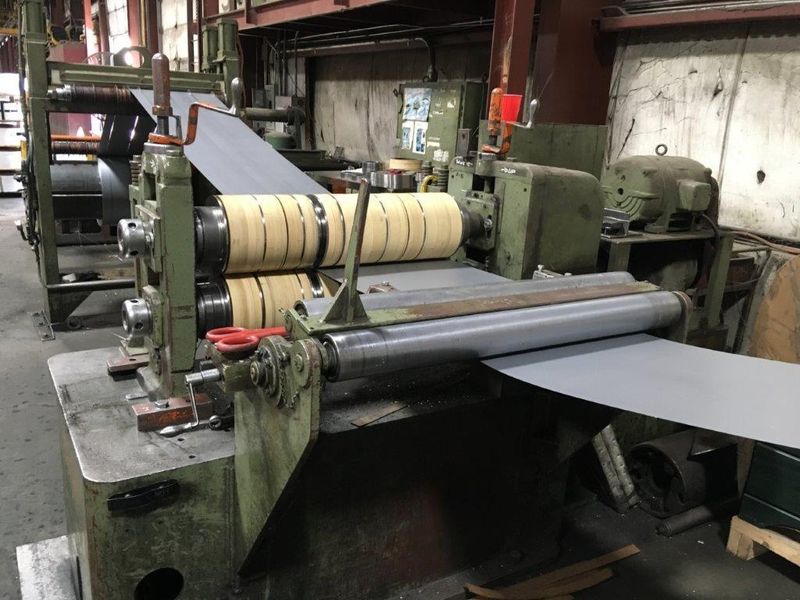

36" x .125" x 15,000# Yoder Slitting Line

Stock

102190A

Model

None listed

Dealer Location

Michigan

Spec Sheet

Width - 36 inches
Thickness - .125 inches
Coil Weight - 15000 pounds
Arbor Size - 4.5 inches


15,000# coil capacity
.008 thru .125 gauge capacity

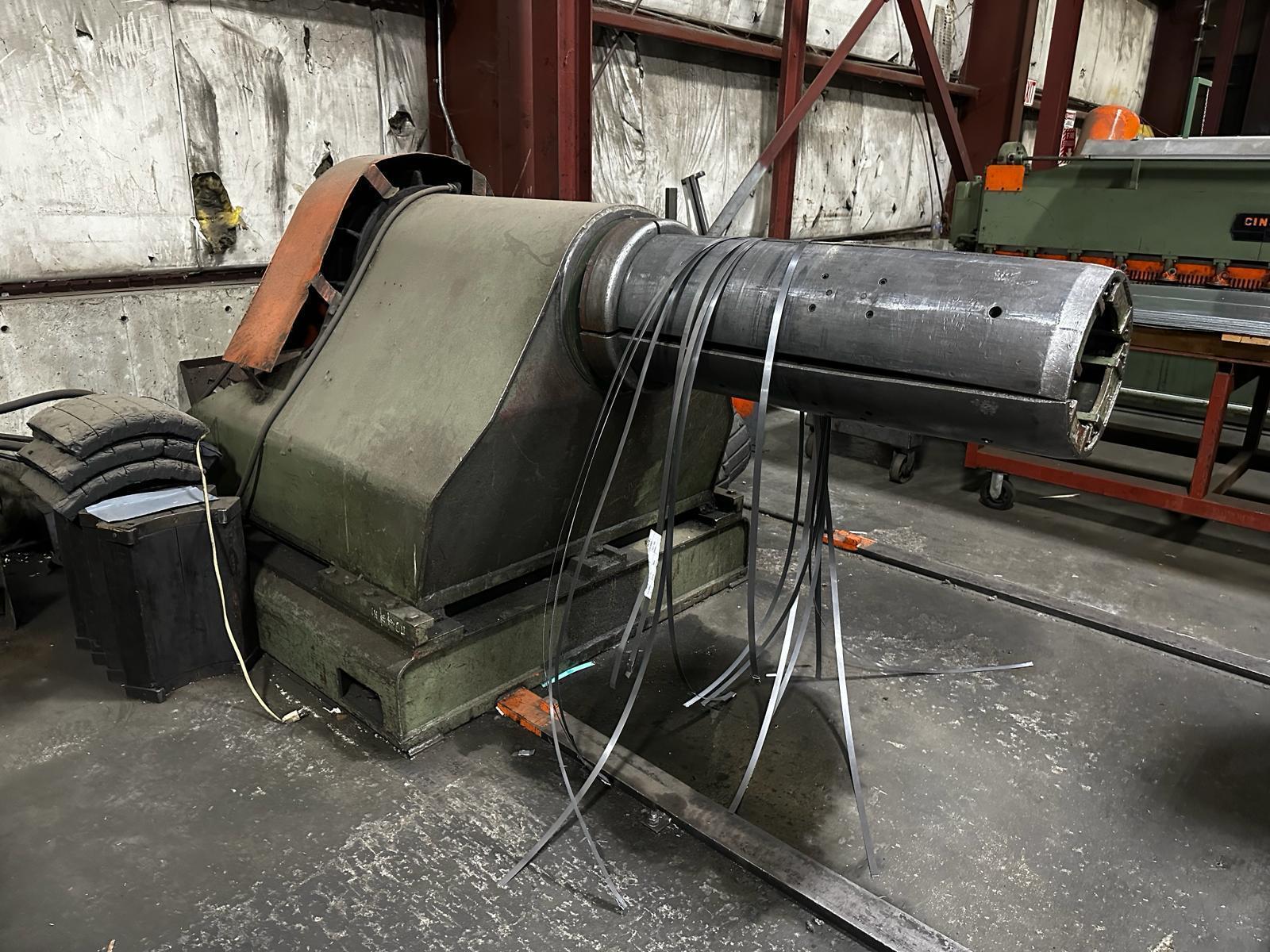

Uncoiler:
Yoder
15-1/2”  -  18-1/2” hydraulic expansion
20” ID and 24” ID adapter plates
hydraulic sliding base
air cooled brake

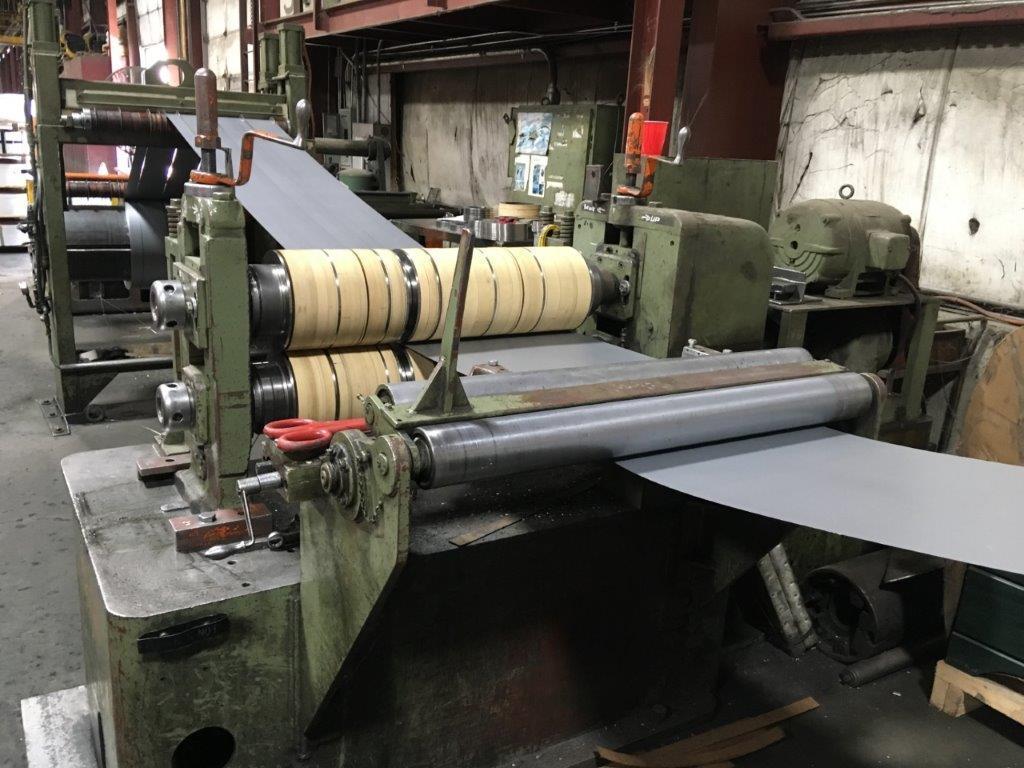

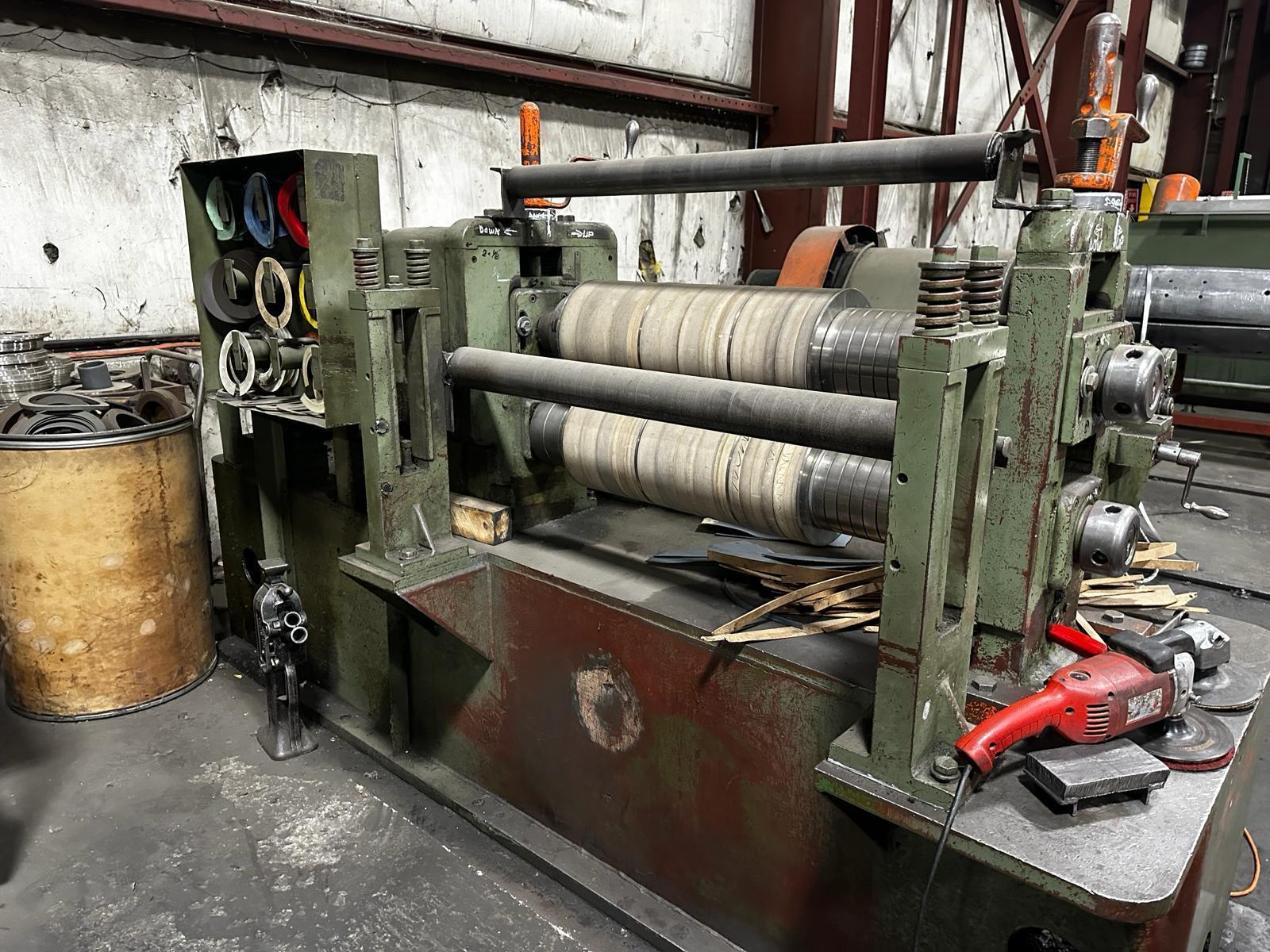

Slitter:
Yoder
4.500” arbors
electric feed-up drive
pinch rolls
edge guides

Tension Stand:
Custom Built
pneumatic drag wipe type
overarm

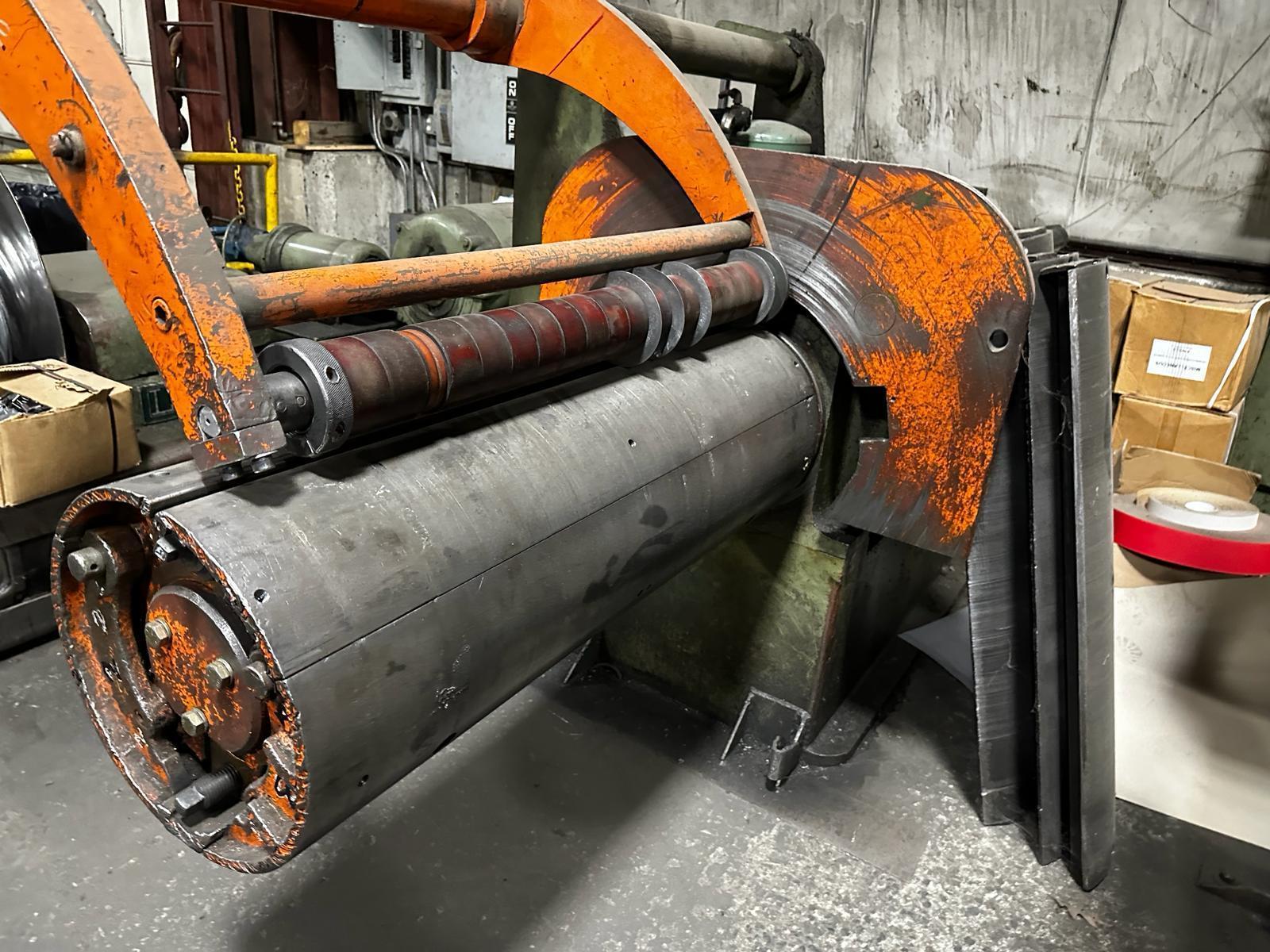

Recoiler:
15,000# coil capacity
16” ID – 20” ID with adapter plates
40 HP Eddy Current drive
Hydraulic push off
mechanical gripping and expansion
pneumatic controlled overarm

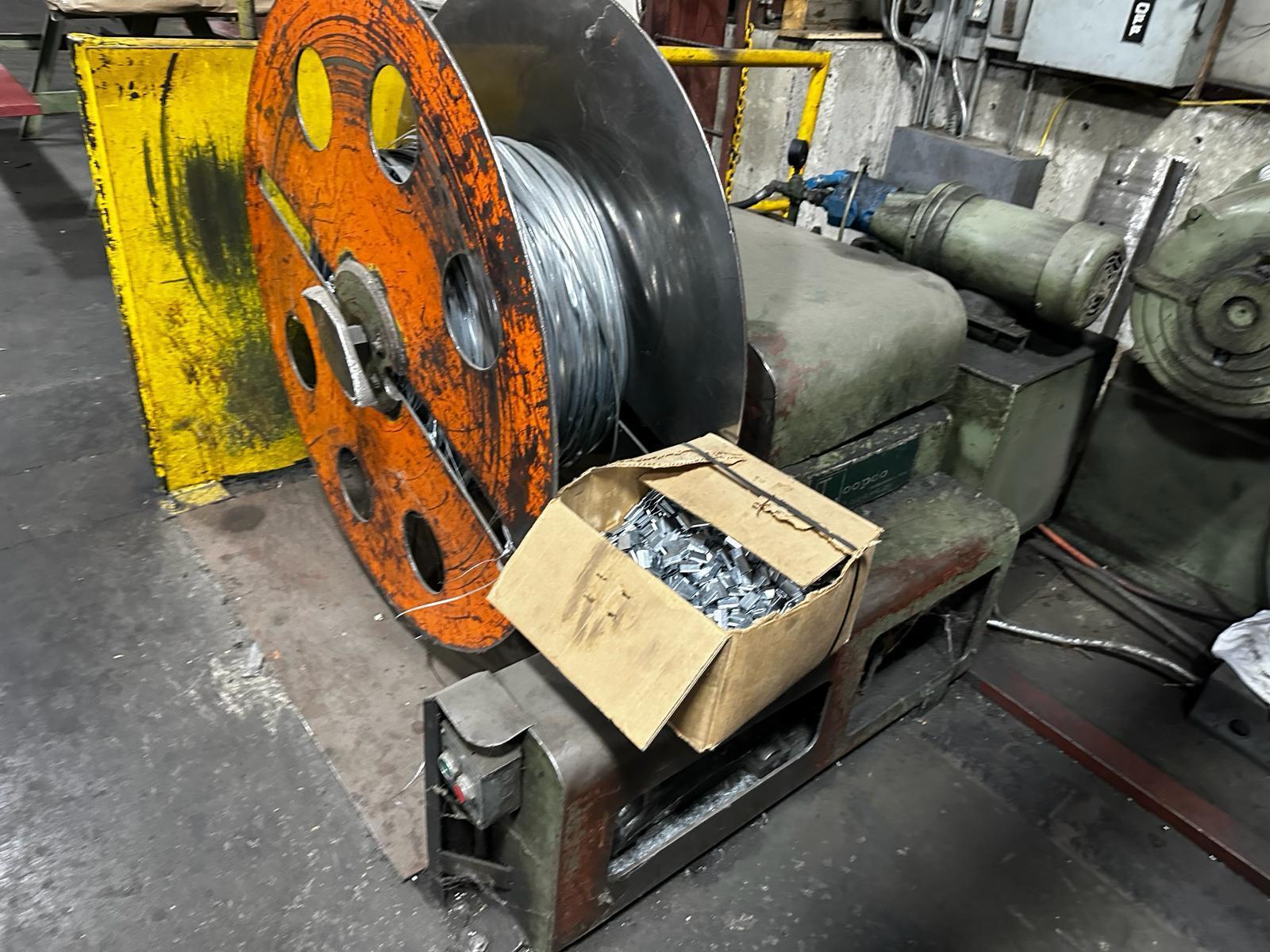

Scrap Winder:
1500# capacity  -  self-contained hydraulic


Hydraulic Unit:

All Electrics are 460 volt 3 phase

Tooling Knives Spacers and Rubbers
