52" x 0.075" x 25,000# ASC Multi-Blank CTL Line

Manufacturer

ASC

Category

Fabricating Machines

Type

CUT-TO-LENGTH LINES

Stock

11820-HK

Model

None listed

Dealer Location

Ohio

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

YEAR: 1996


Width: 52"
Weight Capacity: 25,000 lbs.
Thickness Range: 0.015" - 0.075"
Coil ID Range: 18.25" to 21.50"
Line Speed: 150 FPM
Line Direction: Left to Right

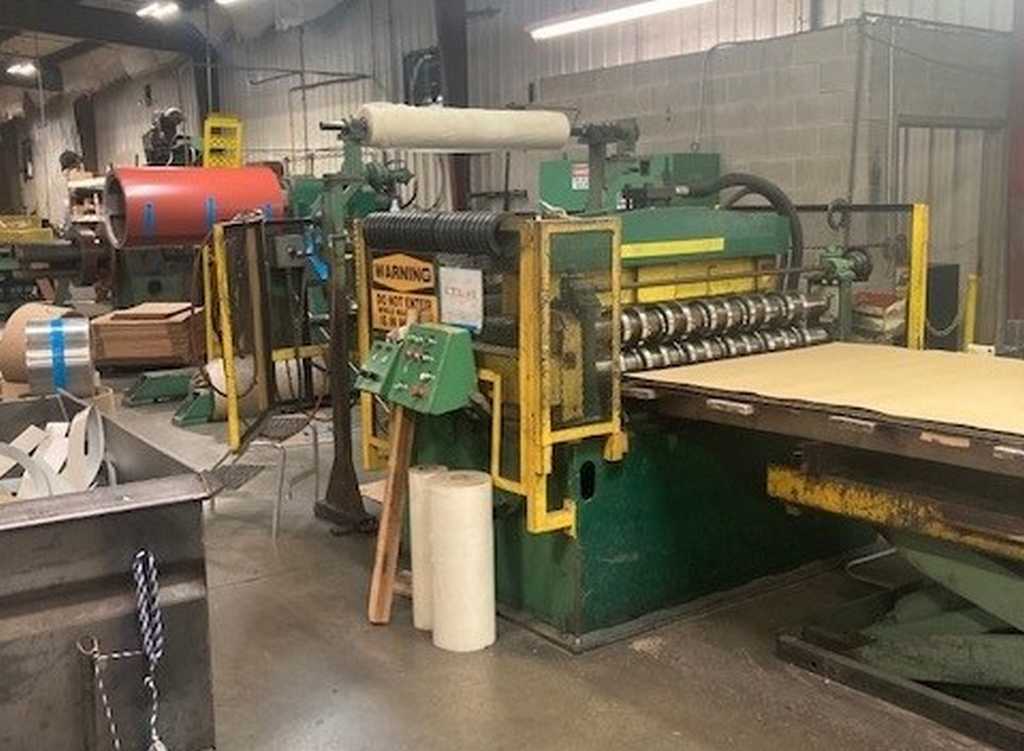

Consisting of the following:

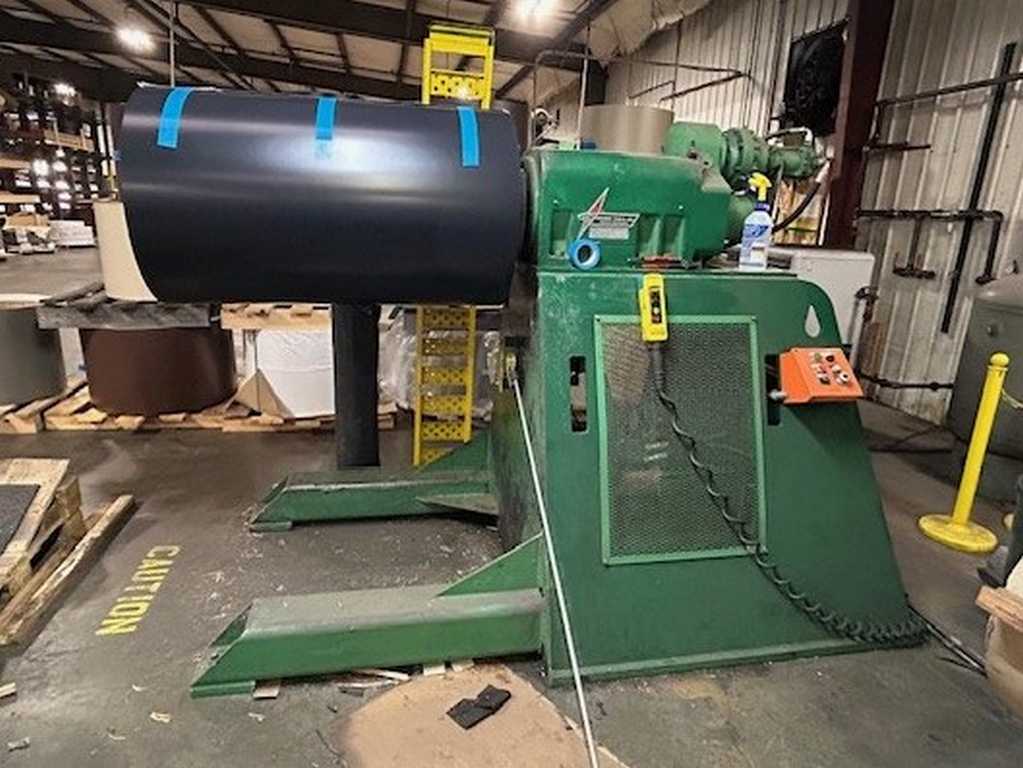

-Mandrel Uncoiler:
Hydraulic Wedge Type Expansion
Expansion Range: 18.25" - 21.50"
Hydraulic Motor Drive
Loop Control Arm

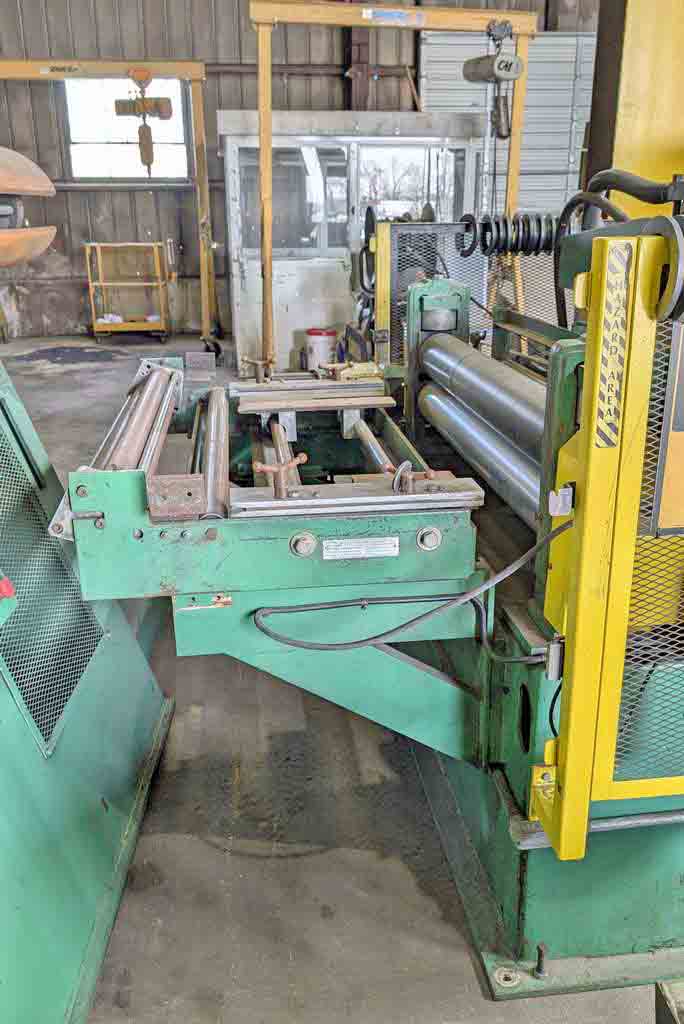

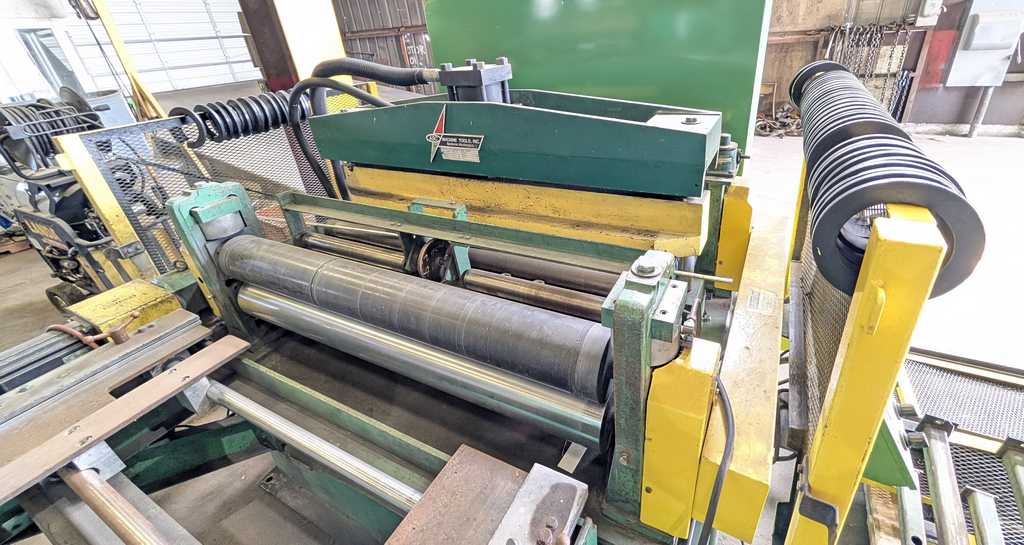

-Slear Unit:
Entry 3 Roll Coil Breaker
Entry Passline Roll
Entry Side Guides

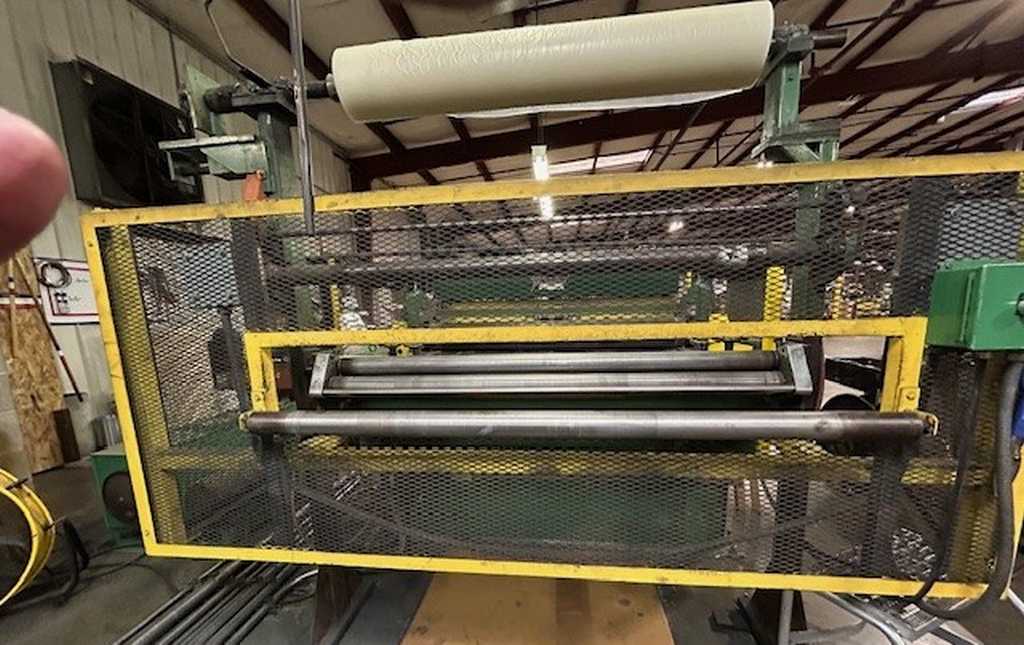

Plastic Film Applicator

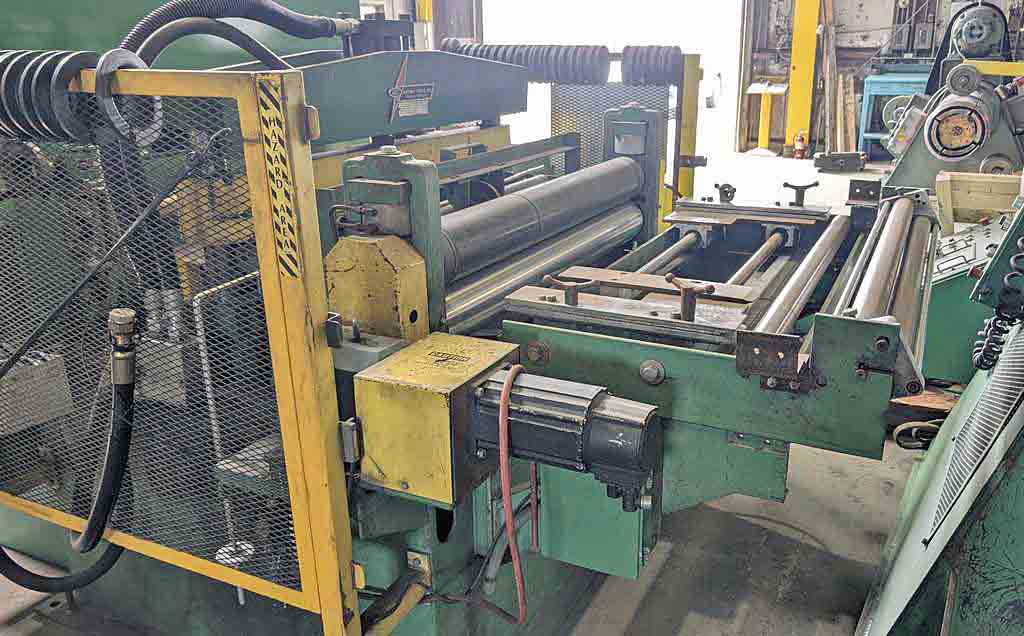

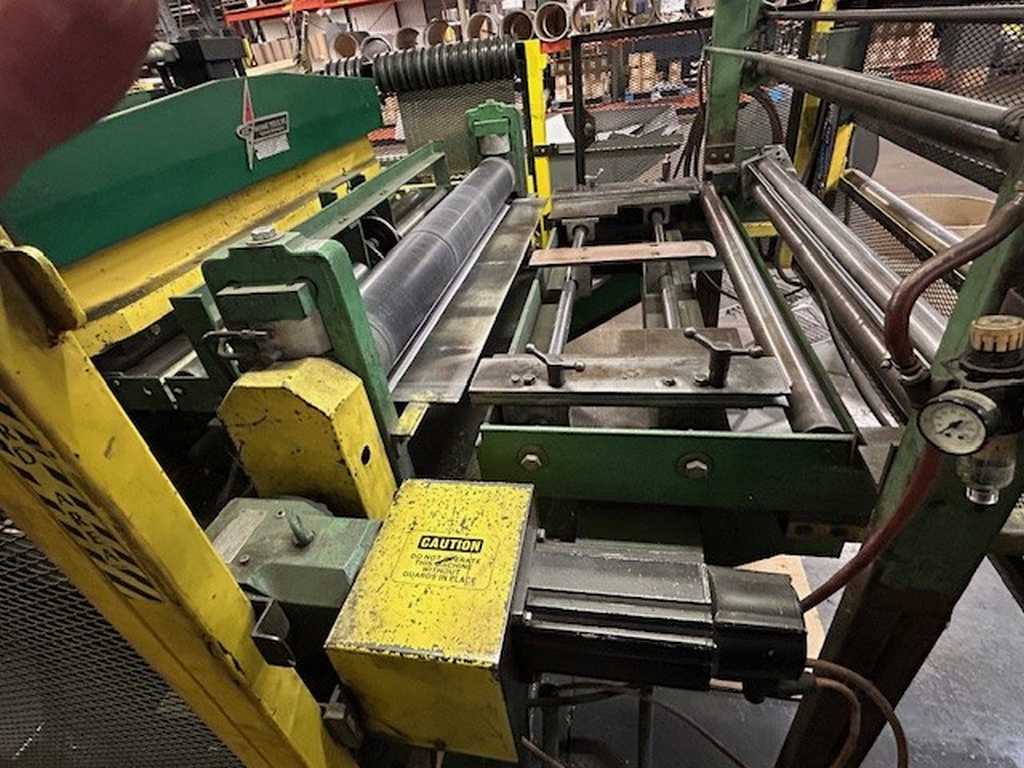

AC Servo Feeder
6" Dia. Pinch Rolls
AC Motor Drive

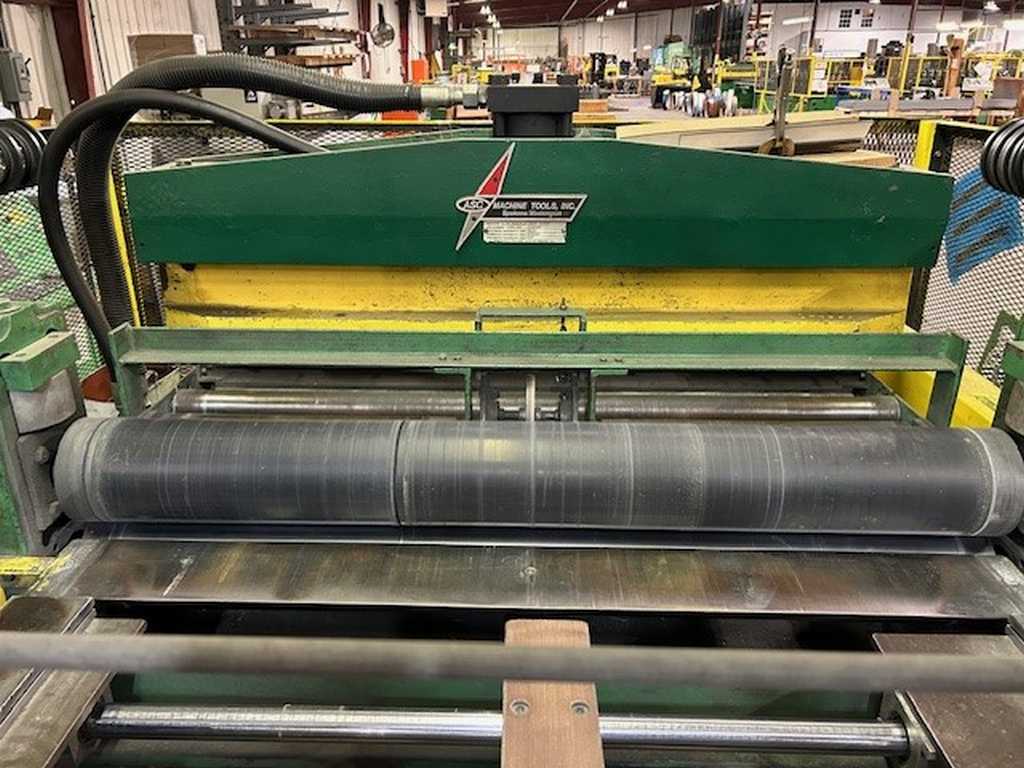

Cutoff Shear
6 Ton Hydraulic

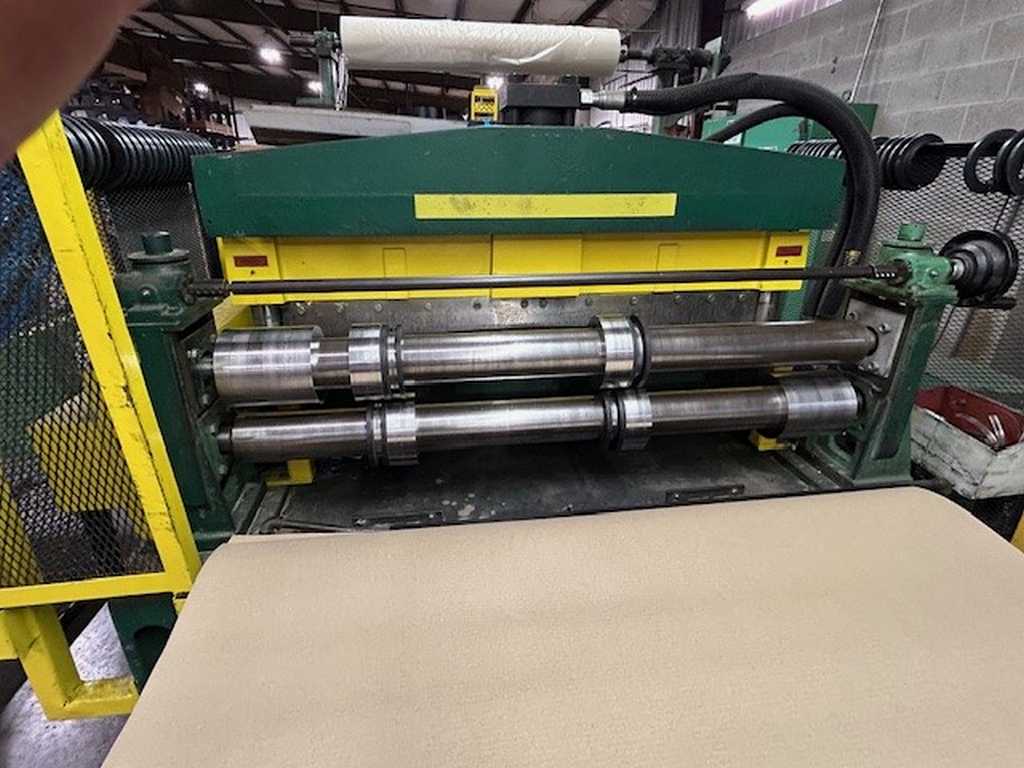

Slitter Head
4" Dia. Arbors

-Scissors Lift Table:
4,000# Capacity
72" x 96" Table
Low Height: 9"
Raised Height: 57"

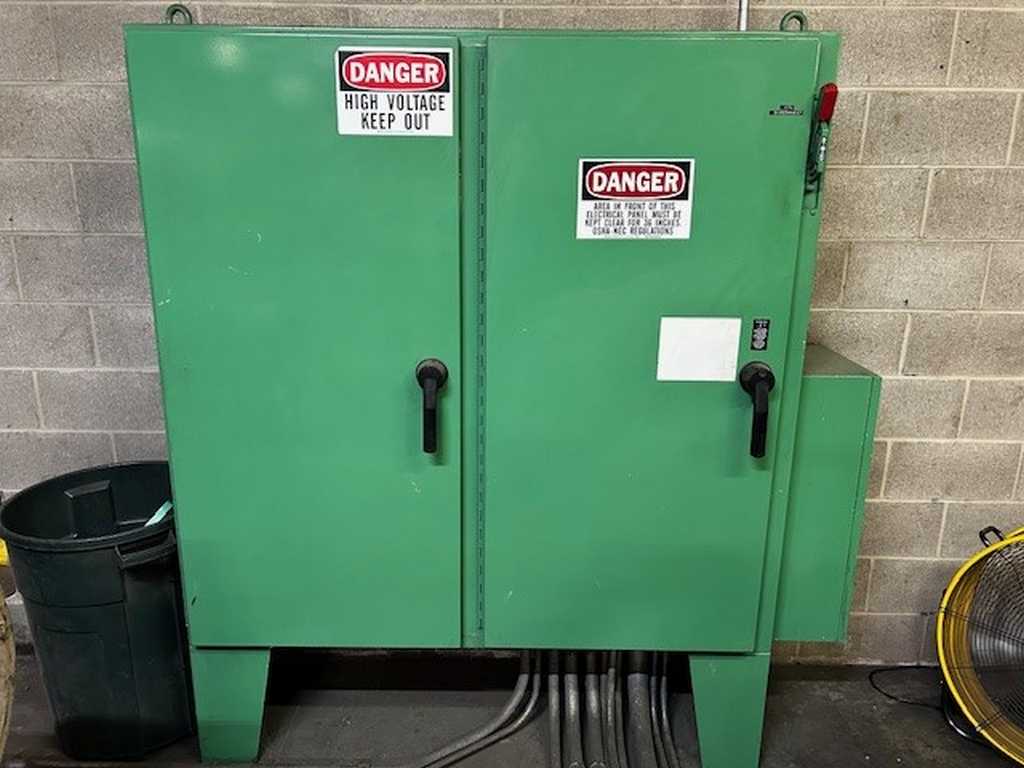

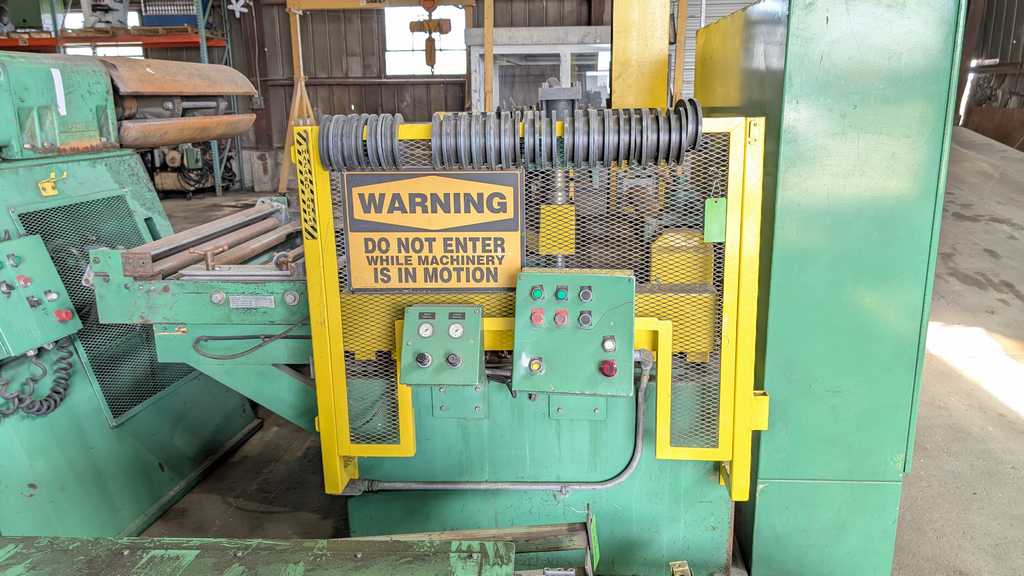

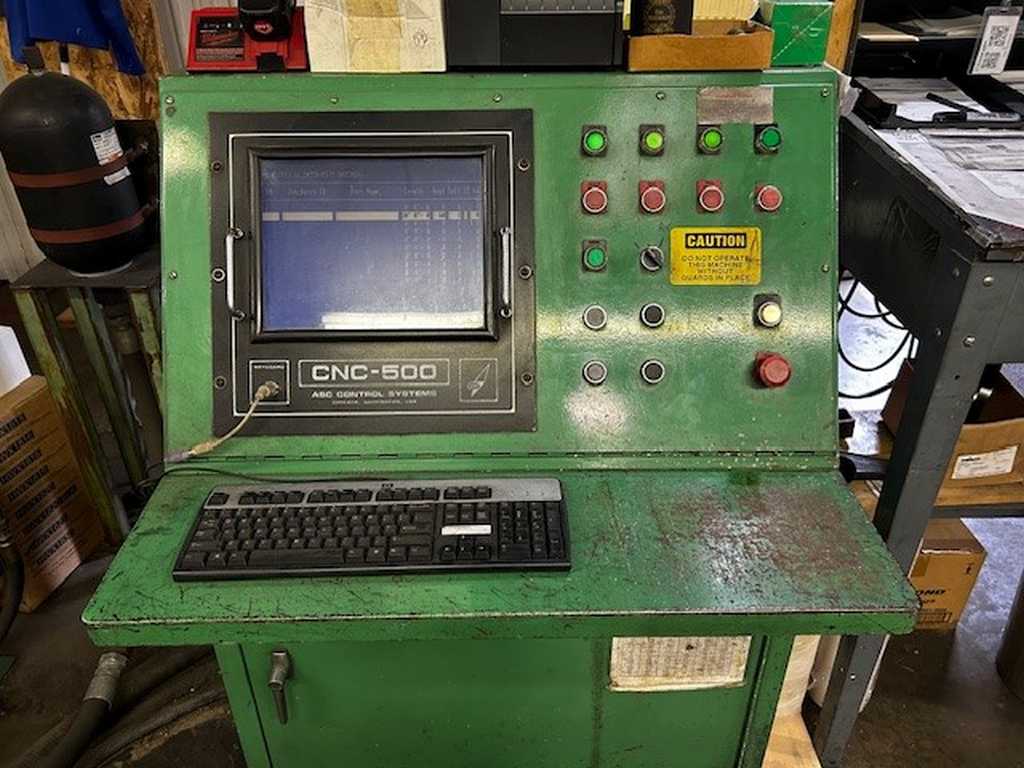

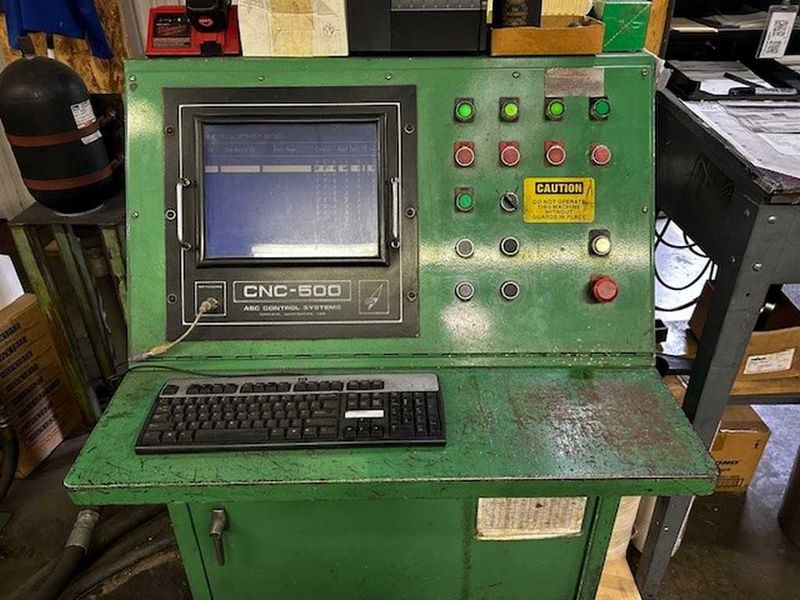

-Main Operators Control Panel:
ASC Controls CNC 500 Length Control

-10 HP Hydraulic Power Unit:

-Removed and in storage: Toledo, OH.
