62" x 0.076" Herr Voss, Strand Extensioner, 5 HI

Manufacturer

HERR VOSS

Category

Fabricating Machines

Type

LEVELERS, TENSION

Stock

10852-HK

Model

None listed

Dealer Location

Ohio

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

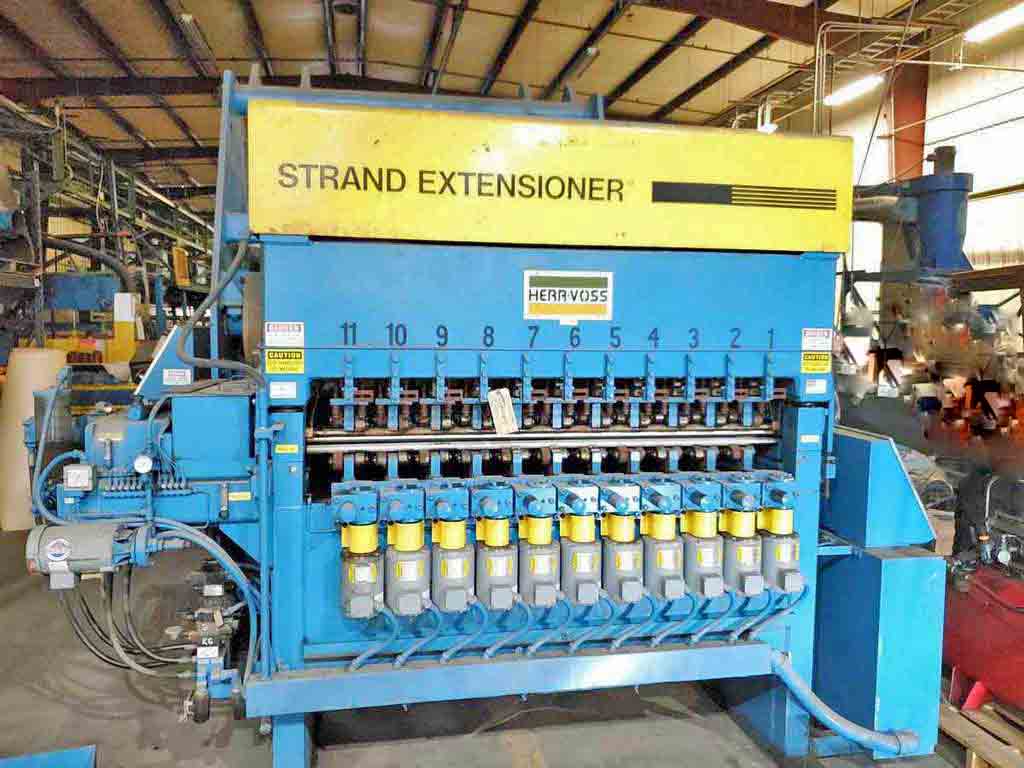

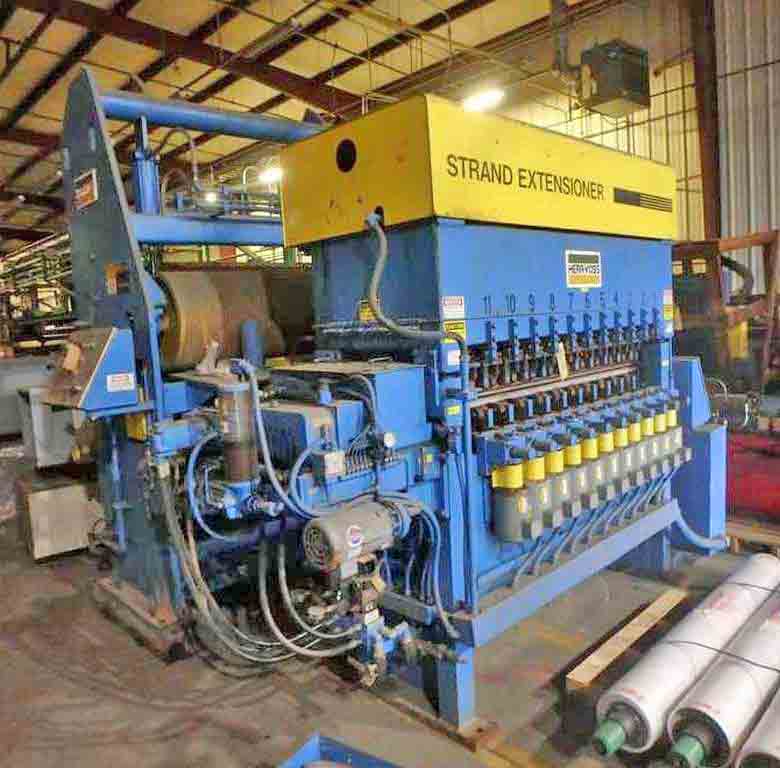

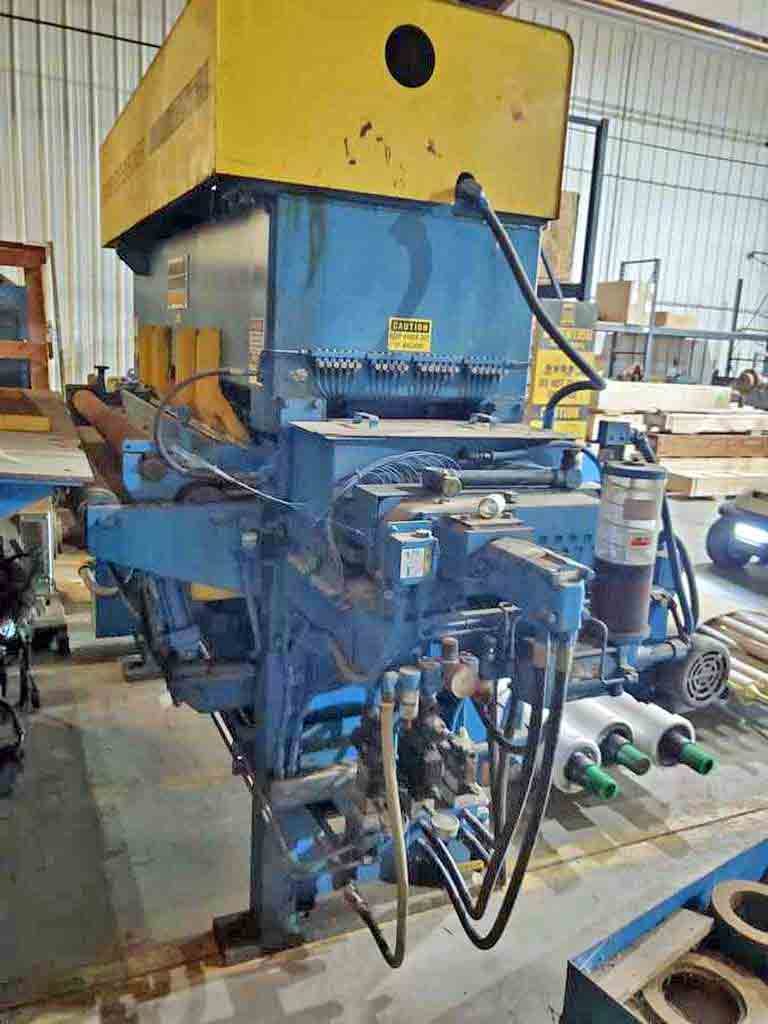

Herr Voss Strand Extensioner 5 HI

-Model: 72/1.156-23/5 HI / RH
-Width Capacity: 62.5" Max.
-23 Roll design, 11 over 12
-Minimum Coil Thickness: 0.008"
-Maximum Coil Thickness: 0.040" (0.076" depending on Recoiler hp)
-Maximum Line Speed: 1500 FPM
-Material Yield Strength: 12,000 to 40,000 PSI
-72" Roll Face
-1.1560" Roll Diameter
-11 Flights of Motorized Backups
-Hydraulic Motor Drive with Pinion Box
-Lube system
-Operators Panel w/Joystick Controls
-Passline: Approx. 52"
-Line direction: R - L
-Removed and in Storage: Detroit, MI.

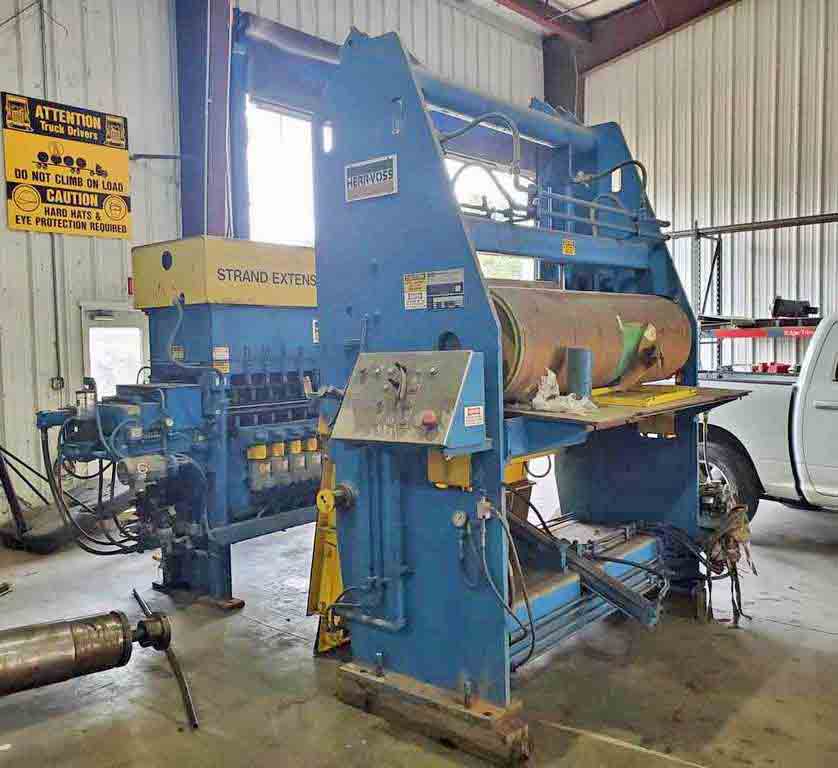

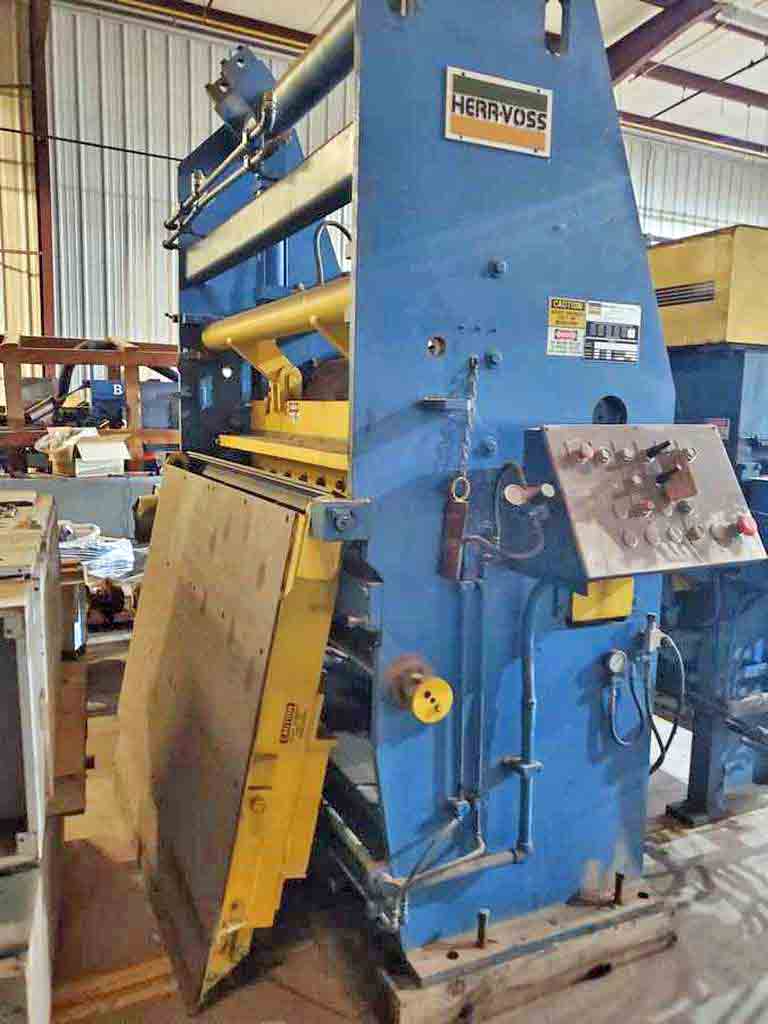

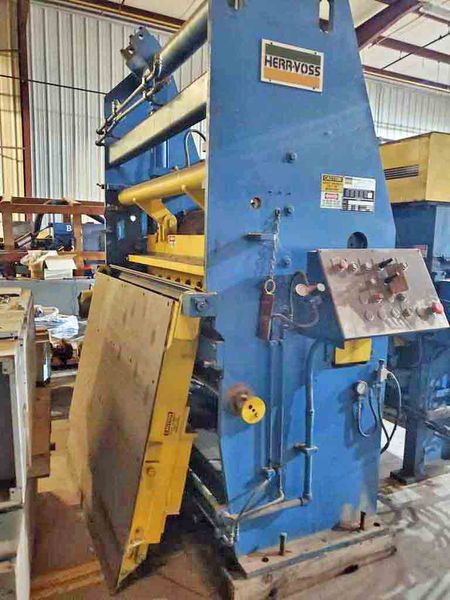

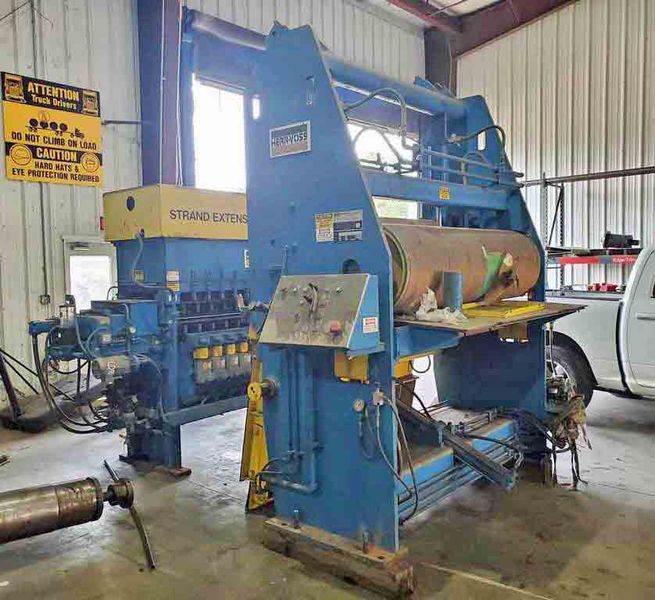

Exit Unit:

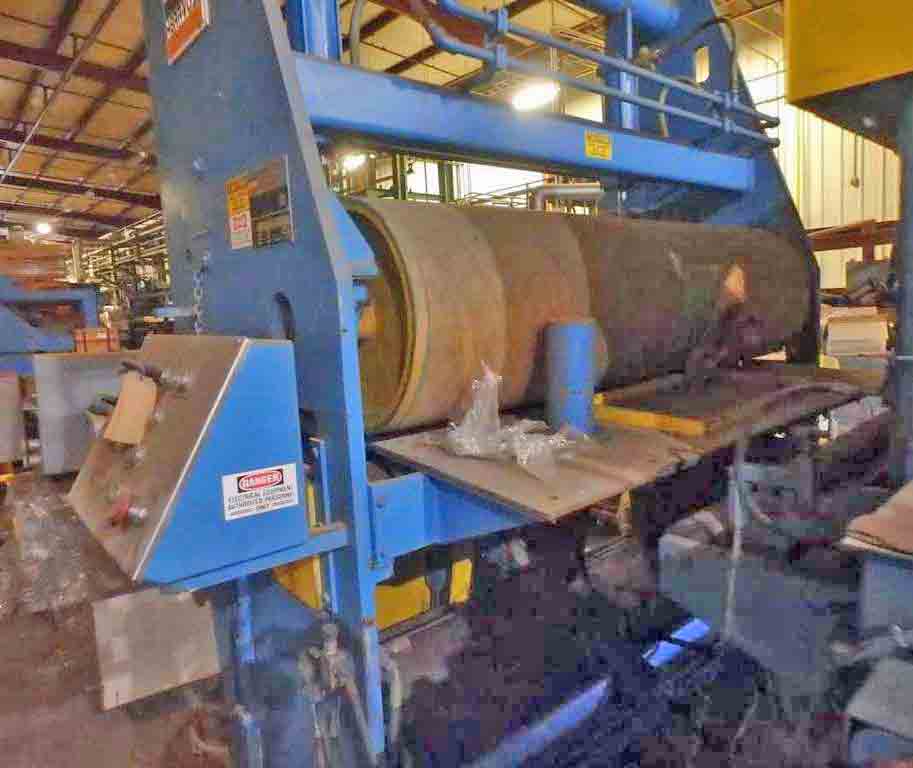

-Deflector Roll, 21" Dia. x 72" Face, Polyurethane Covered
-Bottom Nip Roll, 6" Dia. x 77" Face, Polyurethane Covered
Driven by Hydraulic Motor
-Hydraulic Crop Shear
72" Long Blade
-Exit Threading Table
-Attached Operators Panel
-Passline: Approx. 52"

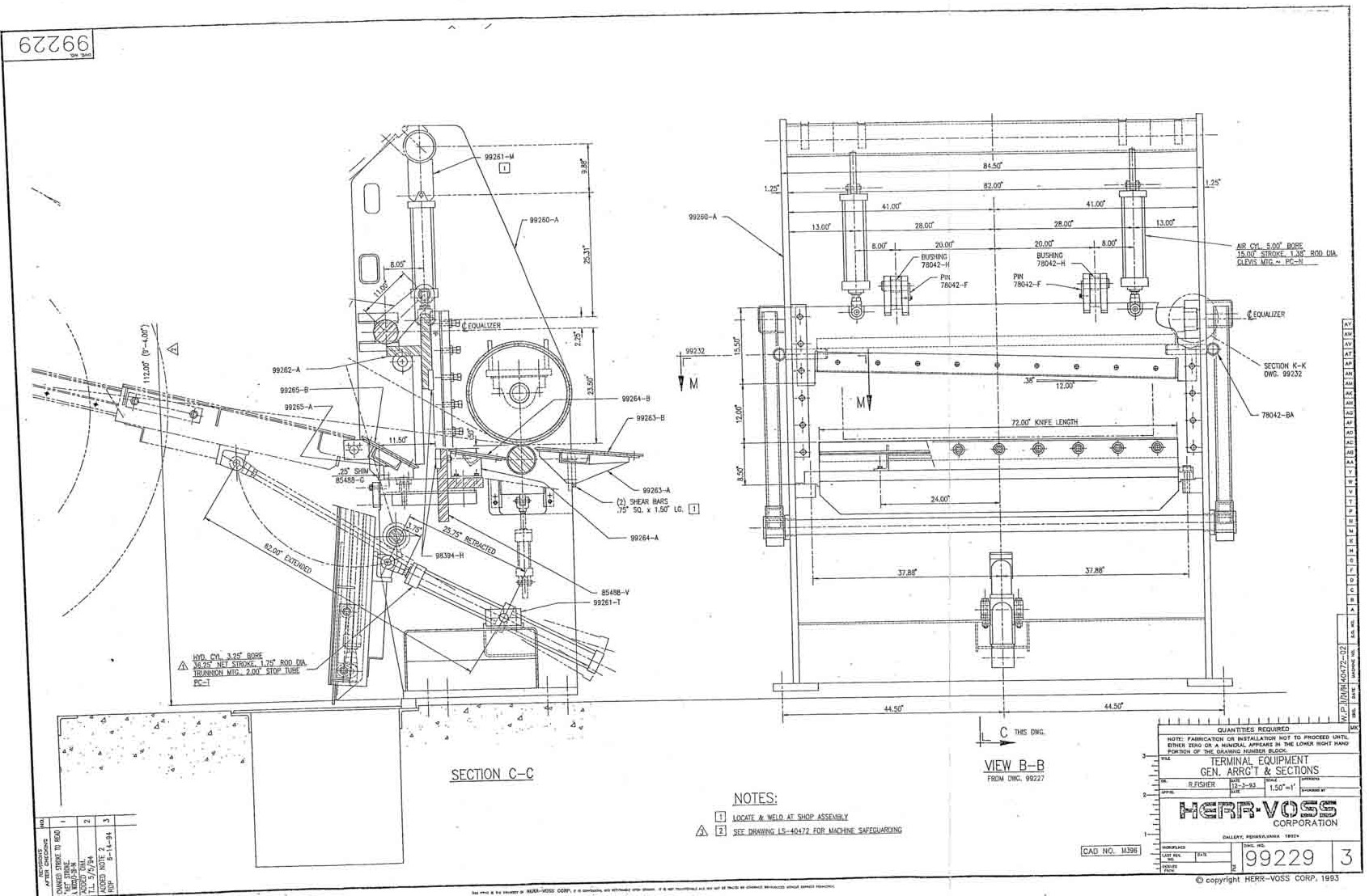

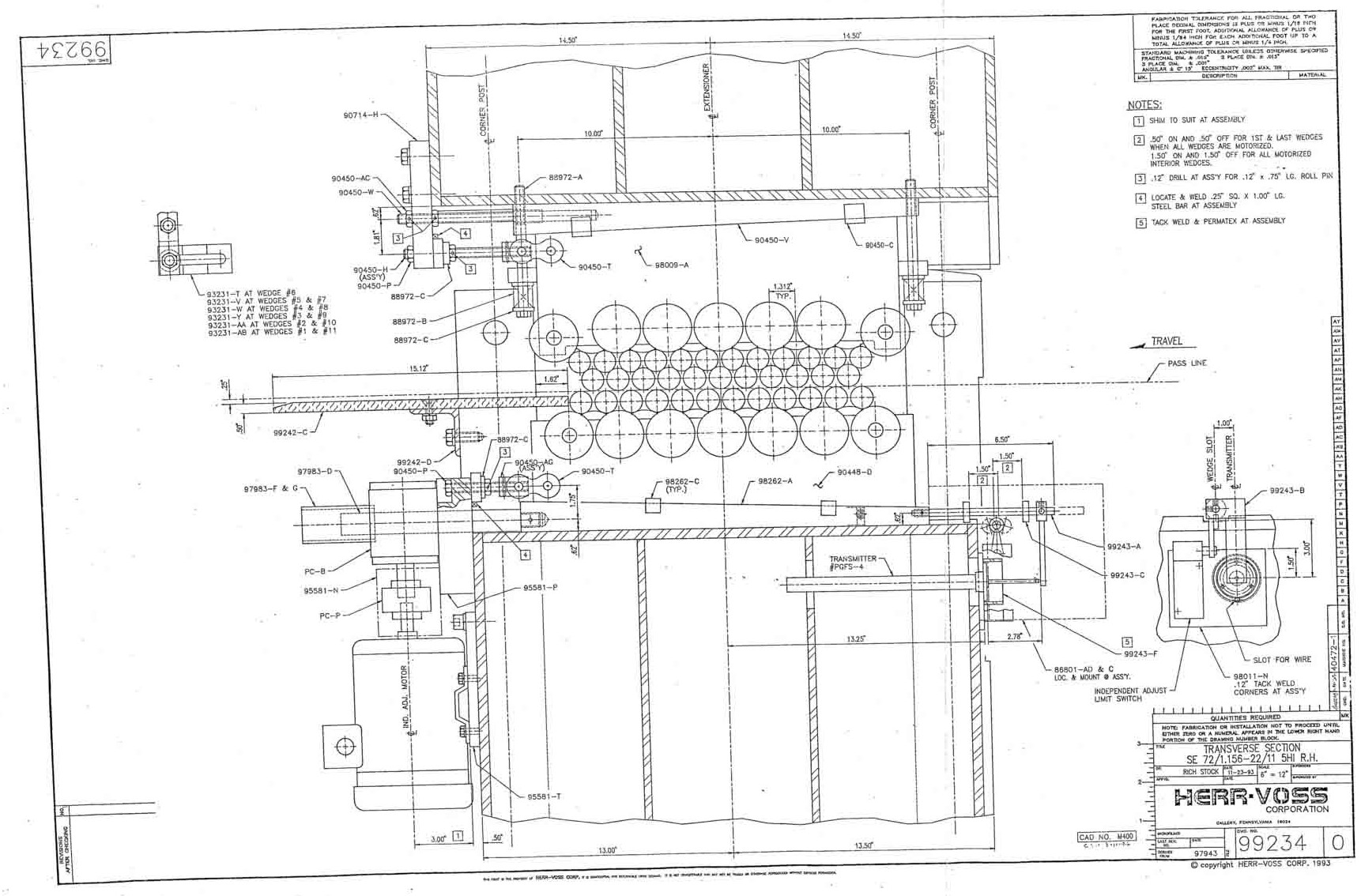

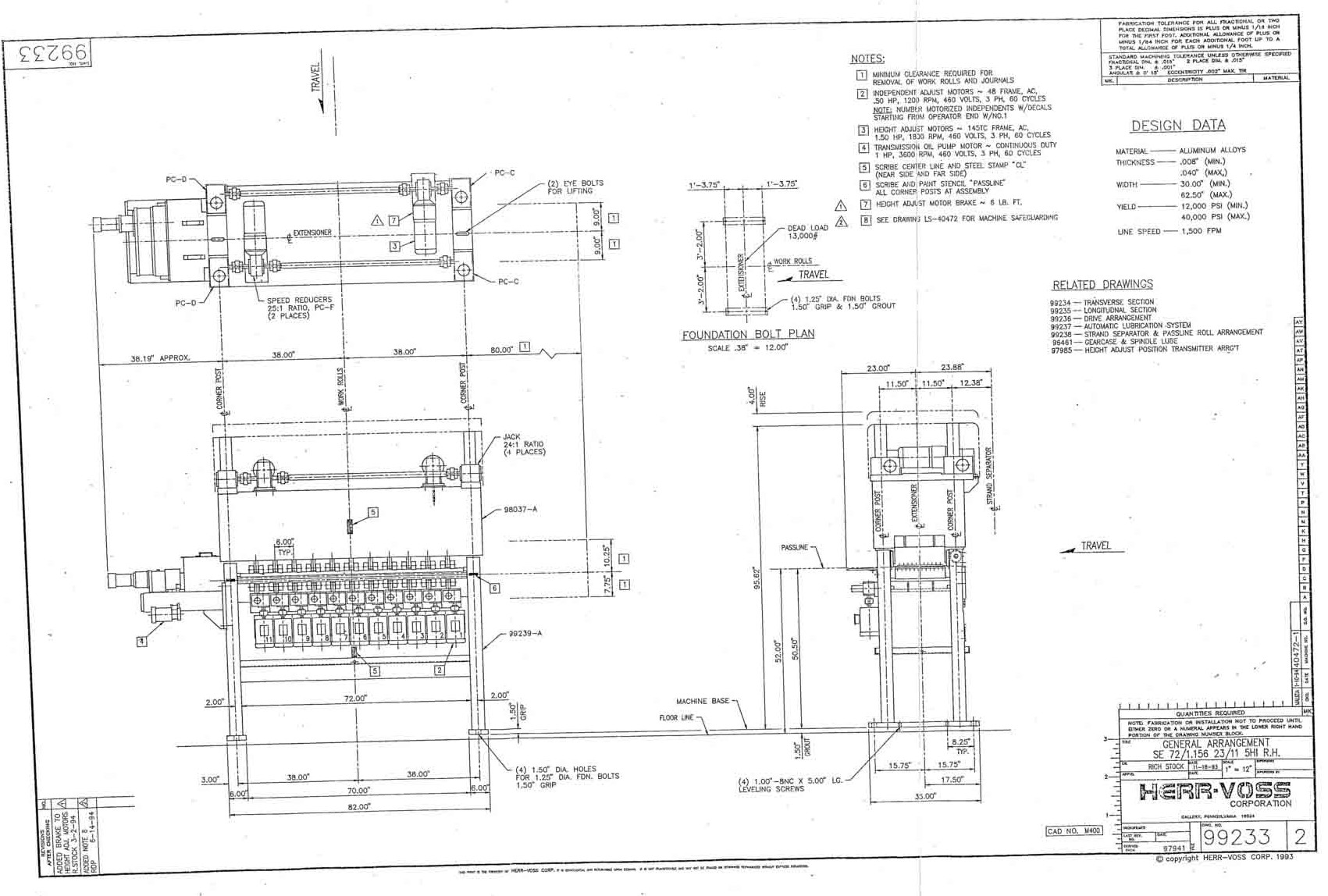

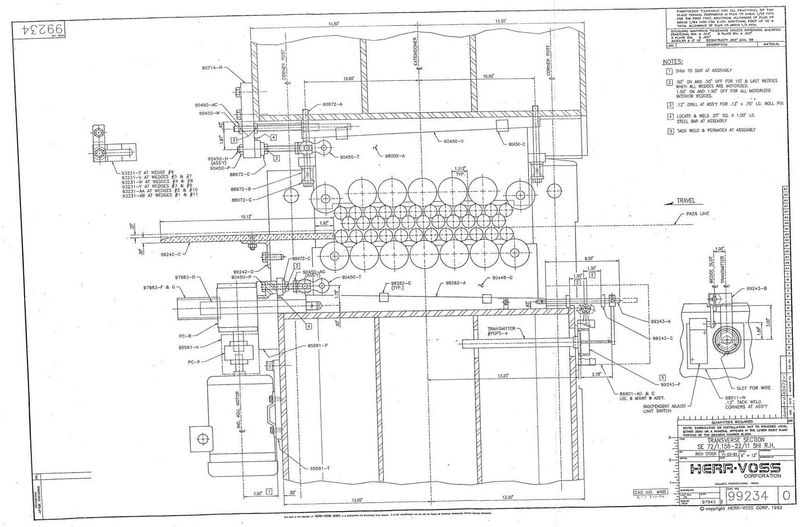

-Operators/Maintenance Manual with Machine Drawings

-Spare Rolls

-Removed and in Storage: Detroit, MI.
