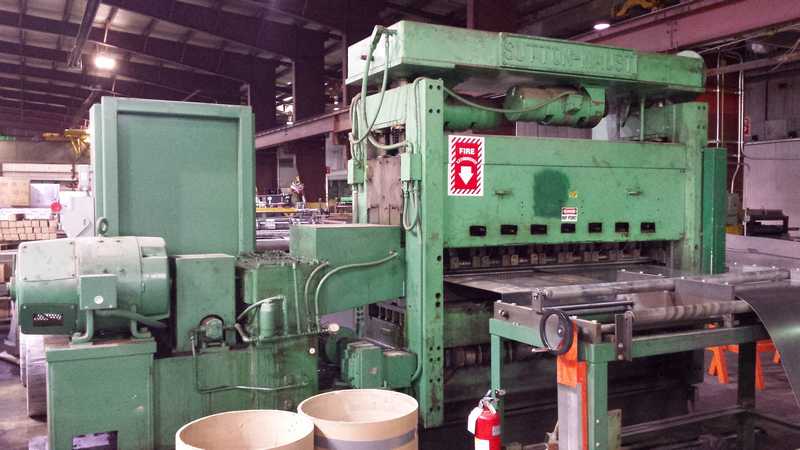

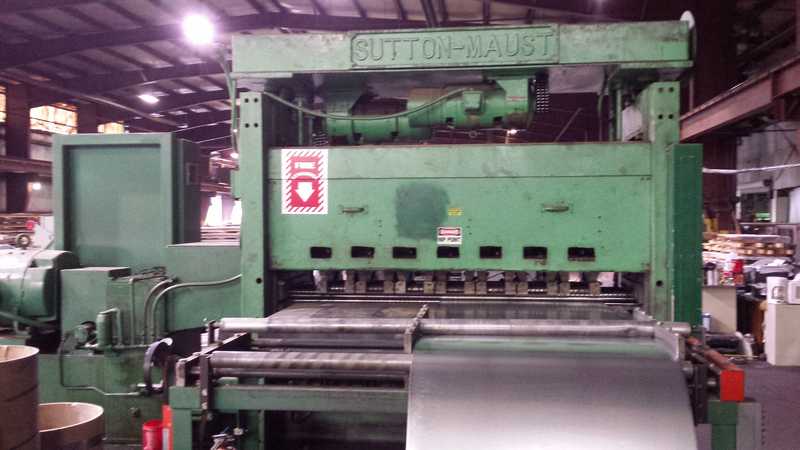

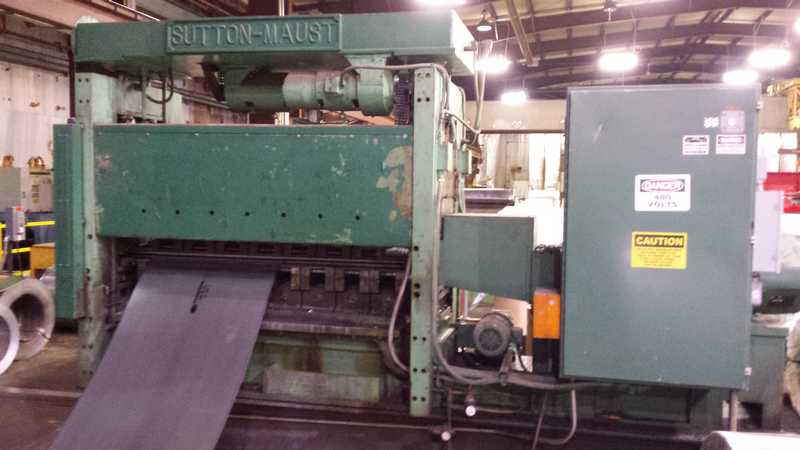

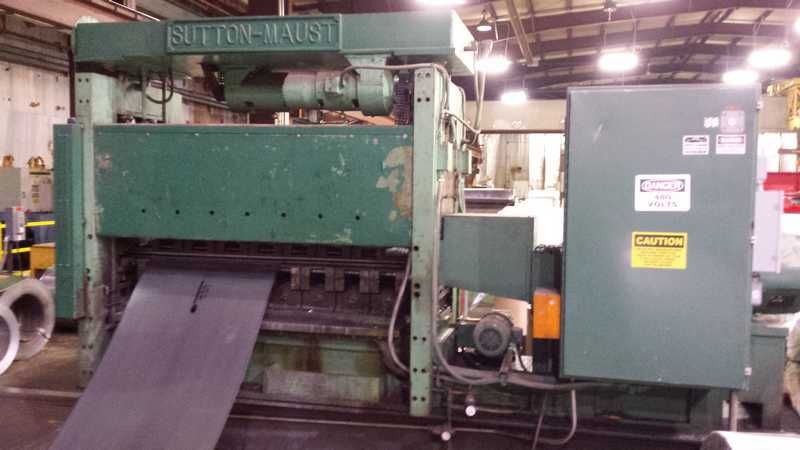

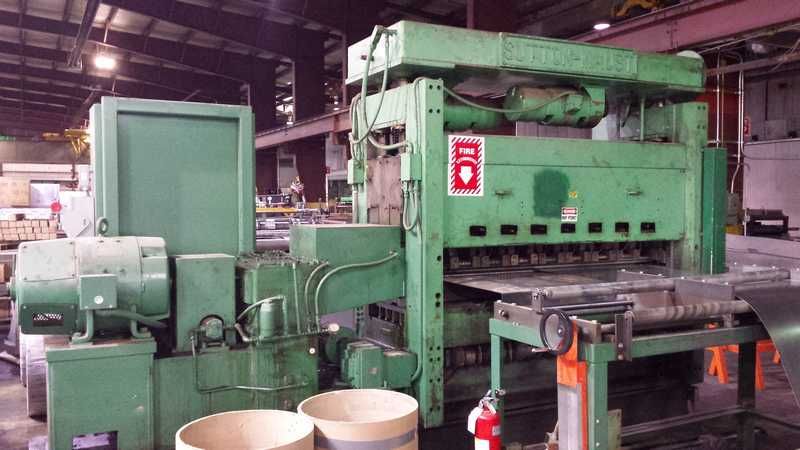

72" x 0.064" Sutton Maust Precision Leveler, 6 HI

Manufacturer

SUTTON MAUST

Category

Fabricating Machines

Type

LEVELERS, TENSION

Stock

3426

Model

None listed

Dealer Location

Ohio

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

YEAR: 1964

USED/REBUILT SUTTON MAUST PRECISION LEVELER

6 HIGH DESIGN

-CAPACITY: 72" x 0.010" TO 0.064"
-17 WORK ROLLS
1.125" DIA. x 82" FACE
-ROLL CENTERS: 1.4687"
-(36) INTERMEDIATE ROLLS
-7 FLIGHTS OF BACK-UPS TOP
-8 FLIGHTS OF BACK-UPS BOTTOM
-ALL BACK-UPS MOTORIZED WITH
VISUAL INDICATORS ON FRONT OF MACHINE.
-3 HP BACK-UP MOTOR, TOP FLIGHT
-3 HP BACK-UP MOTOR, BOTTOM FLIGHT
-5 HP SCREW DOWN MOTOR
-15 HP D.C. MAIN DRIVE MOTOR
650/1300 RPM.
-APPROX. WEIGHT: 29,000 LBS.
-COMPLETE WITH DETAIL DRAWINGS

-LEVELLER WAS COMPLETELY REBUILT, BOTH MECHANICALLY
AND ELECTRICALLY IN 1999.

-MISC. SPARE PARTS

-INSTALLED AND UNDER POWER.
