Feed Line, Rowe, 60" x 0.105"

Manufacturer

ROWE

Stock

11410

Model

None listed

Dealer Location

Ohio

Spec Sheet


Coil Weight Capacity: 20,000 lbs.
Coil Width Capacity: 60"
Stock Thickness Capacity: 0.105" x 60" Wide
Stock Thickness Capacity: 0.187" x 20" Wide
Expansion Range: 15.5" - 19.5"
Coil OD Capacity: 80"

Consisting of the following:

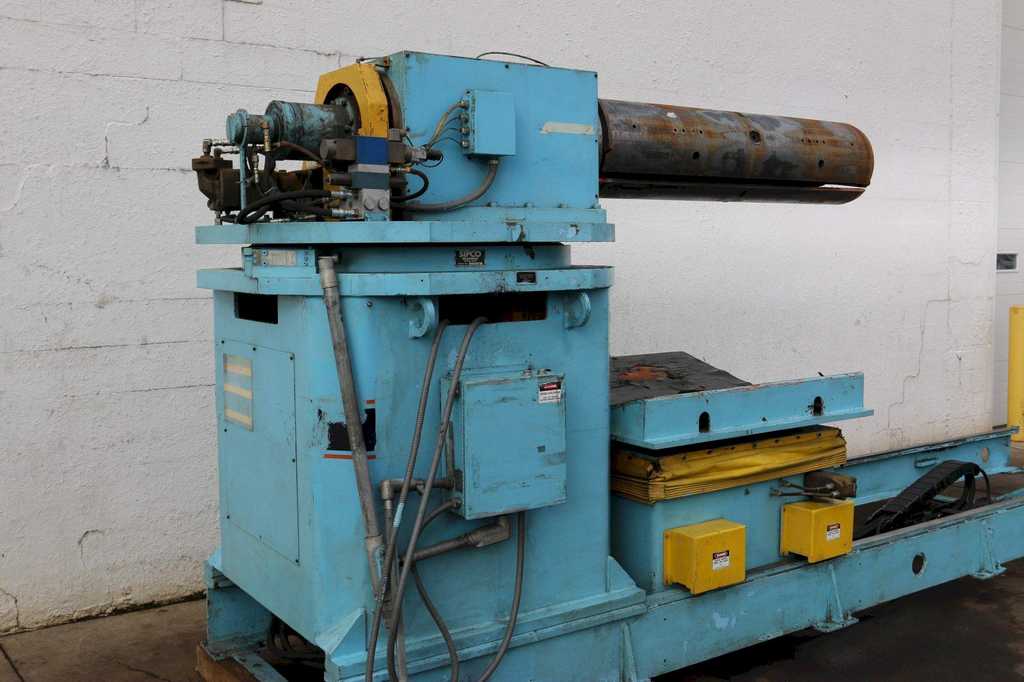

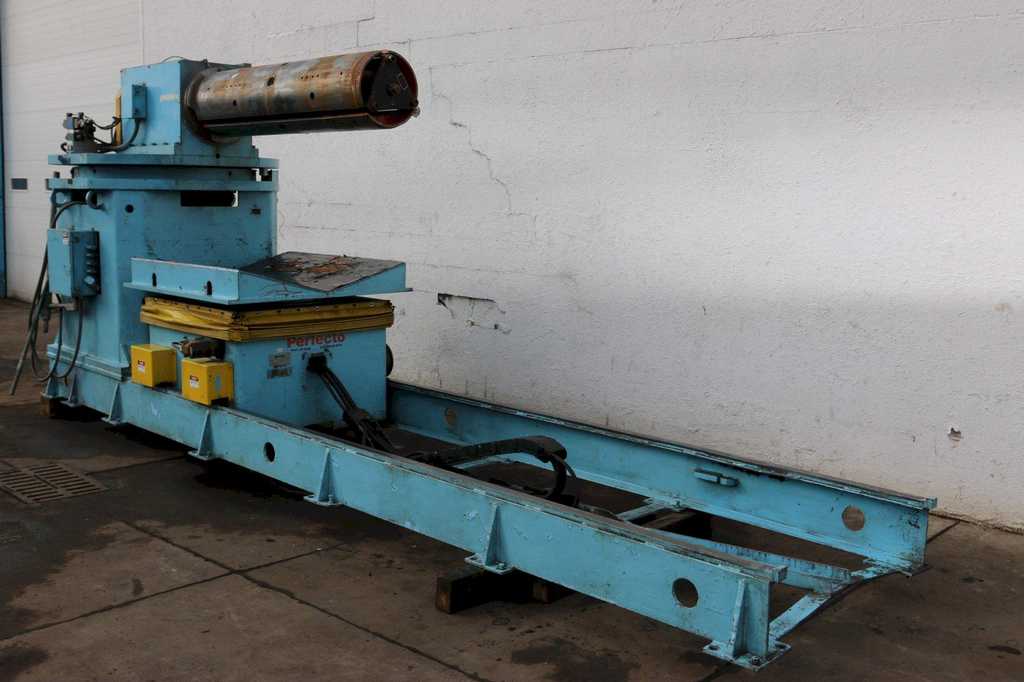

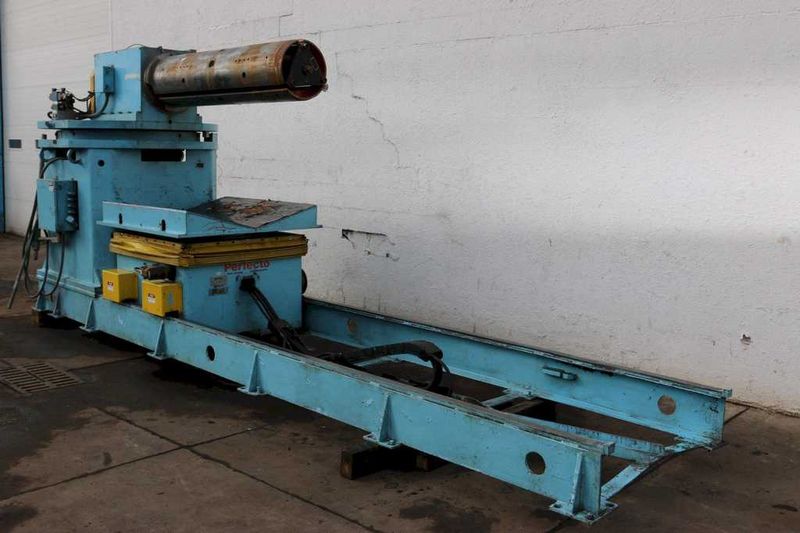

-30,000# x 63" Perfecto Coil Reel & Car:
Model: RS 30-63
Year: 1986
30,000# Capacity
63" Max. Coil Width
80" O.D.
15.5" - 19.5" I.D. being confirmed by Perfecto
Hydraulic Driven
Thread up Drive
Motor Hydraulic
Coil Car
18" Lift
11' Horizontal Travel
*Reel not original to line will need to be wired in*

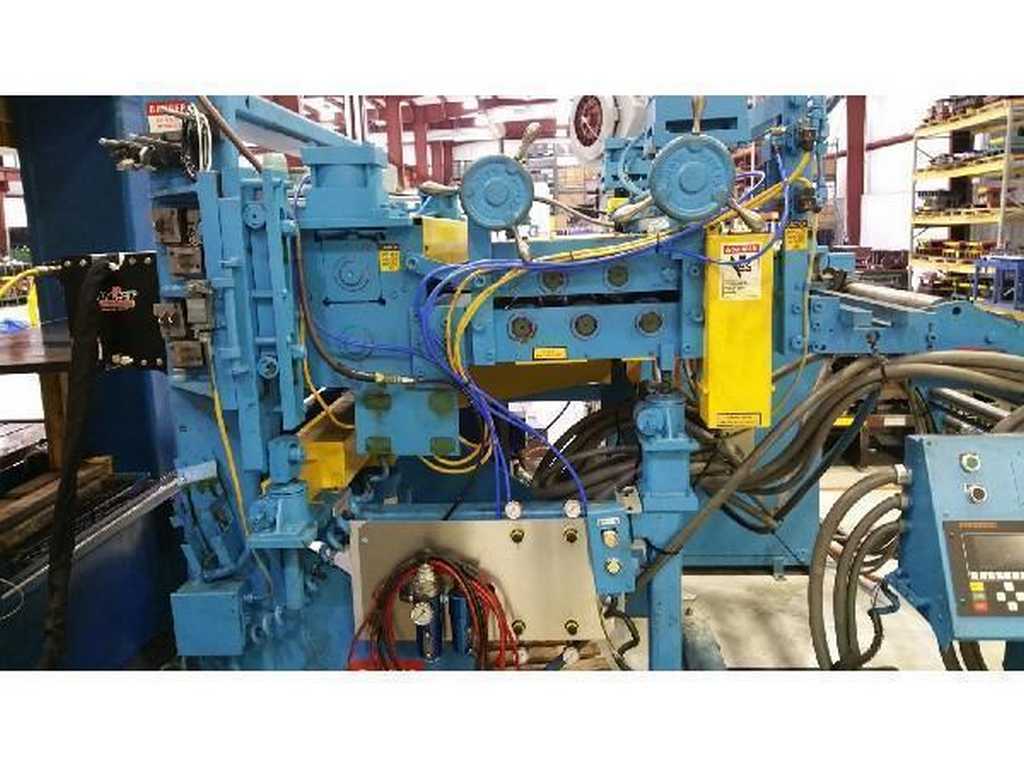

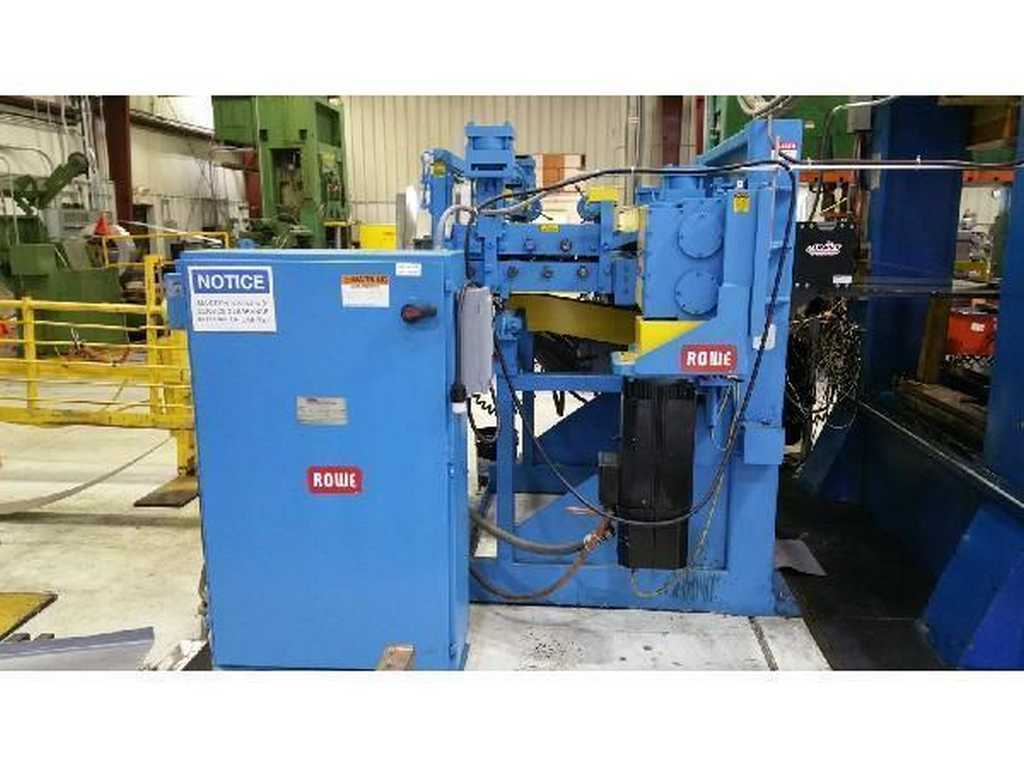

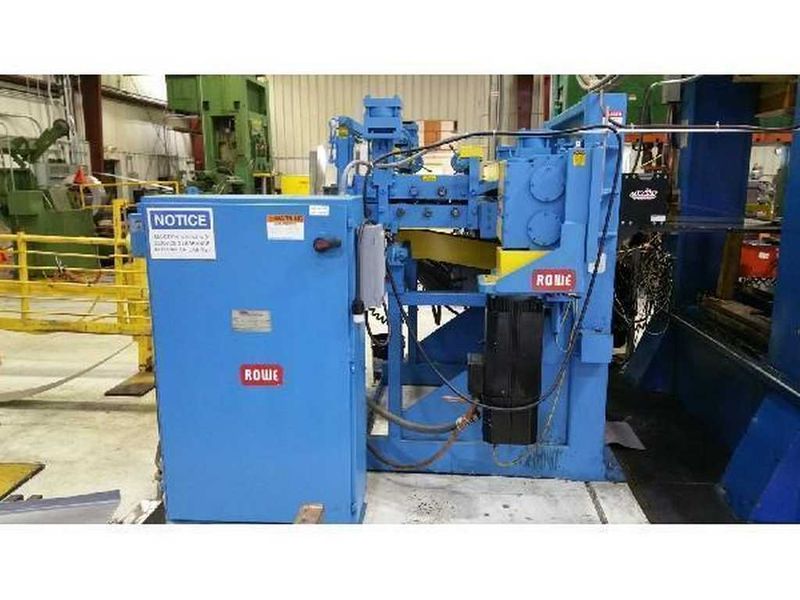

-Rowe Servo Feeder Straightener Combination Press Feed:
Model: FST-AC-3-60
Upper and Lower Servo Feed rolls x 6" Dia.
Air operated upper Servo Feed Roll Lift and Pilot
Coil Straightening Rolls (5) x 4.5" Dia.
Air operated upper coil straightening roll bank pilot lift
Powered Coil Straightener Pinch Rolls for stock threading
Entry Cascade Loop Support Rollers
Adjustable Stock Width Edge Guides (three roll design)
Adjustable Pass Line
Motorized Pass Line Adjustment
AC Servo Roll Feed Drive and Control Package
Operator's Interface and Control Station
