Outboard Support, TPM

Manufacturer

TPM

Stock

11422

Model

None listed

Dealer Location

Ohio

Spec Sheet

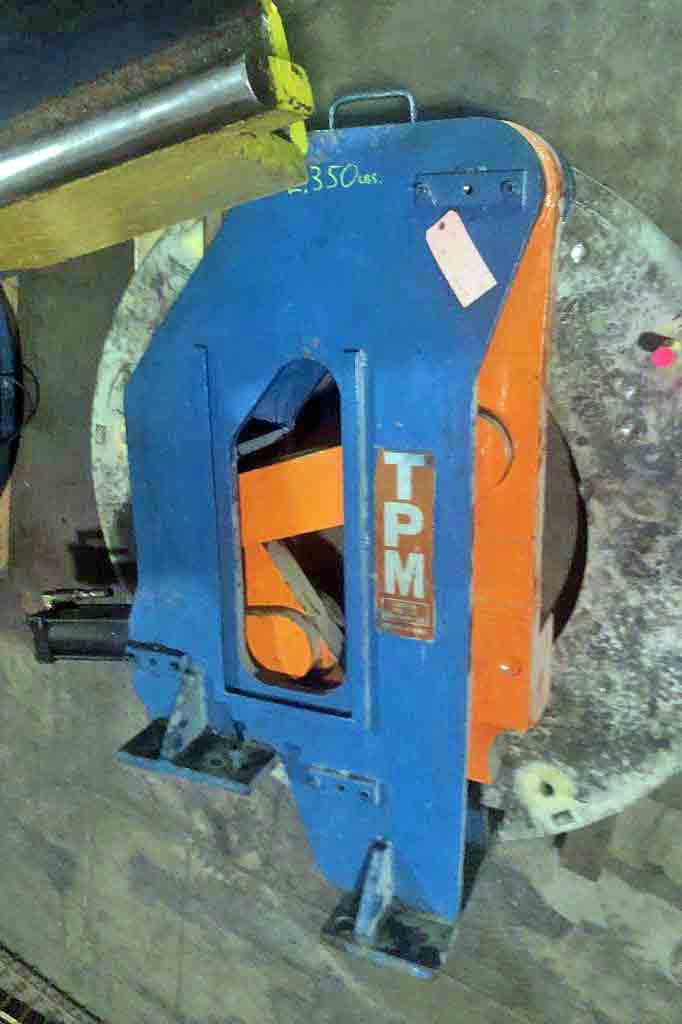

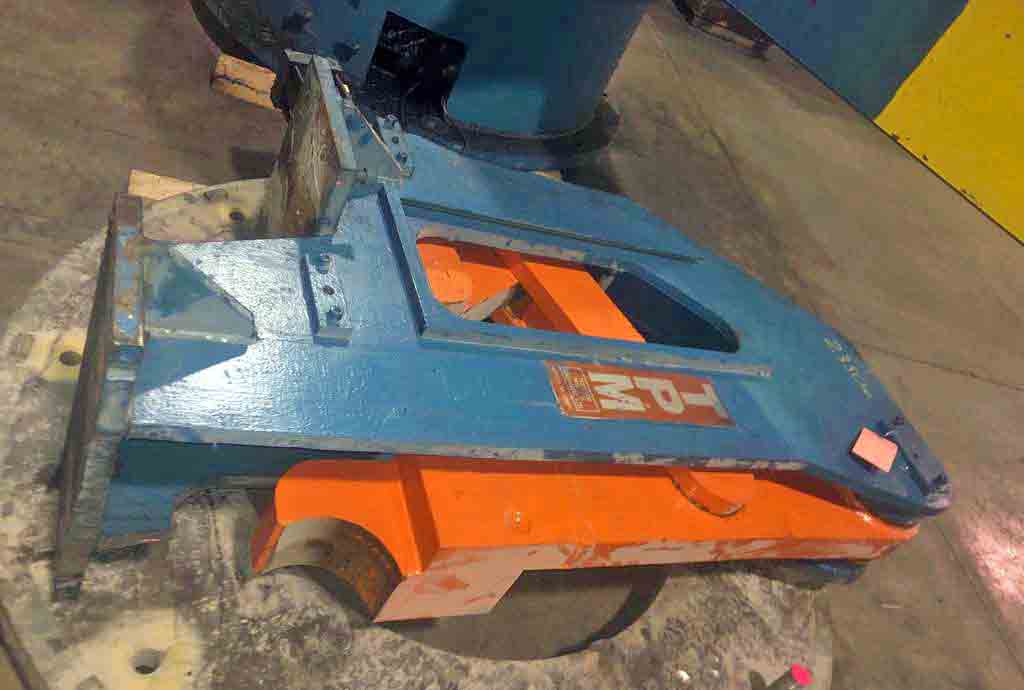

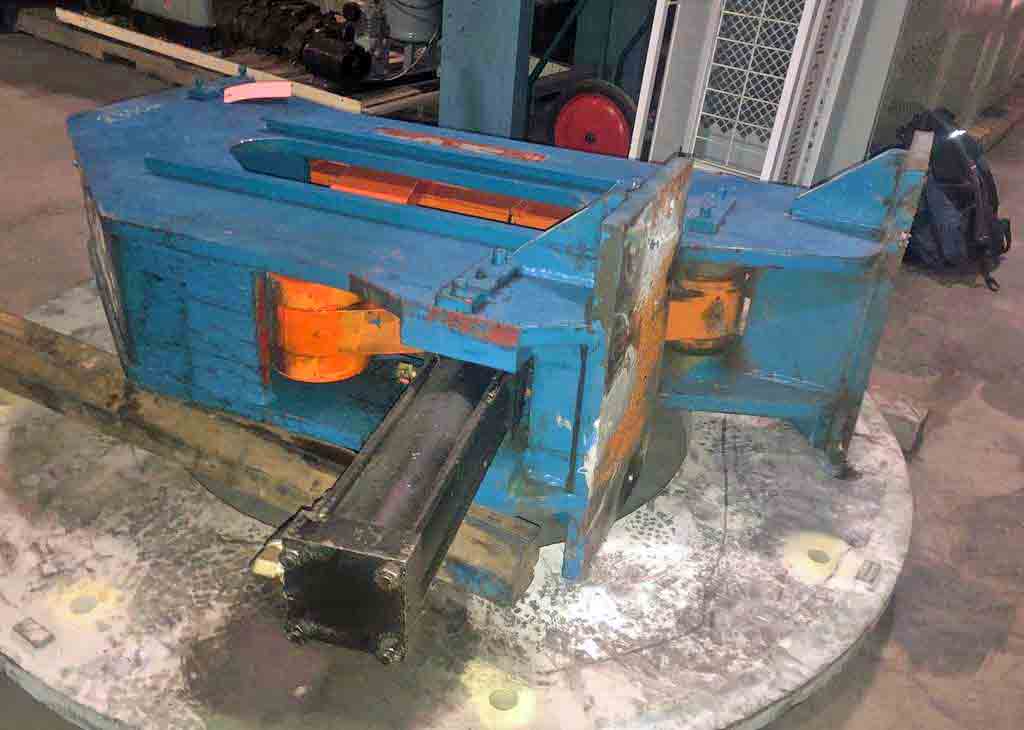

TPM Outboard Support

-For use on Mandrel Type Uncoilers or Recoilers
-Floor Mounted Arm raises from Vertical to Horizontal position for support
of Mandrel. Hydraulic Cylinder Actuated.
-Approx. 58" from Centerline/Pivot of support arm to longest part/front
of base. Approx. 48" to shorter part/rear of base.
-Arm is approx. 44.5" from pivot of support arm to center of horn support.
-Bearing is designed for a 4" Dia. Horn.
-Weight: 2,400 lbs.
-Approx. Dimensions: 48" x 60" x 24" High
-In Storage
