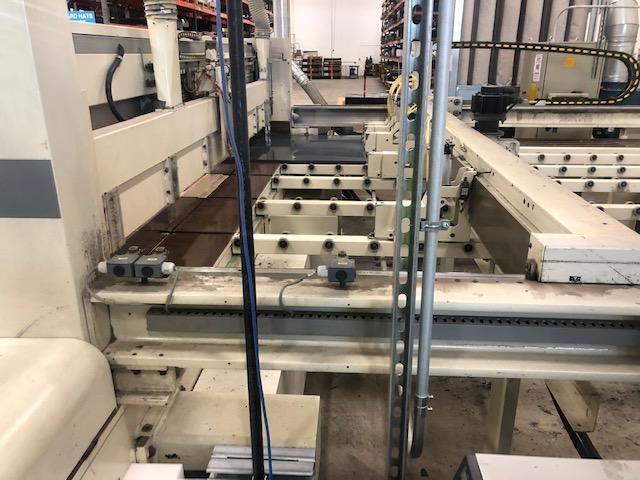

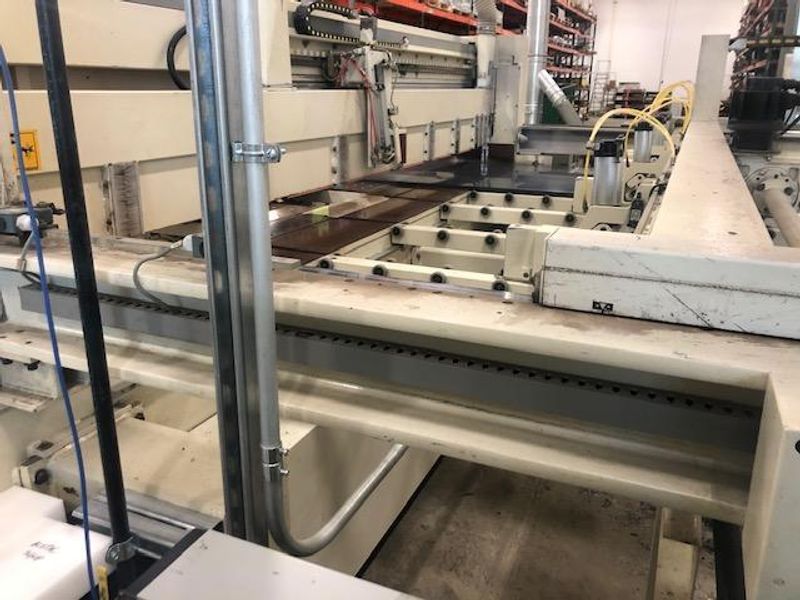

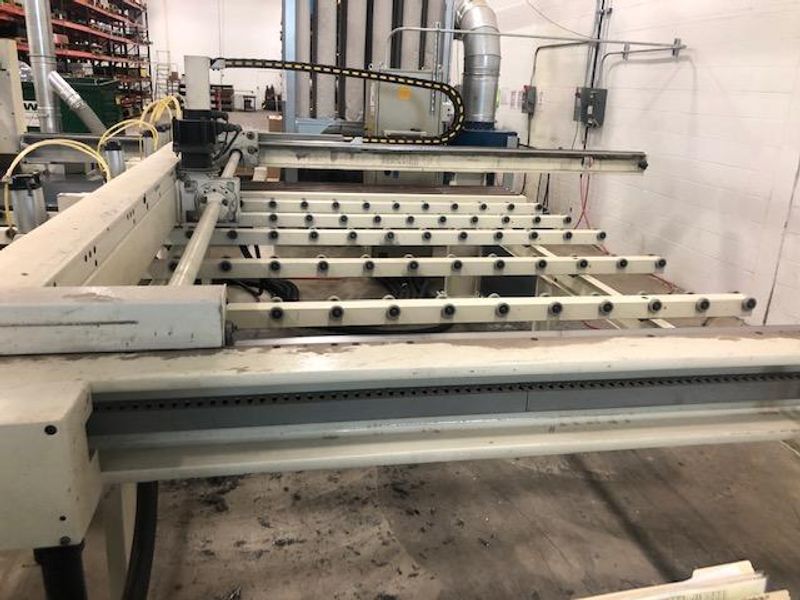

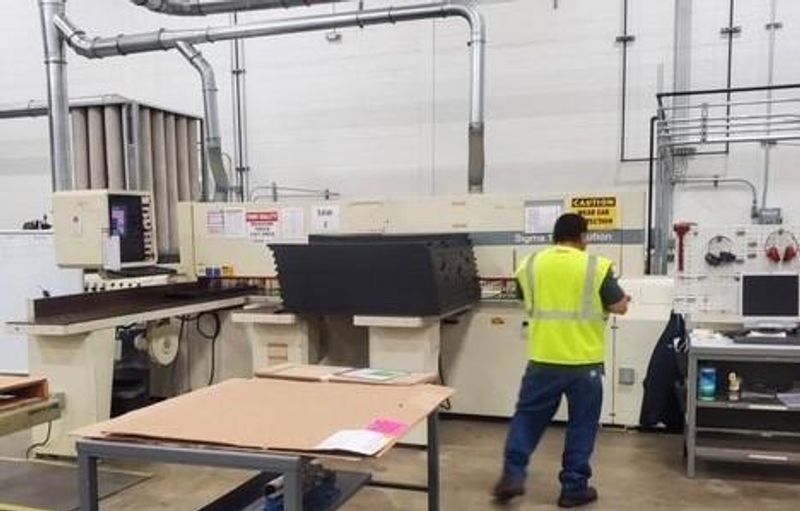

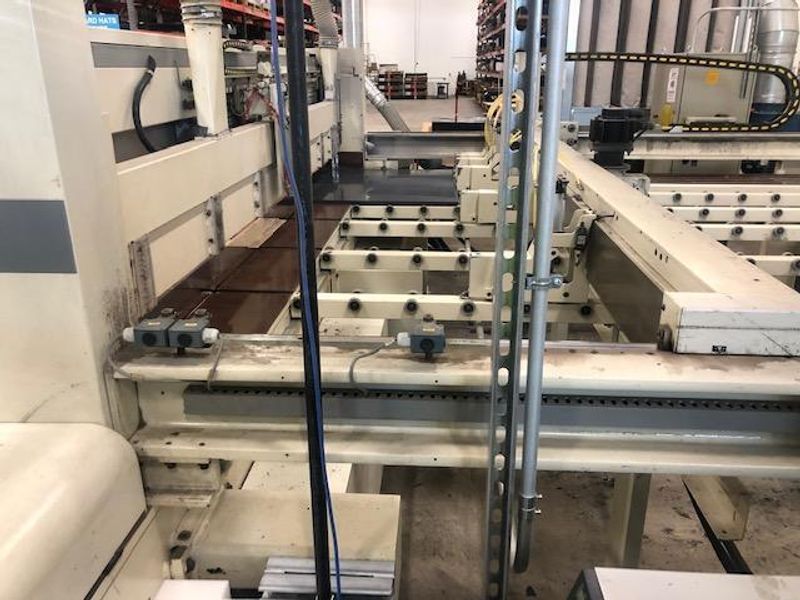

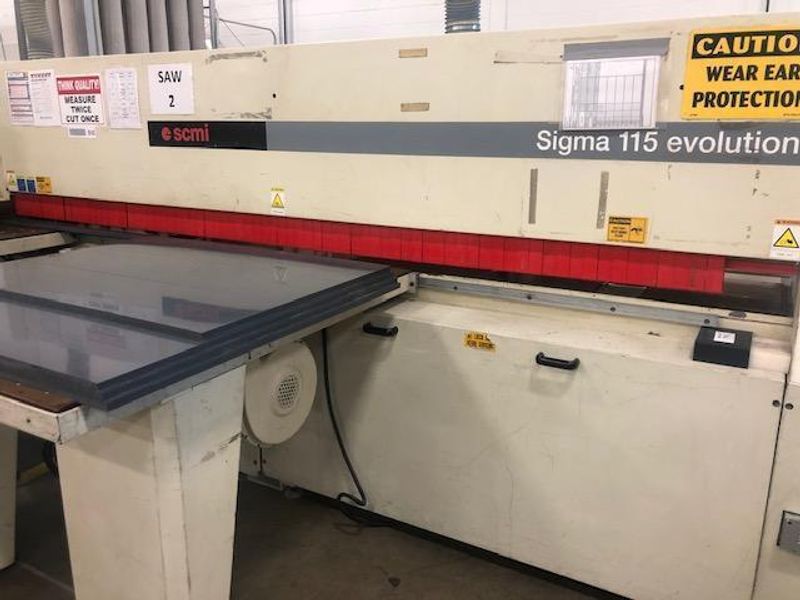

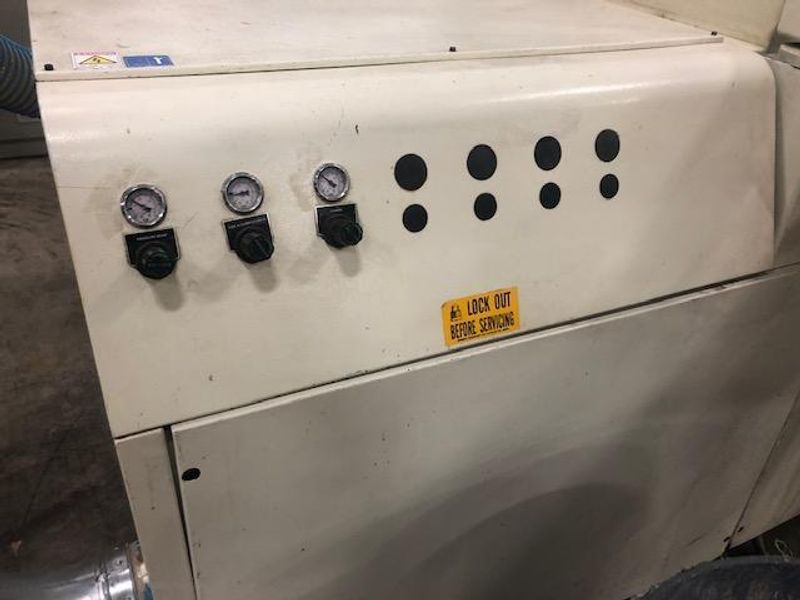

Saw, Panel, SCM Sigma 115

Manufacturer

SIGMA

Stock

11084-HK

Model

None listed

Dealer Location

Ohio

Spec Sheet

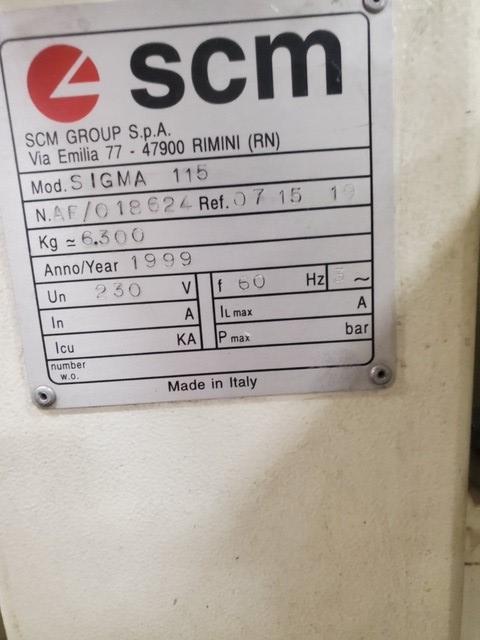

YEAR: 1999


SCM Panel Saw 115
SN: AF/018624
Ref: 0715

Model: Sigma 115 Evolution

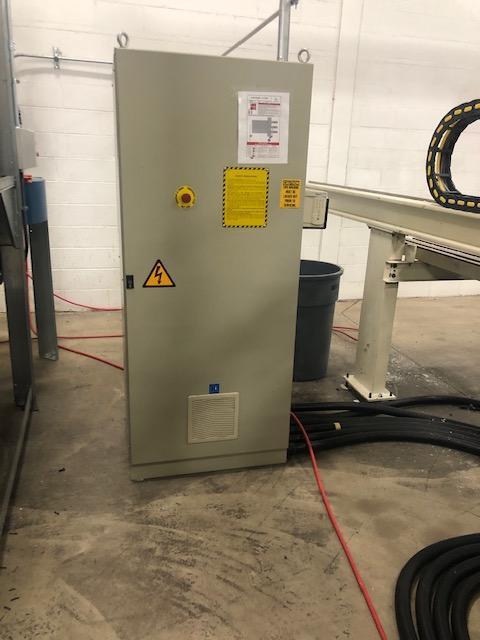

Electrics: 230 V, 60 Hz.
Work Table Height 40" (1035mm)
Cutting Size 150" x 150" (3,800 x 3,800mm)
Blade Diameter 15.7" (400mm)
Scoring Blade Dia. 7.87" (200mm)
Blade Height 4.5" (115mm)
Blade Carriage Feed 40 to 85fpm (13 to 27mpm)
Blade Carriage Return 85fpm (27mpm)
Variable Pusher Speed 0 to 35fpm (0 to 32mpm)
Saw Blade Speed 4,000rpm
Scoring Blade Speed 5,150rpm
Main Blade Motor (18Kw)
Scoring Blade Motor (1.8Kw)

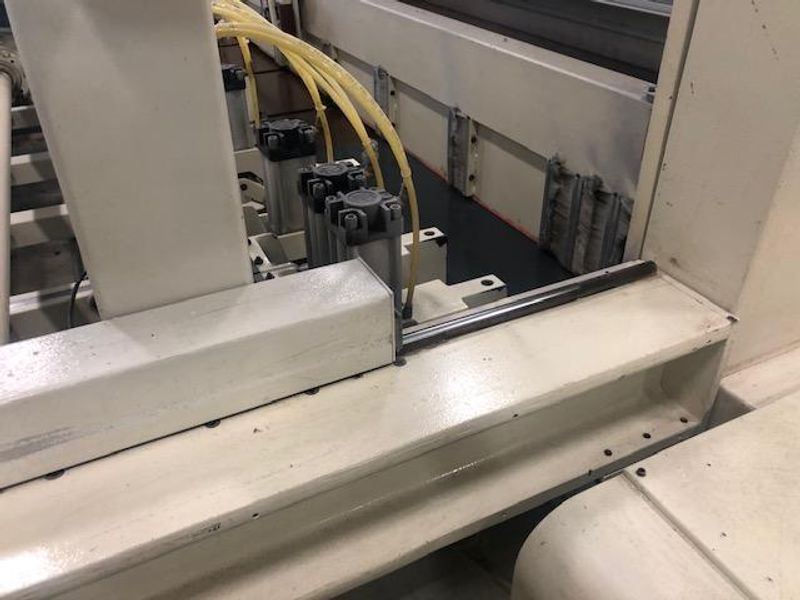

Number of Grippers 6
Number of extractors 3

Overall Width 261" (6650mm)
Overall Length 277" (7050mm)
Weight 12,600lbs (6,300Kg)
