200 Ton Pacific Hydraulic Press

Manufacturer

PACIFIC

Category

Presses

Type

PRESSES, HYDRAULIC

Stock

10744-HK

Model

None listed

Dealer Location

Ohio

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

YEAR: 1978

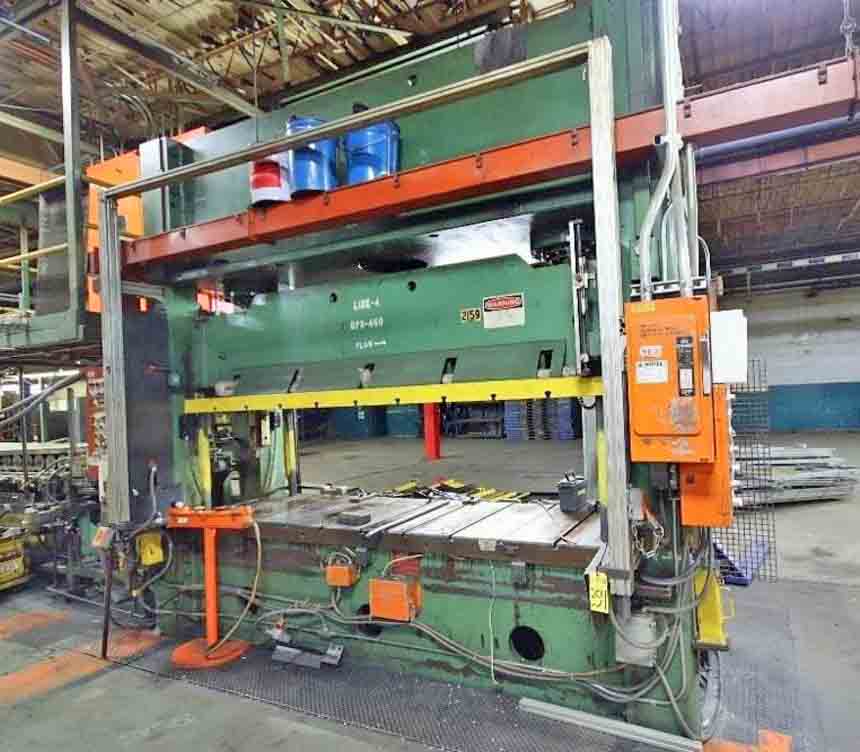

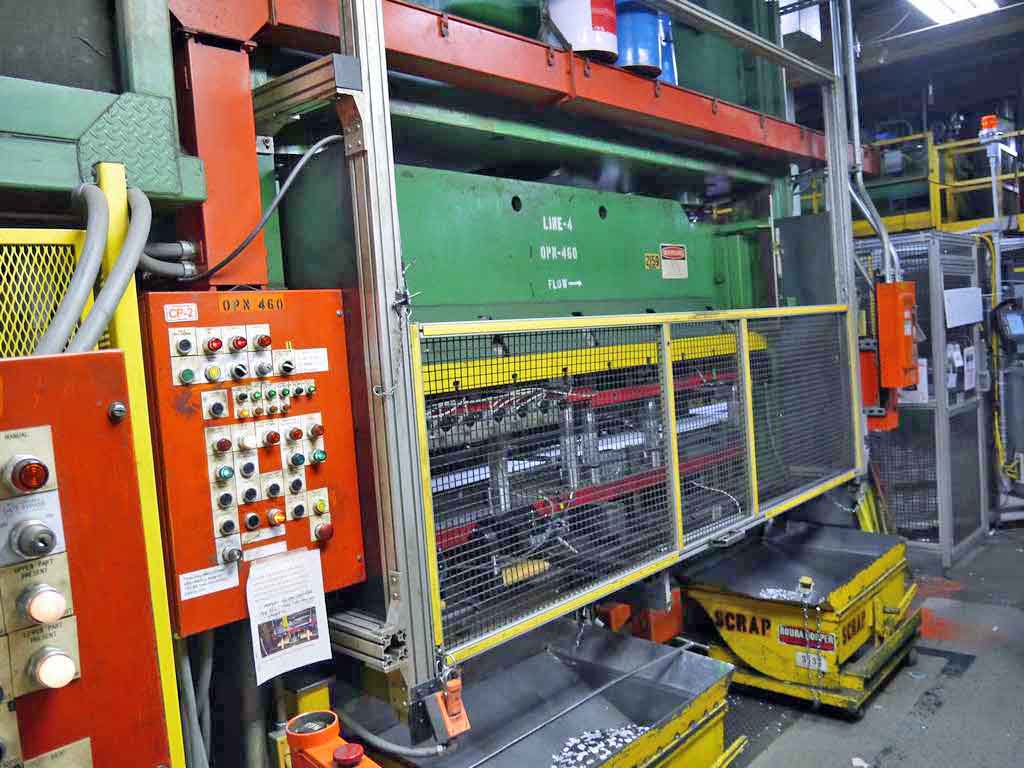

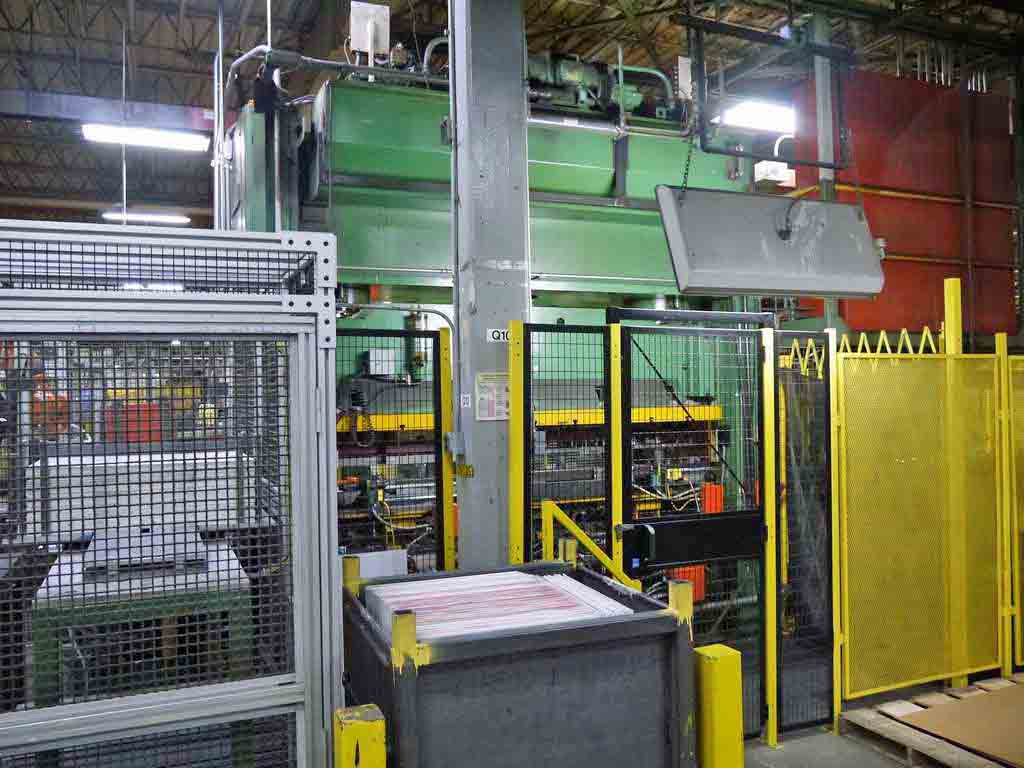

200 Ton Pacific Downstroke Self Contained Hydraulic Press
Housing Type - Gib Guided - Dual Cylinder - "T-Slotted" Bed and Slide


Model Number: 200-D-10-36
Bed Area (Nominal): 123" L-R x 36" F-B (T-Slotted F-B)
Slide Area (Nominal): 123" L-R x 36" F-B (T-Slotted F-B)
Stroke of Gib Guided Slide: 0" - 18" Max.
Daylight Opening: 30" Max.
Max. Upper Die Weight: 10,000 lbs.
Speeds Approx.: 187 IPM Fast Closing
89 IPM Slow Close
34 IPM Pressing
70 IPM Slow Return
176 IPM East Return
Power Unit (Top Rear): 30 HP 460/3/60 Motor Driving Hydraulic Unit
Controls: Pushbutton Operation with Stroke, Pressure
and Speed Control, Allen Bradley PLC added in
200, Light Curtains.
Weight Approx.: 43,000 lbs.
Overall Dimensions: 13' L-R x 5' F-B x 26' H





-Model: 200D-1036
-Stroke: 18"
-Open Height: 30"
-Closed Height: 12"
-Bed Size: 123" x 36"
-Ram Size: 123" x 36"
-Distance Between Housings: 10'6"
-Speeds:
Advance - 187, 89, 34 IPM
Return - 176, 70 IPM
-T-Slotted Ram & Bolster (5")
-Lite Curtains
-Allen Bradley Controls
-20" Windows
-145 Gallon Reservoir
-Hydraulic Unit Motor: 30 HP, 1800 RPM, 460/3/60
-Weight: 43,000#
-Condition: Good
-In Storage: Toledo, OH.
