9 Stand 24.00" x 3.00" Yoder Rollforming Line

Manufacturer

YODER

Category

Roll Formers

Type

ROLL FORMERS

Stock

11098-HK

Model

None listed

Dealer Location

Ohio

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet


Yoder Cee Purlin Tooled, Gear Driven Rollforming Line

-Number of Stands: 9 (on 16 Stand Base)
-Roll Space: 24"
-Arbor Diameter: 3"
-Arbor Center to Center Distance: 17"
-Upper Arbor Adjustment: 5"
-Upper & Lower Power Driven Arbors
-75 HP Main Motor
-8" W x 3" Flange "Cee Purlin" Tooling
-9" W x 3" Flange "Cee Purlin" Tooling

Consisting of the following:

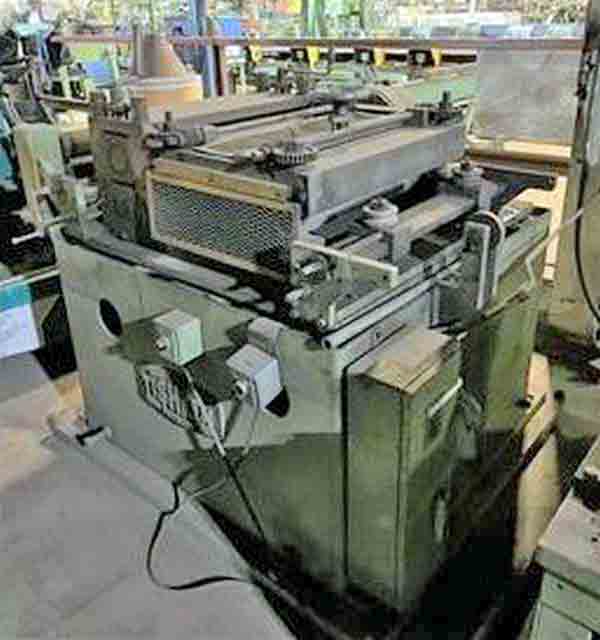

-Tishken 7R-24 Straightener:
Serial #17092-79
18" x 0.105" capacity
Number of Rolls: 7 (3 over 4)
Power Driven Pinch Rolls
Entry side guides

-Lee Shaffer H-70 F Strip Welder:
36" max strip width
Hydraulic double cut crop shear
Hydraulic clamp and push
Auto weld cycle

-Tishken Measuring Roll Stand:

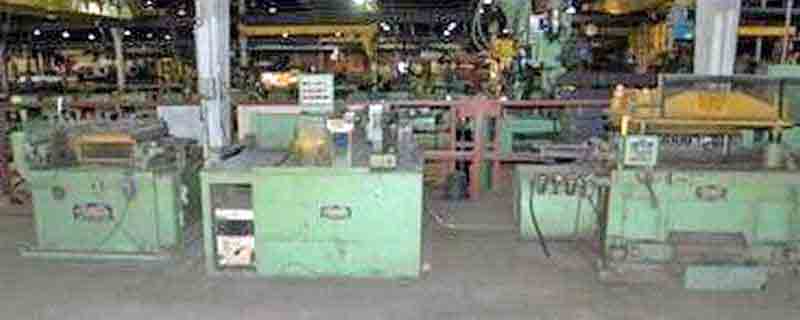

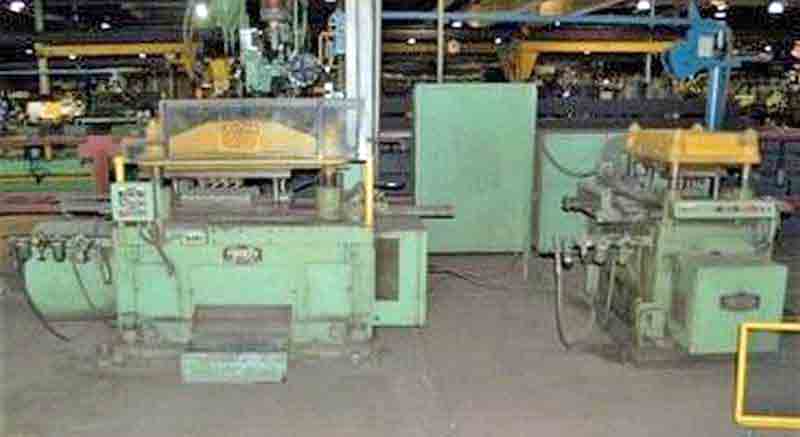

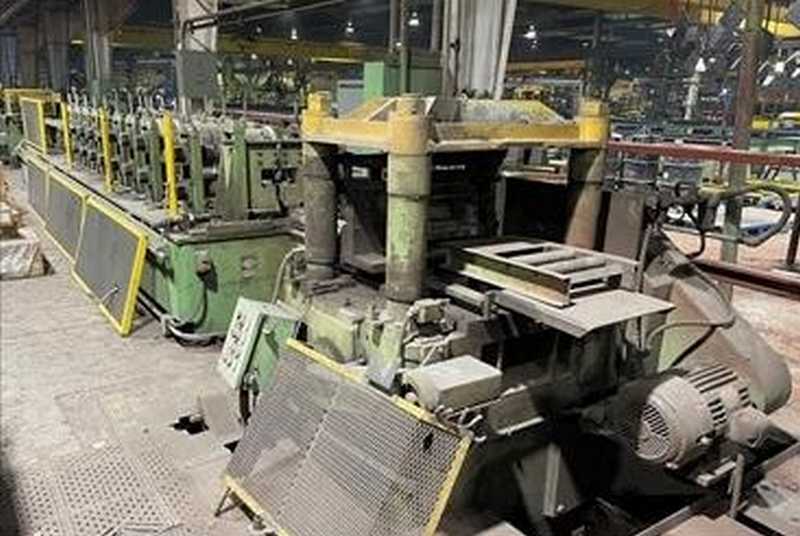

-Tishken Cut-A-Matic:
Capcity: 150 Tons
Model: CO-20-4
S/N: 16764-1179
4 Post Pre Punch and Notch Press
Adjustable locating holes in the die for punches and notches
Air Clutch
Adjustable mounting base

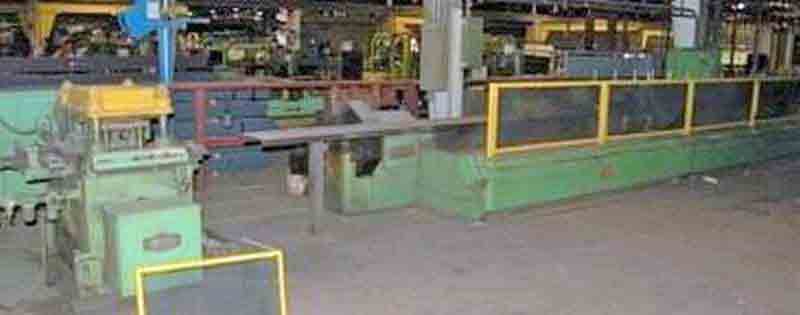

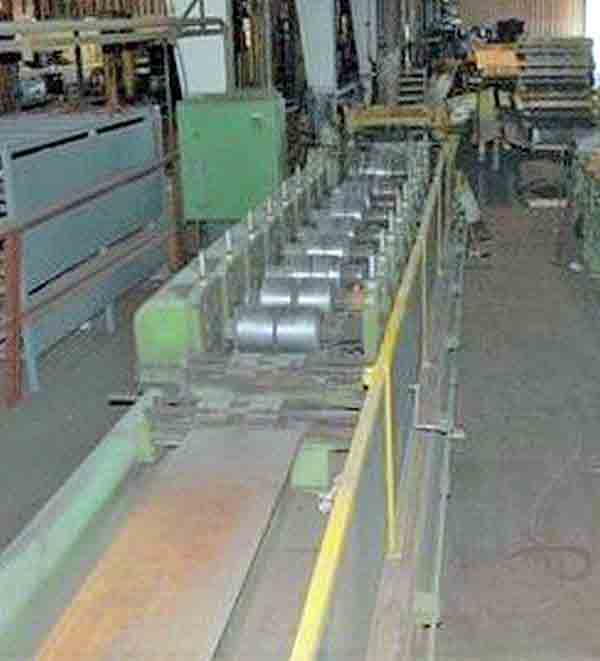

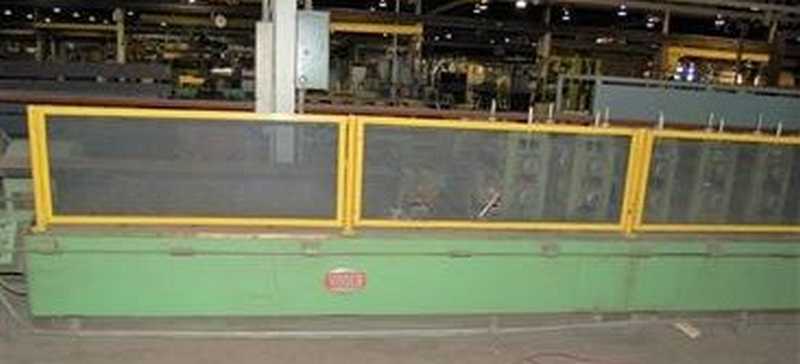

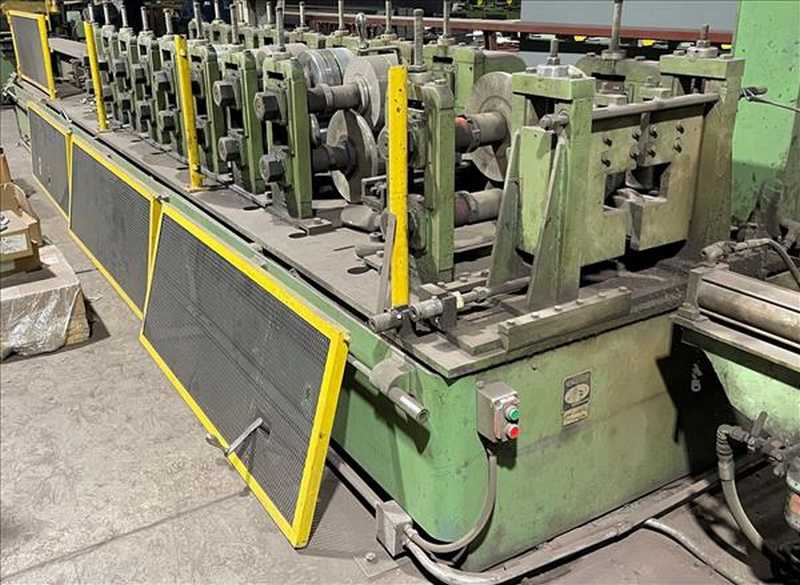

-Yoder rollformer
9 stands on 2 separate bases
one 7 stand base with 2 stands, and 2 side guide stands
one 8 stand base with 7 stands, and exit straightening fixture
3" dia. tooling arbor
26" Roll Space
5.5" to 10" Vertical adjustment
18" Horizonal centers
8.5" base to CL of bottom shaft

-Tishken Cut-A-Matic Cutoff Press:
Capacity: 60 Tons
Model: CO-20-18-60
S/N: 17230-1179
Stroke: 2.5"
AC Drive Motor
Air Clutch
Mounting Base

-Controls, and operators desk
-All tooling and spacers to produce C Purlins
-Drawings, manuals and tooling drawings

-Removed and in Storage; Toledo, OH.
