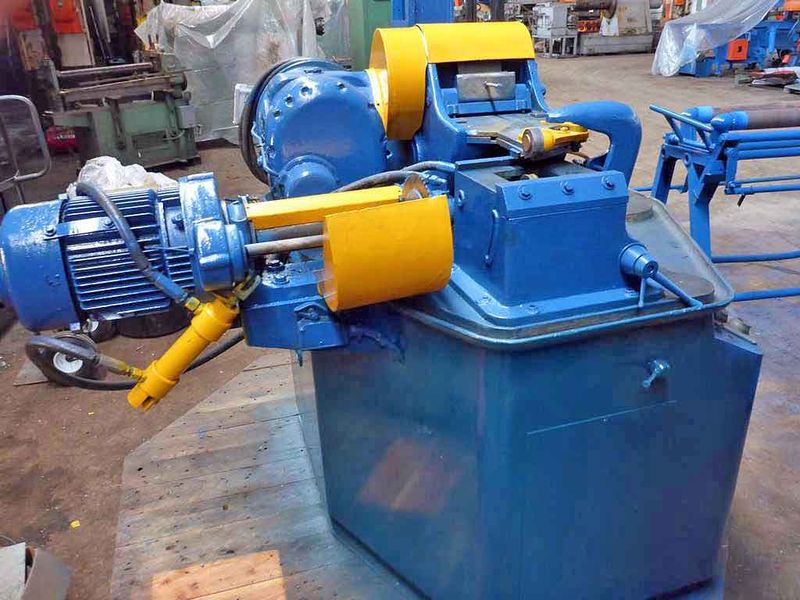

Spiromatic Spiral Duct Former

Manufacturer

SPIROMATIC

Category

Roll Formers

Type

ROLL FORMERS

Stock

10535-HK

Model

None listed

Dealer Location

Ohio

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

YEAR: 1960

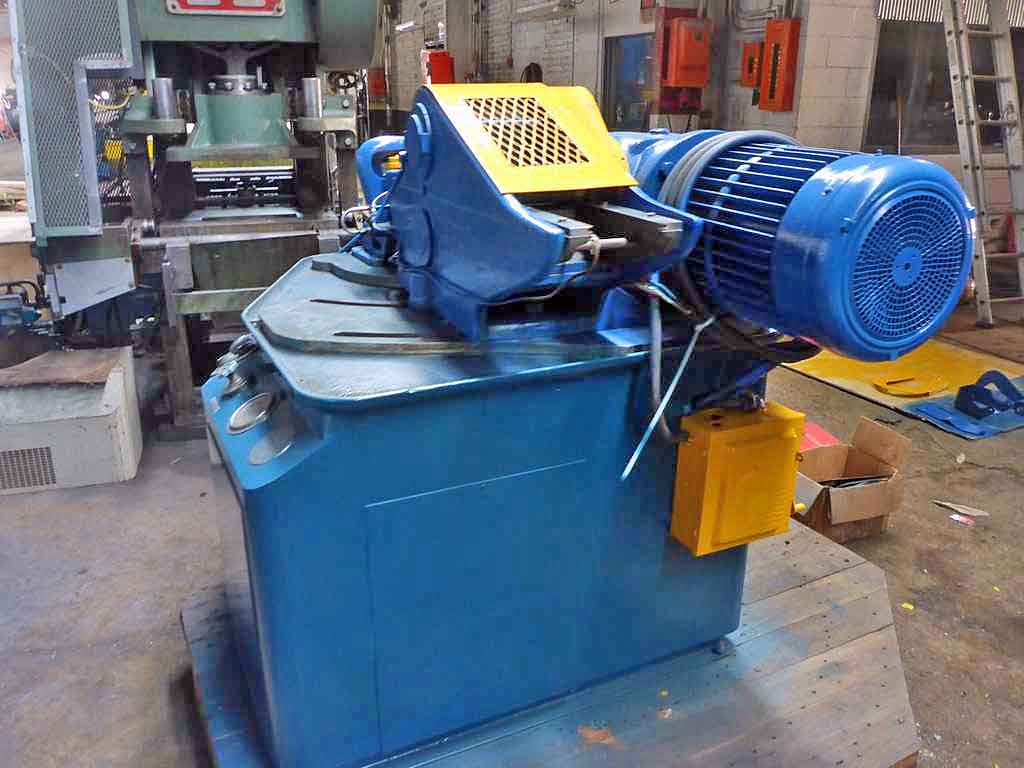

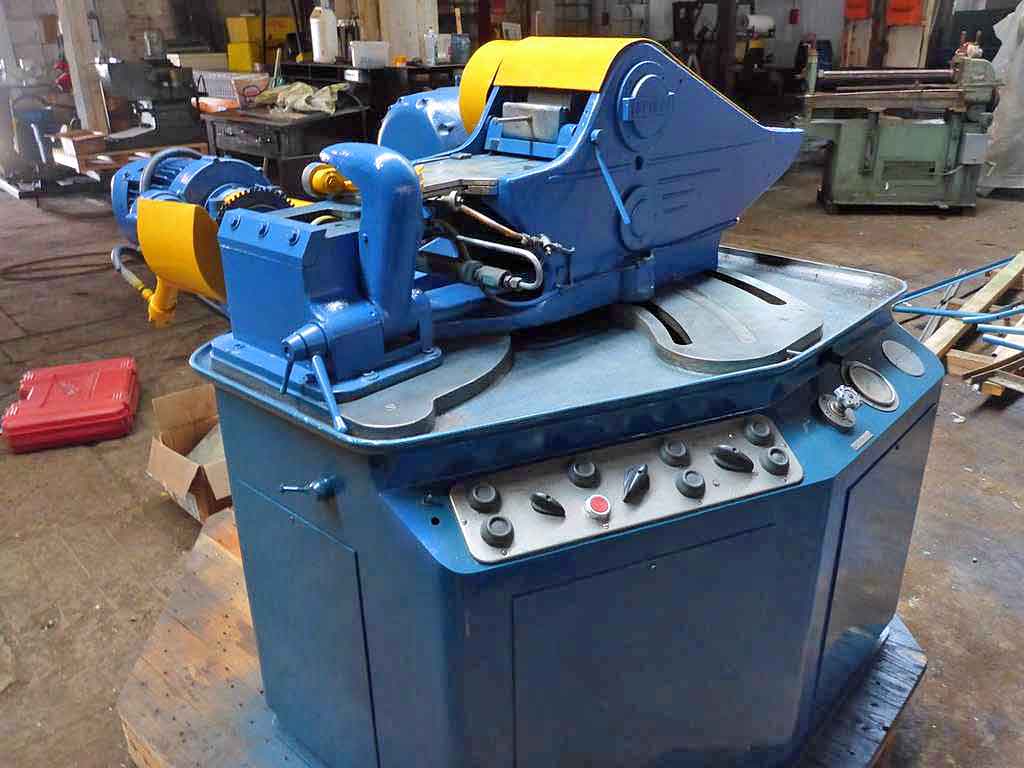

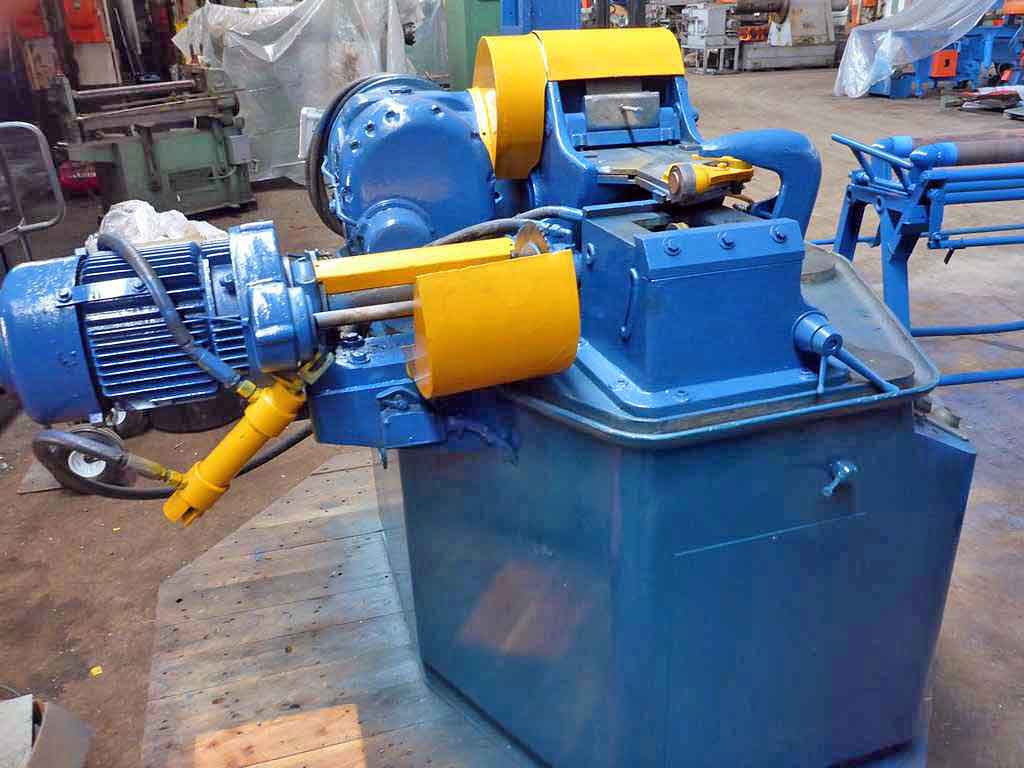

Spiromatic Spiral Duct Former

Model: 600

Duct Diameter Range: 100mm - 1250mm (3.94" - 49.21")
Gauge range: 0.4mm - 1.0mm TO DW144 (0.0157" - 0.0394")
Max strip speed: 65 FPM

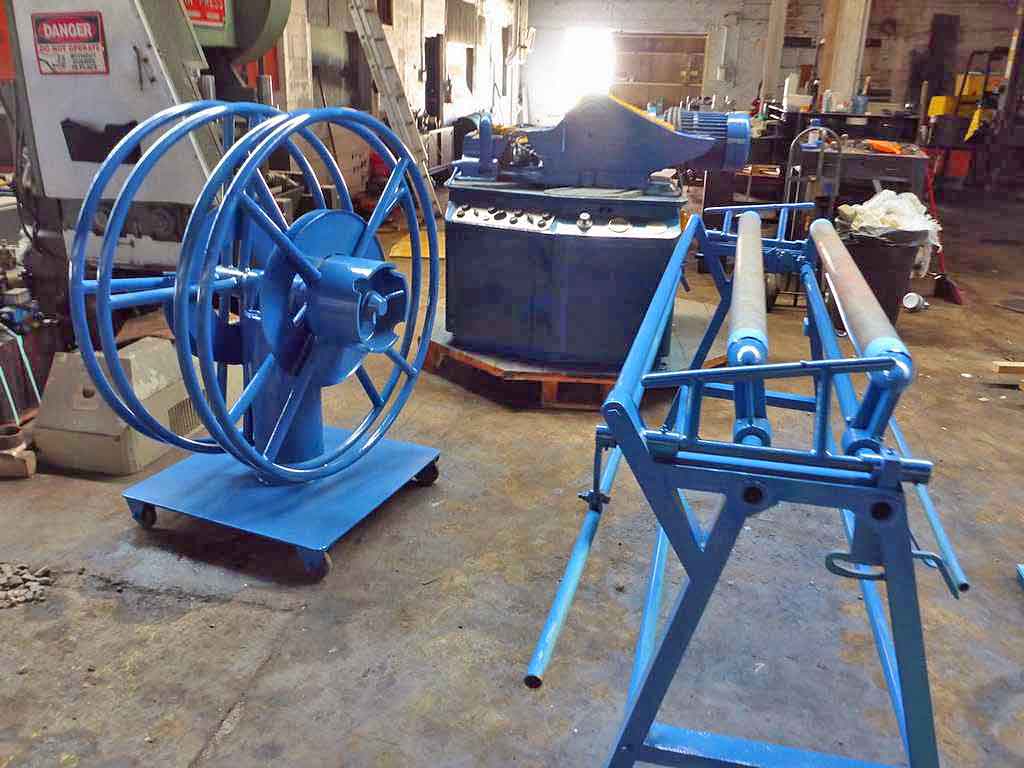

Equipped with:

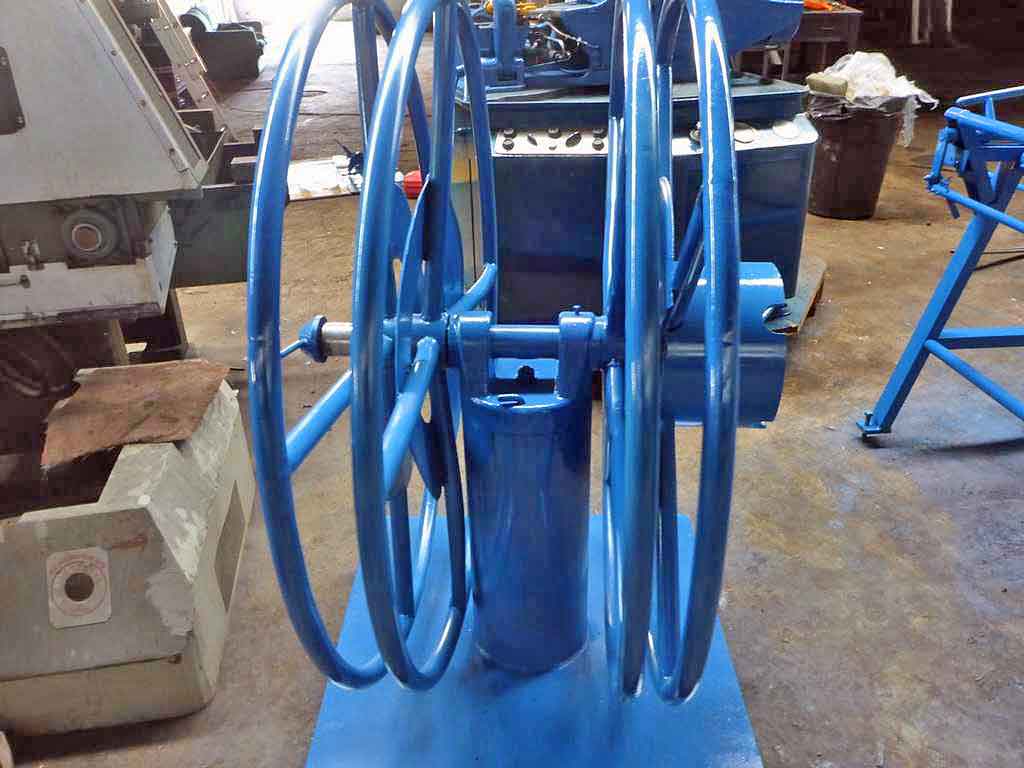

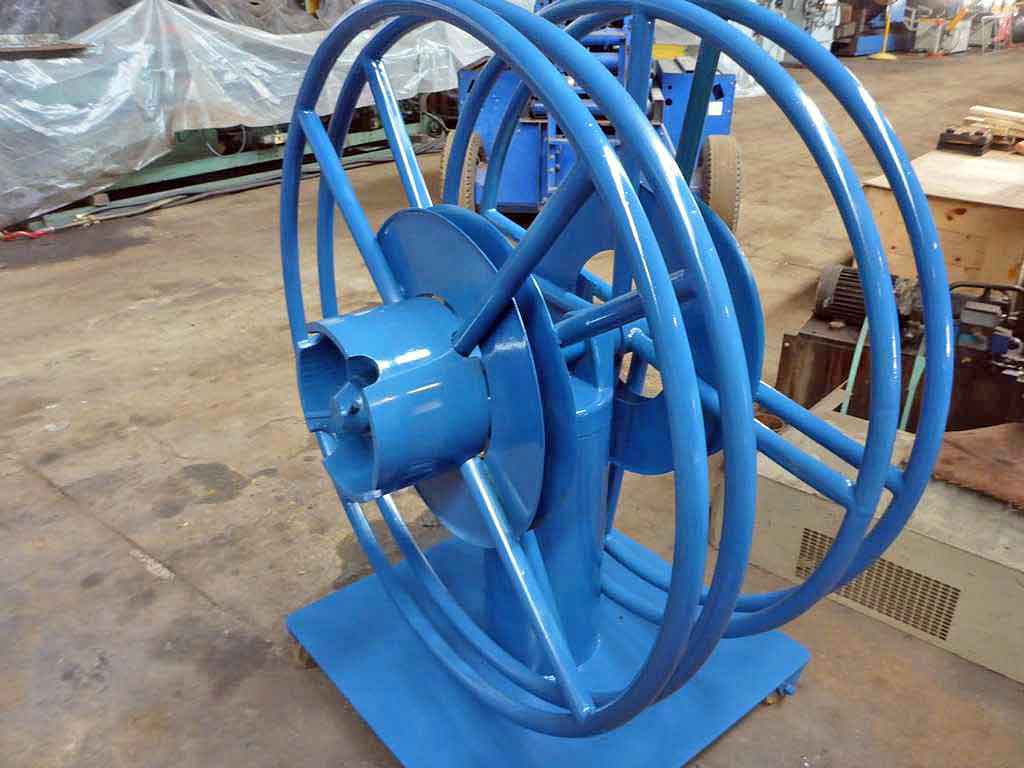

Double-end Uncoiler
Saw blade duct Cutoff
Roller duct receiving table

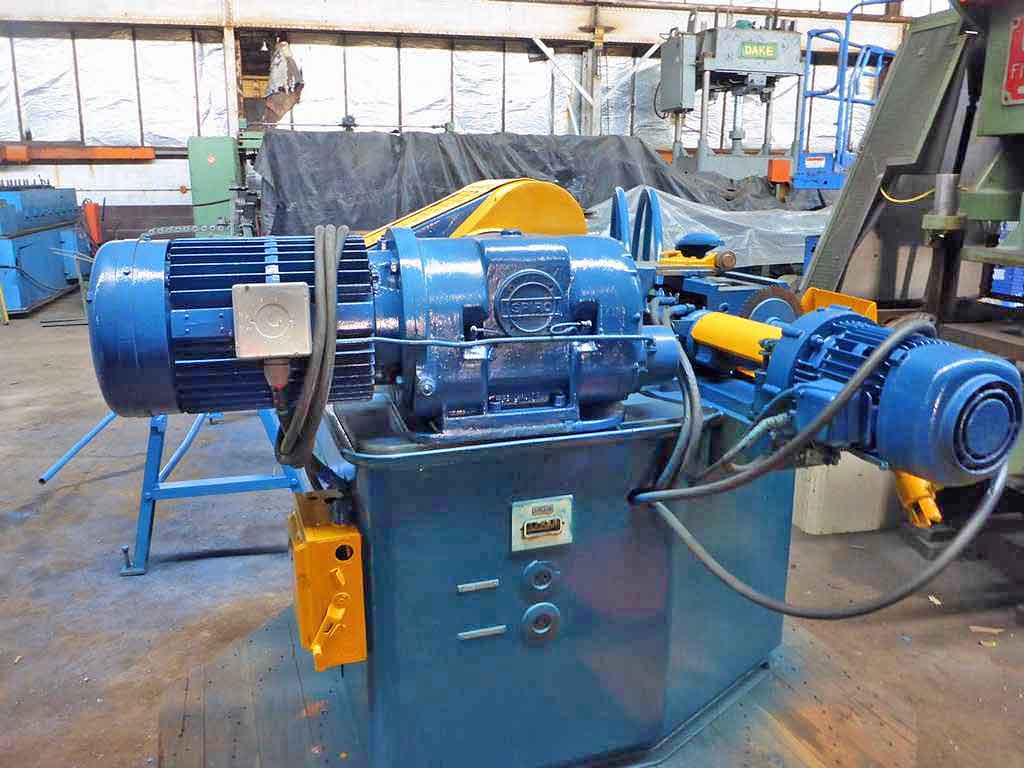

Main Motor: 7.5 kw (10 hp), 875 rpm, 220 V, 3 ph
NEBB Trefasemotor NOP.SK ARREG
7.4 kw CONT 50 cy
3500 Dmdr
220 volt

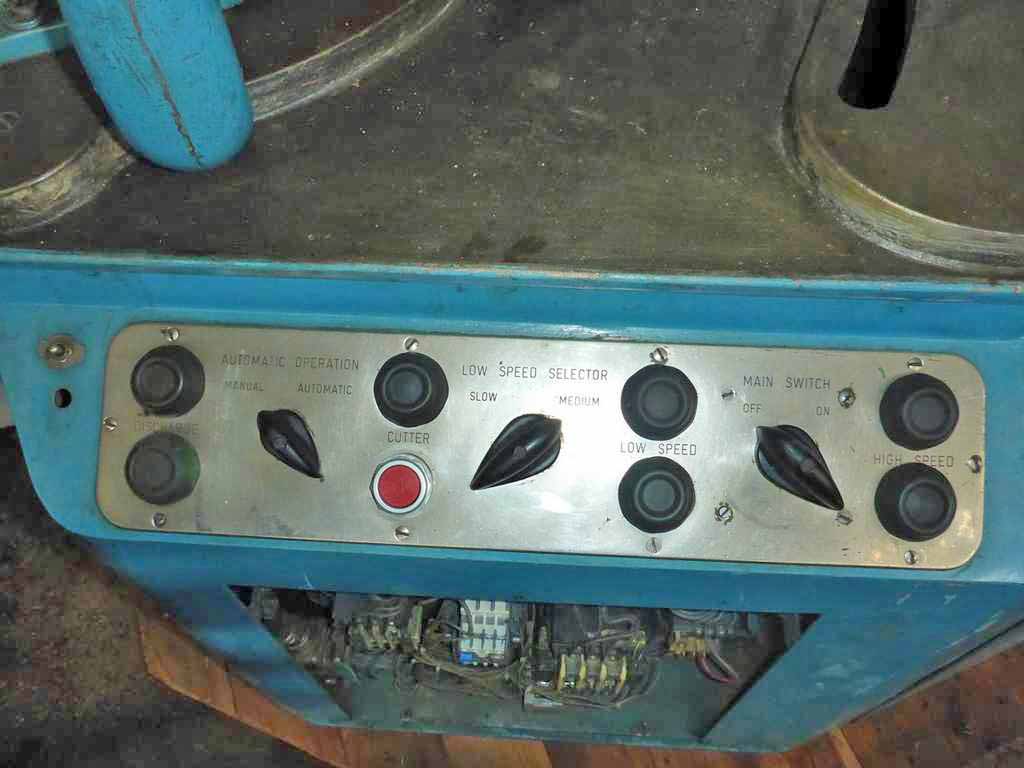

2 Speed, 2 clutch motor
2 Speed motor, high speed & low speed(4 speeds total)
Differential gear ratio allows 4 speeds instead of 2 speeds

Saw blade Motor: approx 5 hp

Hydraulic motor pump unit
MonSun
Sundbyberg
Typ MV2A401-4FO
220 volt / 60 cycle

Max ARB.TRYCK 150 KG/CM2
No 68376

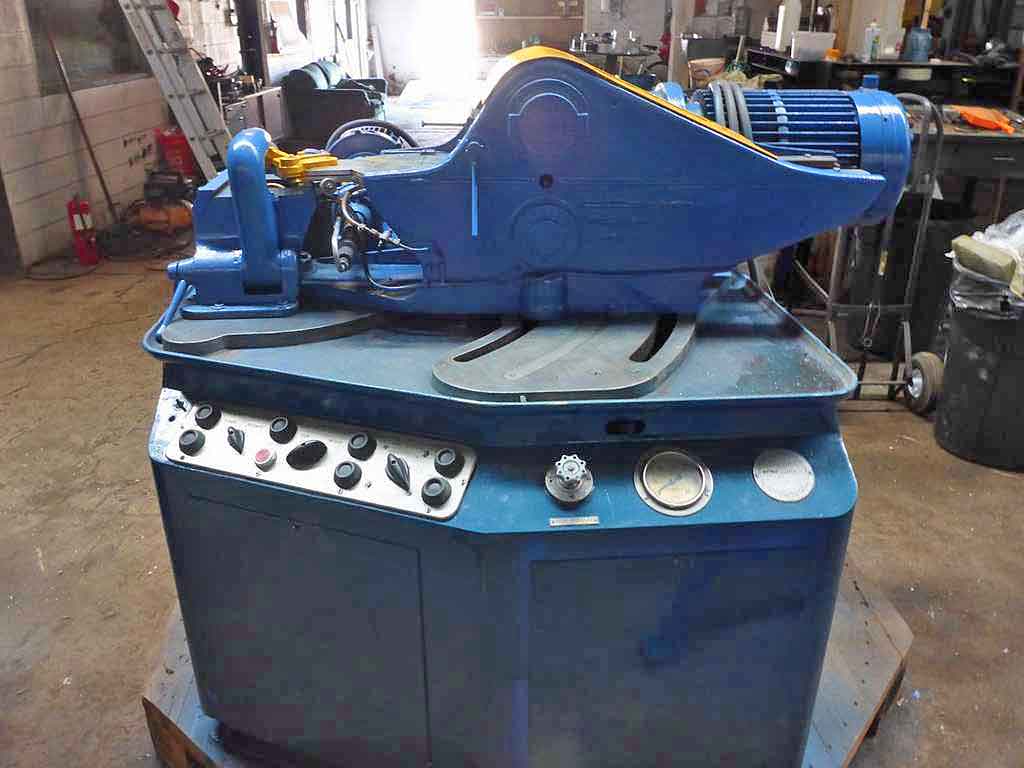

kg/Cm2 Manometer gauge reading from 0 to 100
used to measure pressure. A pressure gauge or vacuum gauge.
A manometer is an instrument that uses a column of liquid to measure pressure

Also equipped with a Hydraulic pressure sensor plug

Dimensions of mill: 6' x 6'
Weight of mill: 3,500 LBS

Uncoiler: 4' x 4'
Weight: 400 LBS

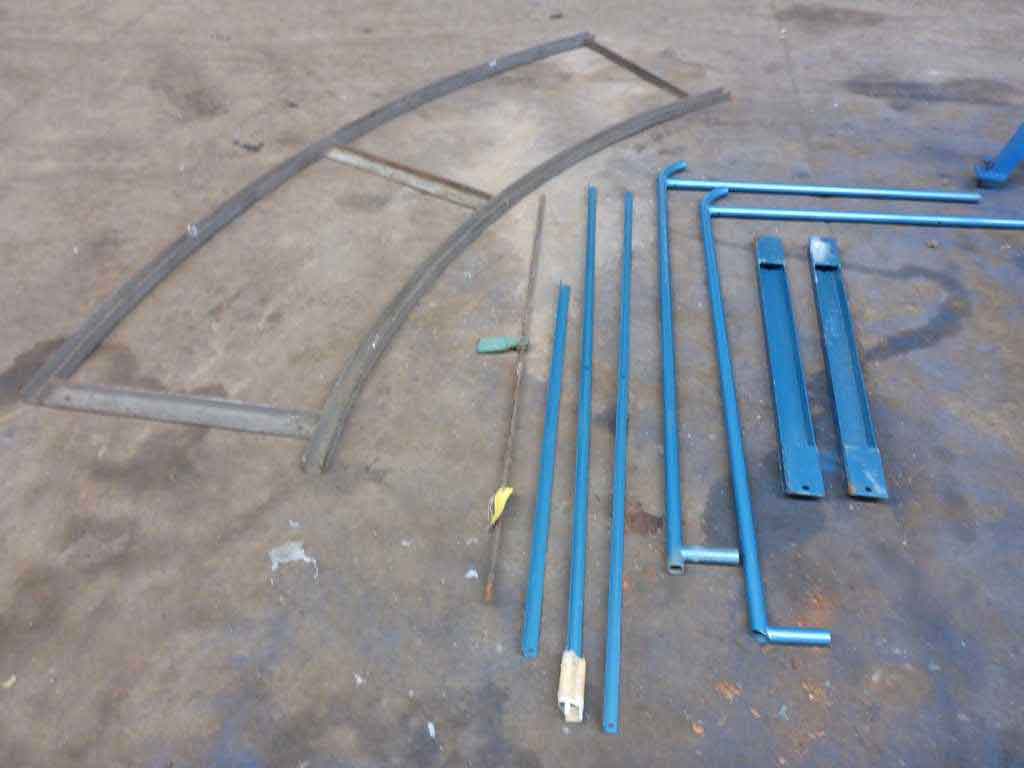

Runout: Posts & rollers free standing
Note: Not equipped with tooling. Spiro requires a forming box for each gauge
and a Shoe for each diameter

-In Storage: Toledo, OH
