12 Stand 25.00" x 4.00" B & K Rollformer

Manufacturer

B & K

Category

Roll Formers

Type

ROLL FORMERS

Stock

10478-A-HK

Model

None listed

Dealer Location

Ohio

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

YEAR: 1976


12 Stand B&K Rollformer.

Consisting Of:

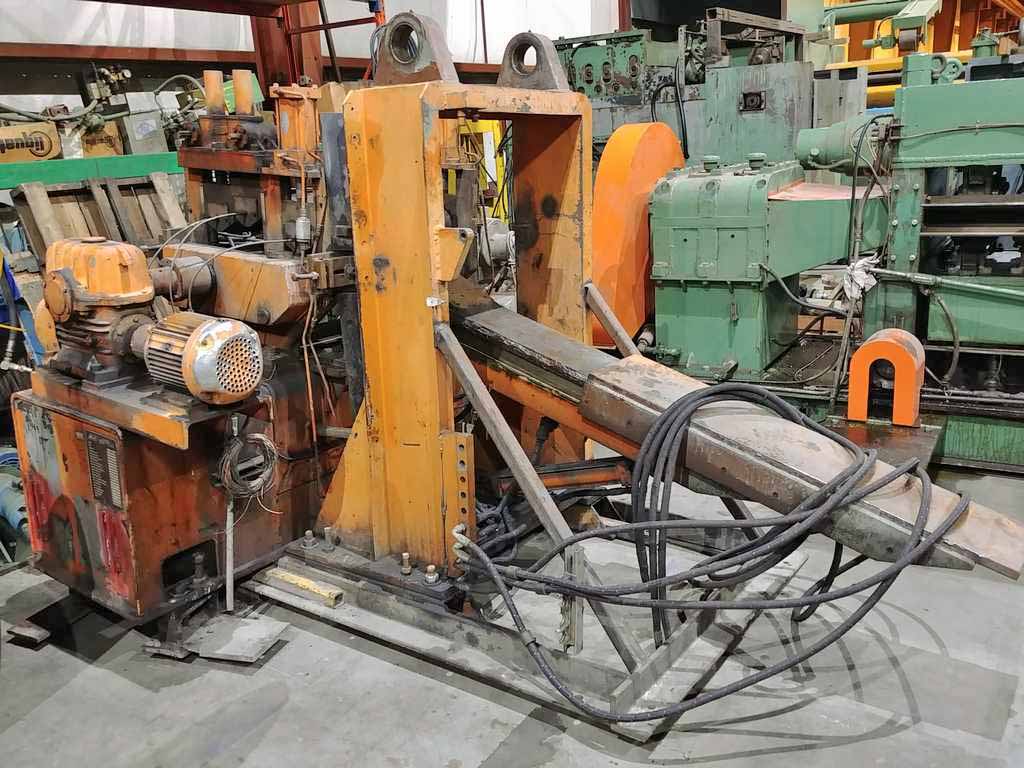

-Peeler/Straightener: B & K
Model 455-26F
S/N: 101
Hydraulic Actuated Peeler Table
Entry Driven Pinch Rolls
27" W x 5.625" Dia. Rolls
Hydraulic Cylinder Loaded

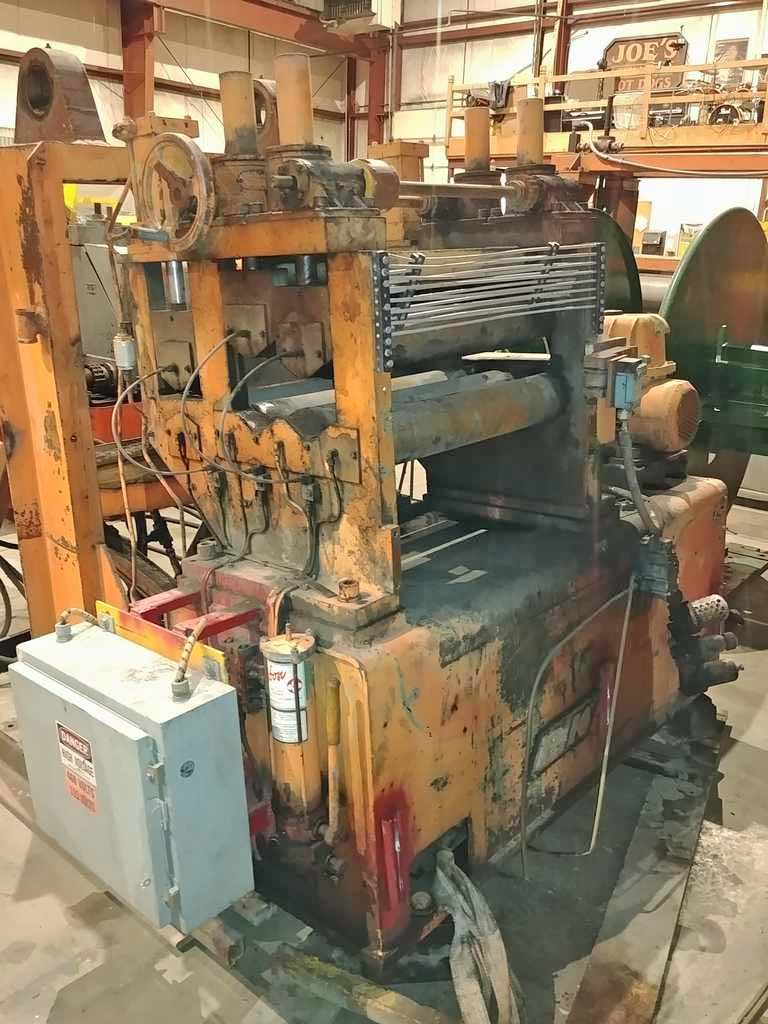

5 Roll Flattener:
2 over 3 Design
4.50" Dia. x 27" Face Rolls
Independent Parallel Adjustment on 2 Top Rolls
5 HP AC Drive Motor, 1800 RPM,
Right Angle Reducer w/50:1 Ratio
Line Speed: 45 - 135 FPM

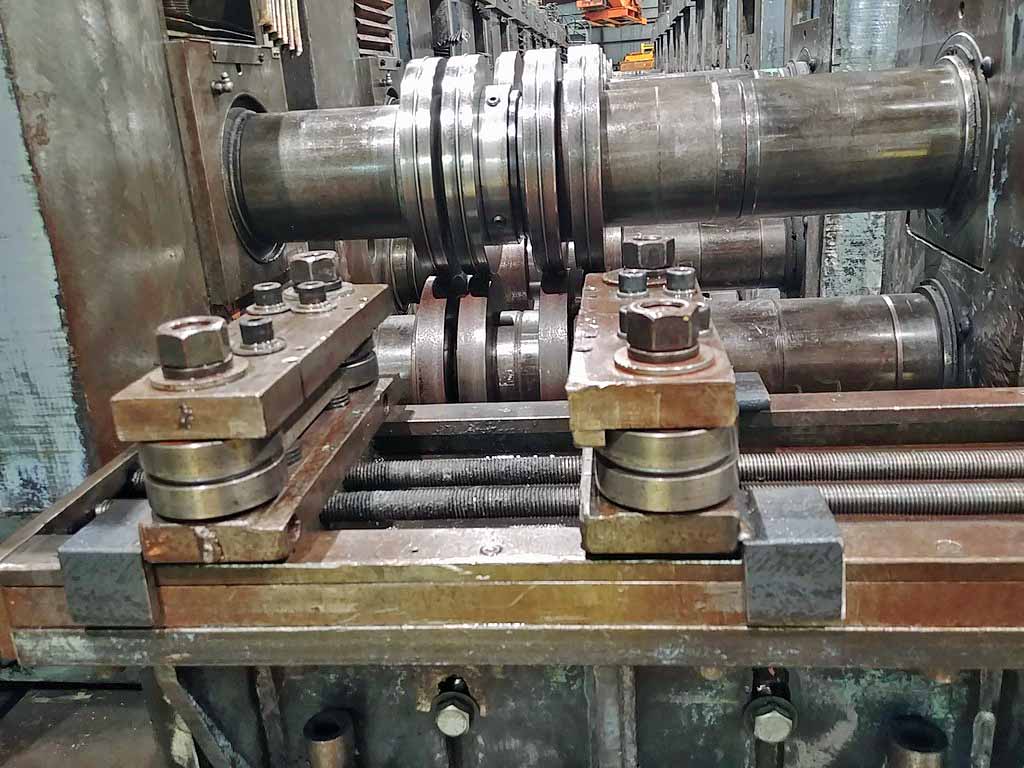

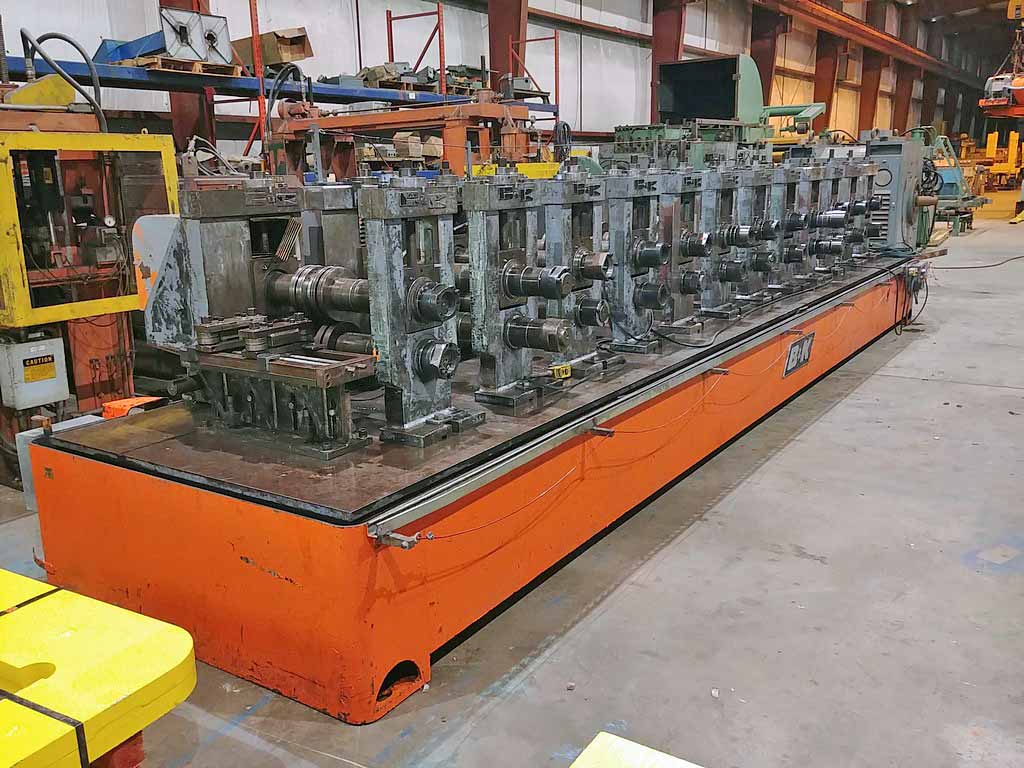

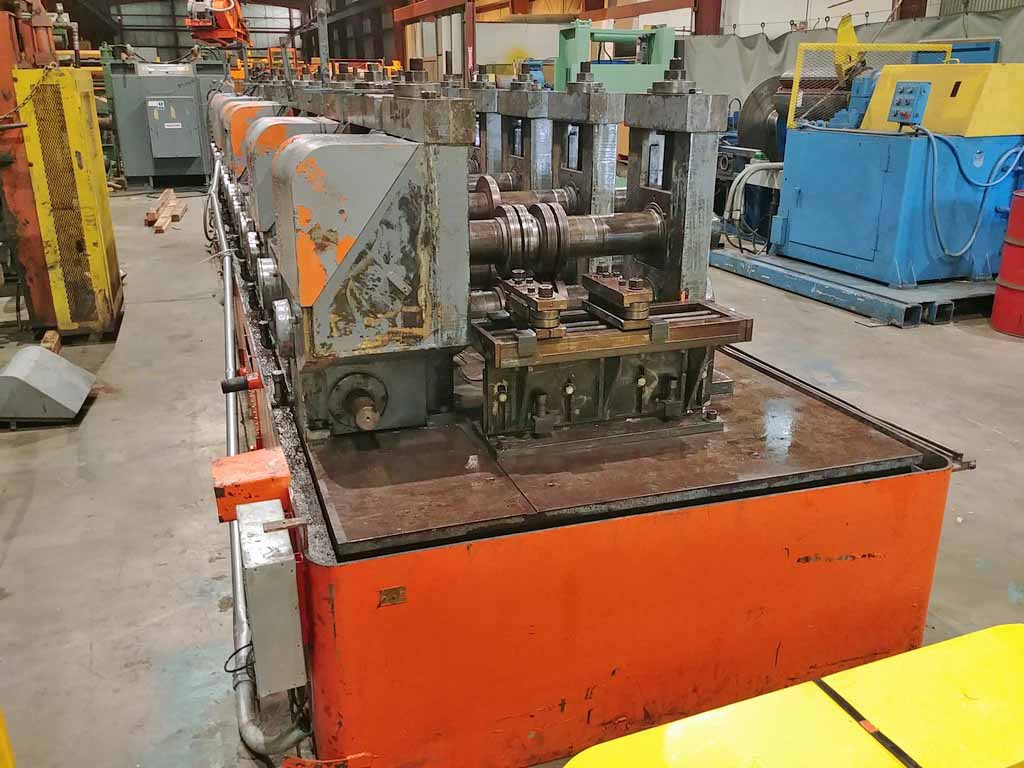

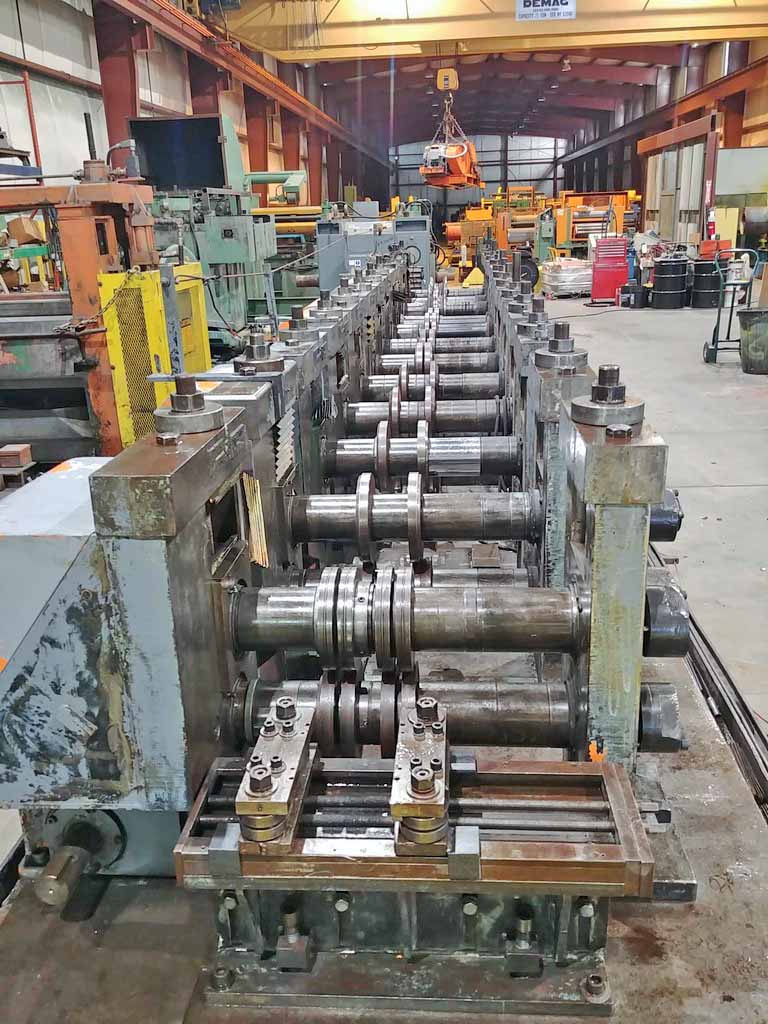

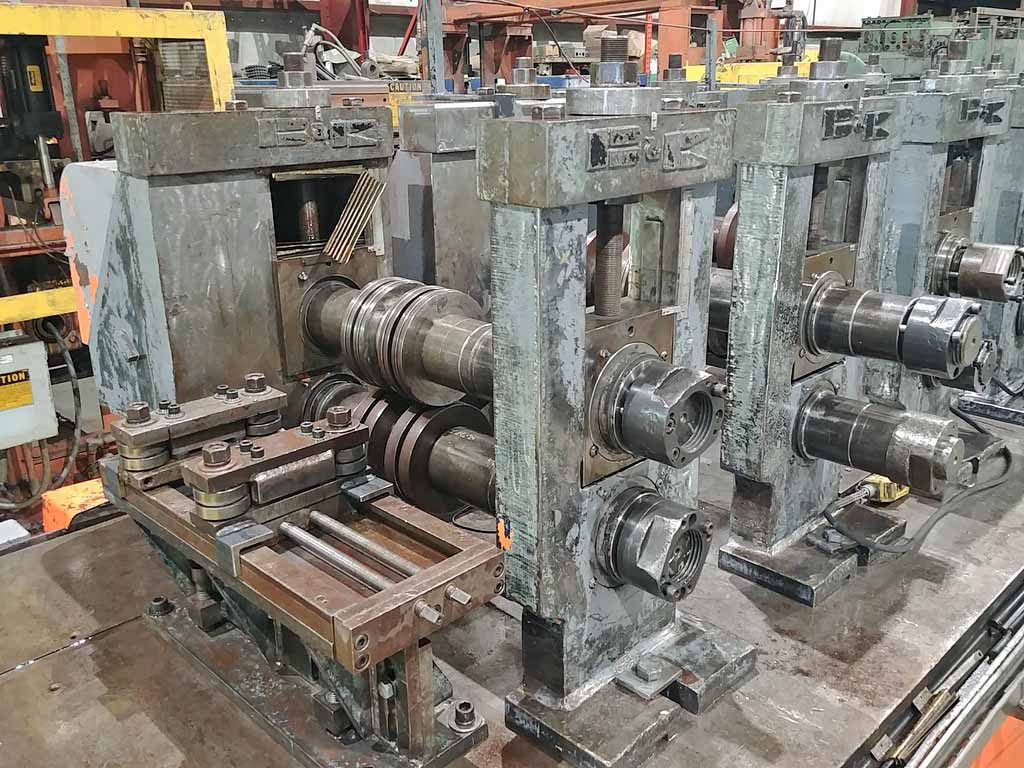

-Rollformer: B&K
Number of Stands: 12
Spindle Diameter: 4.00"
Roll Space: 25"
Horizontal Centers: 24"
Vertical Adjustment: 5.50" (8.25" - 13.75")
Distance from Bed to Center of Bottom Spindle: 11"
Passline Height: 40"

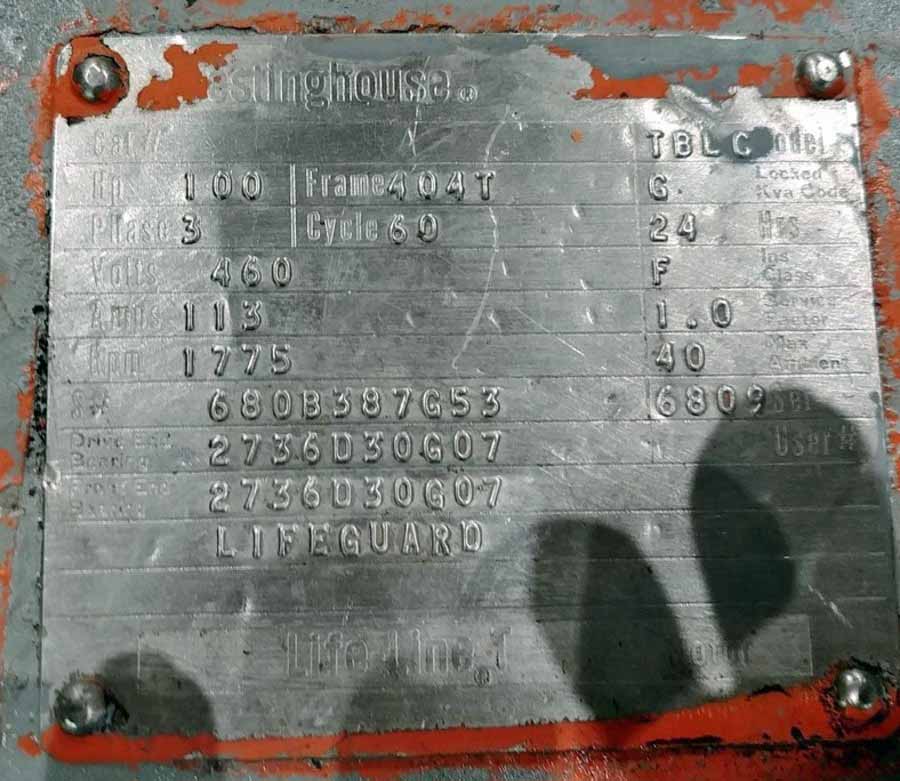

100 HP Westinghouse AC Motor, 1775 RPM, 460 V

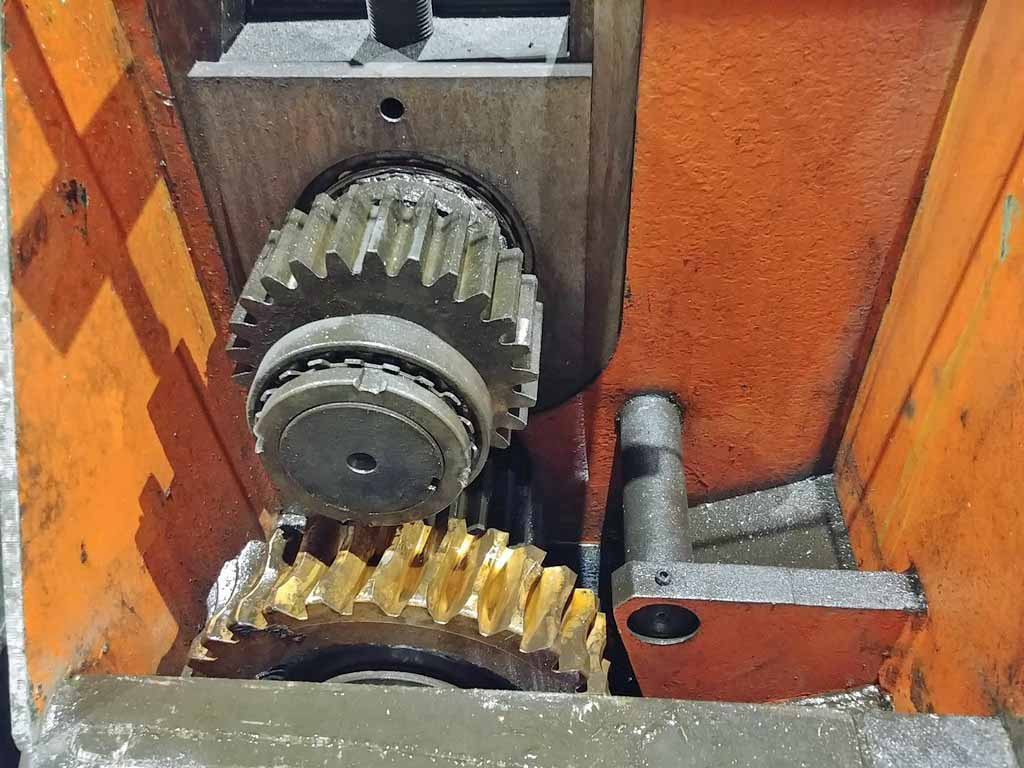

Gear Driven Machine
Entry Edge Guides
Overall Size: 336" L x 79" W x 71" High
40,000 Lbs (approx.)

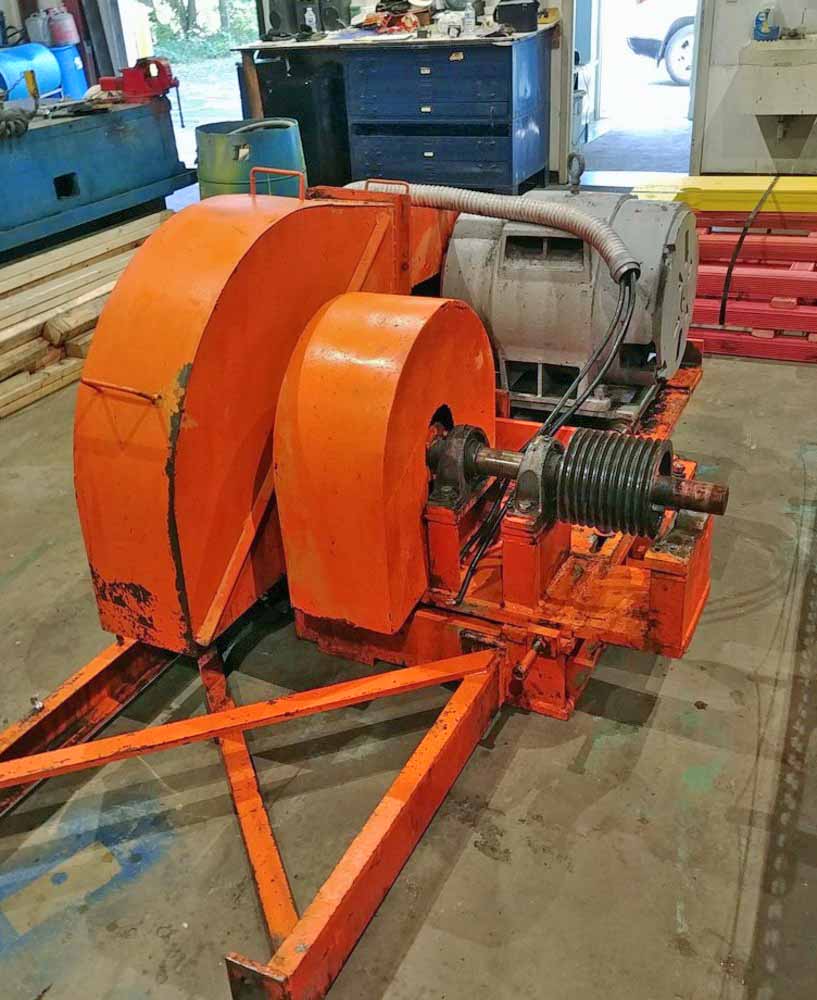

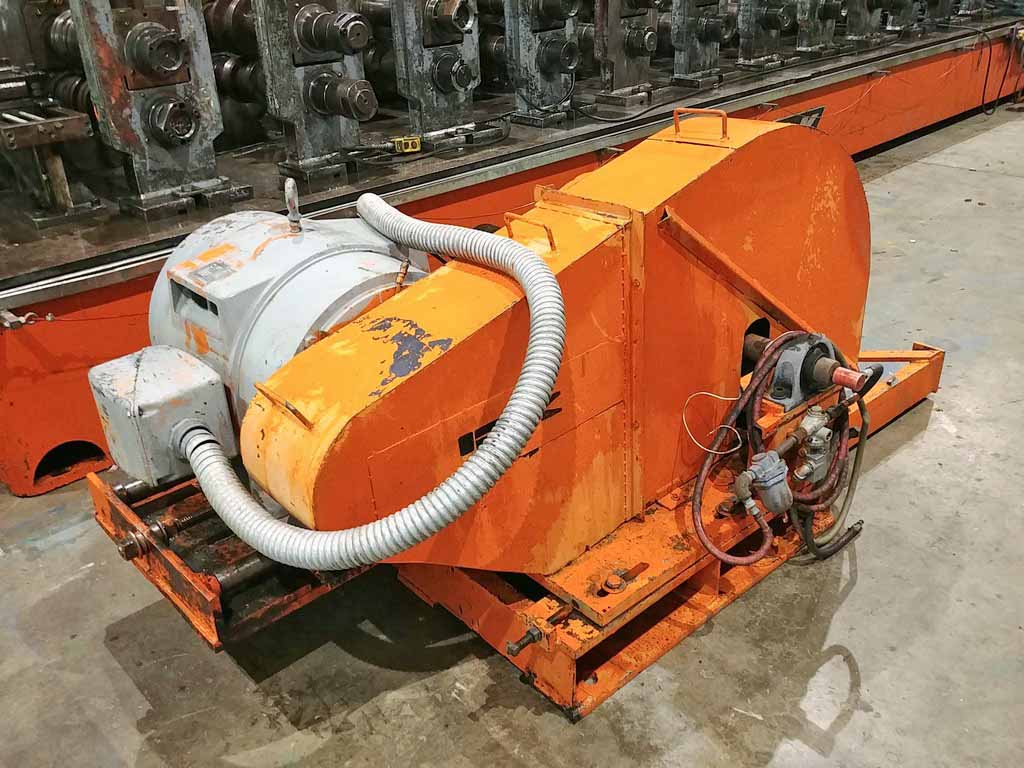

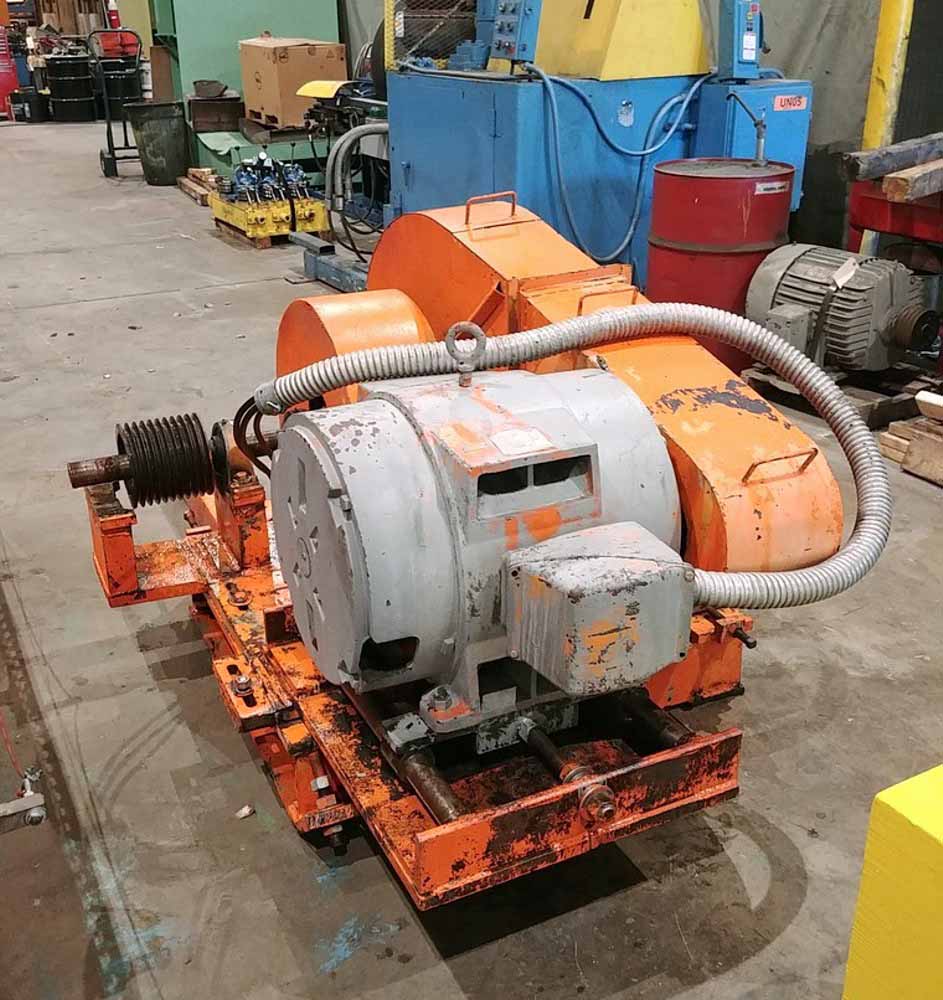

20 HP Reliance AC Motor
1760 RPM, 220/440 V, 60 HZ.
Belt driven to the flywheel
Air Clutch and Brake
(Mill is presently Tooled for a "G" Shape Channel)

-In Storage:
