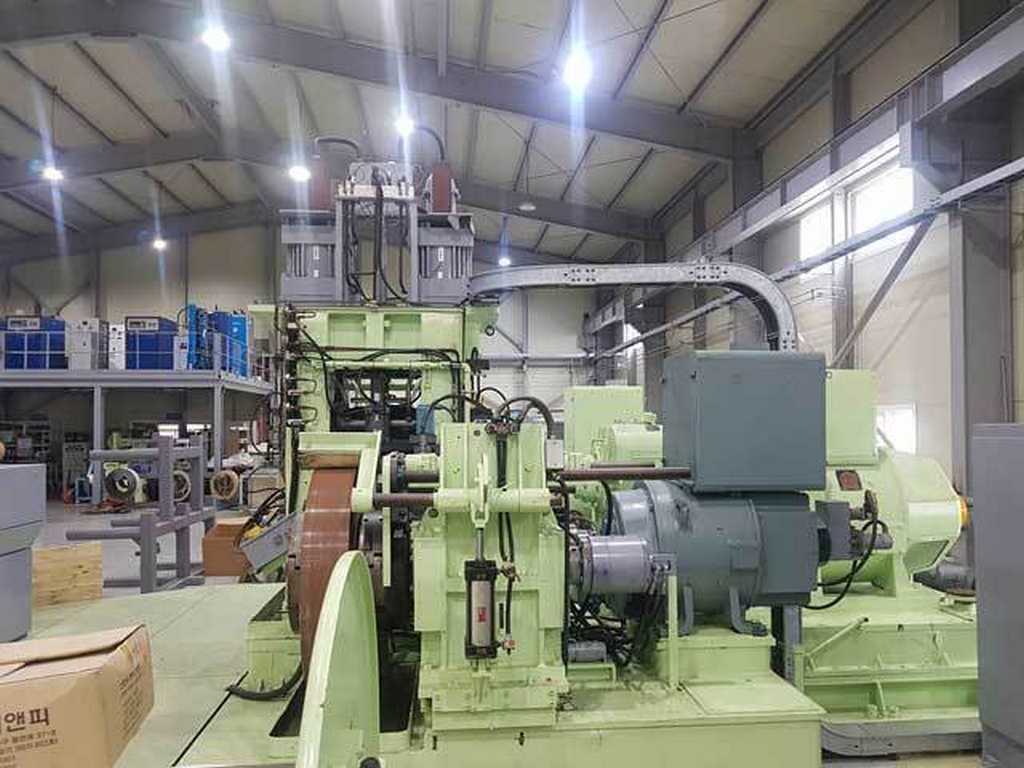

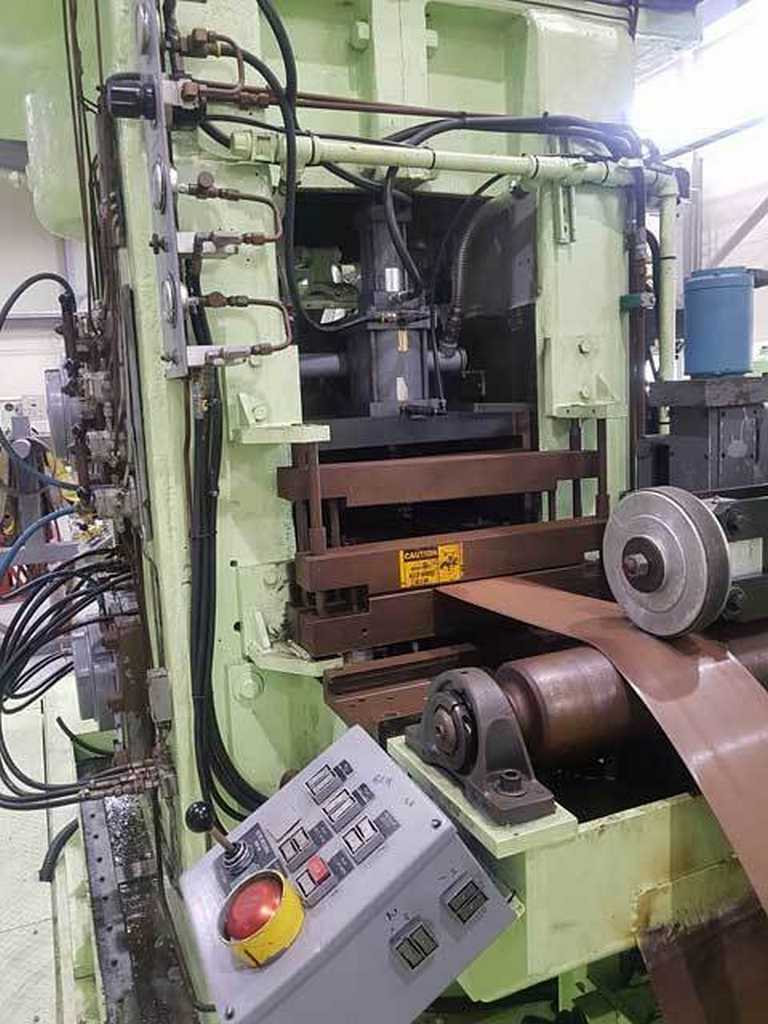

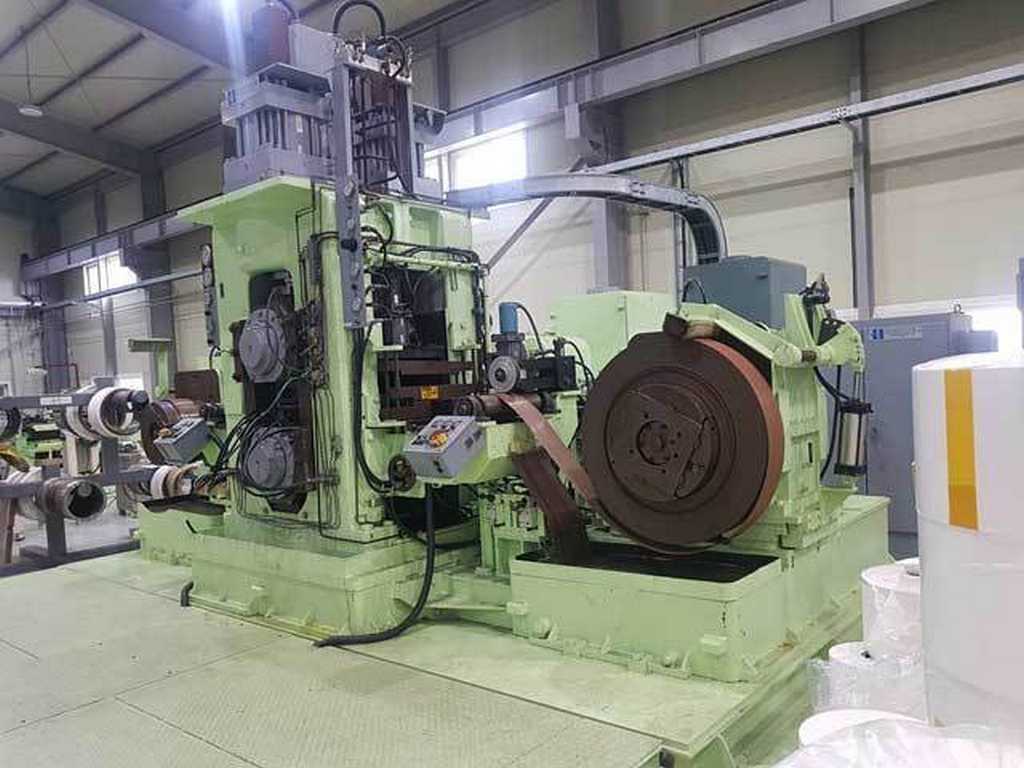

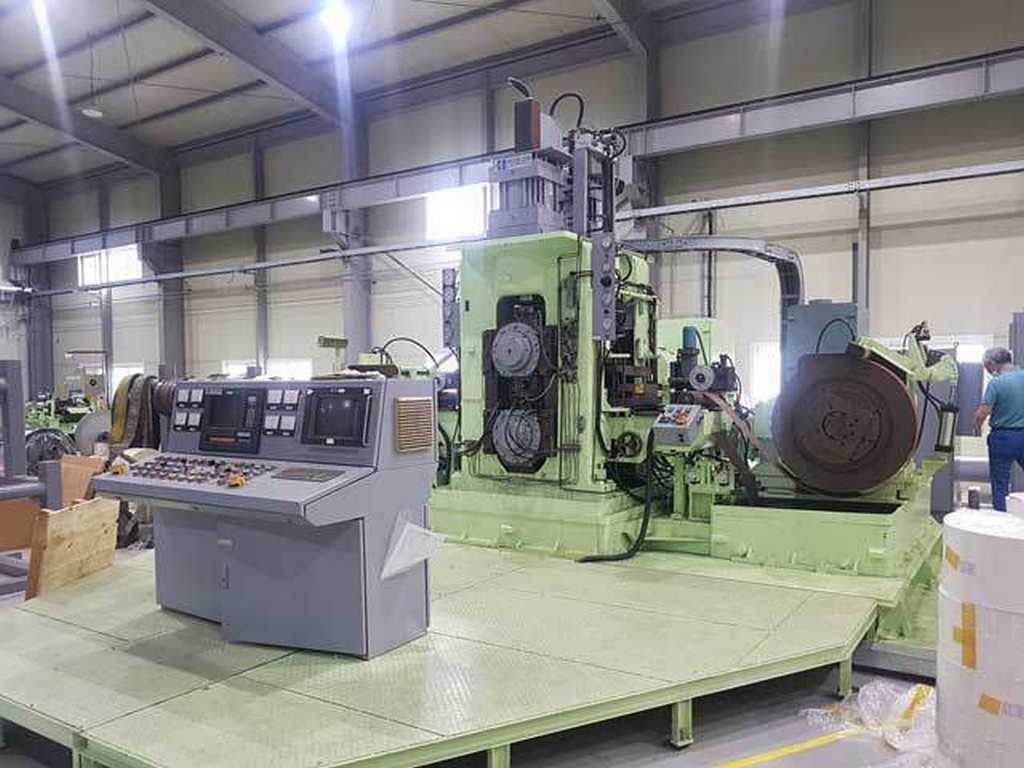

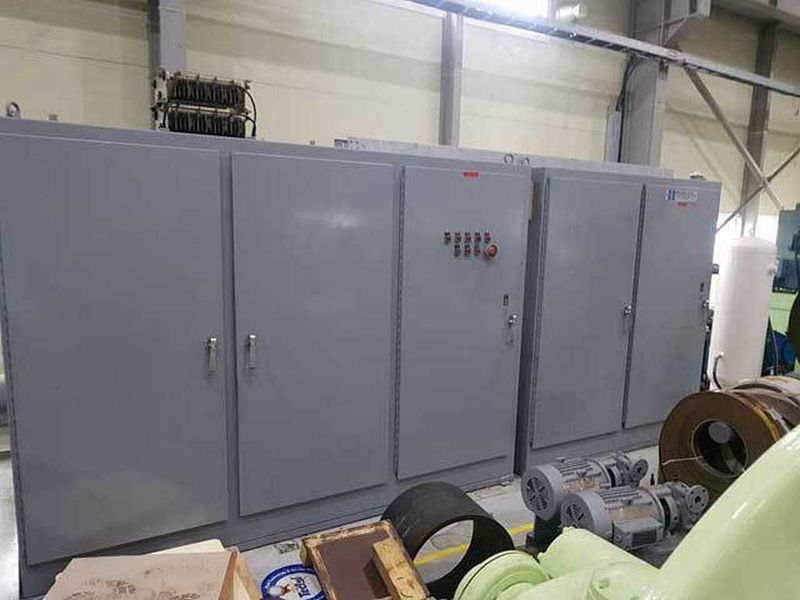

4 HI 1 Stand Ruesch Reversing Rolling Mill

Manufacturer

RUESCH

Category

None

Stock

11202

Model

None listed

Dealer Location

Ohio

Spec Sheet

YEAR: 1991


-Year: 1991 & 2019 (Upgrade)
-Raw Material: Cu (able to Steel, Stainless Steel)
-Thickness: 0.125" - 0.005" x 14" (3,2mm - 0,5mm x 350mm)
-Weight: Max. 2,500 kg/Coil

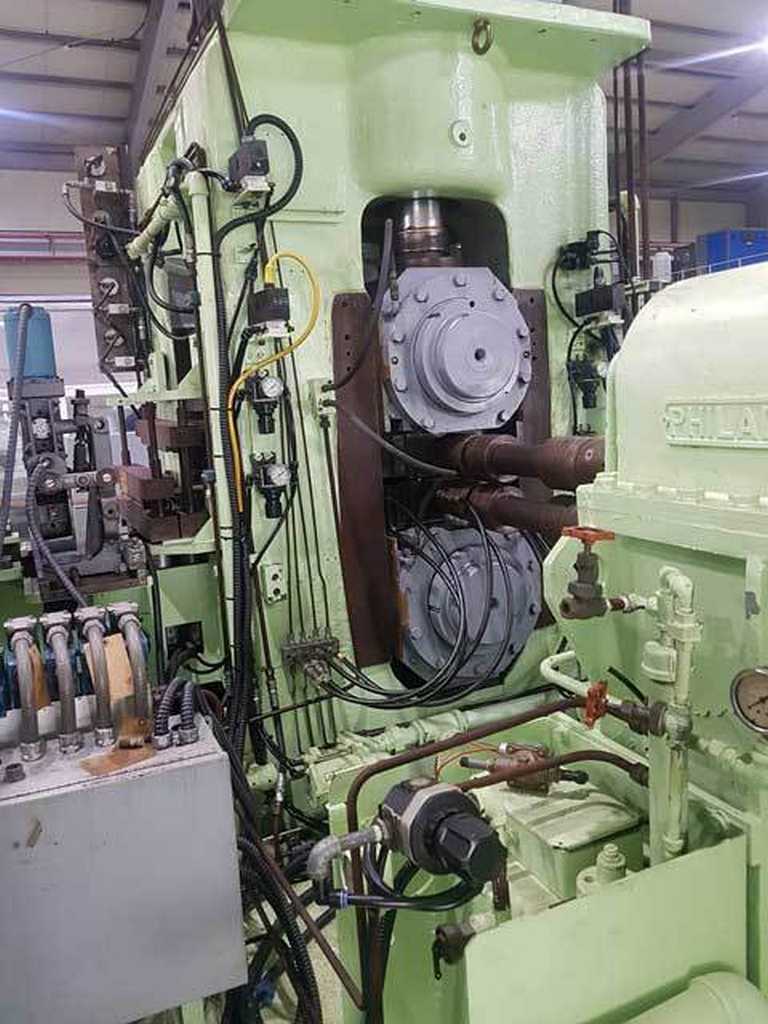

-Mill Type: 4 High Reversible Cold Rolling Mill
-Screwdown: Hydraulic Screwdown AGC Controlled

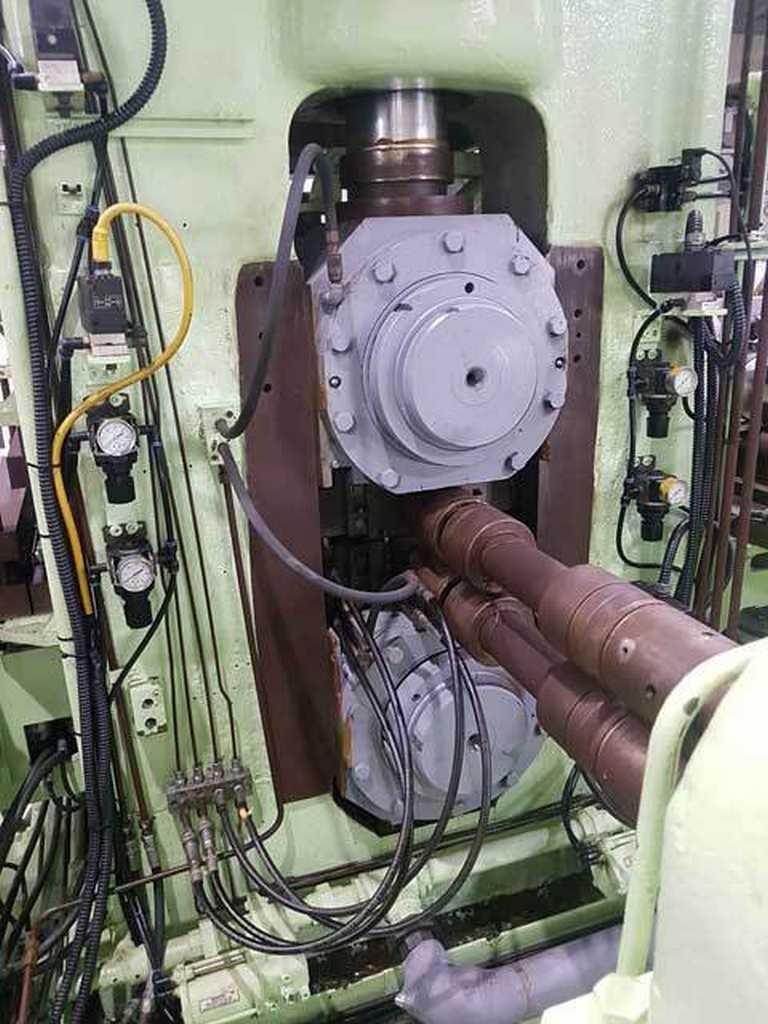

-Mill Rolls: Work Roller 5" x 16" (130mm x 400L mm)
Backup Rolls 16" x 16" (400mm x 400L mm)

-Drive:
Mill: 125 HP x 350/1050 RPM
Recoiler: 30 HP x 400/1600 RPM

-Work Roll Driven
Spindles & Couplings: Universal Joint

-Mill Speed: Max. 400 FPM (120m/Min.)
-Recoiler Drum: Hydraulic Expansion Mandrel Type
20" Diameter x 16" Wide (508mm x 400mm)

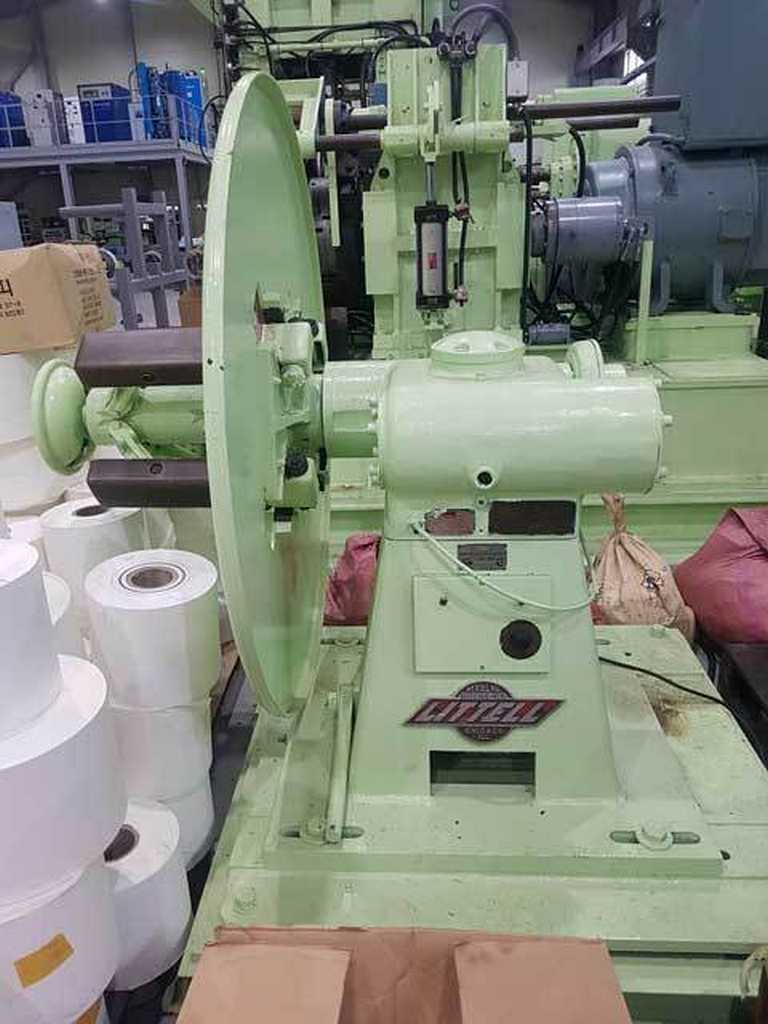

-Uncoiler: Free Drive Type

-Thickness Gauge: Touch Type

-Spare Roller: Work Roller - 3 Set
Backup Roller - 1 Set

-Oil Basement System: Not Included

-Mill Condition: Under Power
