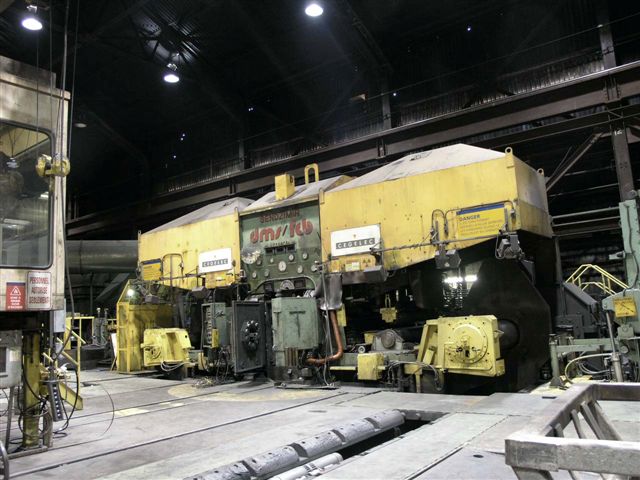

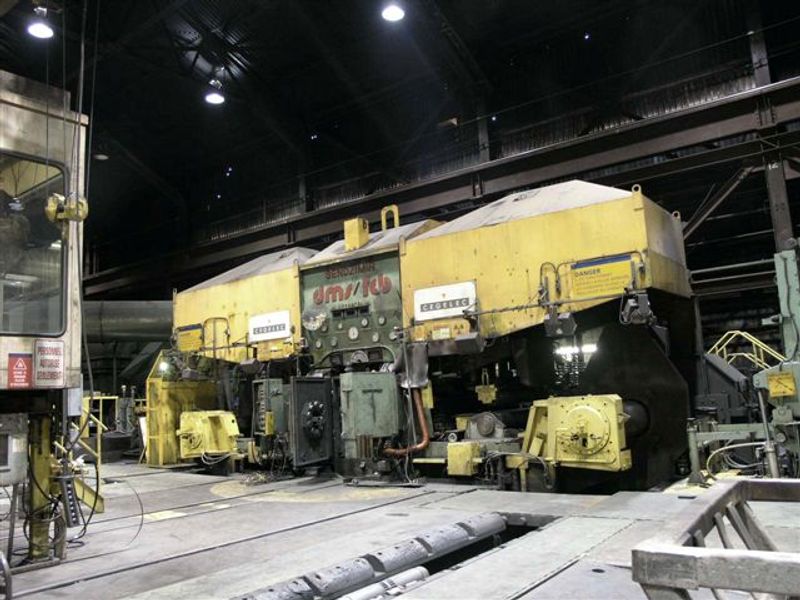

20 Hi 1 Stand DMS Sendzimir Rolling Mill

20 Hi 1 Stand DMS Sendzimir Rolling Mill

Manufacturer

DMS

Spec Sheet

YEAR: 1992

Type: ZR22BBS52

Annual Tonnage Previously Rolled: 250,000 MT

Specifications
-Materials: HCS, LCS, Stainless
-Maximum Coil Width: 52" (1320mm)
-Minimum Coil Width: 23.6" (600mm)
-Input Max. Gauge: 0.25" (6.3mm)
-Output Min. Gauge: 0.009" (0.22mm)
-Coil OD Range: 35.8" to 72" OD (910 to 1830mm)
-Coil ID: 24" (610mm)
-Coil Weight: 44,000lbs (20,000kgs)
-Line Speed: 2,500 fpm (762mpm)
-Max Mill Tension: 88,000lbs (40,000kgs)

Line Direcection, Left to Right

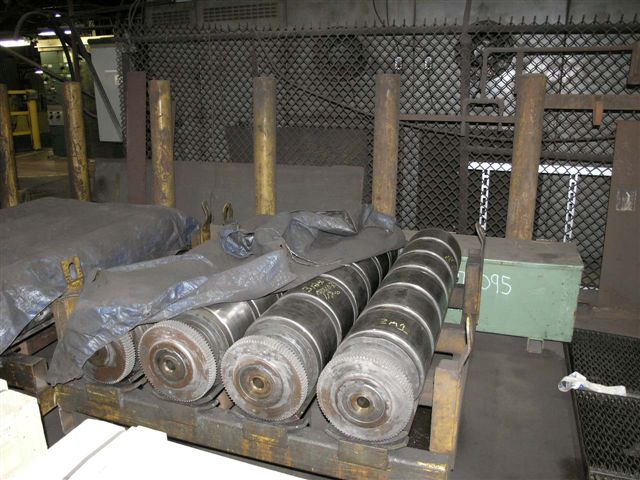

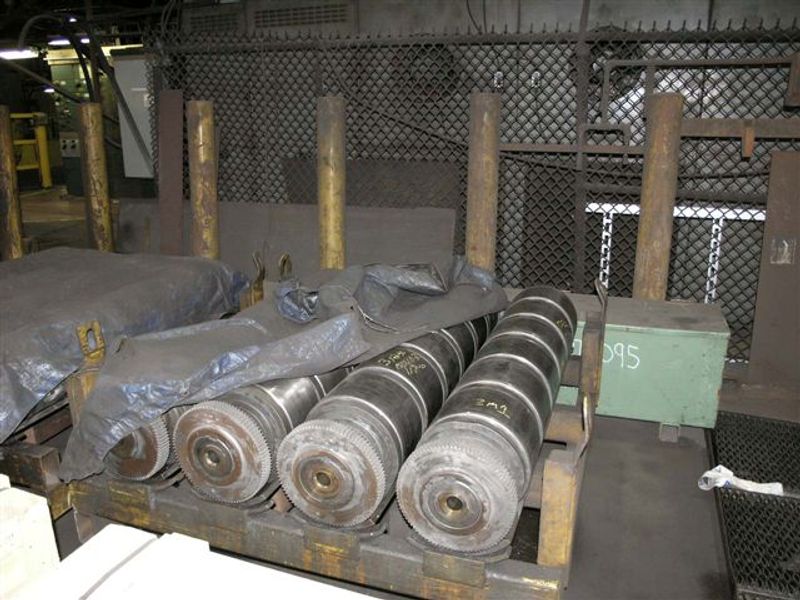

Roll Info:
-Work Roll Diameter: 2.900 - 3.400" (74 - 86mm)
-Back up Beariings 11.750 - 11.810" (298 -300mm)
-Second Intermediats 6.875 - 7.200" (175 - 183mm)
-First Intermediates 3.900 - 3.400" (99 - 107mm)

Roll Opening 0.345" (8.76mm)

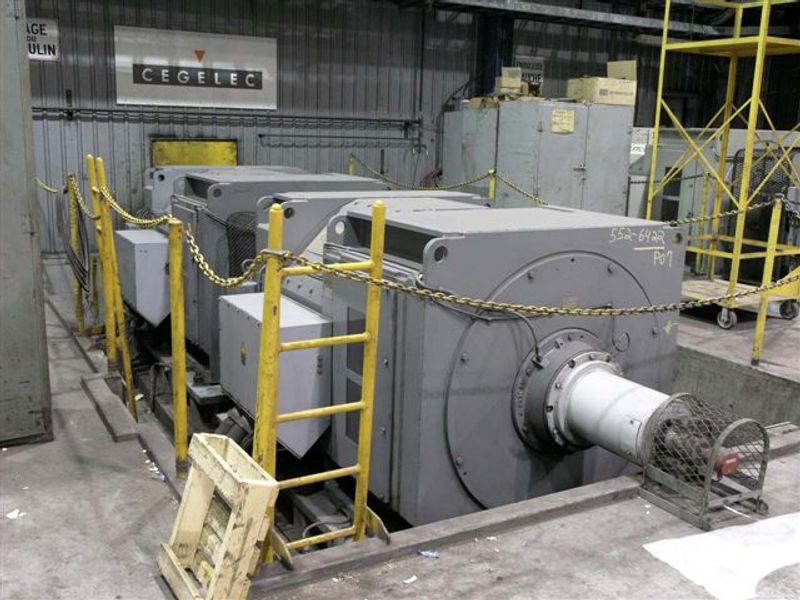

Main Mill Drive (2) x 2000hp // 1500KW
395 to 1000rpm - 730V

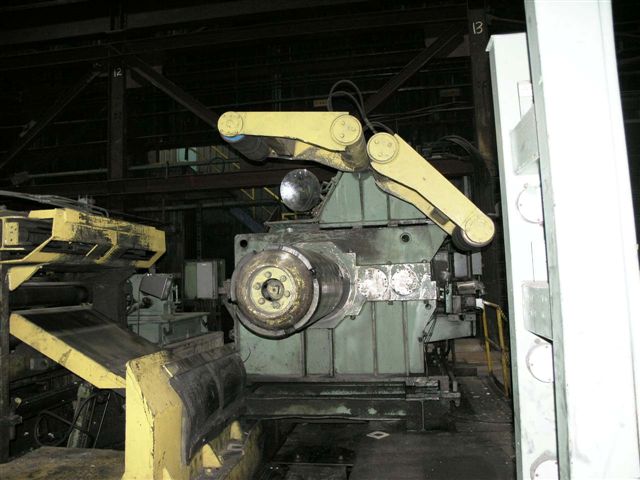

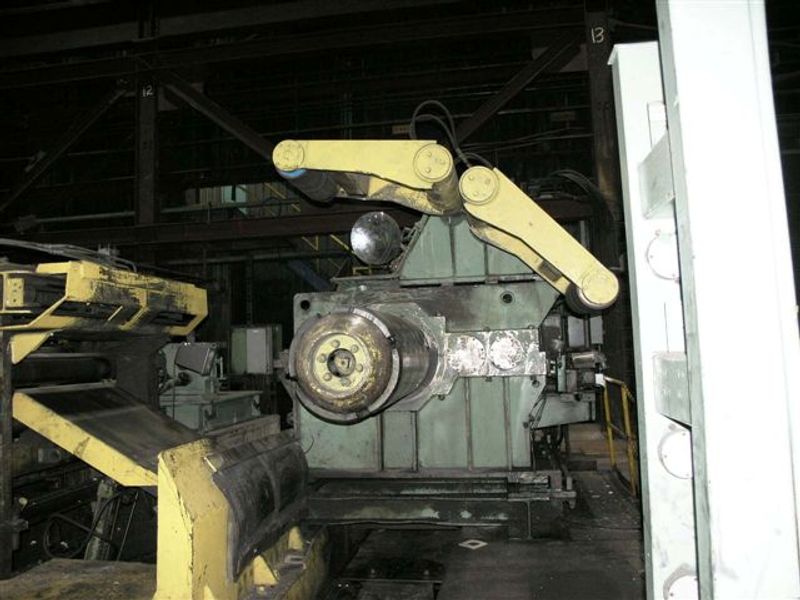

Pay Off Reel 160hp // 120KW
770 to 2300rpm - 400V
Entry Tension Reel (2) x 2000hp // 1500KW
395 to 1000rpm - 730V
Exit Tension Reel (2) x 2000hp // 1500kw
395 to 1000rpm -730V

Controls, op stations
2 Gamma gages
2 rotary crop shears
Auto Gage system
Lube system

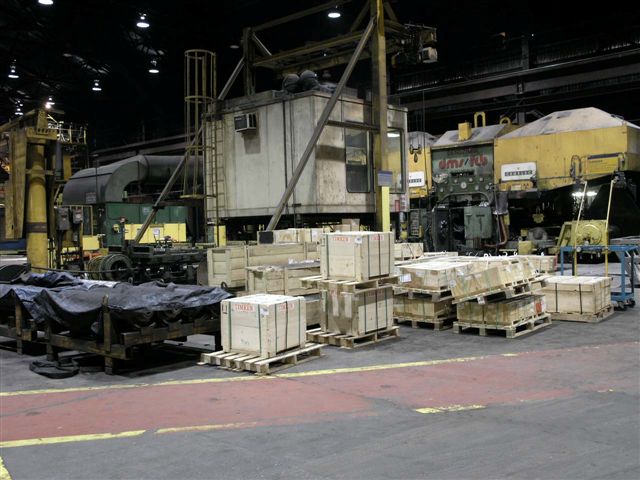

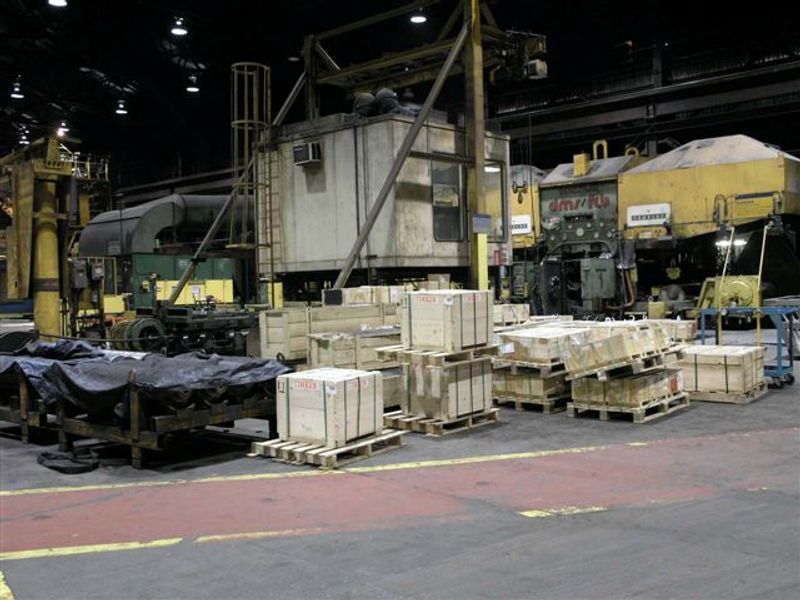

Large complement of spare (See Excel spread sheet for itemized list)
Complete complement of drawings (See Dropbox attachment for partial list)

No Video Available
