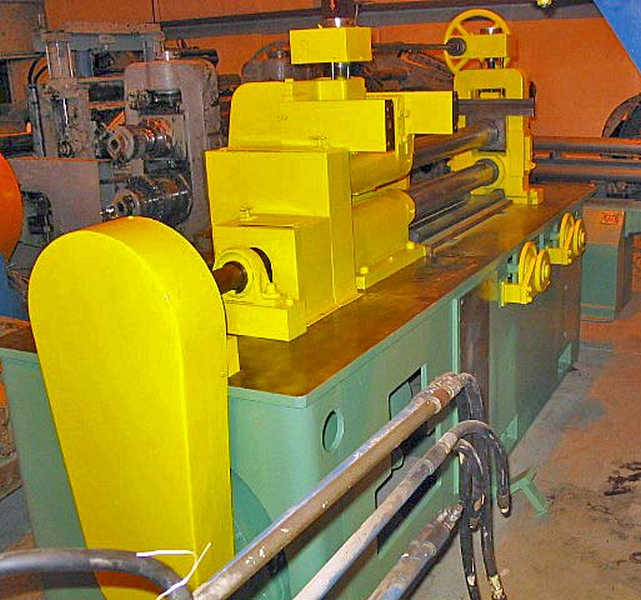

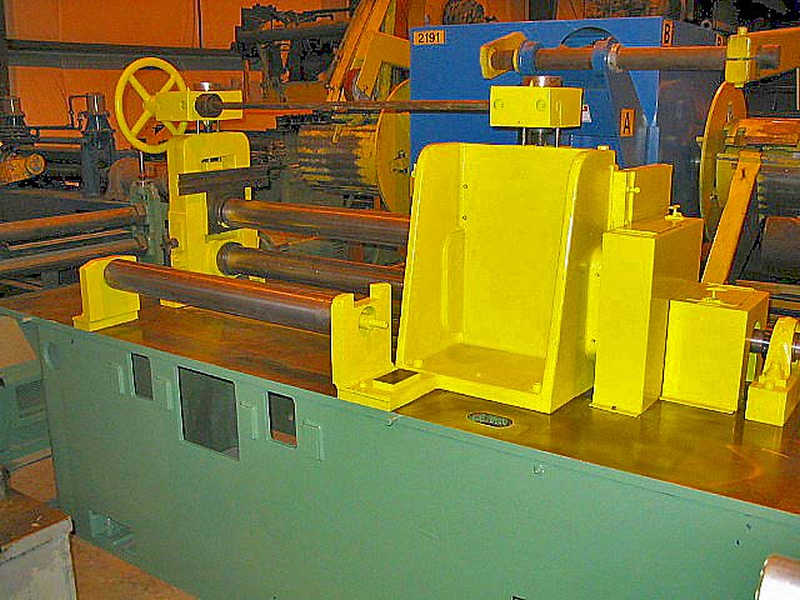

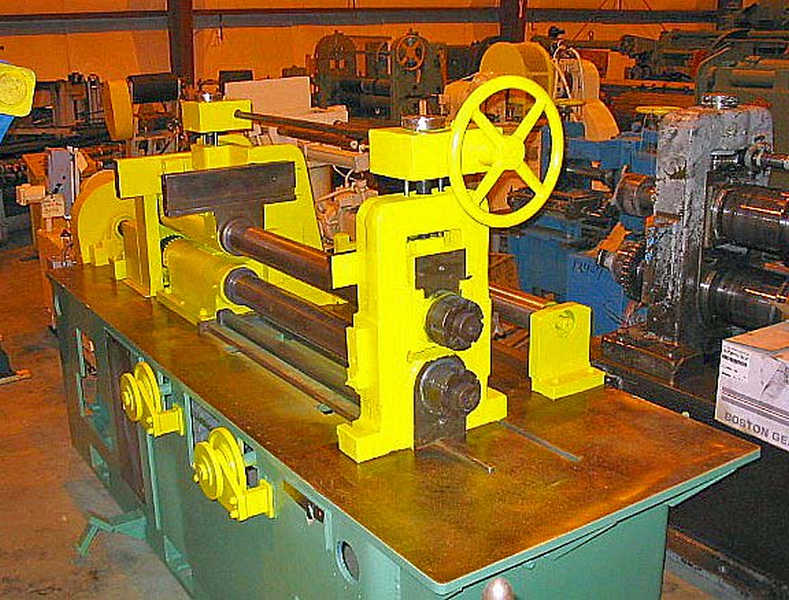

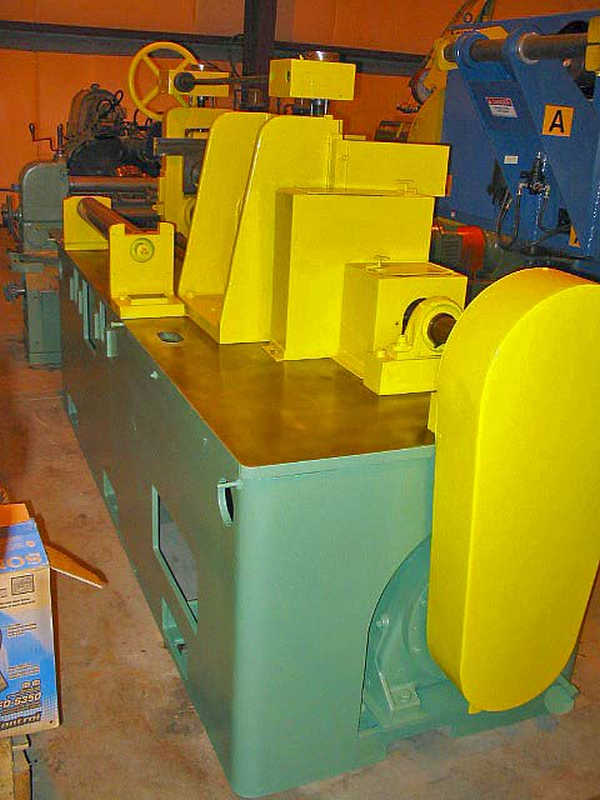

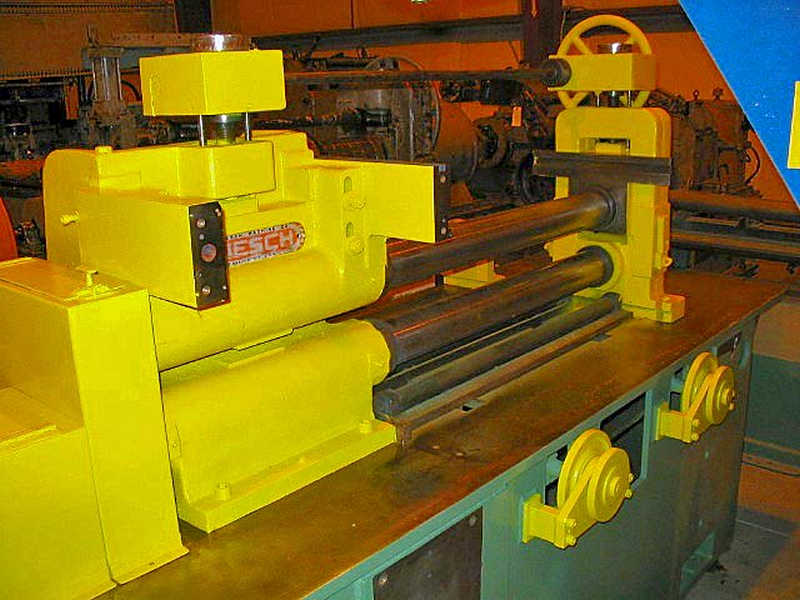

36" x 4.125" Ruesch Slitter Head

Manufacturer

RUESCH

Spec Sheet

YEAR: 1967

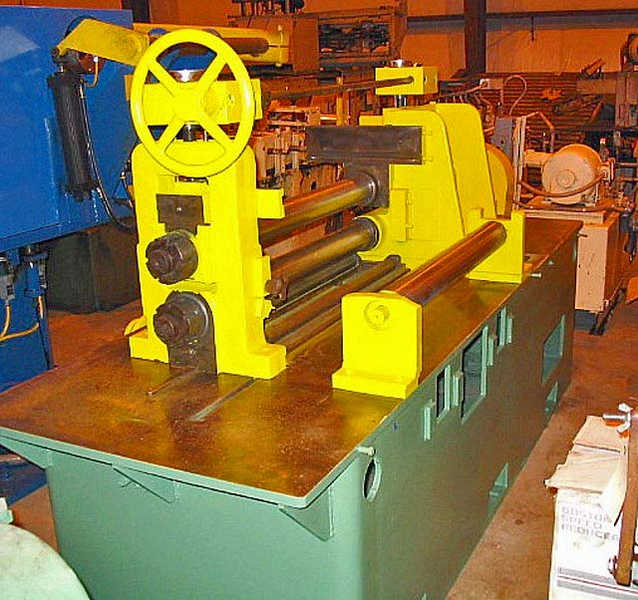

Ruesch Precision Slitter Head

Ruesch I.D. No.: N 2236
Ruesch Model No.: 146
Max. Width: 36"
Gauge: 0.125" Max.

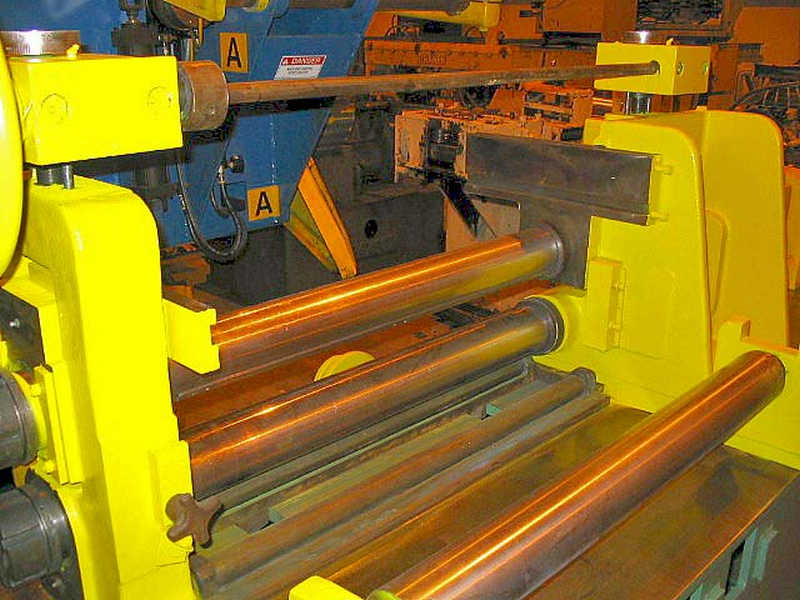

Arbor Size: 4.125" Dia. x 37.385" Face
Keyway: 0.625" x 0.187"

Parallel Adjustment To Top Arbor

The Slitter is currently set-up with Rubber Stripper Rings
and is readily convertible to a Ring Slitter. There is an
Exit Pass-Line Roll attached to the Base.

Passline Height: Approx. 43"

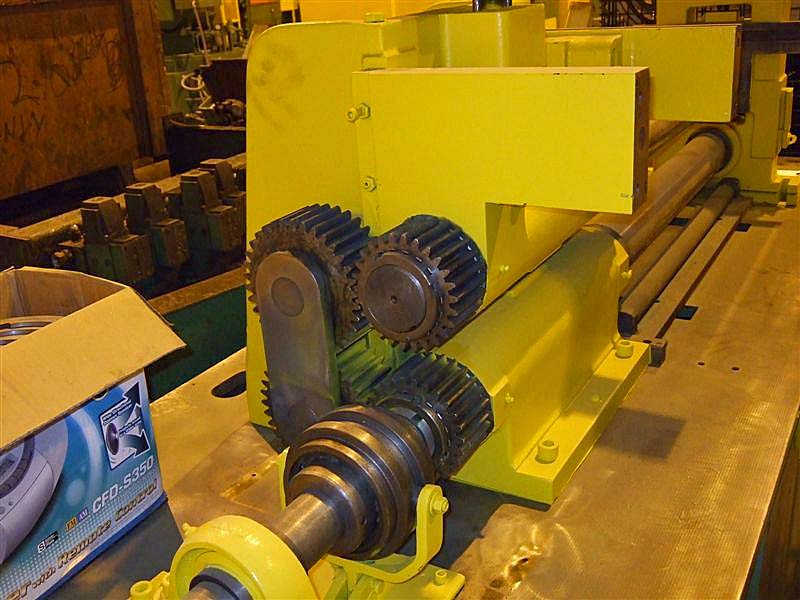

Slitter Drive:

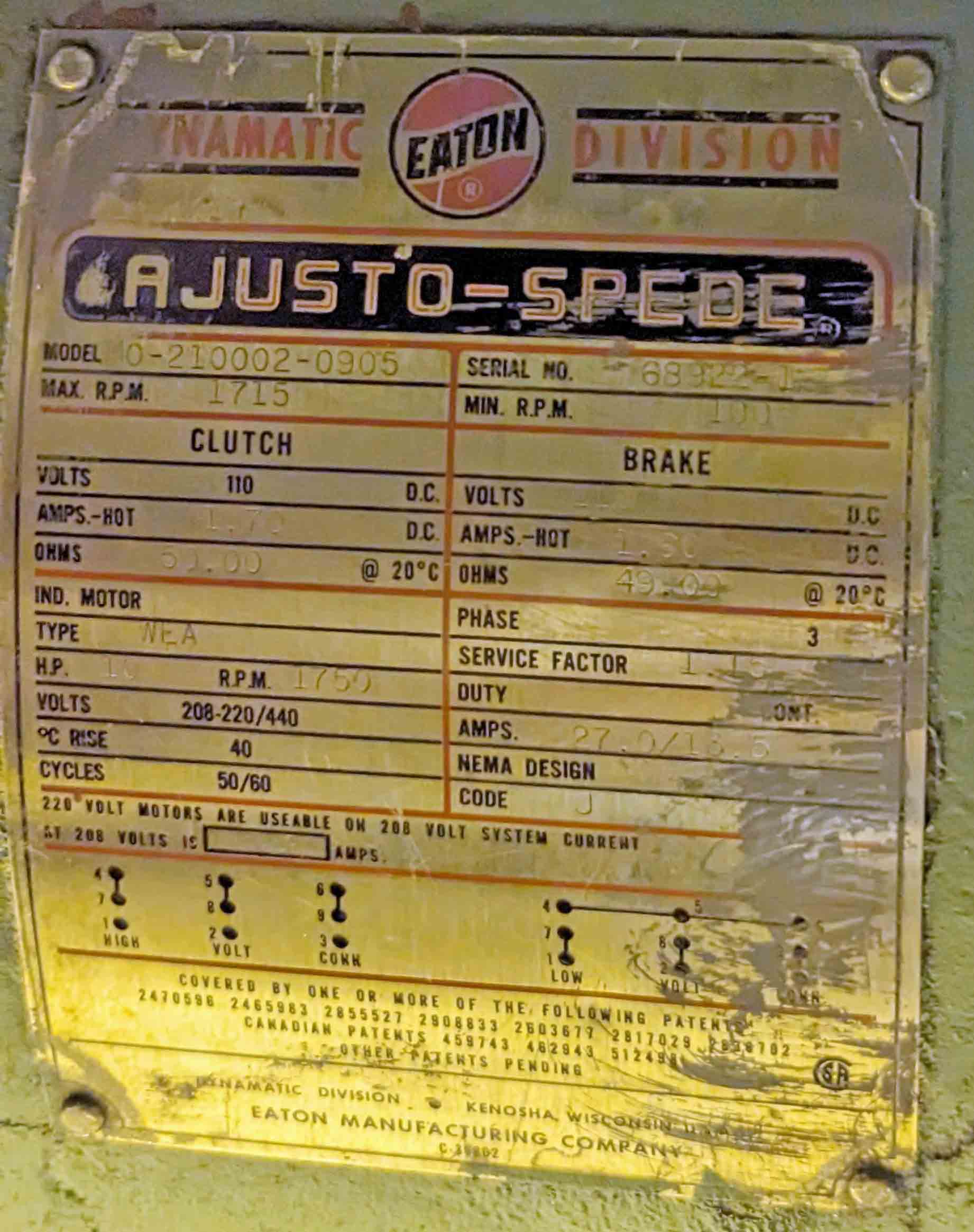

10 HP Eaton Ajusto-Spede Motor w/Clutch/Brake,
Model MO 210002-0905, 100 - 1715 RPM, 208-220/440 Volts.
Eaton Dynamatic Ajusto-Gear Reducer w/4.13:1 ratio.

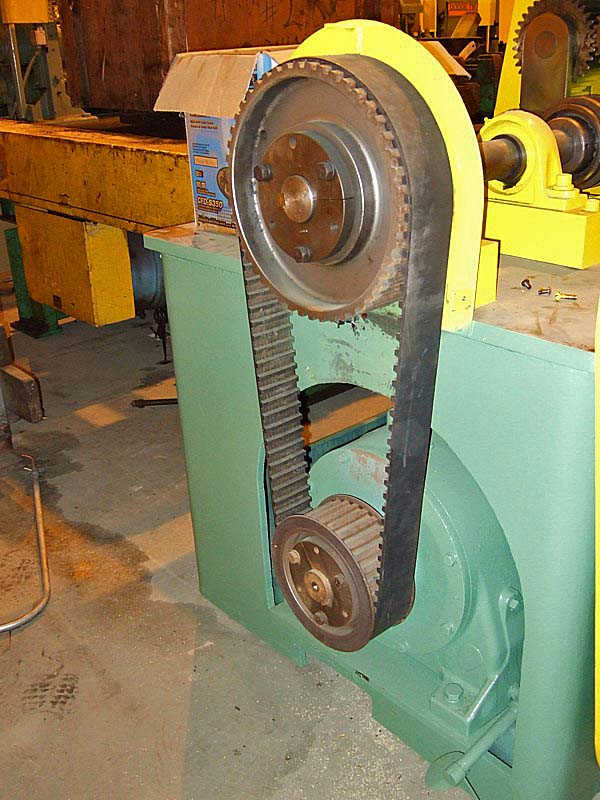

Belt Drive output to Slitter Drive Shaft w/1.5:1 ratio.

Tooling: (4) Knives - 6.385" O.D. x 0.250" Wide
Small amount of Spacers W/Rubber Rings

Less Controls

Approx. Size: 125" L x 46" W x 69" High
7,000 lbs.

In Storage; Toledo, Ohio

No Video Available
