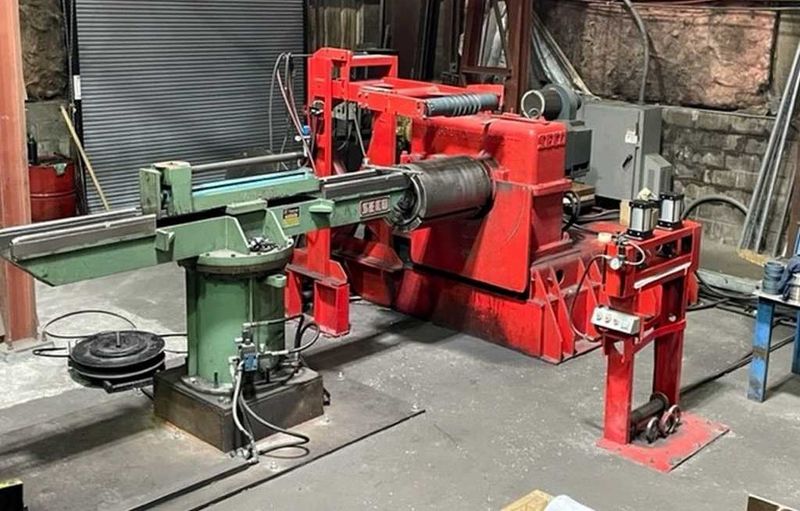

24" x 4.50" x 10,000# Seco Slitting Line

Manufacturer

SECO

Category

Slitters and Slitting Lines

Type

SLITTING LINES

Stock

11126

Model

None listed

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet


-Material Width: 24"
-Thickness Capacity: 0.017" - 0.095"
-Coil Weight Capacity: 10,000 lbs.
-Coil I.D. Range: 16" - 20" Entry and Exit
-Coil O.D. Capacity: 72"

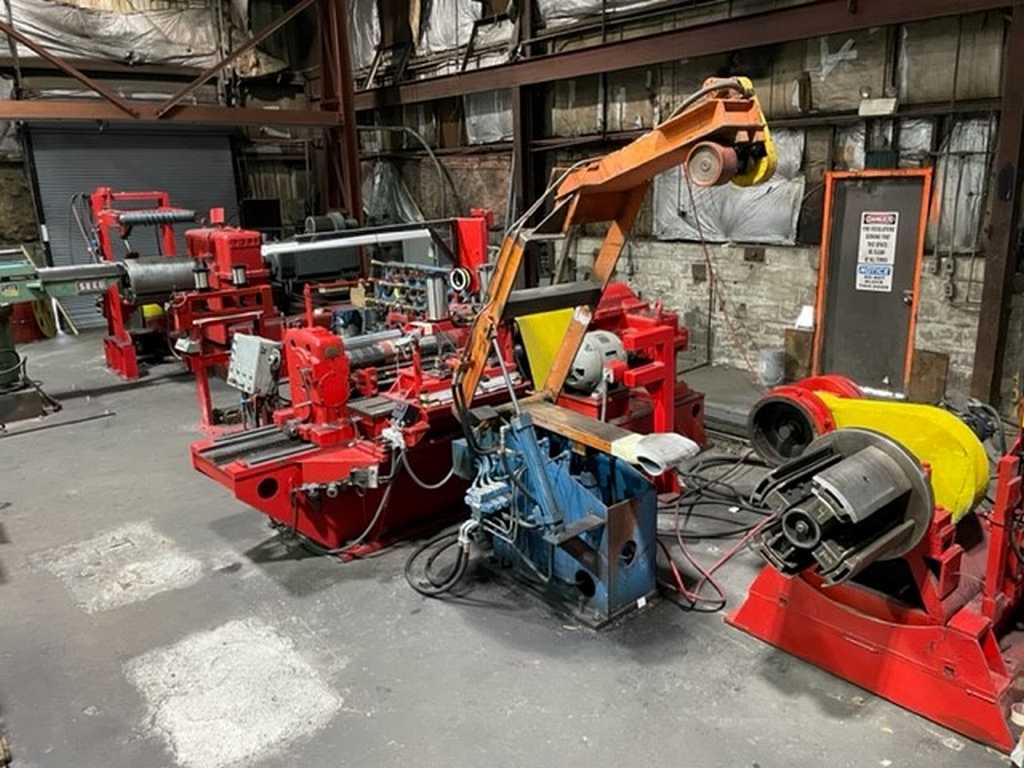

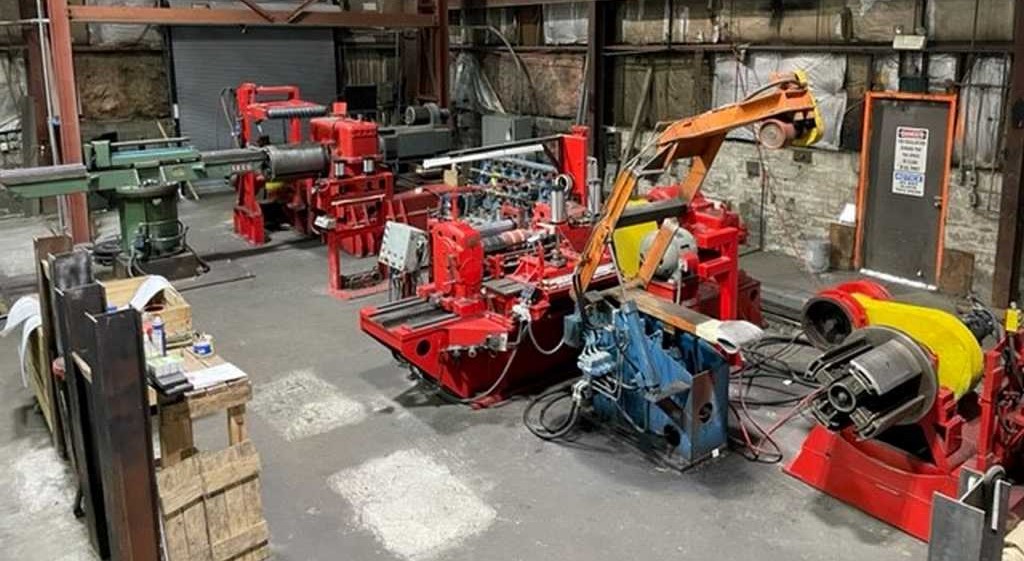

Consisting of:

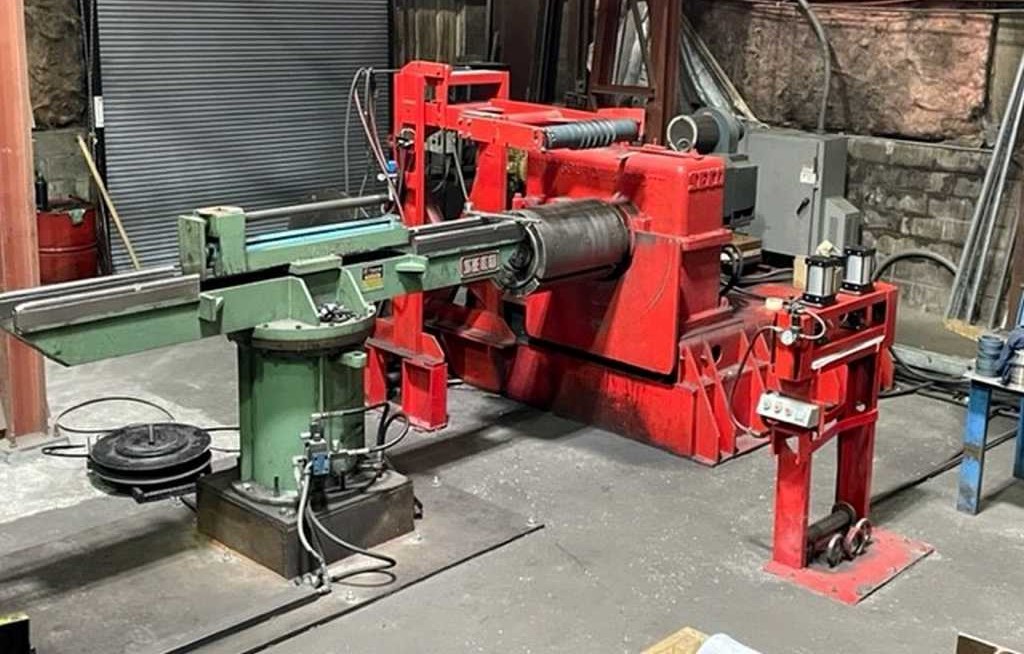

-Uncoiler:
Hydraulic Expansion
Wichita Brake

-Peeler/Holddown Unit:
Powered Holddown Roll

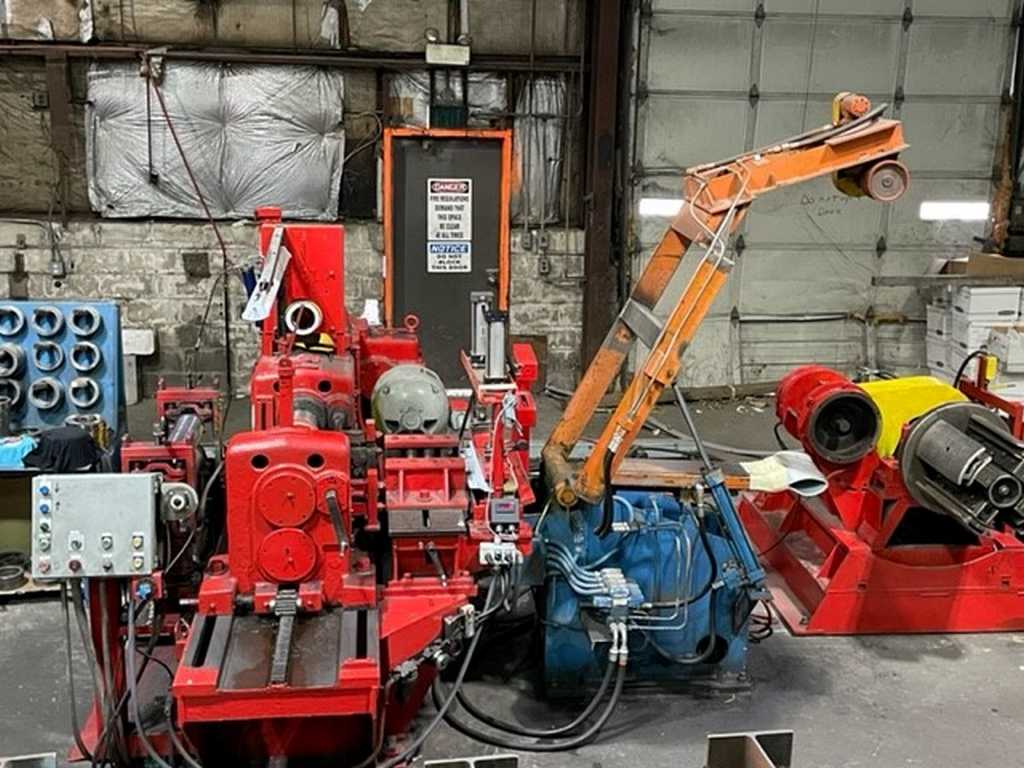

-Slitter Head:
4.5" Dia. Arbors
Entry Tension Pad
Air Cylinder Loaded
Entry Side Guides
Eccentric Arbor Adjustment
Exit Pinch Rolls
15 HP AC Drive Motor
Slitter Tooling: Knives and Spacers

-Tension Stand:
(2) Air Cylinders for Pad Pressure

-Recoiler:
16" Dia. Drum w/Pads for 20"
Manual Clamp and Expansion
Hydraulic Pushoff
60 HP DC Motor w/Blower

-Free Standing Overarm Separator:

-Exit (2) Arm Turnstile:
C-Hook Type Arms
Manual Rotation
Hydraulic Pushoff

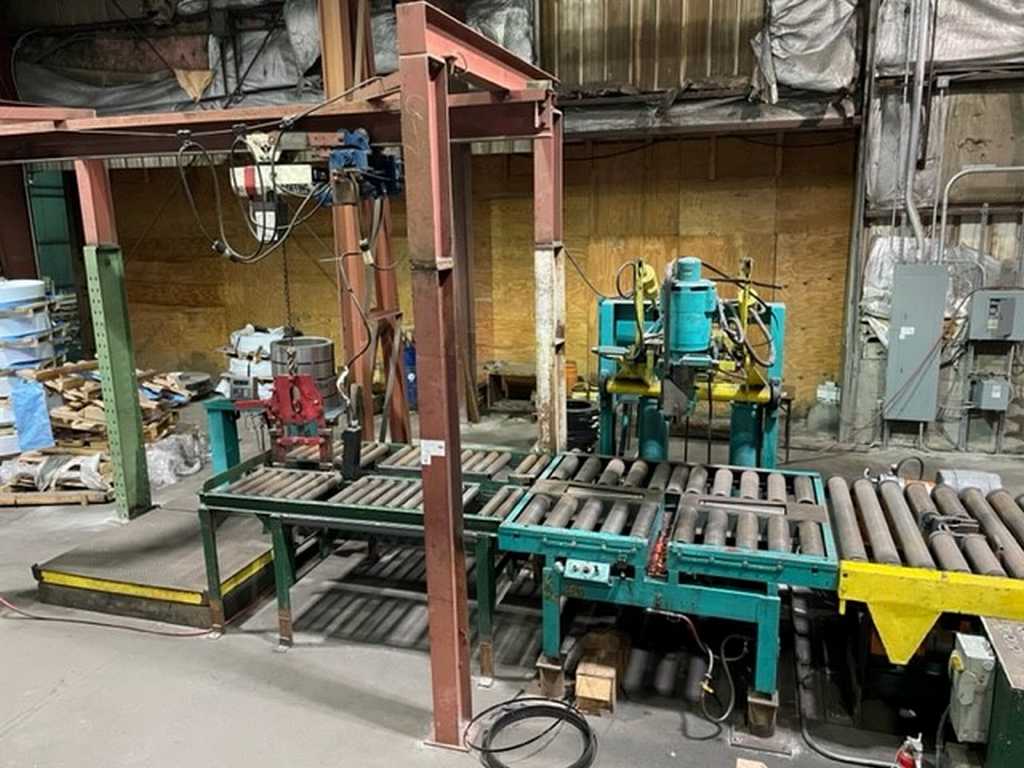

Coil Packaging Line:

Capacity: 6,000#

Consisting of:

-Downlayer:
In Line Discharge
Powered Conveyor Rolls

-Banding Table:
Signode Bander M20SV-5820
(2) Tapered Turning Rolls

-Exit Conveyor Section:
Idler Conveyor Rolls
Slots for I.D. Grab

-Jib Crane with I.D. Grab:

-Exit Scale:
10,000# Capacity w/Digital Readout

-Line is installed and running
