52" x 8.00" x 35,000# Stamco Dbl-Loop Slitting Line

Manufacturer

STAMCO

Category

Slitters and Slitting Lines

Type

SLITTING LINES

Stock

11715-C

Model

None listed

Dealer Location

Ohio

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

YEAR: 1995


Stamco Dbl-Loop Slitting Line

Width: 52"
Weight: 35,000 lbs.
ID Range: 16" - 20" - 24"
Gauges Processed: 0.010" - 0.100"
Line Direction: Right to Left
Line Speed: 500 and 1200 FPM

Consisting of the following:

-4 Arm Entry Turnstile:
C-Hook Type Arms
Power Rotation

-Entry Scissor Lift Coil Car:
Powered Roller Top
Self-Contained Hydraulic Power Unit
Hydraulic Lift & Travel

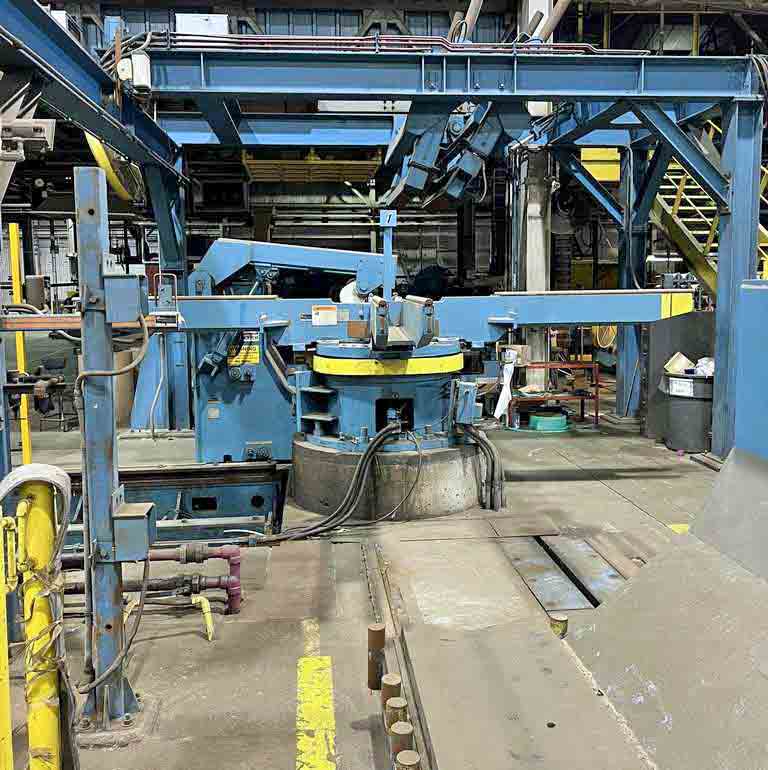

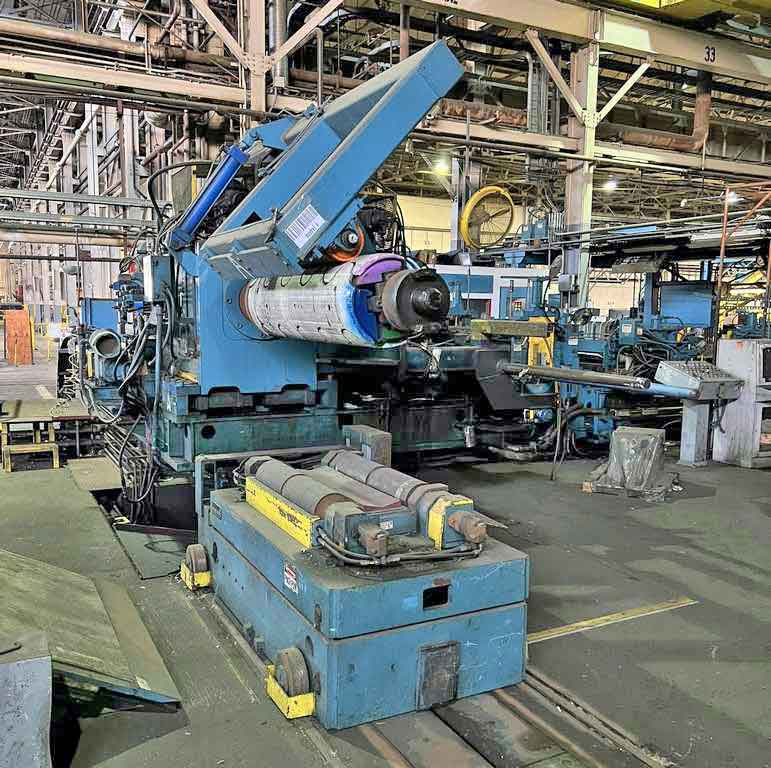

-Turret Type Uncoiler:
Hydraulic Expansion
60" Face Pumpkin Tooth Mandrels
Overarm Holddown Roll
DC Motor Drive & Brake
Slide Base

-Peeler Table:

-Entry Unit:
Entry Driven Pinch Roll, 75 HP DC Drive, 650/2200 RPM, 500 V
Traveling Design - delivers metal over Pit to Slitter Head

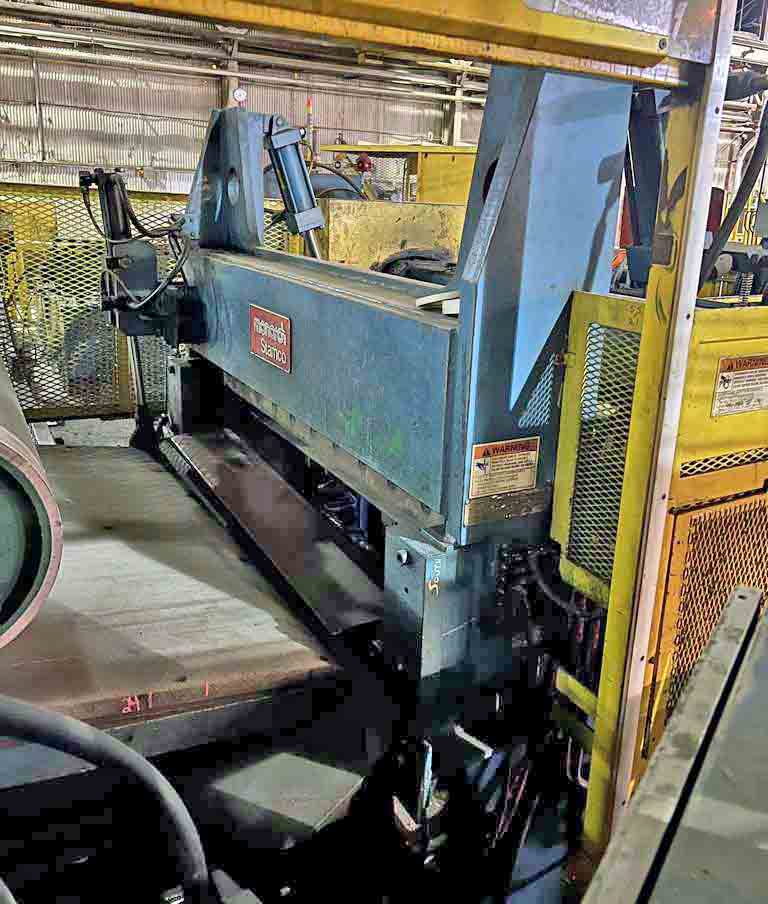

Crop Shear w/60" Blade

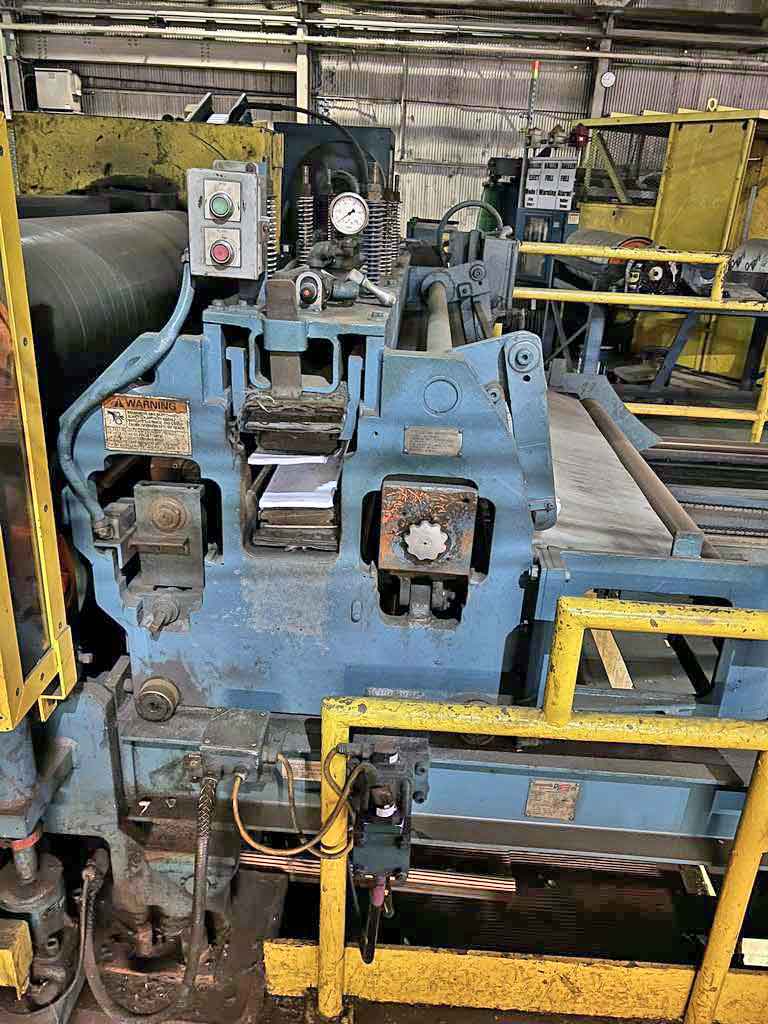

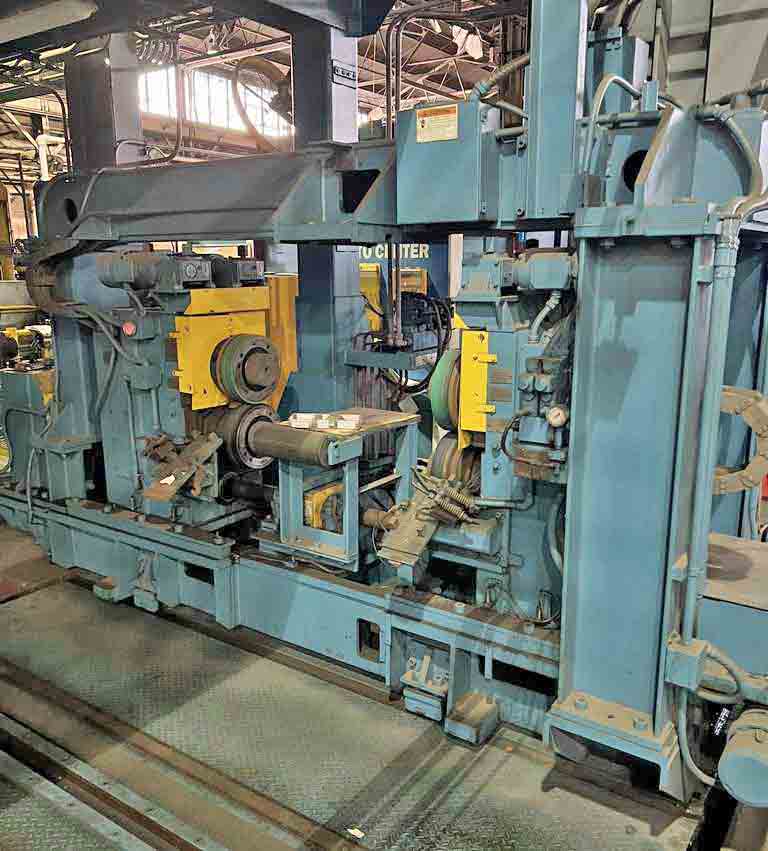

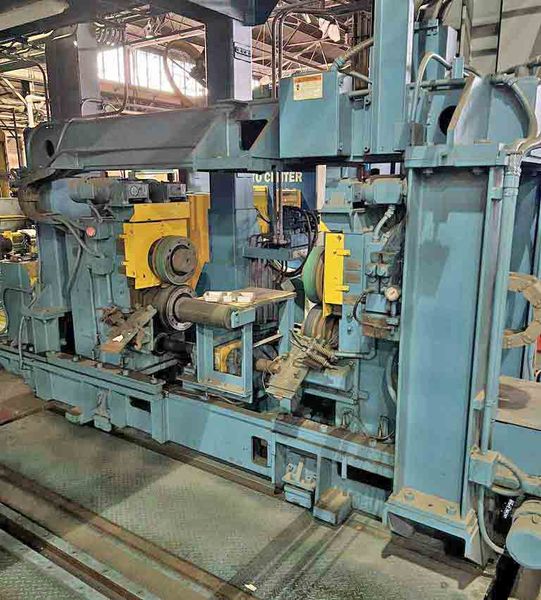

-Injector Slitter Head:
Driven Entry Pinch Roll Stand

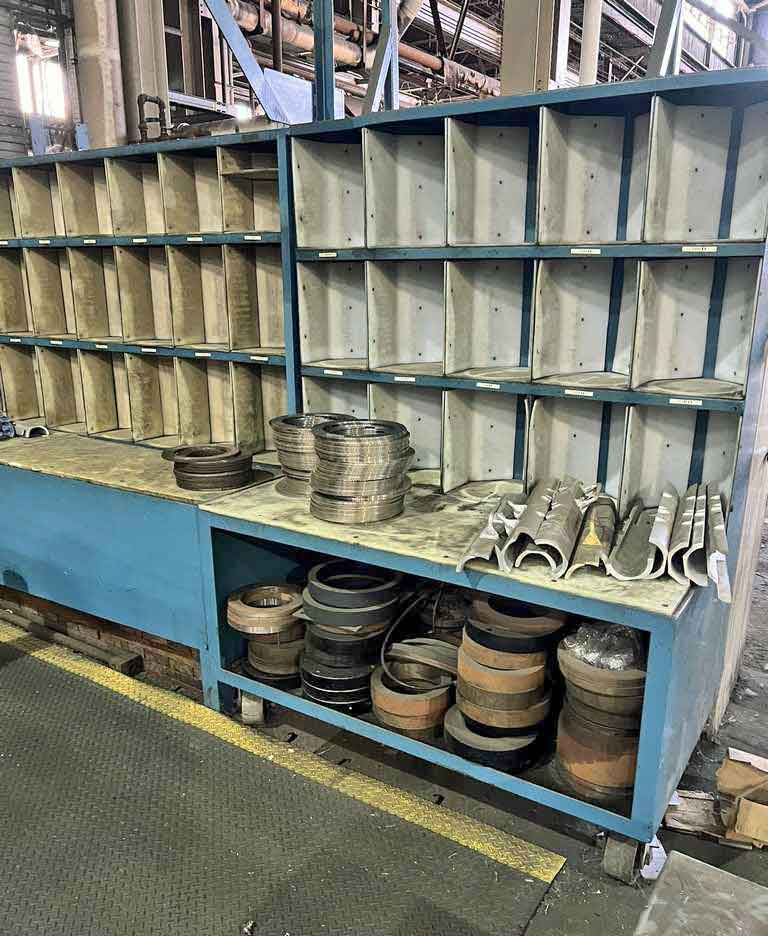

Tooling Change by 4 Arm Turret
(1) Slitter Head, 60" x 8" Dia. Arbors
(1) Double-Stub Edge Trimmer
Hydraulic Tooling Lock Up
200 HP DC Motor Drive, 650/2200 RPM, 500 V

-Scrap Baller:

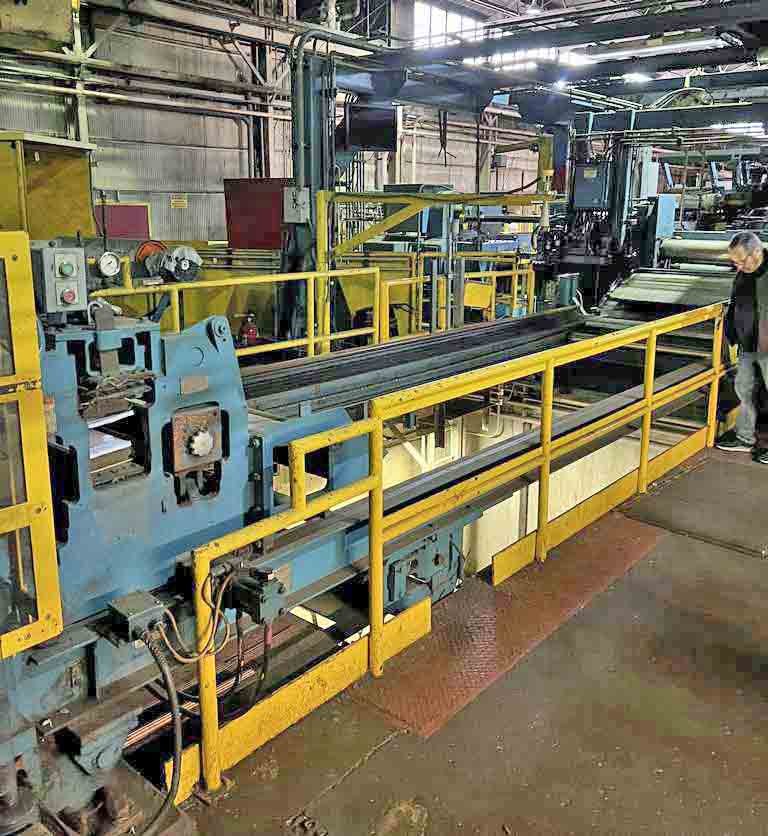

-Pit Carry Over Unit:
Cascade Rolls Entry & Exit

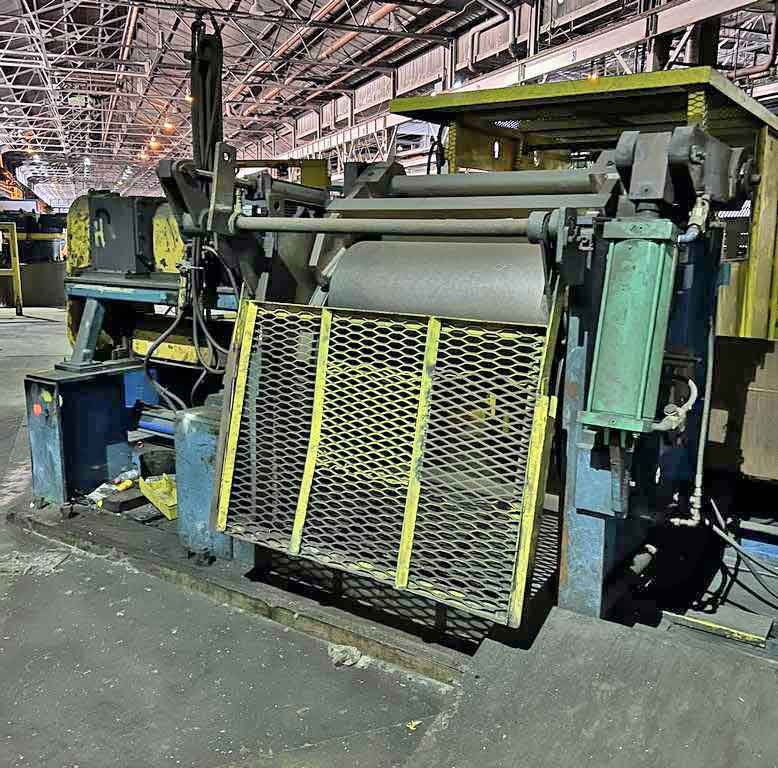

-Combination Pad & Roll Type Tension Stand:
Pneumatic Air Bag Type Pad Tension
DC Motor Drive / Brake for Rolls
16" Diameter Urethane Covered Rolls
Hydraulic Crop Shear

-Free Standing Overarm Separator:
Entry Deflector Roll
Threading Table

-Recoiler:
16" Dia. Drum
20" & 24" Bolt-On Pads
Approx. 11.5" Dia. Main Shaft
Hydraulic Gripper & Expansion
Hydraulic Pushoff
200 HP DC Motor Drive, 650/2200 RPM, 500 V
Horsburgh & Scott 2 Speed Reducer
Outboard Bearing Support
Passline: 62" from Floor to center of Drum

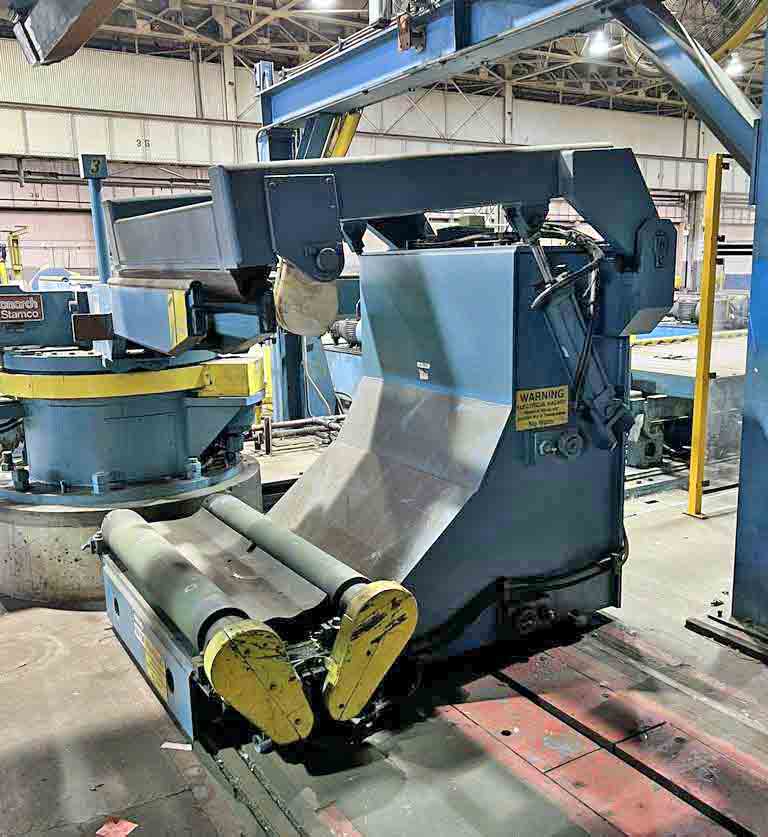

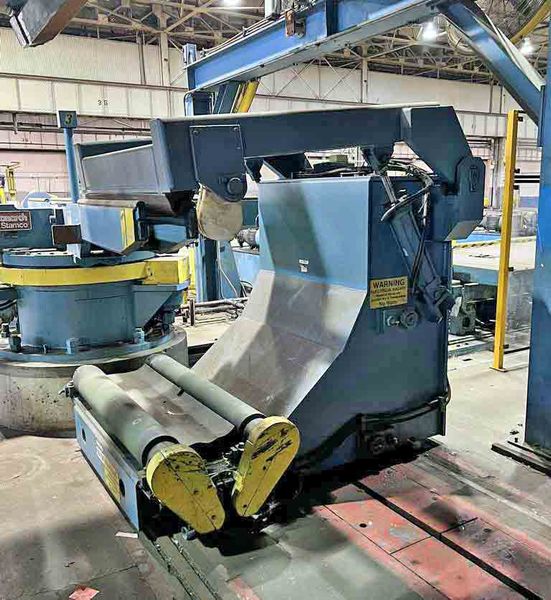

-Exit Coil Car:
L Type
Powered Rollers on Bed
Self-Contained Hydraulic Power Unit
Hydraulic Lift & Travel
Overarm Holddown Arm

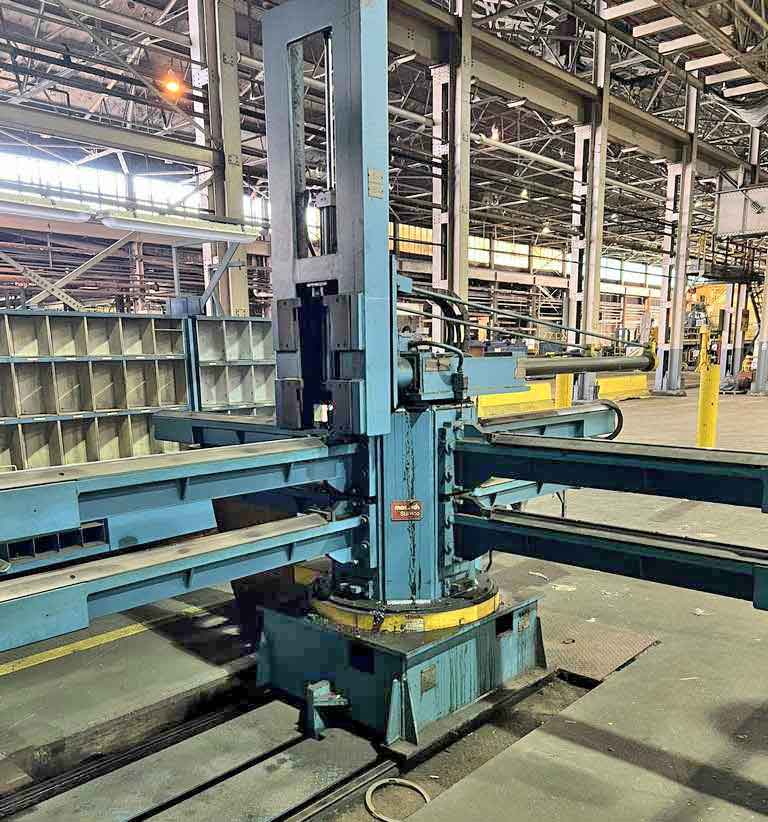

-4 Arm Exit Turnstile:
C-Hook Type Arms
Power Rotation

-3 Pump Hydraulic Power Unit:

-Westinghouse/Avtron Advanced Digital Drives for DC Motors

-Line is removed and in storage.
