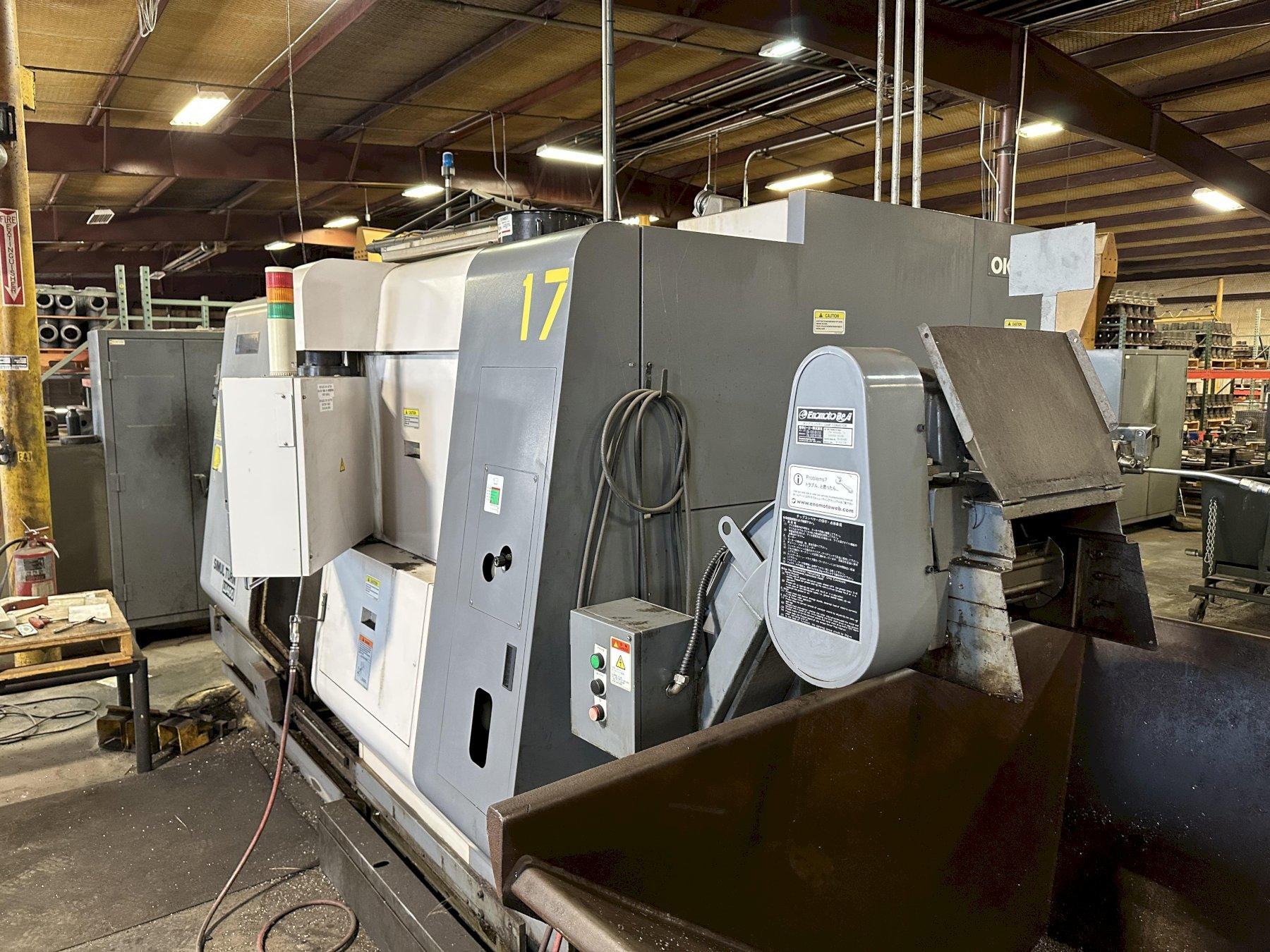

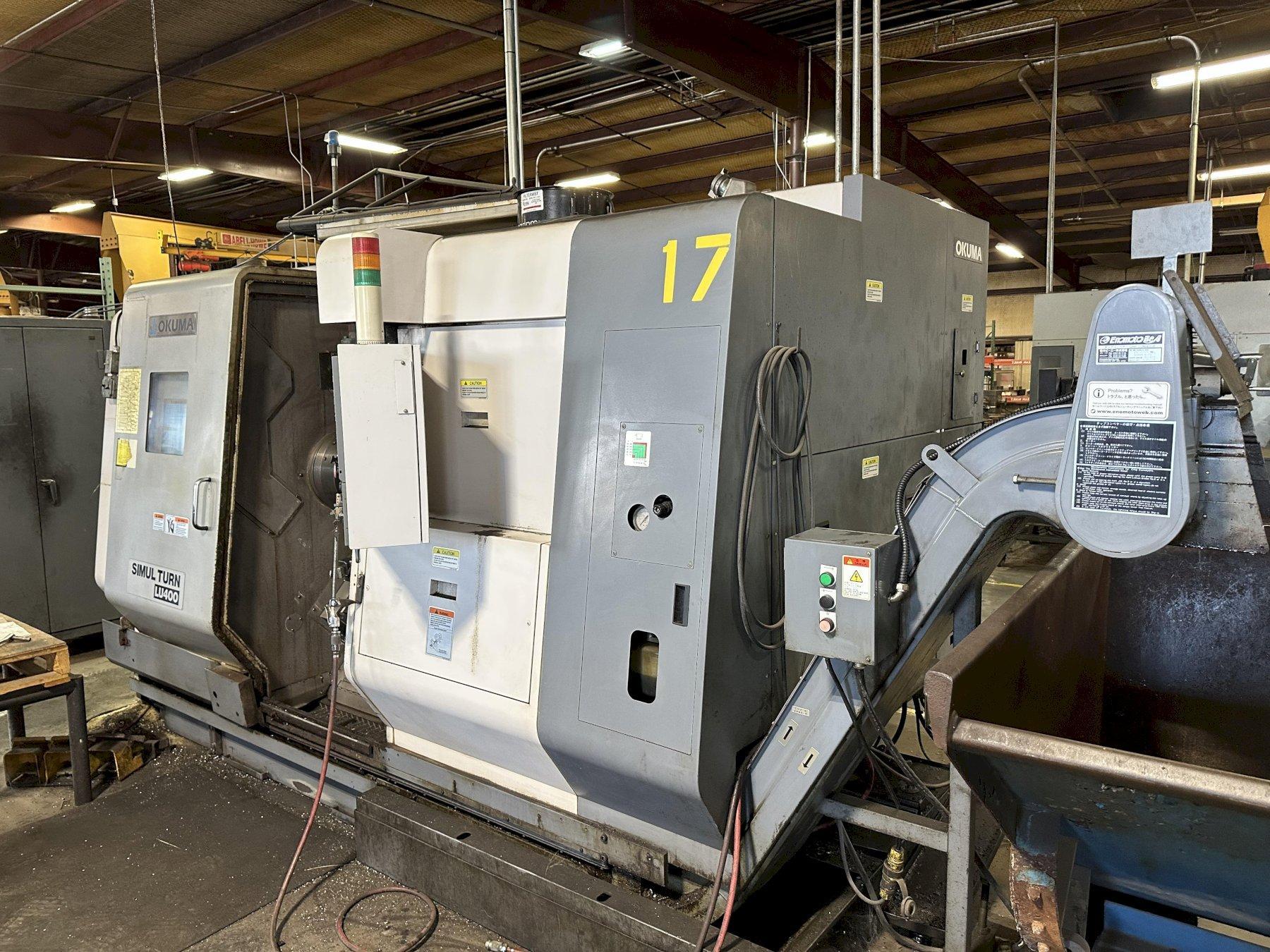

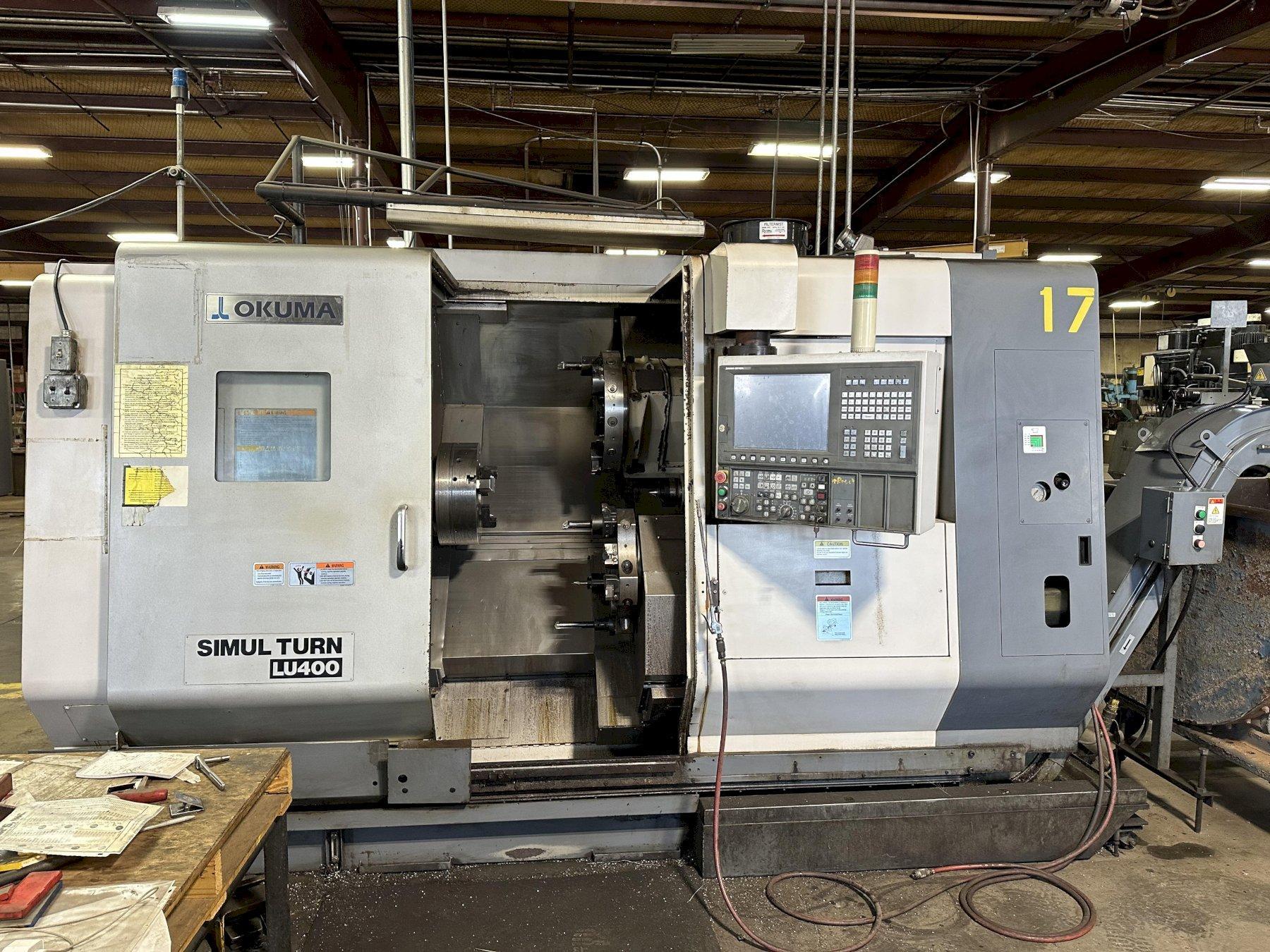

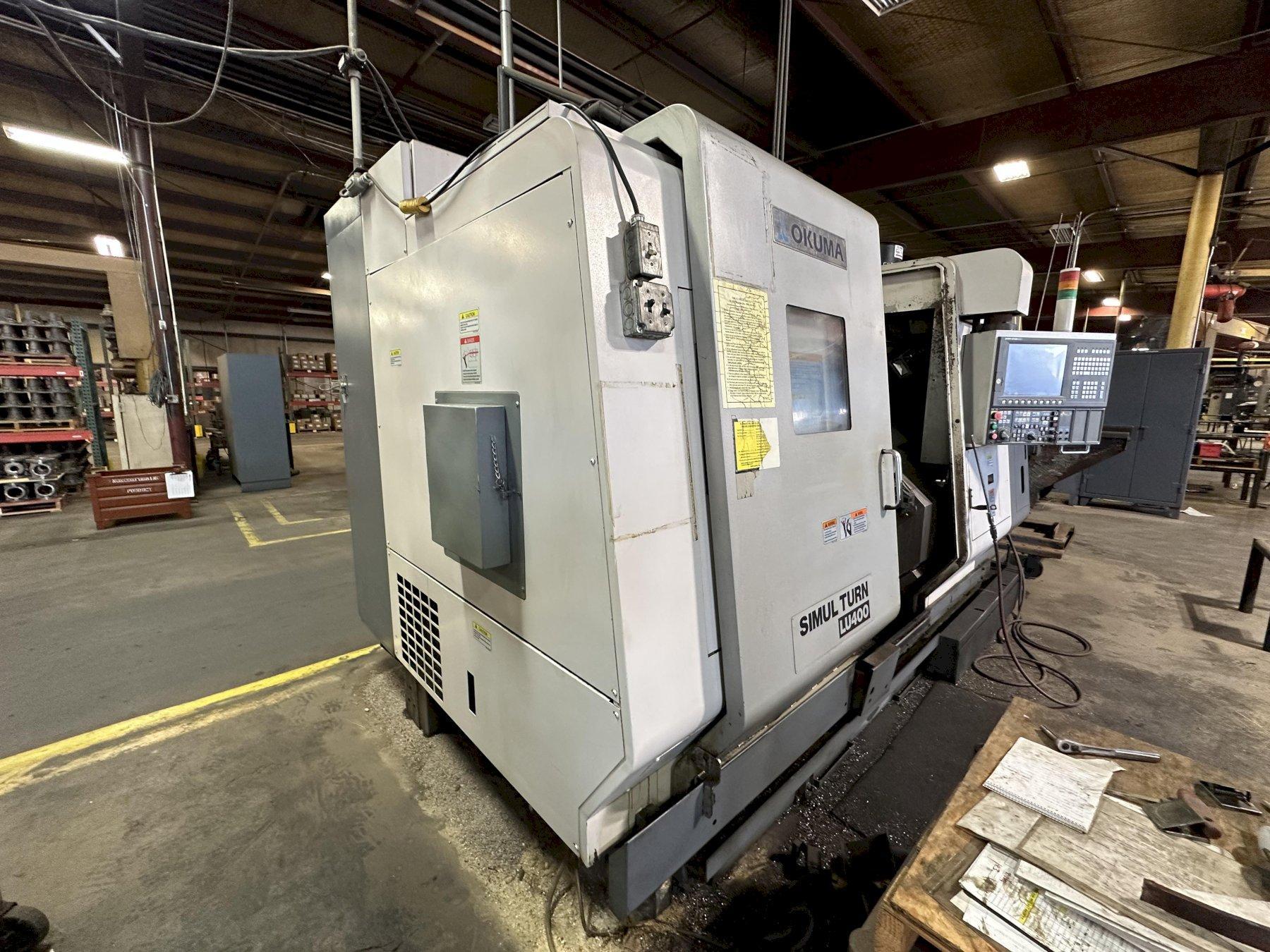

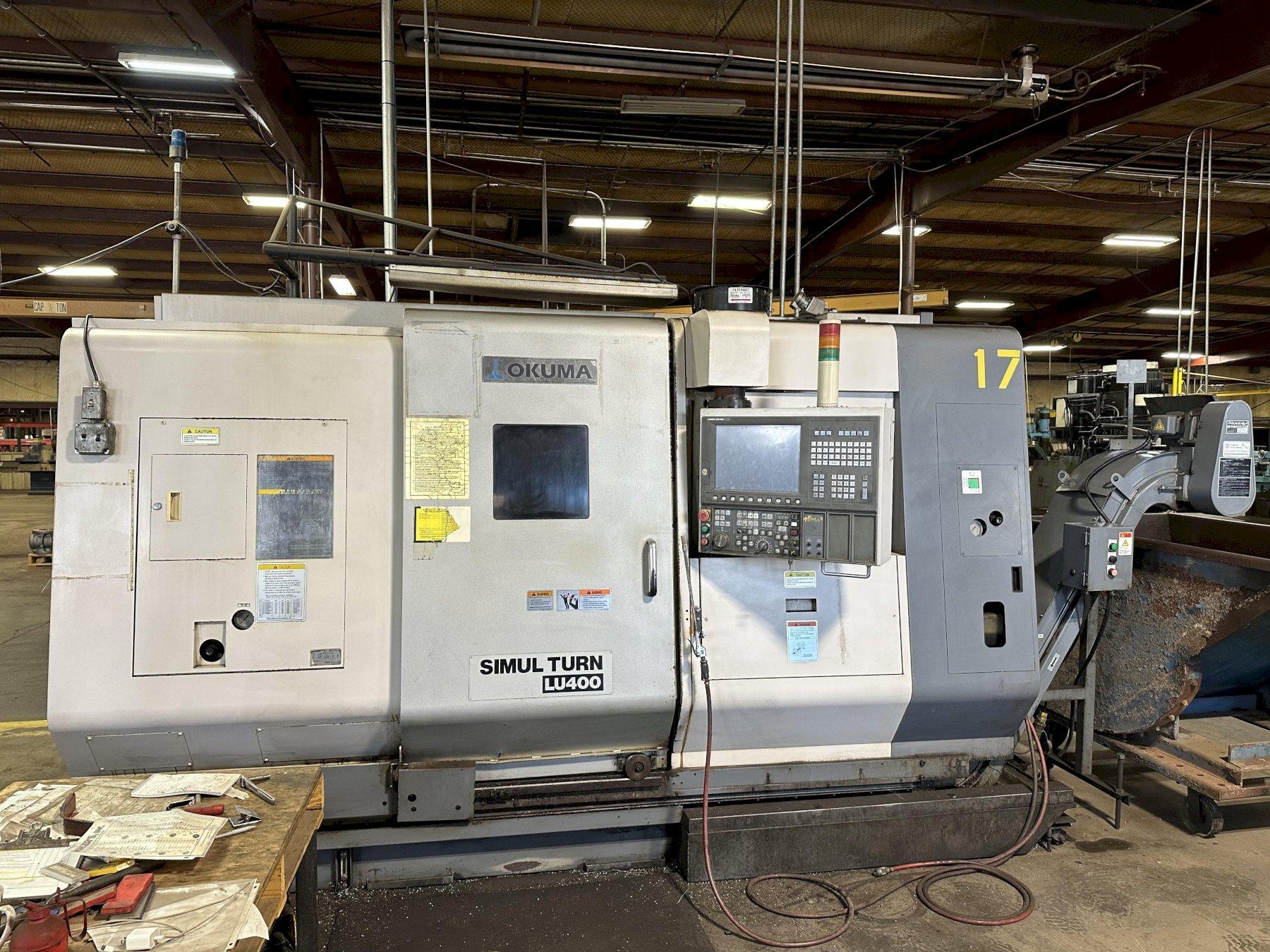

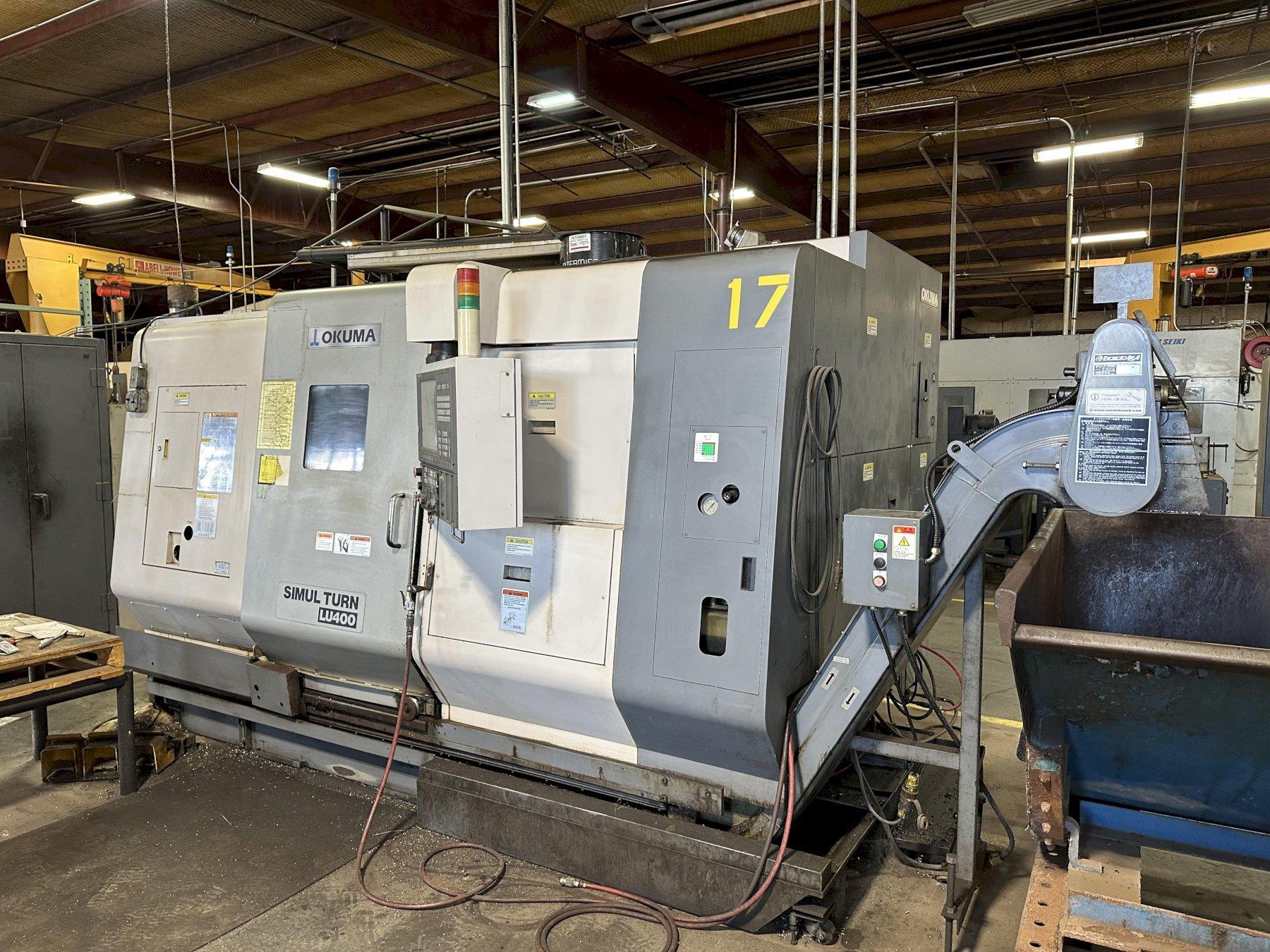

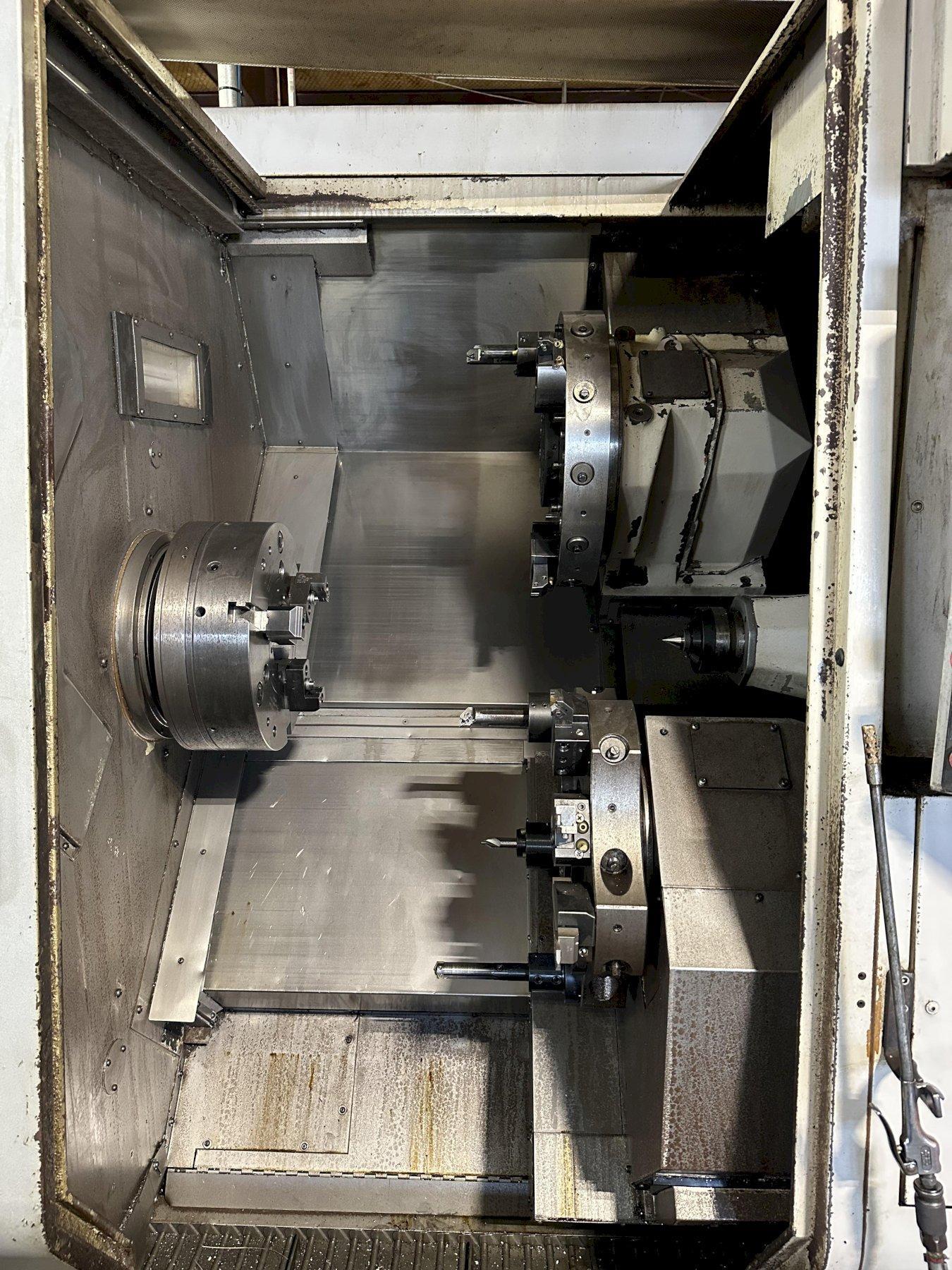

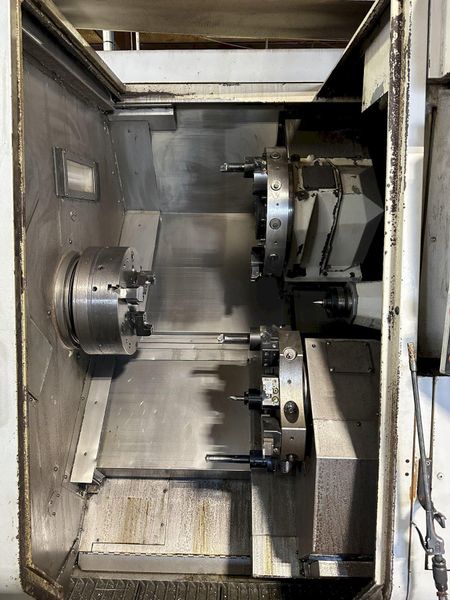

2006 OKUMA LU400 2SC650 4 Axis CNC Lathe

Manufacturer

OKUMA

Stock

20736

Model

LU400

Dealer Location

Texas

Spec Sheet

Type of CNC Control - OSP 200L
# Axis - 4

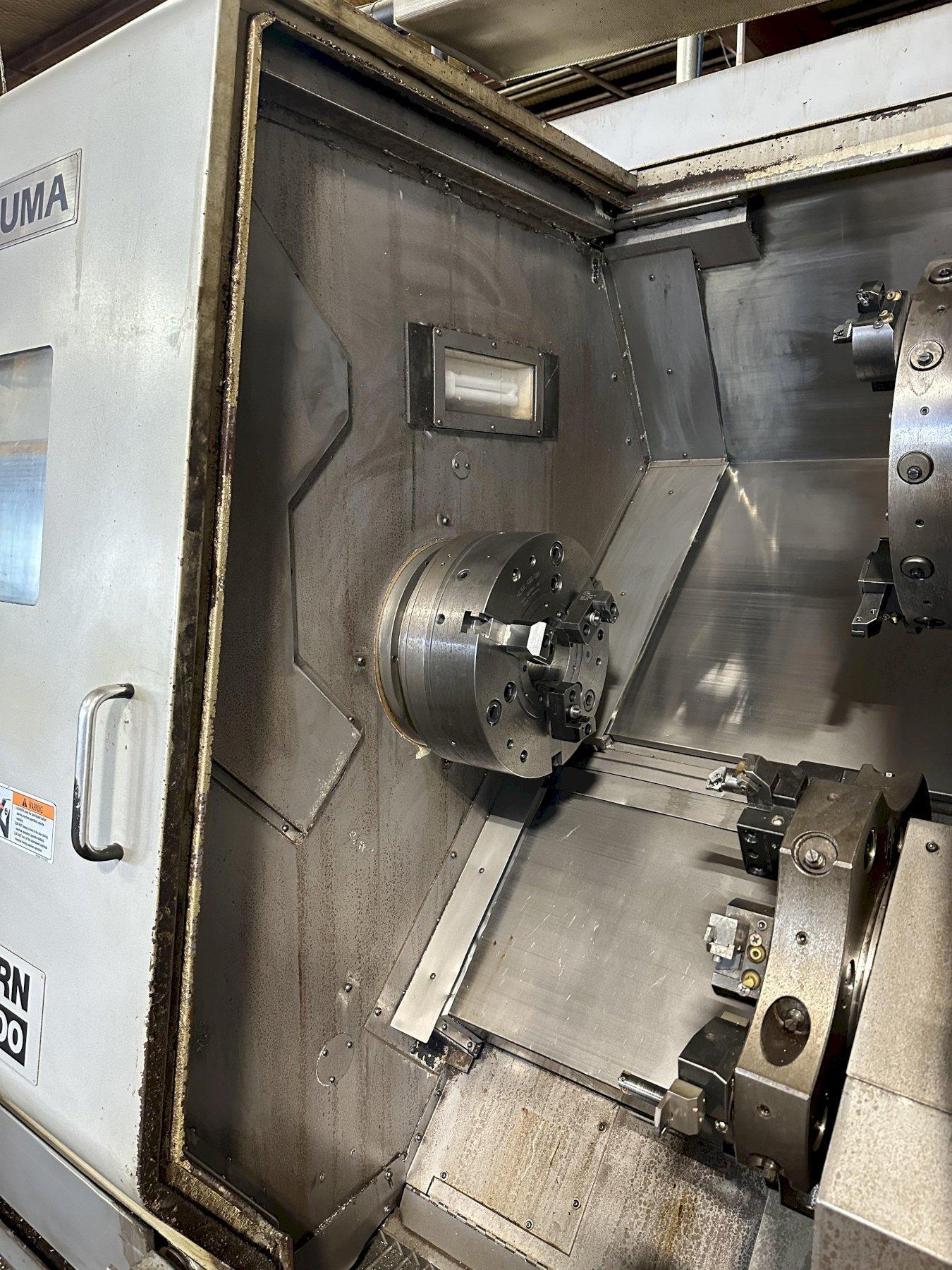

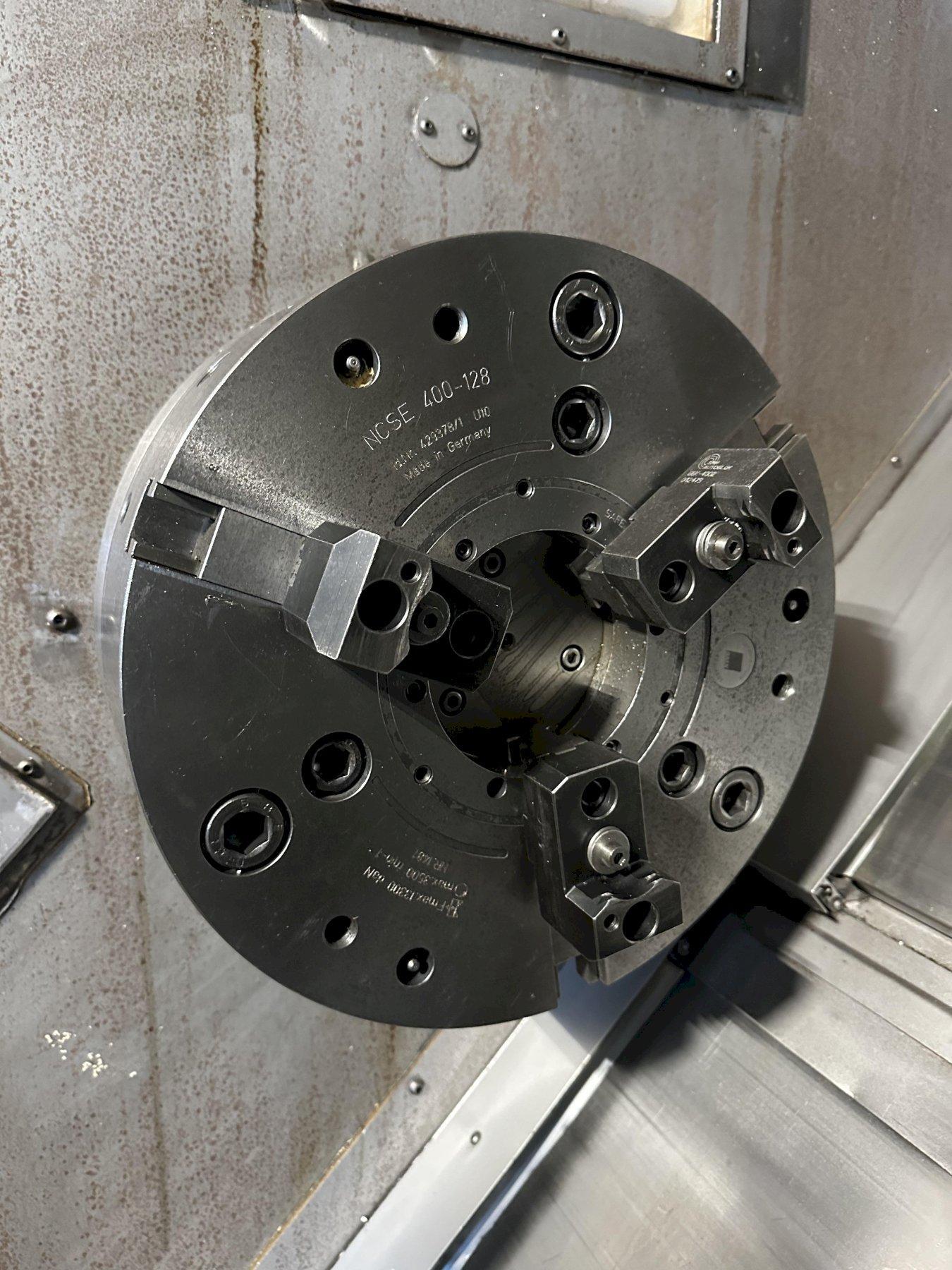

Chuck Size - 16 inches
Swing - 25 inches
Turning Diameter - 18 inches
Center Distance - 25 inches
Bar Capacity - 4.3 inches
Spindle Bore - 5.0 inches
Spindle Speed (RPM) - 3800
Main Motor - 35 HP


  • Capacity:
  • Max Turning Diameter: 16.54″
  • Max Turning Length: 25.59″
  • Max Bar Capacity: 3.15/4.33″?
  • Max Swing over bed: 25.59″
  • Max Swing over carriage: 16.54″
  • Distance between Centers:26.59″
  • Max Weight between Centers: 1320 lbs
  • Travels:
  • X Axis Travel Upper: 11.73″
  • X Axis Travel Lower: 7.67″
  • Z Axis Travel Upper: 26.57″
  • Z Axis Travel Lower: 26.38″
  • Rapid Traverse X Axis: 984 IPM
  • Rapid Traverse Z Axis: 984 IPM
  • Spindle:
  • Spindle Bore: 3.5″
  • Spindle Nose: A2-8
  • Spindle Speed: 45-3800 RPM
  • Main Spindle Power: 35 HP

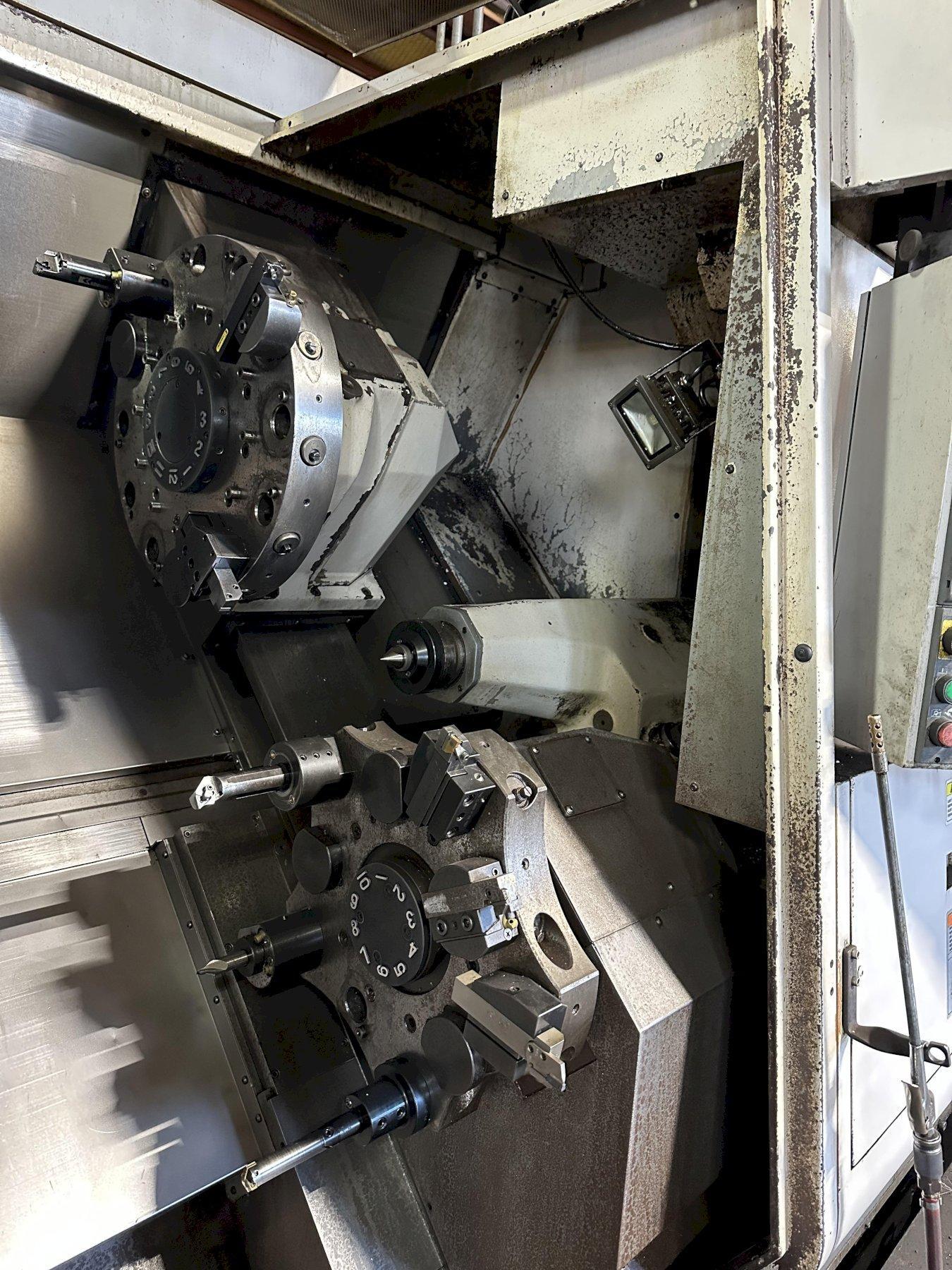

  • Turret:
  • Upper Turret Capacity: 12 Stations
  • Lower Turret Capacity: 10 Stations
  • Turret Index Time: 0.2 Second
  • Tailstock:
  • Taper: MT 5
  • Tailstock Quill Dia: 3.94
  • Tailstock Quill Travel: 5.91
  • General:
  • Power: 40 kva, 220/480v  3-Phase
  • Overall Dimensions: 137 X 85 X 86″ High
  • Overall Dimensions: 169 X 85 X 86″ with Chip Conveyor
  • Weight: 19,800 lbs
