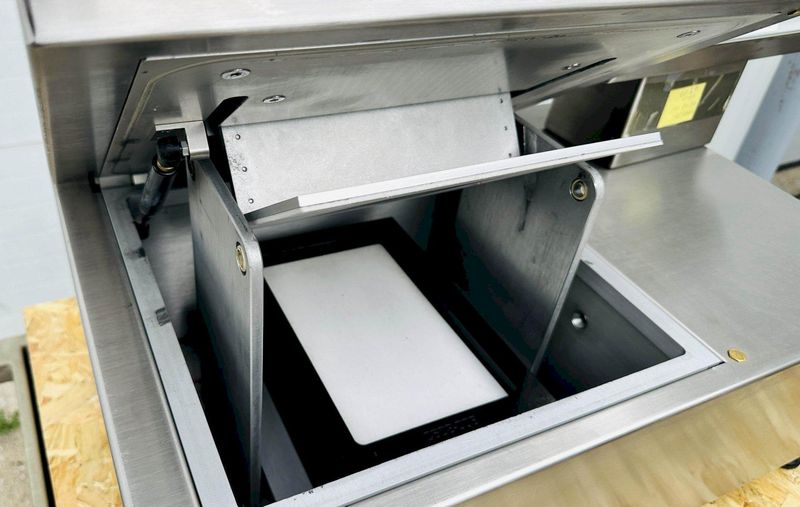

Sepha MediScan | Non-Destructive Package Leak Tester

Manufacturer

SEPHA

Category

Miscellaneous Machines

Type

LEAK DETECTION EQUIPMENT

Stock

90-SMDS

Model

MediScan T603-001-002

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet

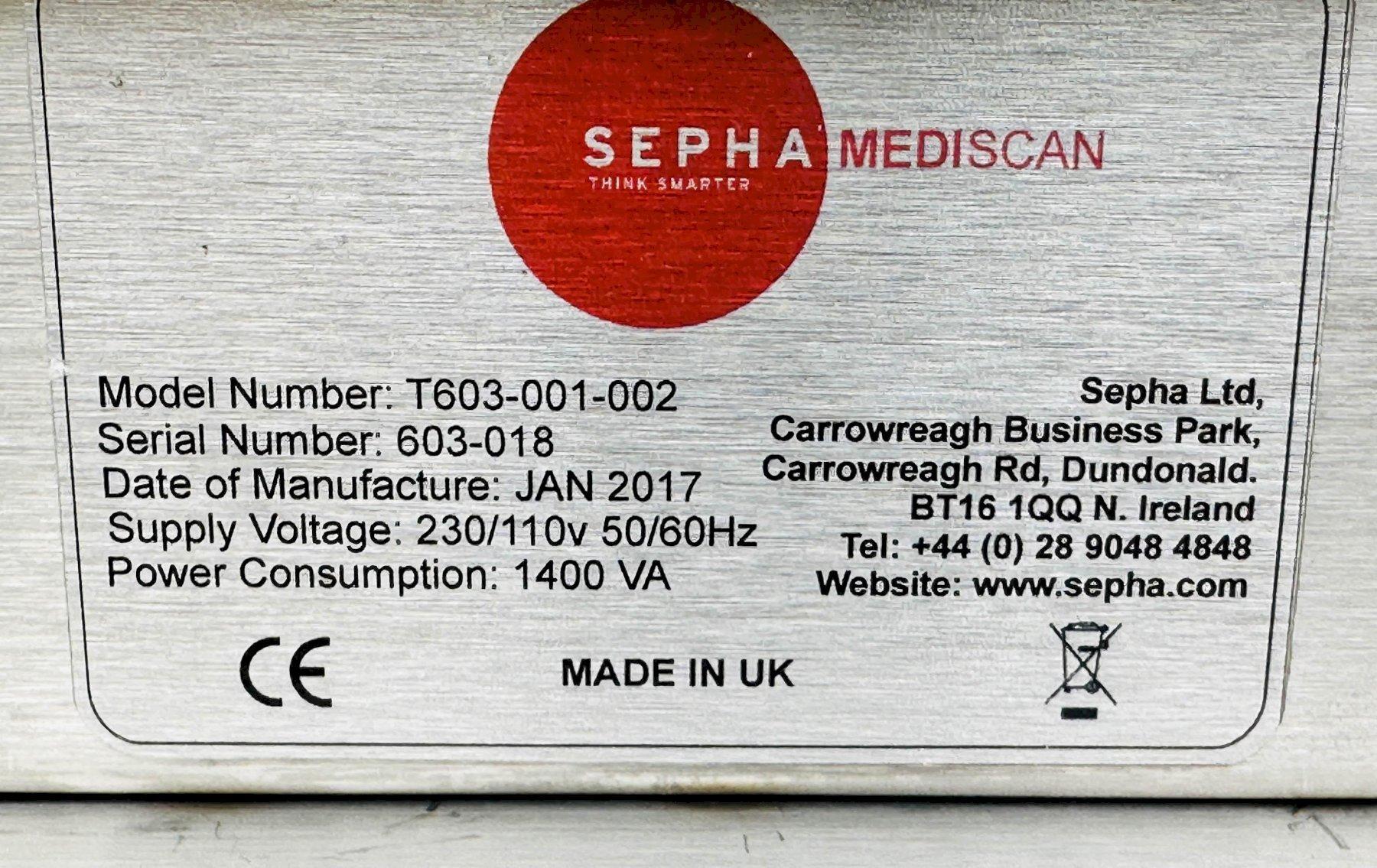

Manufacturer - Sepha
Model - MediScan T603-001-002
Serial No. - 603-018

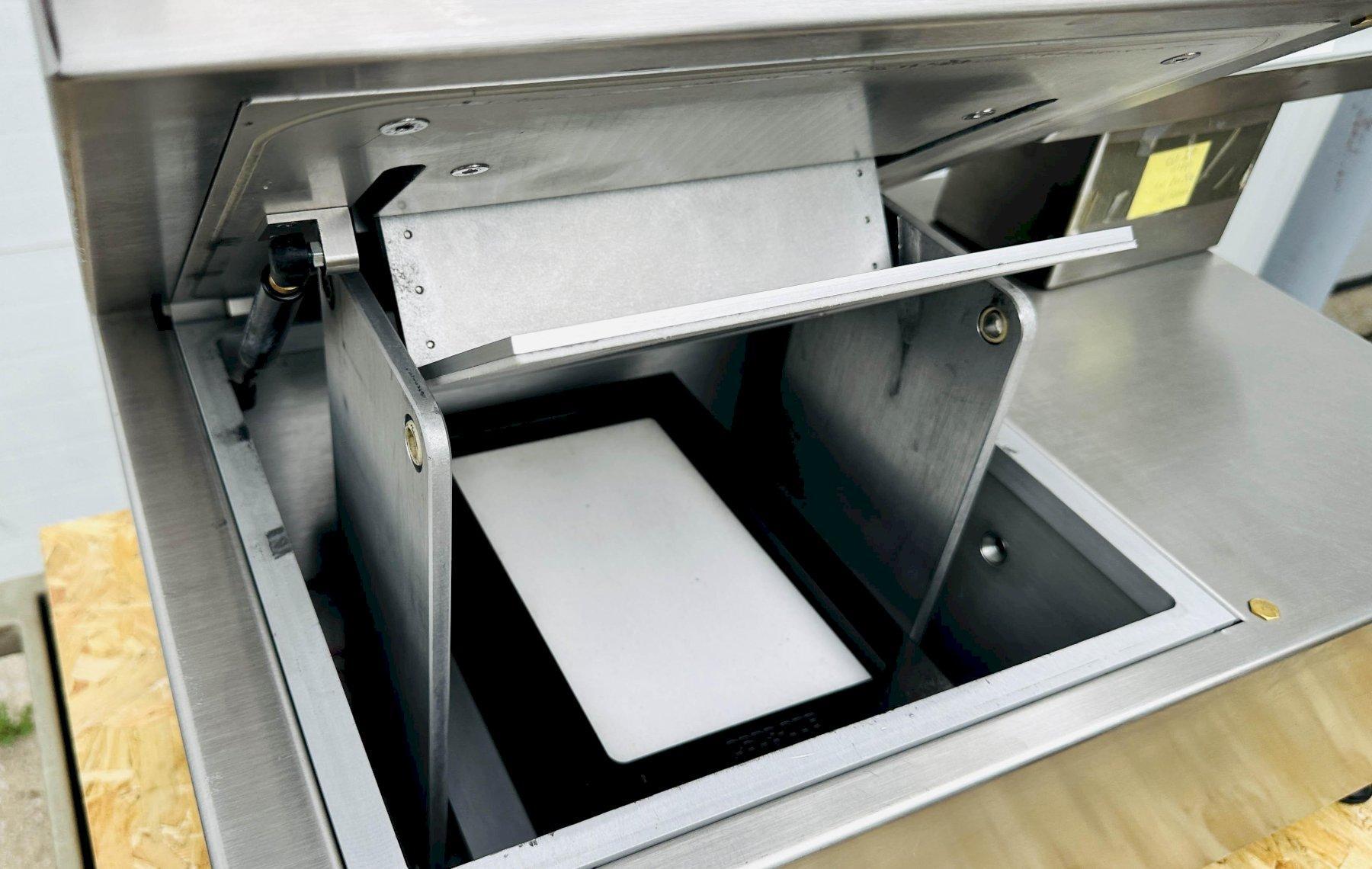

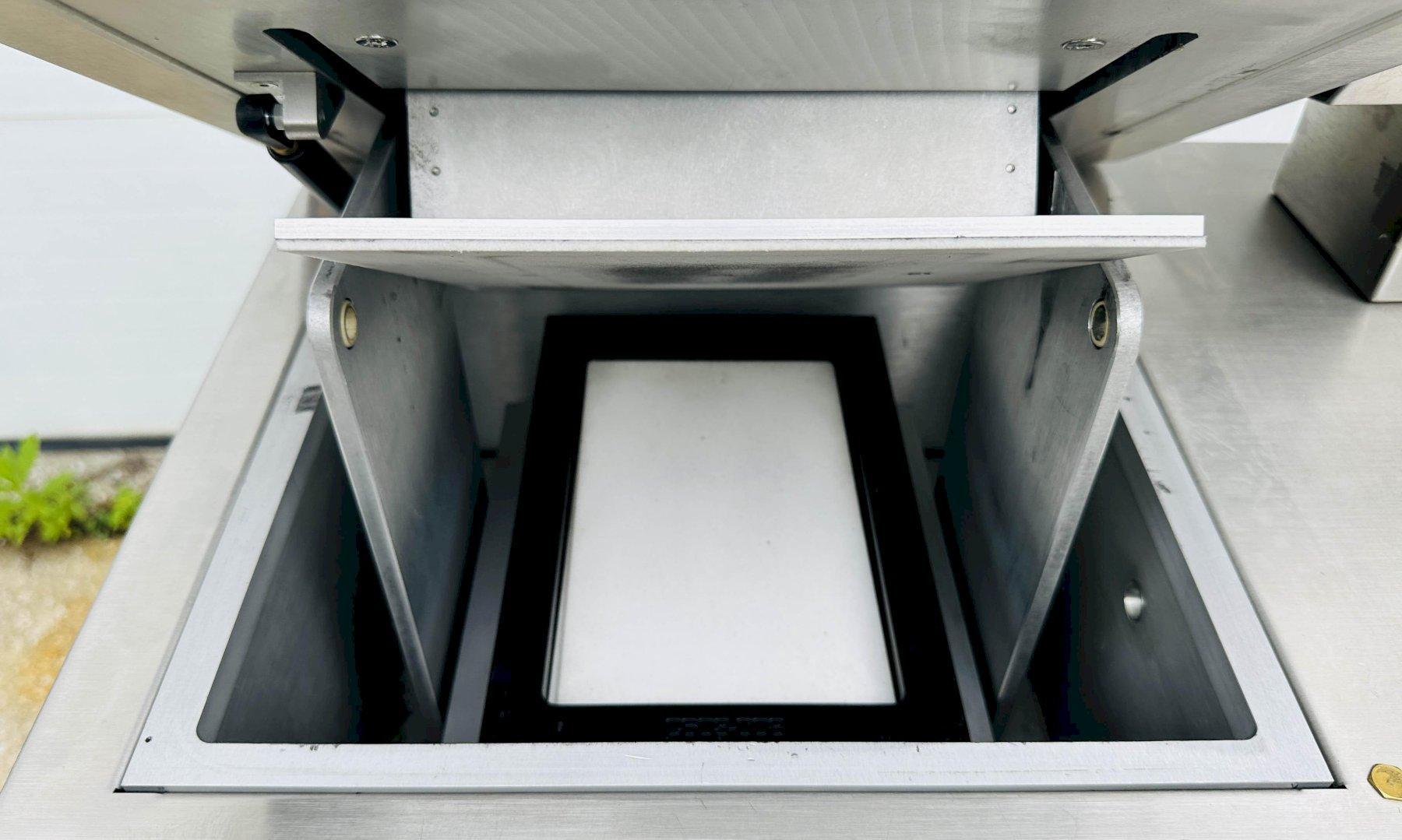

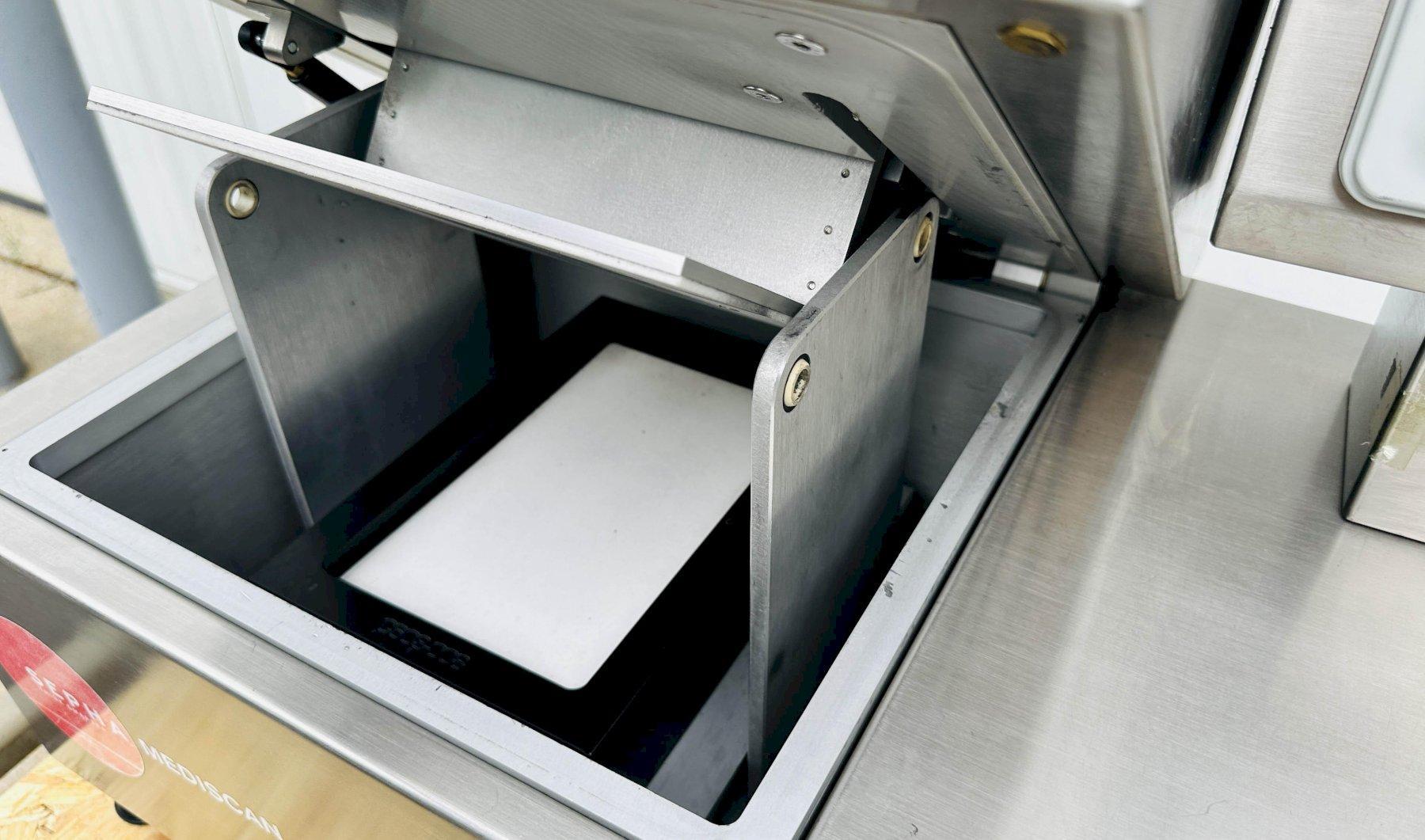

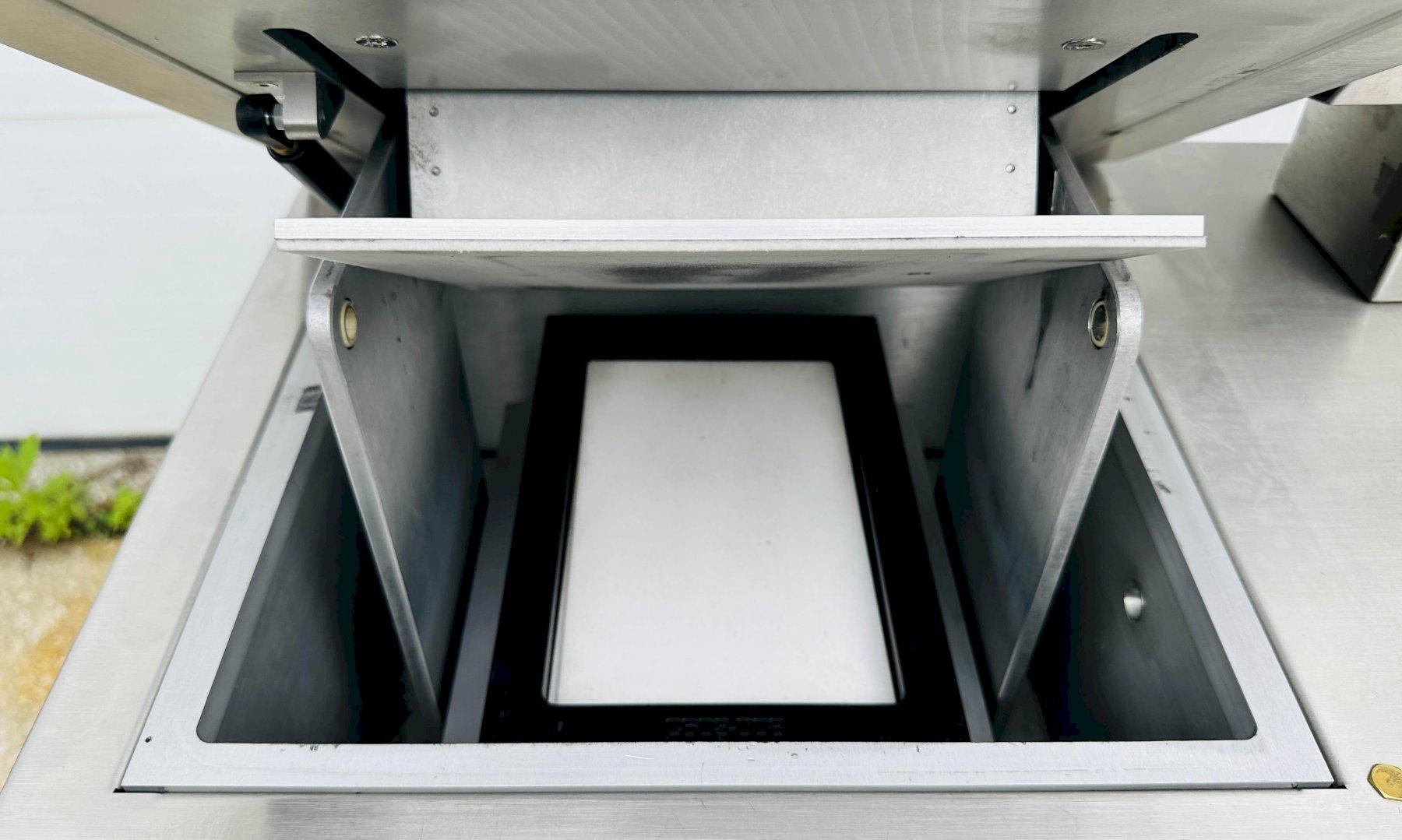

Test Area - 250mm (L) X 200mm (W) X 100mm (D) | 9.9”L x 7.8”W x 3.9”D (APPROX)
Test Cycle - From 20 seconds per test cycle
Tooling Change Over - No Tooling Required
Operation Type - Semi-Automatic

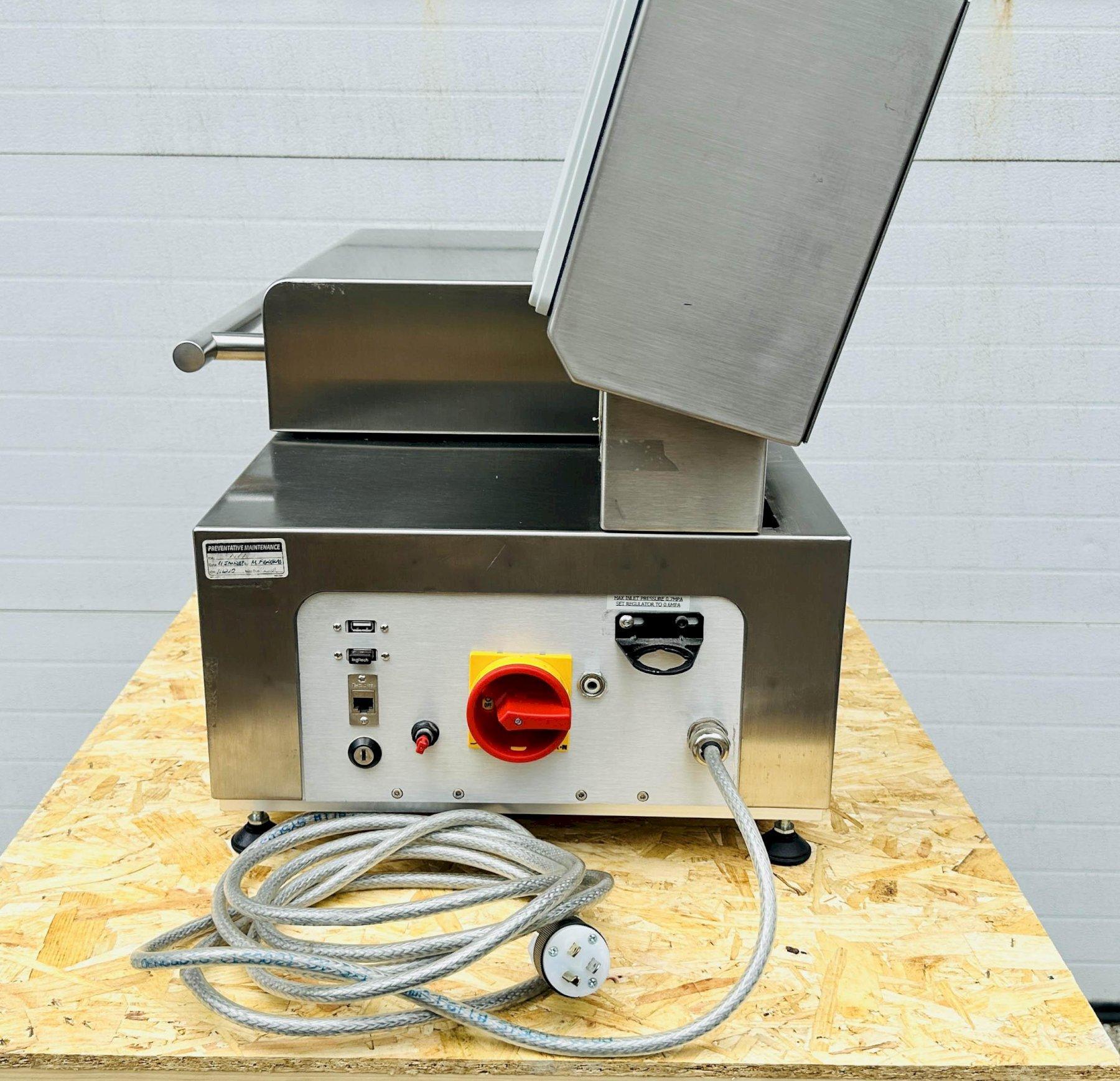

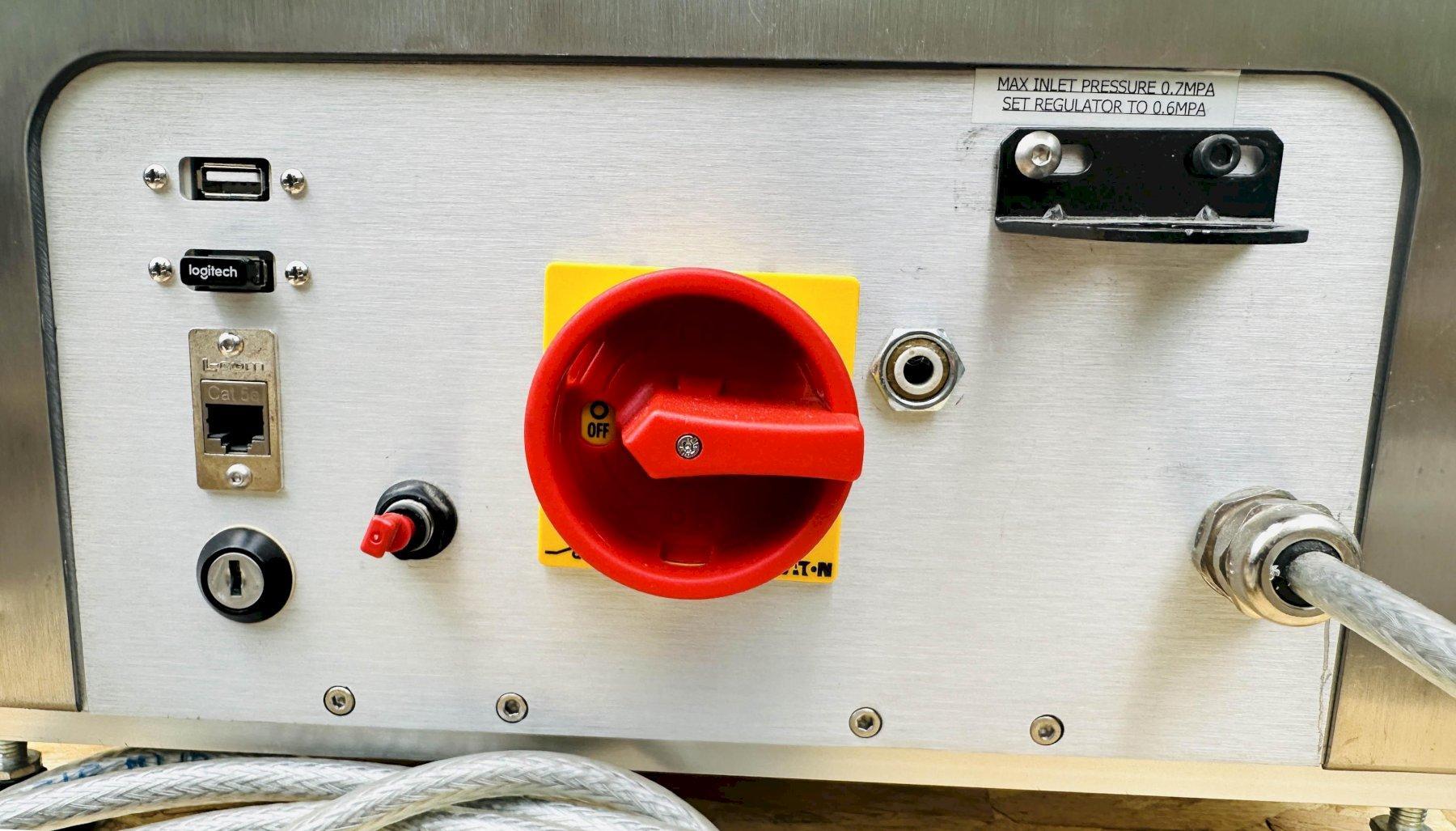

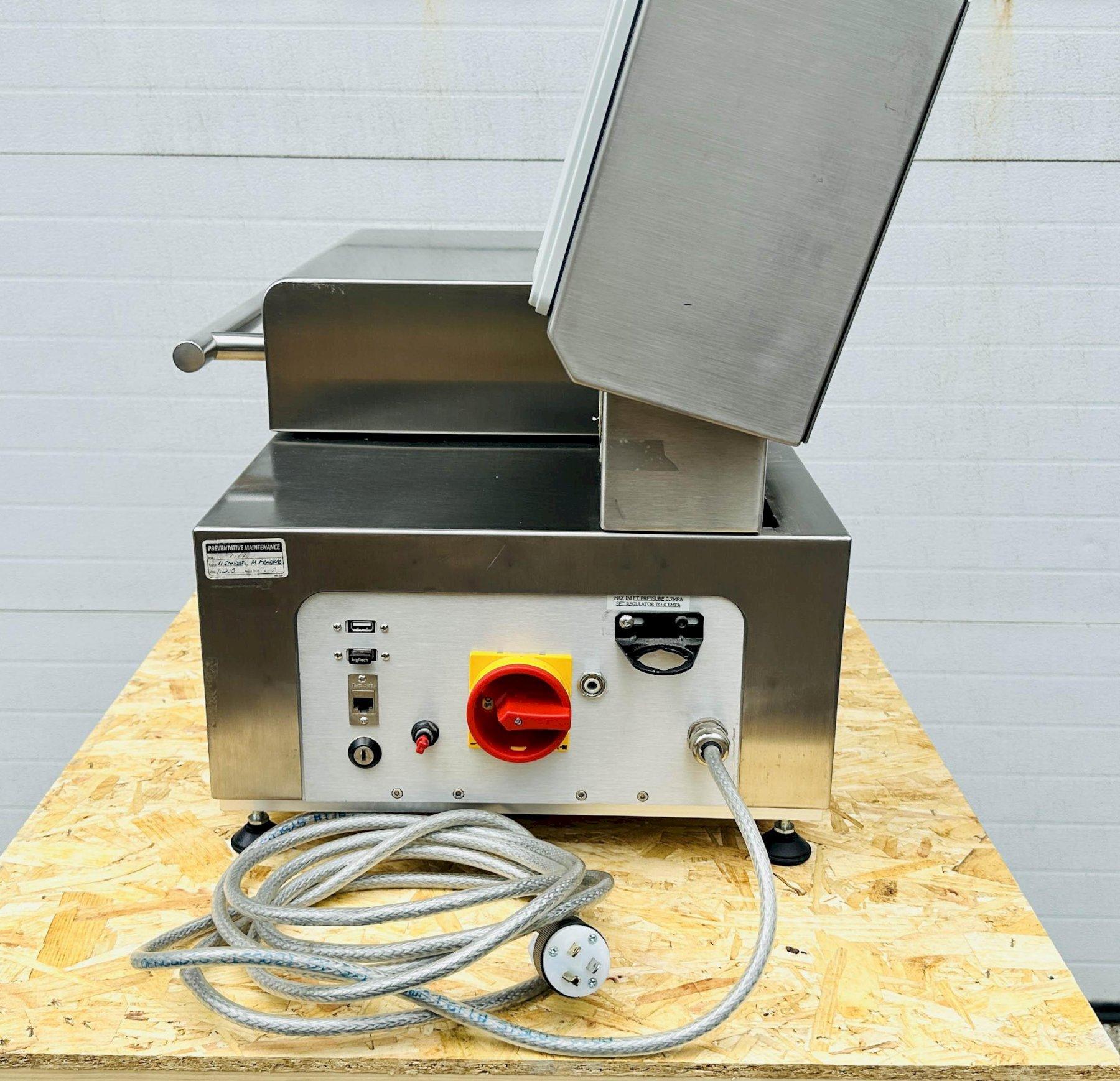

Configuration - 2x USB | 1x Ethernet Port

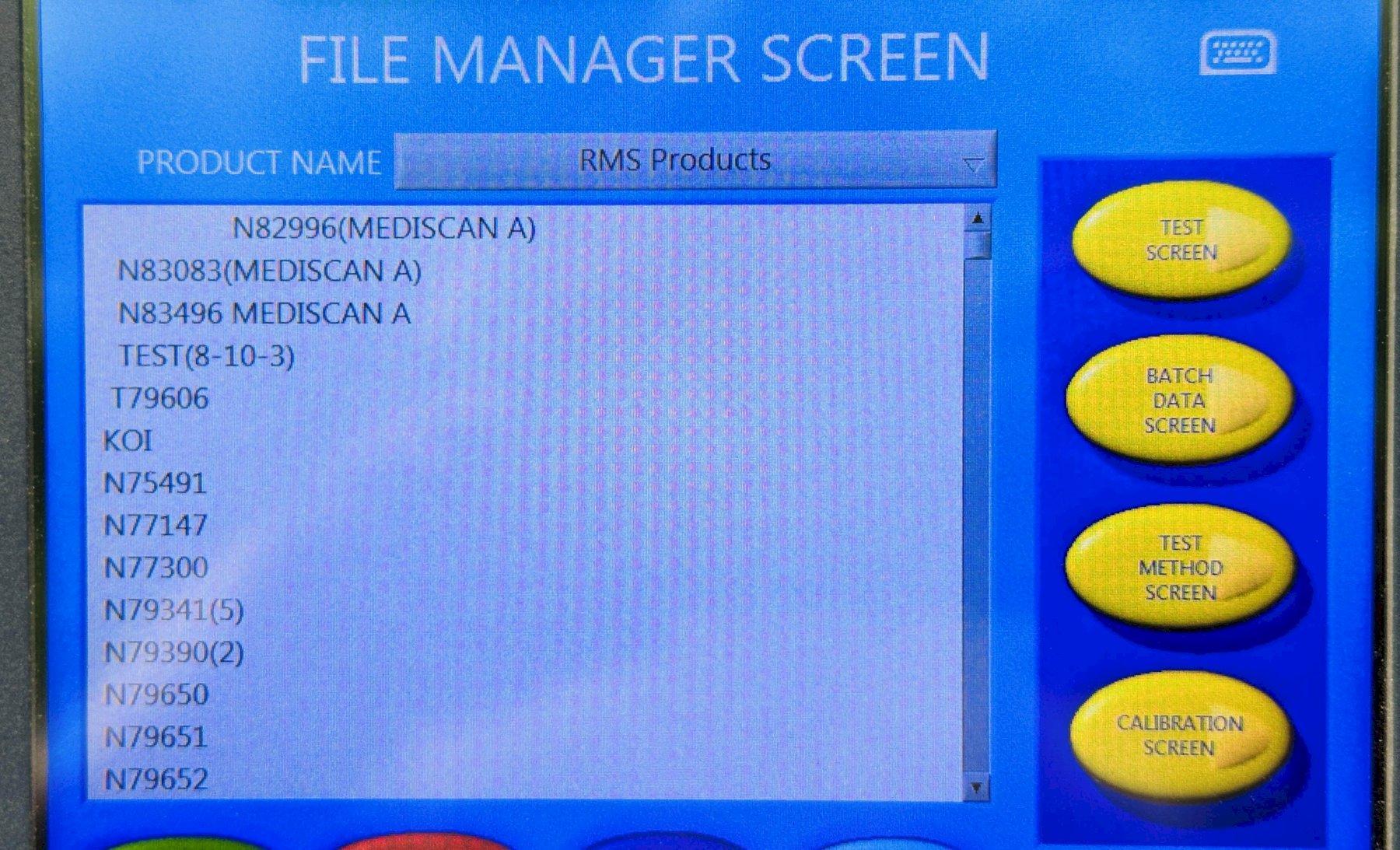

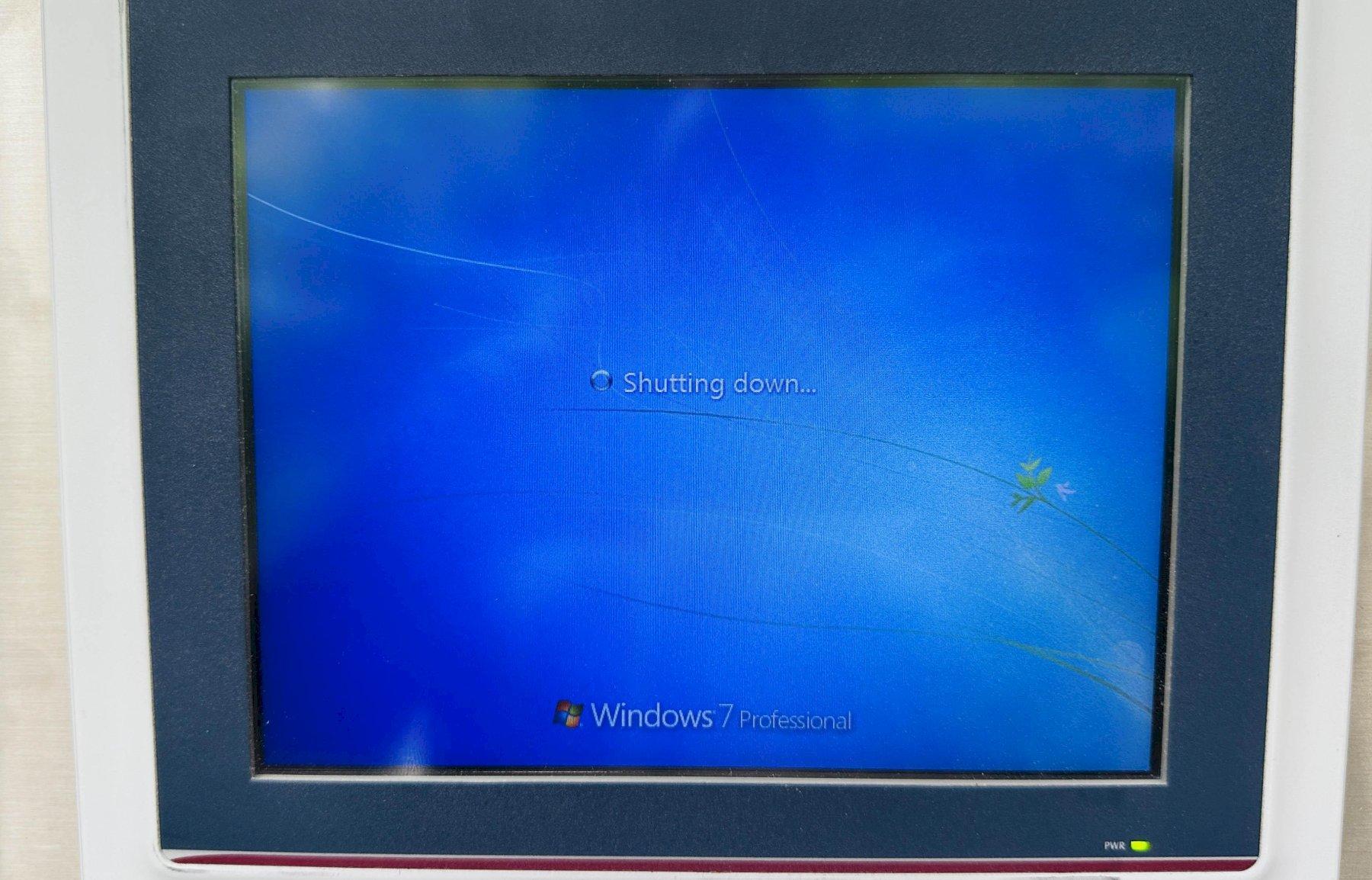

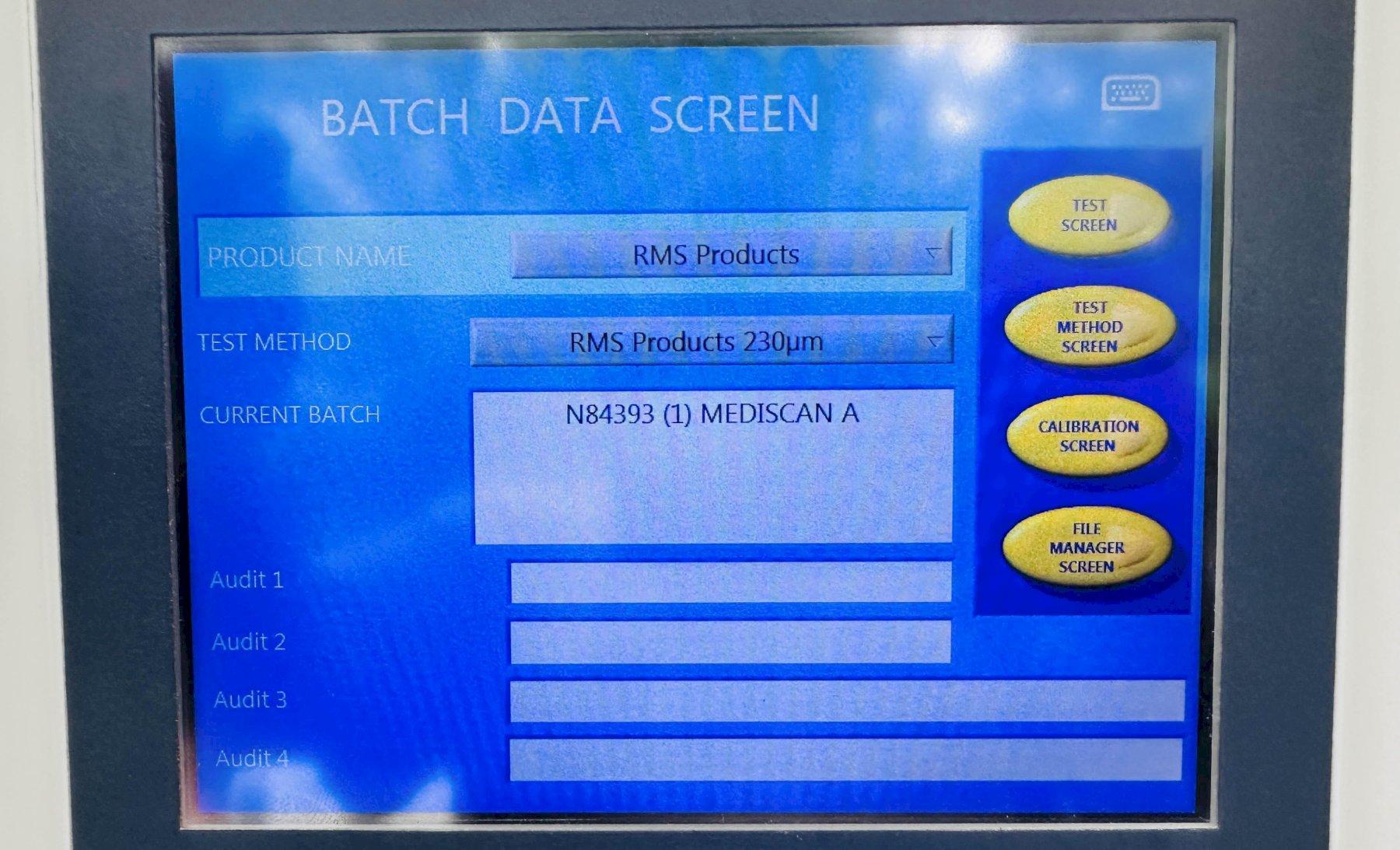

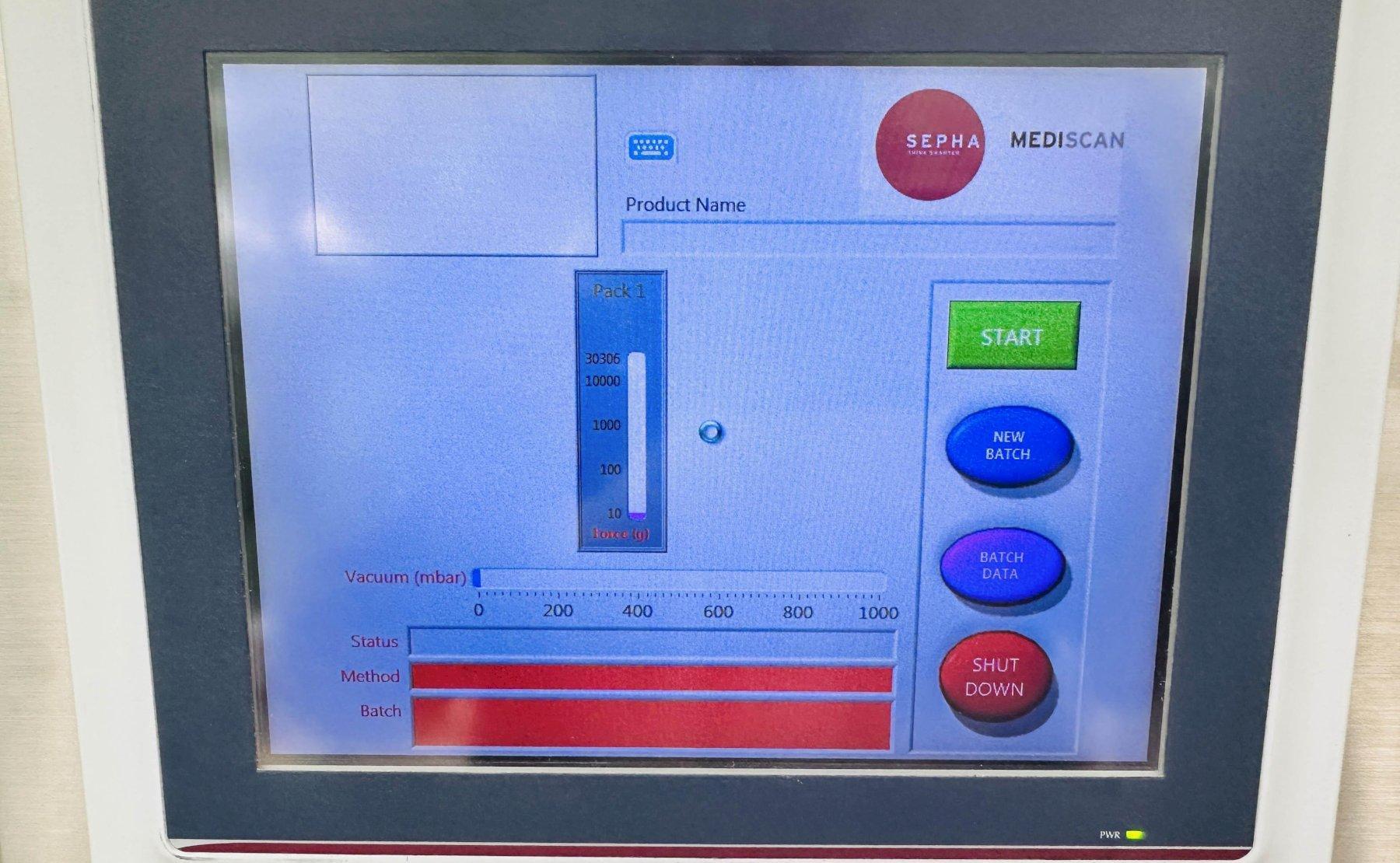

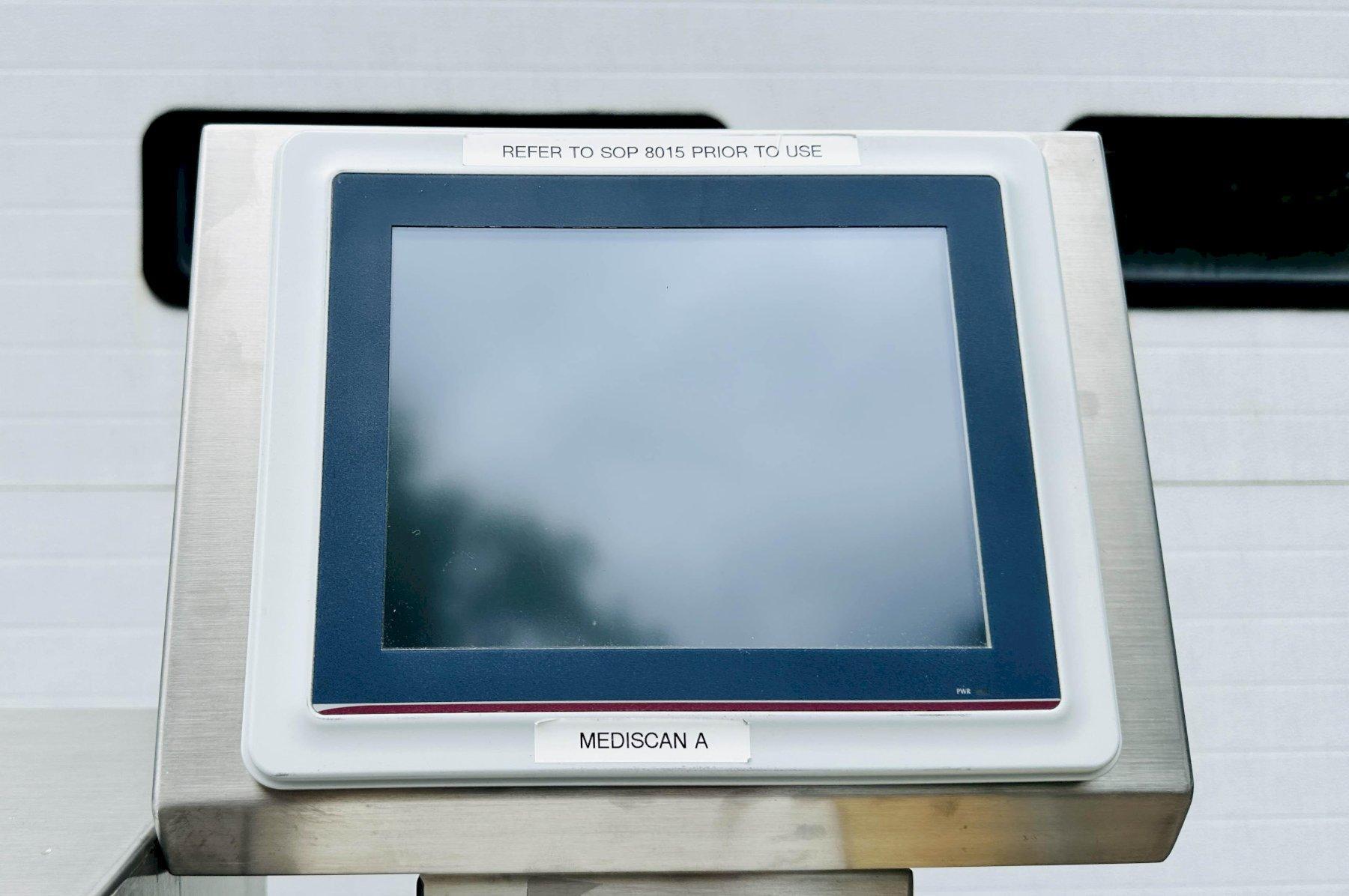

Controls / HMI - 10” LCD Touch Display
Air Specs - Minimum 200L/min @ 0.6Mpa | 7cfm/min @ 88psi
Machine Construction - 304 Stainless Steel Case
Electrical Specs - 110/230V / Single Phase / 50/60Hz
Overall Machine Dims - 400mm (L) X 700mm (W) X 500mm (D) | 16”L x 28”W x 20”D
Manufacture Date - Jan. 2017
Weight - 90kg / 200lbs (approx)
Highlights - Non-Destructive Seal Integrity & Leak Testing | No tooling required, making it highly flexible | Tabletop Device | Easy Operator use via touchscreen interface | Fully Validated System | Fast & efficient test speed
Seller Note: - Unit is USED. This UNIT IS VERY GOOD CONDITION. This unit has been powered up and boots properly into the HMI portion. We have not been able to test the unit. Unit shows very little signs of visible surface wear, scratching, some paint can be seen peeling on the outside of the base, otherwise not affecting intended use of the unit. What you see in the picture is what is included in sale. Unit is being sold AS-IS, WHERE-IS, AS SHOWN. Pictures are of the actual unit being purchased. If the buyer has any questions, please feel free to ask. Buyer is always welcome to inspect the unit before purchasing at our location.

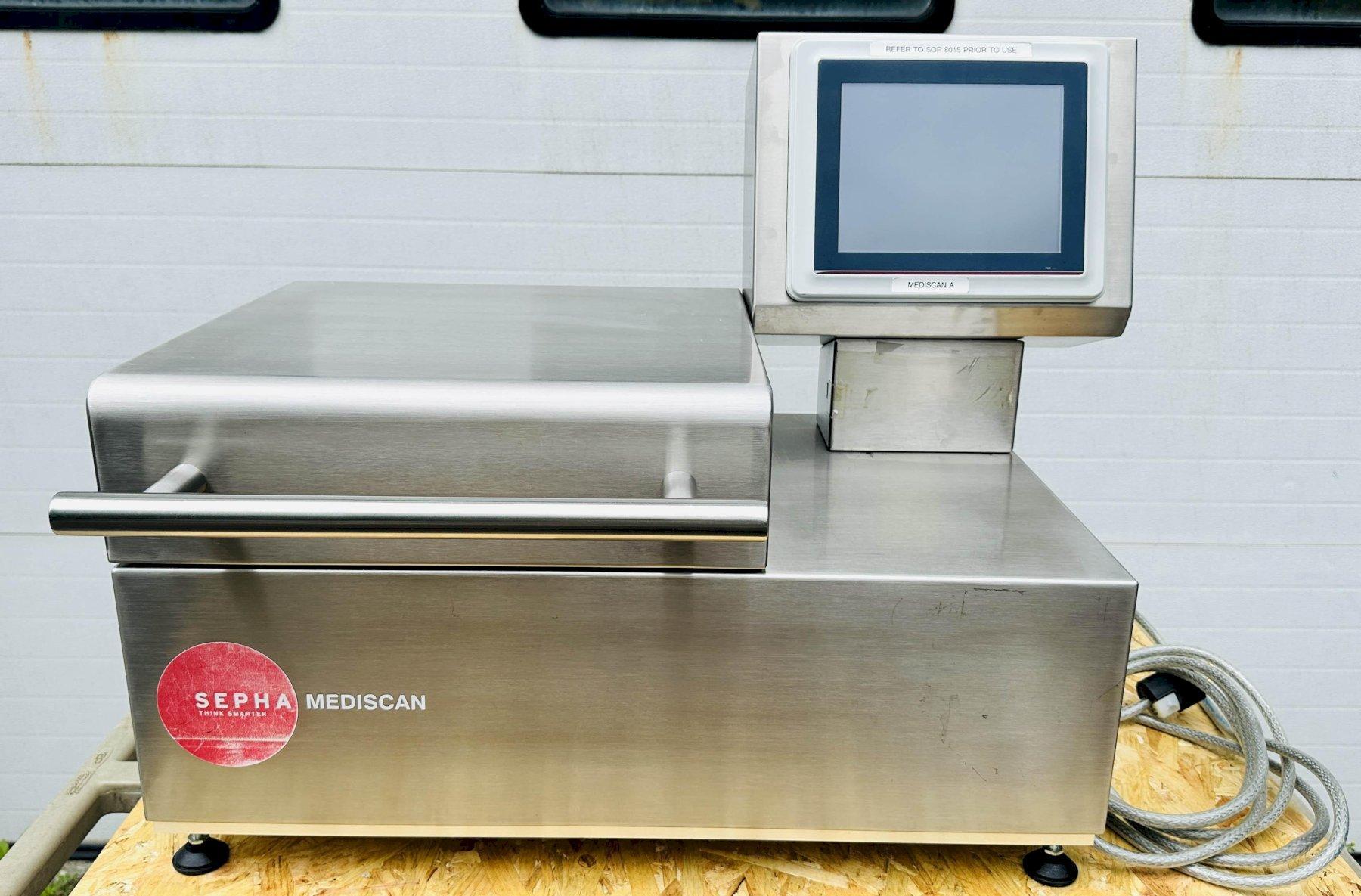

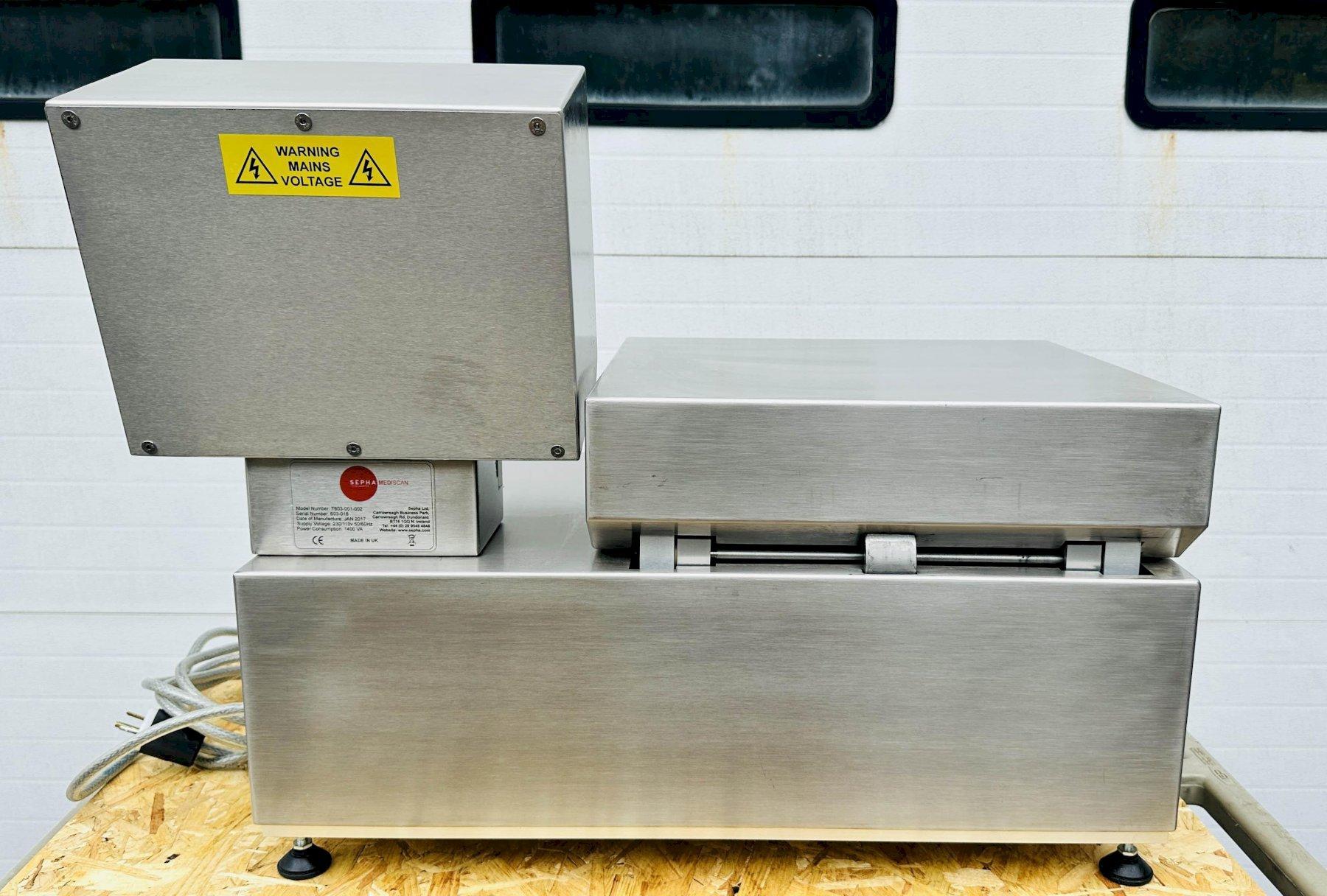

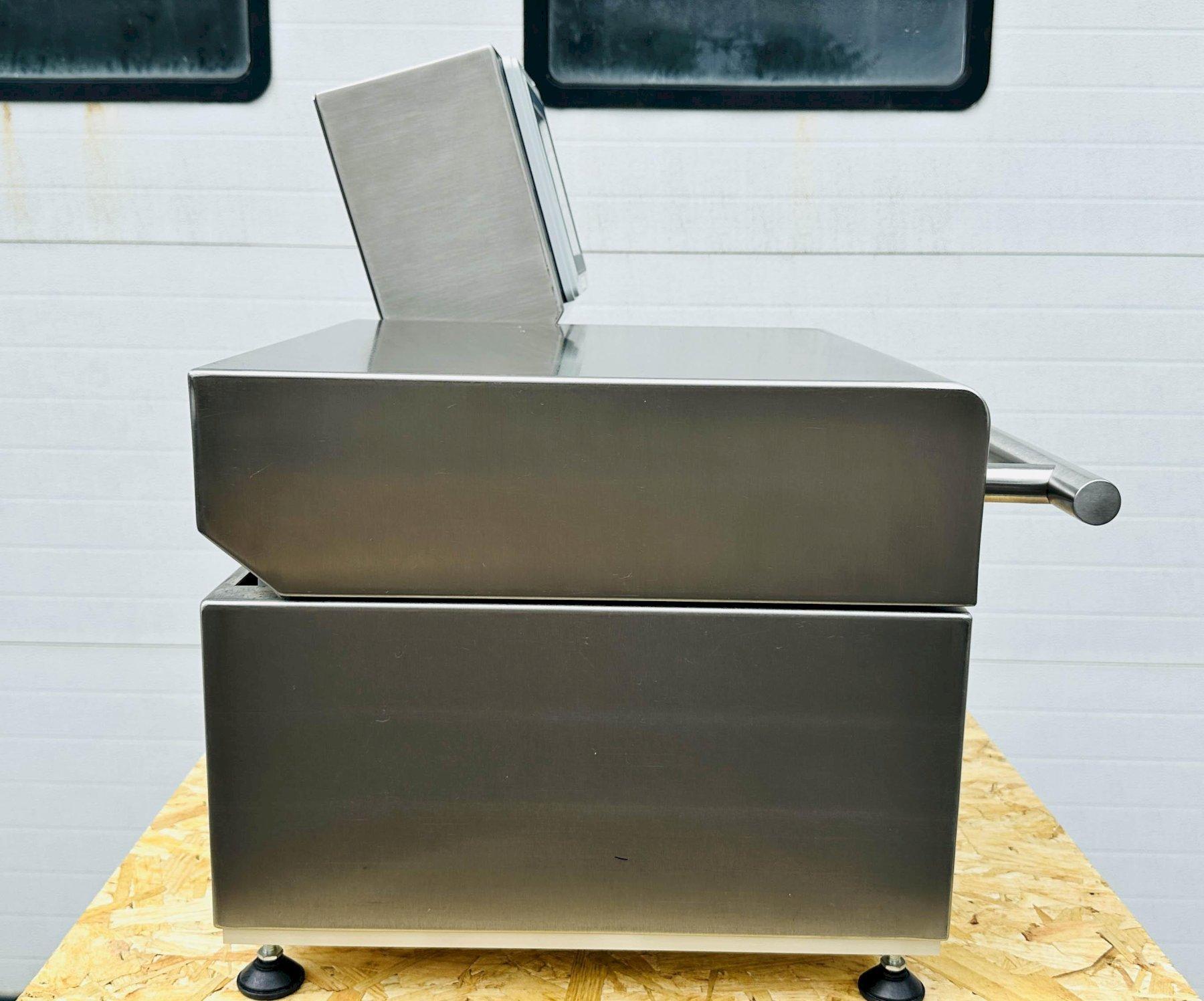

Sepha MediScan

Non-Destructive Package Leak Tester

Manufacturer:

Sepha

Model:

MediScan  T603-001-002

Serial No.:

603-018

Test Area:

250mm (L) X 200mm (W) X 100mm (D)  |  9.9”L x 7.8”W x 3.9”D (APPROX)

Test Cycle:

From 20 seconds per test cycle

Tooling Change Over:

No Tooling Required

Operation:

Semi-Automatic

Configuration:

2x USB | 1x Ethernet Port

Controls / HMI:

10” LCD Touch Display

Air Specification:

Minimum 200L/min @ 0.6Mpa  |  7cfm/min @ 88psi

Construction:

304 Stainless Steel Case

Electrical Specs:

110/230V / Single Phase / 50/60Hz

Overall Machine Dims:

400mm (L) X 700mm (W) X 500mm (D)  |   16”L x 28”W x 20”D

Manufactured Date:

1/17

Weight:

90kg / 200lbs  (approx)





Highlights:
  • Non-Destructive Seal Integrity & Leak Testing
  • No tooling required, making it highly flexible
  • Tabletop Device
  • Easy Operator use via touchscreen interface
  • Fully Validated System
  • Fast & efficient test speed





Seller Note:

Unit is USED. This UNIT IS VERY GOOD CONDITION. This unit has been powered up and boots properly into the HMI portion. We have not been able to test the unit. Unit shows very little signs of visible surface wear, scratching, some paint can be seen peeling on the outside of the base, otherwise not affecting intended use of the unit. What you see in the picture is what is included in sale. Unit is being sold AS-IS, WHERE-IS, AS SHOWN. Pictures are of the actual unit being purchased. If the buyer has any questions, please feel free to ask. Buyer is always welcome to inspect the unit before purchasing at our location.
