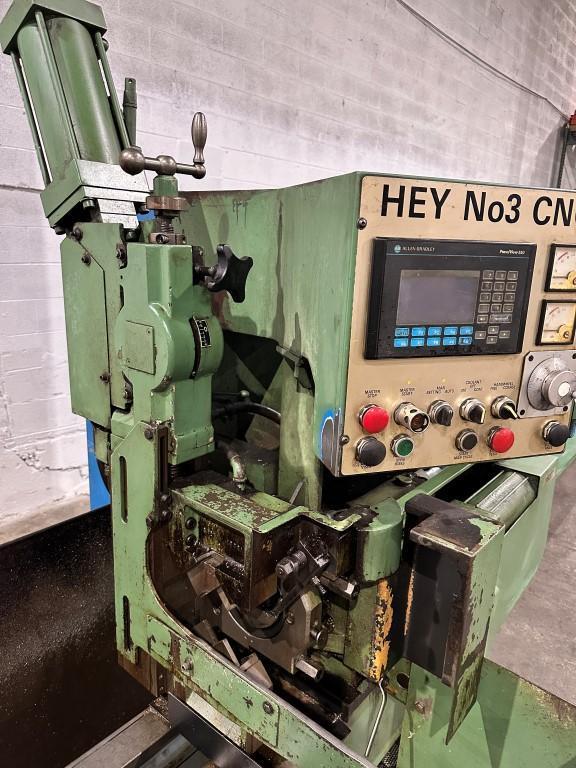

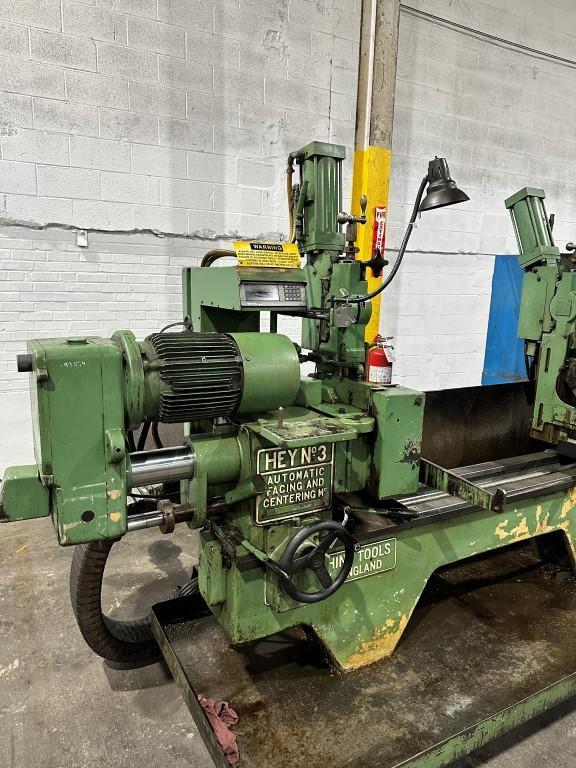

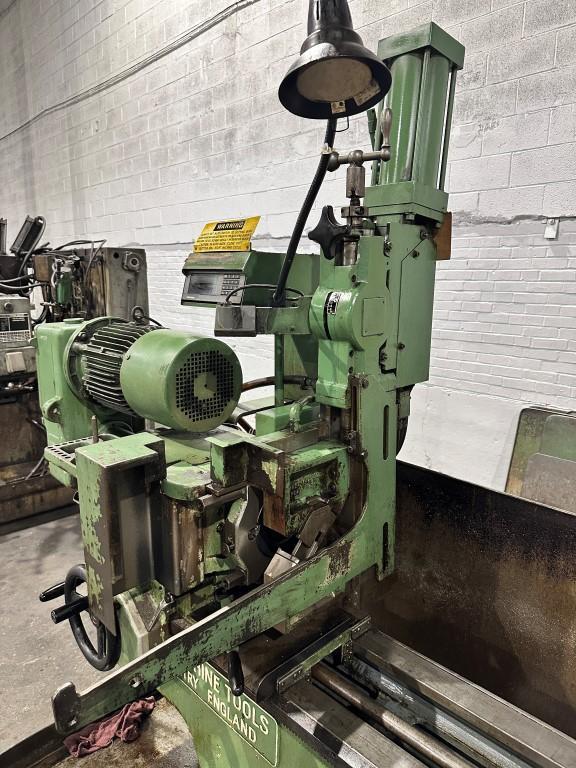

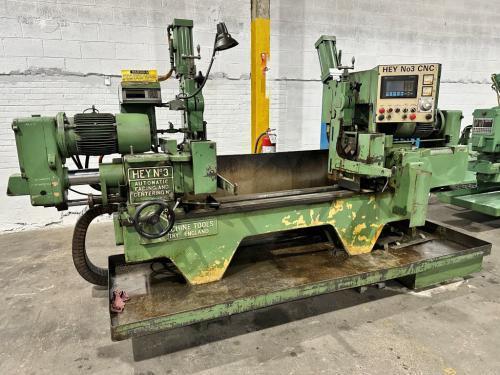

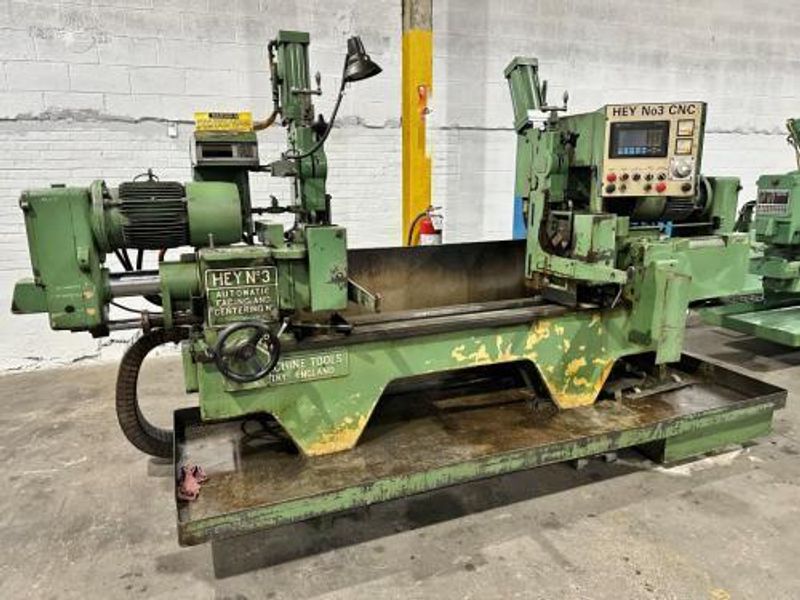

6” x 54” Hey No.3 CNC Double End Facing & Centering Machine

Manufacturer

HEY

Category

Centering/Facing Machines

Type

FACING & CENTERING MACHINES

Stock

TM4726

Model

No.3

Dealer Location

Illinois

Request a Quote
View Contact Information

Spec Sheet

Diameter Work Held in Standard Vise (Max/Min) - 8" / 0.25"
Max. Work Length - 51 inches
Min. Work Length held in Two Vises - 3 inches
Min. Work Length held in One Vise - 0.75 inches
Max. Diameter Admitted - 21 inches
Max. Diameter of Facing w/Standard Cutters - 5.12 inches
Spindle Drives - 15 HP
Spindle Speed Range (Infinitely Variable) - 200 - 1200 RPM
Feed Stroke - 1.5" - 2.5"
Feed Rates per Revolution of Spindle (Infinitely Variable) - Up to 0.018/rev
Rapid Traverse Rate - 250 IPM

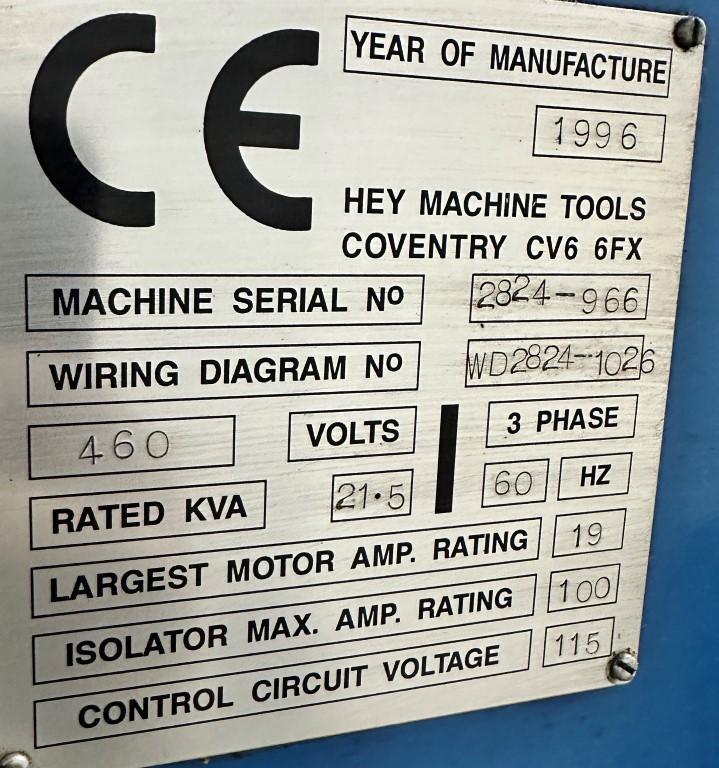

Electrics - 3/60/460v
Approximate Dimensions (LR x FB x H) - 170" x 60" x 92"
Approximate Weight - 5000 pounds

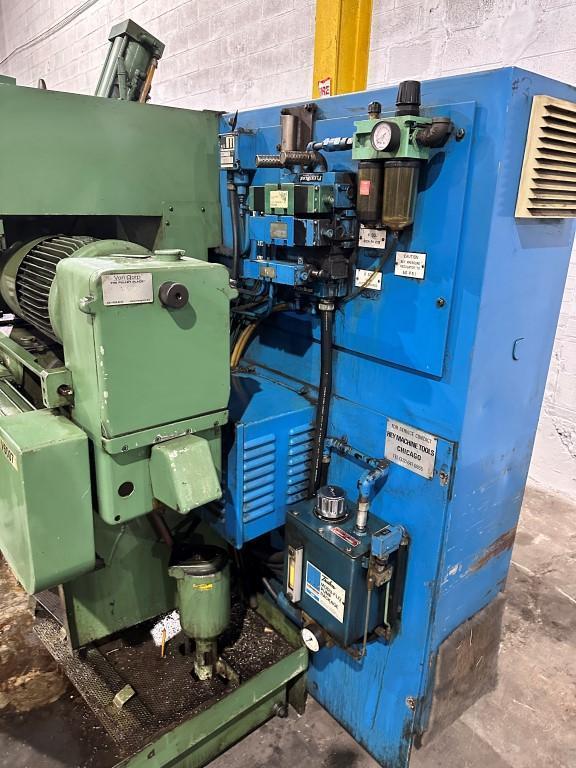

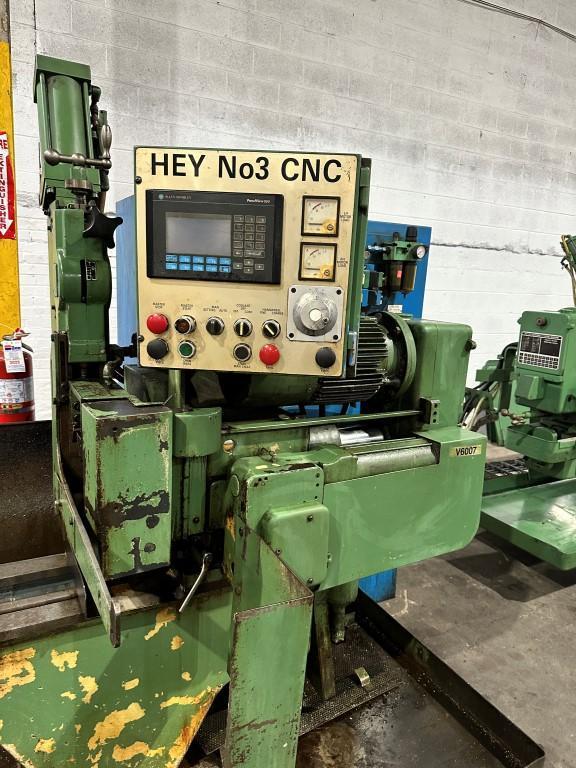

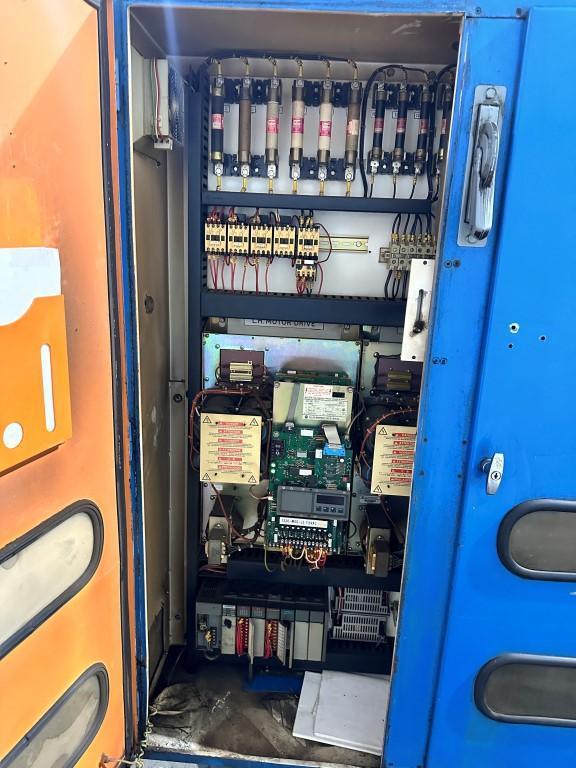

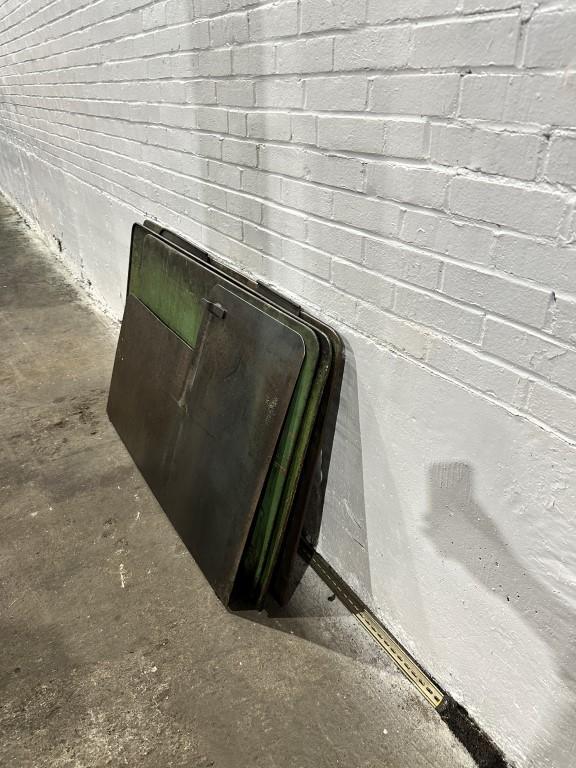

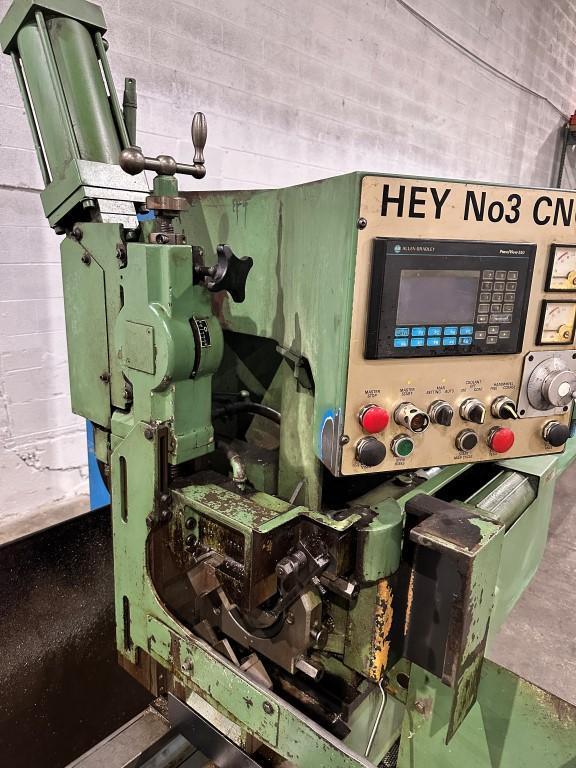

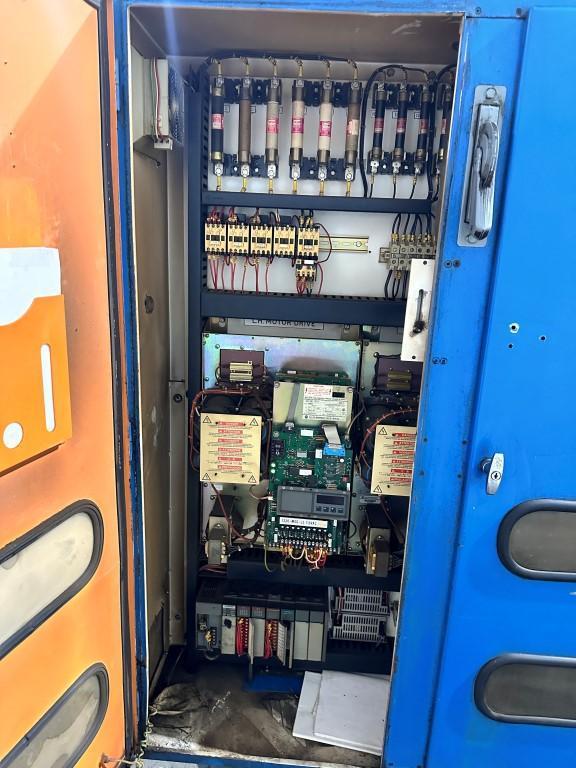

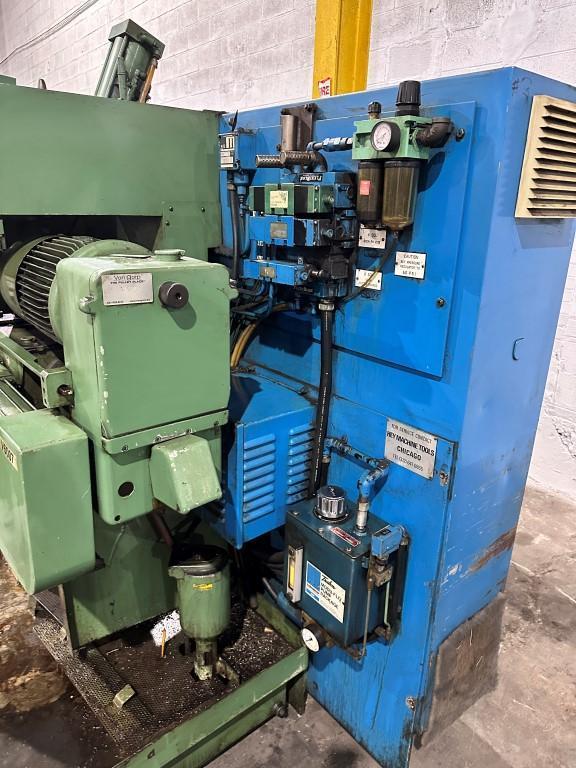

Allen-Bradley SLC 5/04 CNC Controller or NEW Retrofit Beckhoff PLC. Infinitely Variable Spindle Speeds. Infinitely Variable Feed Rates. Independent AC Servo Control of Feed Rate to each Headstock. Dual Range Spindle Speeds. Multiple feeds for combined turning and facing applications. Shallow and Deep Drill Peck Cycles. Self-centering Pneumatic Vises with variable pressure. Trabon Automatic Lubrication System. Coolant. Chip Conveyor. Splash Guards. Manuals and Drawings.

This Machine is being offered AS-IS, As-Taken from Service.  Option available: For an additional $30,000 the machine can be supplied Retrofit with New Beckhoff PLC Controls.
