6,000# x 60" K & S Banding Line

Manufacturer

K & S

Category

Miscellaneous Machines

Type

BANDING LINES

Stock

11885-HK

Model

None listed

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet


Coil Weight: 6,000 lbs.
Coil O.D. Maximum: 60"
Coil I.D. Minimum: 7"

Consisting of the following:

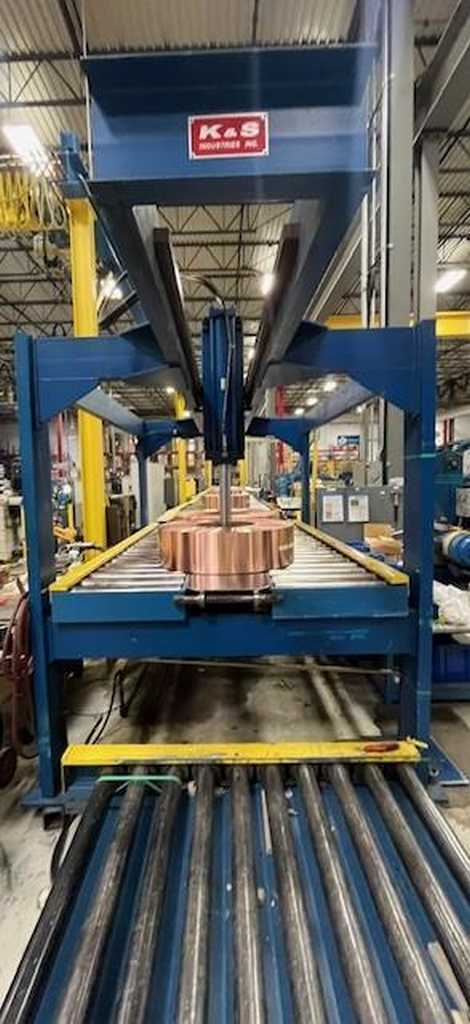

-K & S Pick and Place Downlayer: (Ref# 11785)
Serial Number: 5258C
Travel: 36" Approx.
Roll Face: 65"
Roll Diameter: 2.50"
Pass Line: 45"
Horn Diameter: 5.50"
Horn Height: 55.5" Approx.
Powered Conveyor
Overall Size: 103" L x 60" W x 49" High

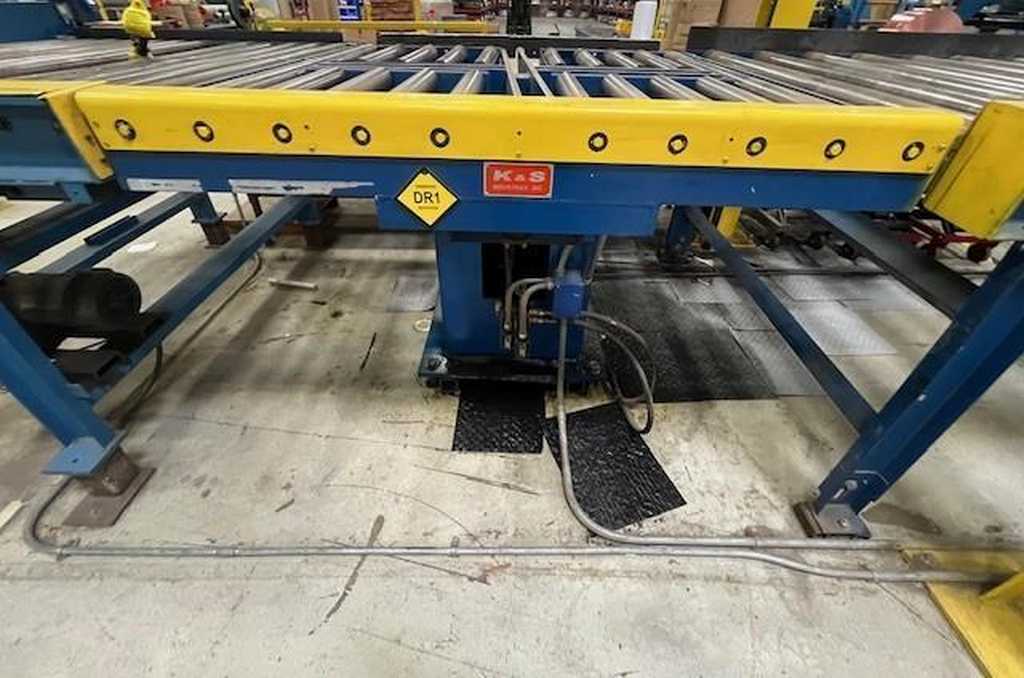

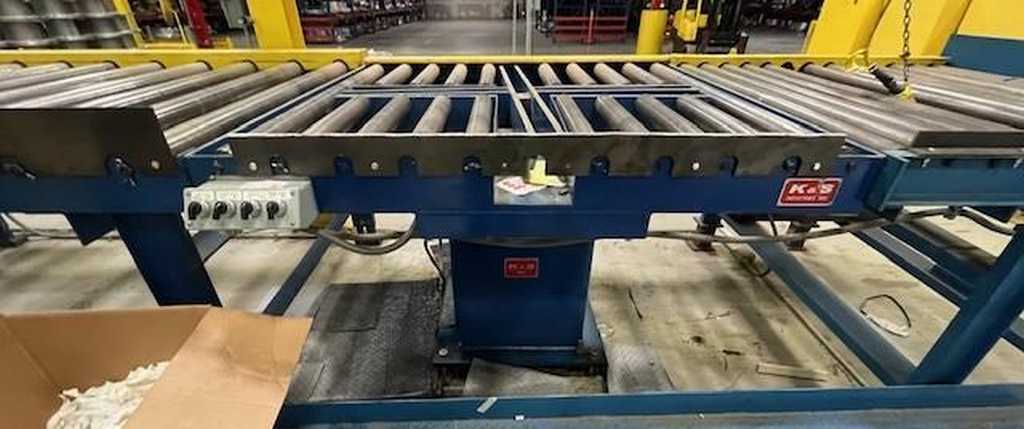

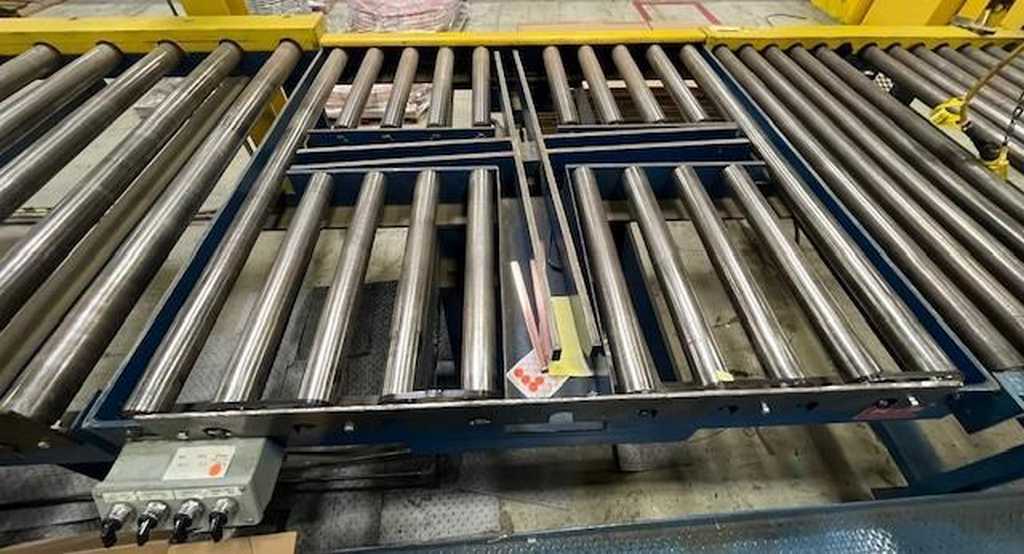

-K & S Banding Table: (Ref# 11775)
Serial Number: 809H
Roll Face: 61"
Roll Diameter: 2.75" Diameter
Length: 66"
Pass Line: 45"
4 Arm Lift and Rotate w/56" Long Arms
Powered Conveyor Rolls by Hyd. Motor
Overall Size: 71" L x 66" W x 47" High

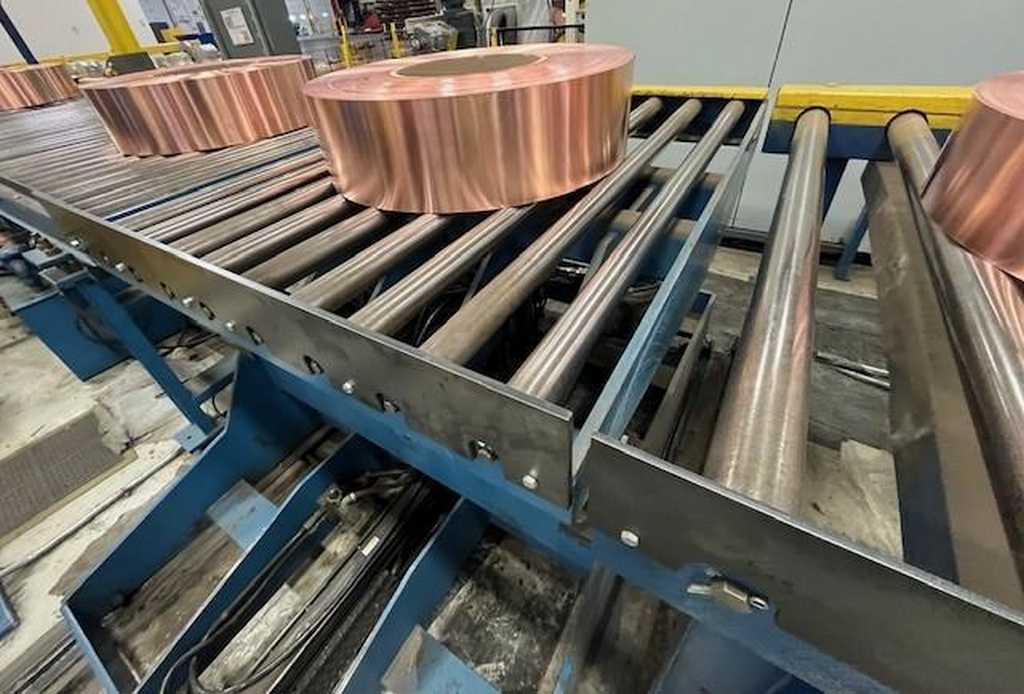

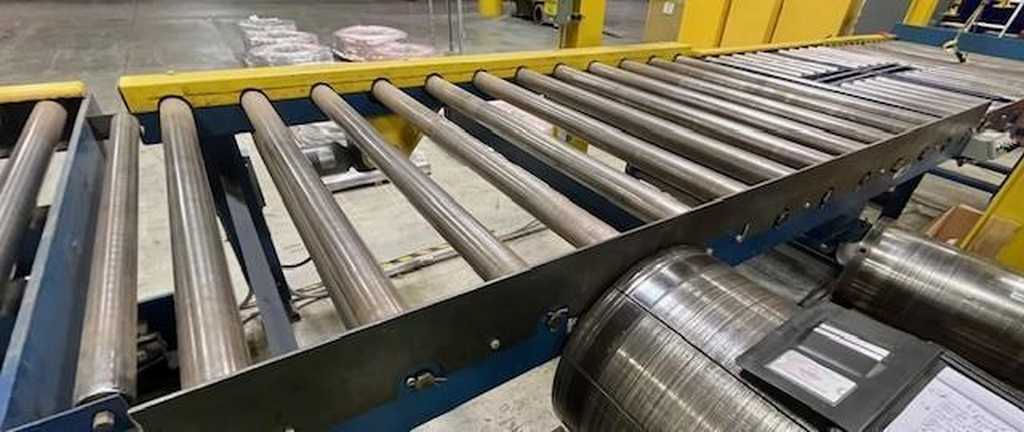

-K & S Roller Conveyor:
(3) Conveyor Sections
(1) - 117" Long x 64" Face (Ref# 11780)
(1) - 112" Long x 59" Face Ref# 11789)
(1) - 64" Long x 57" Face (Ref# 11788)
Roll Diameter: 2.50"
Pass Line: 48"
Powered

-K&S Banding Line Stacker: (Ref# 11786)
Capacity: 6,000# x 60" O.D.
Roll Diameter: 2.75"
Roll Face: 62.5"
Pass Line: 44"
Conveyor Length: 120"
Stop Ram: Yes
Overall Size: 14' L x 7'3" W x 9'5" H

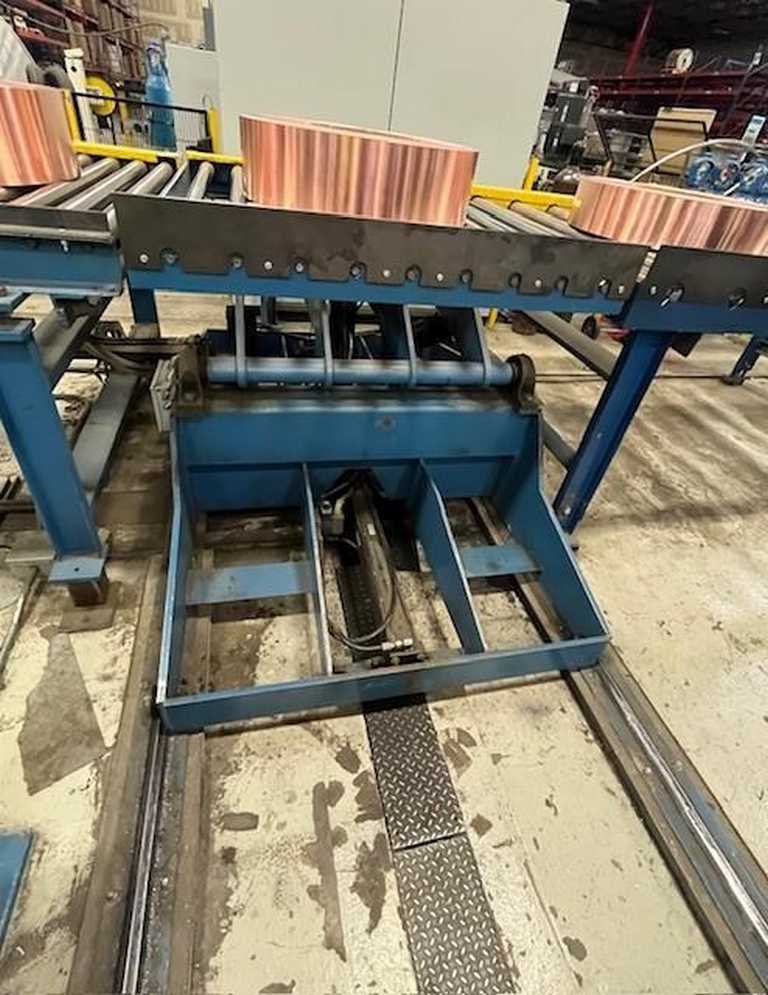

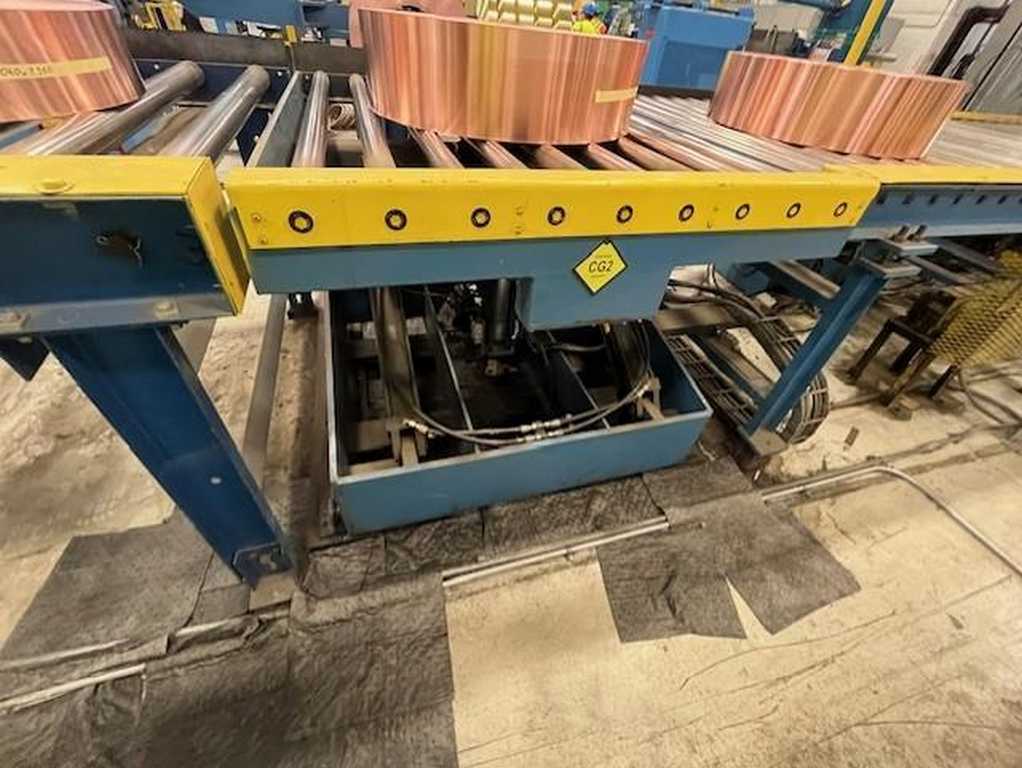

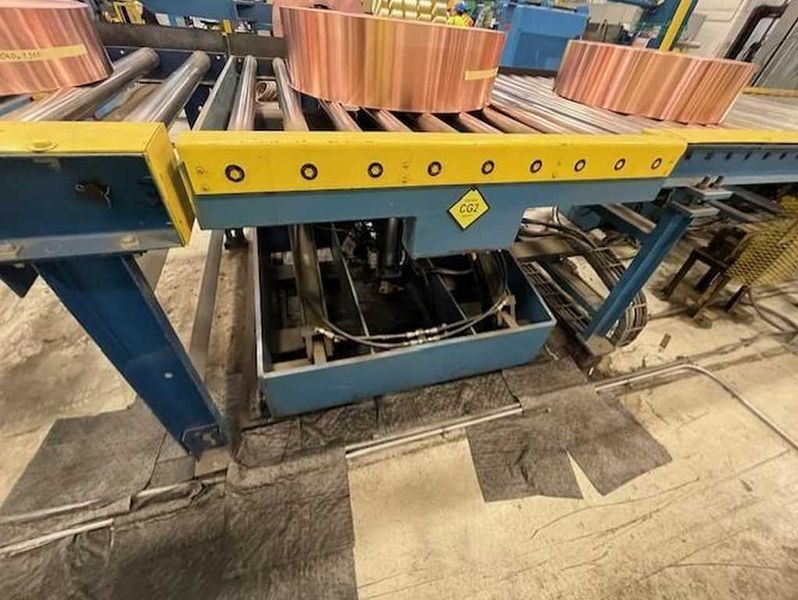

-K&S Scissor Lift Stacker Conveyor: (Ref# 11786)
Maximum Weight: 6,000 lbs.
Roll Diameter: 3.5"
Roll Face: 59"
Min./Max. Height: 16" / 48"
Conveyor Length: 57"
No. of Lift Cylinders: 3
Overall Size: 66" L x 65" W x 17" High

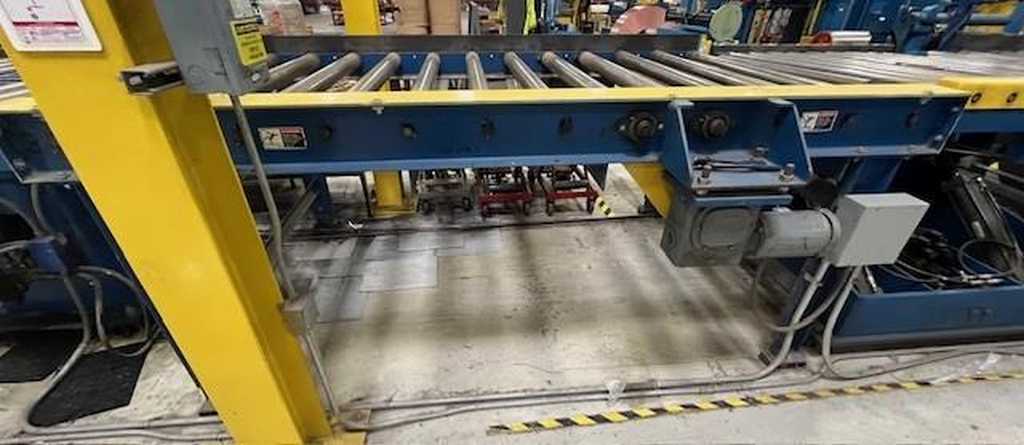

-K&S Scale Conveyor:
Maximum Weight: 6,000 lbs.
Roll Diameter: 2.5"
Roll Face: 57"
Passline: 35" (On 8" Risers)
Drive Motor: 2 HP AC, 230/460 V
Overall Size: 64" L x 71" W x 38" High

-In Storage: Toledo, OH.
