6,000# x 60" K & S Banding Line

Manufacturer

K & S

Category

Miscellaneous Machines

Type

BANDING LINES

Stock

11884-HK

Model

None listed

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet


Coil Weight: 6,000 lbs.
Coil O.D. Maximum: 60"
Coil I.D. Minimum: 7"

Consisting of the following:

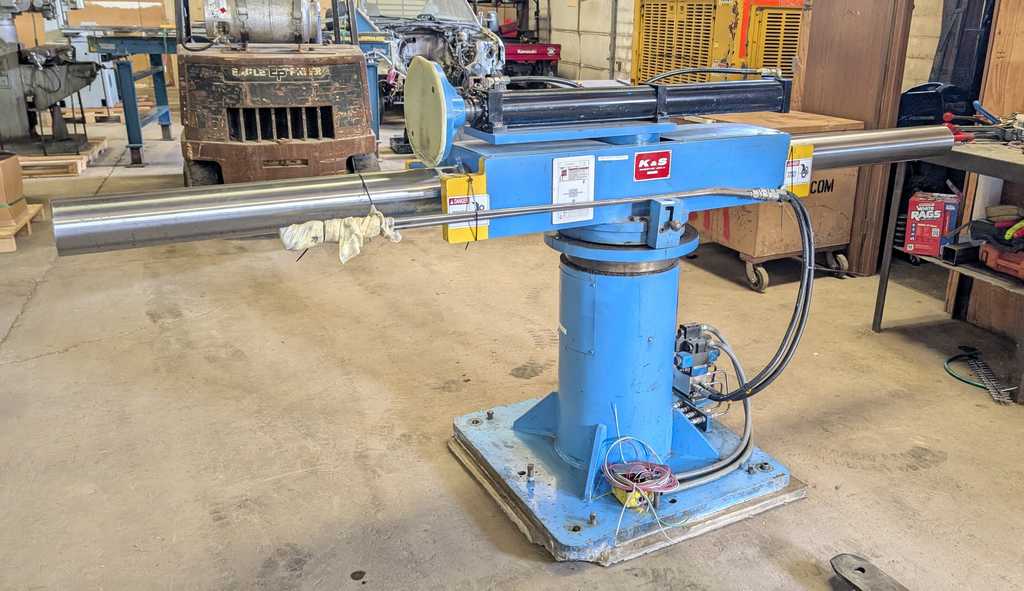

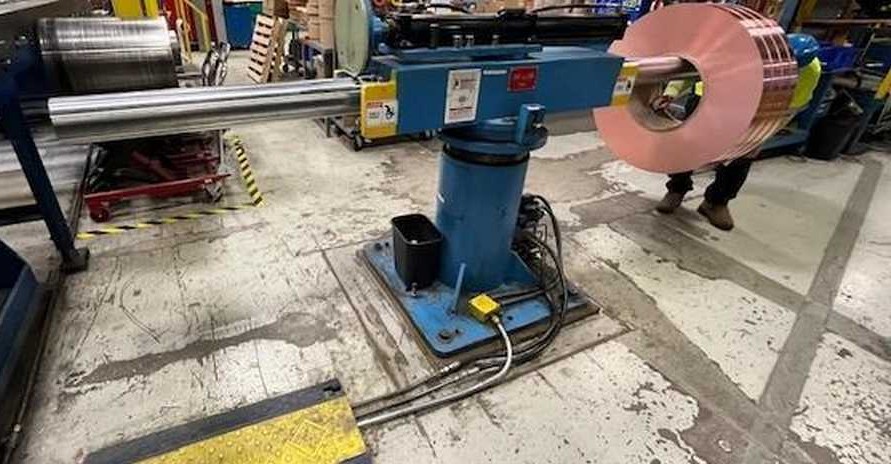

-K & S 2 Arm Turnstile: (Ref# 11776)
Serial Number: 5603
6,000 lbs. Capacity
36" Long Arm, 5.5" Dia. Round Bar
Hydraulic Pushoff
Manual Rotation
36" Square Base Plate
Hydraulic vertical Lift to handle different drum
diameters on a Recoiler.
Passline: 46" from Floor to top of Arm (adjustable)
Overall Size: 126" L x 38" W x 58" High

-K & S Downlayer: (Ref# 11778)
S/N: 809E
Roll Face: 64.5"
Roll Diameter: 2.75"
Conveyor Pass Line: 45"
Horn Diameter: 5.5"
Horn Height: Approx. 42" in tipped position
Conveyor Rolls Driven by Hyd. Motor
Overall Size: 75" L x 64" W x 46" High

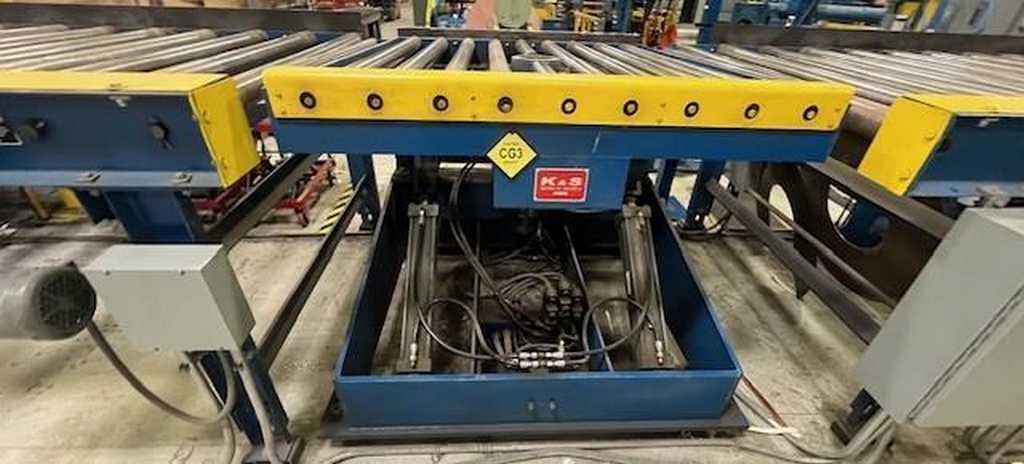

-K & S Banding Table: (Ref# 11784)
S/N: 6007
Roll Face: 62"
Roll Diameter: 3.5"
Conveyor Pass Line: 48"
Length: 90"
4 Arm Lift and Rotate w/60" Long Arms
Conveyor Rolls Driven by Hyd. Motor
Overall Size: 91" L x 81" W x 50" High

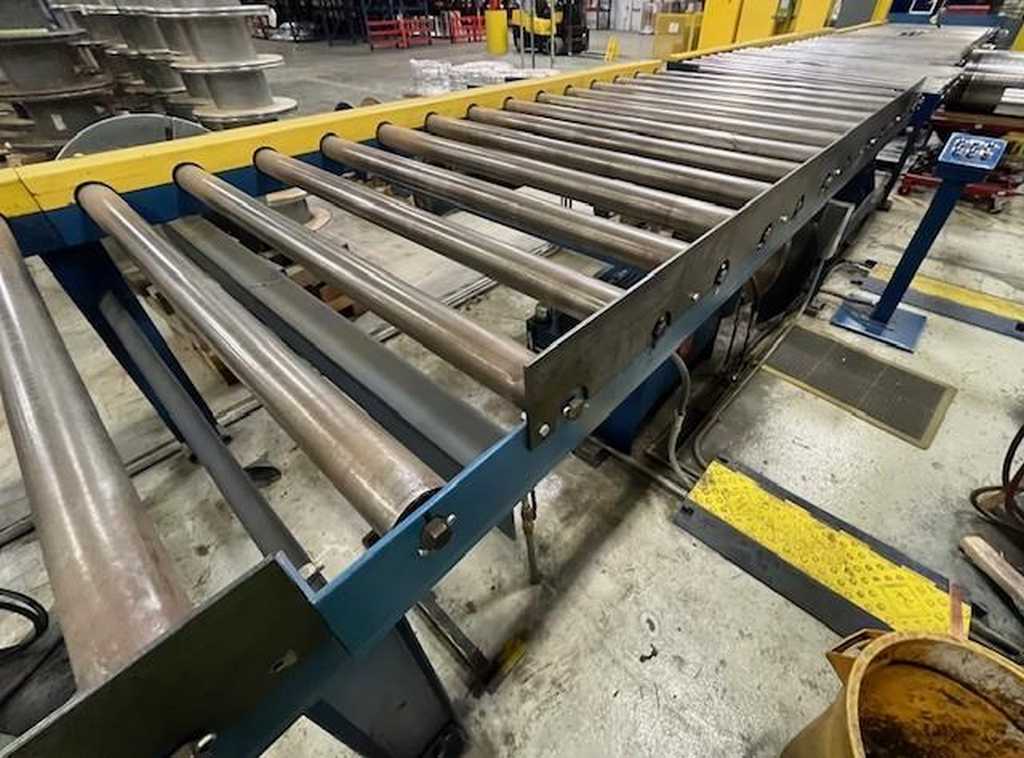

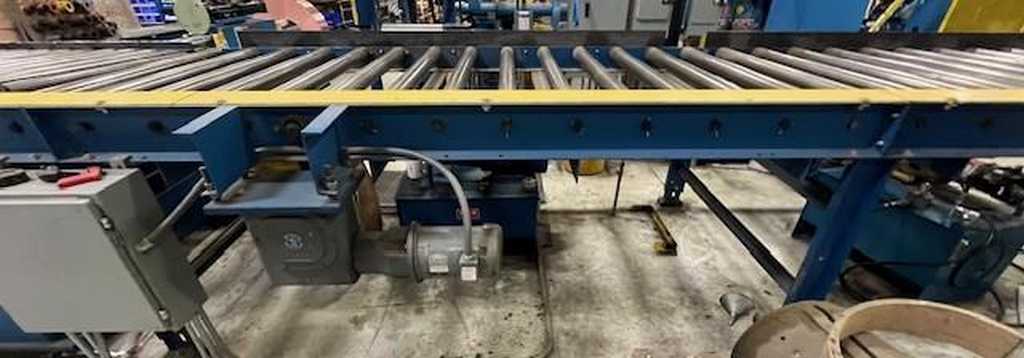

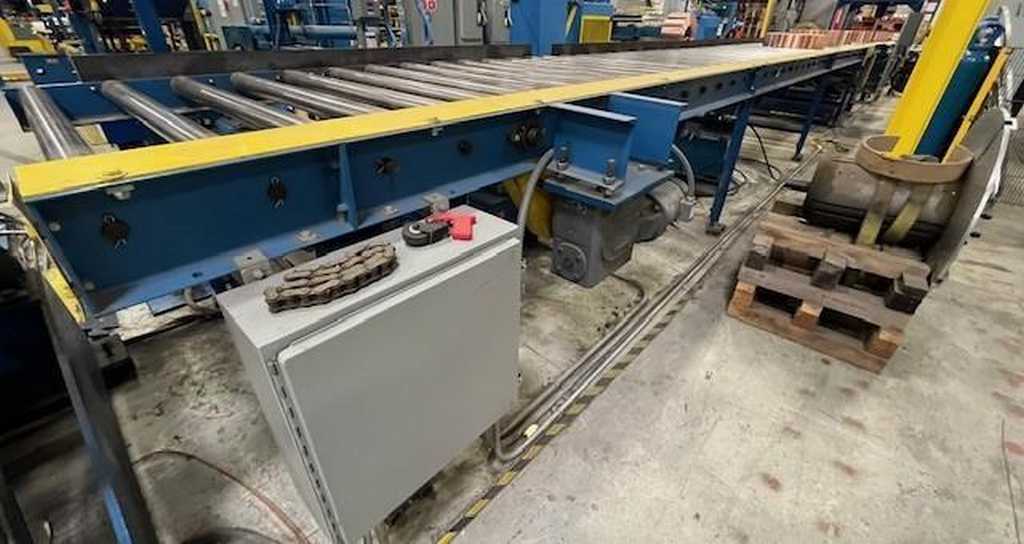

-K & S Conveyor:
10' Long Section
Maximum Weight: 6,000 lbs.
Roll Diamter: 3.5"
Roll Face: 64"
Passline: 46.25"
Drive Motor: 2 HP AC, 208-230/460 V

-K & S Conveyor:
112" Long Section
Maximum Weight: 6,000 lbs.
Roll Diamter: 2.5"
Roll Face: 59"
Passline: 48.5" (on 8" Riser)
Drive Motor:

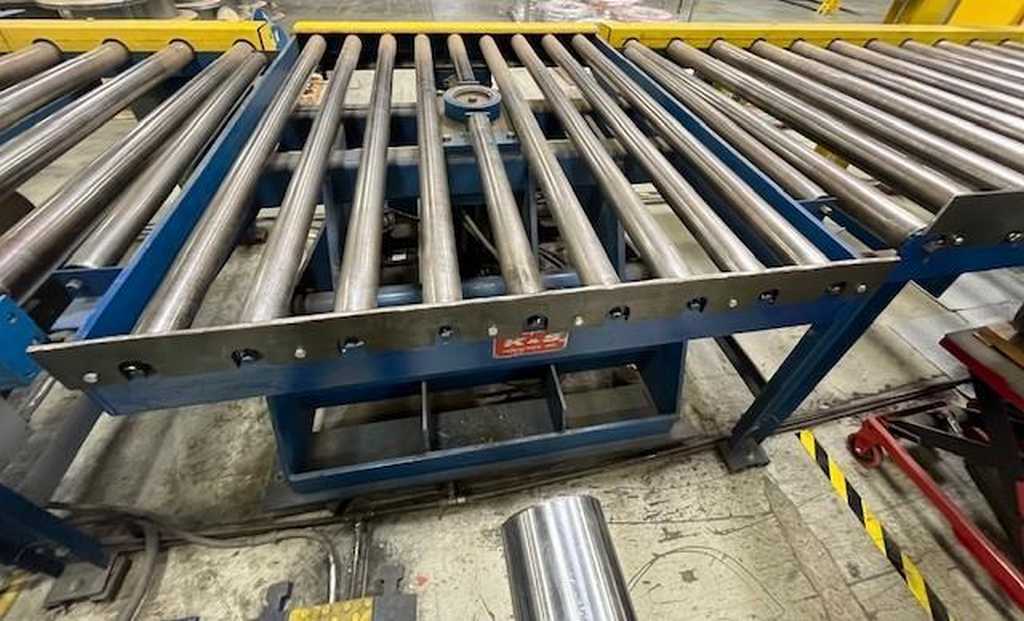

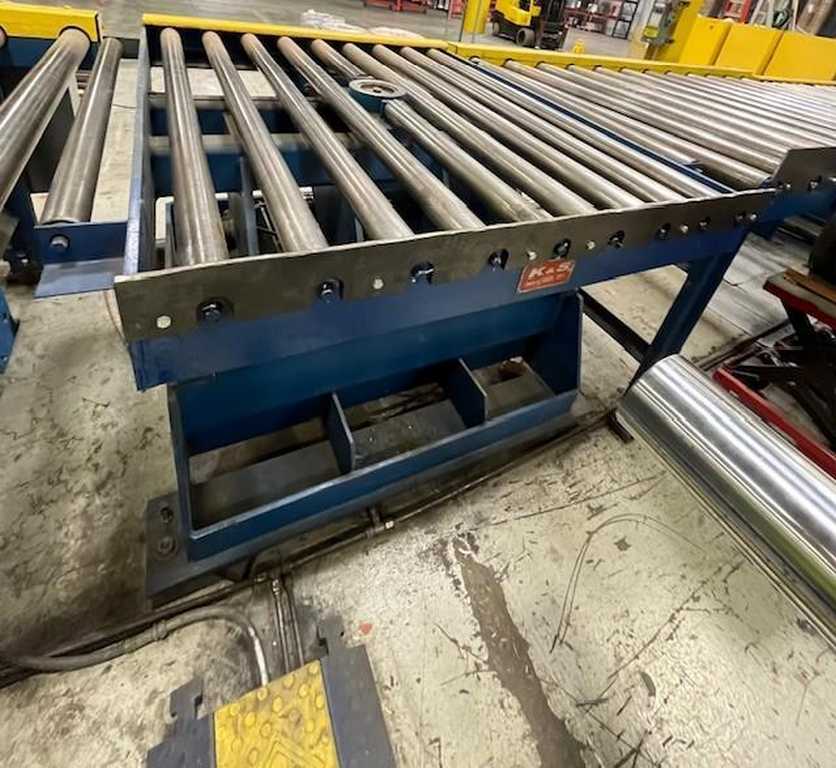

-K&S End Stop Conveyor:
Maximum Weight: 6,000 lbs.
Roll Diameter: 2.5"
Roll Face: 60"
Passline: 48" (on 7" Riser)
Drive Motor: 2 HP AC, 230/460 V
Note: Center Roll removed for use of Coil I.D. Grab
Overall Size: 74" L x 60" L x 54" High

-K&S Scale Conveyor:
Maximum Weight: 6,000 lbs.
Roll Diameter: 2.5"
Roll Face: 57"
Passline: 35" (On 8" Risers)
Drive Motor: 2 HP AC, 230/460 V
Overall Size: 64" L x 71" W x 38" High

-In Storage: Toledo, OH
