15,000 lbs. x 24" wide Feed Lease Coil Reel with Feed Lease Powered Straightener For Sale - Mode

Manufacturer

FEED LEASE

Category

Coil Processing Equipment

Type

COIL REELS & STRAIGHTENERS (Combination)

Stock

2957

Model

PR-15M-42 and FLCC-24-76-7

Dealer Location

Michigan

Request a Quote
View Contact Information

Spec Sheet

Coil Weight - 15000 pounds
Coil Width - 24 inches
Coil Thickness - .187 inches


Standard Specifications
15,000 lbs. Coil Weight
24" Maximum Coil Width
.187" x 24" Coil Thickness at Full Width
.250" x .12" Maximum Coil Thickness
Right To Left Feed Direction
72" Maximum Coil O.D.
19-24" I.D. Range

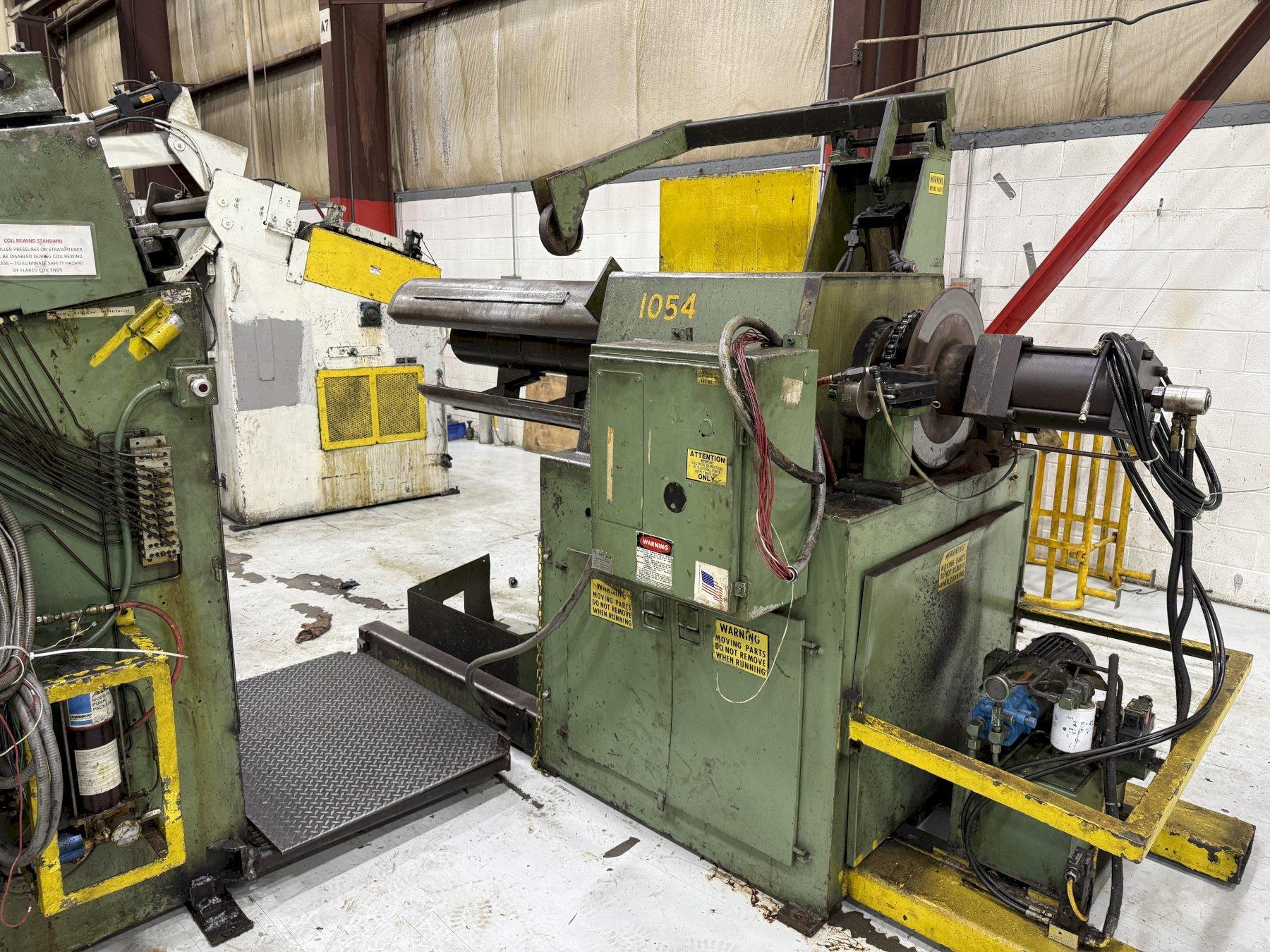

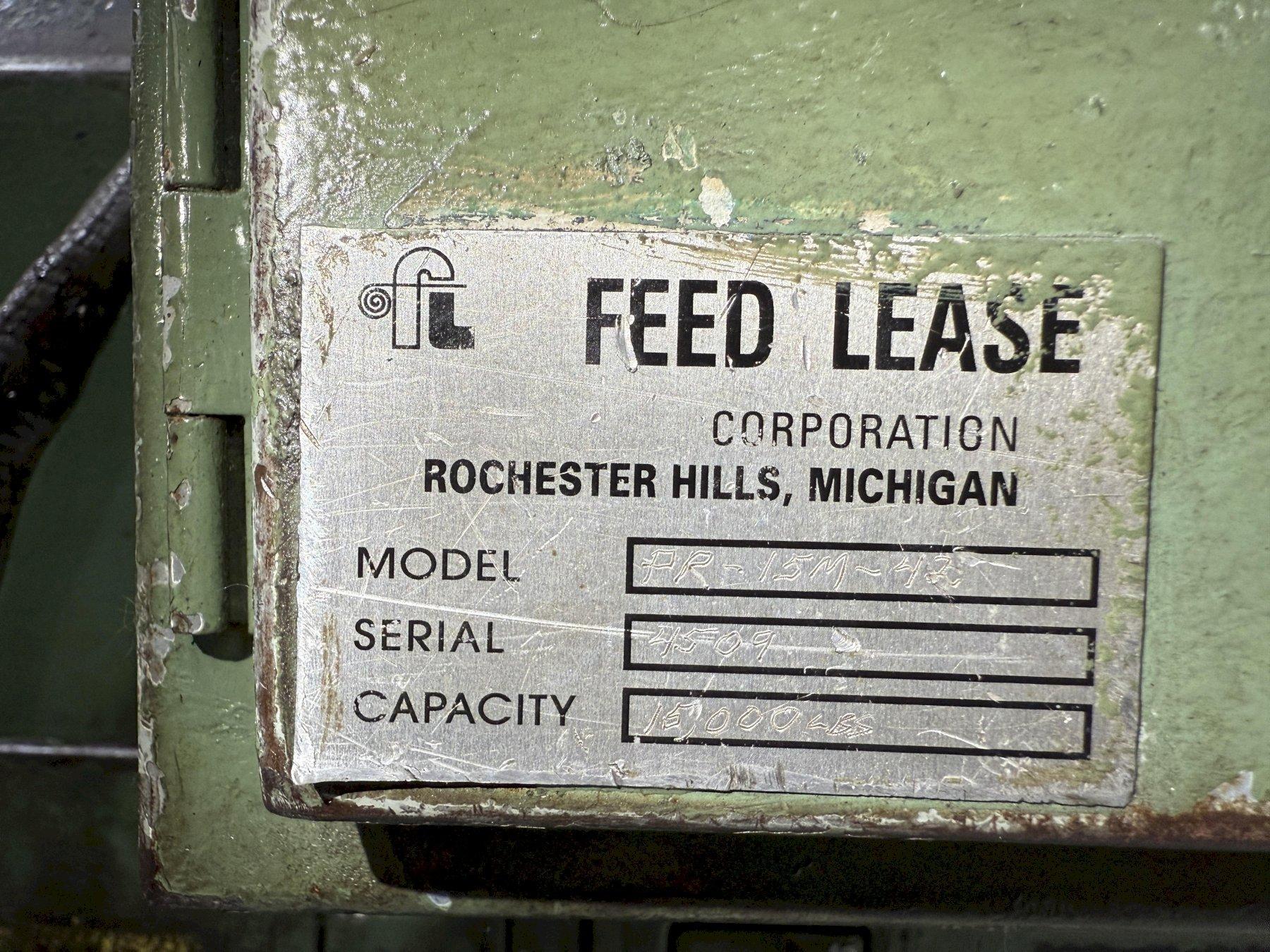

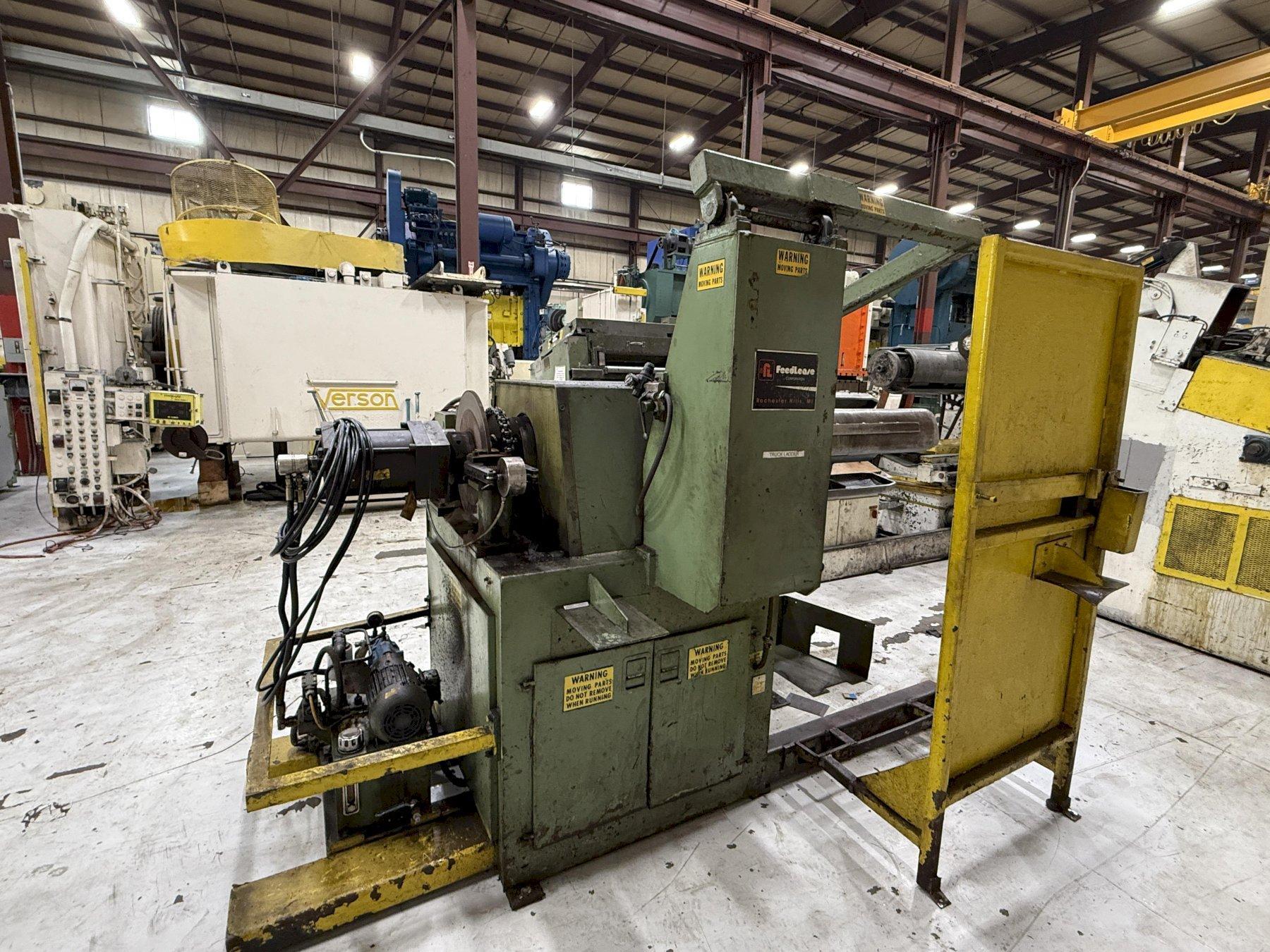

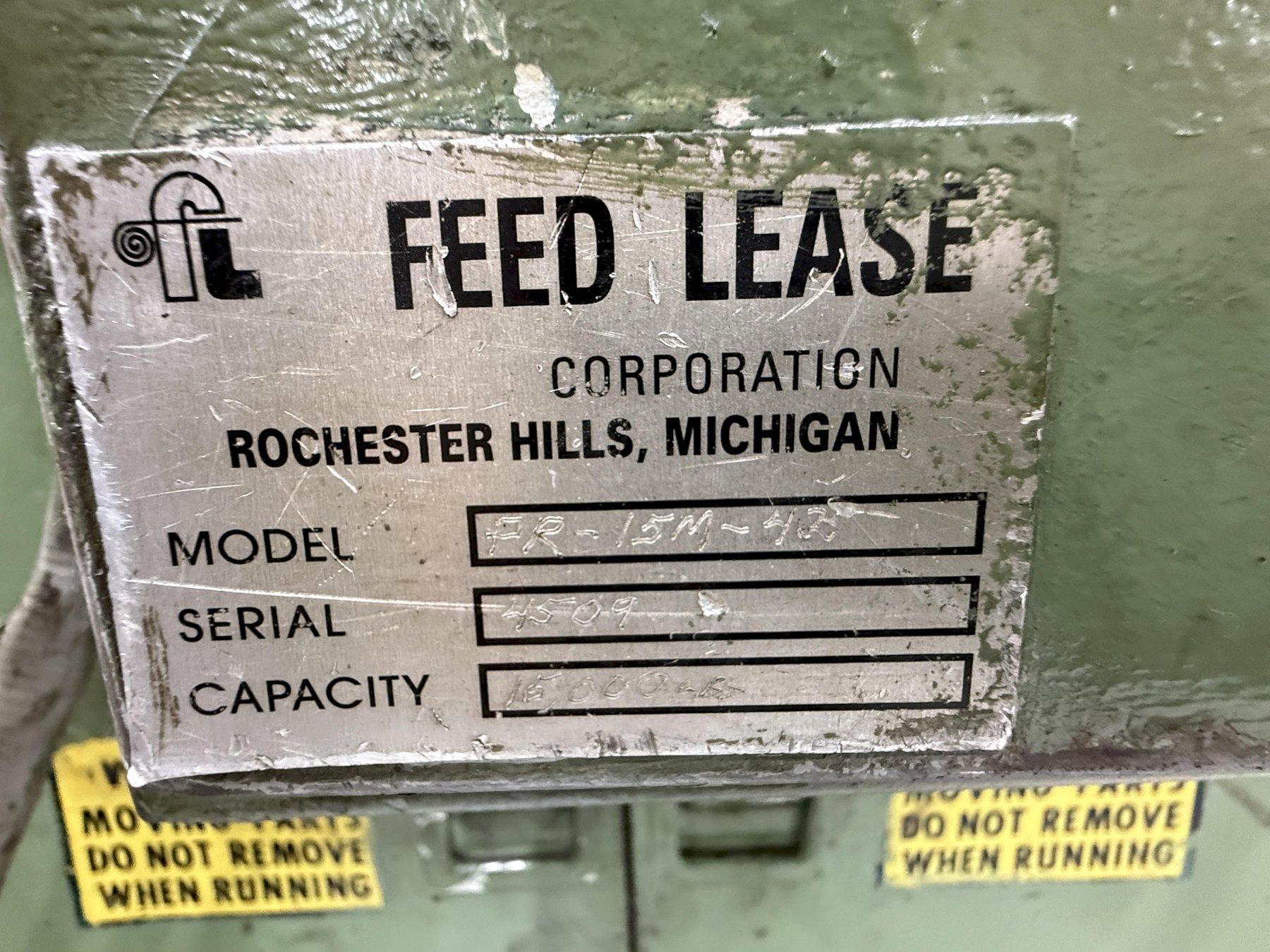

Feed Lease Coil Reel Model # PR-150M-42
Serial Number - 4509
Three Leaf Mandrel Pads
Hydraulic Thread Drive
Hydraulic Mandrel Expansion
Hold-Down Arm with End Wheel
Clock Spring Safety Guard
Air Brake on Main Spindle
Hydraulic Unit and Pump

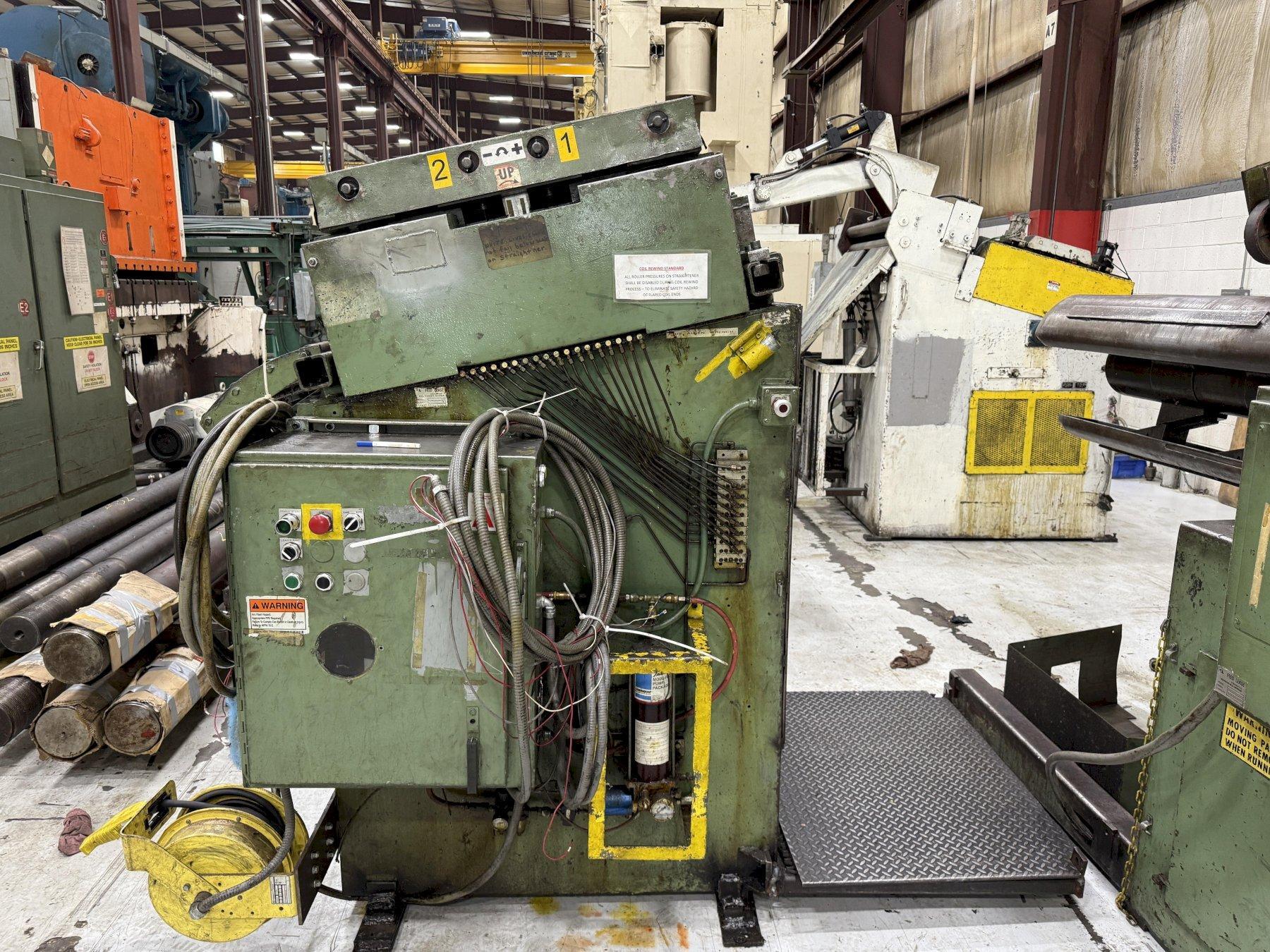

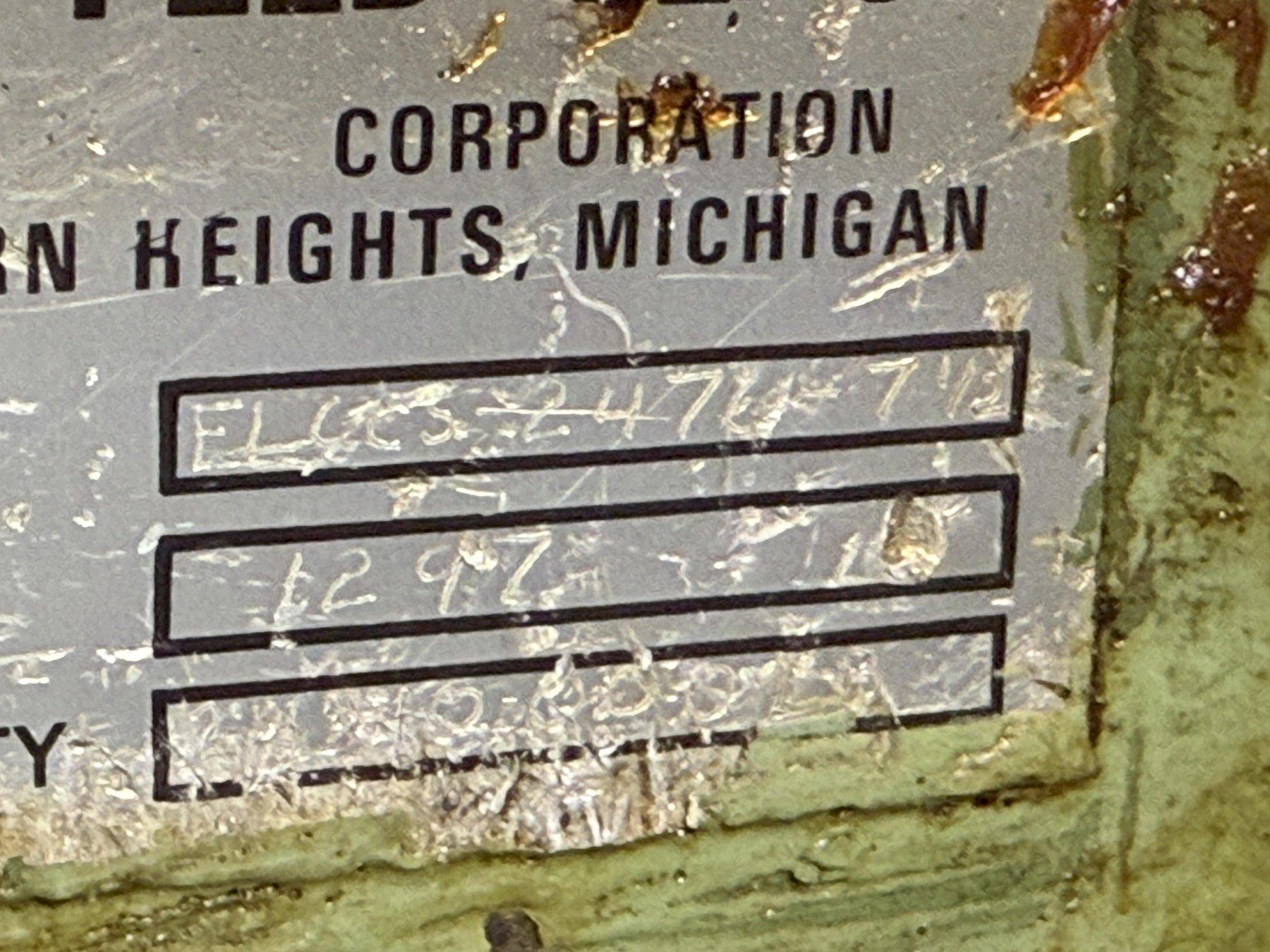

Feed Lease Powered Coil Straightener # FLCCS-2476-7.5
Serial Number 1297
7 Straightening Rolls
Entry and Exit Pinch Rolls with Air Operated Adjustment
Adjustable Breaker Rolls
Automatic Lubrication System
Inclined Straightening Head
Adjustable Stock Width Edge Guides
Auto / Run Cycle
Loop Control
7.5 HP Main Drive Motor

Can be seen under power in the S&G Press Warehouse.

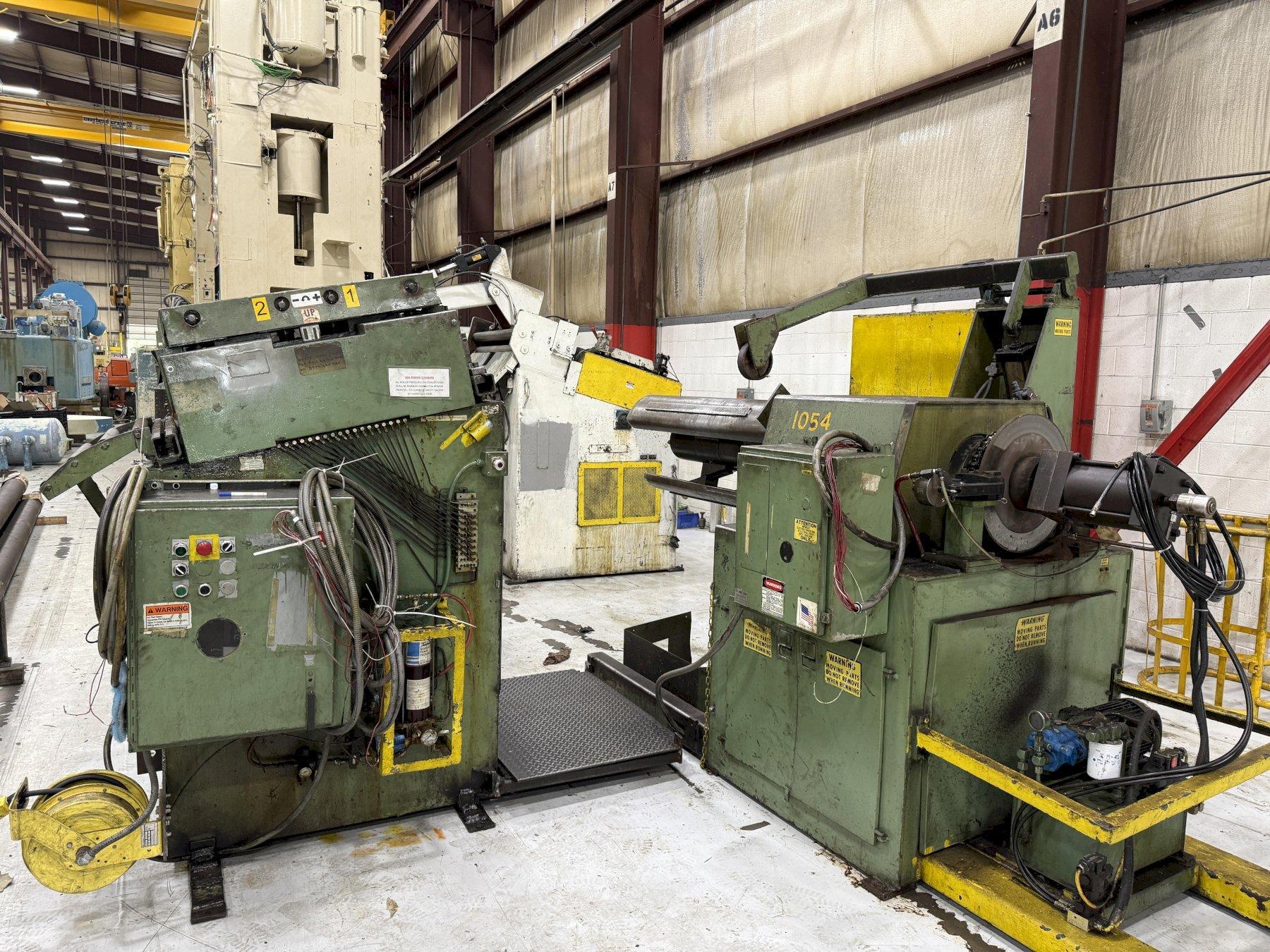

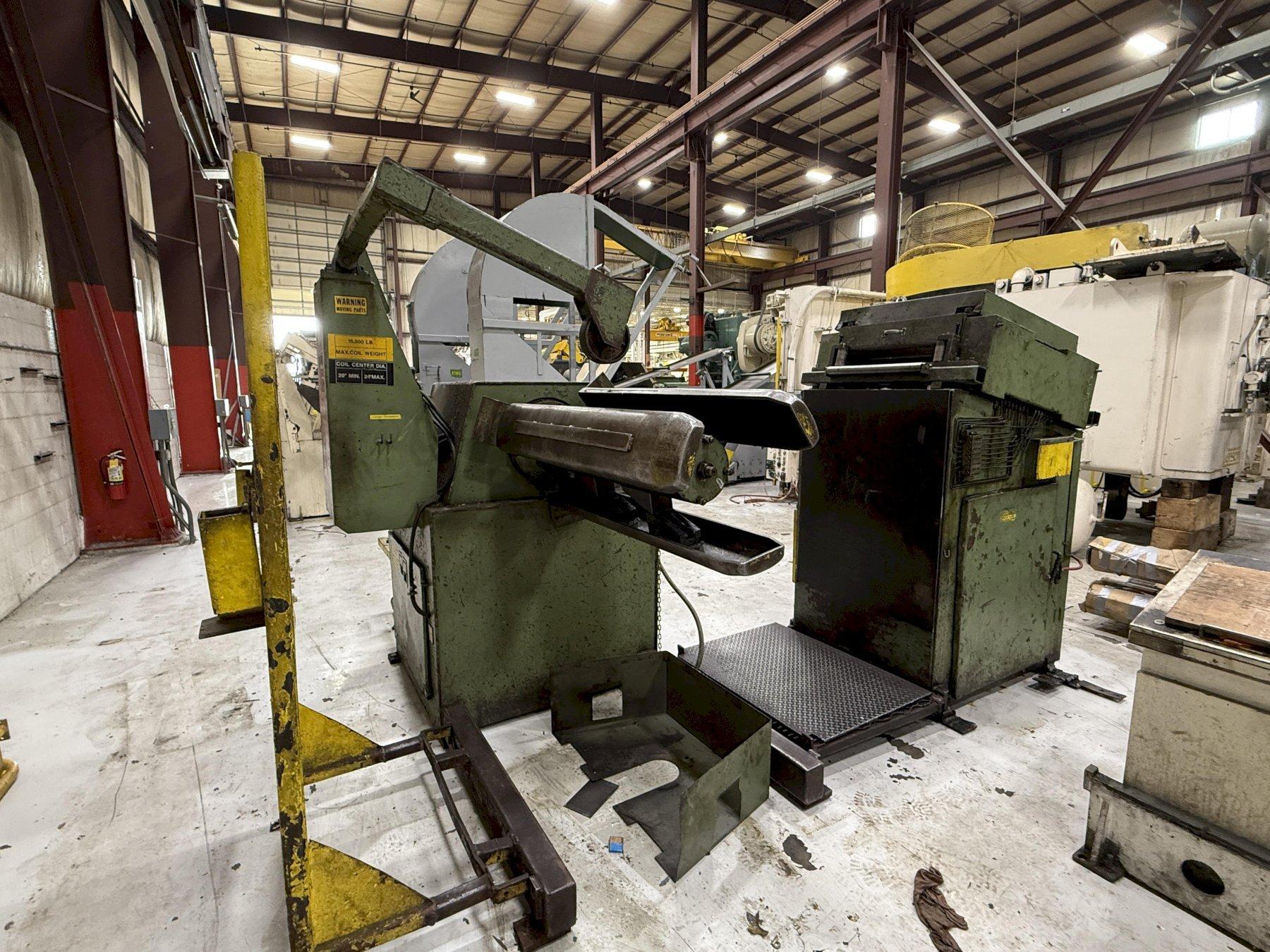

This Feed Lease 24" Wide Coil Reel and Straightener system is a robust solution for processing heavy-gauge coil materials. The Feed Lease Corporation PR-150M-42 coil reel (42" Maximum Coil Width on the Reel), with a substantial 15,000 lbs. capacity, accommodates coils up to 24" wide and 72" in outer diameter, with an inner diameter range of 19-24". Its hydraulic thread drive, mandrel expansion, and hold-down arm ensure secure and efficient coil handling, complemented by a clock spring safety guard and air brake for operational safety.

Paired with the Feed Lease FLCCS-2476-7.5 powered coil straightener, this system handles material up to .187" thick at full width, or .250" thick for narrower stock. The straightener features seven precision rolls, adjustable breaker rolls, and air-operated pinch rolls for optimal material flatness. An automatic lubrication system and adjustable edge guides enhance performance and longevity. Designed for right-to-left feeding, the unit offers auto/run cycle and loop control, driven by a 7.5 HP motor, providing reliable and automated coil processing.
