300-ton Blow SC2-300-60-42 Straight Side Mechanical Press For Sale, Year 1997

Manufacturer

BLOW

Category

Presses

Type

PRESSES, STRAIGHT SIDE, DOUBLE CRANK, (Single Action)

Stock

2959

Model

SC2-300-60-42

Dealer Location

Michigan

Request a Quote
View Contact Information

Spec Sheet

Tonnage - 300
Stroke - 8 inches
Shut Height - 26 inches
Adjustment - 8 inches
Bed Size - 60" x 42"
Ram Area - 60" x 42"
SPM - 30-60 VSPM

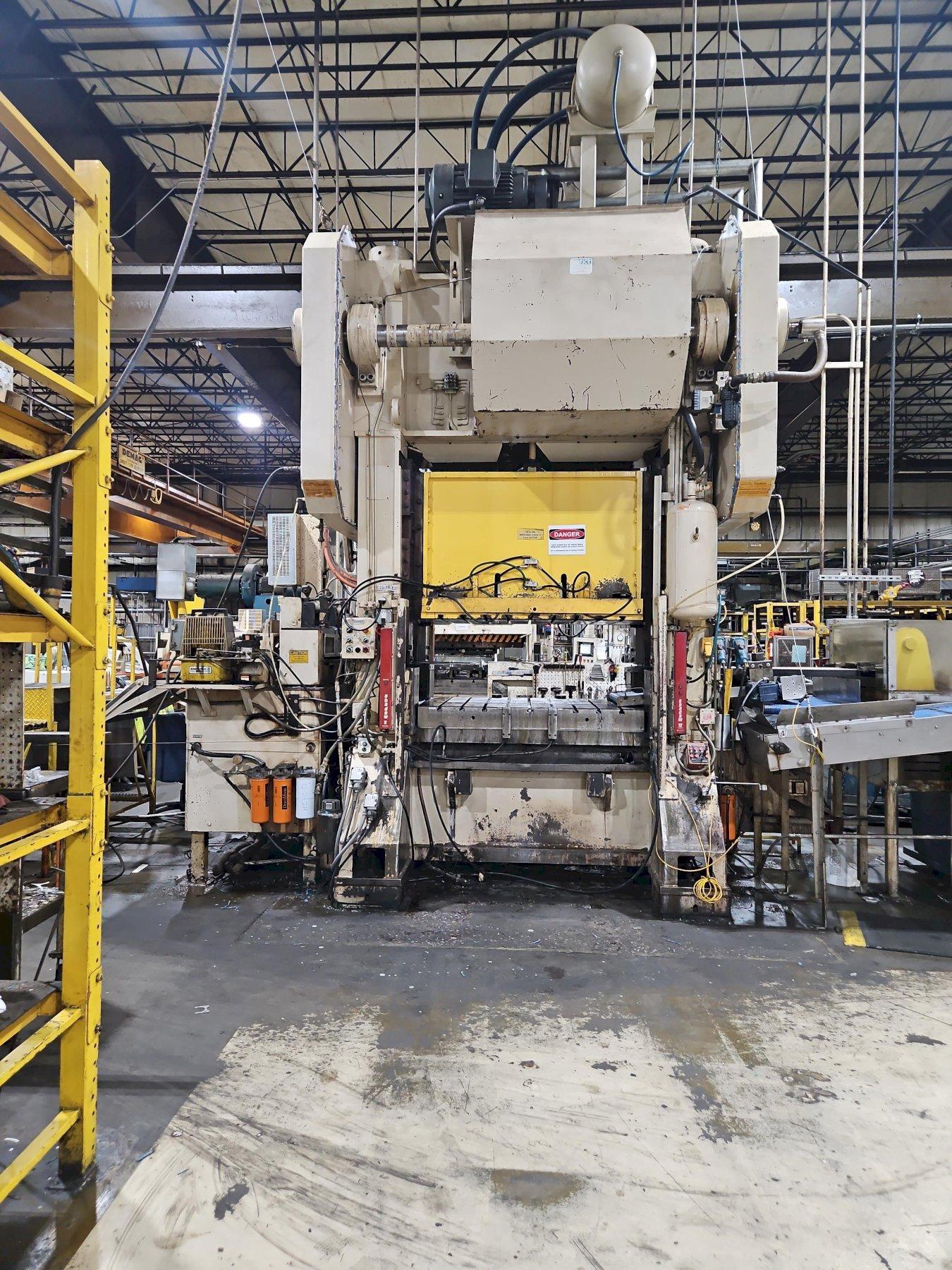

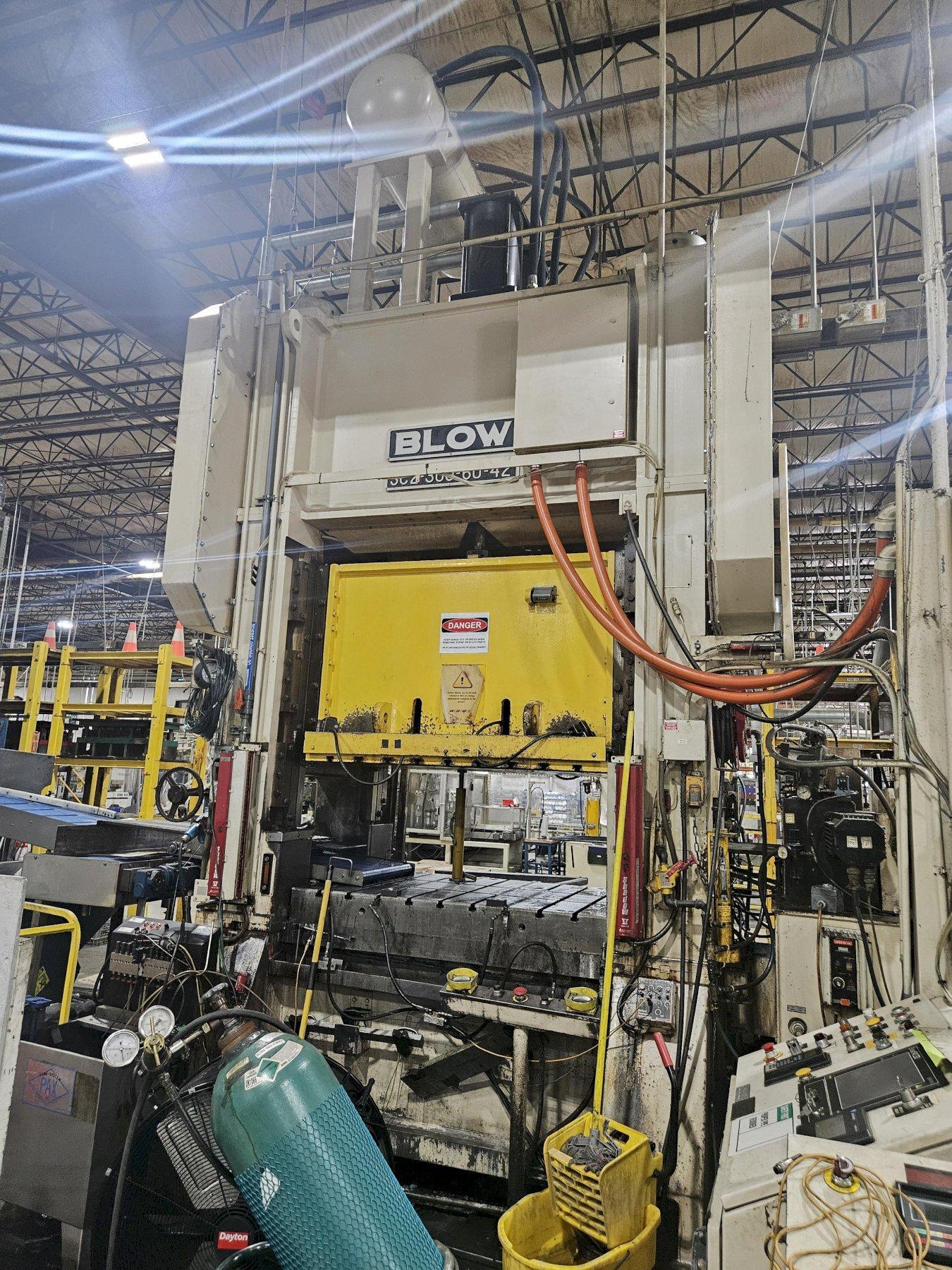

Used 300-ton Blow Straight Side Mechanical Press

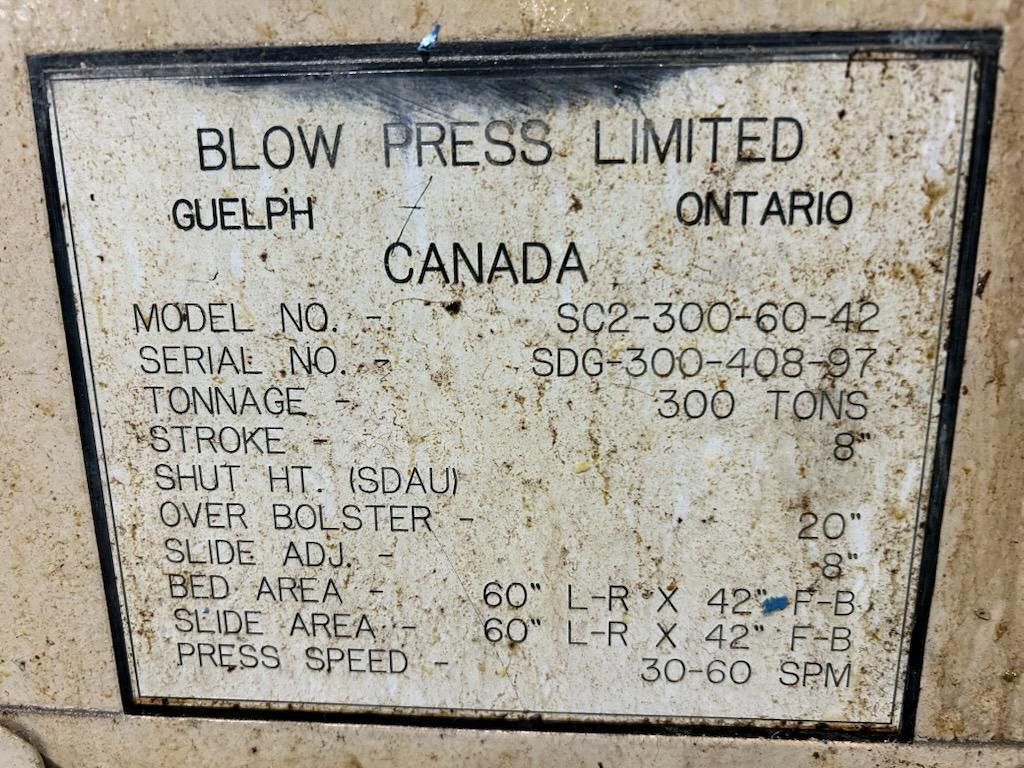

Blow Press Model SC2-300-60-42
Serial Number SDG-300-408-97

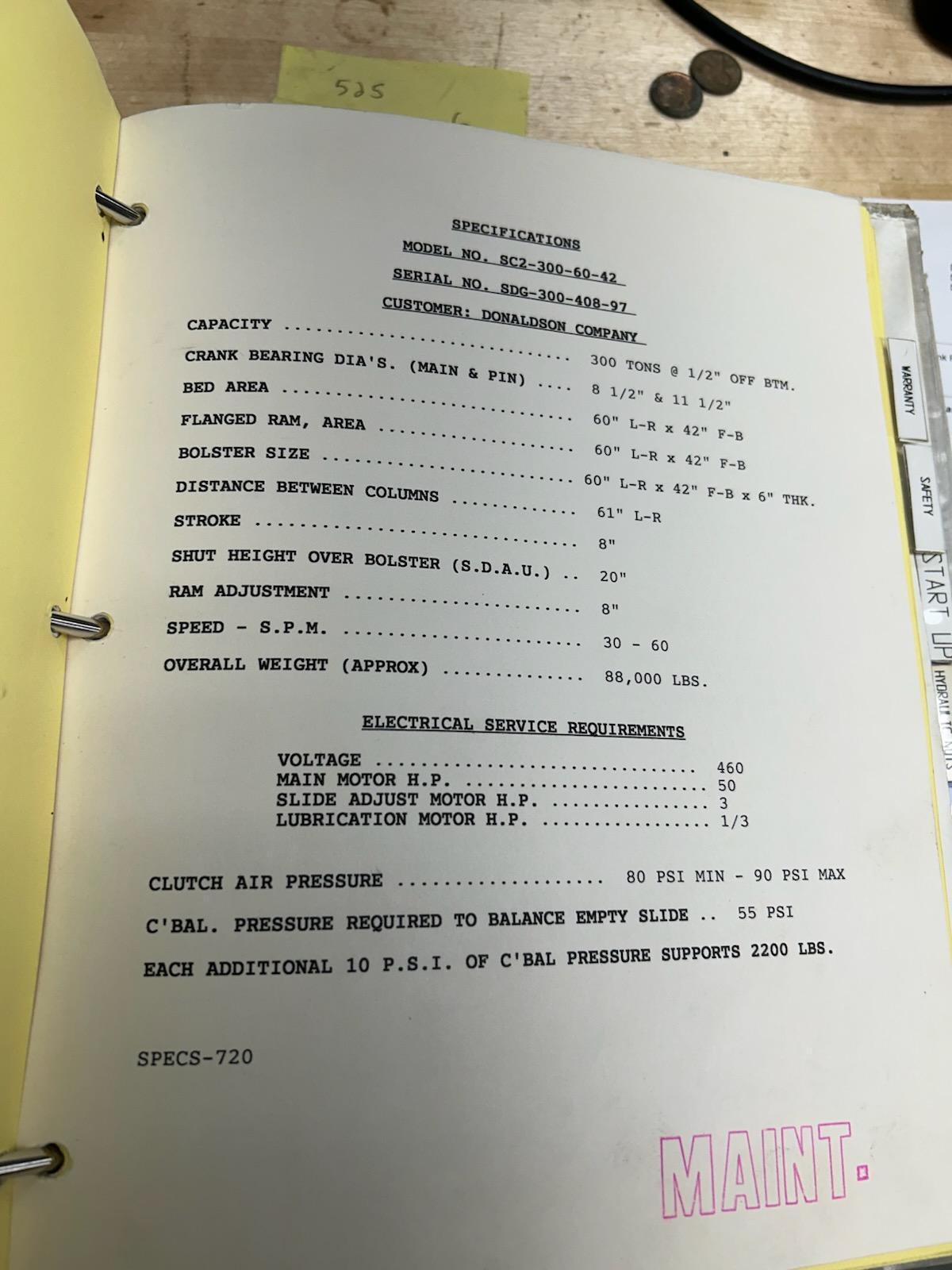

Standard Specifications
300-ton Capacity
8" Stroke
26" Shut Height on Bed
20" Shut Heigh on Bolster
8" Motorized Adjustment
60" LR x 42" FB Bed Area
60" LR x 42" FB Slide Area
30-60 VSPM

Equipment and Features
Air Clutch and Brake
Air Counterbalances
Recirculating Lube System
T-Slotted Ram and Bolster
6" Bolster Plate Thickness
Twin End Drive
Vibro-Dynamic Floor Pads
26" Wide Windows
460 Volt / 50 HP Main Motor
Wintriss Light Curtains Front and Back

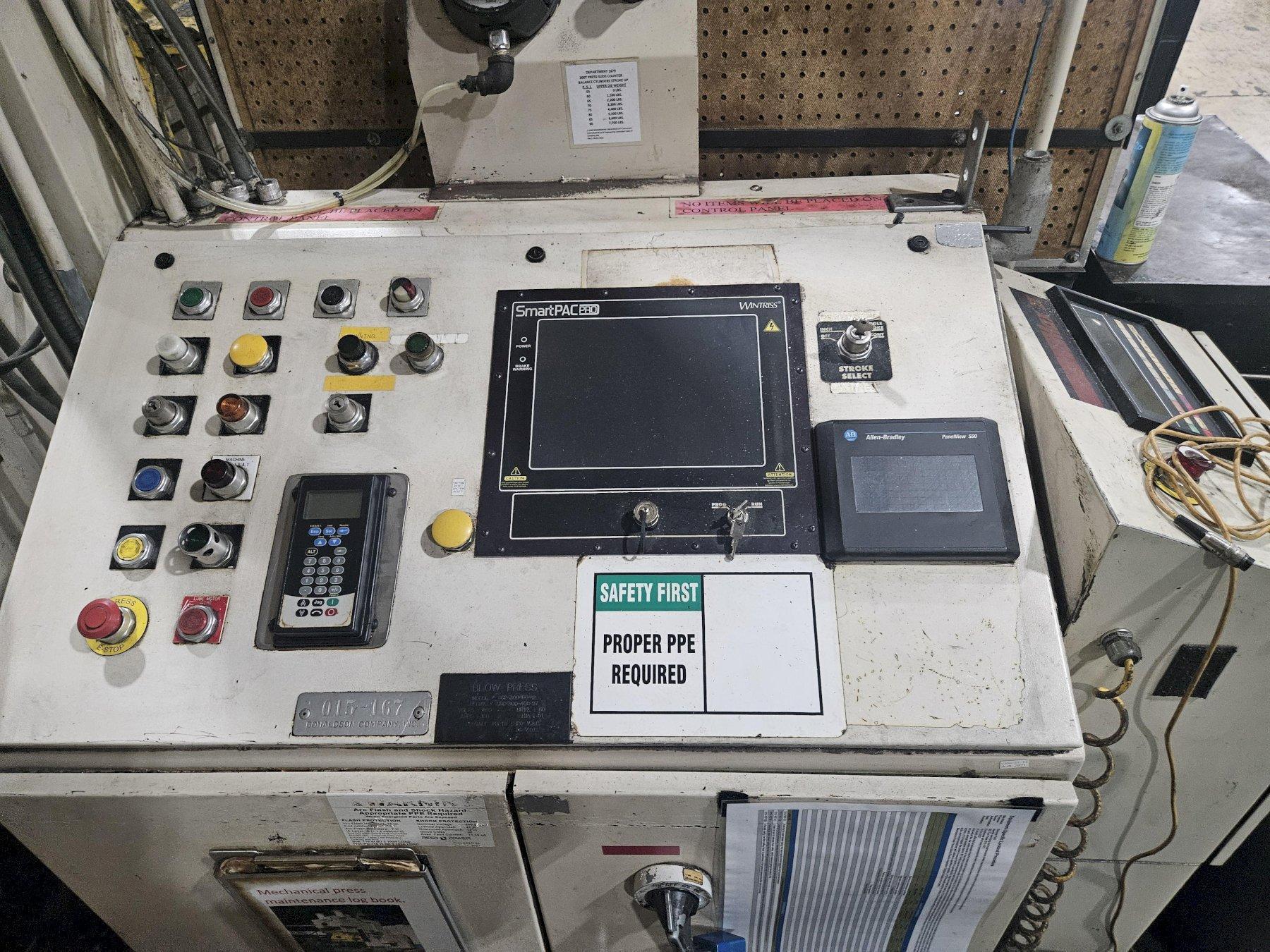

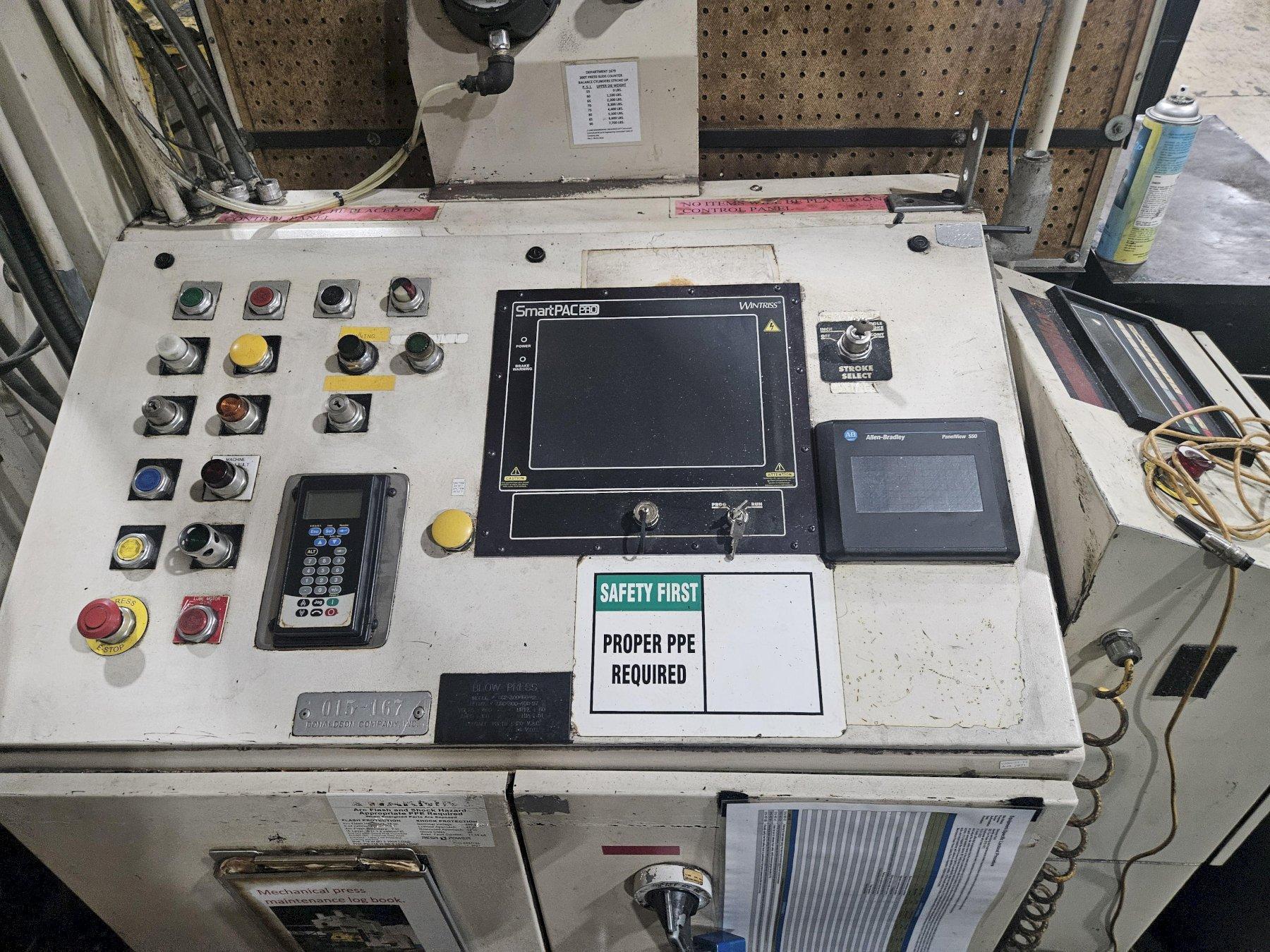

Wintriss SmartPac PRO Press Controls
Floor Standing

Approx. Press Weight:  #88000 lbs.

Price includes installation of NEW Flywheel Bearings.

Can be seen under power in the S&G Press Livonia Michigan Warehouse.

If you're searching for a reliable used mechanical press, consider this robust 300-ton Blow Straight Side Mechanical Press, Model SC2-300-60-42. This heavy-duty industrial press offers an impressive 300-ton capacity, ideal for demanding metal stamping and forming operations.

With an 8-inch stroke and generous 60" LR x 42" FB bed and slide areas, it accommodates diverse tooling and large workpieces. The twin end drive ensures superior force distribution, leading to enhanced precision and die life. Equipped with an air clutch and brake, air counterbalances, and a recirculating lube system, this Blow press is built for continuous, high-performance production.

Safety is paramount, thanks to Wintriss Light Curtains (front and back) and Wintriss SmartPac PRO Press Controls, providing advanced monitoring and diagnostics. Vibro-Dynamic Floor Pads minimize vibration for quieter operation. This floor-standing straight side press also includes new flywheel bearings for immediate, reliable use. Discover the efficiency and power of this used 300-ton press machine for your manufacturing needs.
