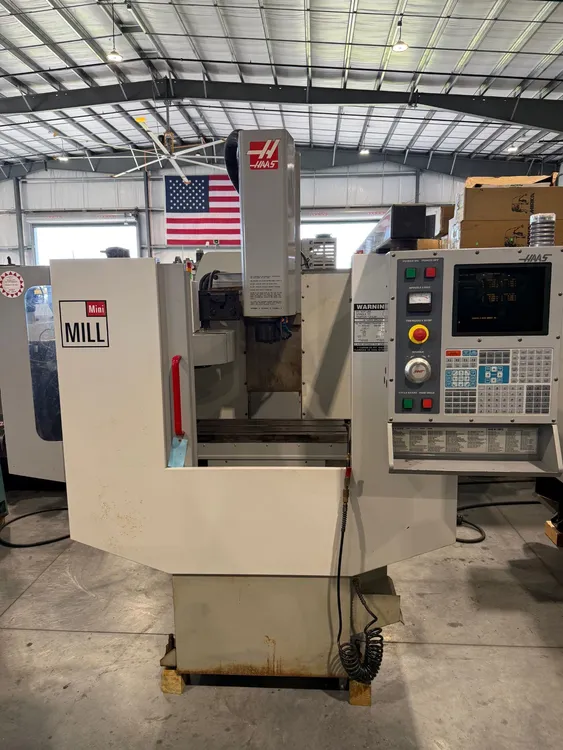

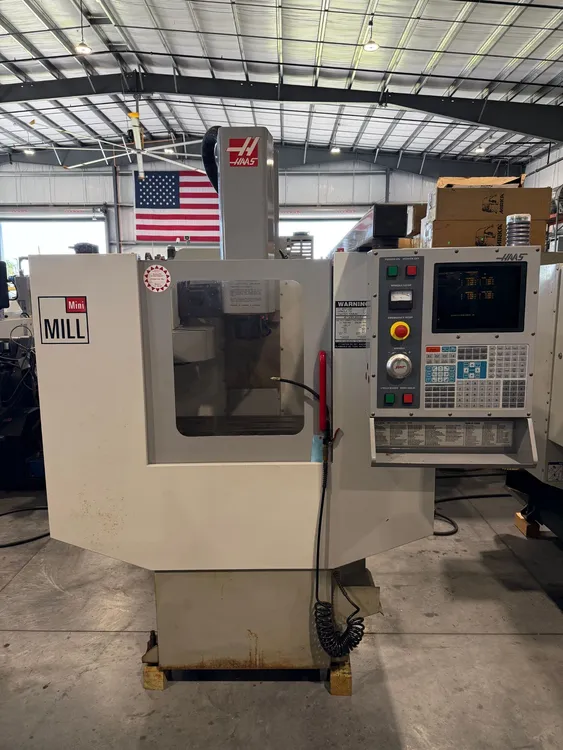

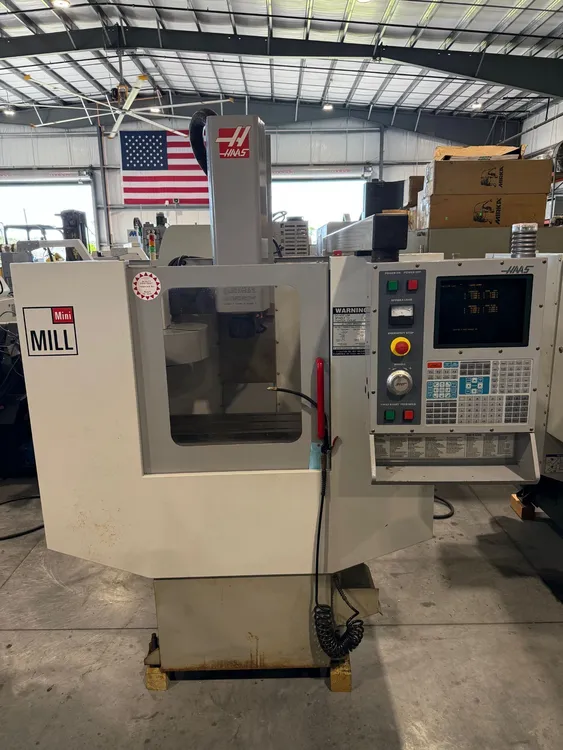

HAAS MINI MILL CNC Vertical Machining Center 2002’ #7626

Manufacturer

HAAS

Category

Machining Centers

Type

MACHINING CENTERS, VERTICAL, CNC, (Multiple Spindle)

Stock

7626

Model

MINI MILL

Dealer Location

Florida

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Overview

Type:
Vertical Machining Centers
Manufacturer:
HAAS
Model:
MINI MILL
Year:
2002
Stock #:
7626
Status:
For Sale

Description

HAAS MINI MILL CNC Vertical Machining Center 2002’ #7626

X axis16"406.4 mm
Y axis12"304.8 mm
Z axis10"254 mm
Power7.5 hp5.6 kW
RPM6,000 RPM6,000 RPM
# ATC1010
TaperCAT-40CAT-40
Table-W12"304.8 mm
Table-L36"914.4 mm
Dimensions90” x 64” x 100” H90” x 64” x 100” H
Weight4200 Lbs.4200 Lbs.

HAAS MINI MILL CNC Vertical Machining Center 2002’ #7626
Reference #7626
Model # Mini Mill

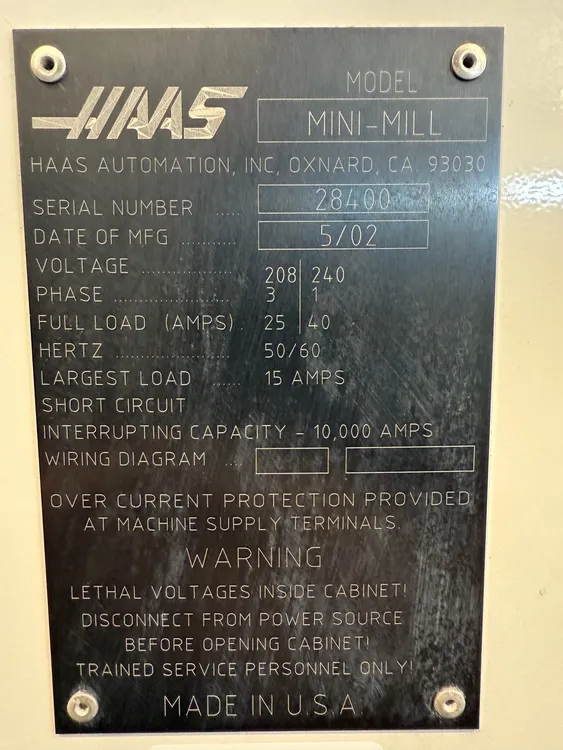

Serial # 28400
Year of manufacture- 5/2002’

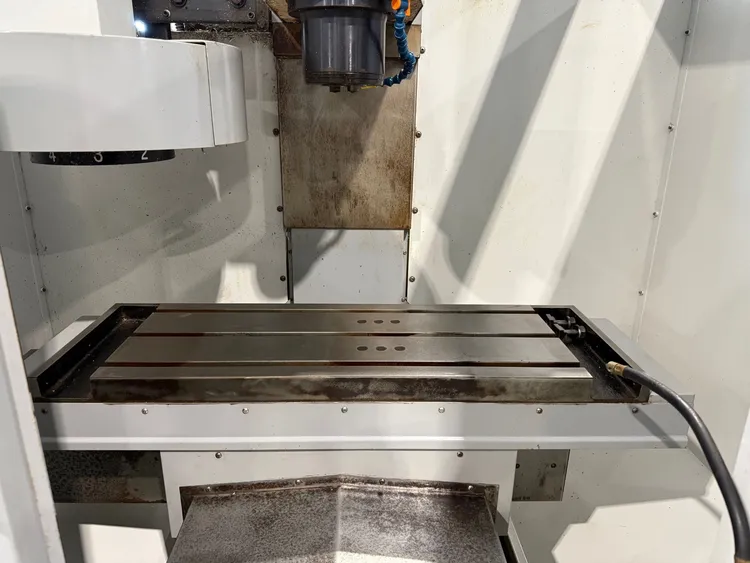

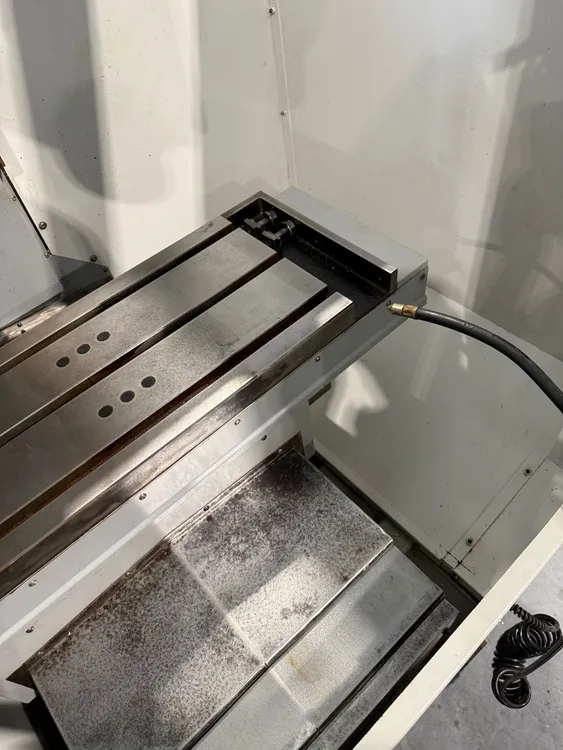

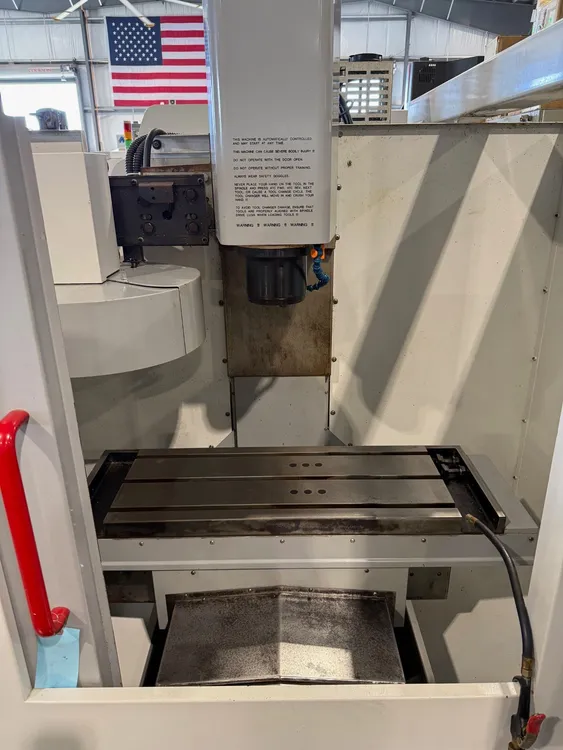

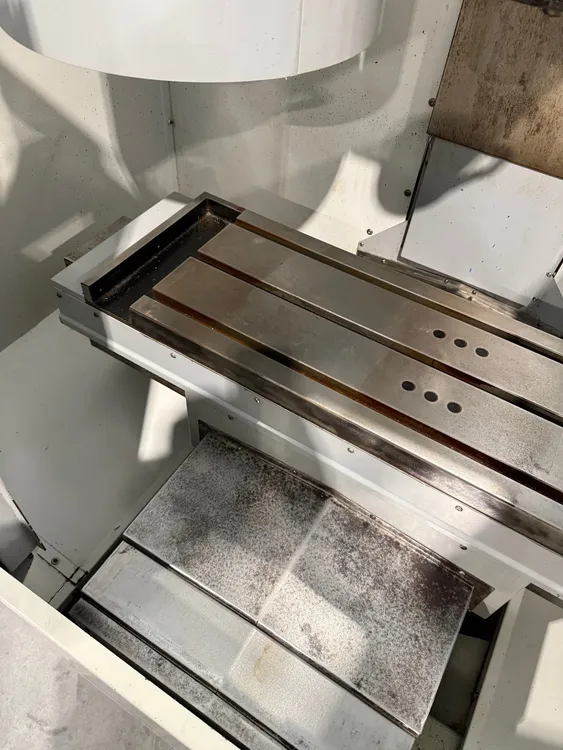

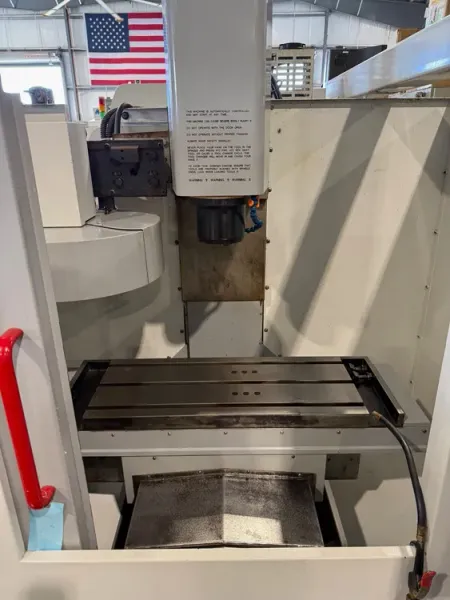

Table size- 36” x 12”
Number of T slots- (3)
Maximum table weight- 500 Lbs.
Maximum spindle speed- 6,000 R.P.M.
Spindle taper- CAT-40
X axis travel- 16”
Y axis travel- 12”
Z axis travel- 10”
Minimum / Maximum spindle nose to table- 4” / 14”
X,Y,Z Rapids- 600 I.P.M.
Tool changer capacity- 10
Tool to tool time- 4.2 seconds

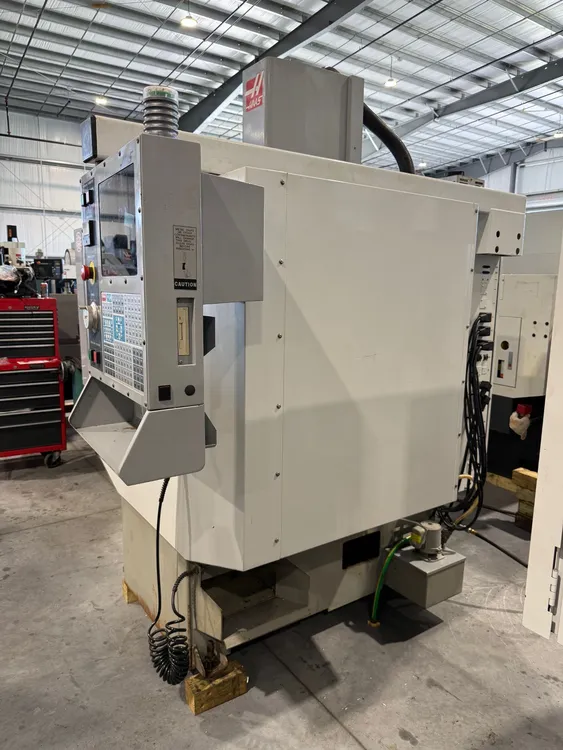

HAAS CNC Control
Prewired for 4th axis
Control options- Rigid tapping, DNC, Macro’s, Quick code
(4) Leveling feet
Air blow off gun
Coolant tank & pump
Servo time- 645 Motion time-124, Spindle time-143

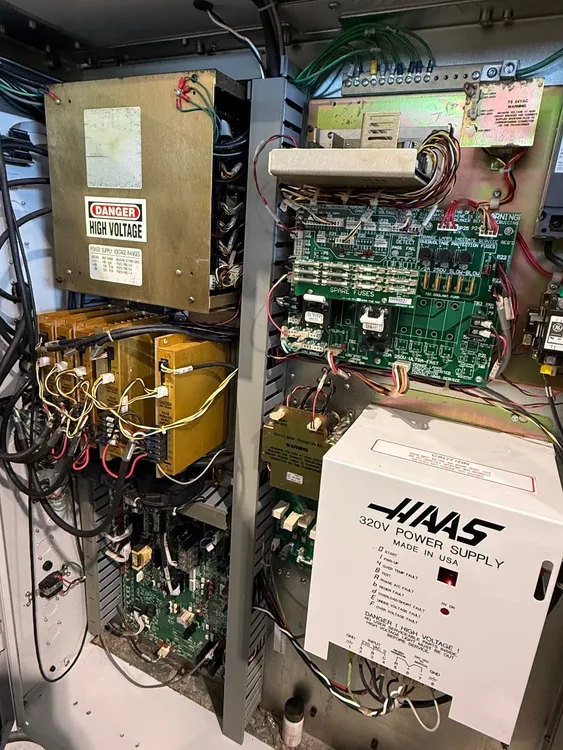

Machine can be wired for 203 / 3 phase or 240 single phase
Machine is wired for 230 volt / 3 phase / 60 H.Z.
Machine weight- 4200 Lbs.
Machine dimensions- 90” x 64” x 100” H
Machine location- F.O.B. Sarasota, Florida
