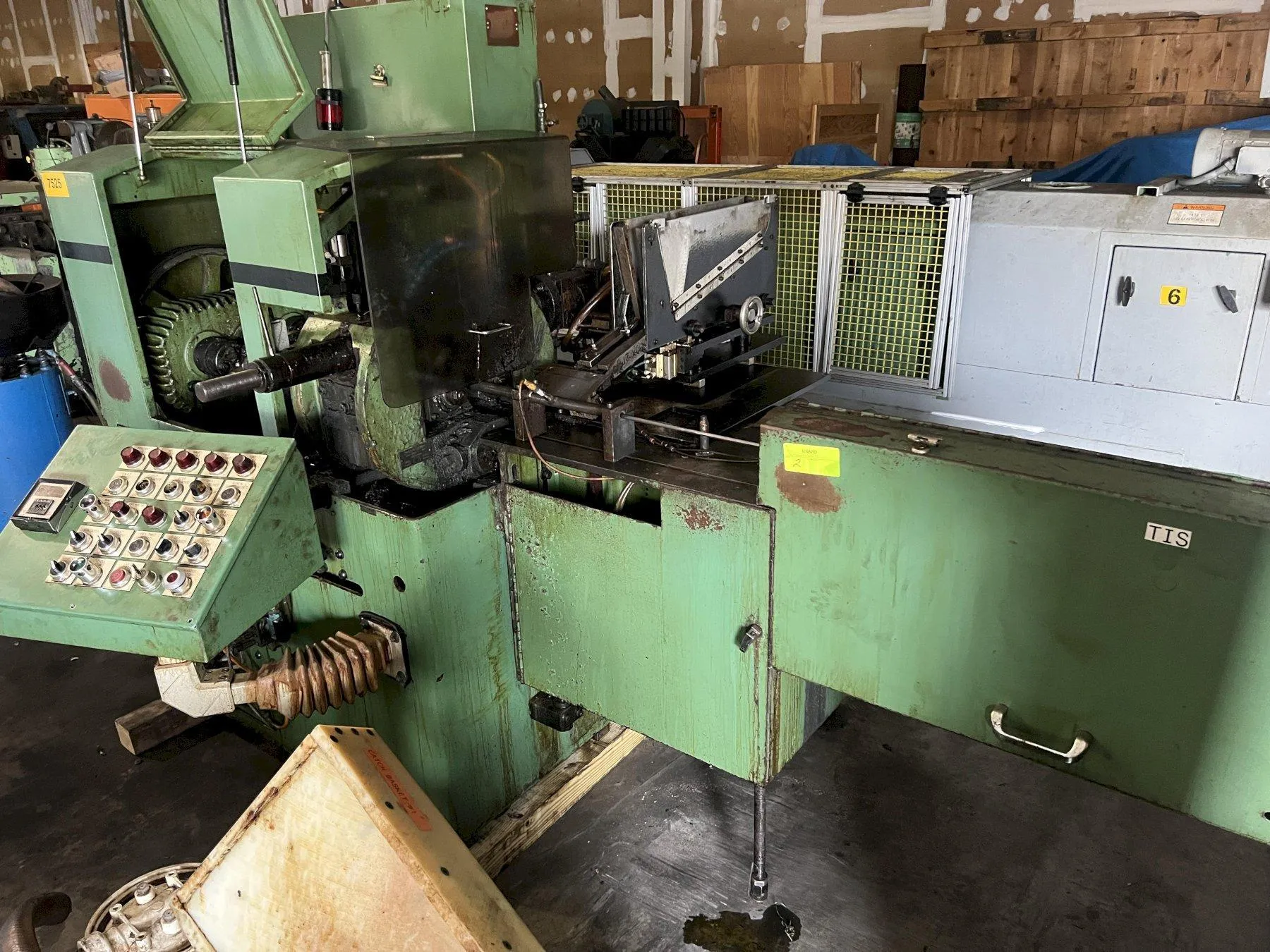

Kinefac MC-10F Thread Rolling Machine

Manufacturer

KINEFAC

Stock

TMth10

Model

MC-10F

Dealer Location

Illinois

Spec Sheet

Spindle Diameter - 2"
Maximum Die Width - 4 1/2"
Die Diameter Range - 3 3/4"-5"
Min. Diameter In or Thru Feed - 1/32”
Max. Diameter Thru Feed - 1.5"
Max. Infeed Diameter - 2"
Die Center Distance Range - 3” – 5”
Maximum Radial Die Load - 25 Tons
Available Die Speeds - 155-558 RPM
Die Drive - 20 HP
Hydraulic Drive - 1 HP
Electrics - 3/60/440 V


EQUIPPED WITH:
Operators Pendant Controls for Automatic and Manual Infeed and Thru Feed Cycles.  Kine-Mat Shaft Feeder.   (1) Set of Dies.  Lubrication System.
