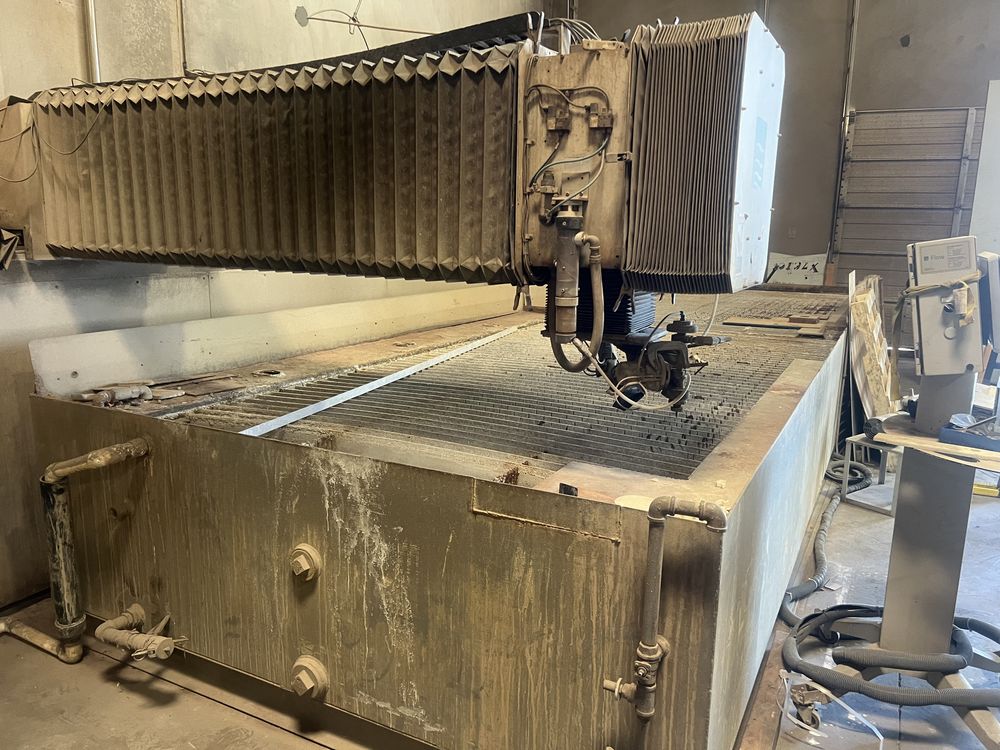

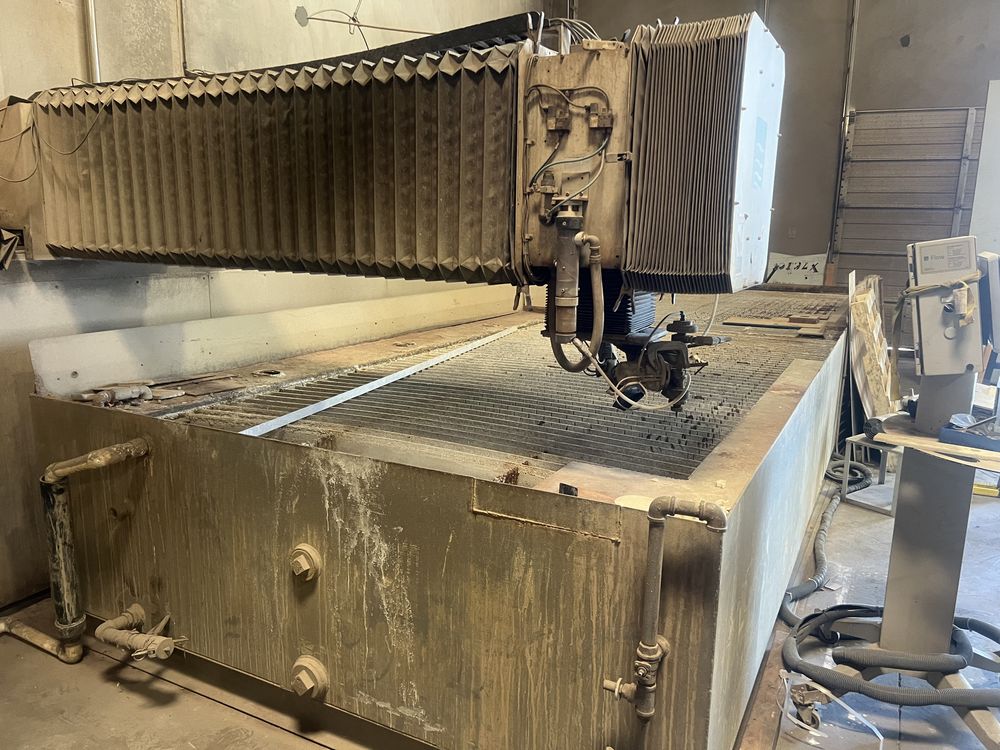

Flow I-6012 IFB CNC Waterjet

Manufacturer

Flow

Stock

181250019

Model

I-6012 IFB CNC Waterjet

Dealer Location

Georgia

Spec Sheet

  • Stock #: 181250019
  • Location: North Las Vegas, NV
  • Brand: Flow
  • Model: I-6012 IFB CNC Waterjet
  • Year: 2007
  • Approx. Shipping Weight: 16,000 Lbs.
  • Approx. Shipping Dimensions: 180″ L x 102″ W x 40″ H
  • Loading Fee: Rigging Required

Specifications

  • Cutting Area X Axis: 6′
  • Cutting Area Y Axis: 12′
  • Z-Axis Travel: 8 Inches
  • Rapid Traverse Speed: 500 Inches Per Minute
  • Repeatability: +/- 0.001 Inches
  • Positional Accuracy:: +/- 0.002 Inches
  • Dynamic XD 5-Axis Taper Compensation: +/- 10 Degrees
  • Number Of Axes: 5
  • Pump Motor: 100 Horsepower Abrasive Delivery System
  • Pump Pressure: 87000 PSI
  • Hopper Capacity: 500 Pounds
  • Power Requirements: 480 Volts, 3-Phase

Equipped With

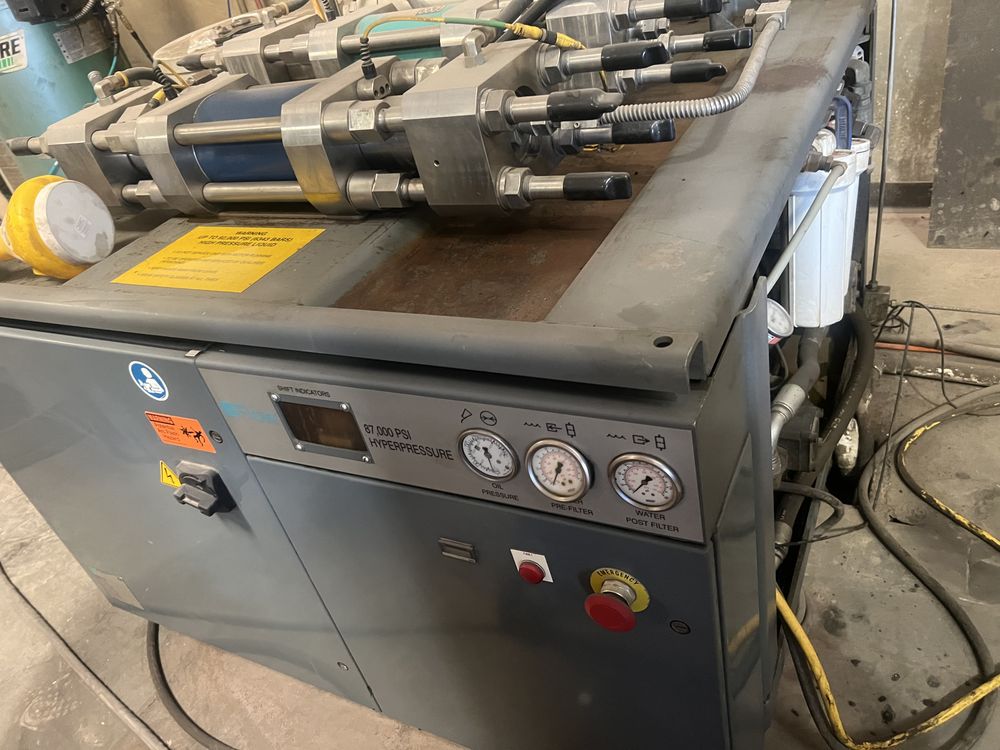

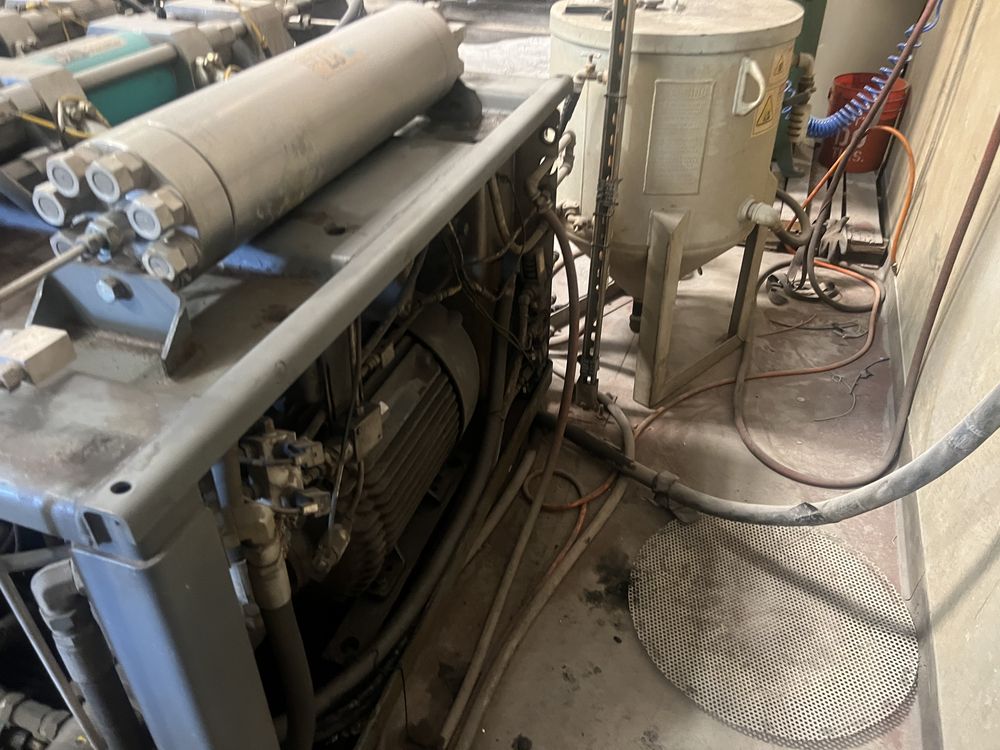

Hyperjet 100 Intensifier Pump, PaserMach4 Abrasive Jet Cutting System With Cutting Head, Flowpath Software 6.2, Flowcut Software with DWJ Predictive Mathematical Models & Active Tolerance Control, Raster To-Vector Software, Waterveyor Abrasive Removal System, High Pressure Whip Plumbing Package, Dynamic Waterjet Precision Z – Axis, 5 – Axis Kinematics With Articulated A/B Wrist, Precision Quick Clamp Cutting Head Mount, Paser Shield, TouchDown Height Sensor, Paser ECL Plus Abrasive Cutting System; Dynamic Waterjet With Single Mounting Bracket, Precision Paser Cutting Head; Dynamic Waterjet, Exclusive Flow Feed System; 500 LBS

Additional Info

Inspection Upon Request
