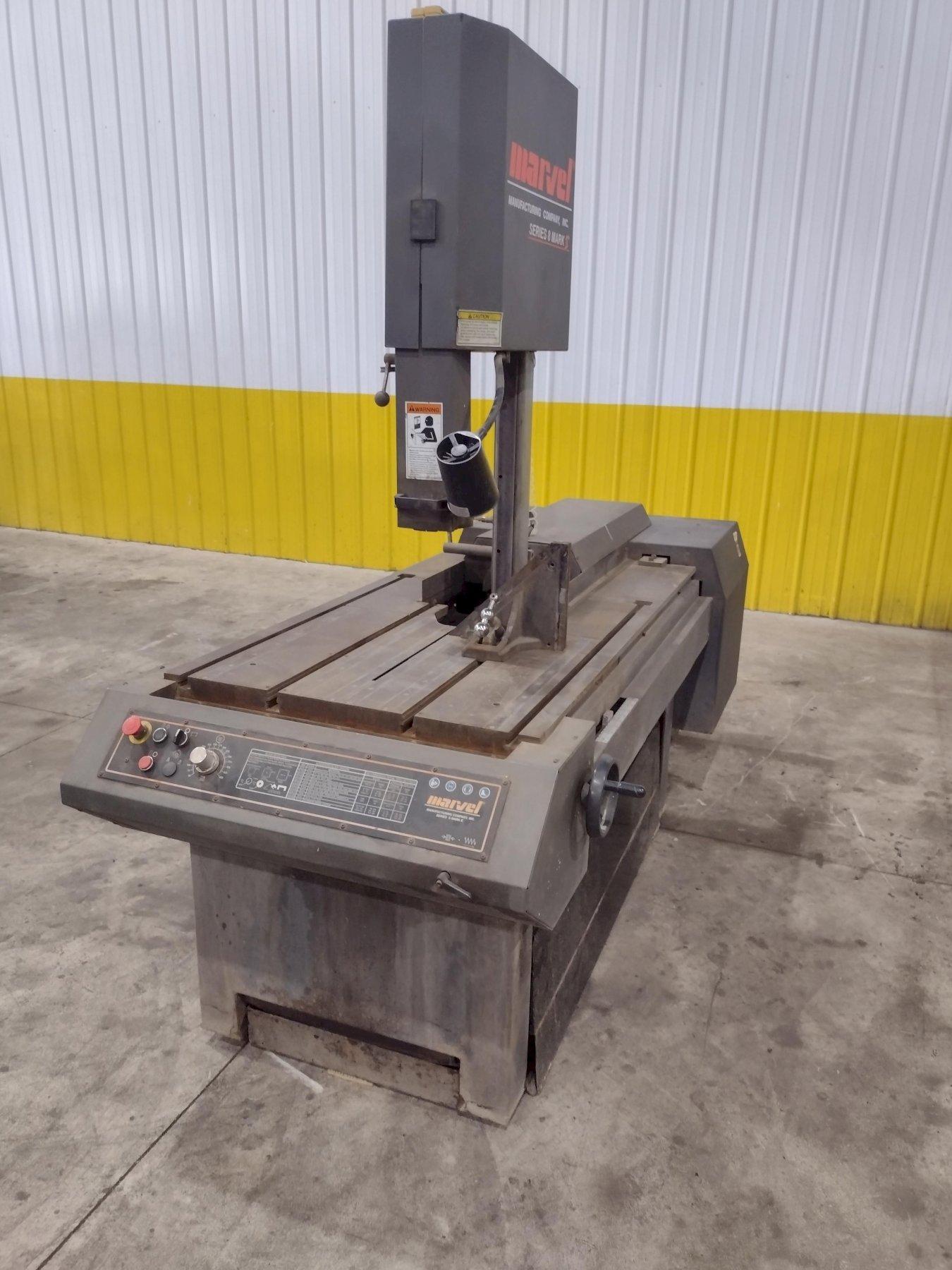

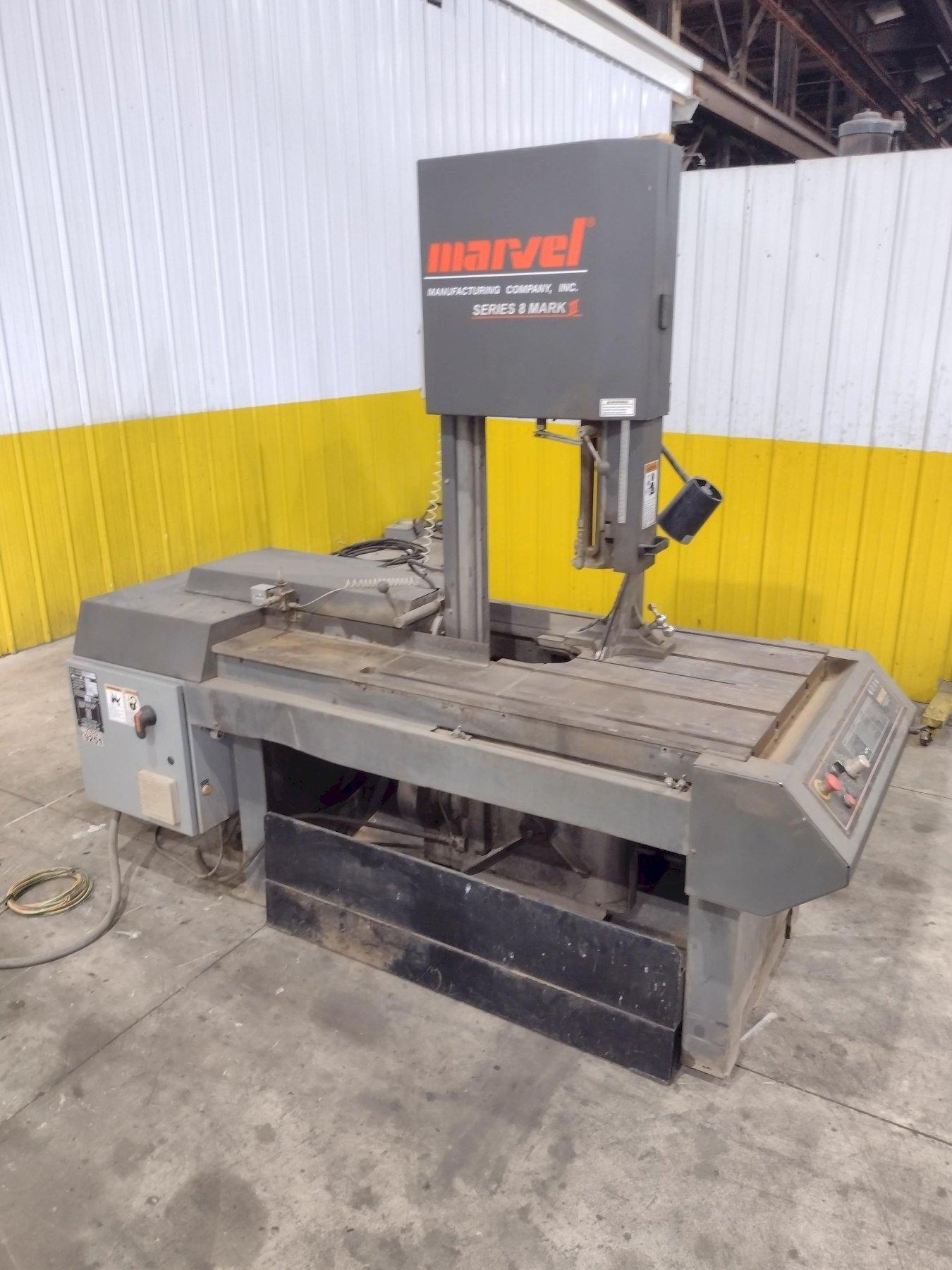

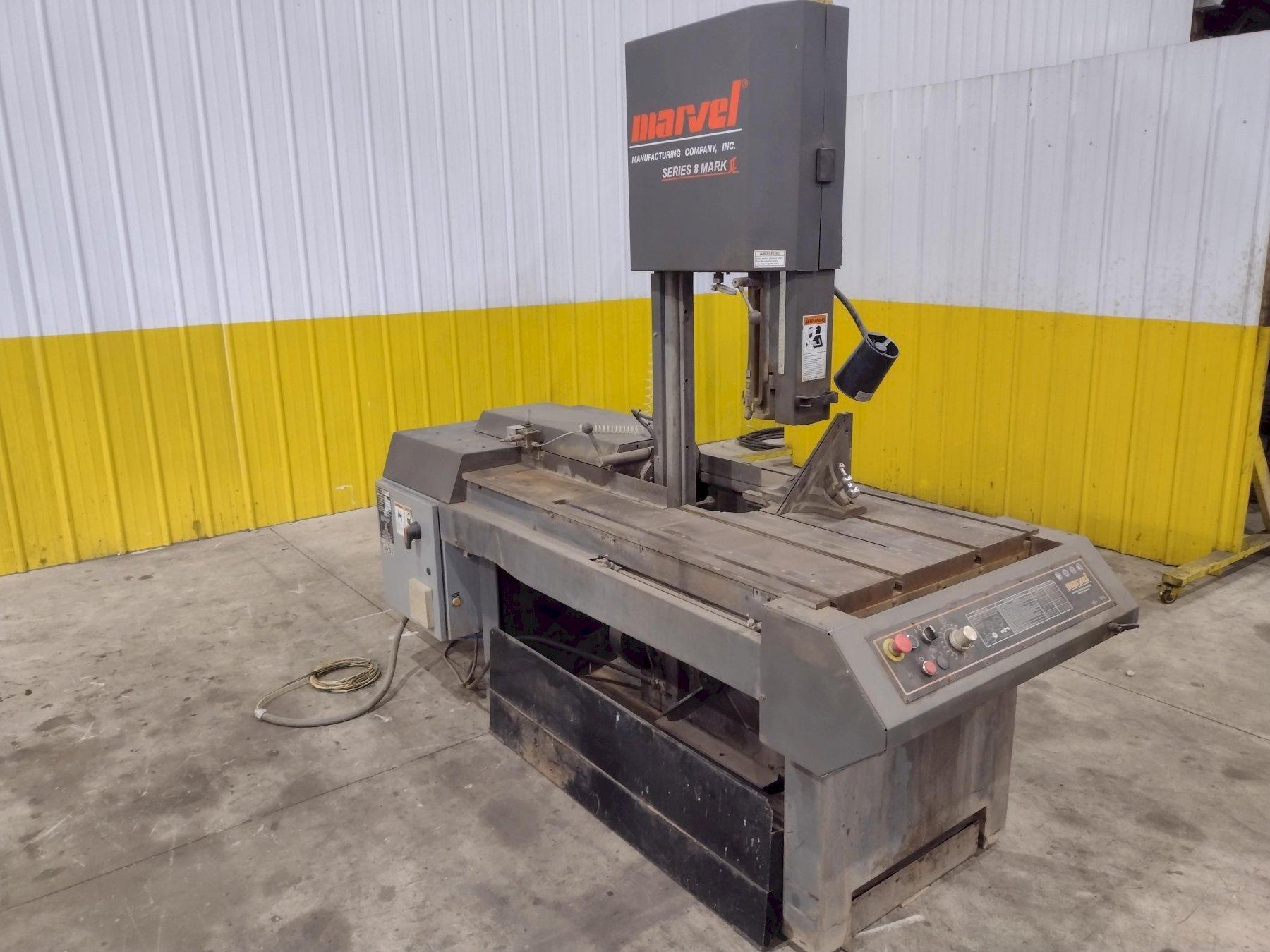

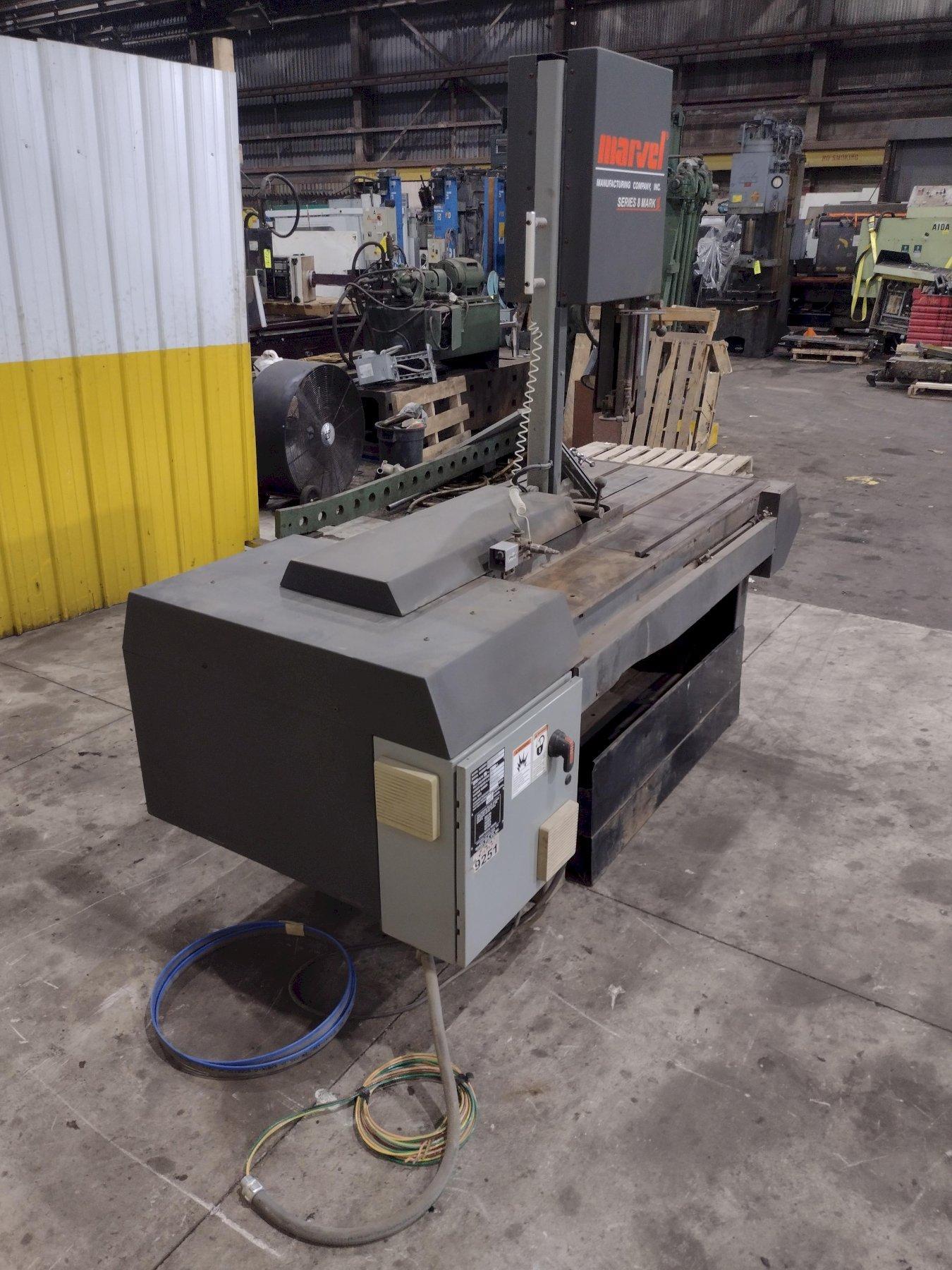

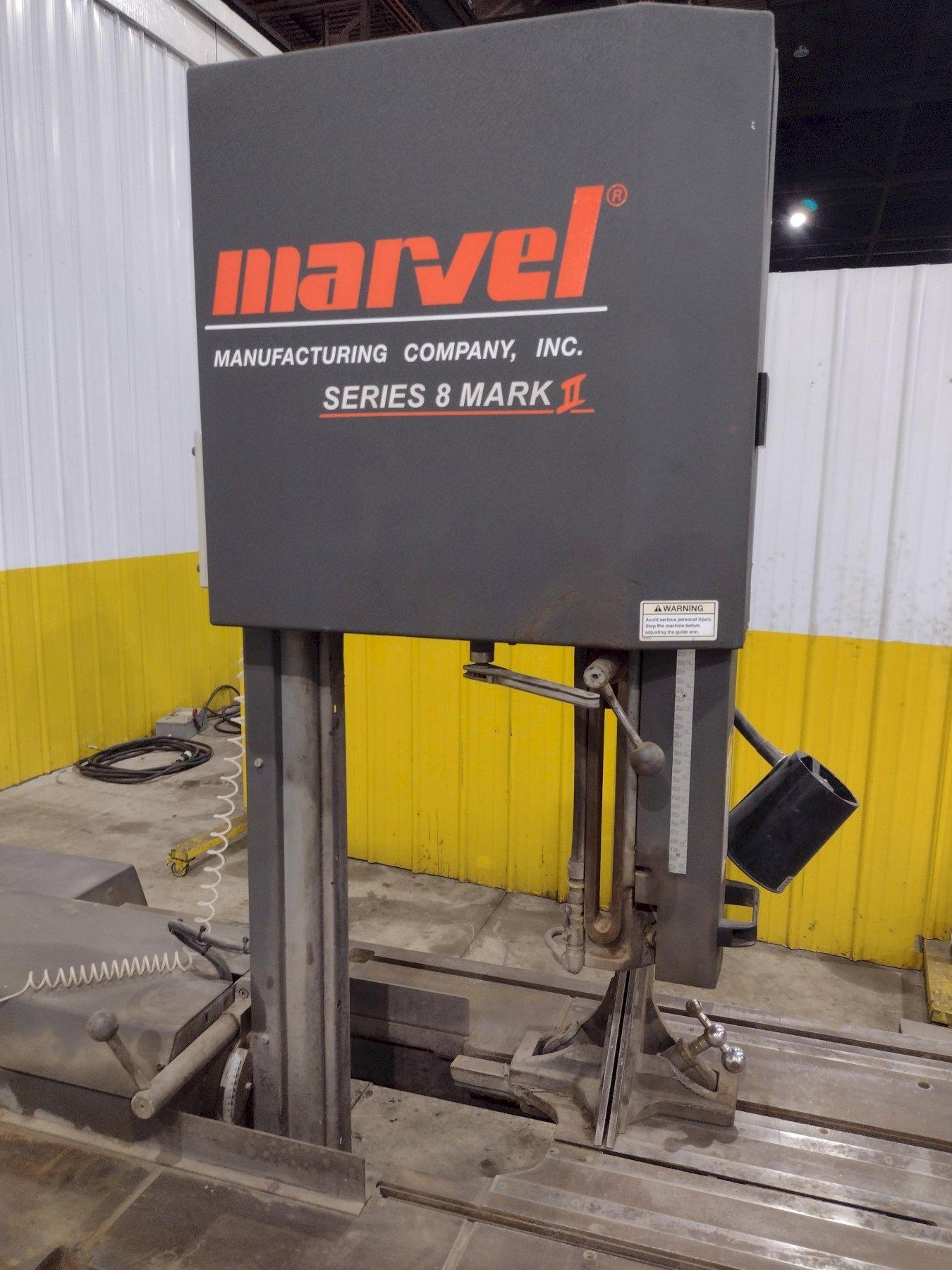

18" X 22" 2018 MARVEL AMADA SERIES 8 MARK II-V VERTICAL TILT FRAME BANDSAW: STOCK #23746

Manufacturer

MARVEL

Category

Saws

Type

SAWS, BAND, VERTICAL

Stock

23746

Model

SERIES 8 MARK II

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet

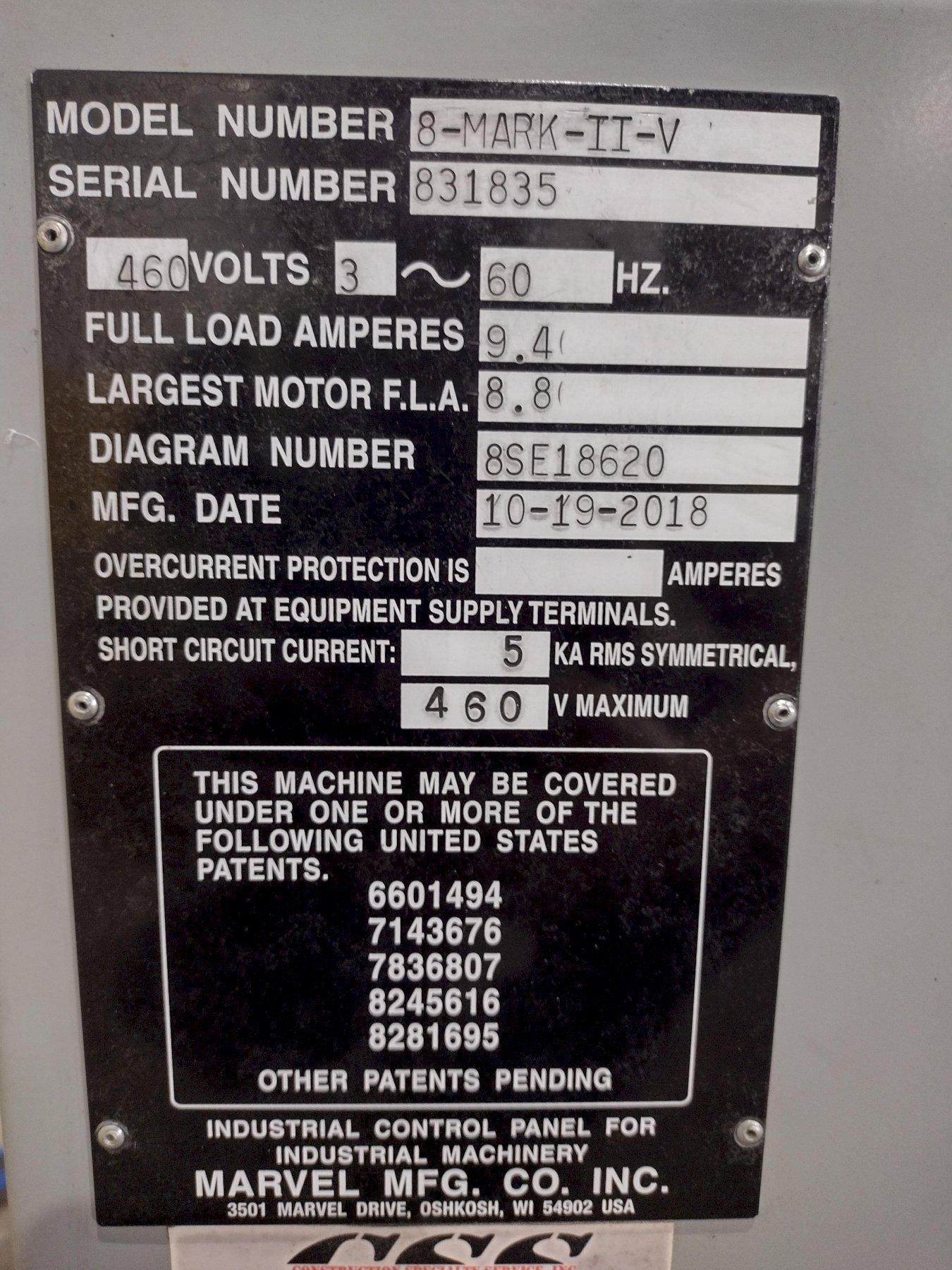

SERIAL 831835
NEW 10-19-2018
MODEL 8 - MARK-II-V

  • Mitered Cutting - Column and blade tilt right and left of vertical; work always stationary. Manual tilt standard with Sure-Lock and Built-in protractor.
  • Coolant System - Built In with flood system. Tank capacity 21 gallons (79 liters).

Specifications

  • Capacity at 90°: 18" x 22"
  • Capacity at 45°: 18" x 12.75"
  • Speed Range 50: 450 fpm (15 – 137 m/min) infinitely variable speed drive system.

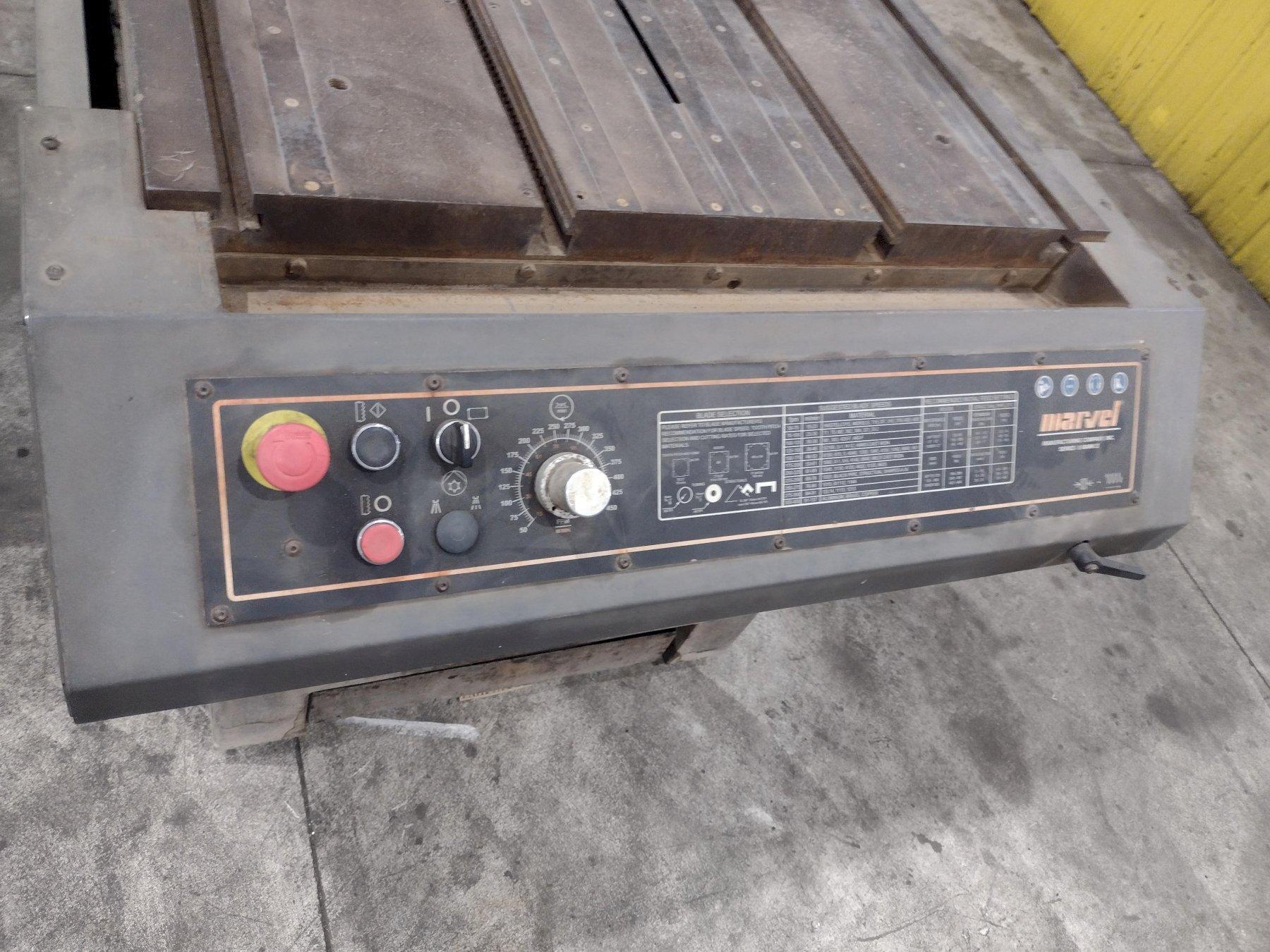

  • Front-Mounted Speed Control: Allows blade speed to be adjusted from operator’s control station.
  • Feed Range:  0 – 140 lbs. (64 kgf) infinitely variable direct reading scale balance beam.

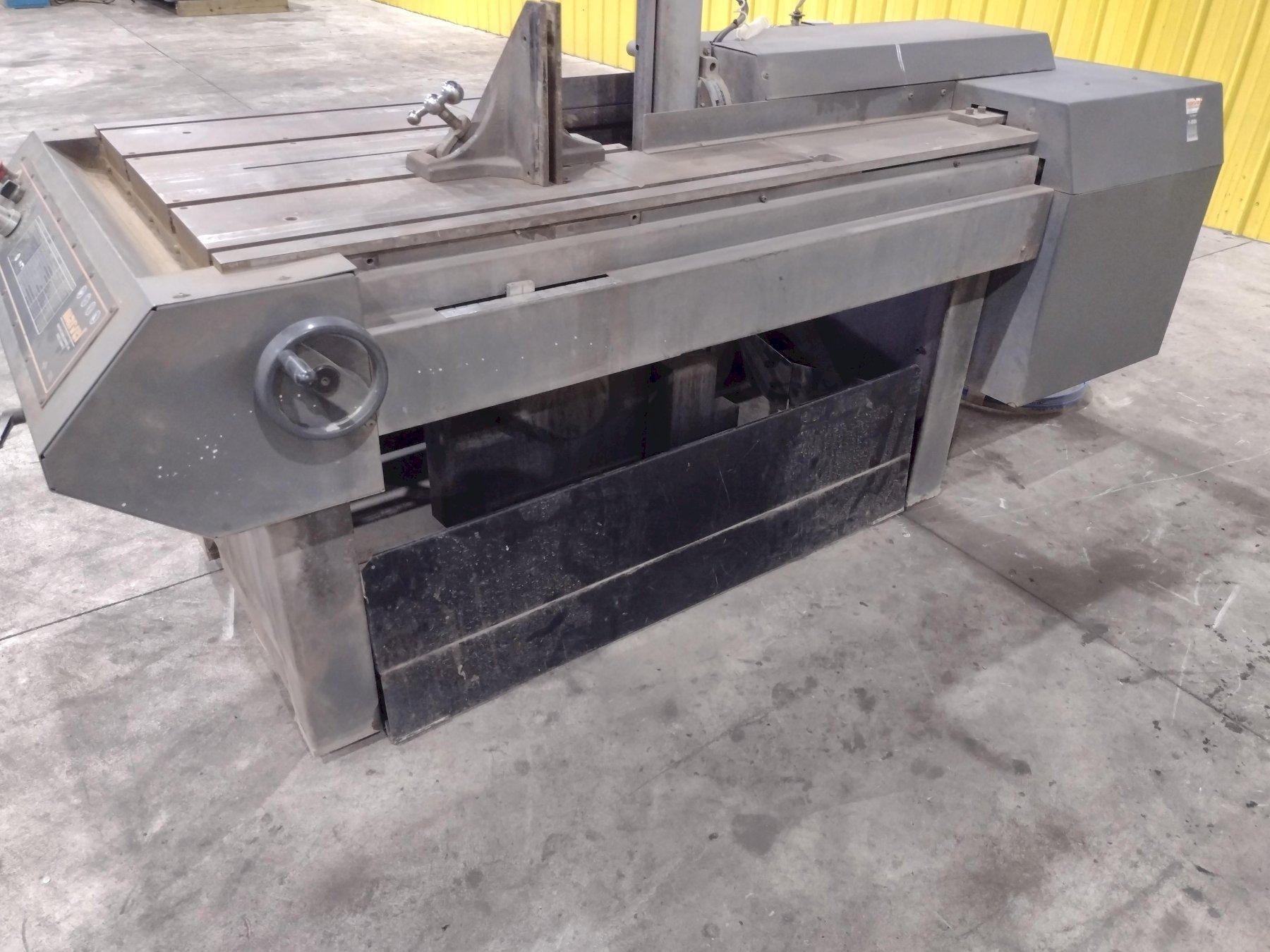

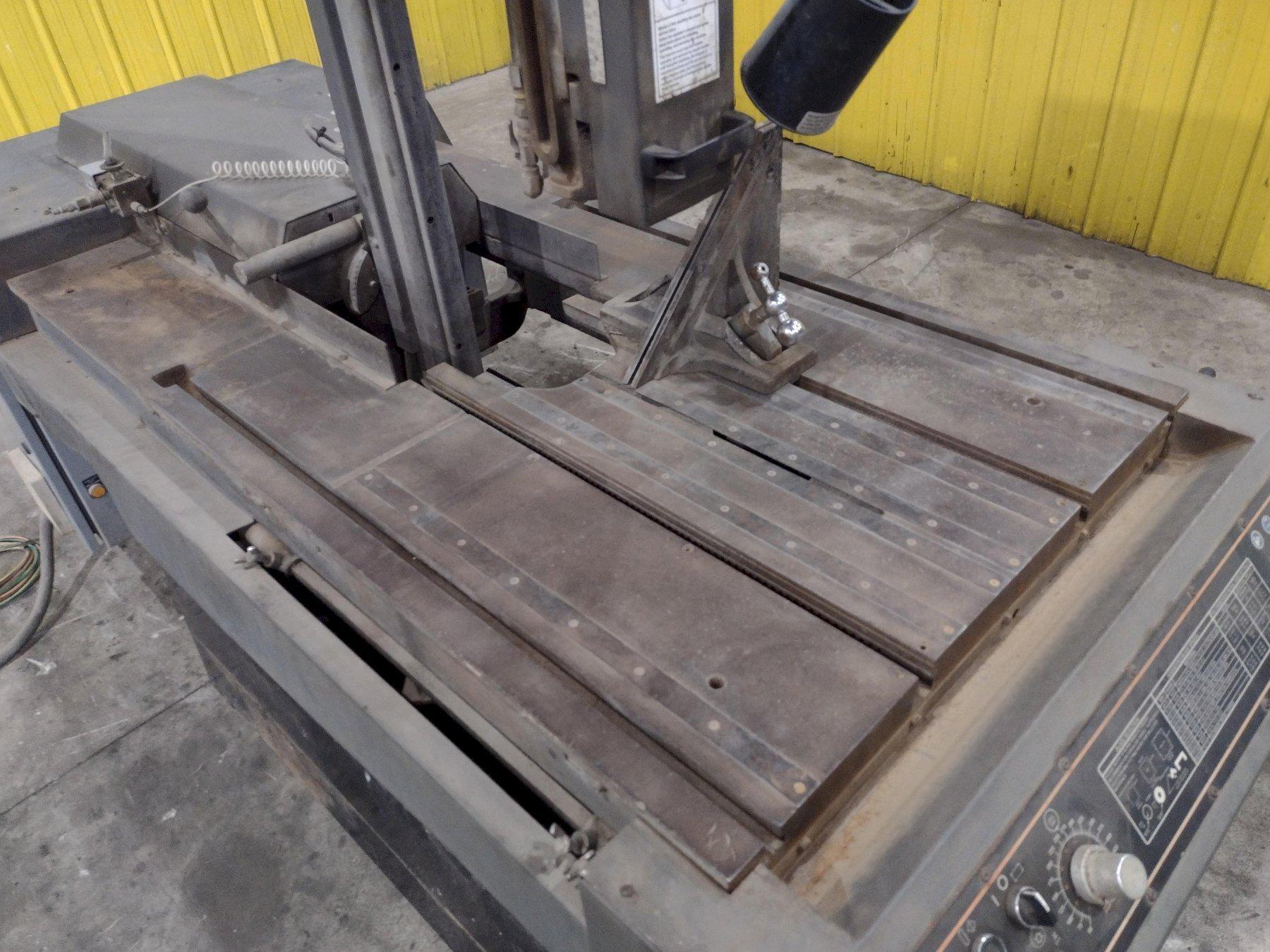

  • T-Slotted Work Table Work area: 24.25” x 33” (616 mm x 838 mm); table height 34.5” (876 mm); four machined T-slots accept .625” (15.5 mm) T-Bolts.

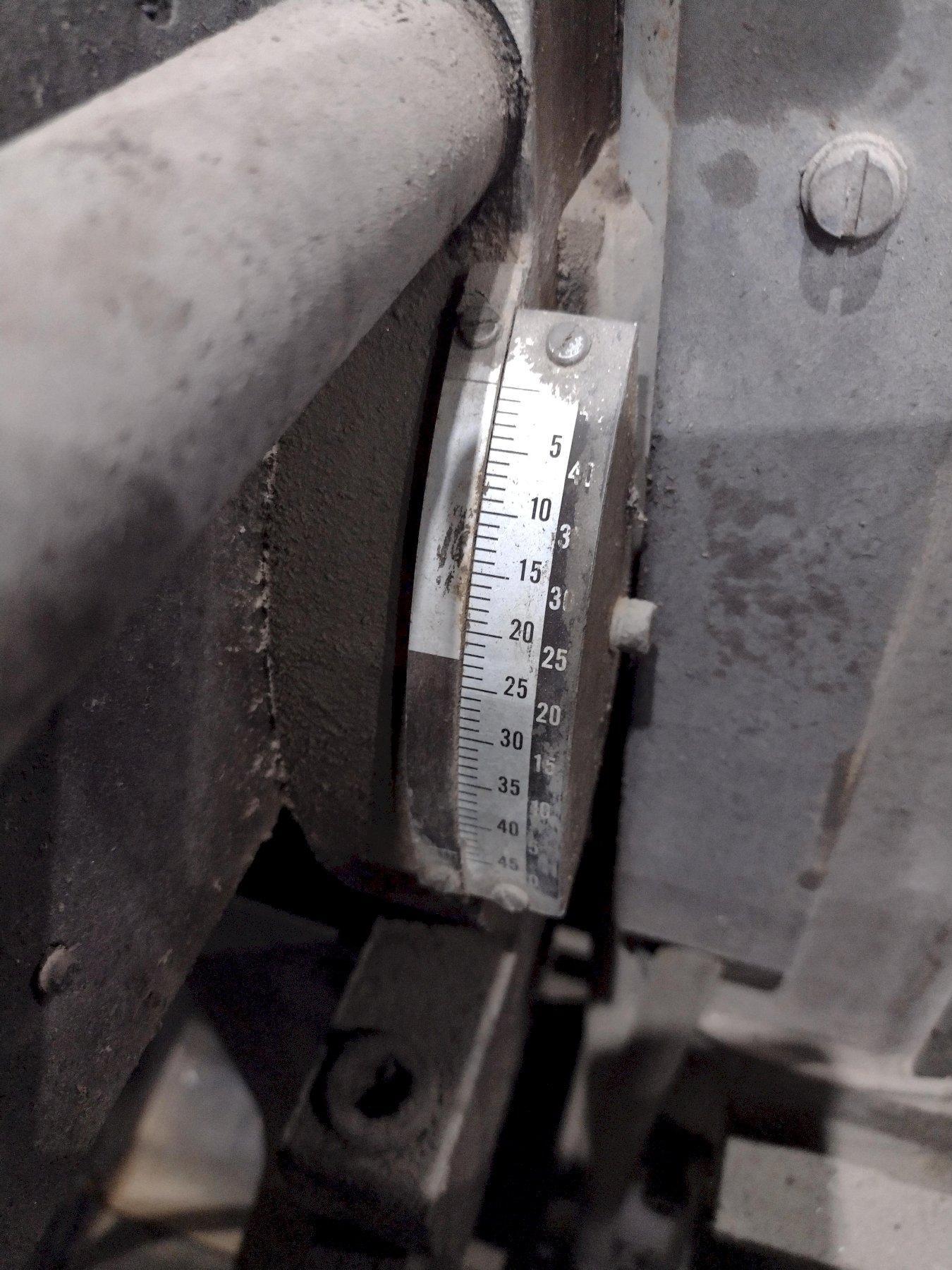

  • Miter Cutting: Column and blade tilt up to 45° right and left of vertical; work always stationary. Built-in protractor.

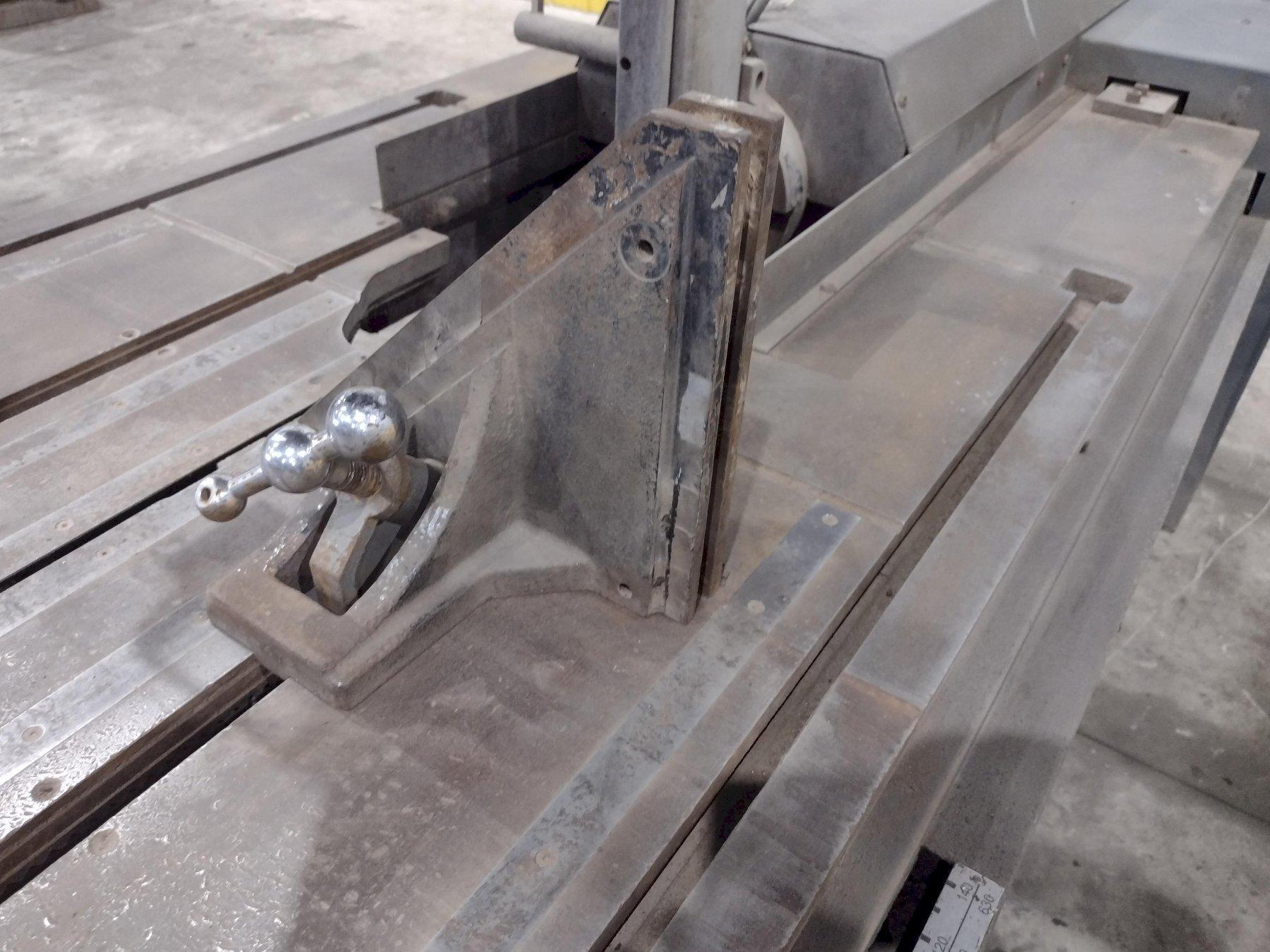

  • Quick-Action Vise: Maximum opening 18” (457 mm). Jaws can be shifted to either right or left side of blade. Jaws are 6” (152 mm) high, 12” (305 mm) wide.
  • Saw Feed Stops: Adjustable stops can be pre-set to stop advance of the saw head and return of blade and to stop motor at any location within the 18” (457 mm) travel of the blade.

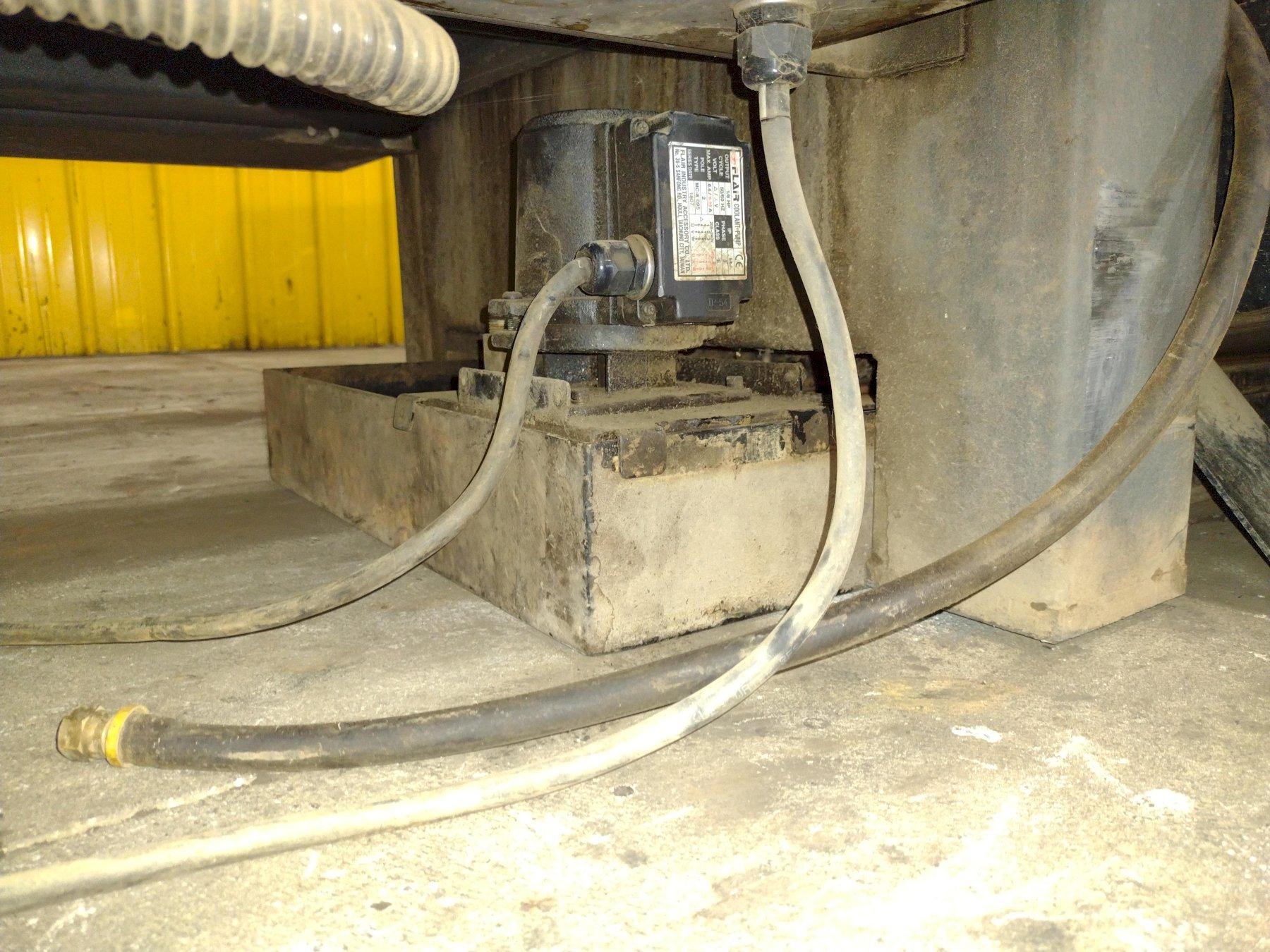

  • Coolant System: Built in with Flood system. Controlled by on-off selector switch at operator’s station. Tank capacity 21 gallons (79 liters).
  • Flushing Hose: Washes chips from hard-to-get-at places reducing clean-up time.
  • Power Chip Brush: Together with blade wipers and flood coolant keep blade teeth free of chips.
  • Carbide Guide System: Guides are stationary and can be rotated to present new guiding surface to the blade. Upper and lower guides have preloaded carbide-faced back-up blocks to support back edge of the blade.
  • Blade:  14” 6 (4420 mm) long x 1” (25 mm) wide, .035” (89 mm) thick. One Welded-Edge Band Blade is furnished with each machine.
  • Motors: Main; 5 H.P. (3.75 kW), 1800 RPM, totally enclosed fan cooled. Coolant Pump; 1/8 H.P. (.1 kW) totally enclosed motor-built-in integrally.
