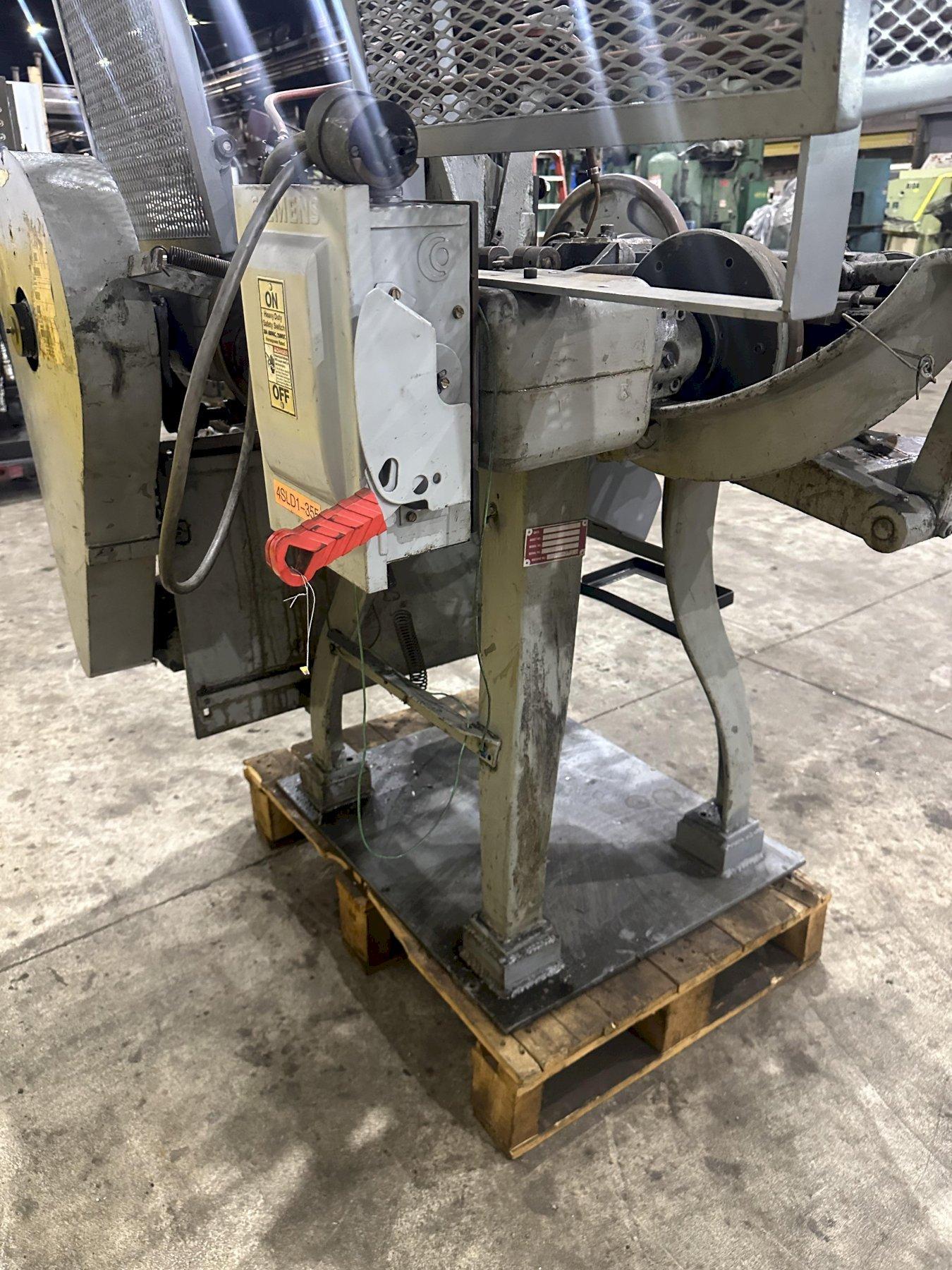

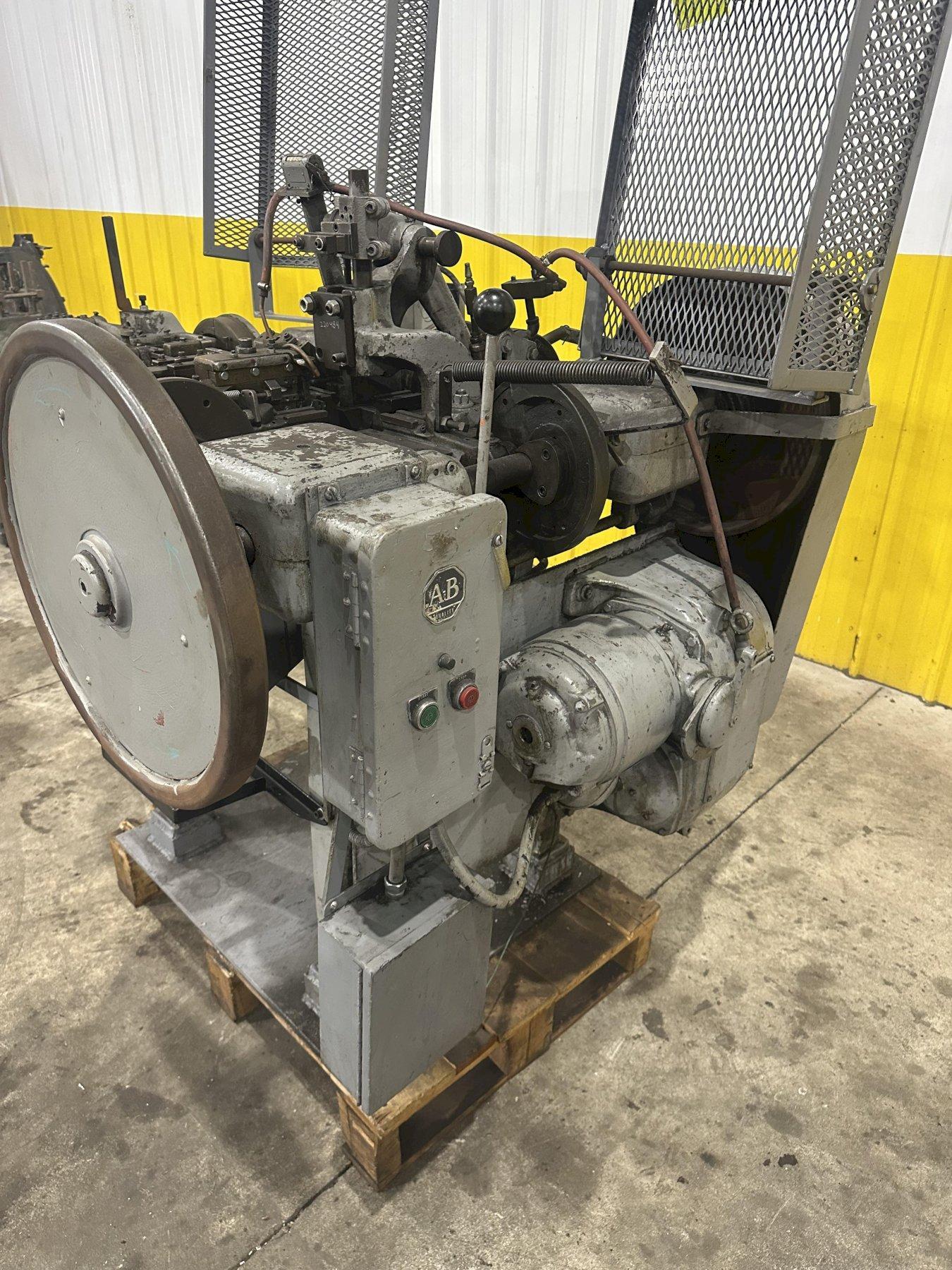

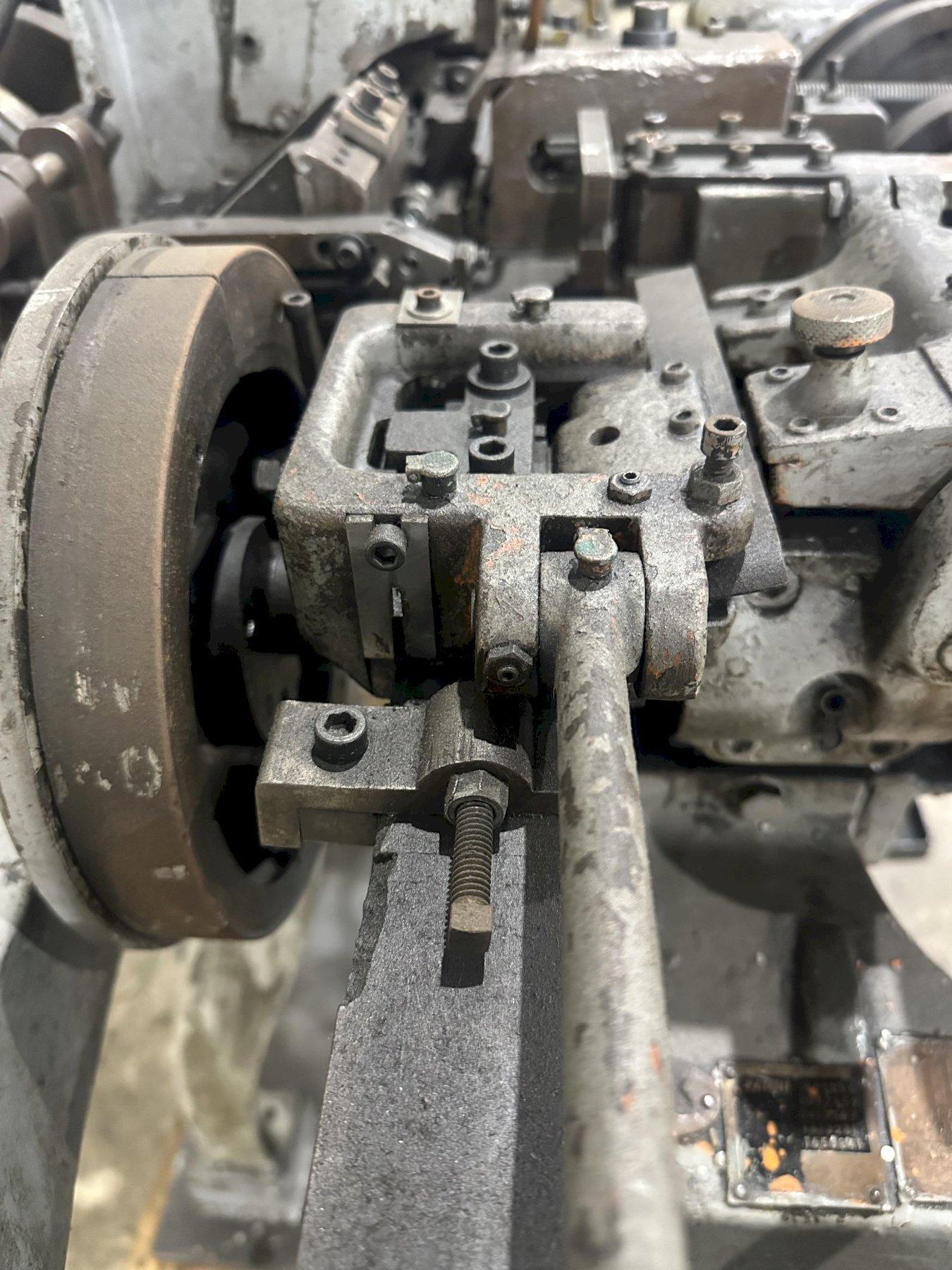

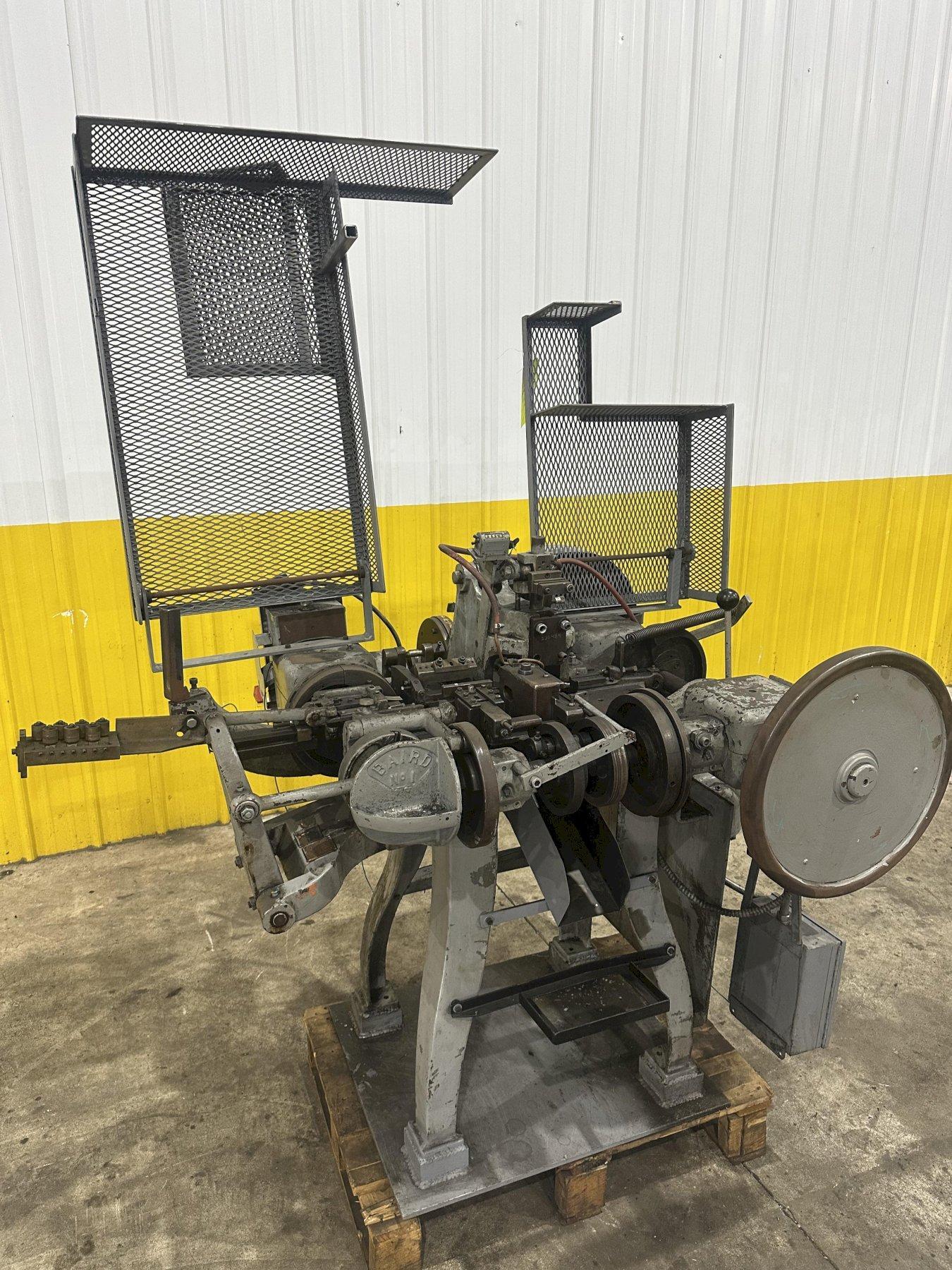

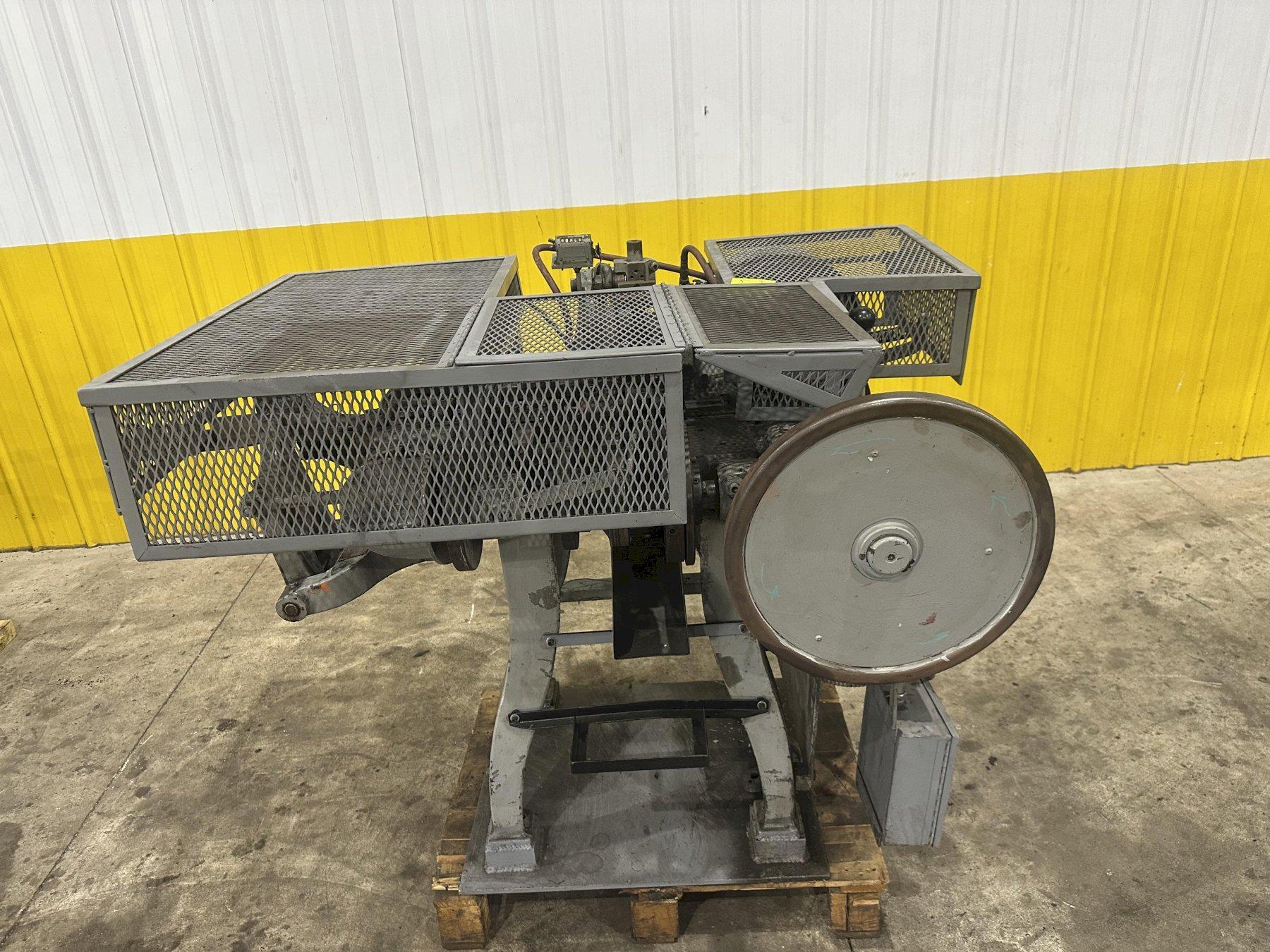

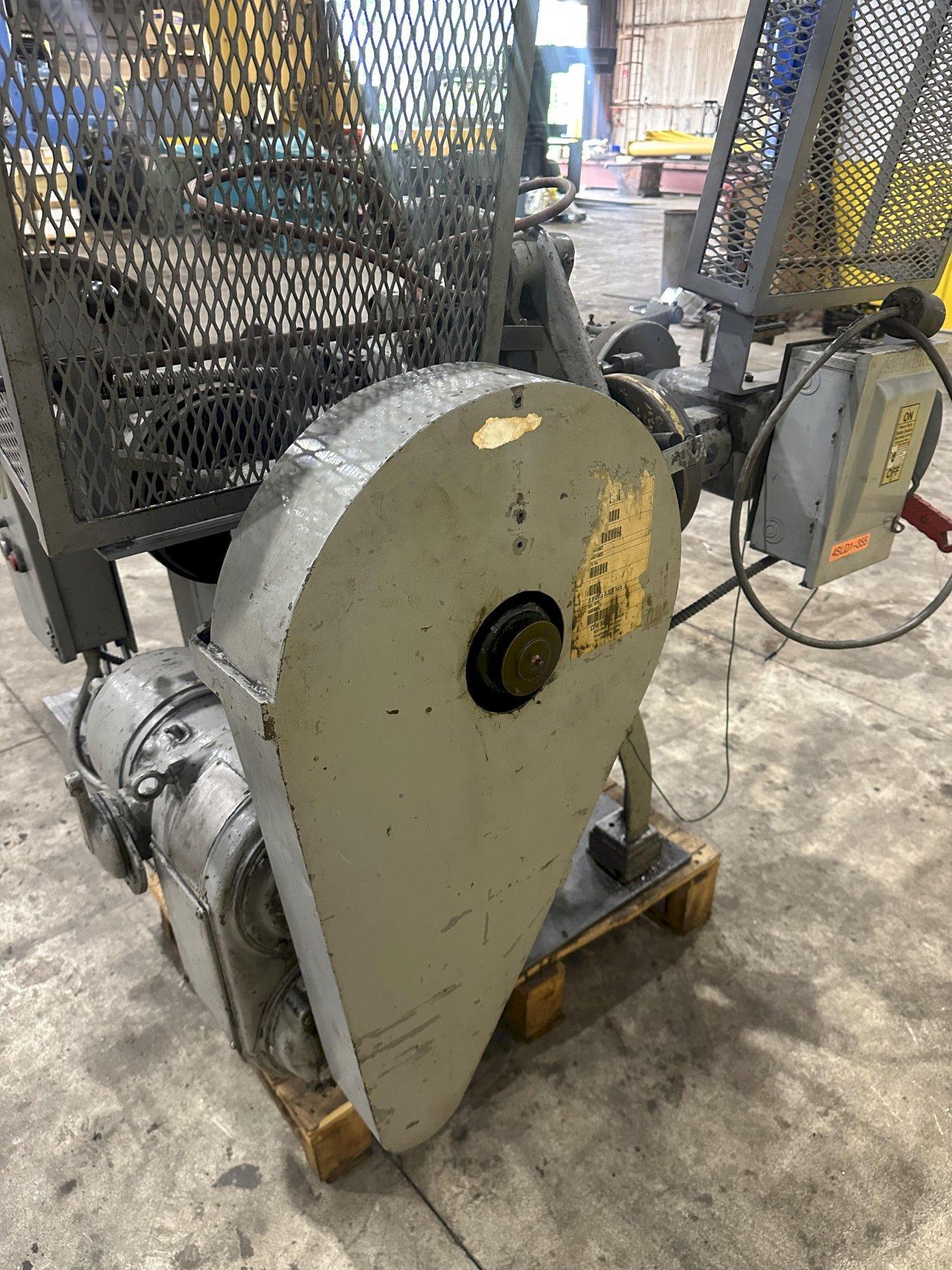

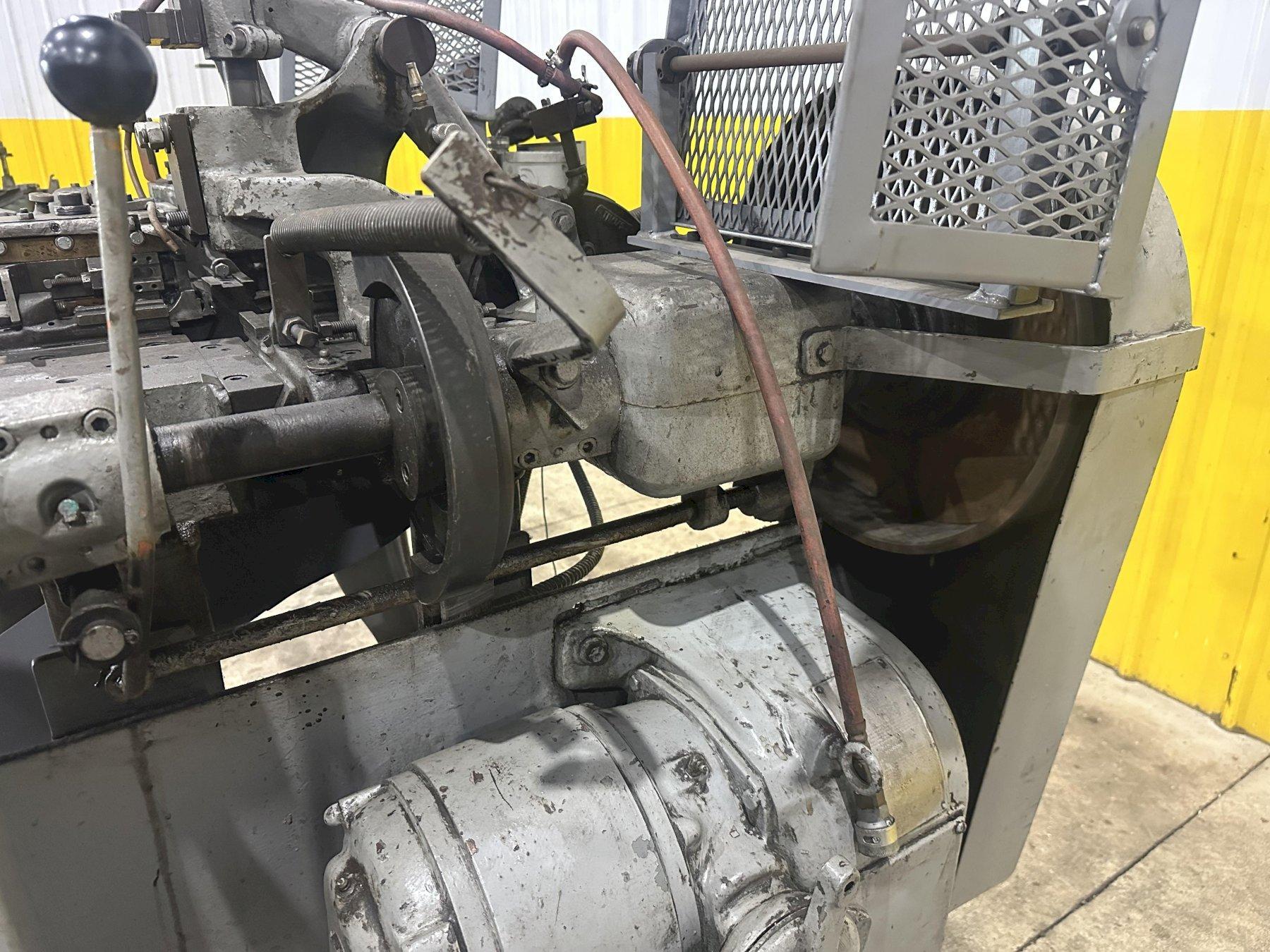

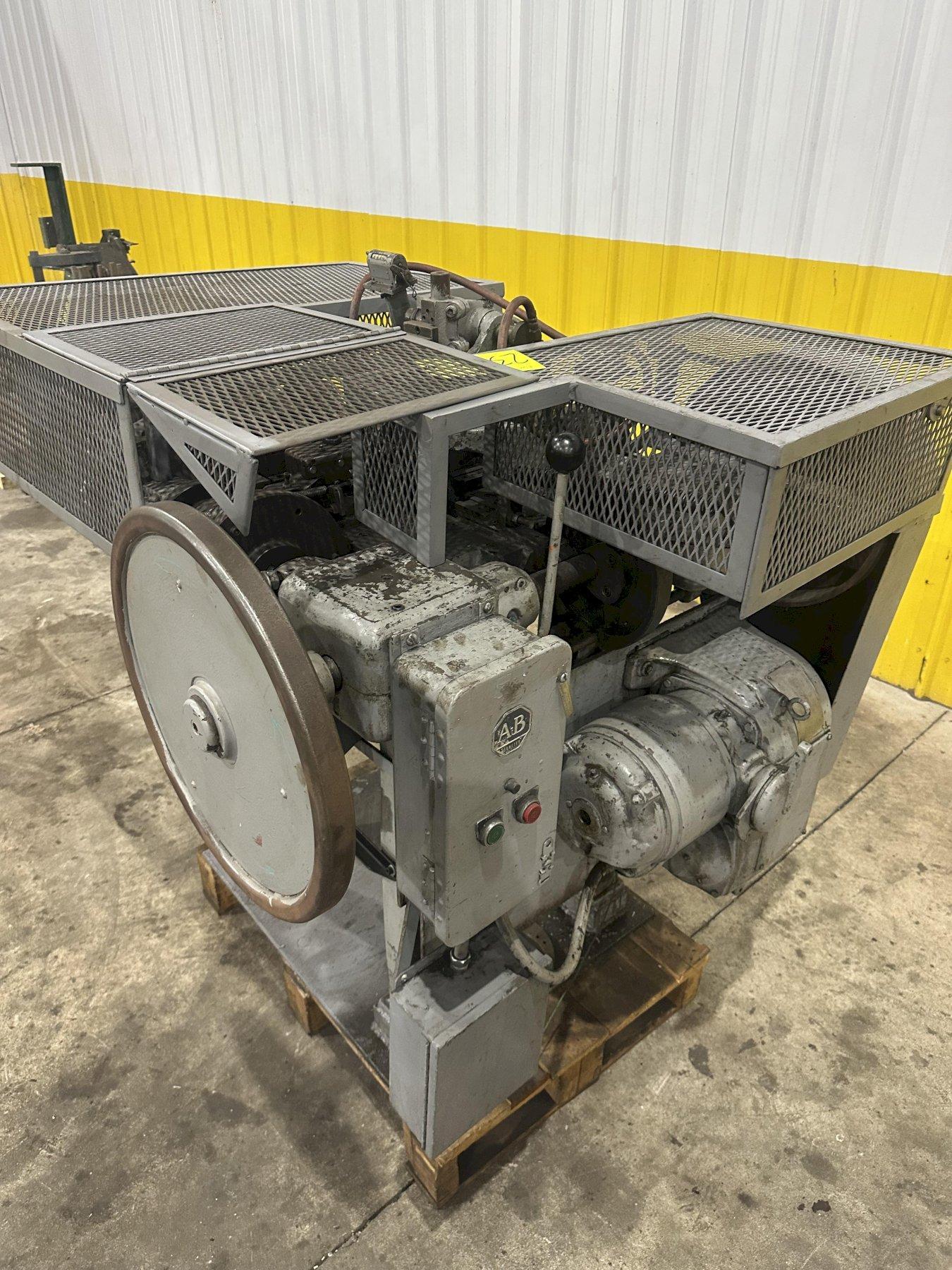

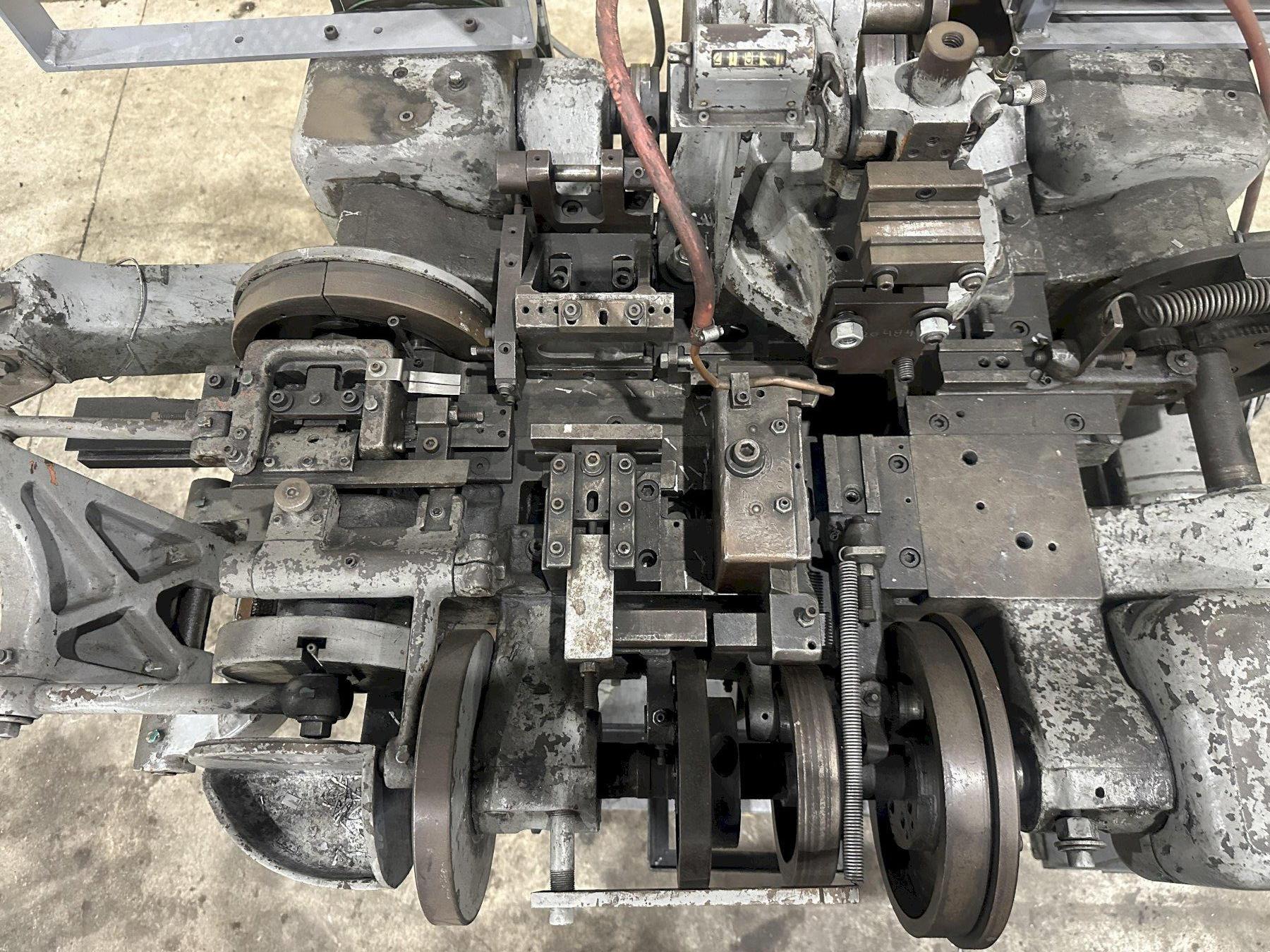

#1 US BAIRD 4 SLIDE WIRE FORMING MACHINE : STOCK #23629

Manufacturer

U.S. BAIRD

Category

Wire Machines

Type

WIRE MACHINERY, FORMING

Stock

23629

Model

#1

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet

Dimensions - 74 x 44
Weight - 1050 pounds

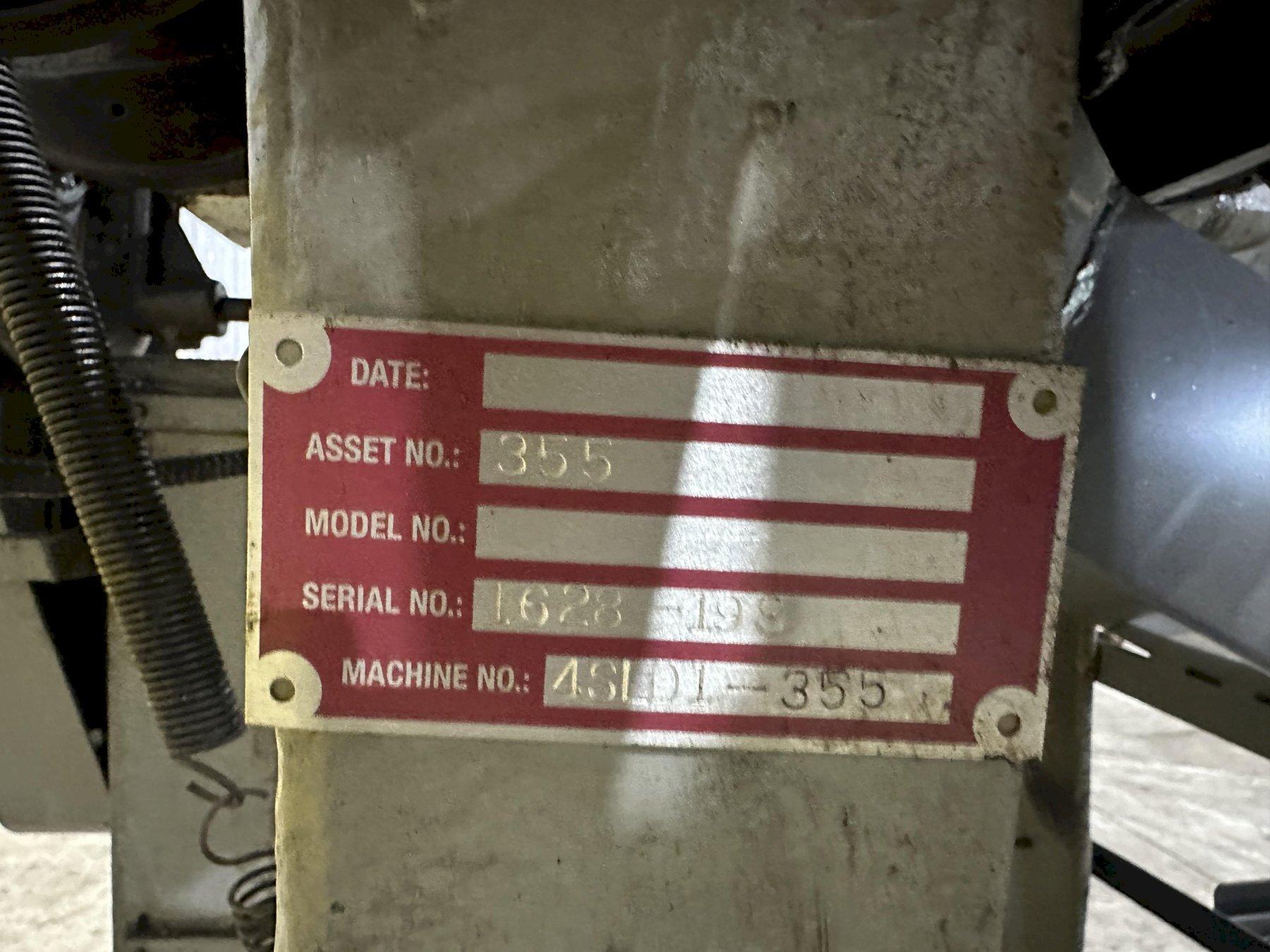

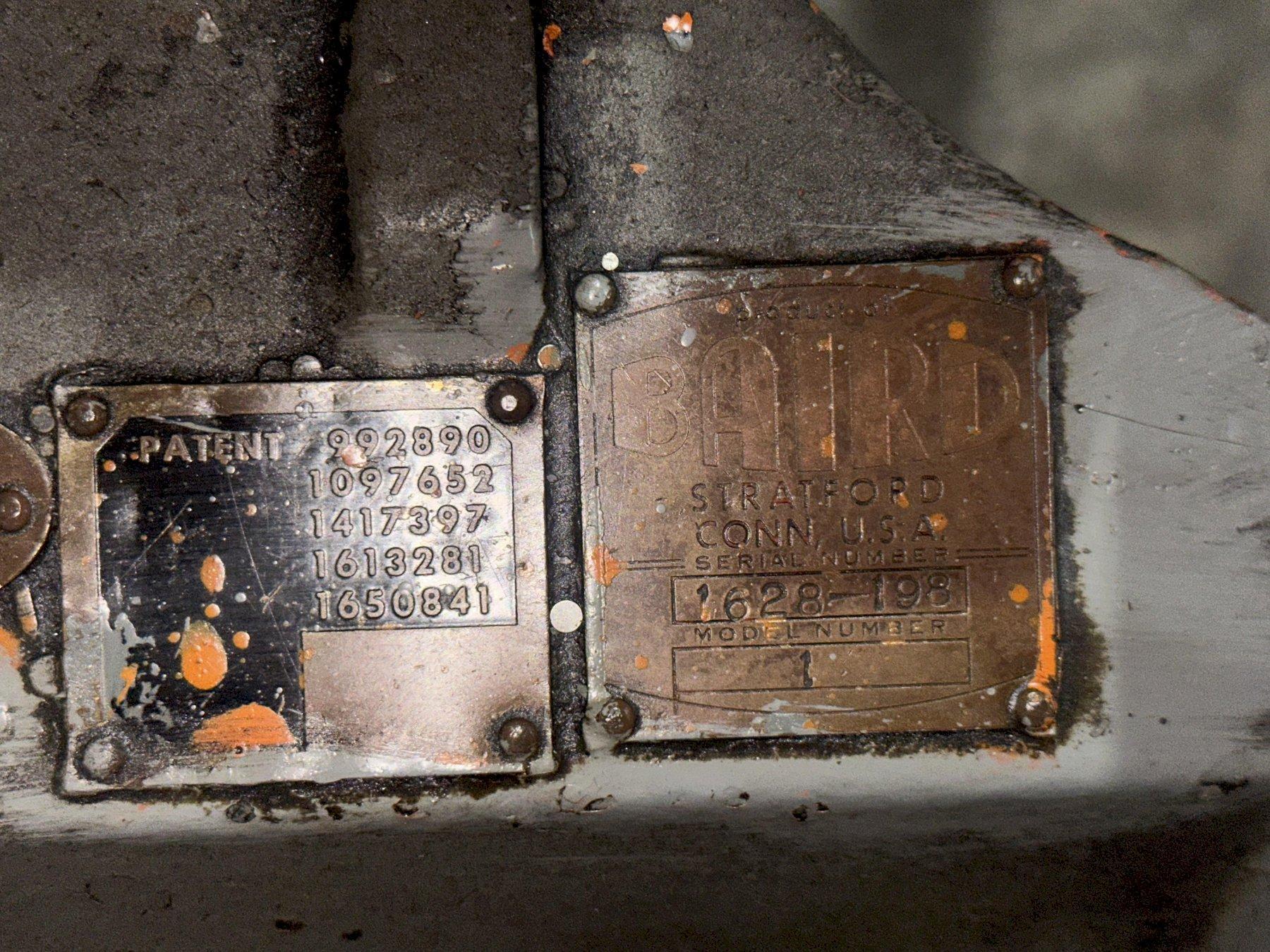

SERIAL ................................... 1628-198
MODEL .................................... #1
SOFT STEEL WIRE DIAMETER ................. 3/32"
STANDARD WIDTH RIBBON METAL .............. 3/4"

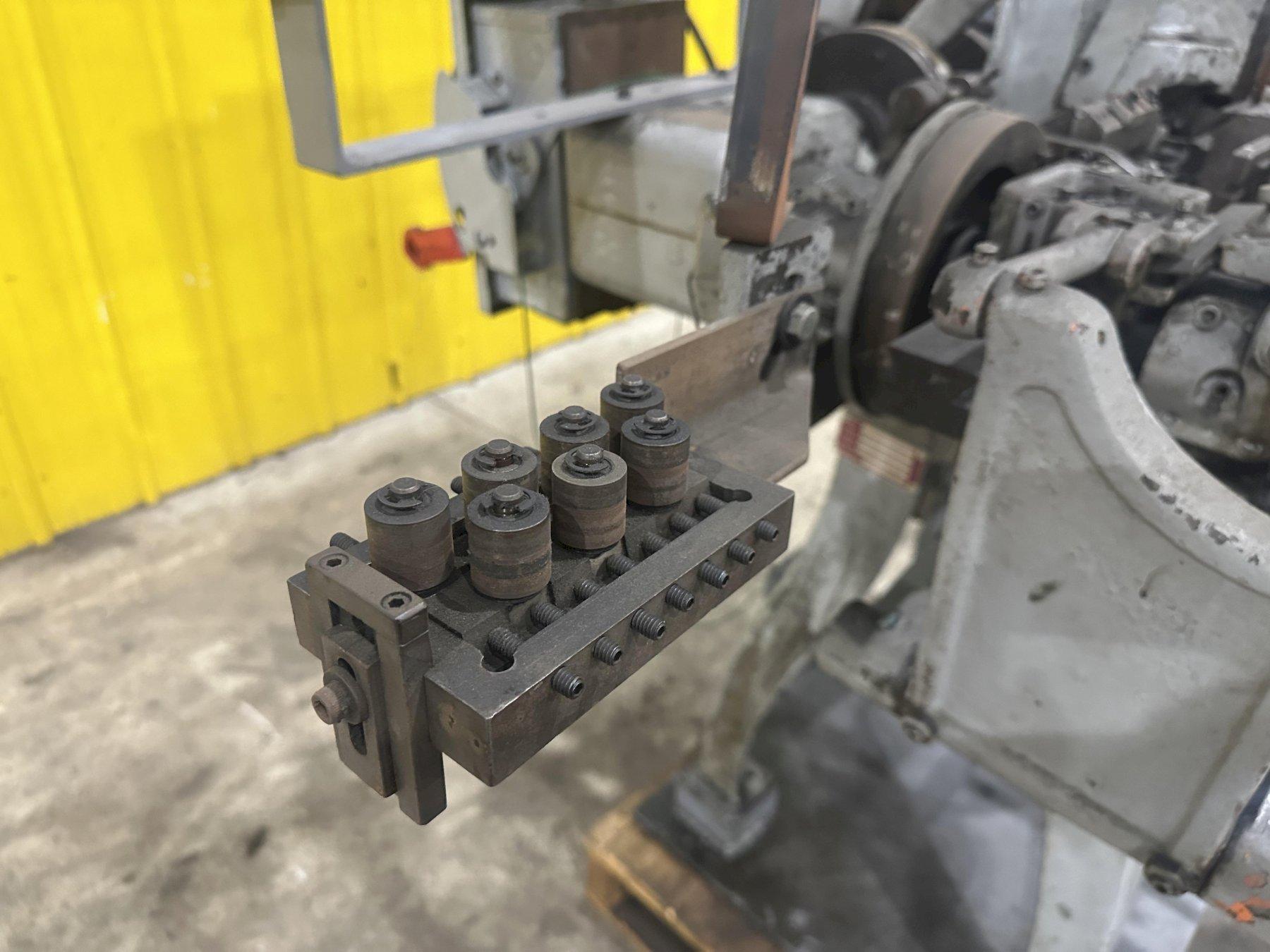

SIZE OF ROLL STRAIGHTENER USED ........... #2
FEED LENGTH USING FEED SLIDE STOPS ....... 6" MAXIMUM
FEED LENGTH NOT USING FEED SLIDE STOPS ... 7-1/4" MAXIMUM
DIAMETER OF RING THAT CAN BE SET ......... 3/4" MAXIMUM

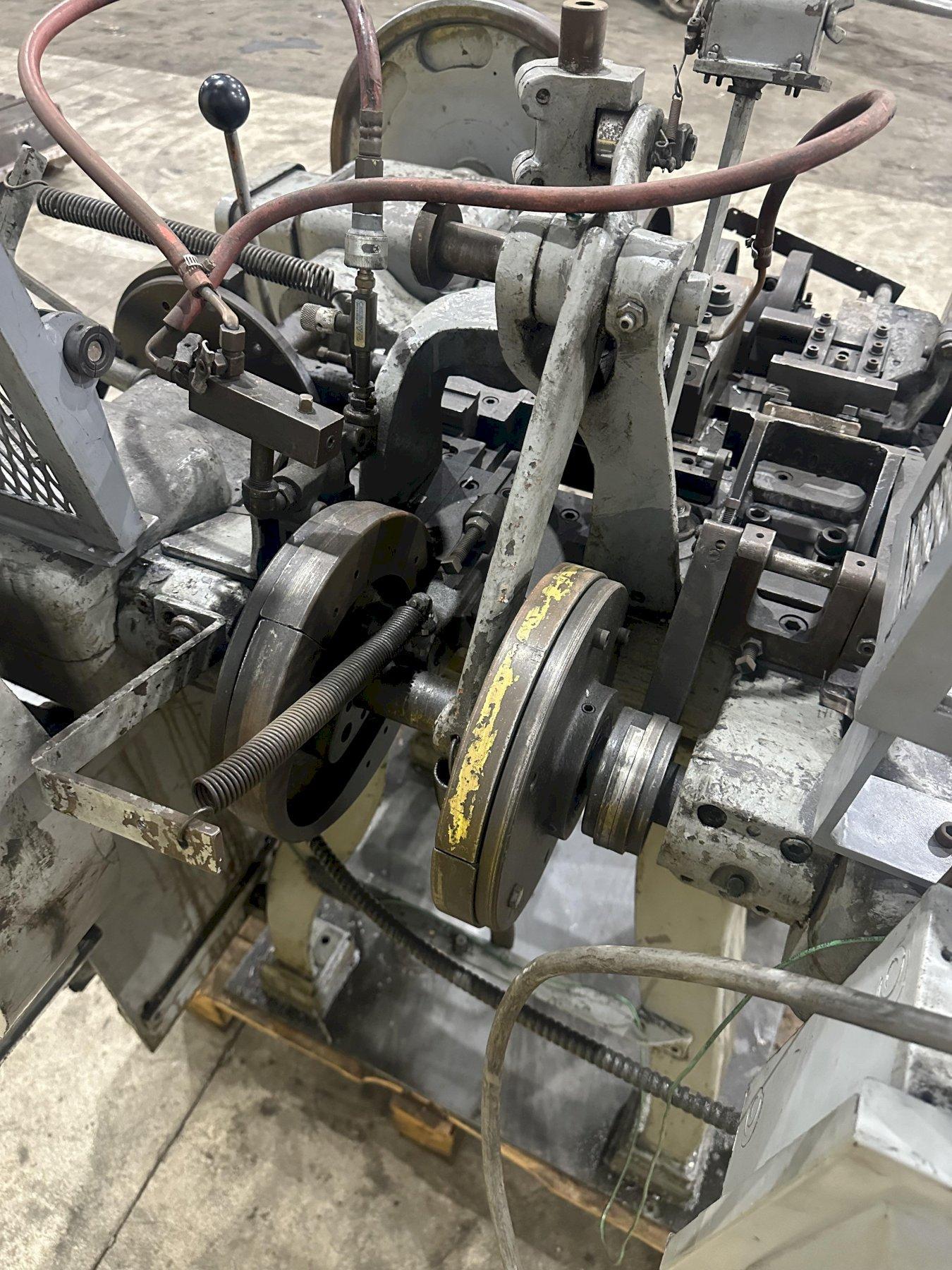

SPLIT CAMS, STROKE WITH CAMS:
   FRONT SLIDE CAM ....................... 1"
   REAR SLIDE CAM ........................ 7/8"
   SIDE CAMS ............................. 1-5/8"
   VERTICAL .............................. 13/32" TO 57/64"
SIZE OF OPENING IN BED ................... 4-3/4" X 4-1/2"
DIAMETER OF CAM SHAFTS ................... 1-9/16"

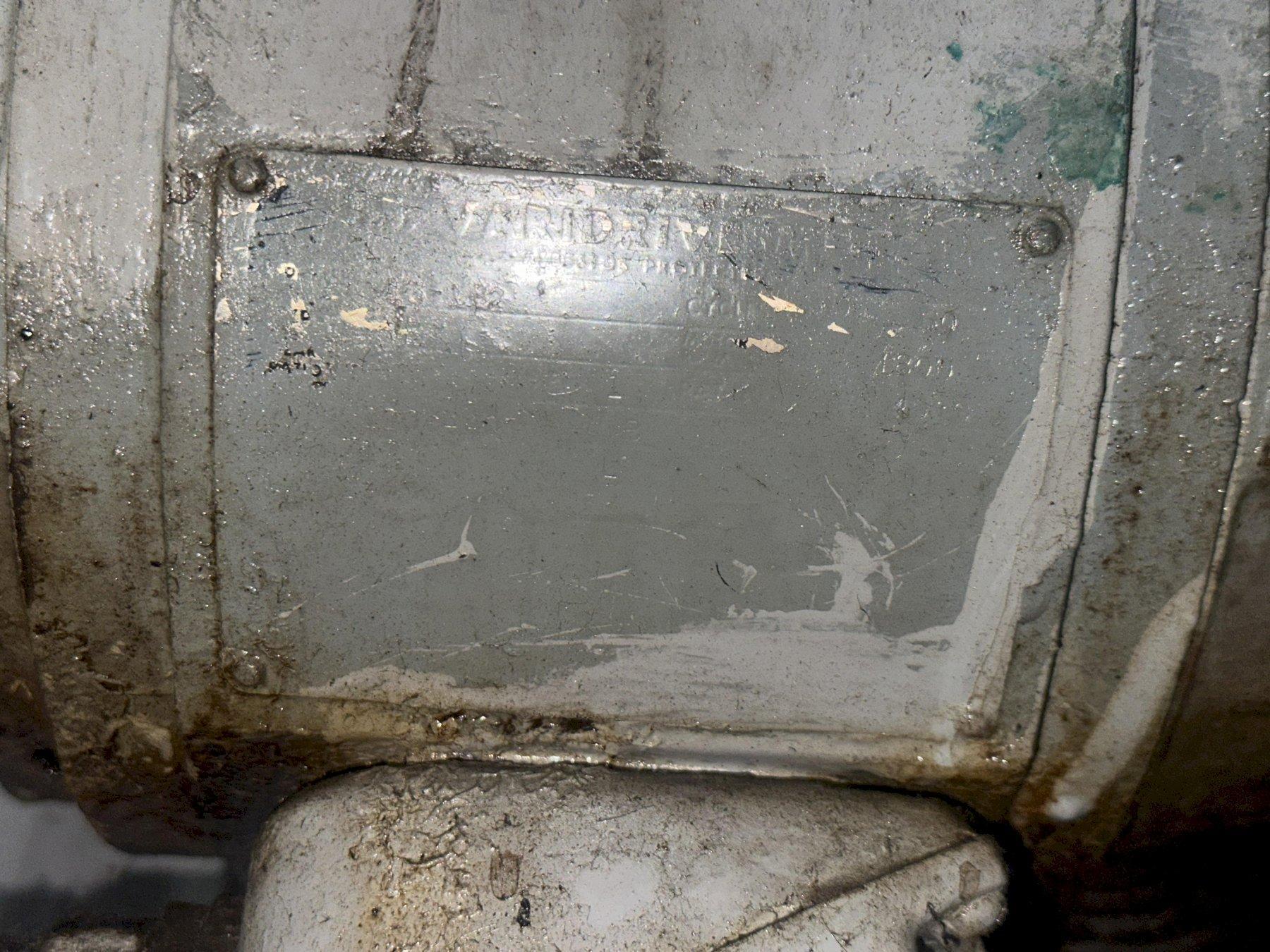

MAIN MOTOR ............................... 1 HP VARIABLE SPEED
