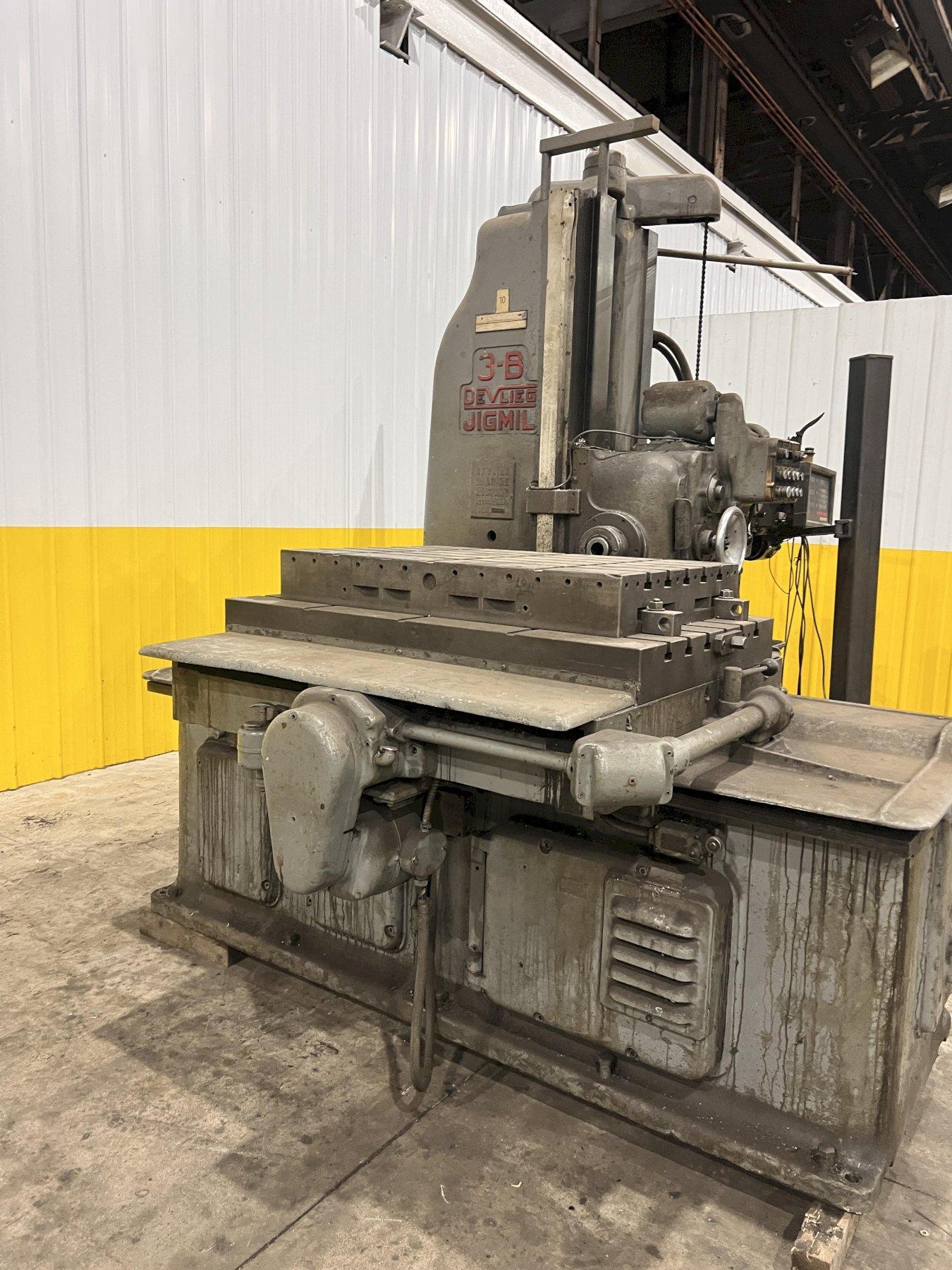

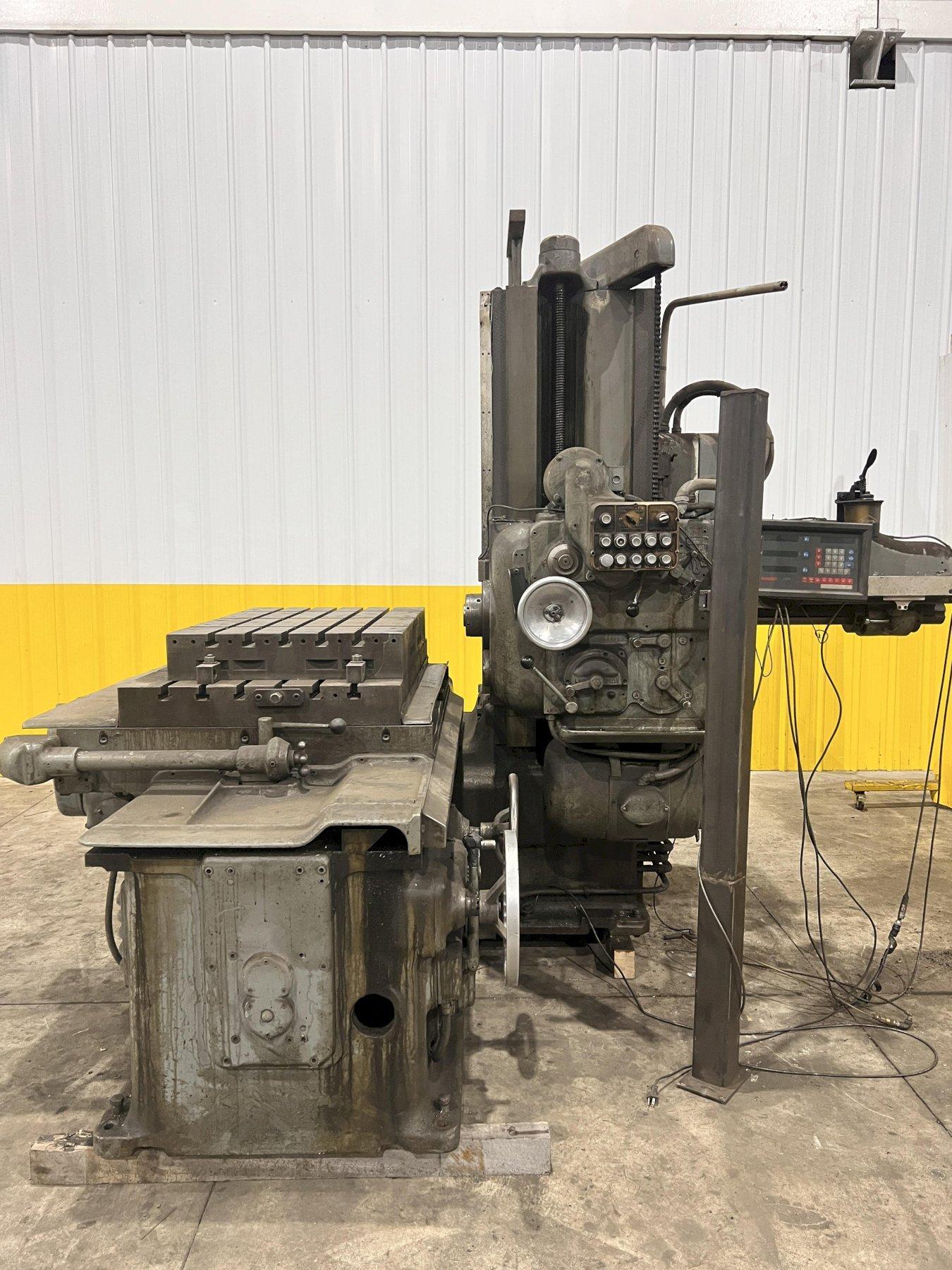

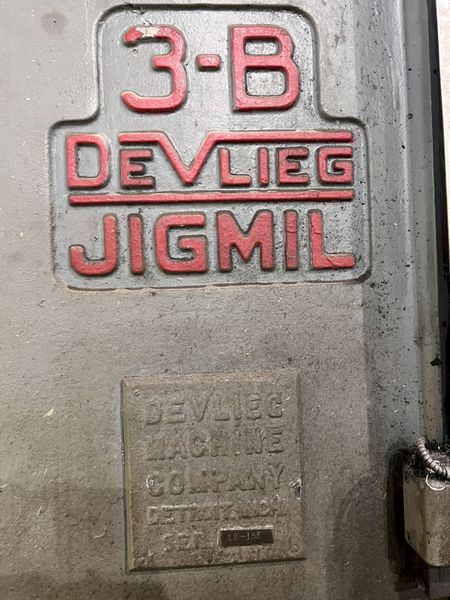

#3B DEVLIEG MODEL #3B-48 SPIRAMATIC HORIZONTAL SPINDLE TABLE JIG MILL: STOCK #22358

Manufacturer

DEVLIEG

Category

Milling Machines

Type

JIG MILLS

Stock

22358

Model

None listed

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet

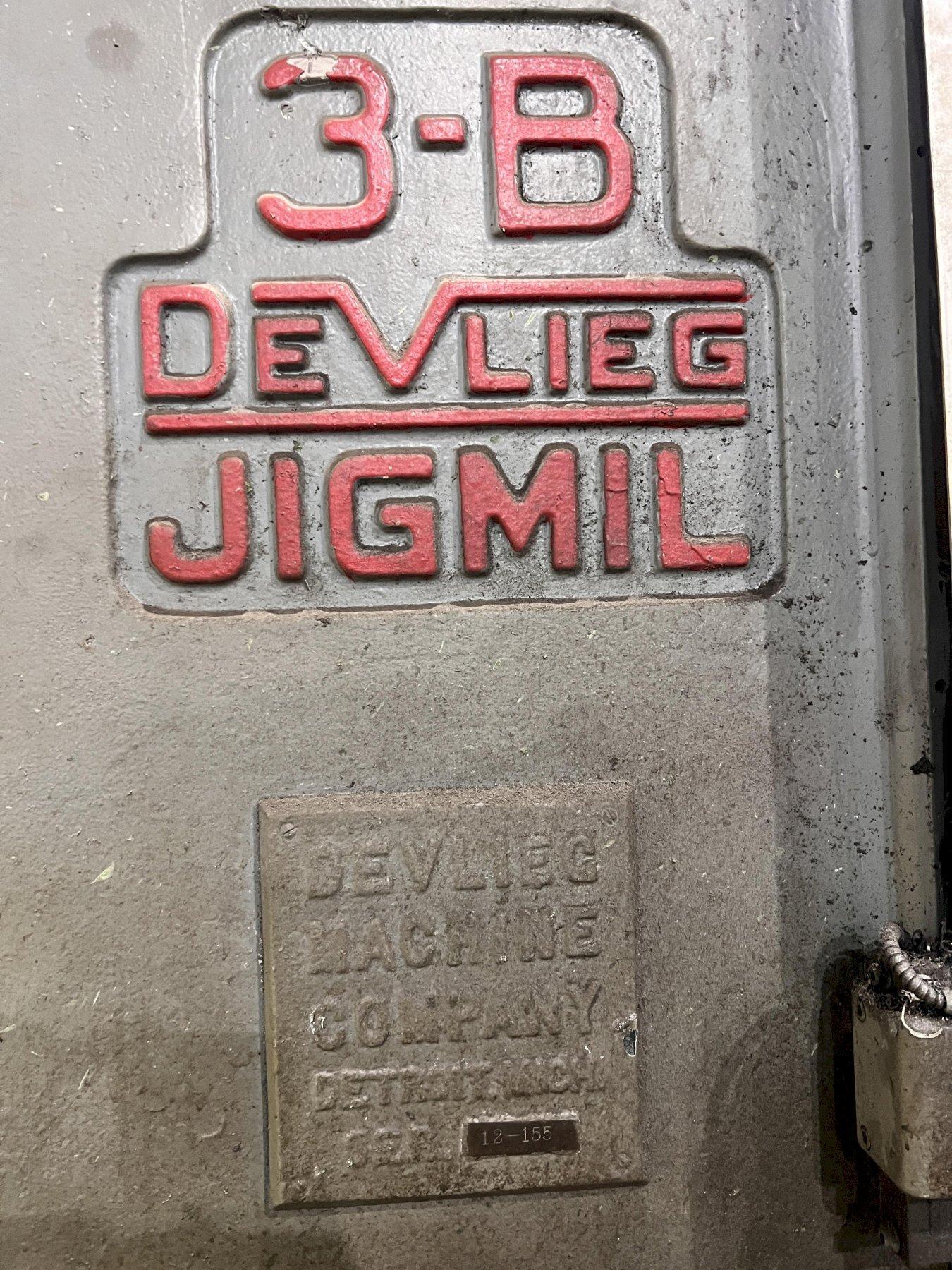

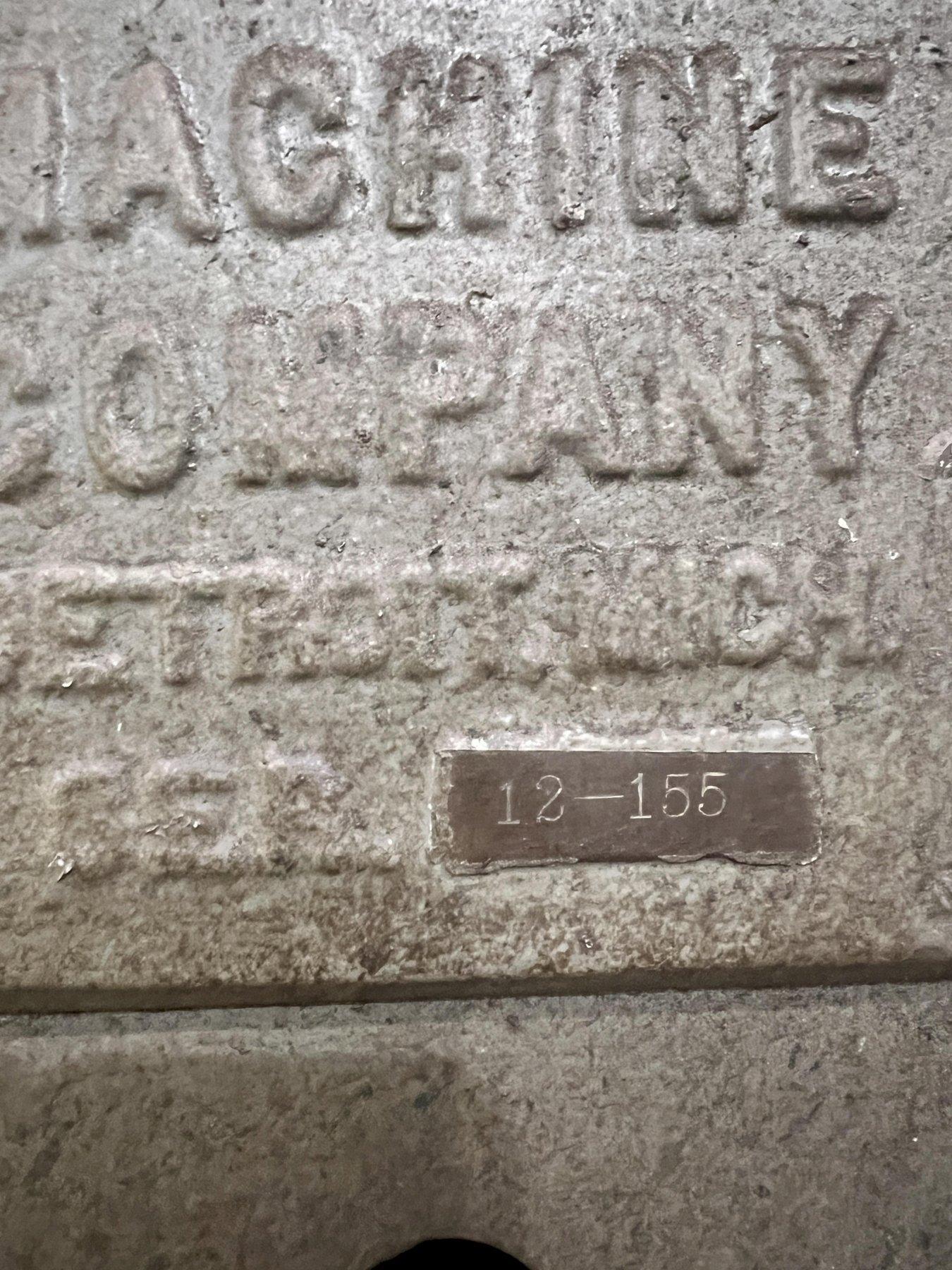

SERIAL ......................... 12-155
MODEL .......................... 3B-48
SPINDLE DIAMETER ............... 3”
SPINDLE SPEEDS ................. (16) 25 TO 1200 RPM
SPINDLE FEEDS .................. (6) .002 TO 20
TABLE FEEDS .................... (12) .3 TO 14 IPM
FEEDS .......................... (6) .003, .0017, .0011, .012, .0075, .0047
VERTICAL SPINDAL TRAVEL ........ 36”
FEED OUT OF SPINDLE ............ 16”
SPINDLE TAPER .................. #40
SIZE OF TABLE .................. 30” x 48”
LONGITUDINAL TRAVEL ............ 52”
TABLE CROSS TRAVEL ............. 16”
MAIN MOTOR ..................... 7.5 HP
