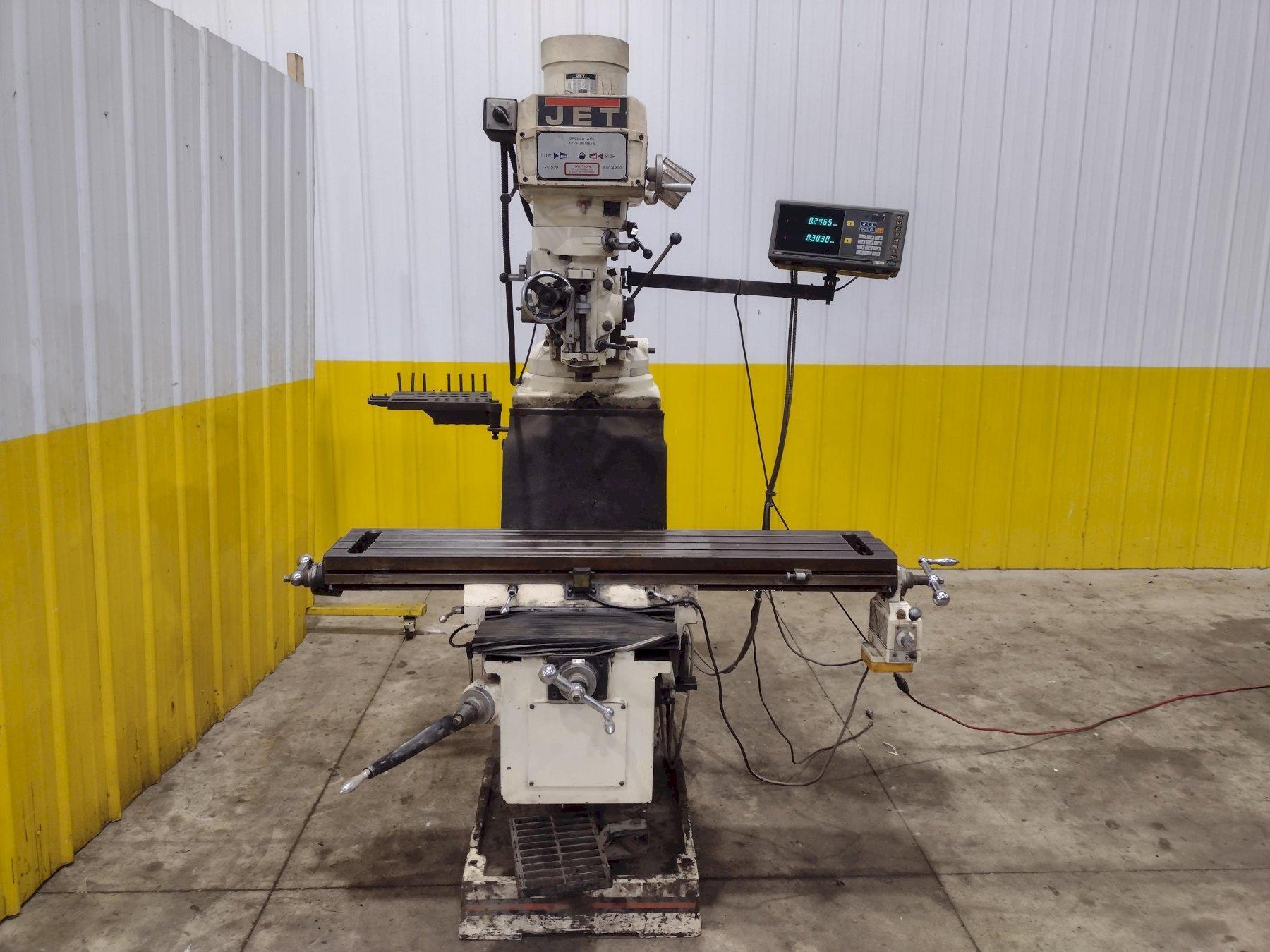

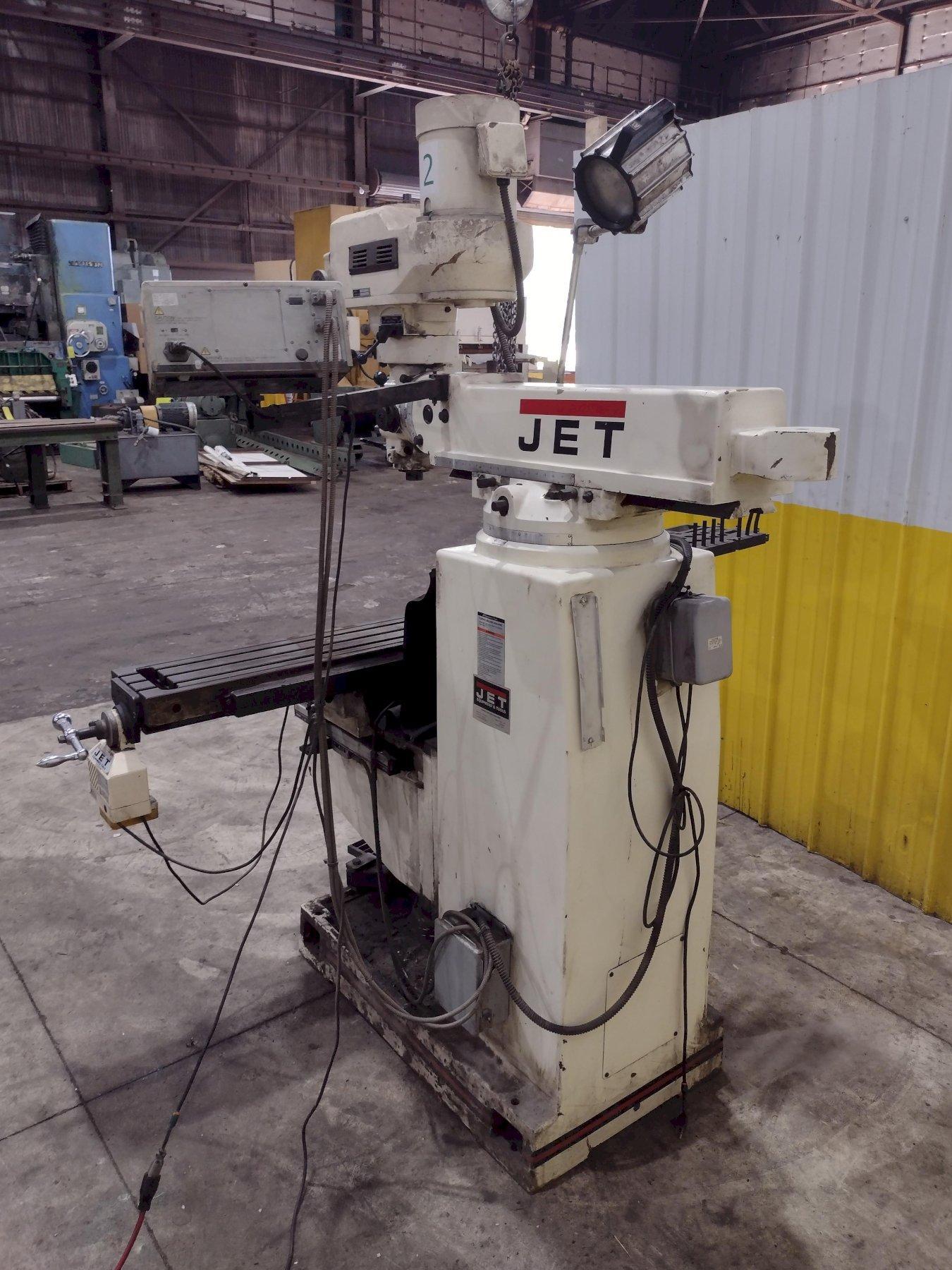

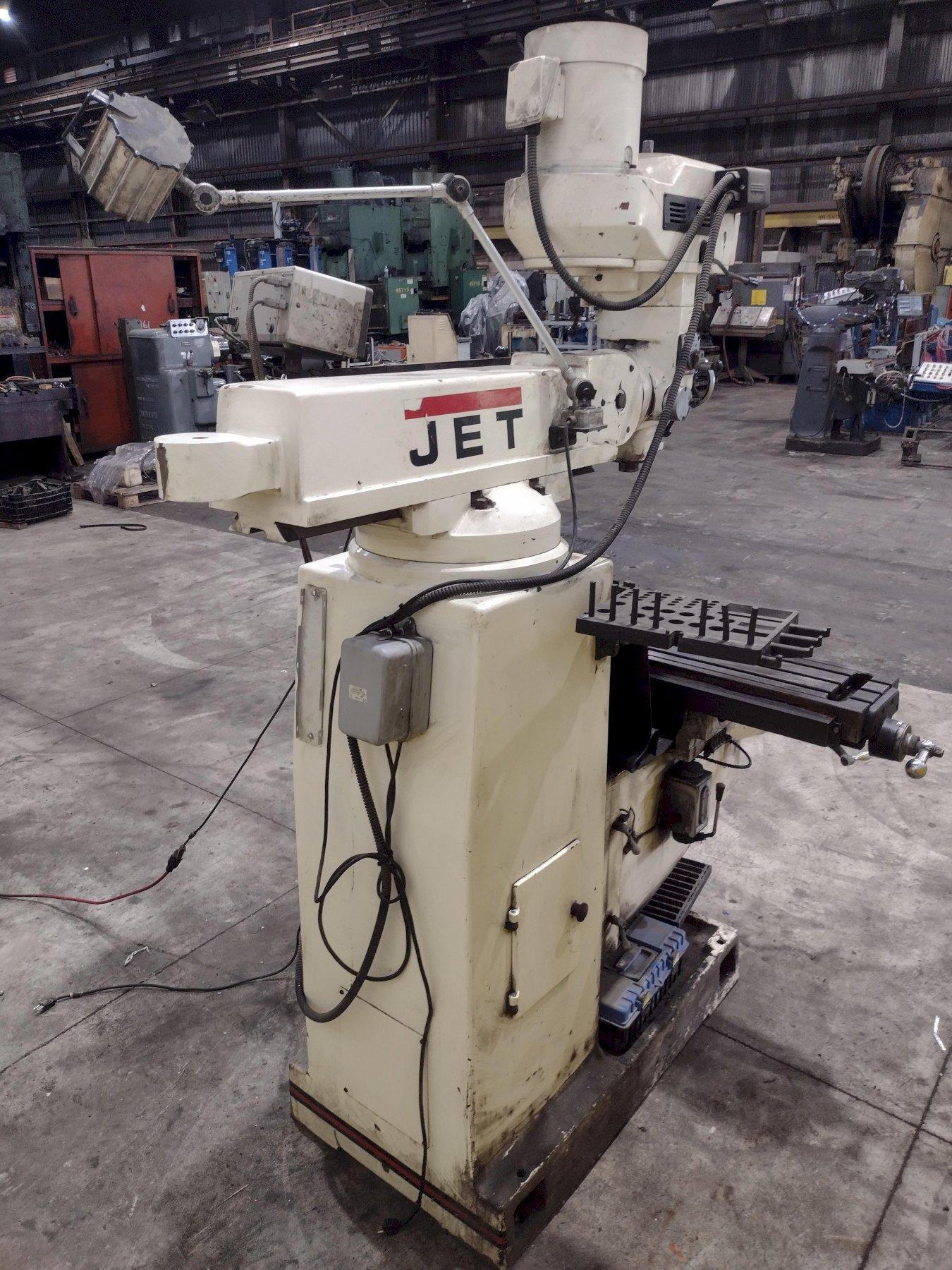

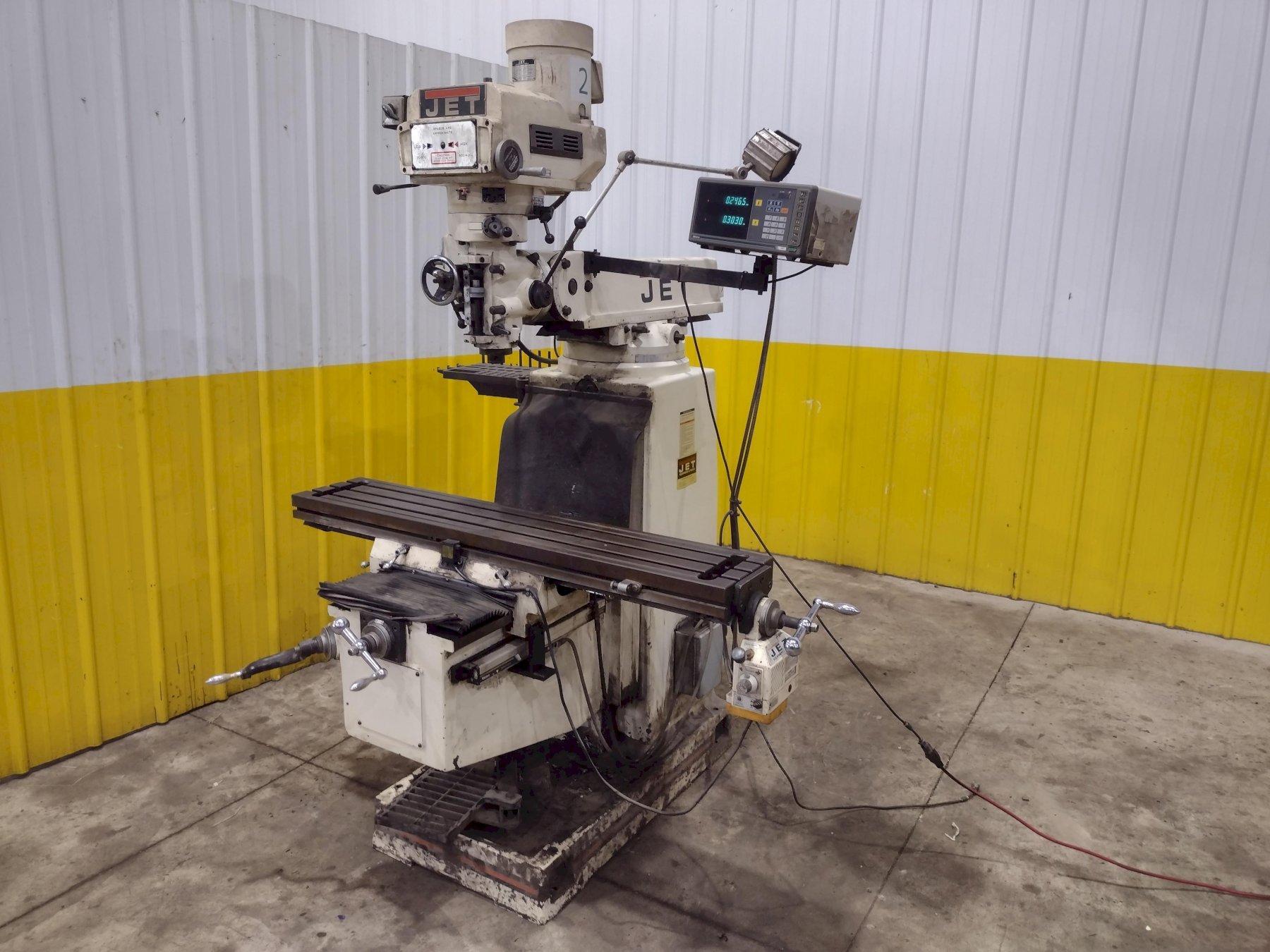

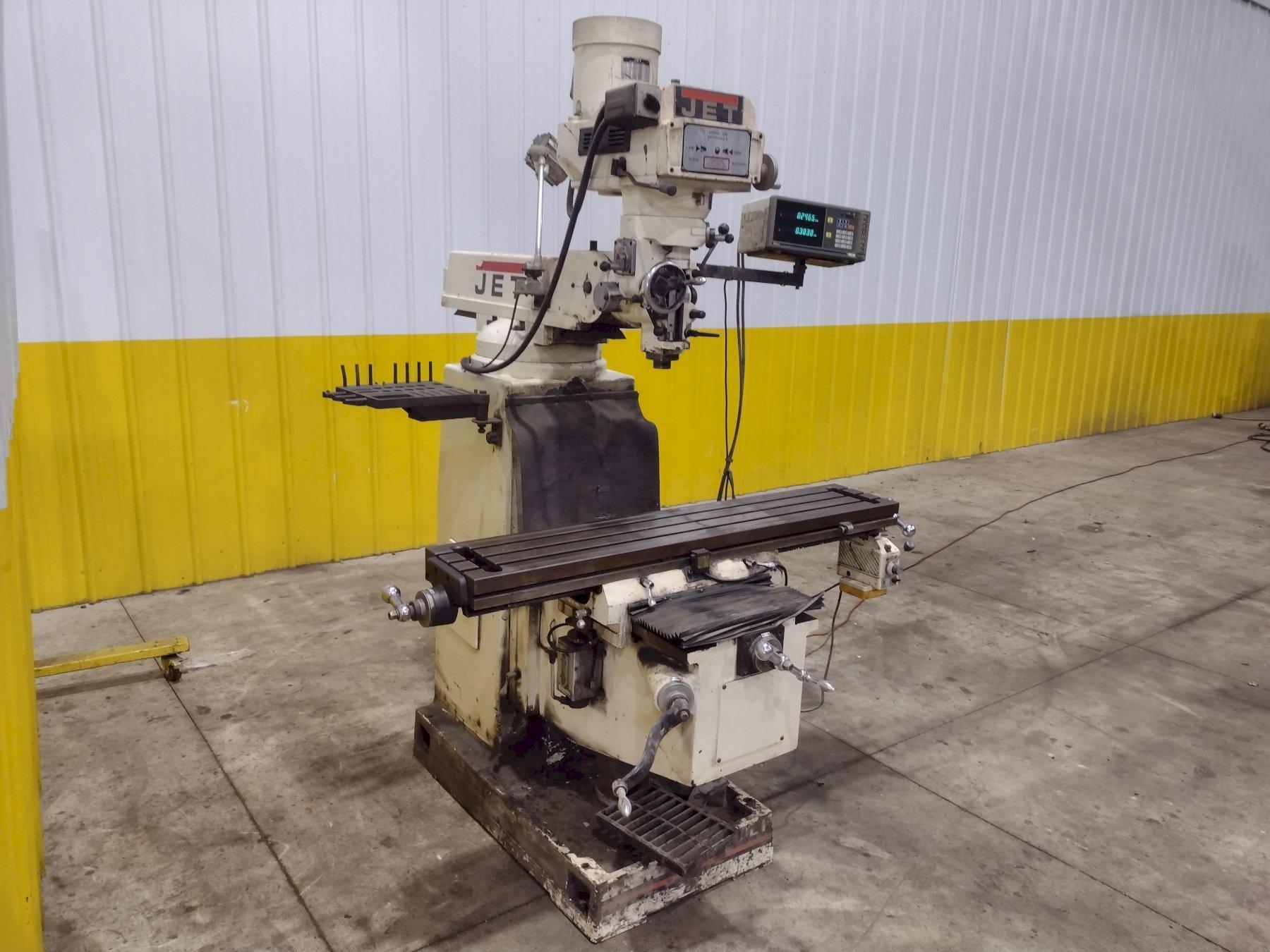

3 HP JET MODEL #JTM-1054 VERTICAL RAM TYPE MILL: STOCK 22336

Manufacturer

JET

Category

Milling Machines

Type

MILLERS, PLAIN, HORIZ, (Ram Type)

Stock

22336

Model

3 HP JTM-1054

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet

Dimensions - 108" x 80" x 80"
Weight - 3450 pounds

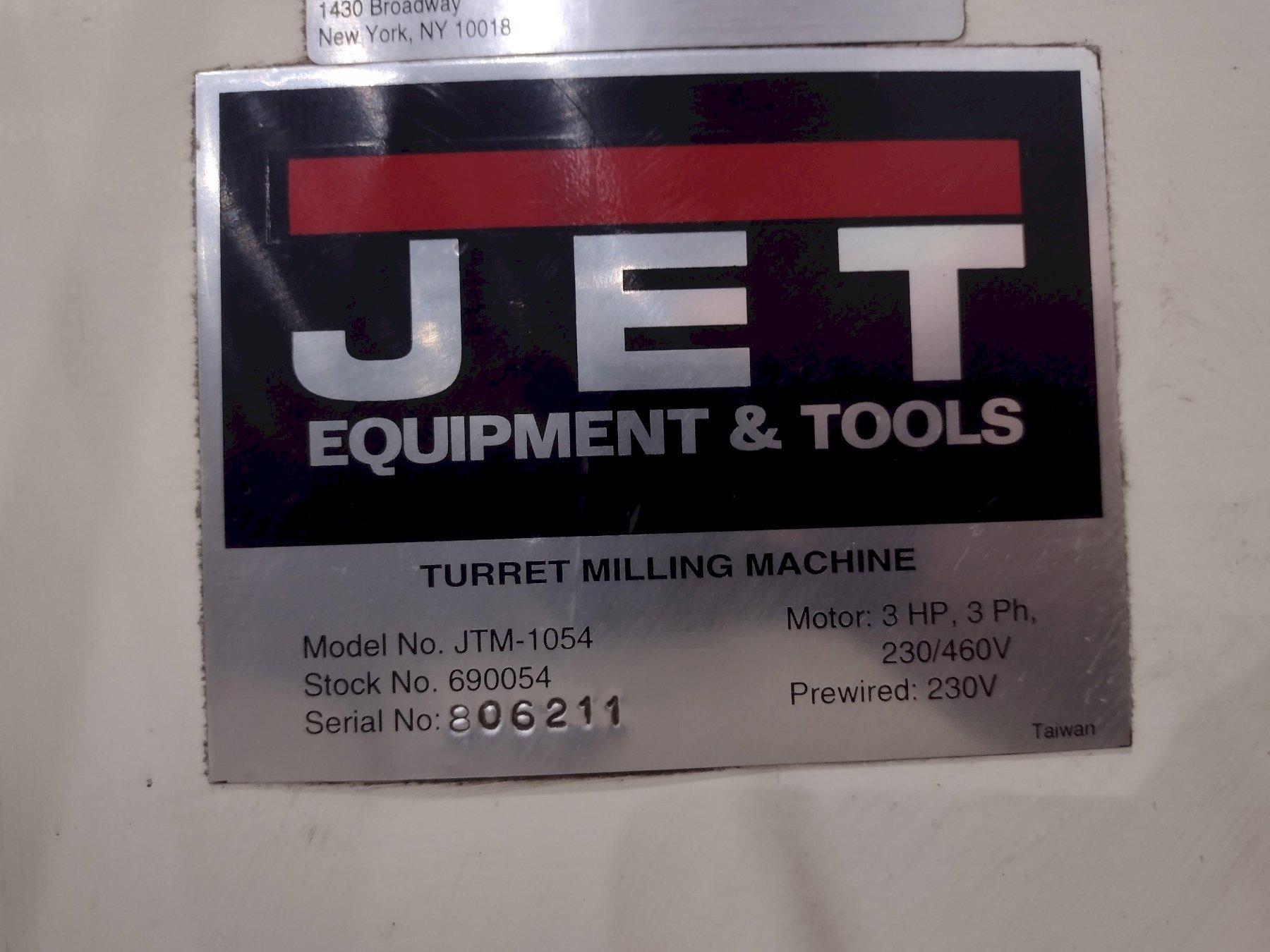

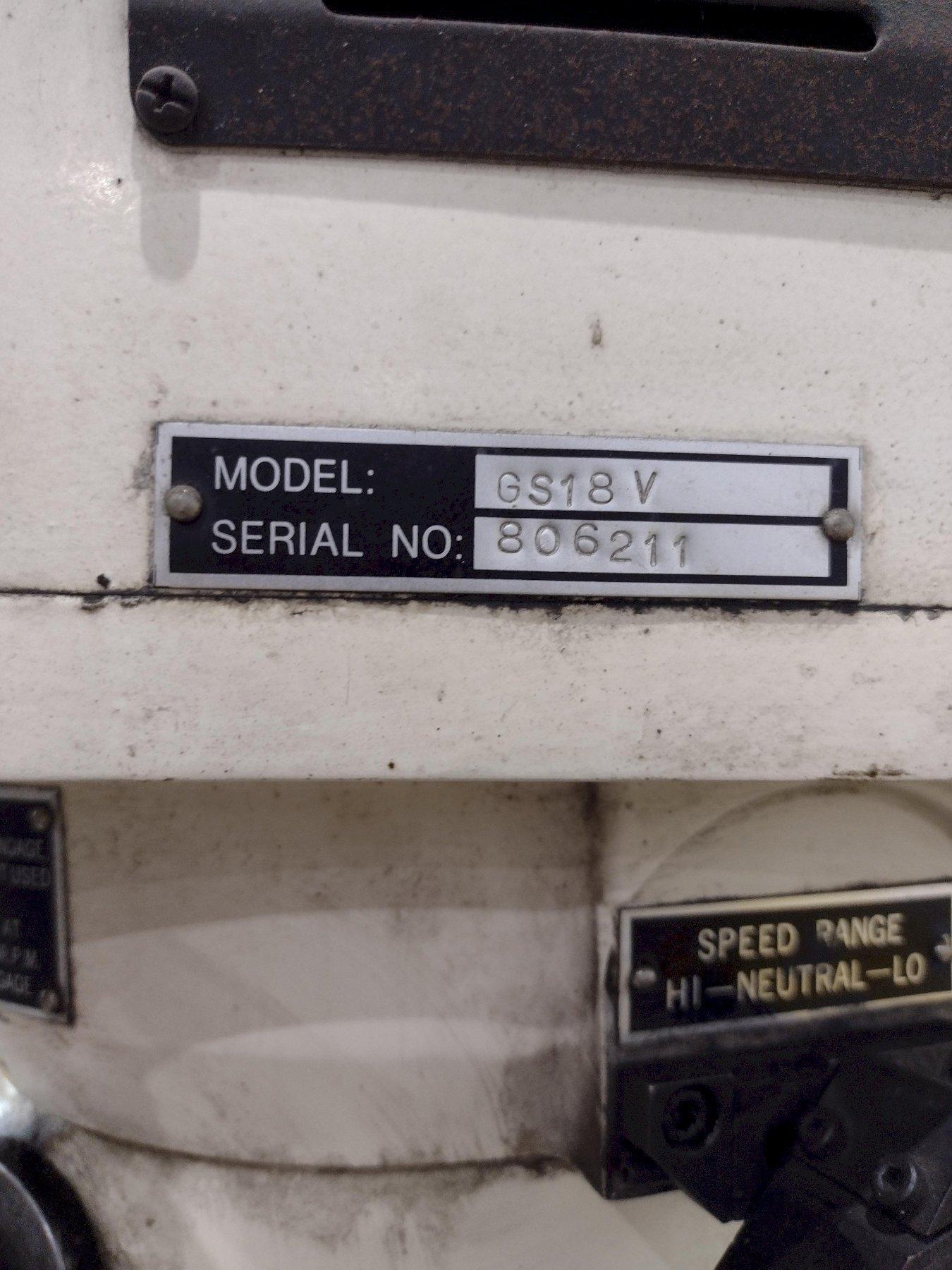

SERIAL ............................... 8061211
JET STOCK ............................ 690054
MODEL ................................ JTM-1054

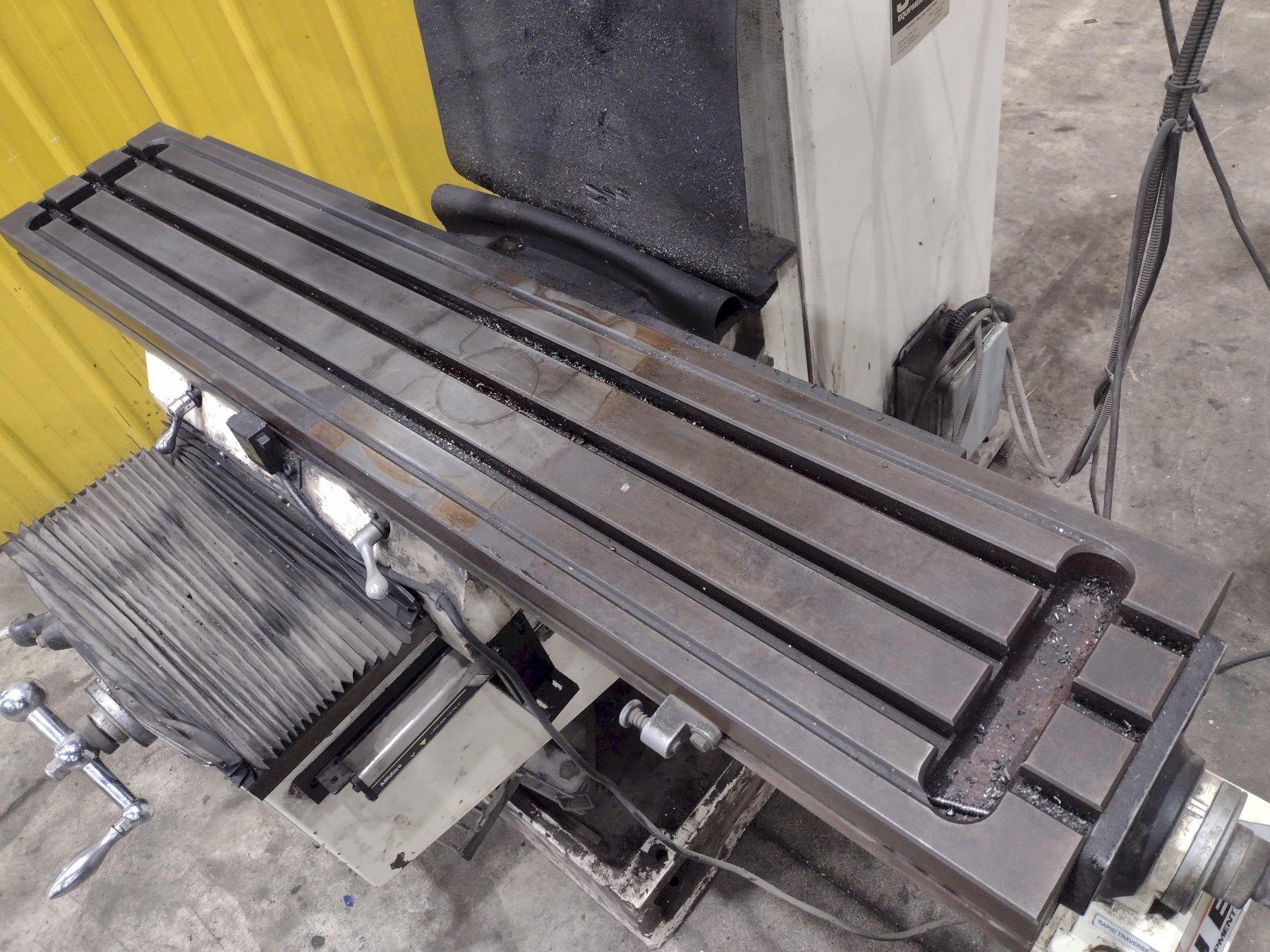

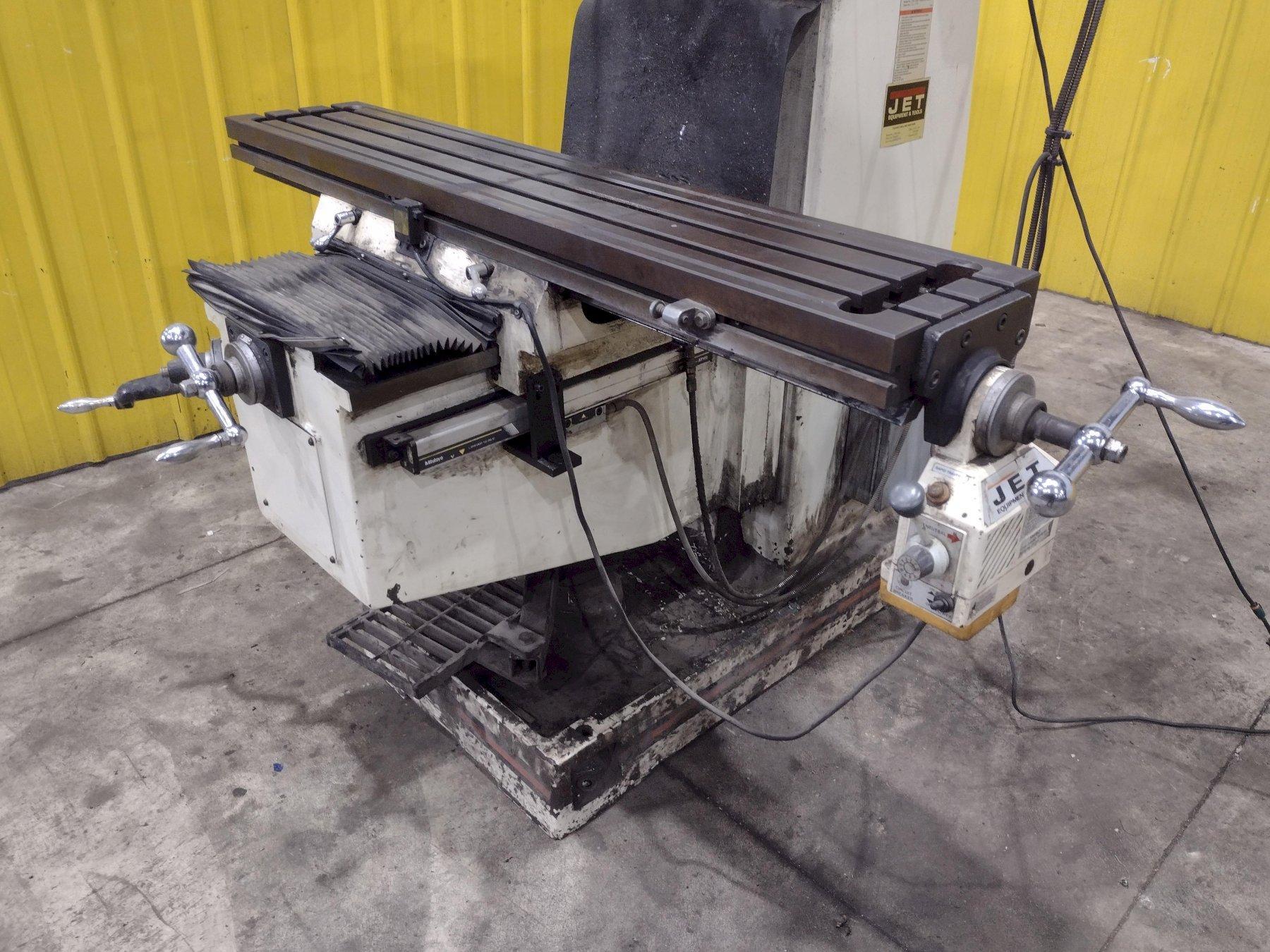

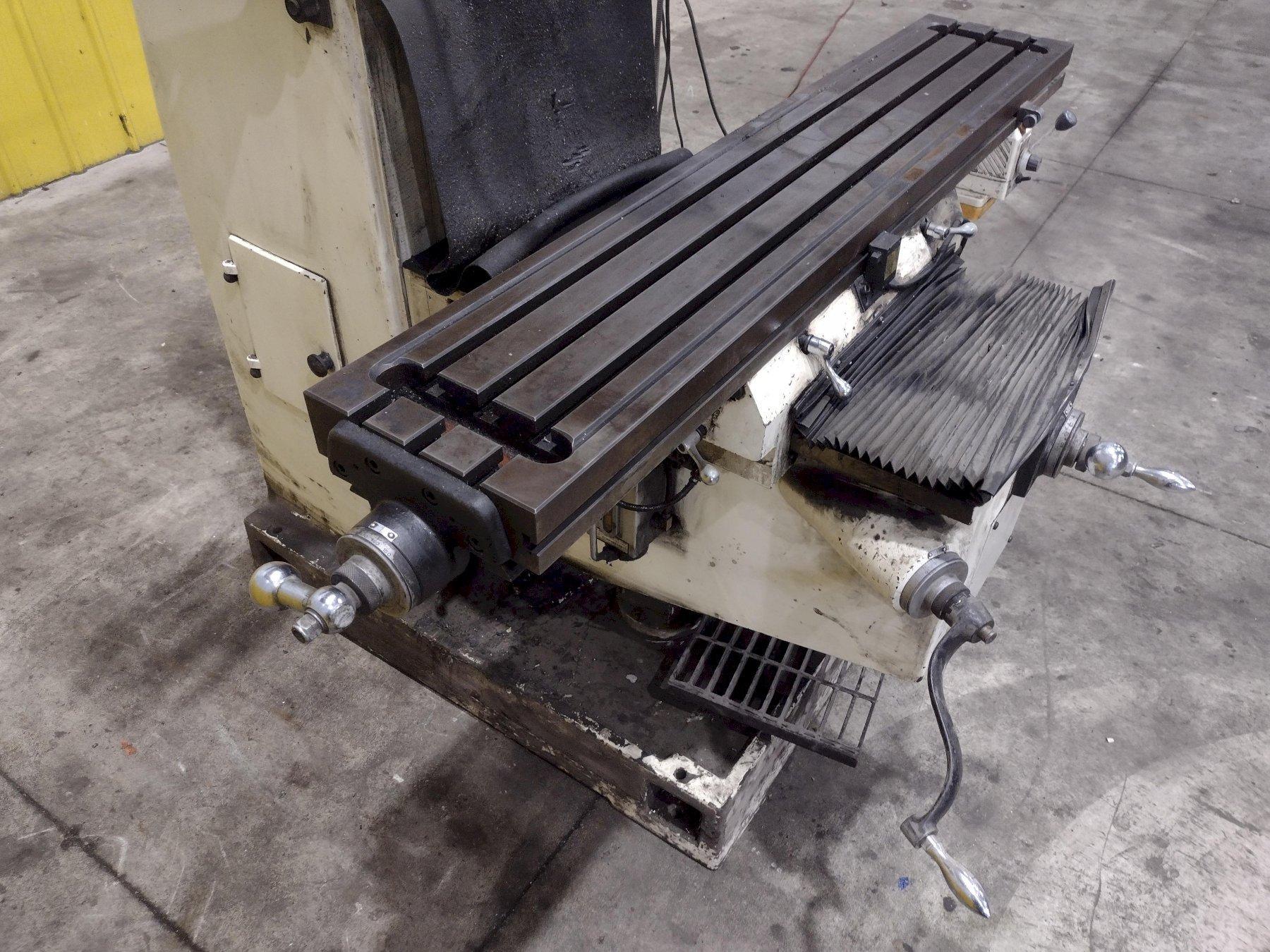

Table Size (L x W) ................... 10" x 54"
Spindle Taper ........................ R-8

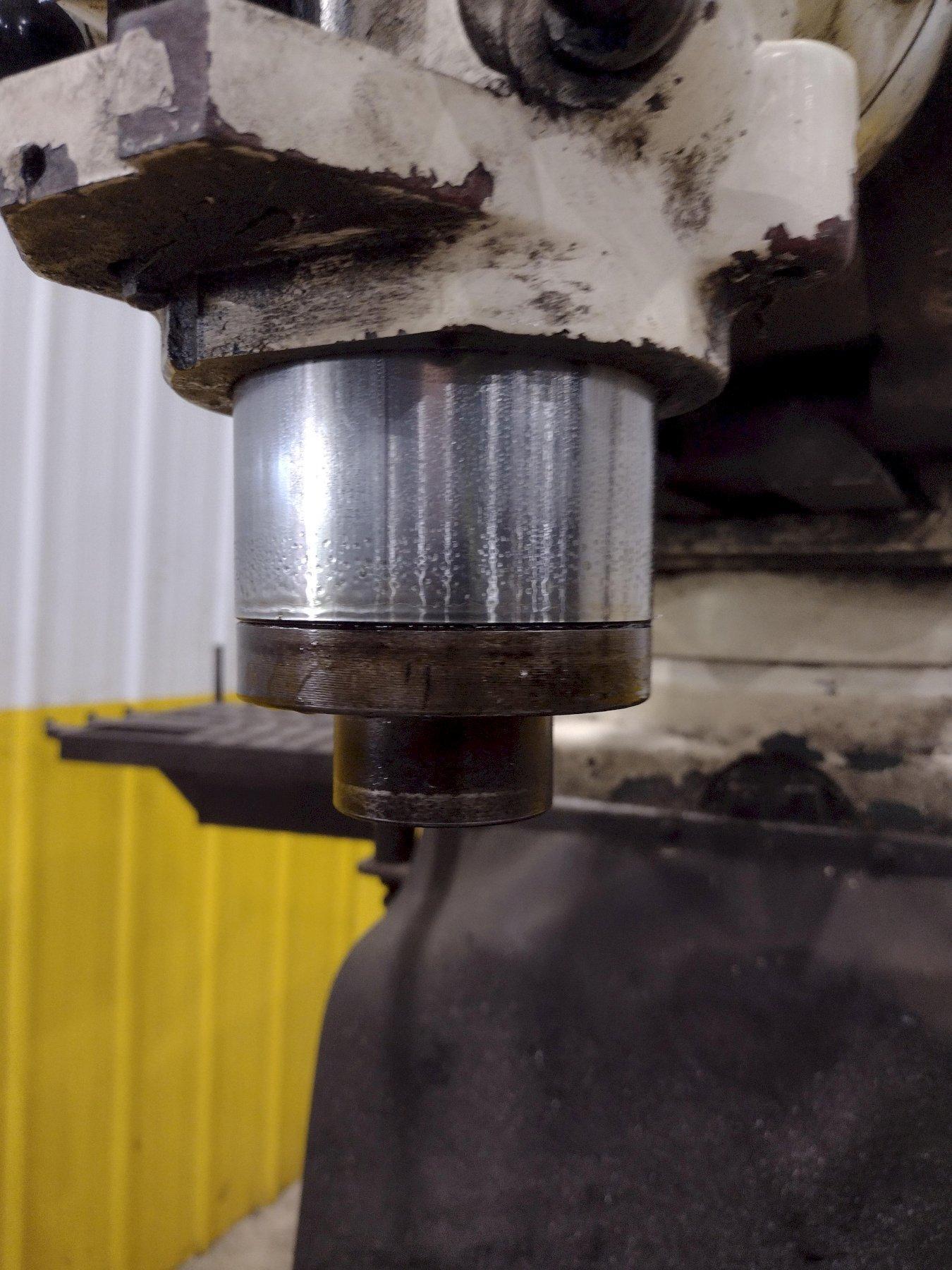

Quill Diameter ....................... 3-3/8"

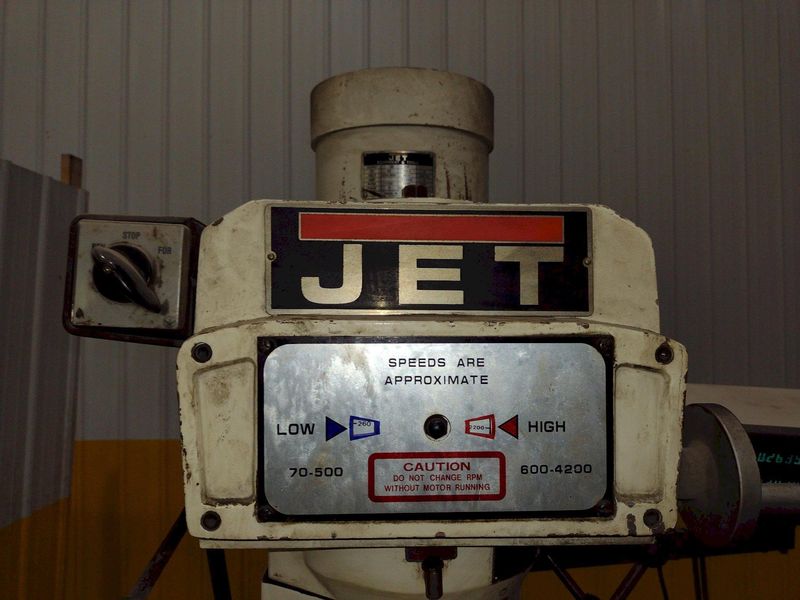

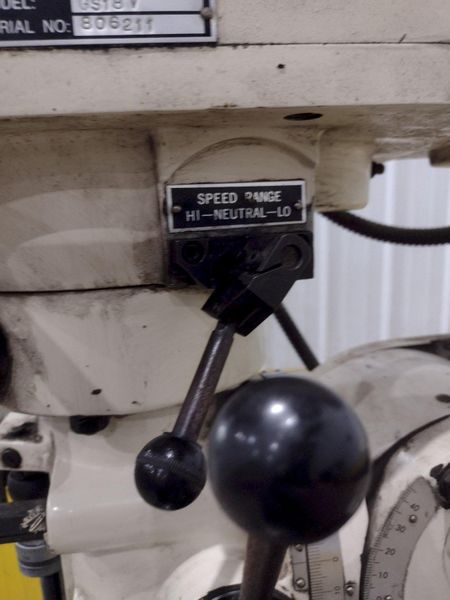

Range of Spindle Speeds .............. 80 TO 3,800 RPM

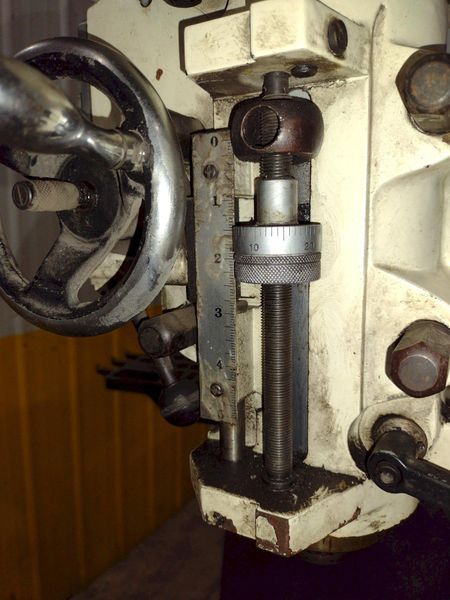

Quill Down Feed Rates ................ .0015 - .003 - .006 IPM
Spindle Travel ....................... 5"

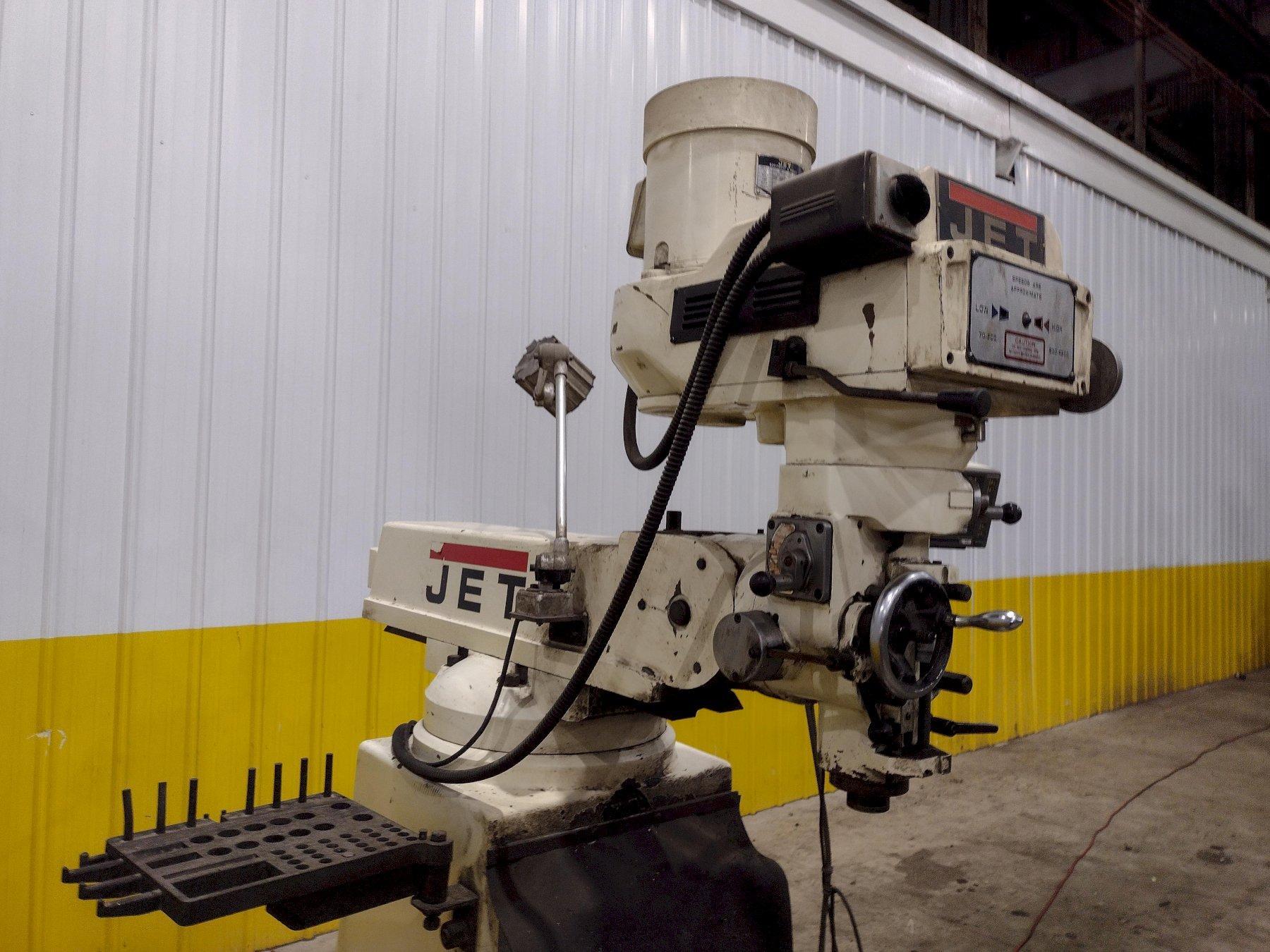

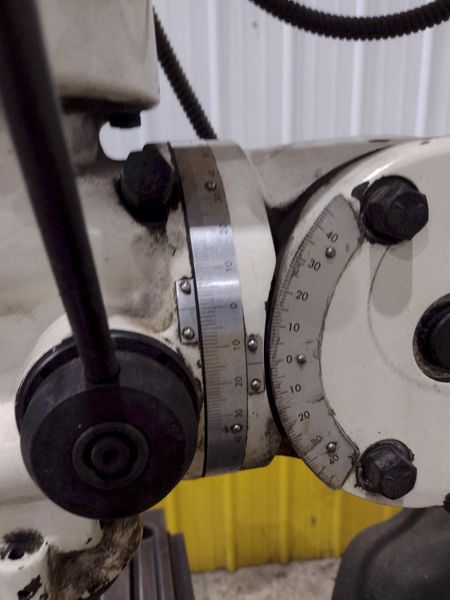

Head Movement ........................ 90° R & L, 45° F & B
Max Distance Spindle to Table ........ 20"
Distance Spindle to Column (Max.) .... 26"
Distance Spindle to Column (Min.) .... 5-1/2"
Collet Capacity ...................... 1/8 to 7/8
Table Longitudinal Travel ............ 38"
Table Cross Travel ................... 16"
T-Slots .............................. 3
T-Slots Size ......................... 5/8"
T-Slot Centers ....................... 2-1/2"
Work Table Weight Capacity ........... 800 lbs.
Travel of Knee ....................... 17-1/2"
Travel of Ram ........................ 20-1/2"

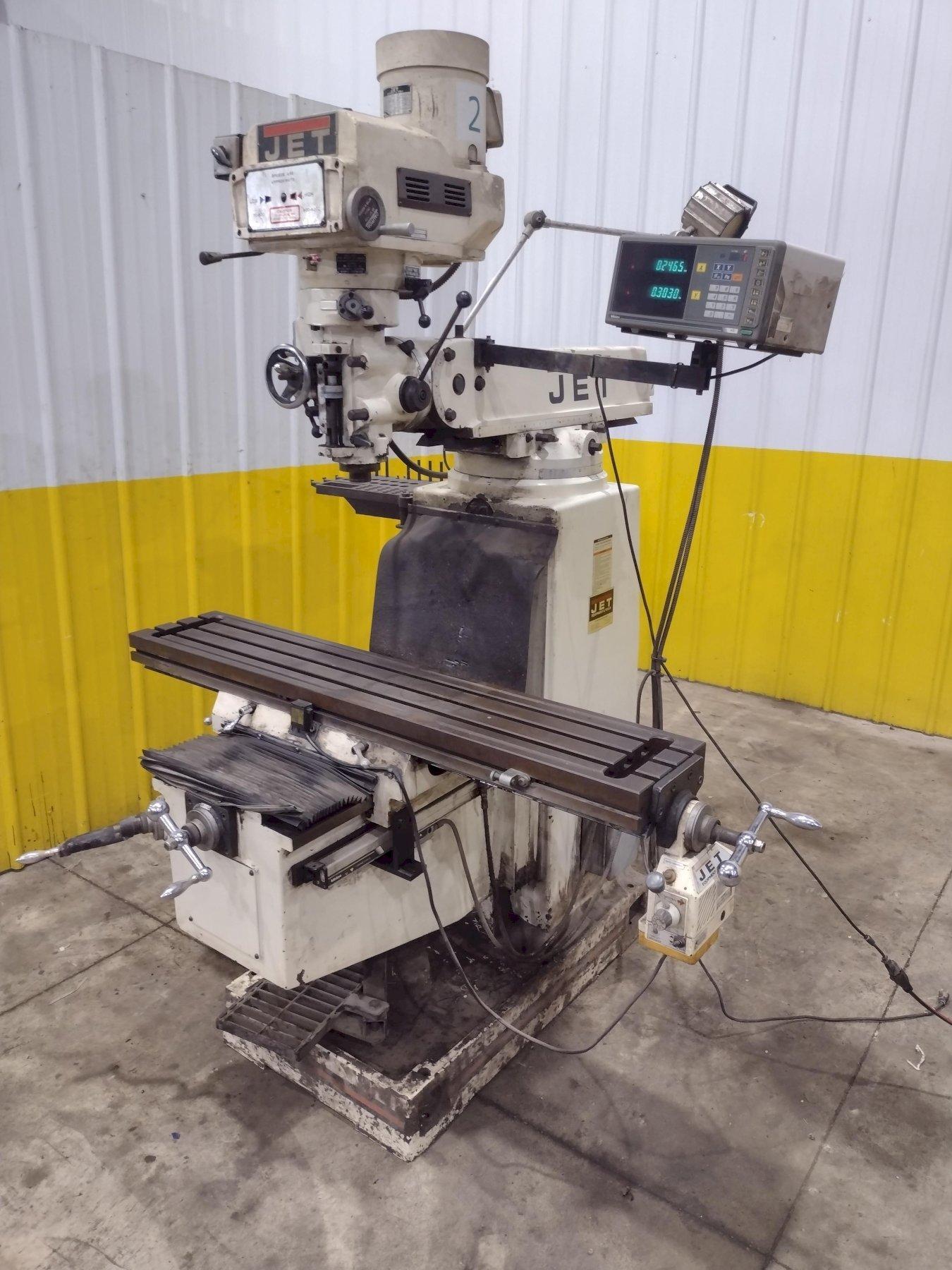

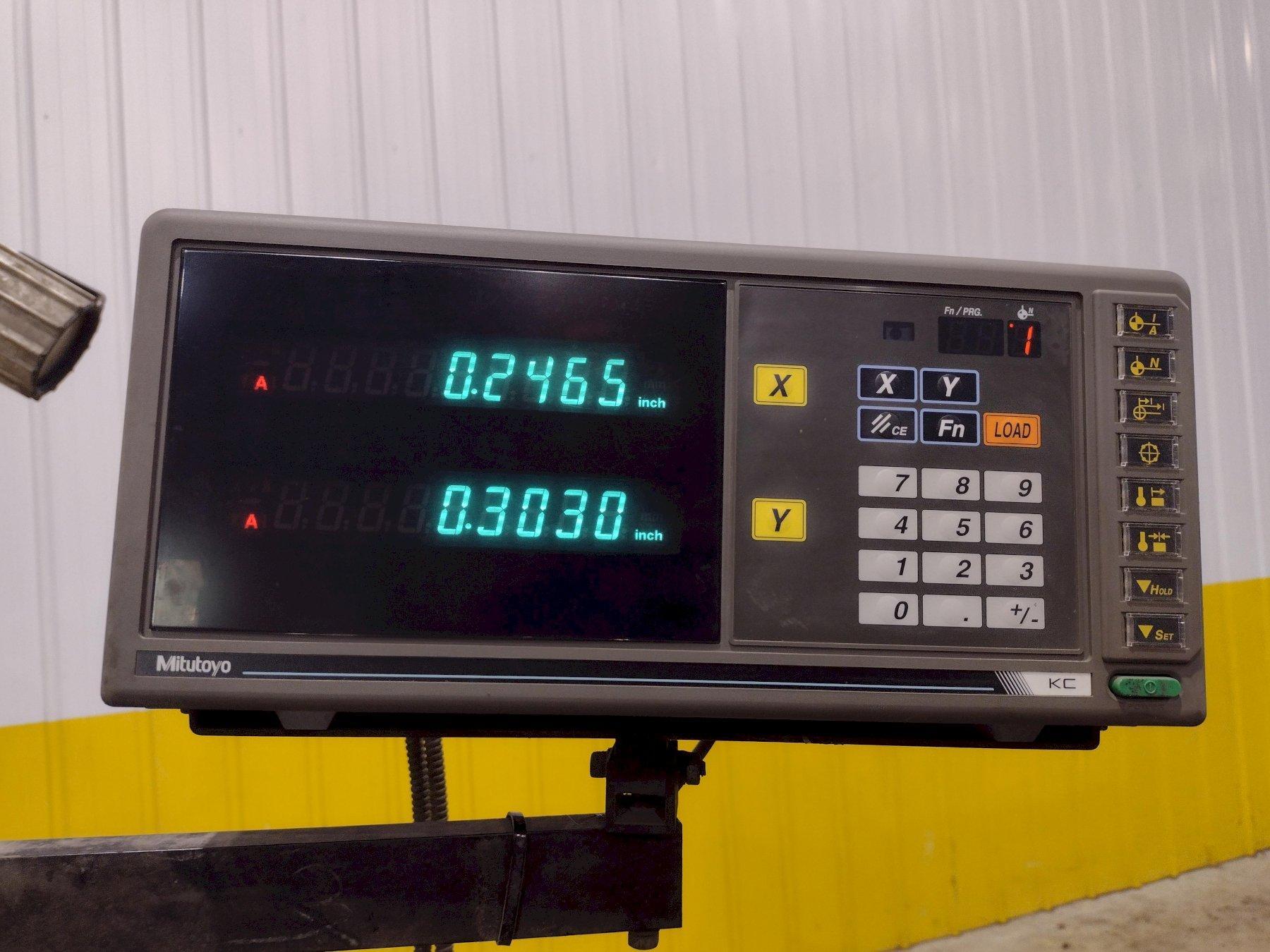

DIGITAL READ OUTS
MOTOR ................................ 3 HP
