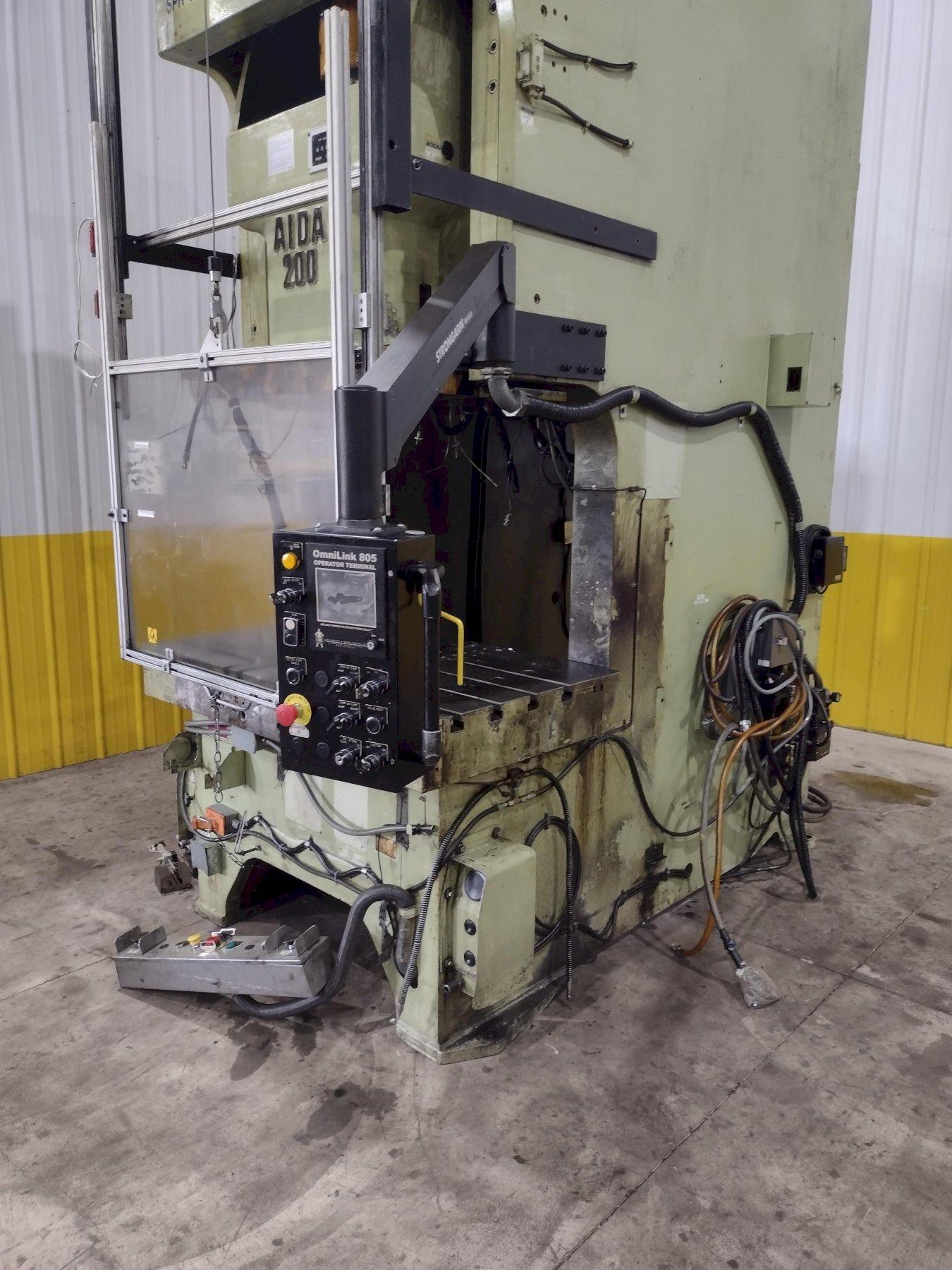

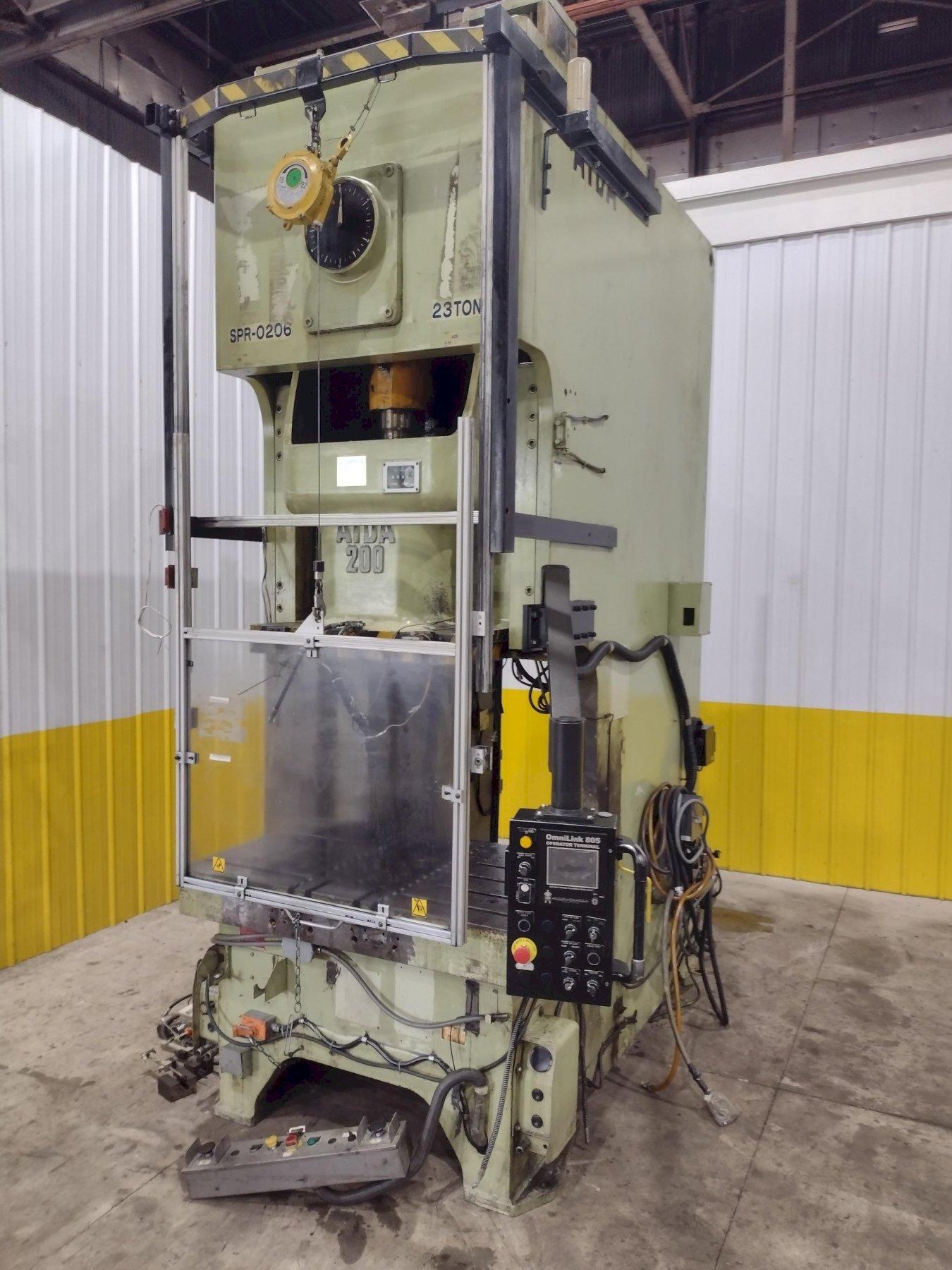

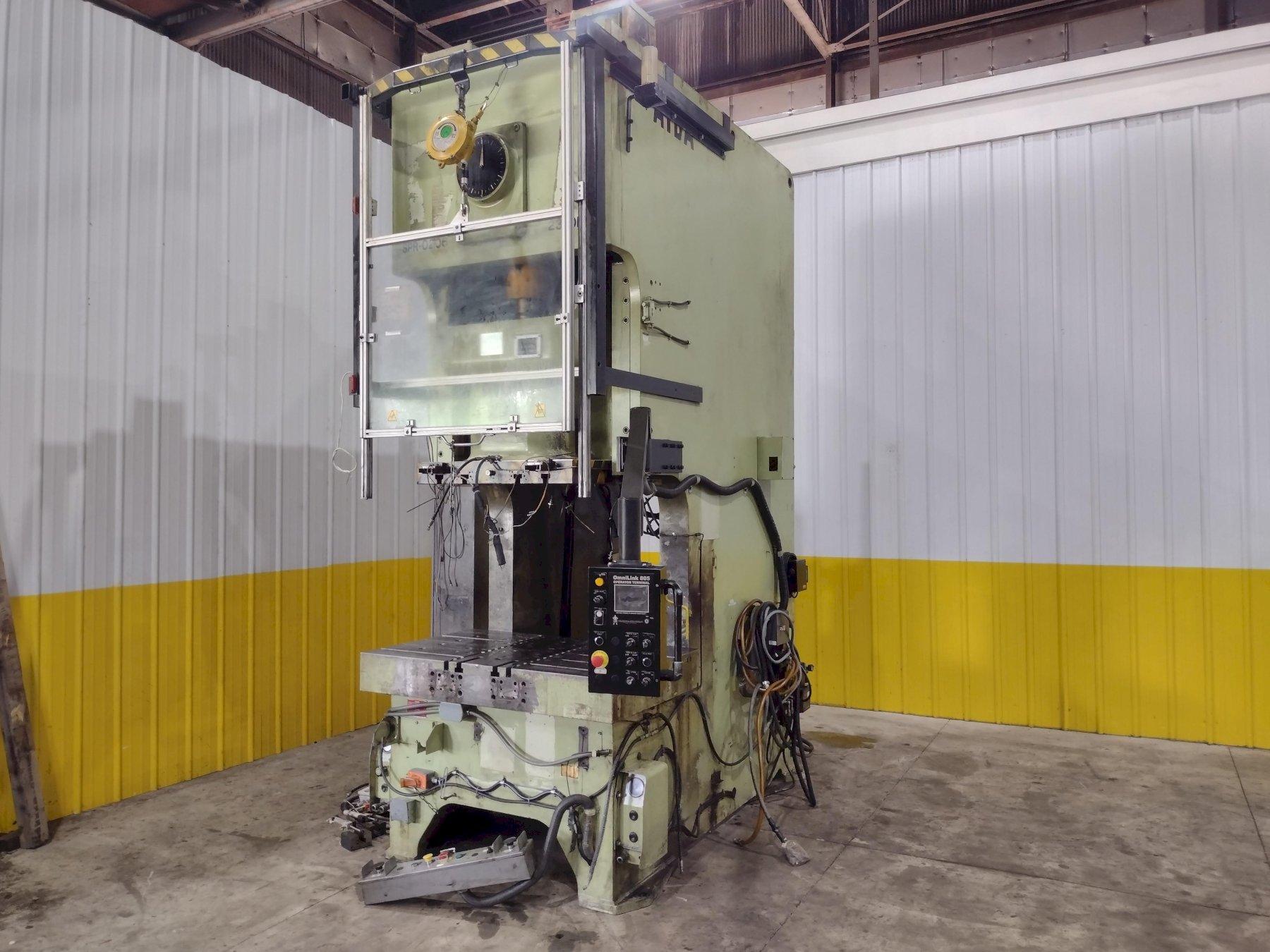

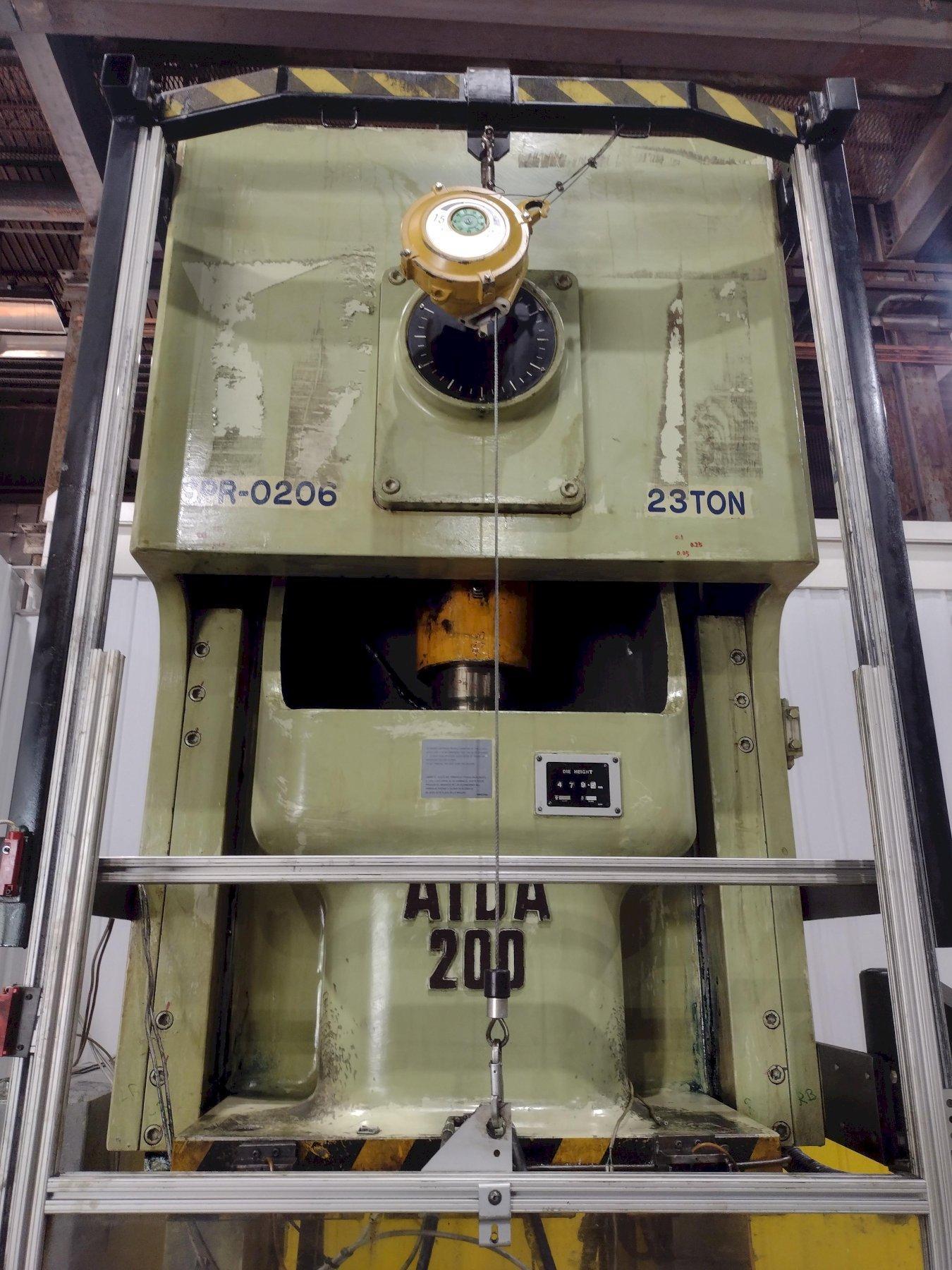

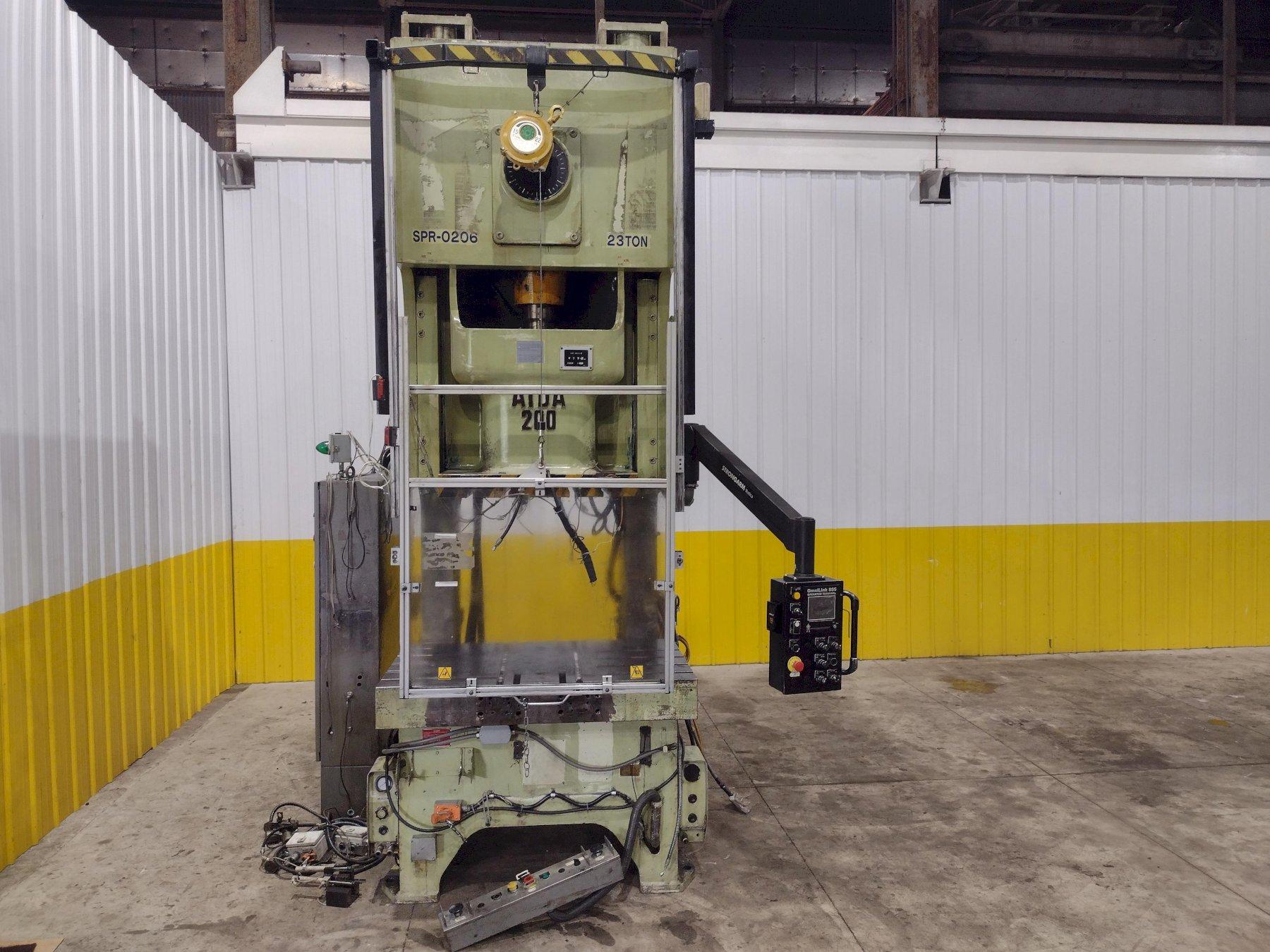

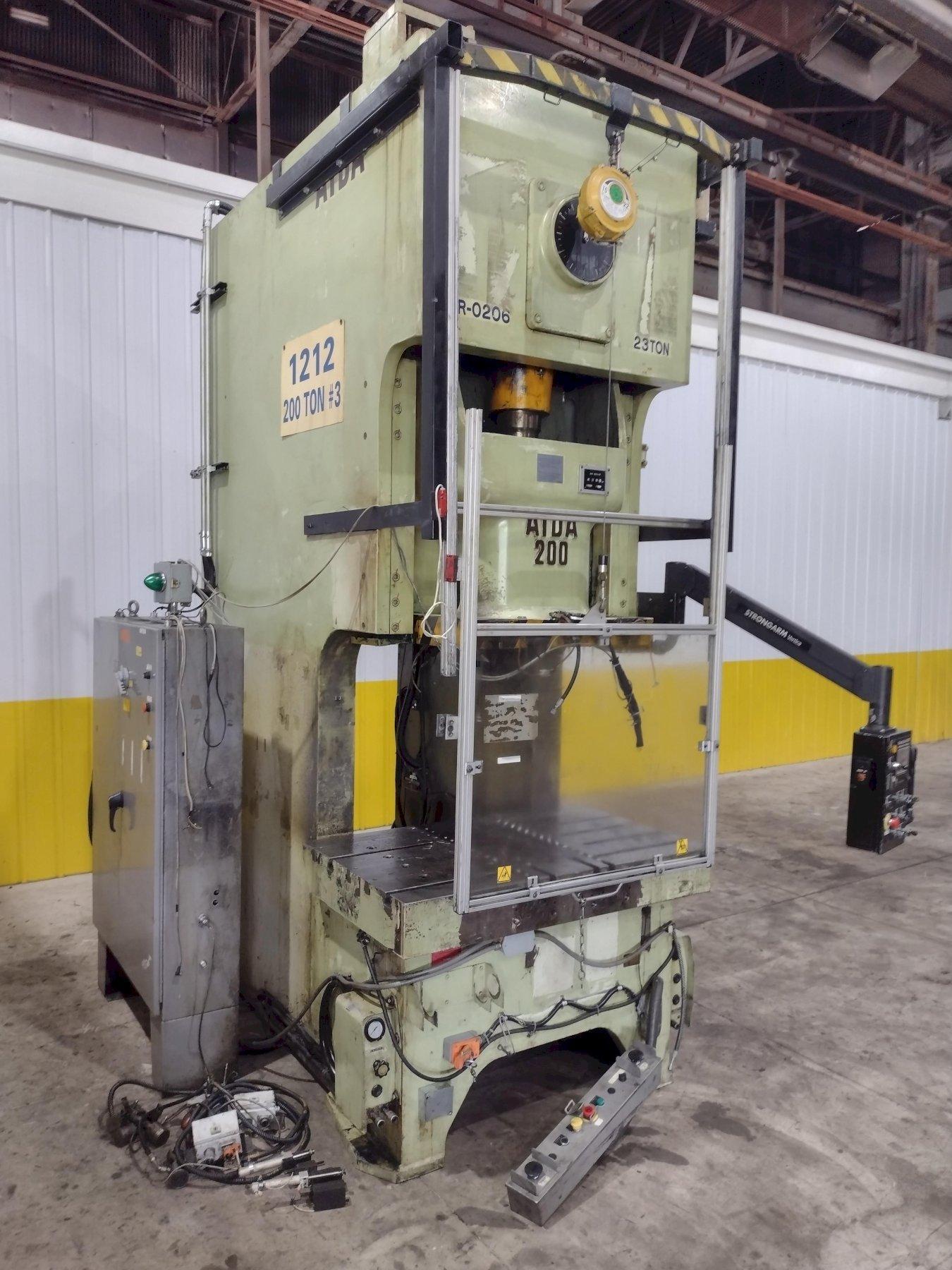

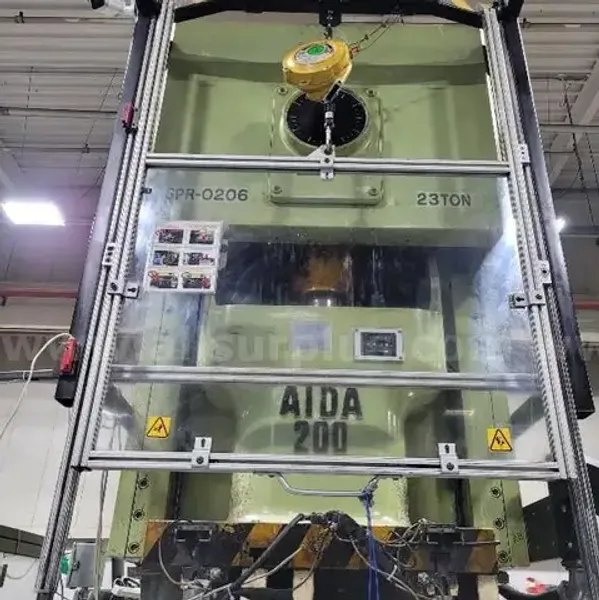

220 TON AIDA MODEL #NCI-200(2) GAP FRAME PRESS, 12.59" STROKE: STOCK #22210

Manufacturer

AIDA

Category

Presses

Type

PRESSES, GAP FRAME, (Double Crank)

Stock

22210

Model

NCI-200

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet

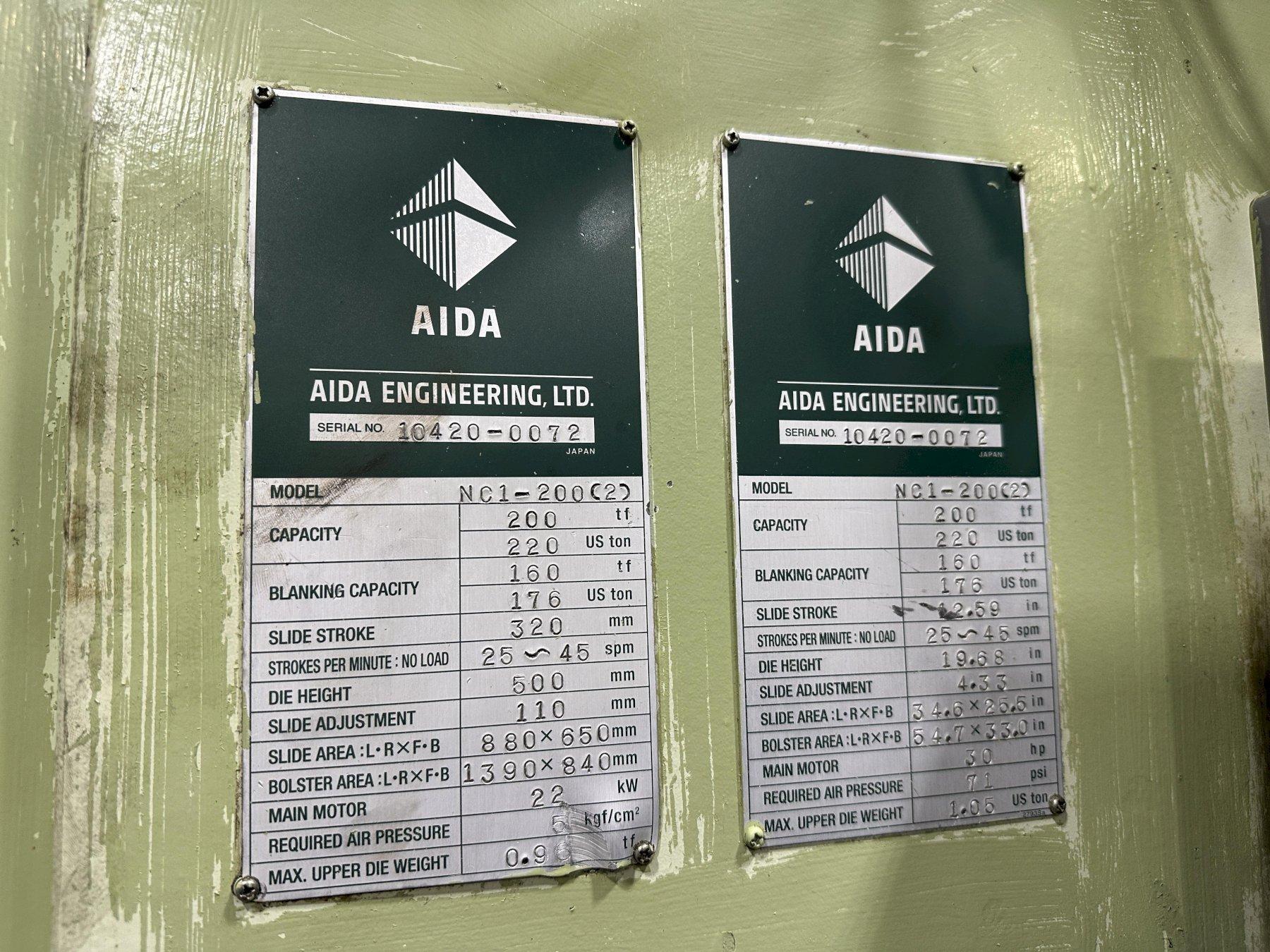

SERIAL ............................ 10420-0072
MODEL ............................. NC1-200(2)
CAPACITY .......................... 220 TON
STROKE OF SLIDE ................... 12.59"
SLIDE ADJUSTMENT .................. 4.33"
POWER SLIDE ADJUSTMENT ............ YES

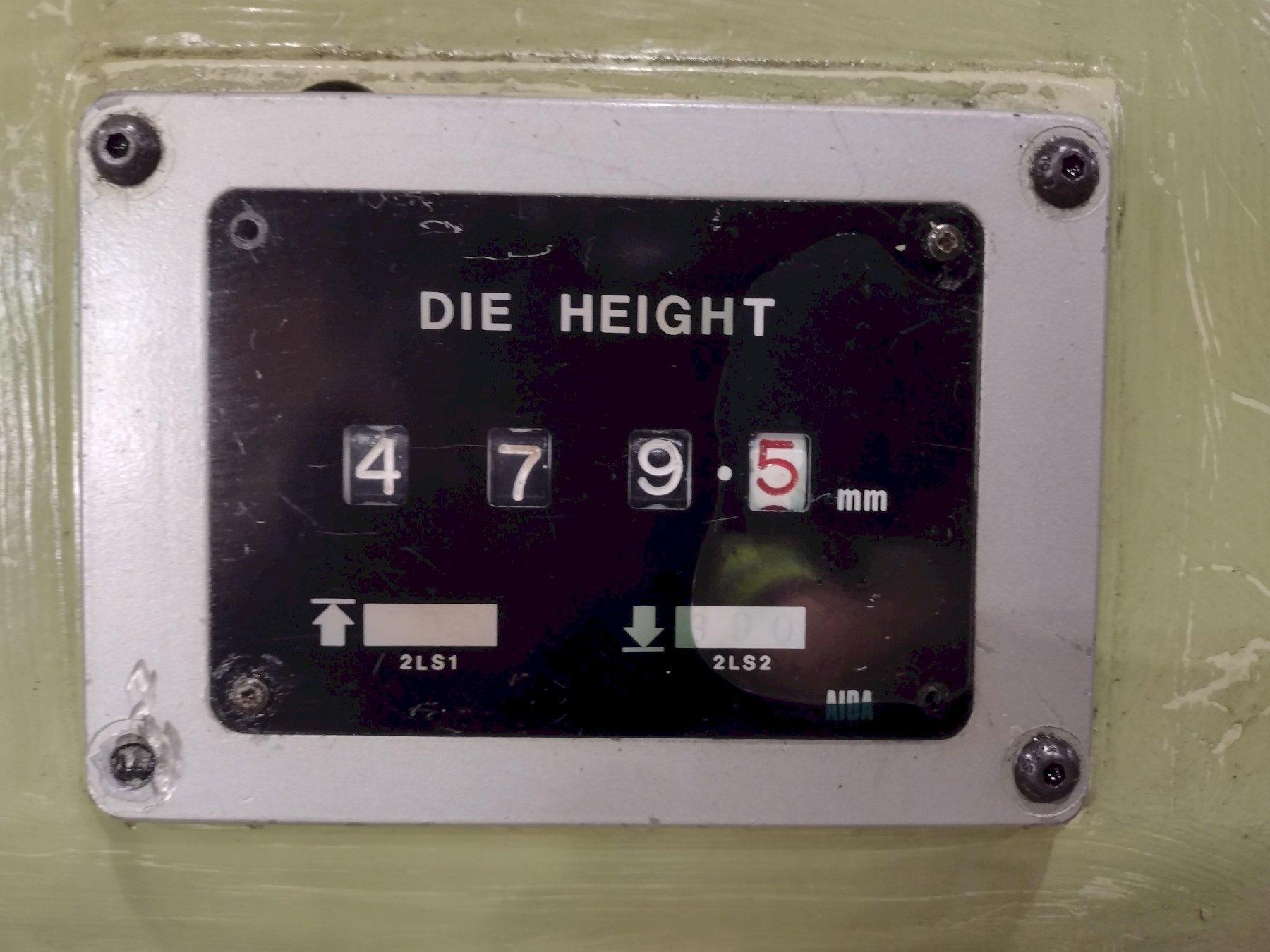

SHUT HEIGHT, OVER BOLSTER ......... 19.68"

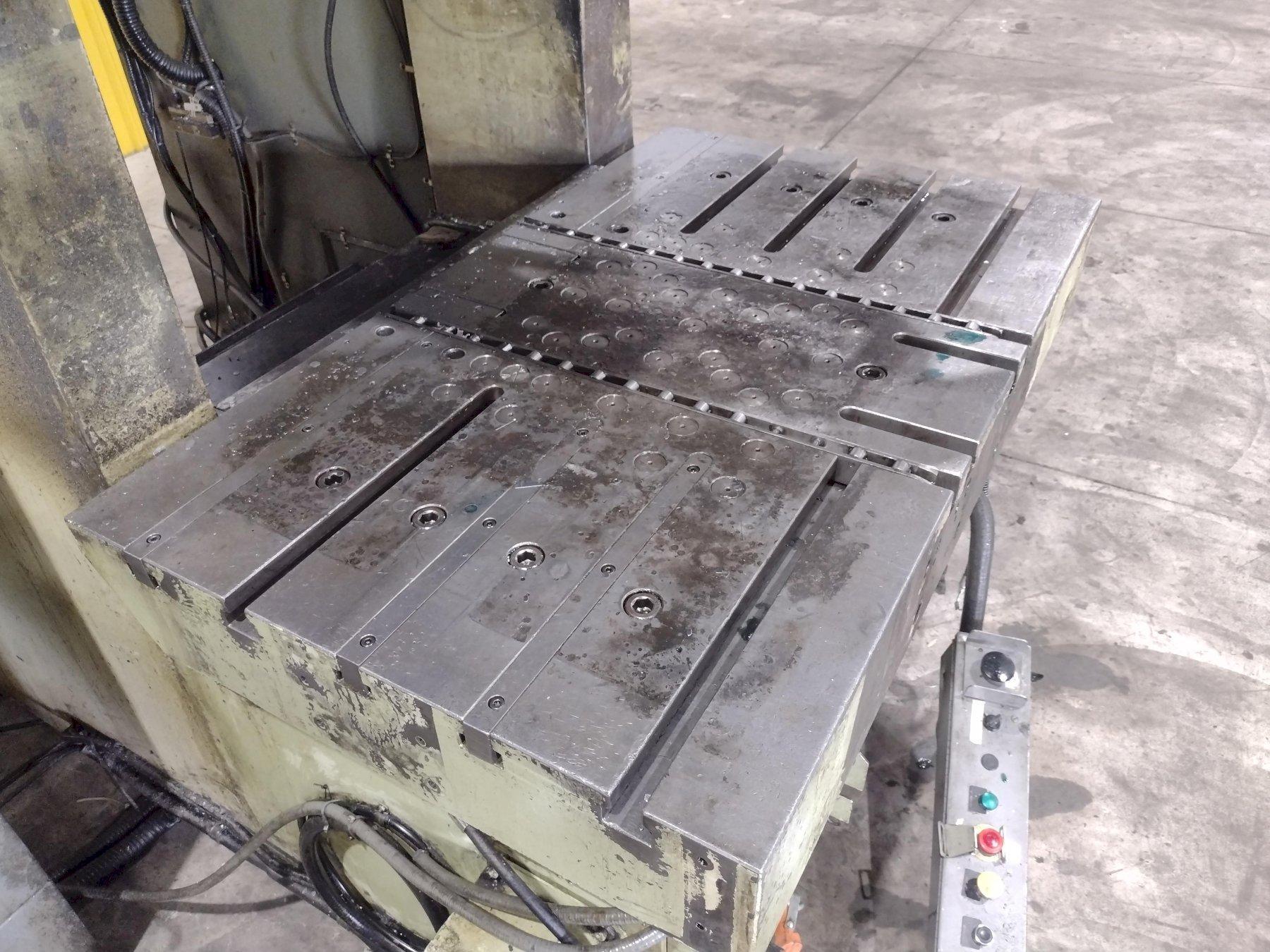

AREA OF BED ....................... 54.7" X 33.0"

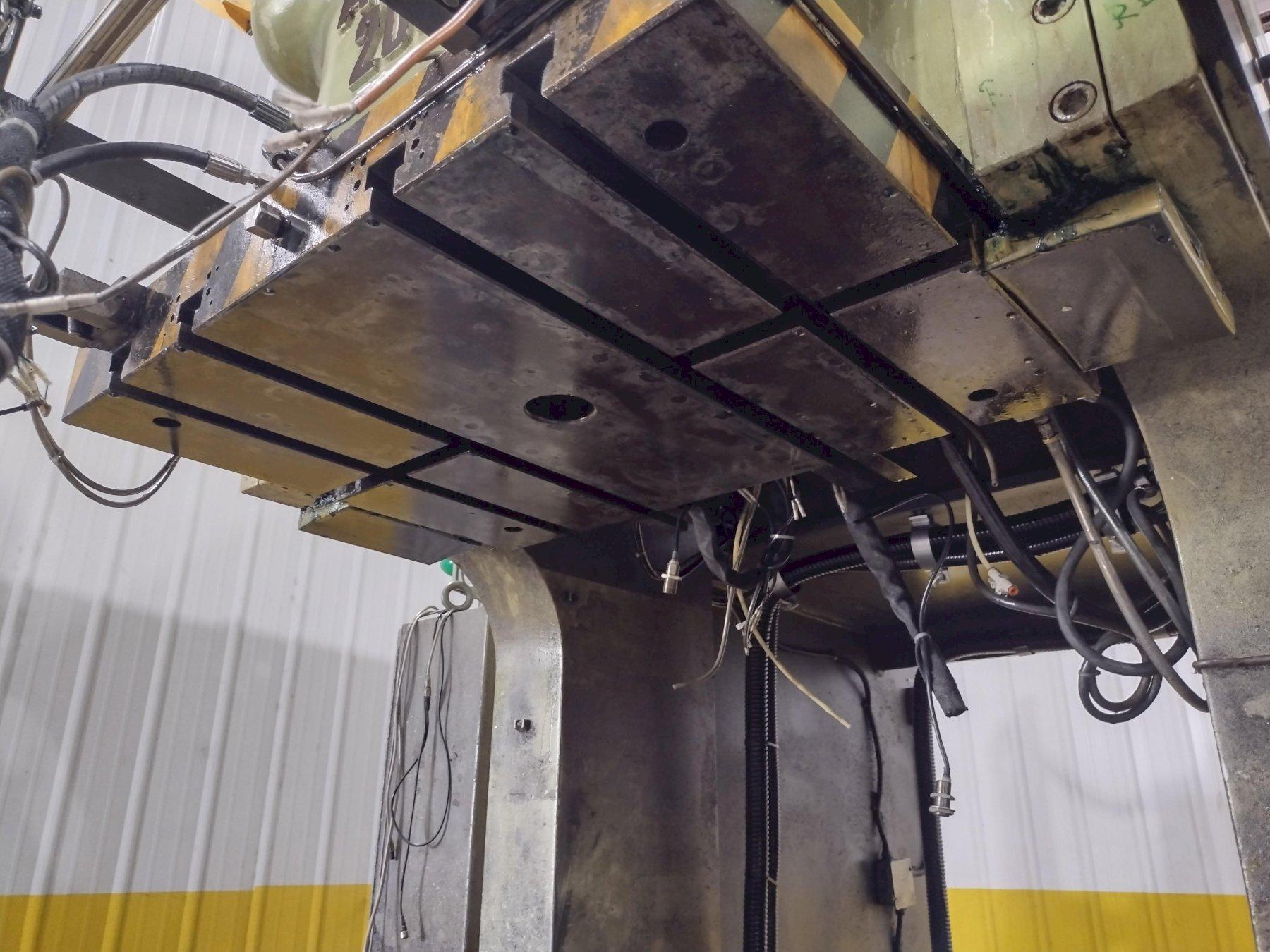

AREA OF RAM ....................... 34.6" X 25.5"
STROKES PER MINUTE ................ 25-45 SPM

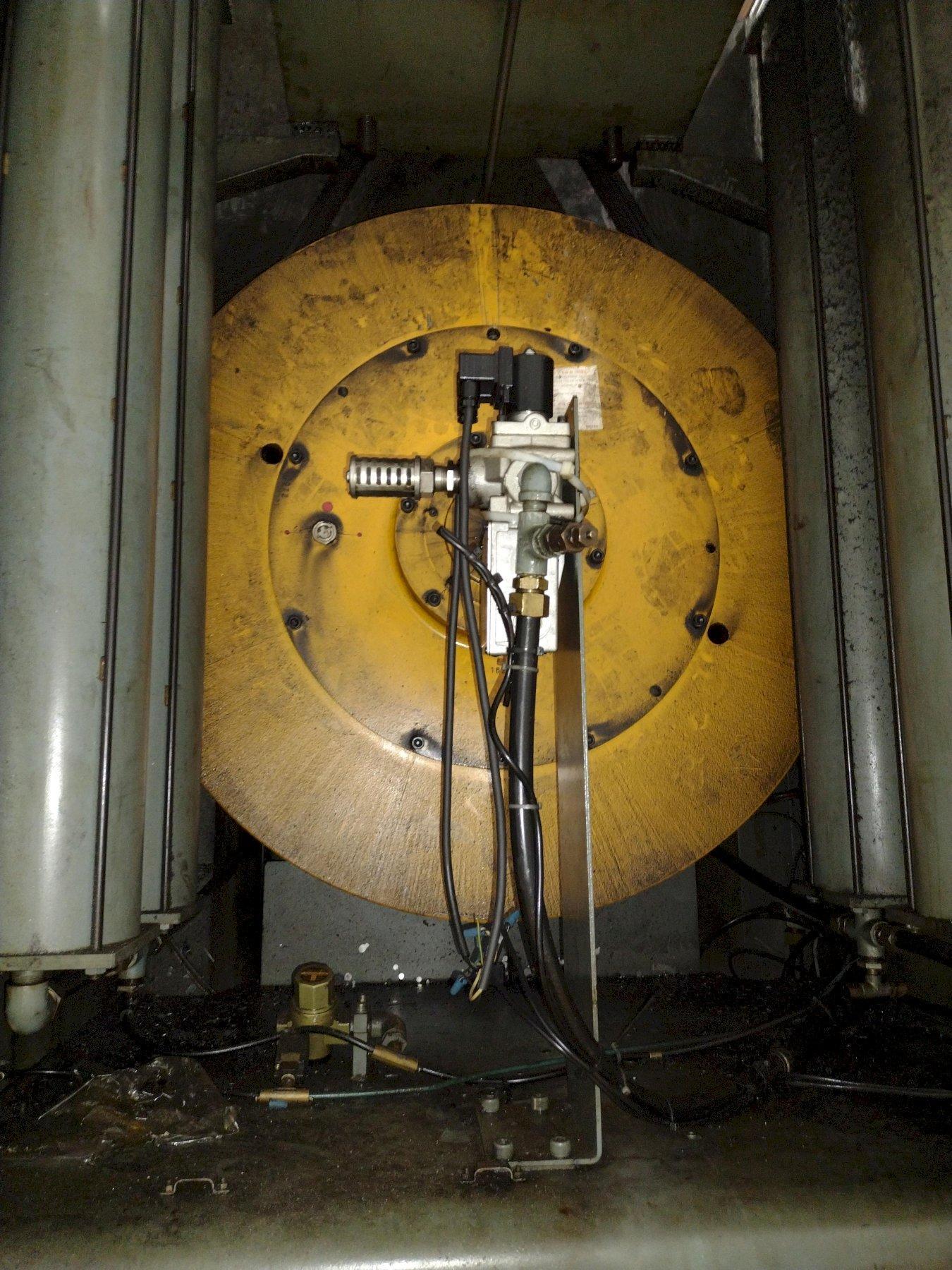

AIR CLUTCH ........................ YES
AIR BRAKE ......................... YES
AIR COUNTER BALANCES .............. YES
HYDRAULIC OVERLAD PROTECTION ...... YES
FLOOR STANDING .................... YES

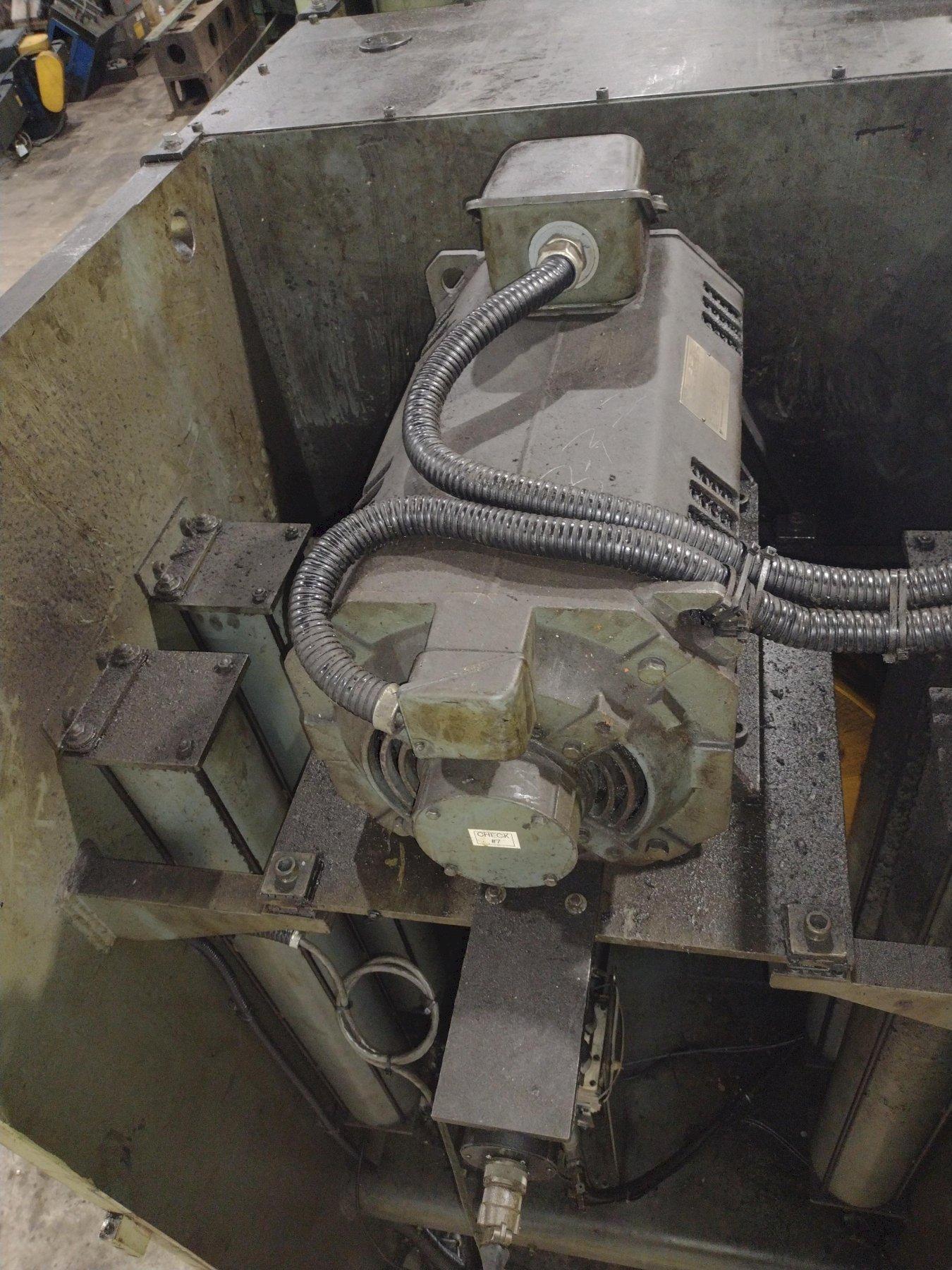

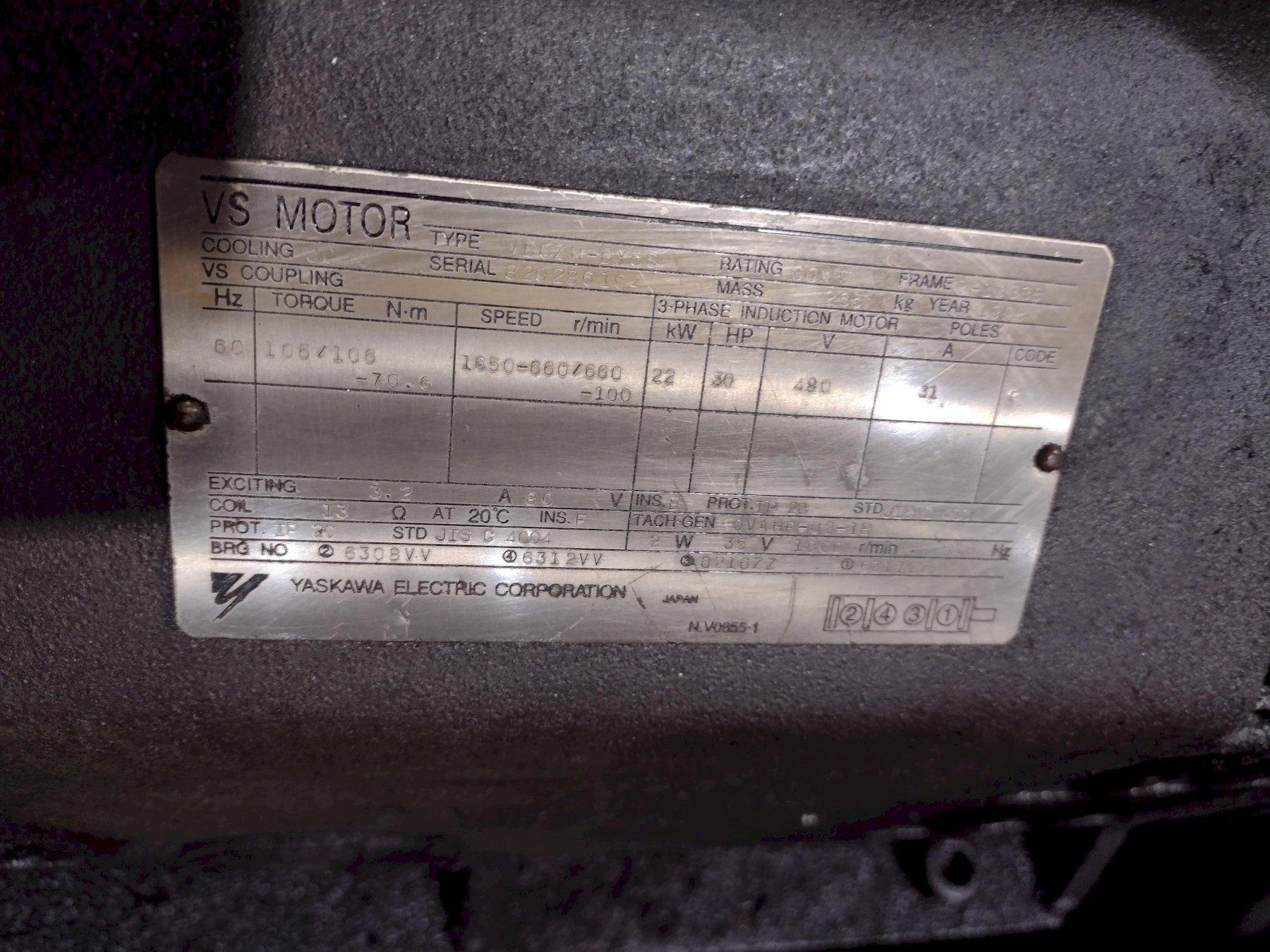

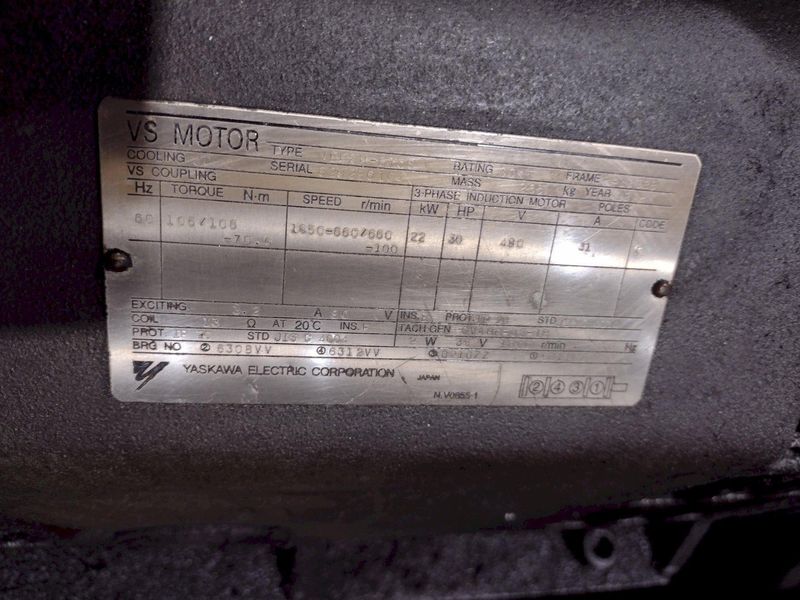

MOTOR ............................. 30 HP
