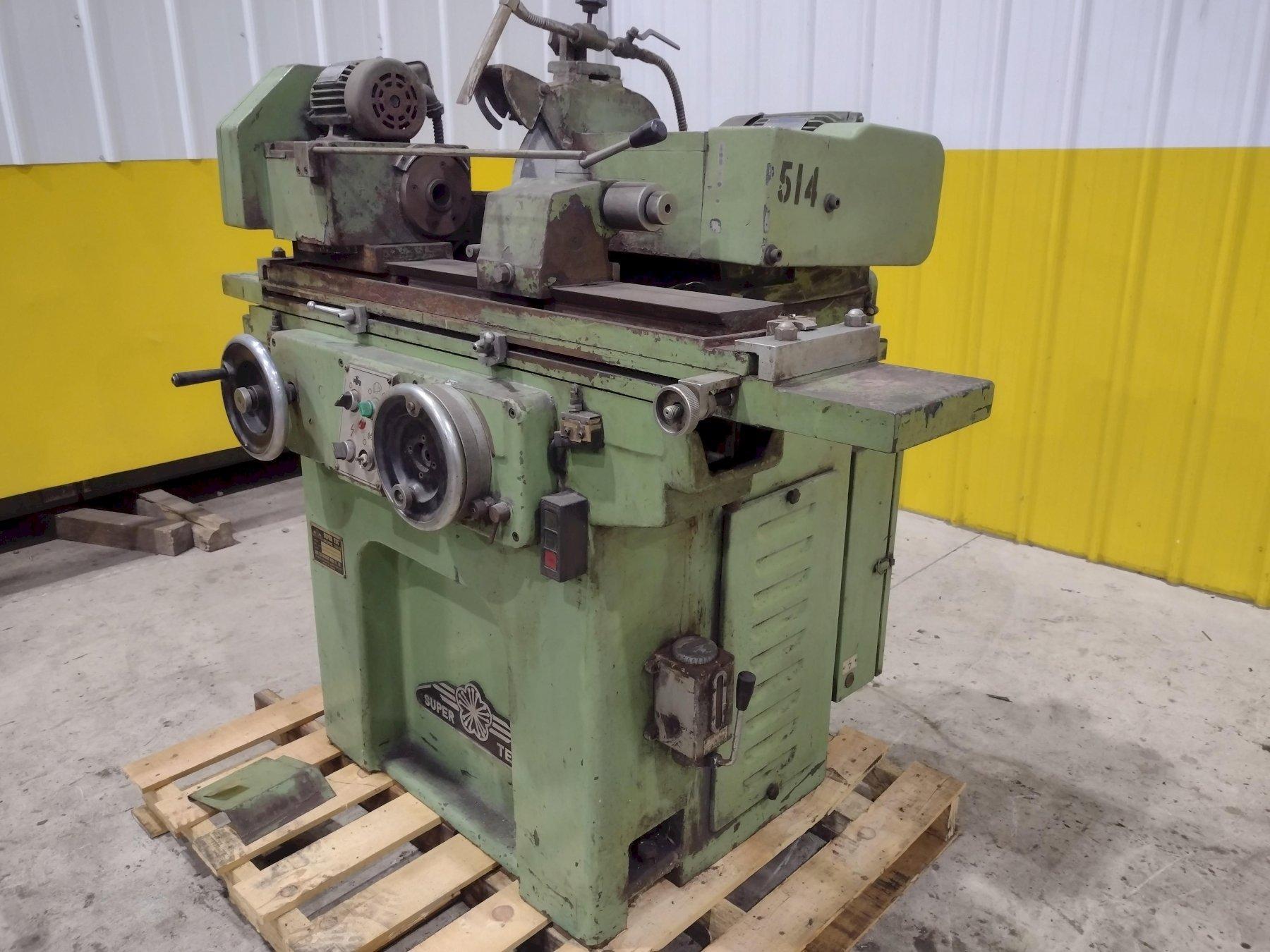

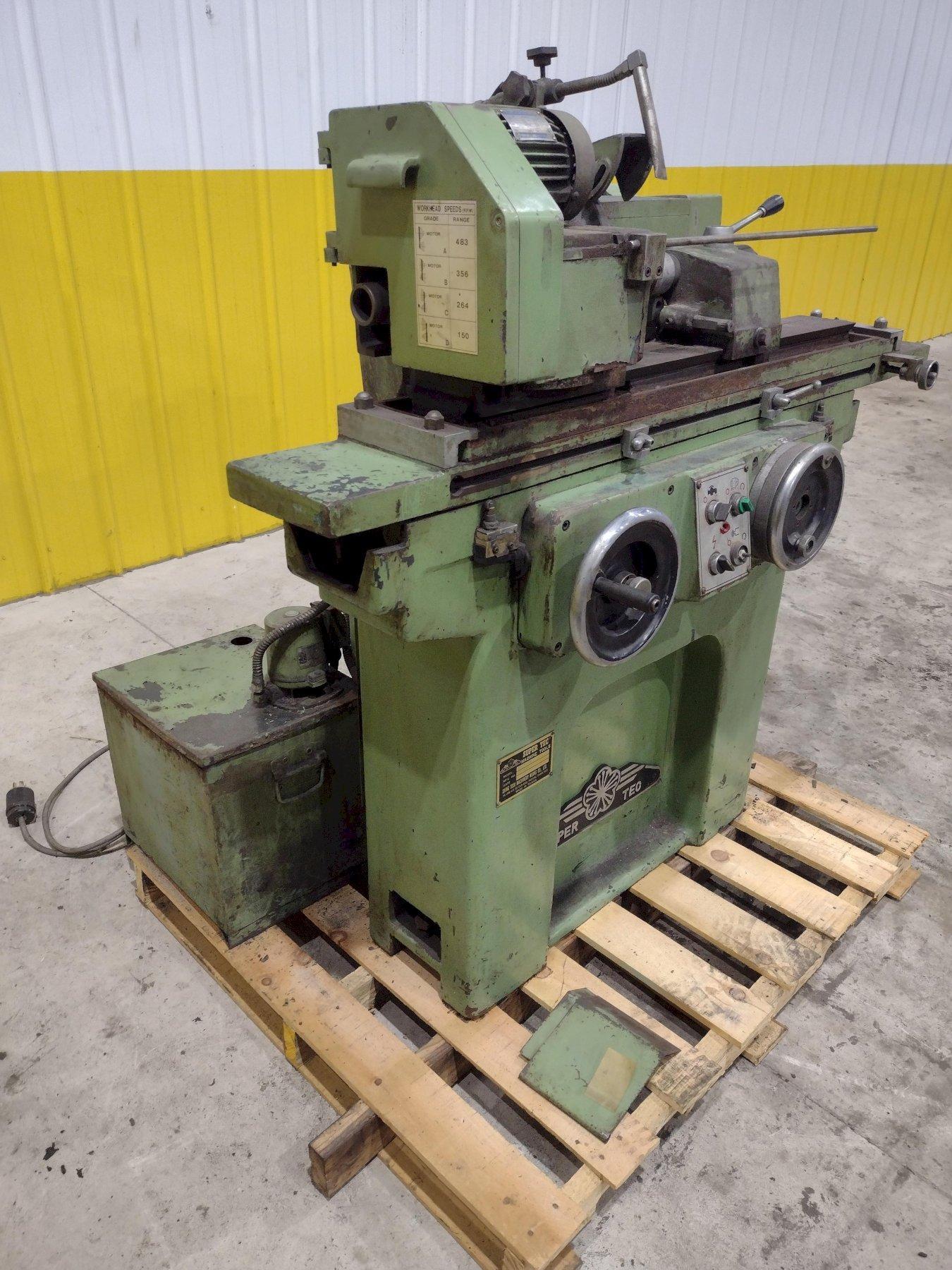

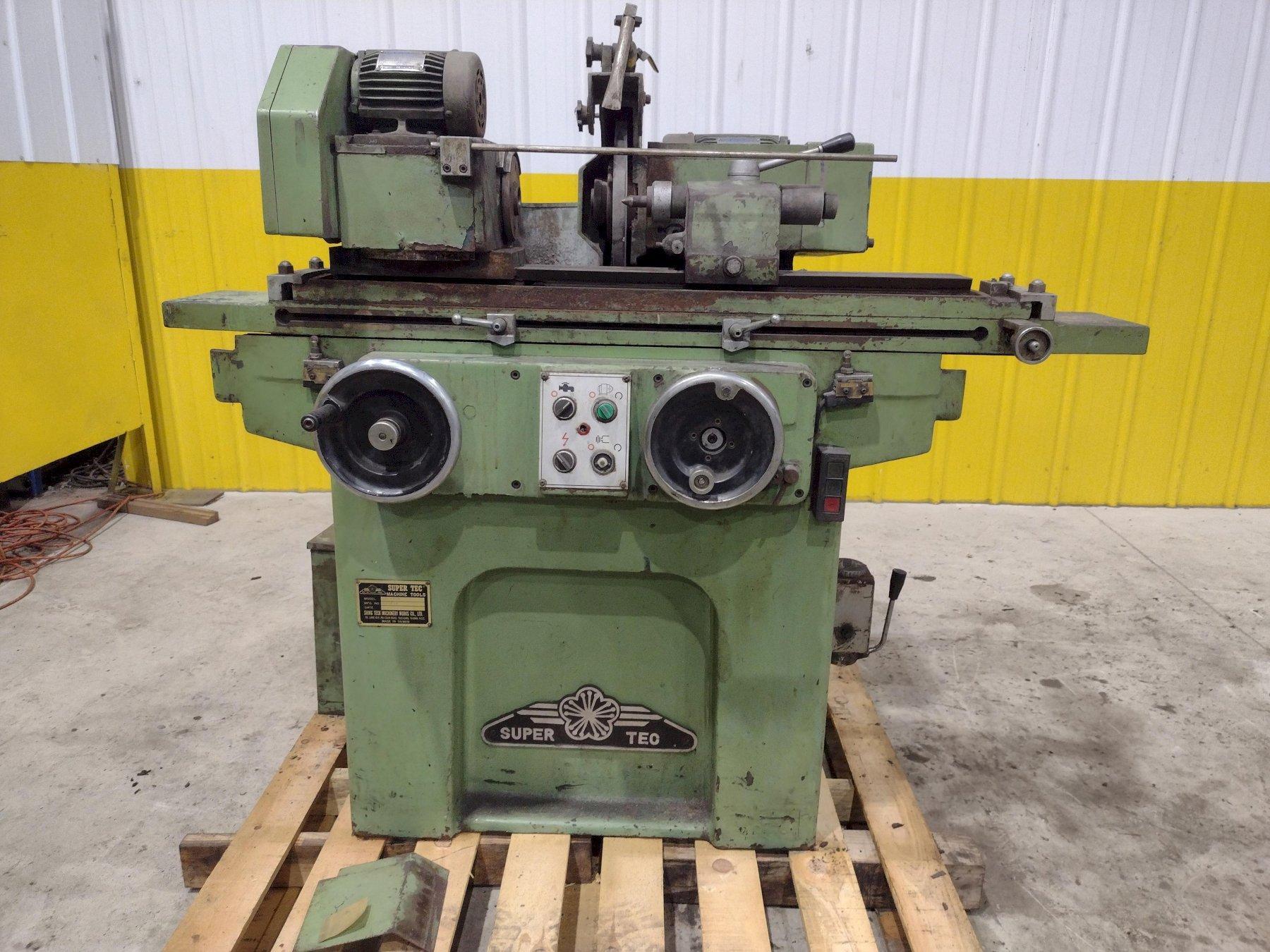

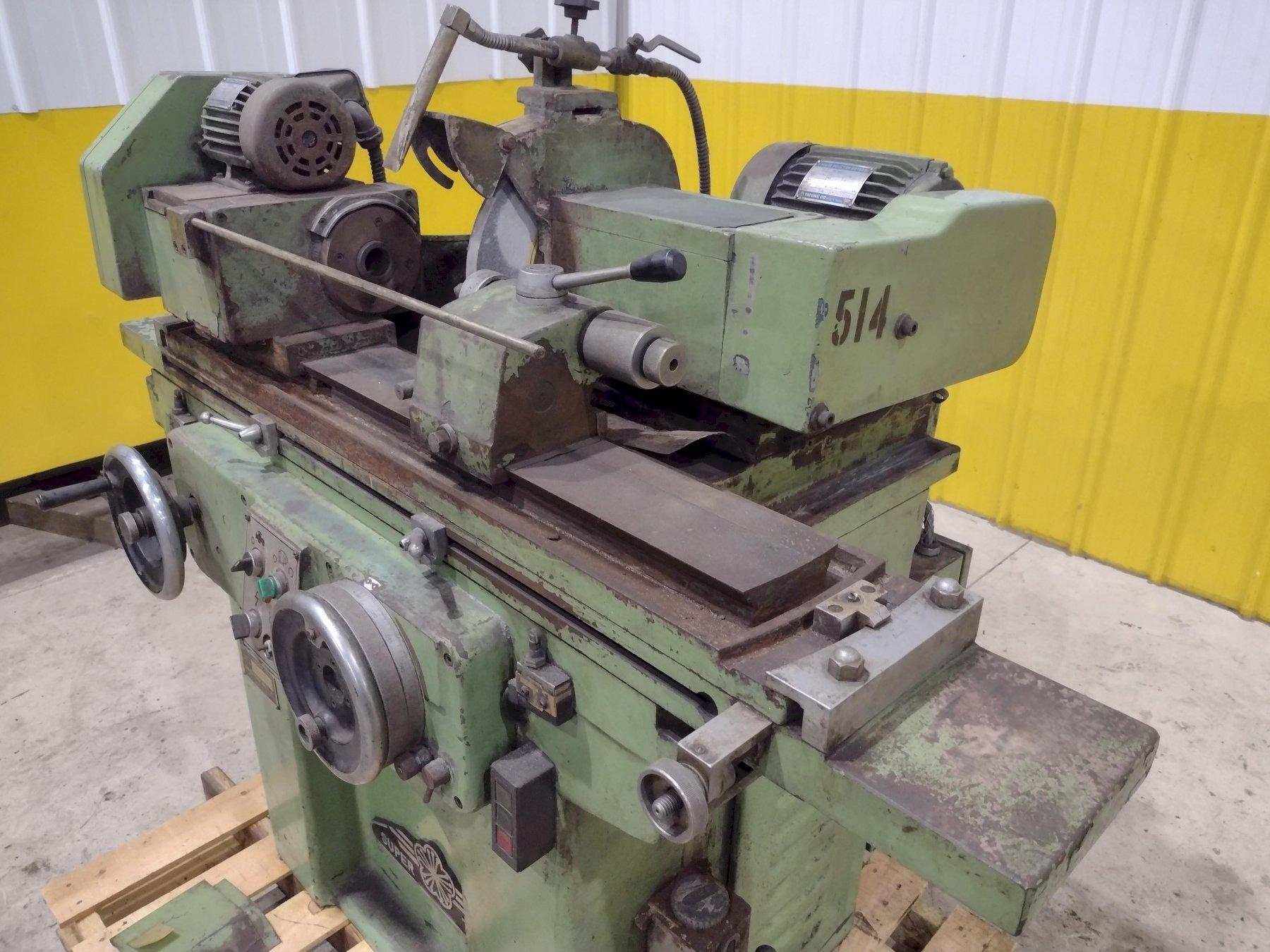

4" X 18" SUPERTEC MODEL #STG-450 OD CYLINDRICAL GRINDER: STOCK #22057

Manufacturer

SUPERTEC

Category

Air Compressors

Type

AIR COMPRESSOR ACCESSORIES

Stock

22057

Model

STG-450

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet

Weight - 2200 pounds

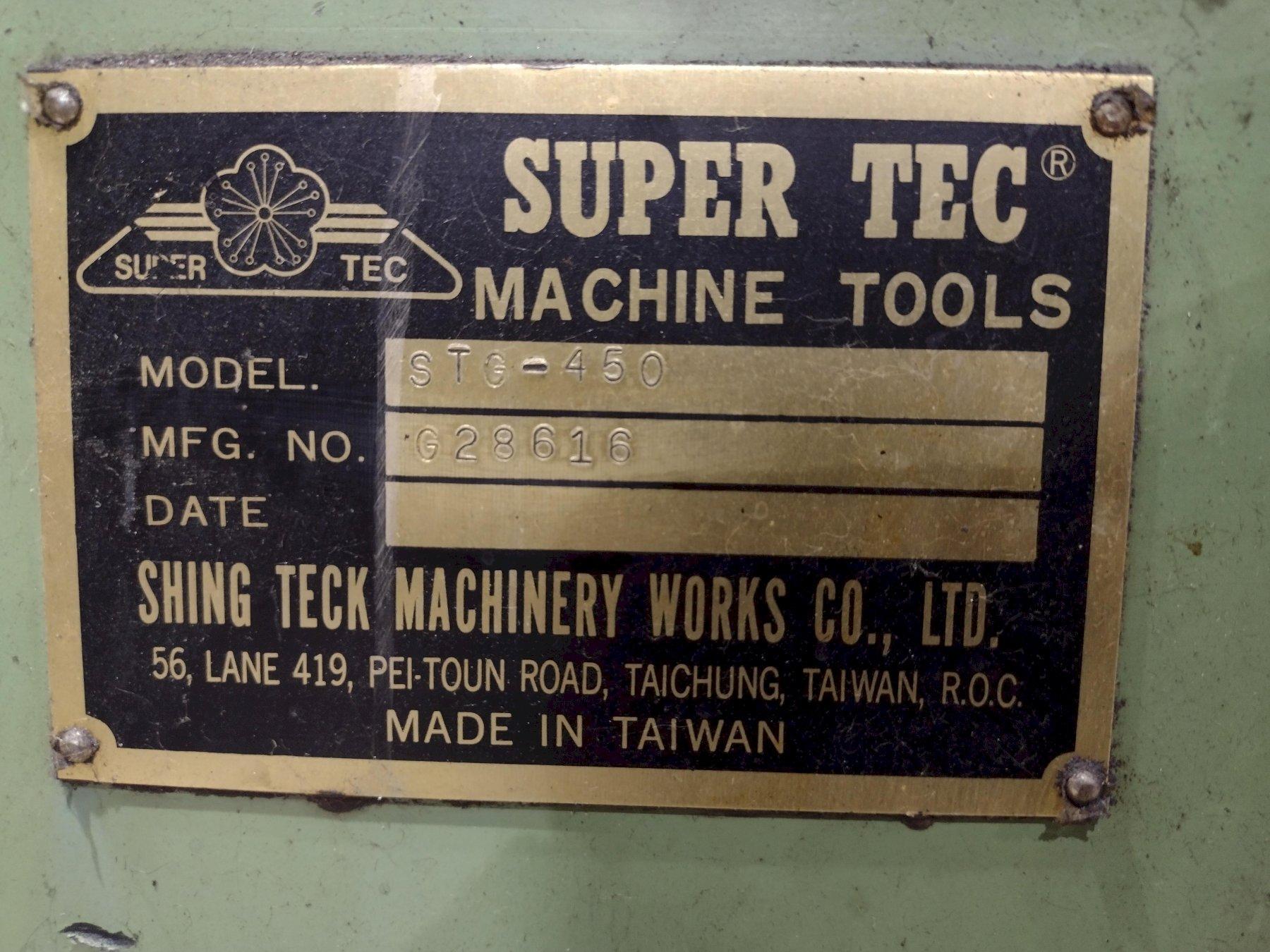

SERIAL G28616
MODEL STG-450

SWING OVER TABLE ................................... 4
DISTANCE BETWEEN CENTERS .......................... 18

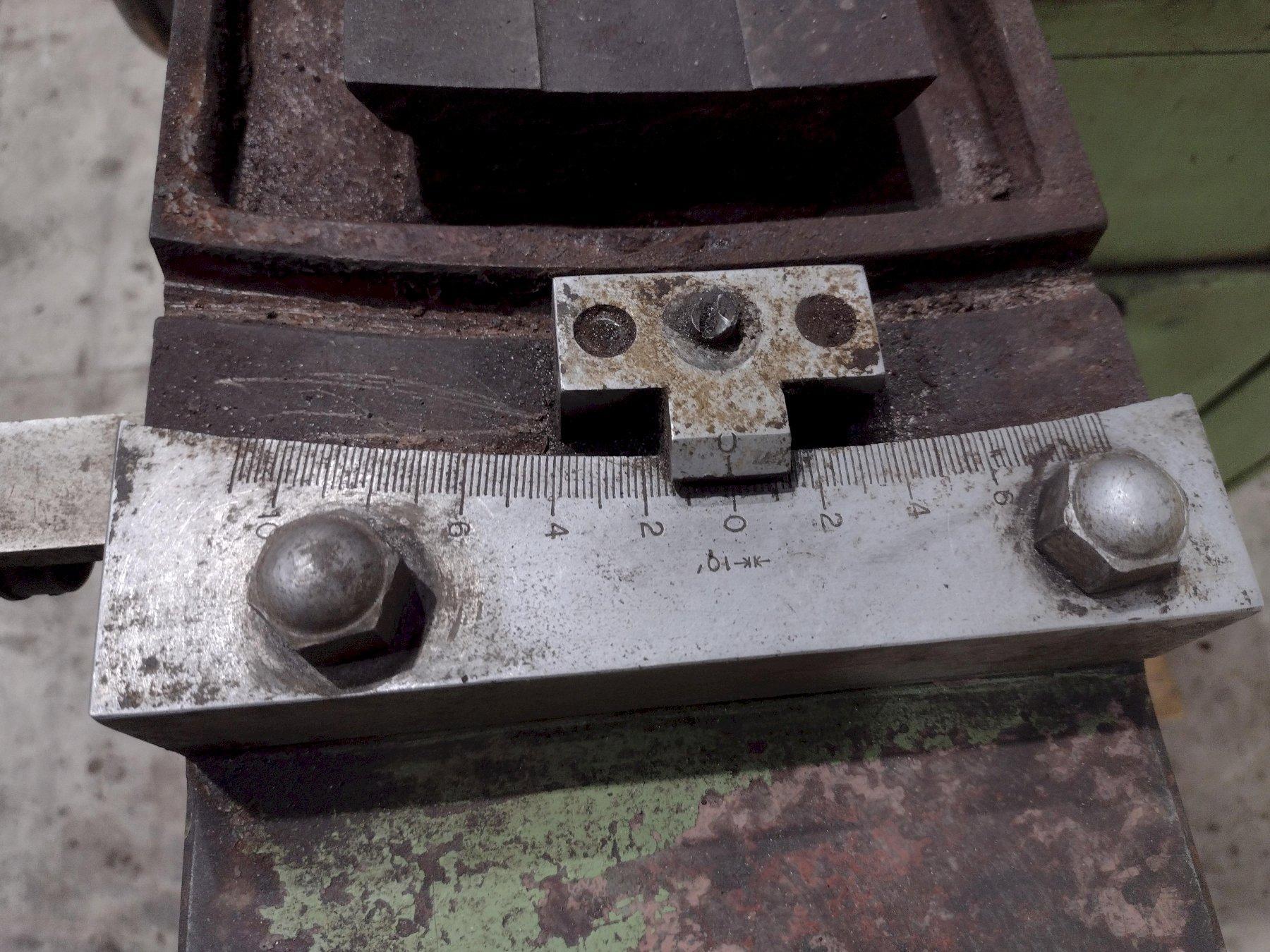

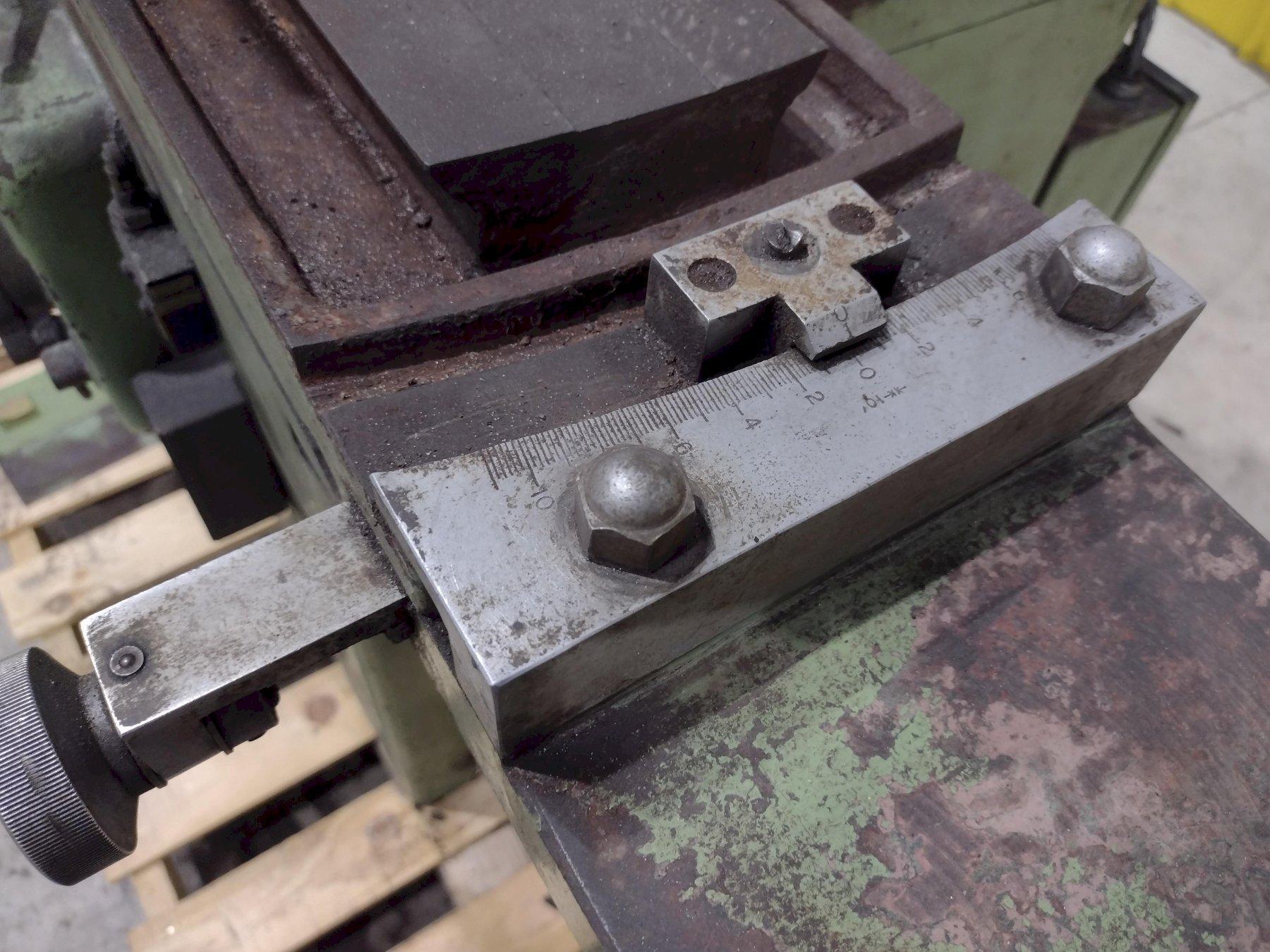

TABLE, GRINDS TAPERS UP TO .. 20 DEGREES INCLUDED ANGLE
TABLE TRAVEL PER REV. OF HANDWHEEL .............. 5/16
POWER TABLE TRAVERSE (3 SPEEDS) ... 80, 128, 192 IPM

WHEELHEAD:
  TOTAL TRAVEL BY FEEDSCREW ........................ 3

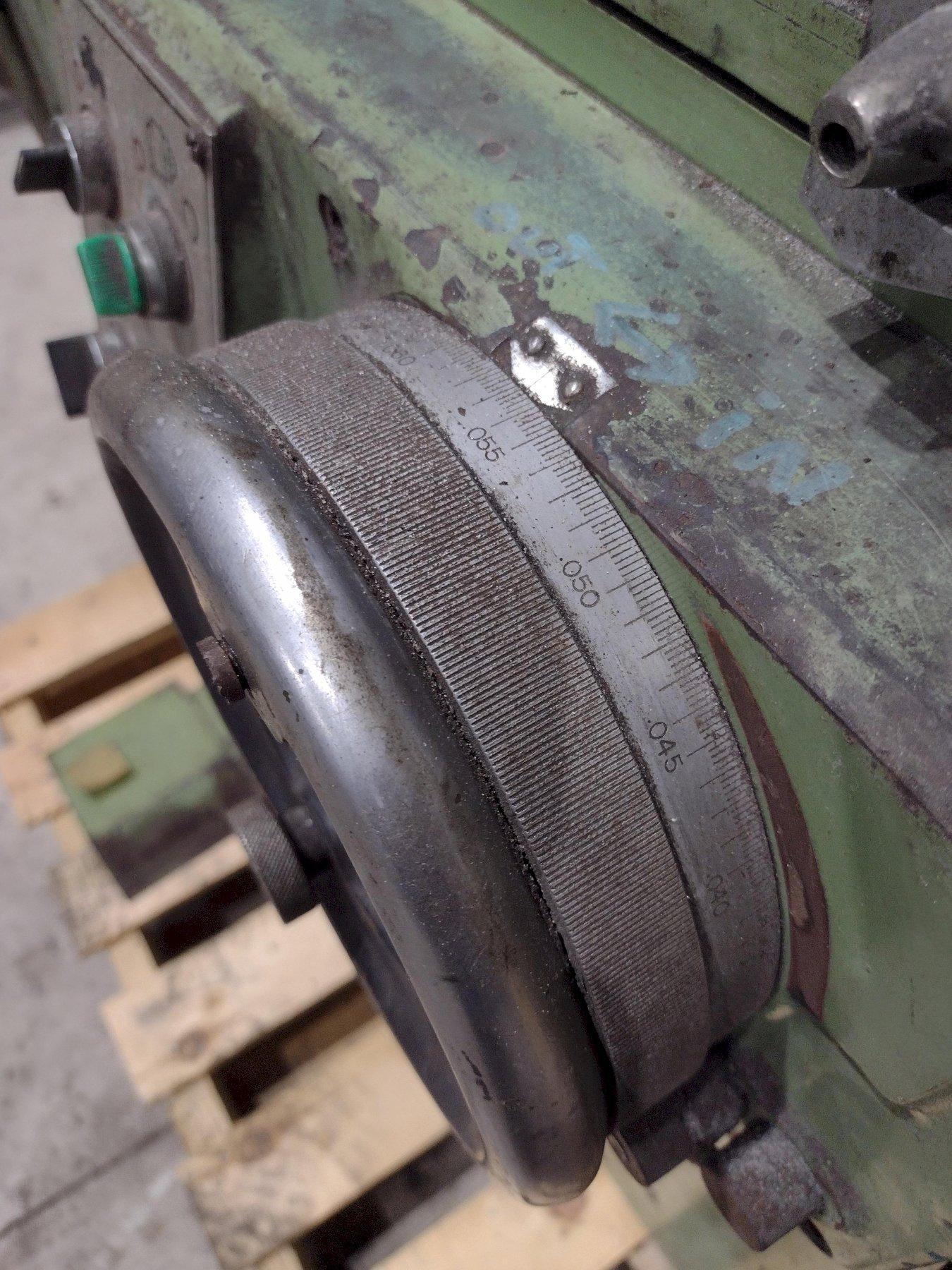

  INFEED PER REV. OF HANDWHEEL ................. 0.025
  WHEELHEAD GRAD. (INFEED) .................... 0.0001

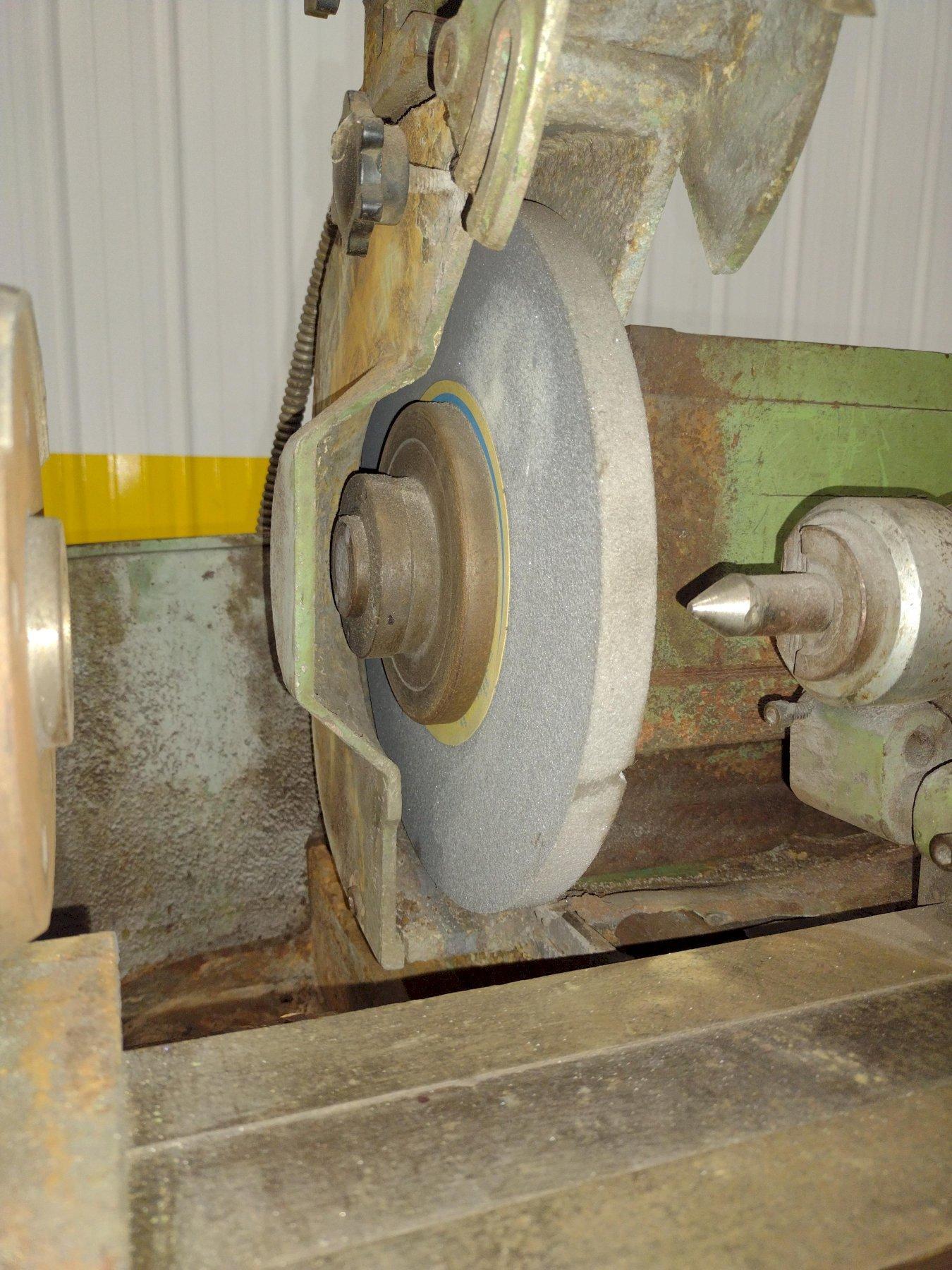

  GRINDING WHEEL ........................ 12 X 1 X 3
  GRINDING WHEEL SPEEDS (2) ..........1,720 & 2,400 RPM

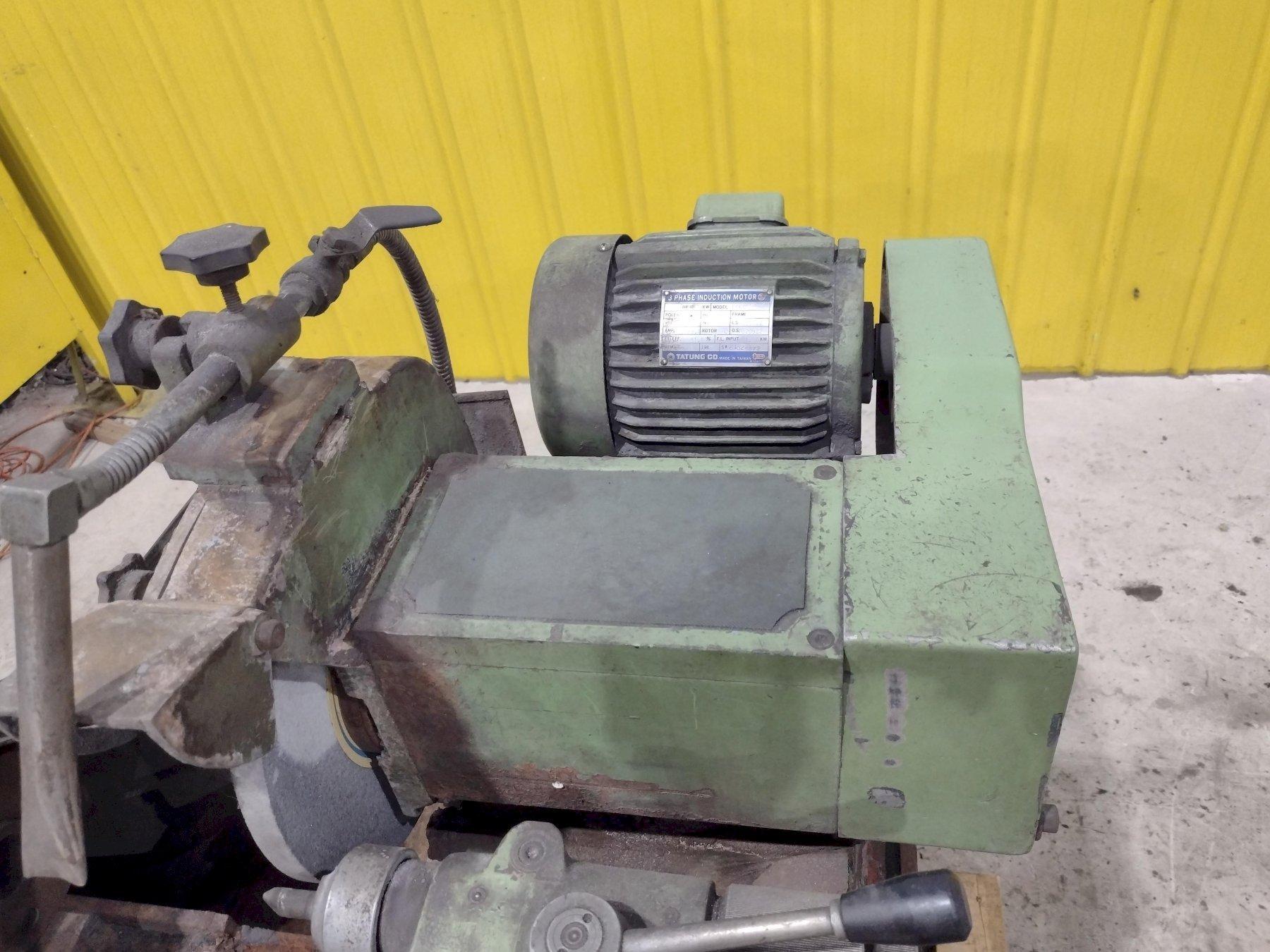

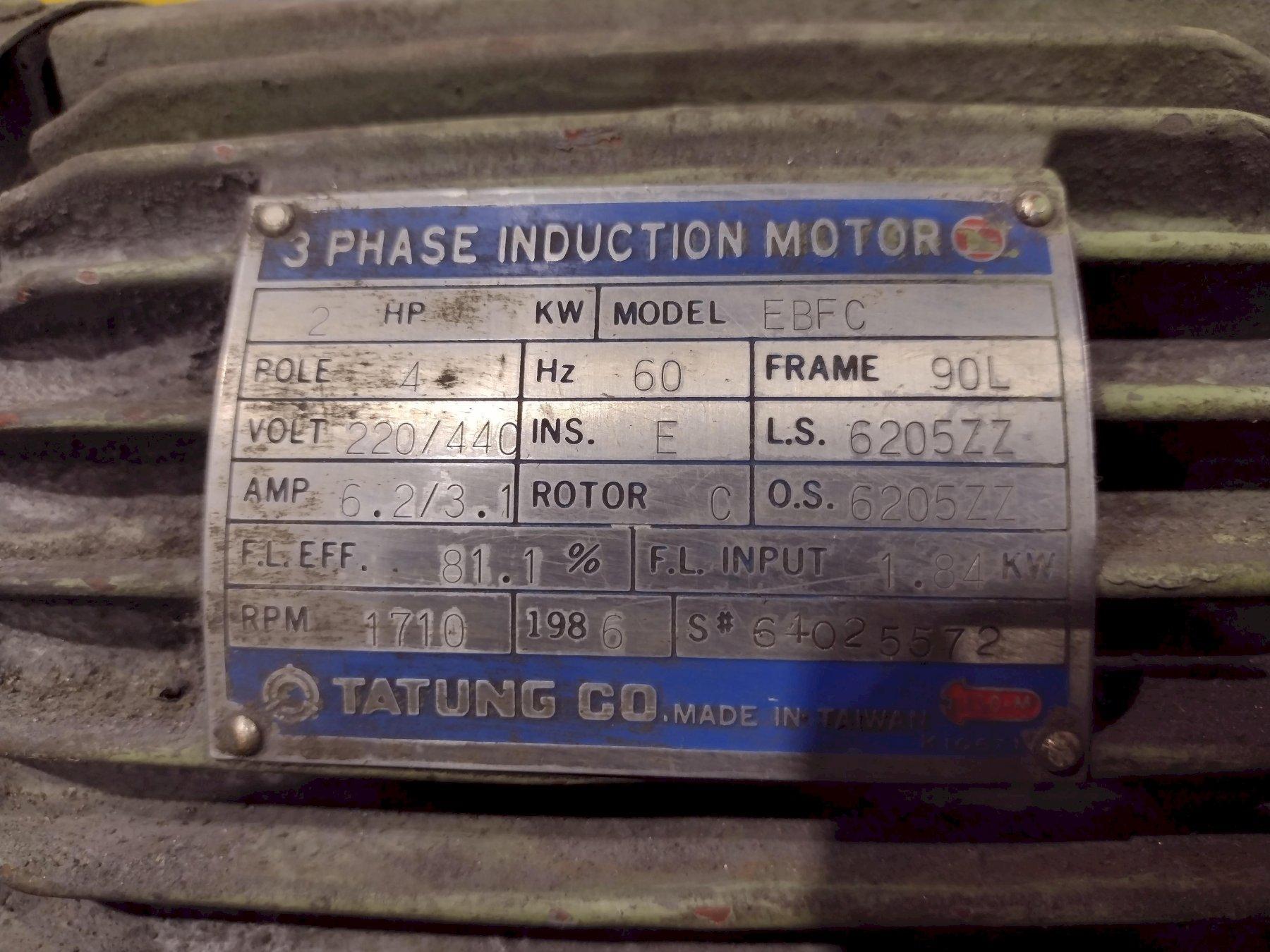

  WHEELHEAD MOTOR ................................ 2 HP

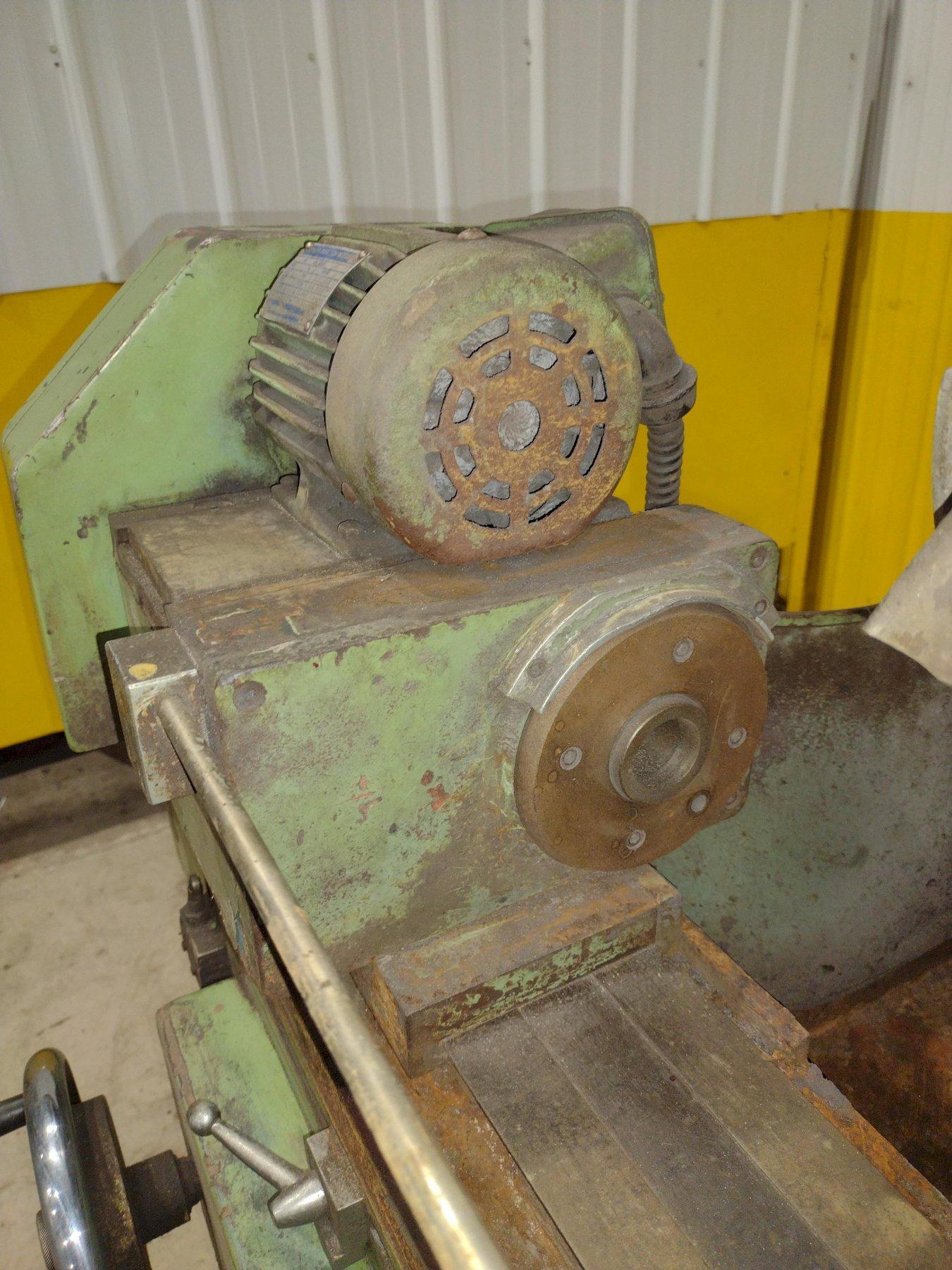

WORKHEAD:
  WORKHEAD SWIVELS LEFT & RIGHT ........ +/- 45 DEGREES

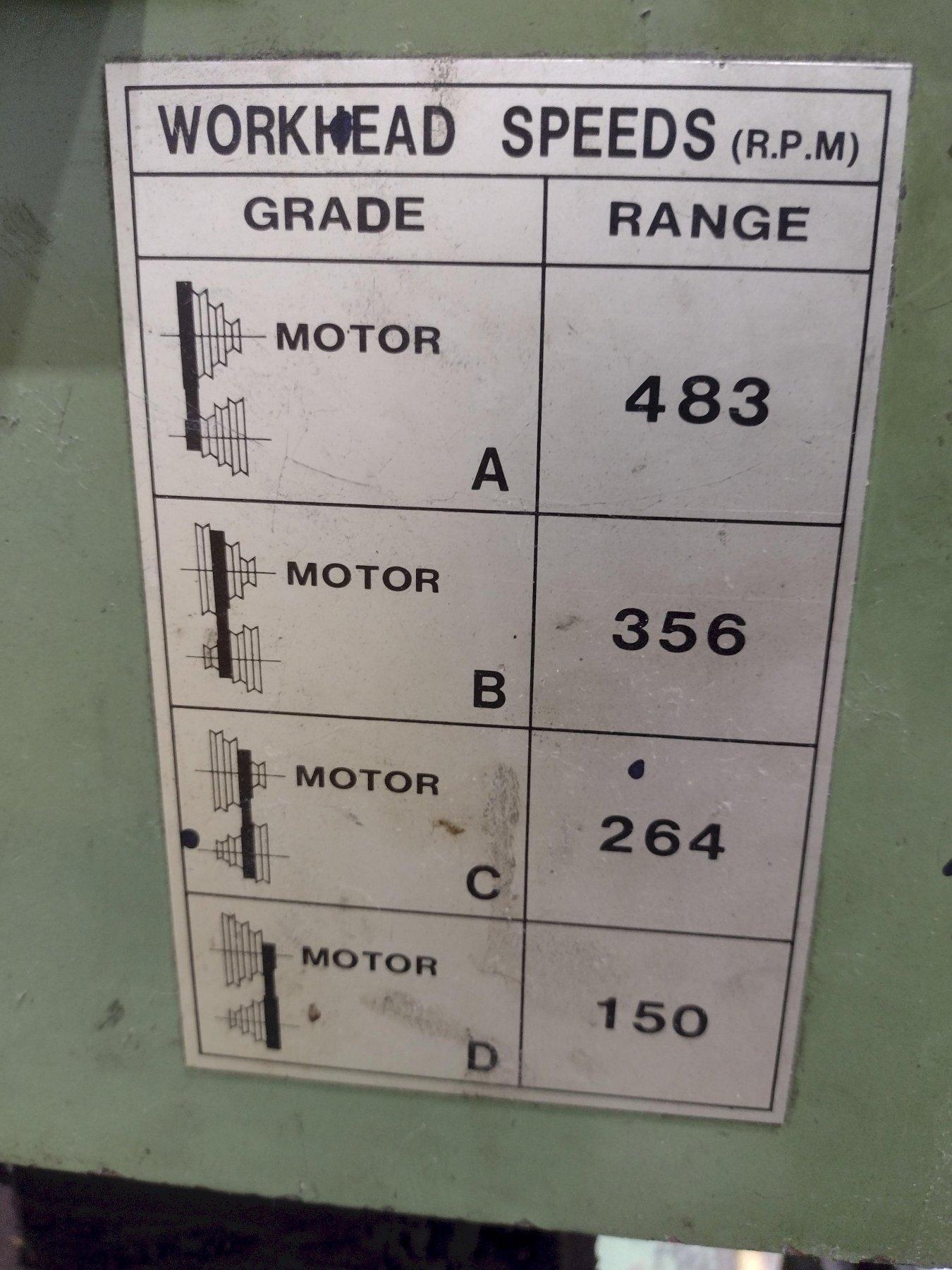

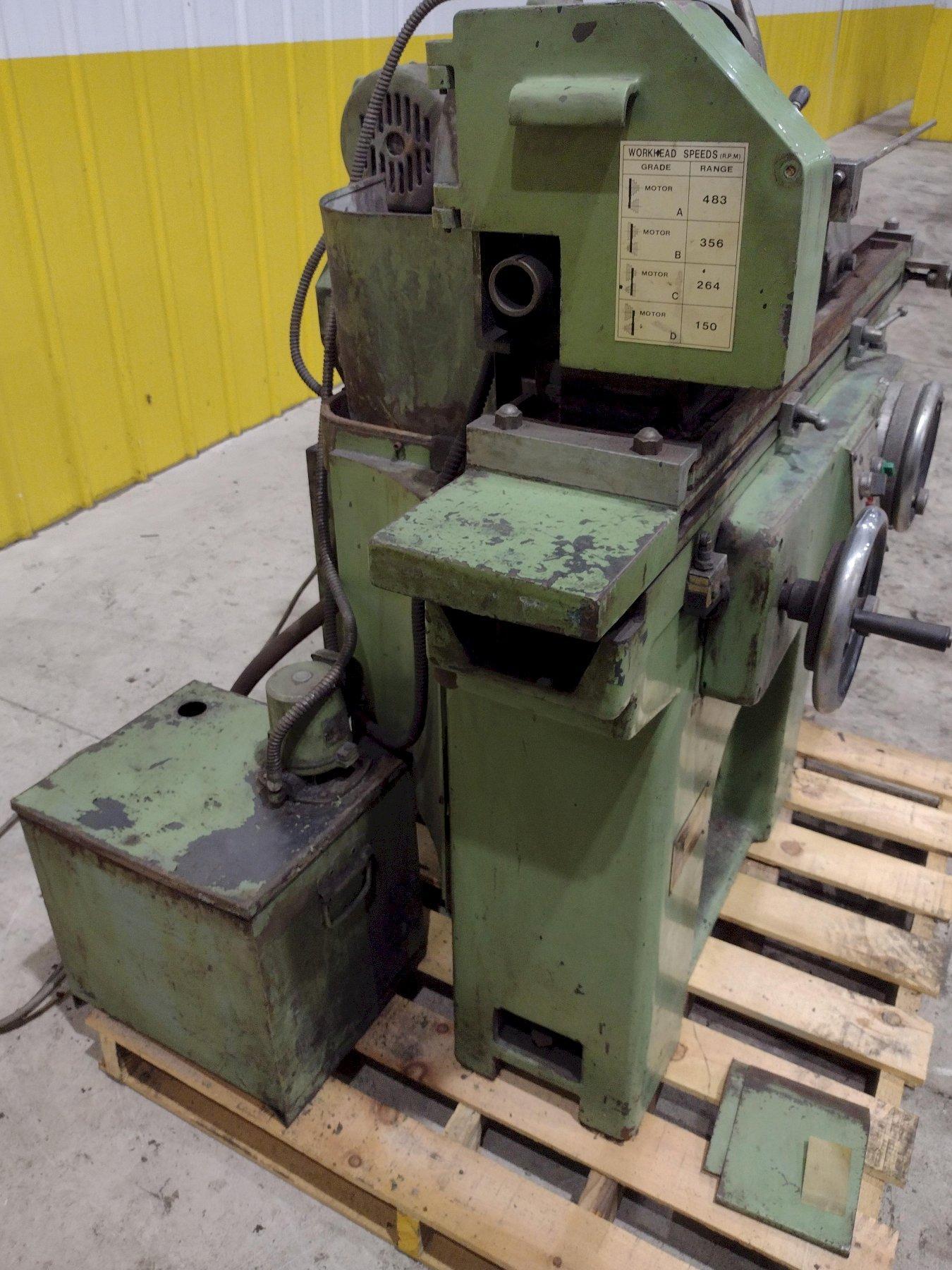

  WORKSPEEDS, (4) SPEEDS ...... 150, 264, 356 & 483 RPM
  WORKHEAD SPINDLE TAPER ........................ #3 MT
  WORKHEAD SPINDLE ......................... 5C COLLETS
  WORKHEAD MOTOR ............................... 1/4 HP

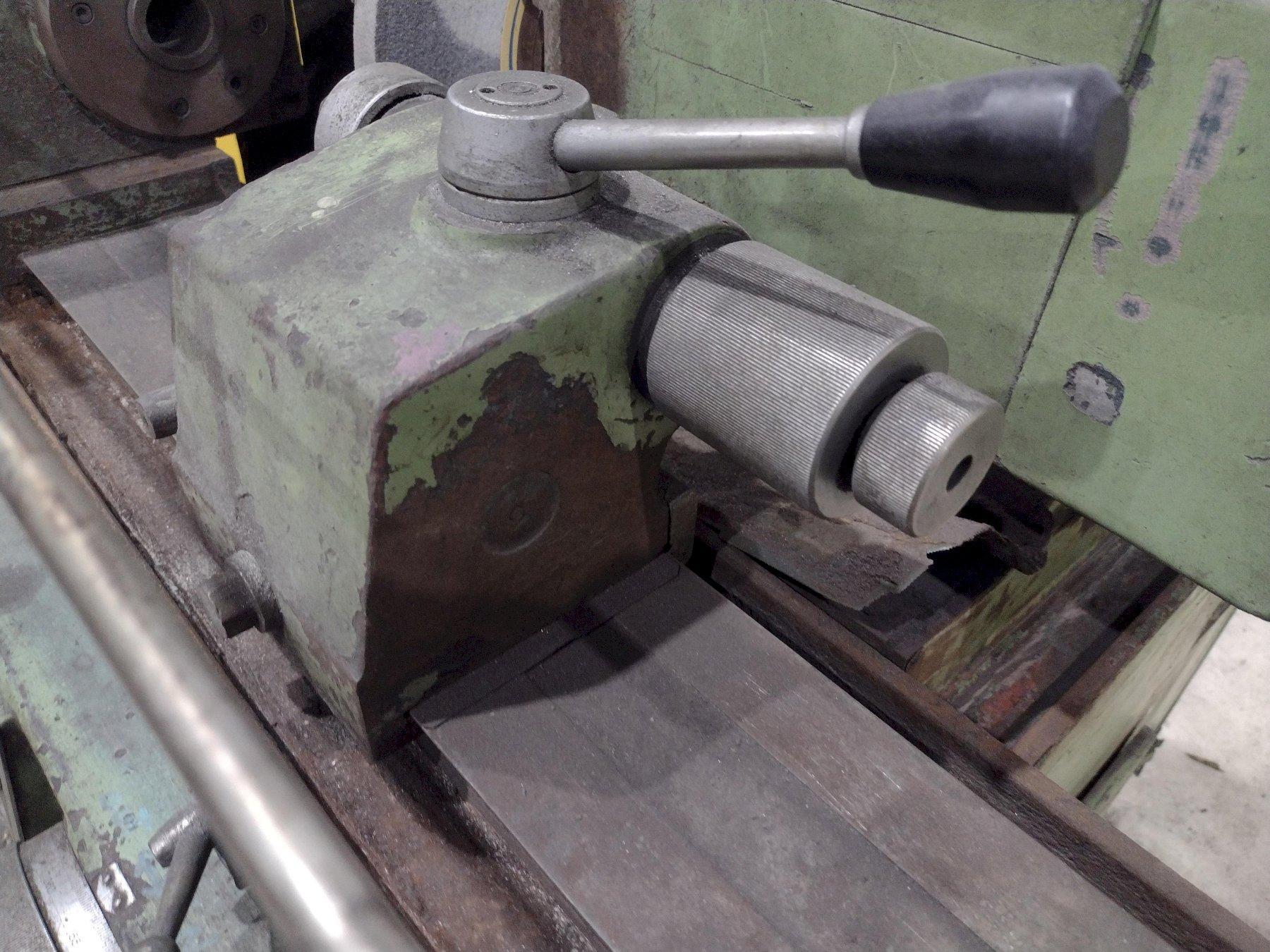

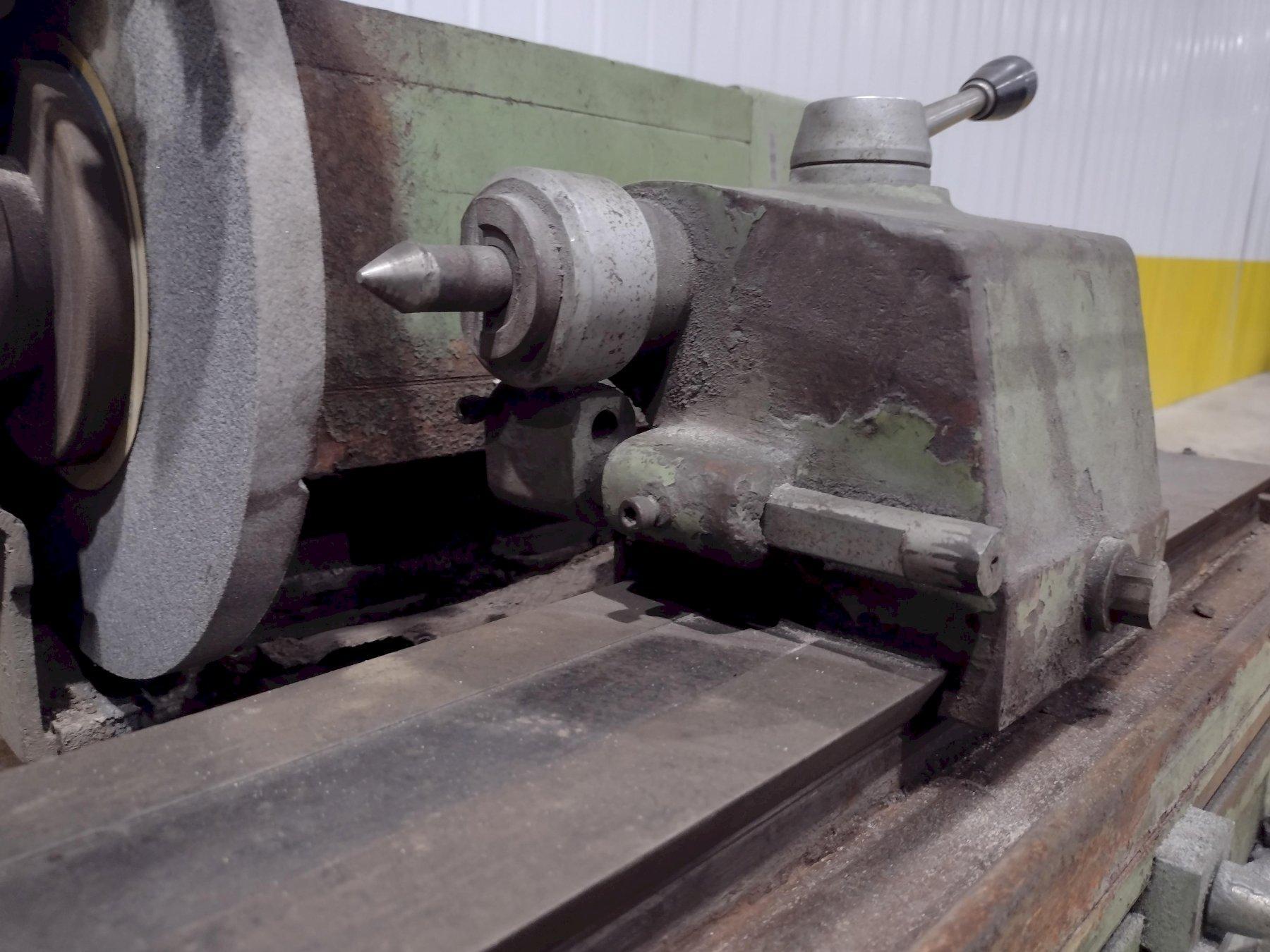

TAILSTOCK:
  SPINDLE TAPER ................................. #2 MT
  SPINDLE TRAVEL ................................... 1

  SWING DOWN INTERNAL GRINDING ATTACHMENT W/(1) SPINDLE
  POWER TABLE FEED ATTACHMENT
  DUAL LIVE/DEAD WORKHEAD SPINDLE
  LEVER-TYPE 5C COLLET CLOSER

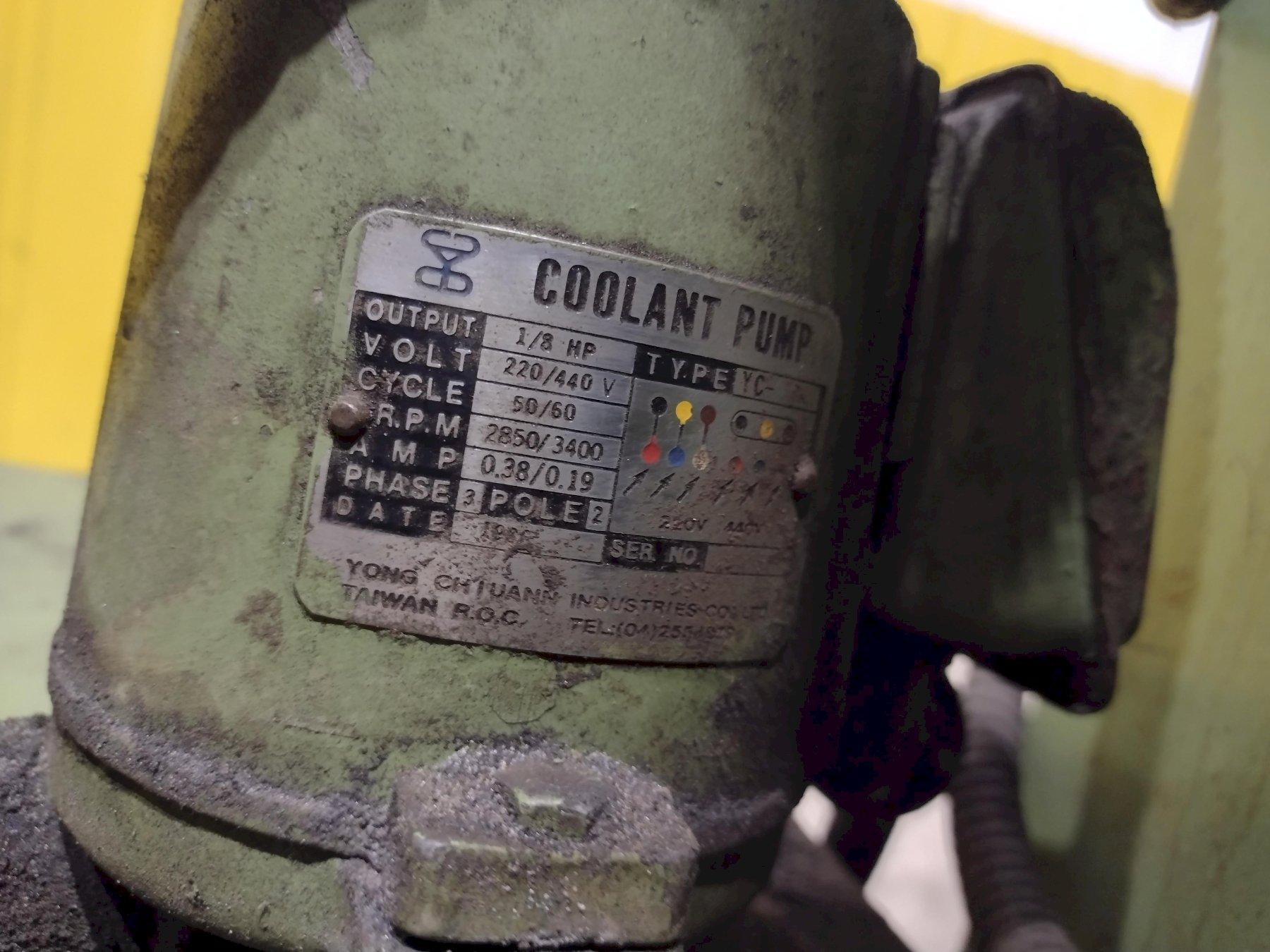

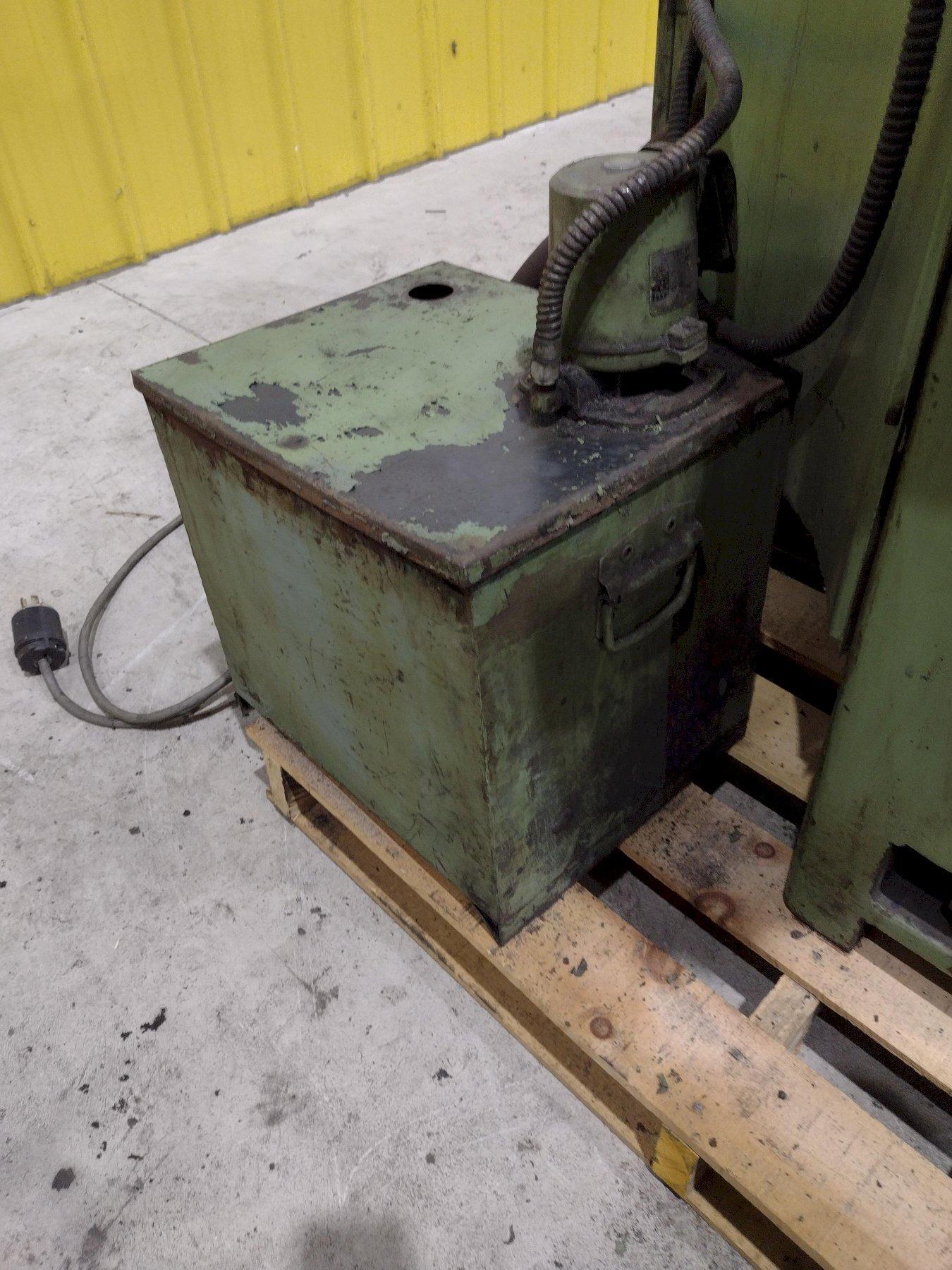

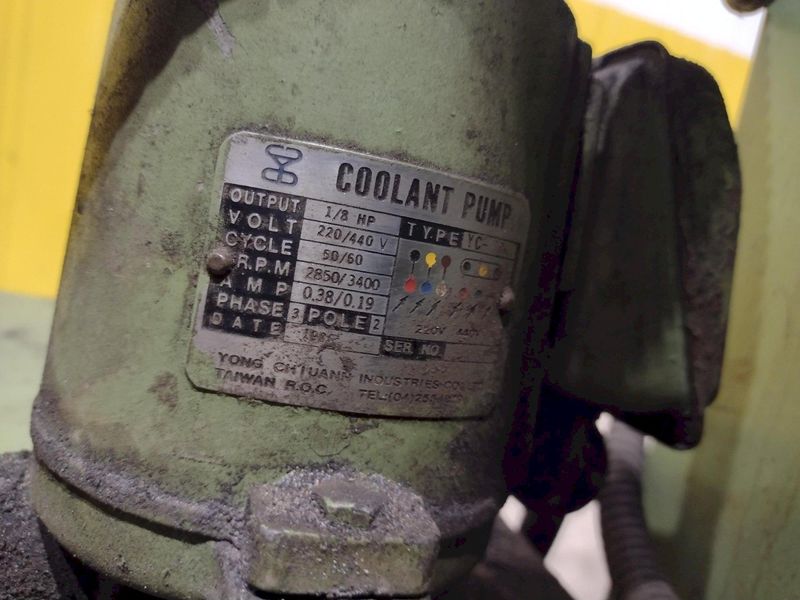

  COOLANT SYSTEM
