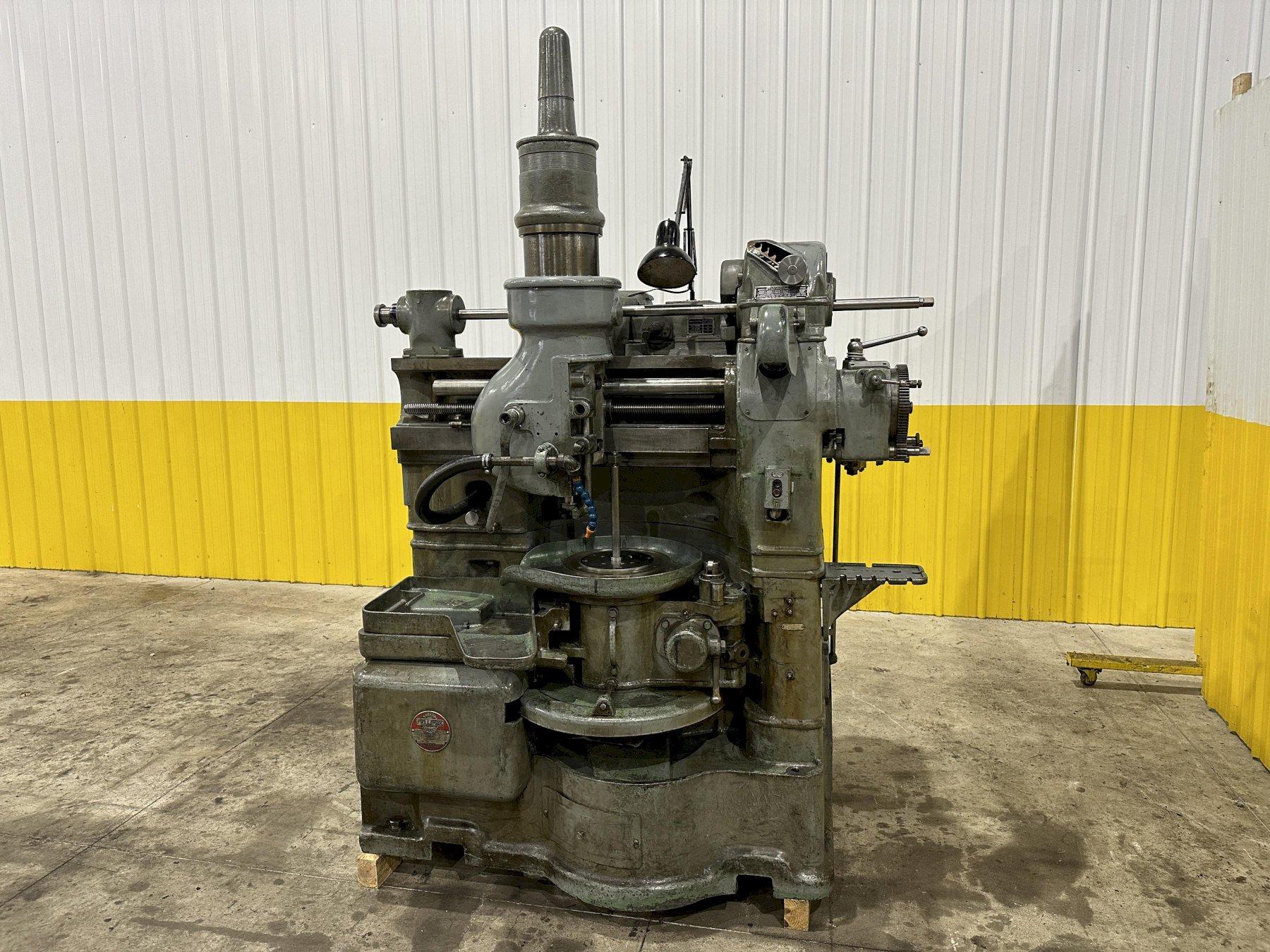

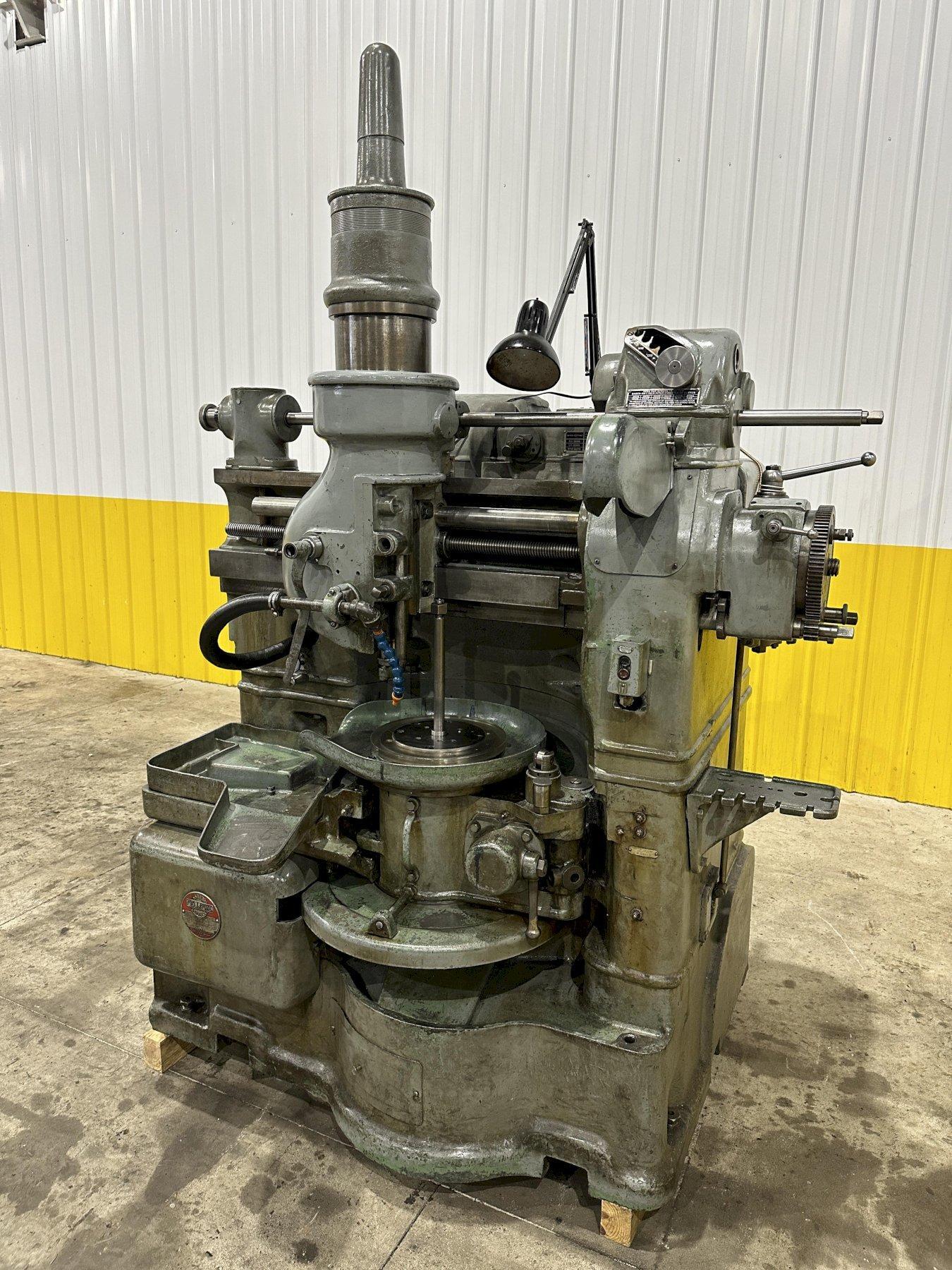

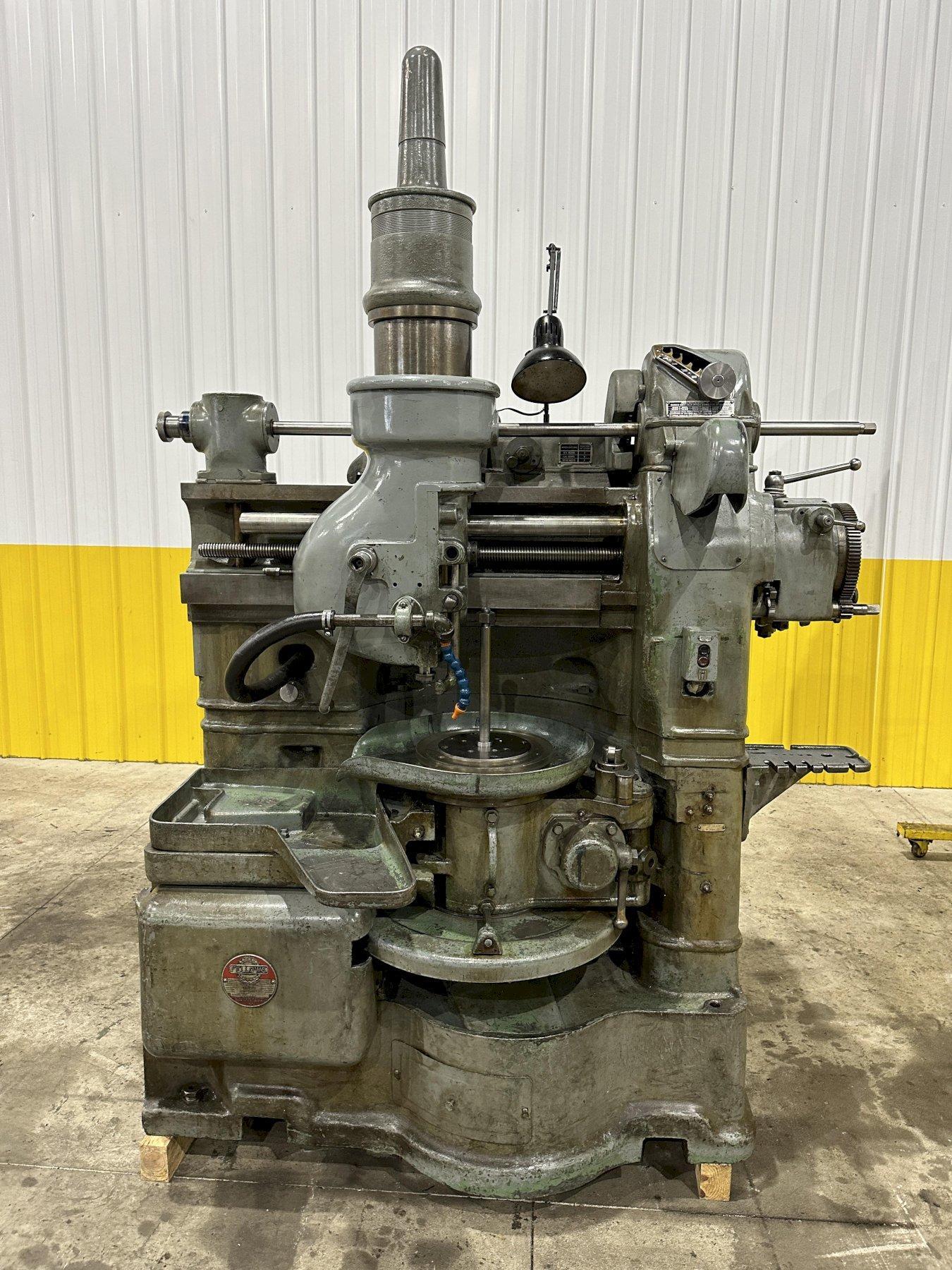

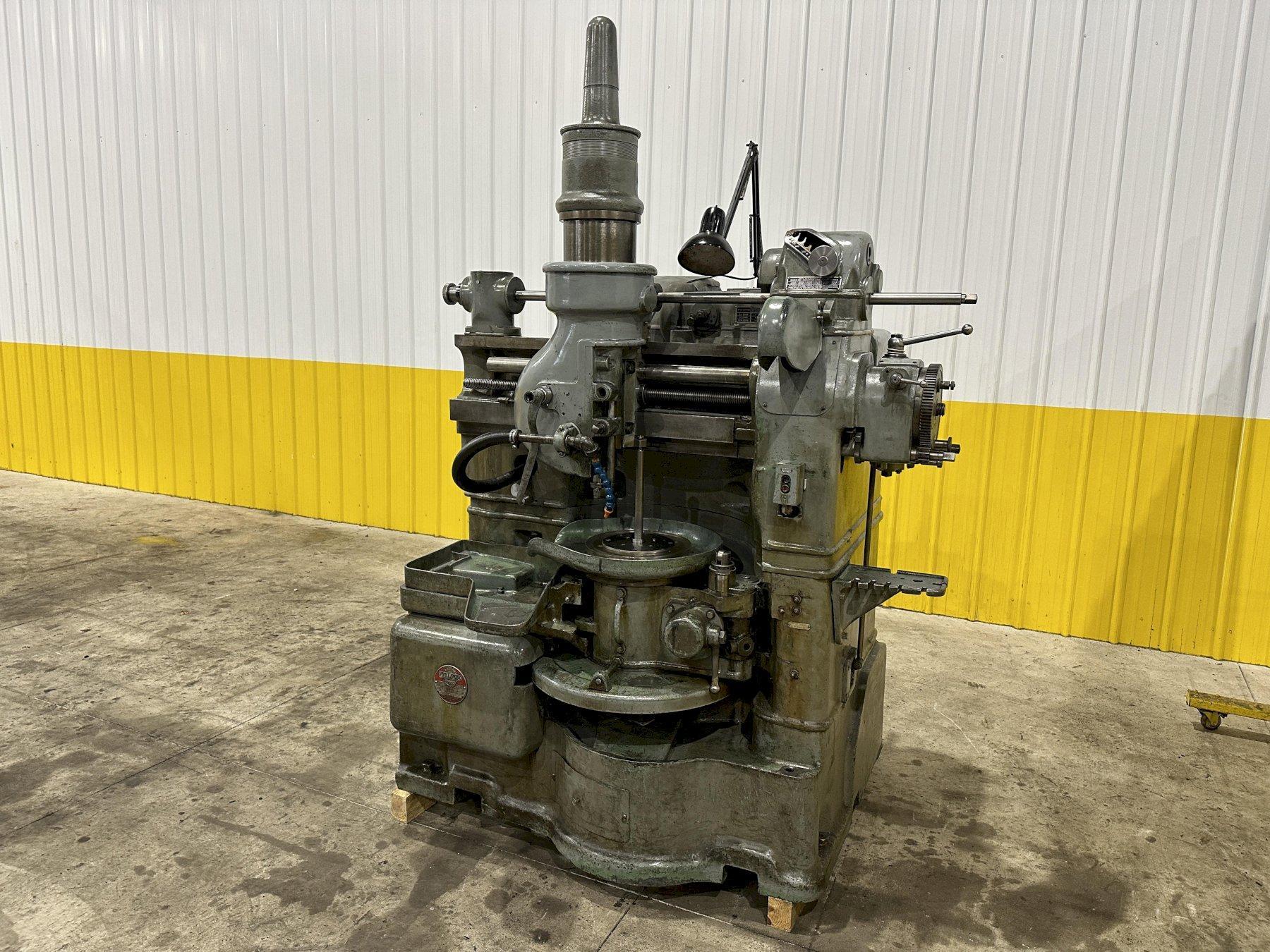

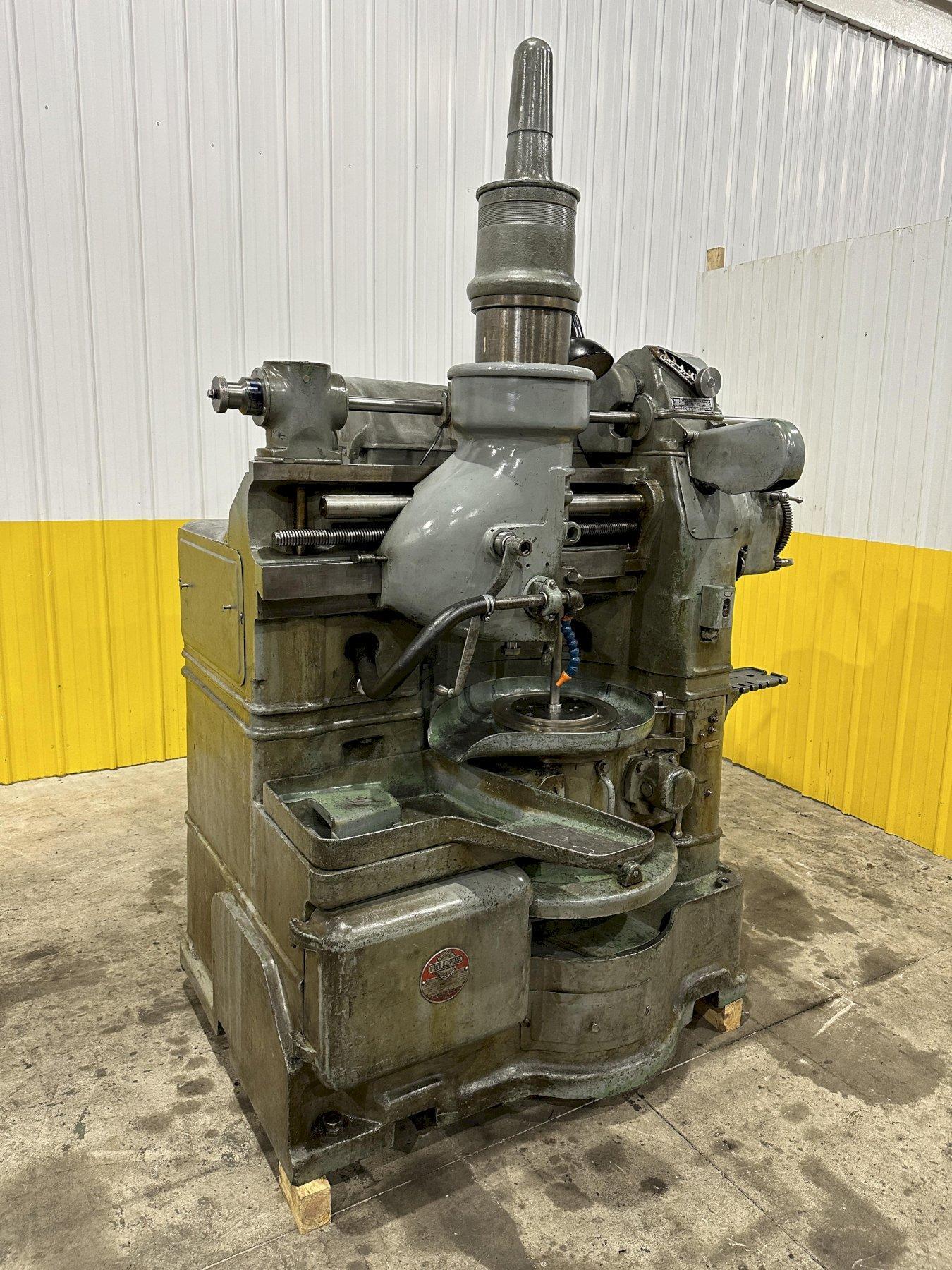

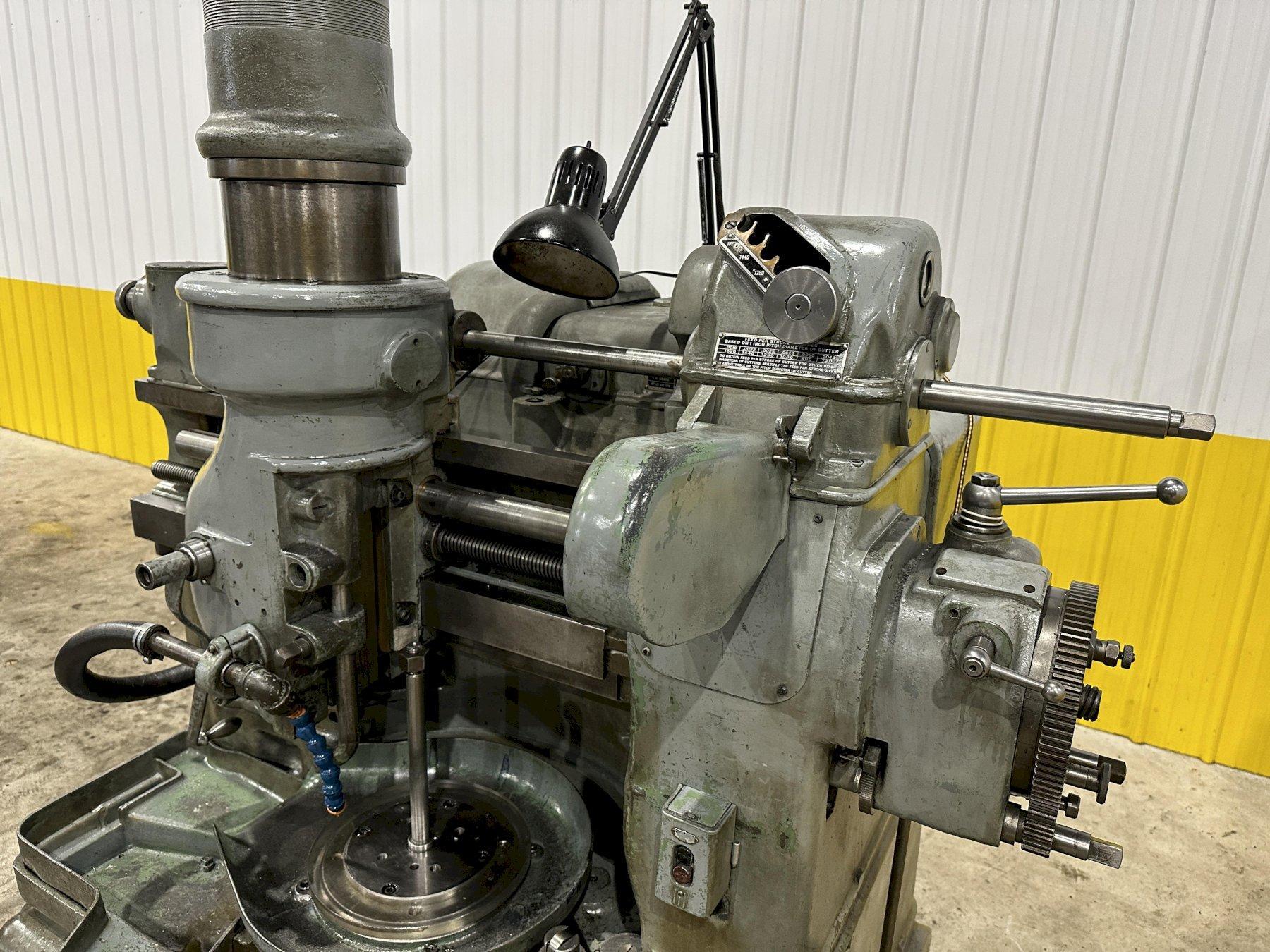

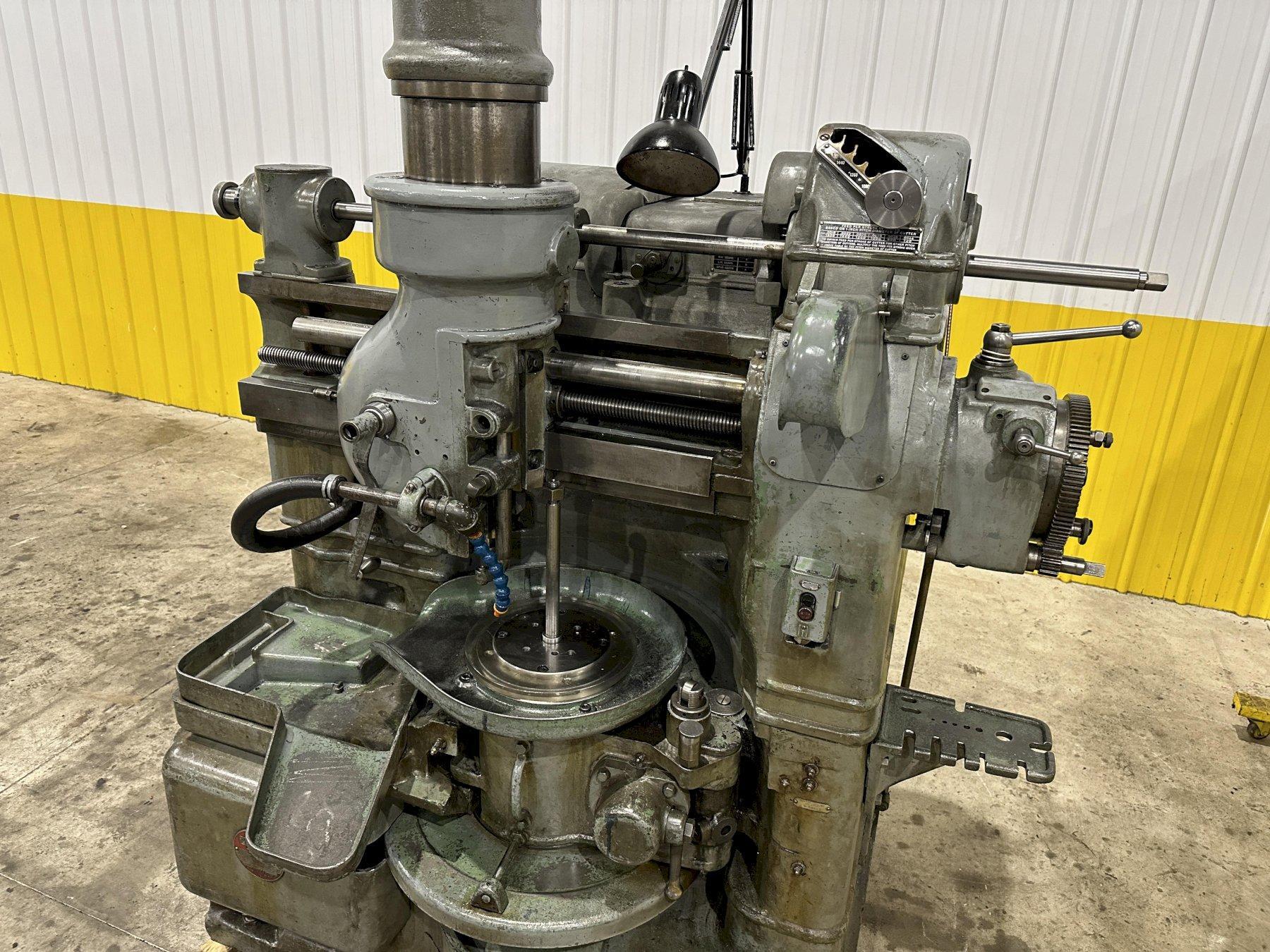

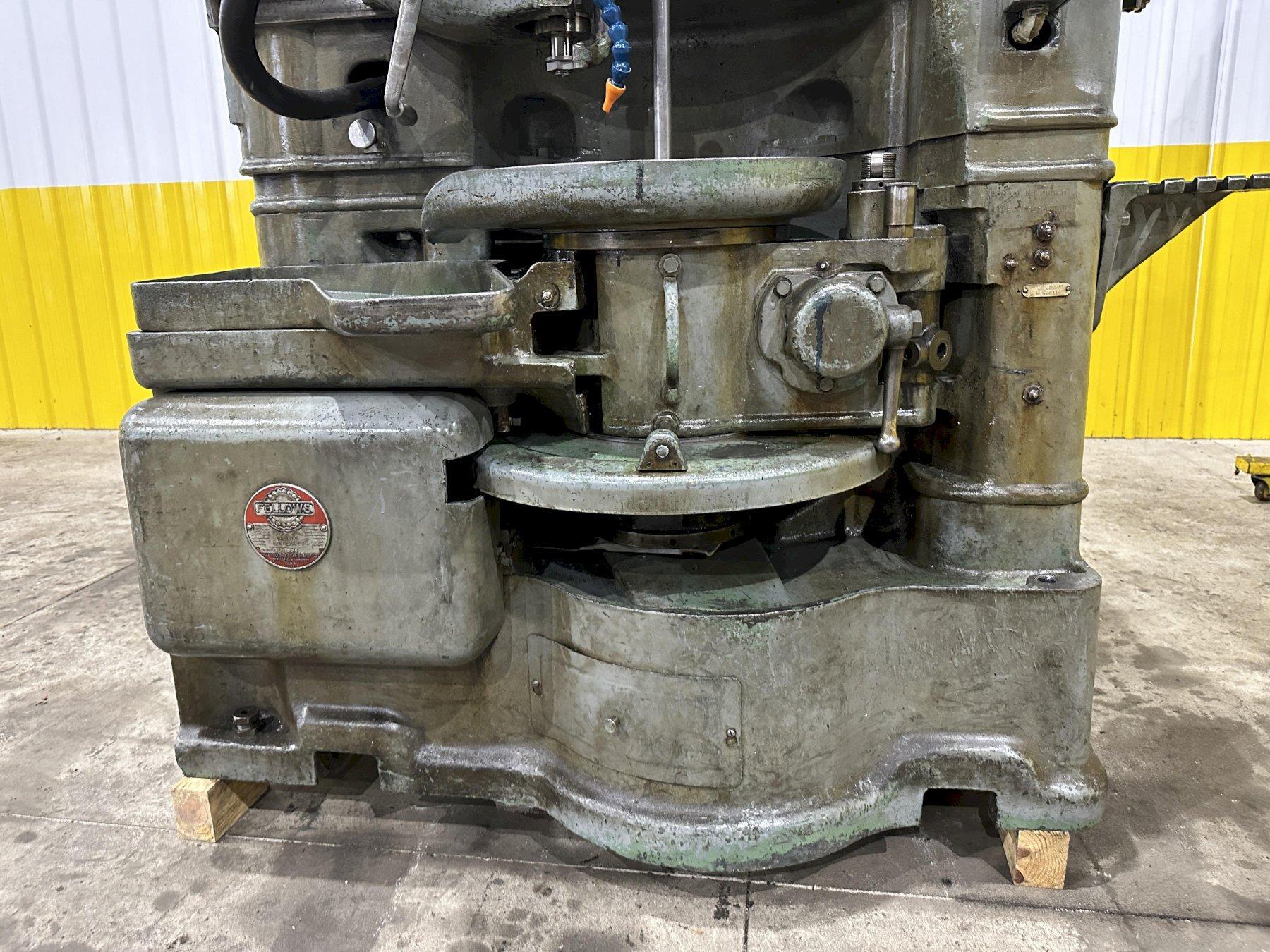

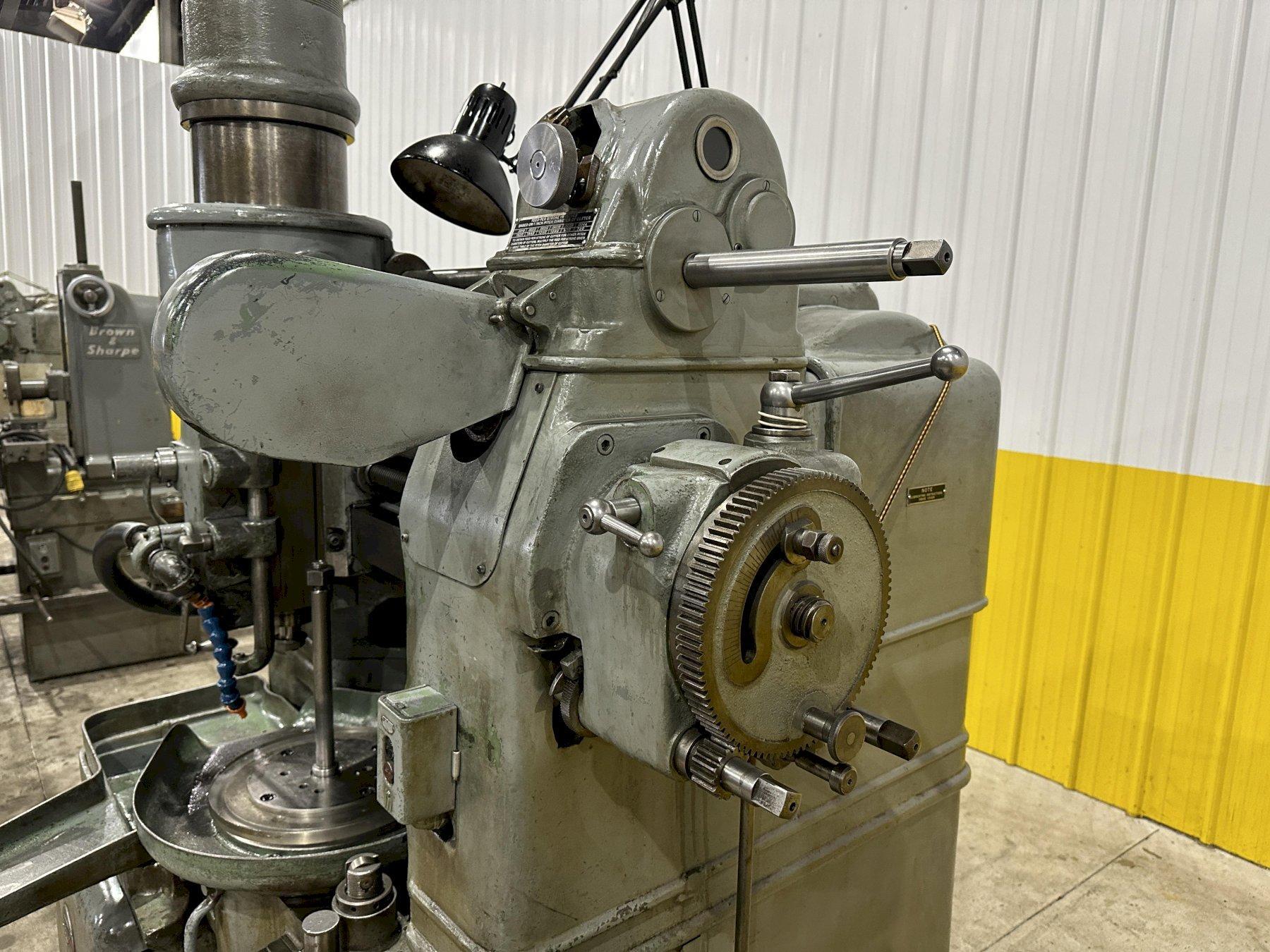

FELLOWS MODEL #645A GEAR SHAPER W/ 2" RISER AND LARGE BORE: STOCK #22049

Manufacturer

FELLOWS

Category

Gear Machines

Type

SHAPERS, GEAR

Stock

22049

Model

645A

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet

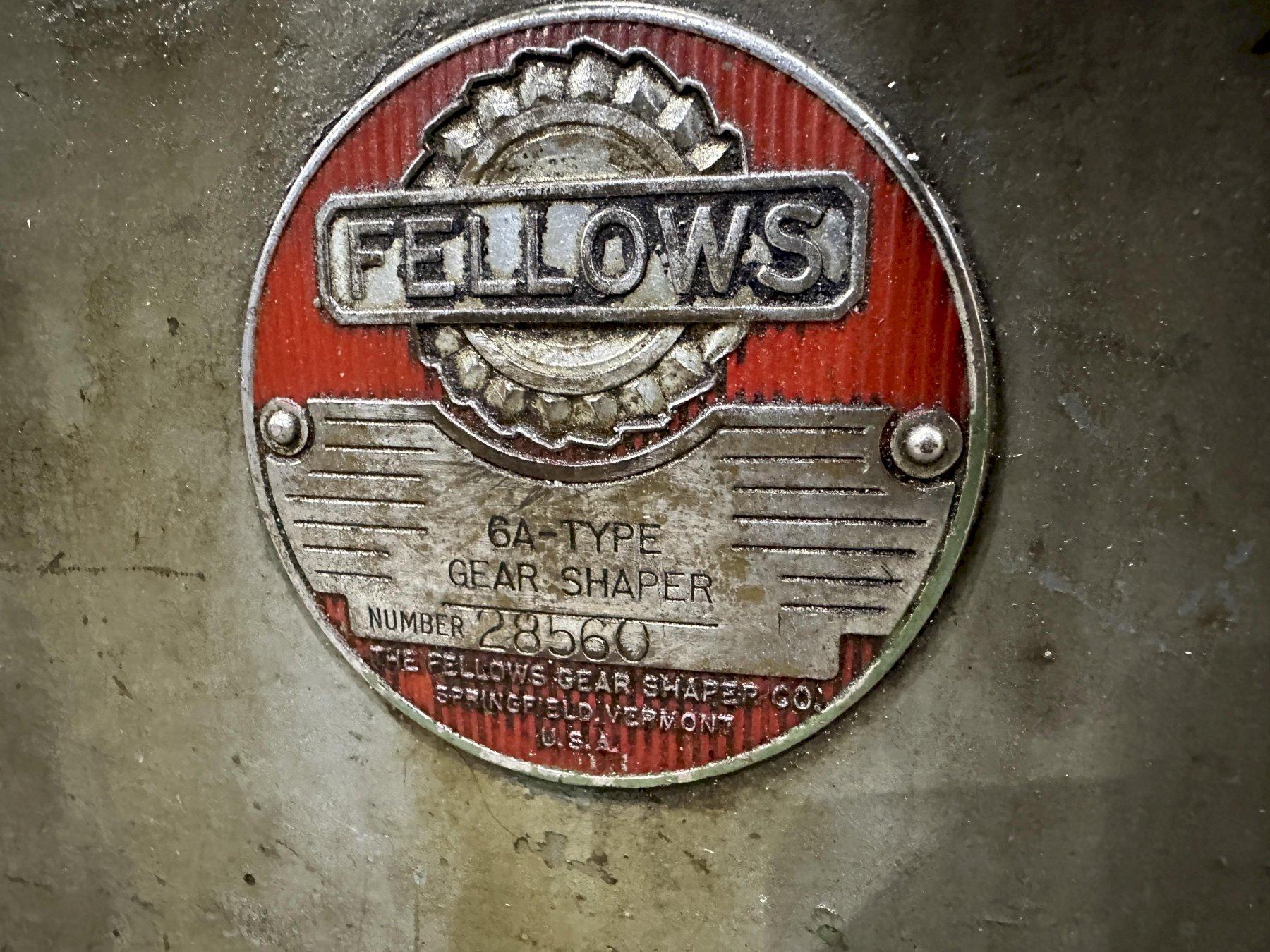

SERIAL ................. 28560

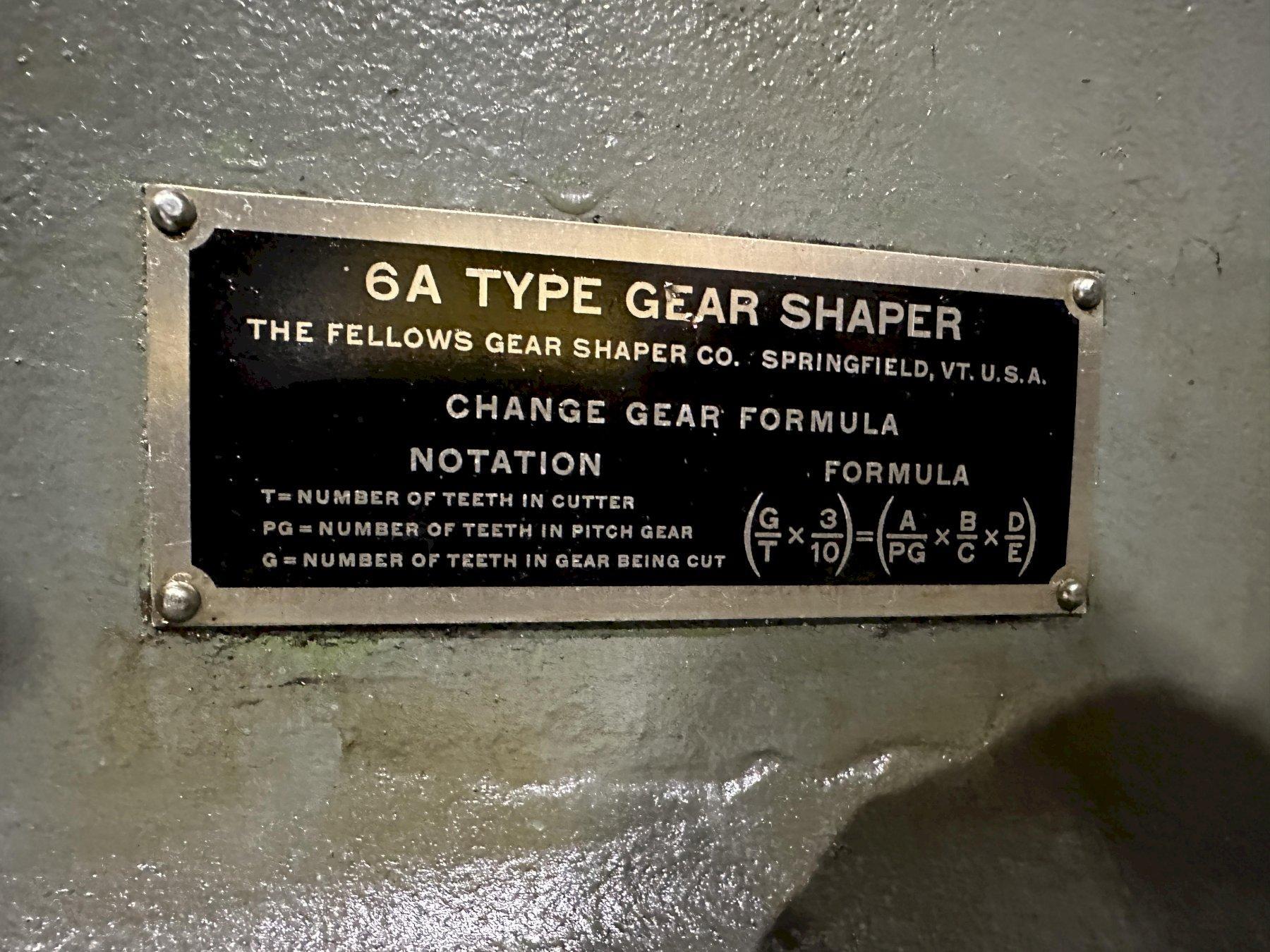

MODEL .................. 6A GEAR SHAPER
PITCH DIAMETER ......... (External) 18"
PITCH DIAMETER ......... (Internal) 18"
FACE WIDTH ............. 5"
PITCH SPUR ............. 4 DP
PITCH HELICAL .......... 6 DP
BORE SPINDLE ........... 5-7/8"
CLEARANCE HEIGHT ....... 16"
SPINDLE DIAMETER ....... 2.875"
MAX HELIX ANGLE ........ 30 DEGREE
STROKE SPEEDS .......... 50 TO 300 SPM
STROKE ................. 5"
RISER .................. 10"
TABLE BORE ............. 5-7/8"
