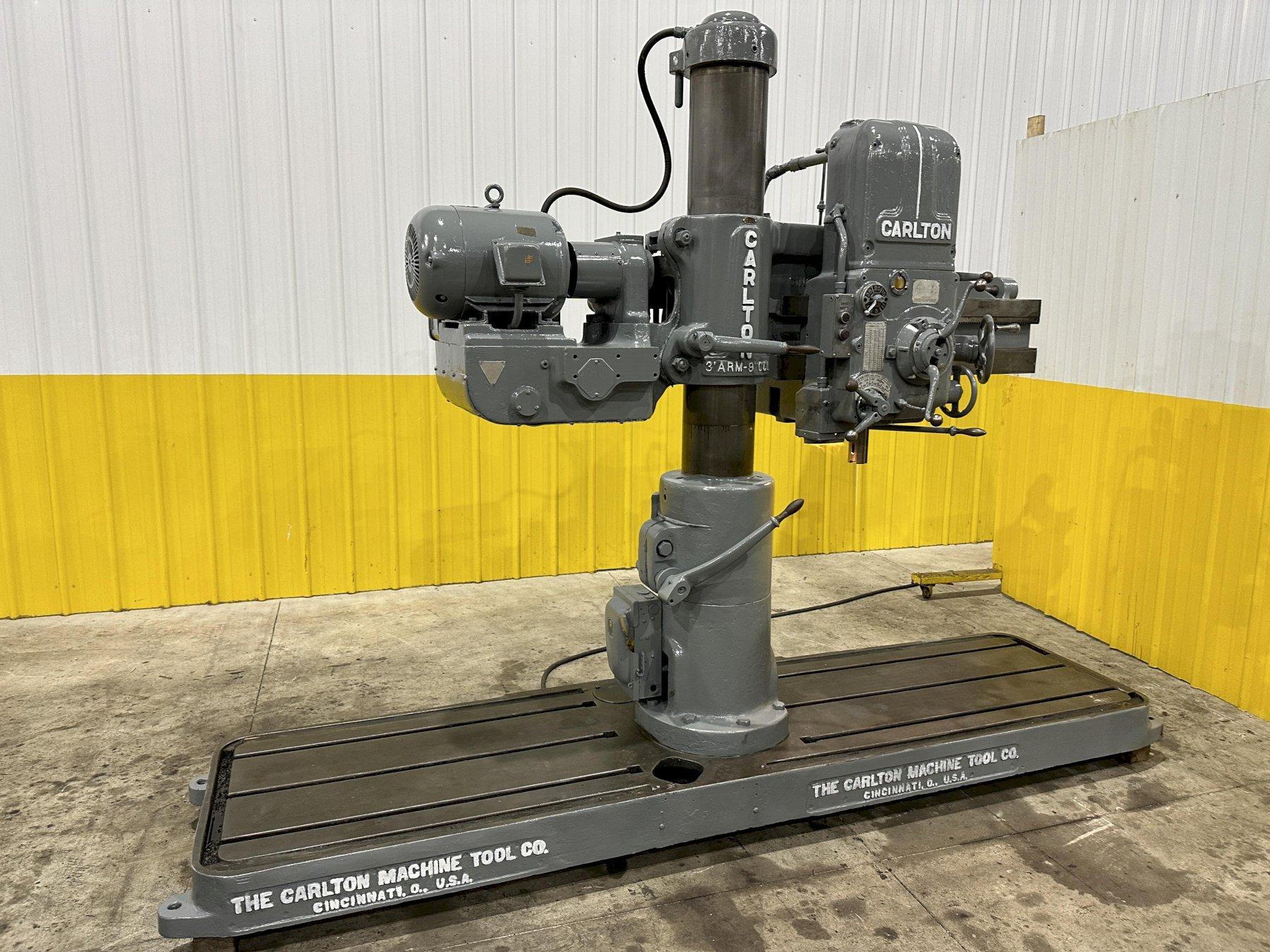

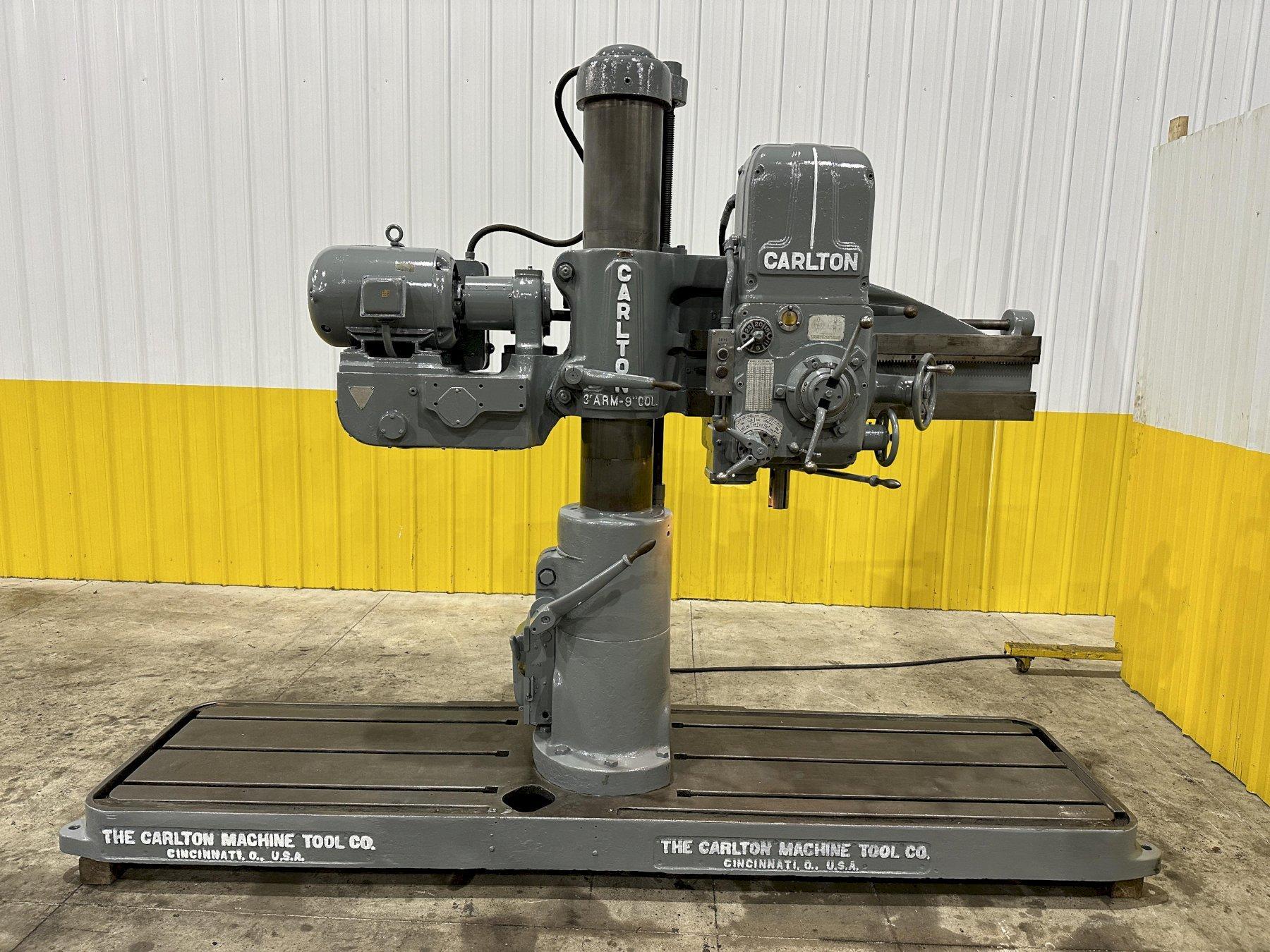

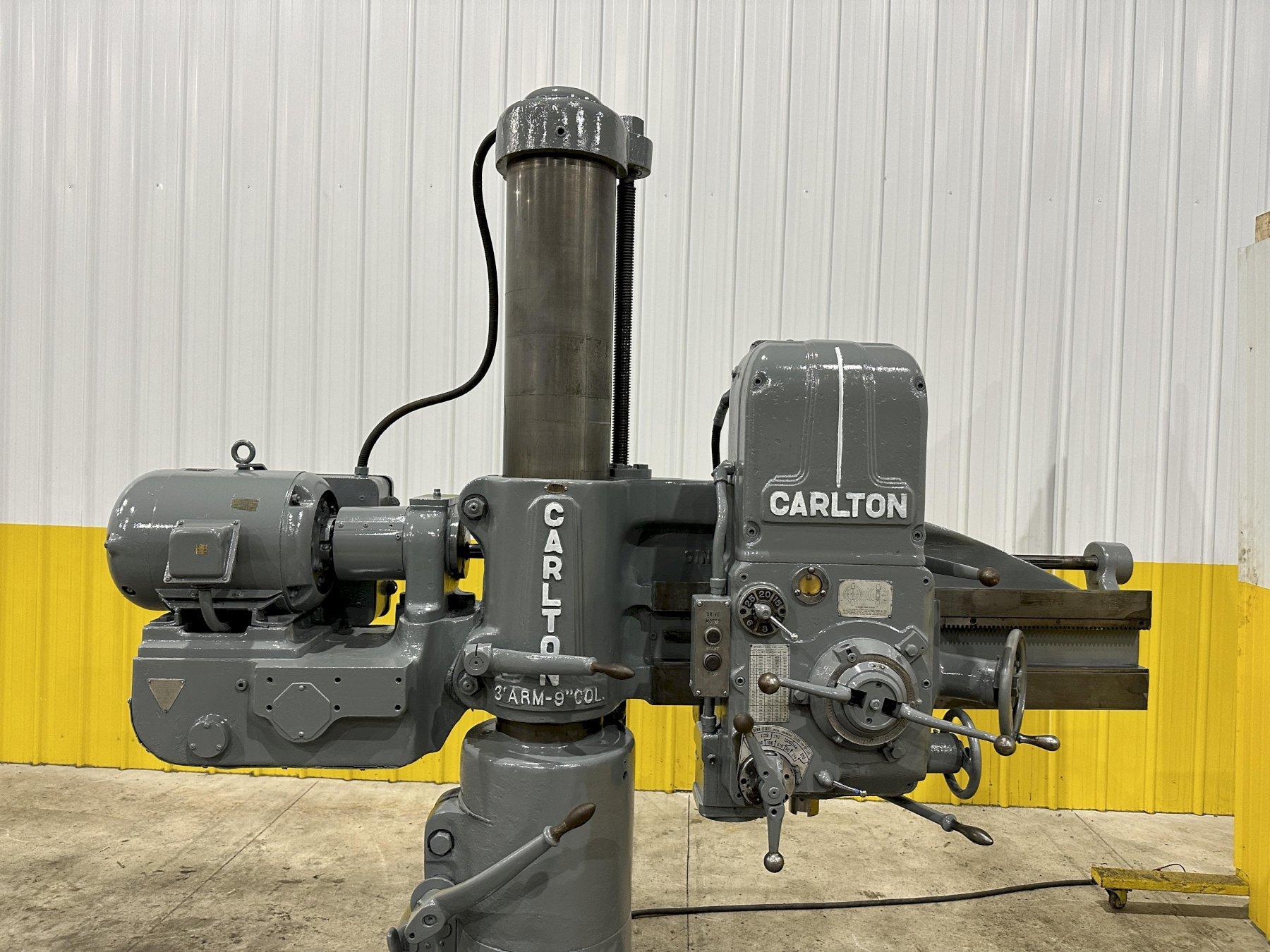

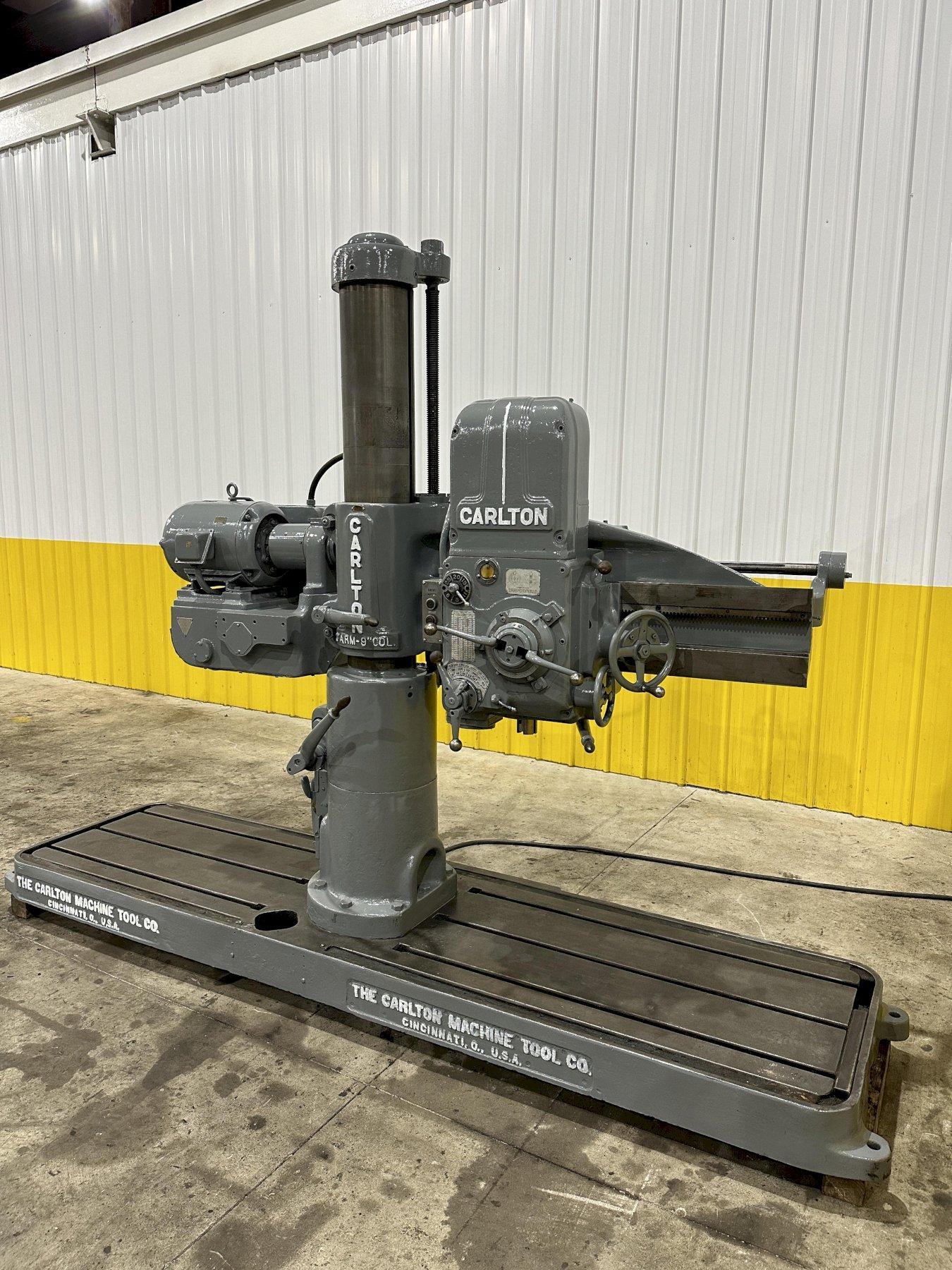

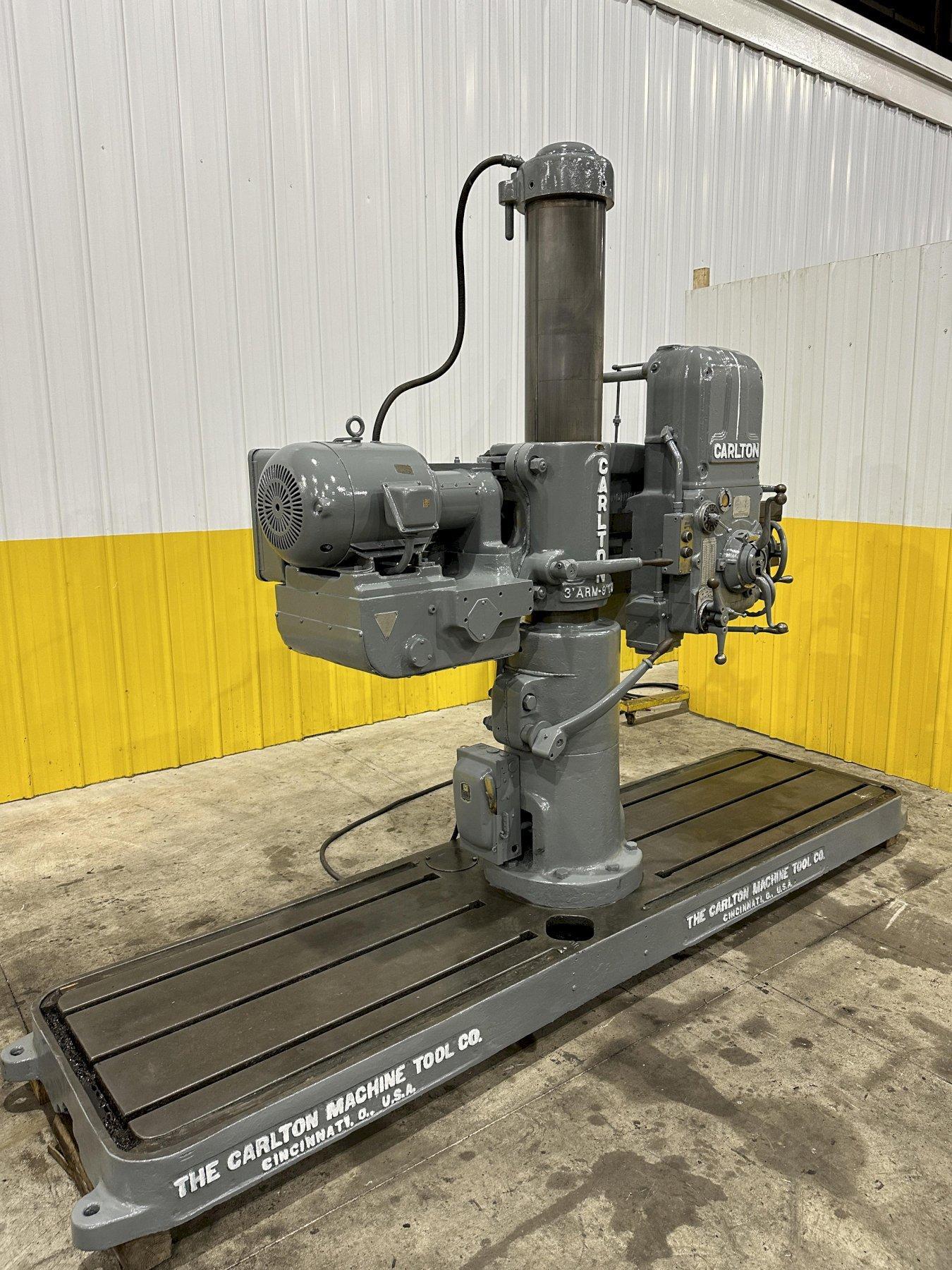

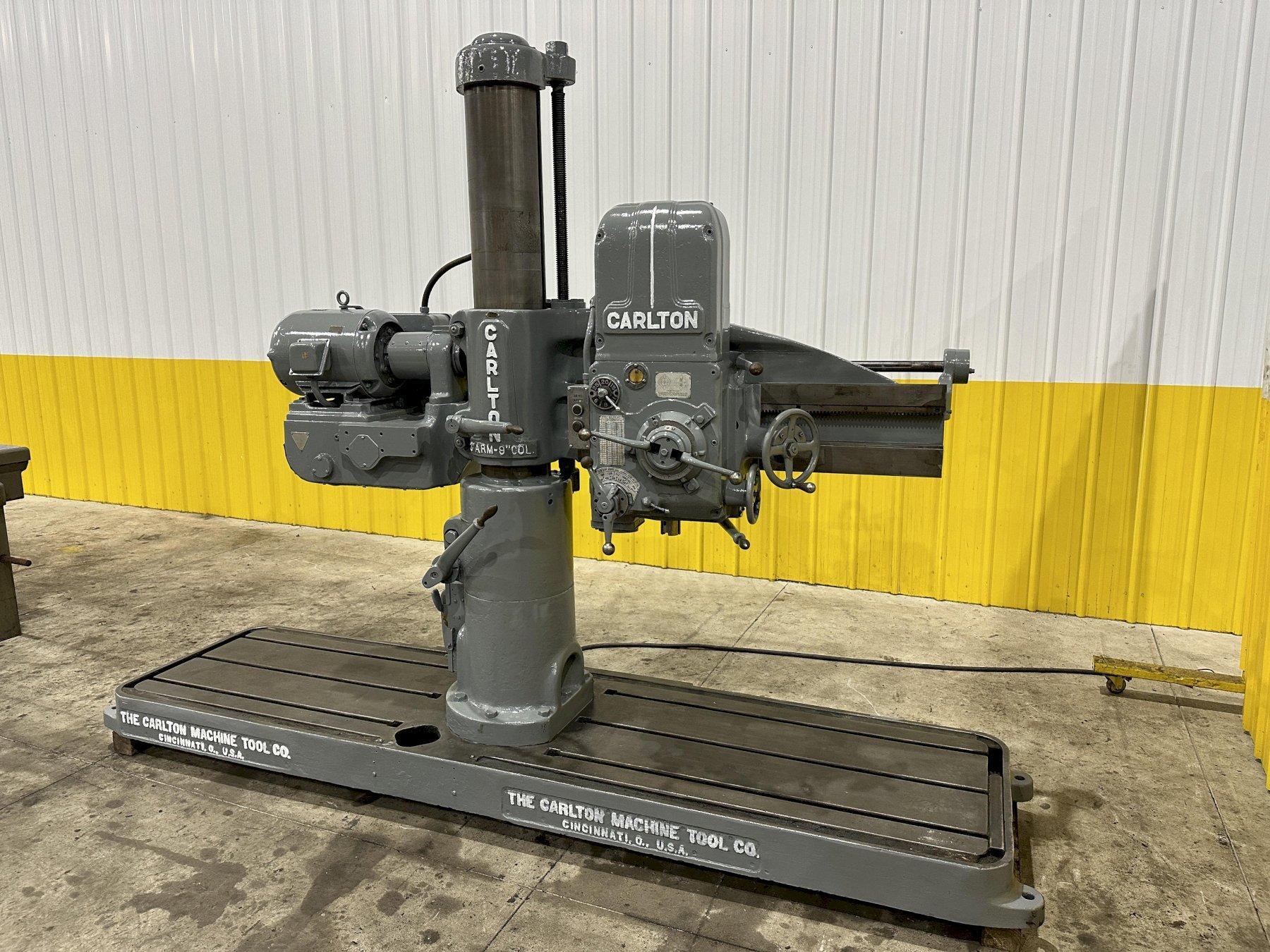

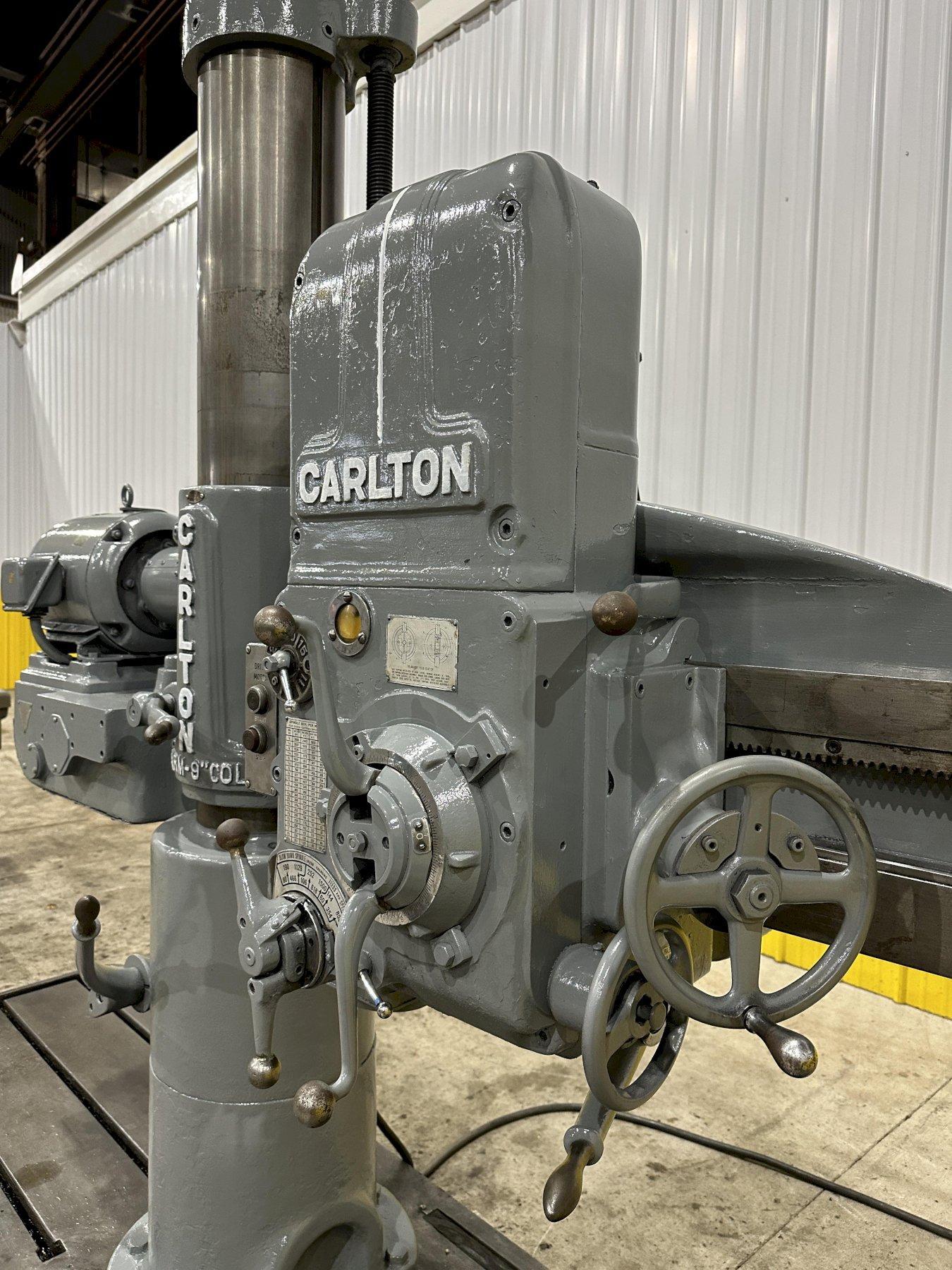

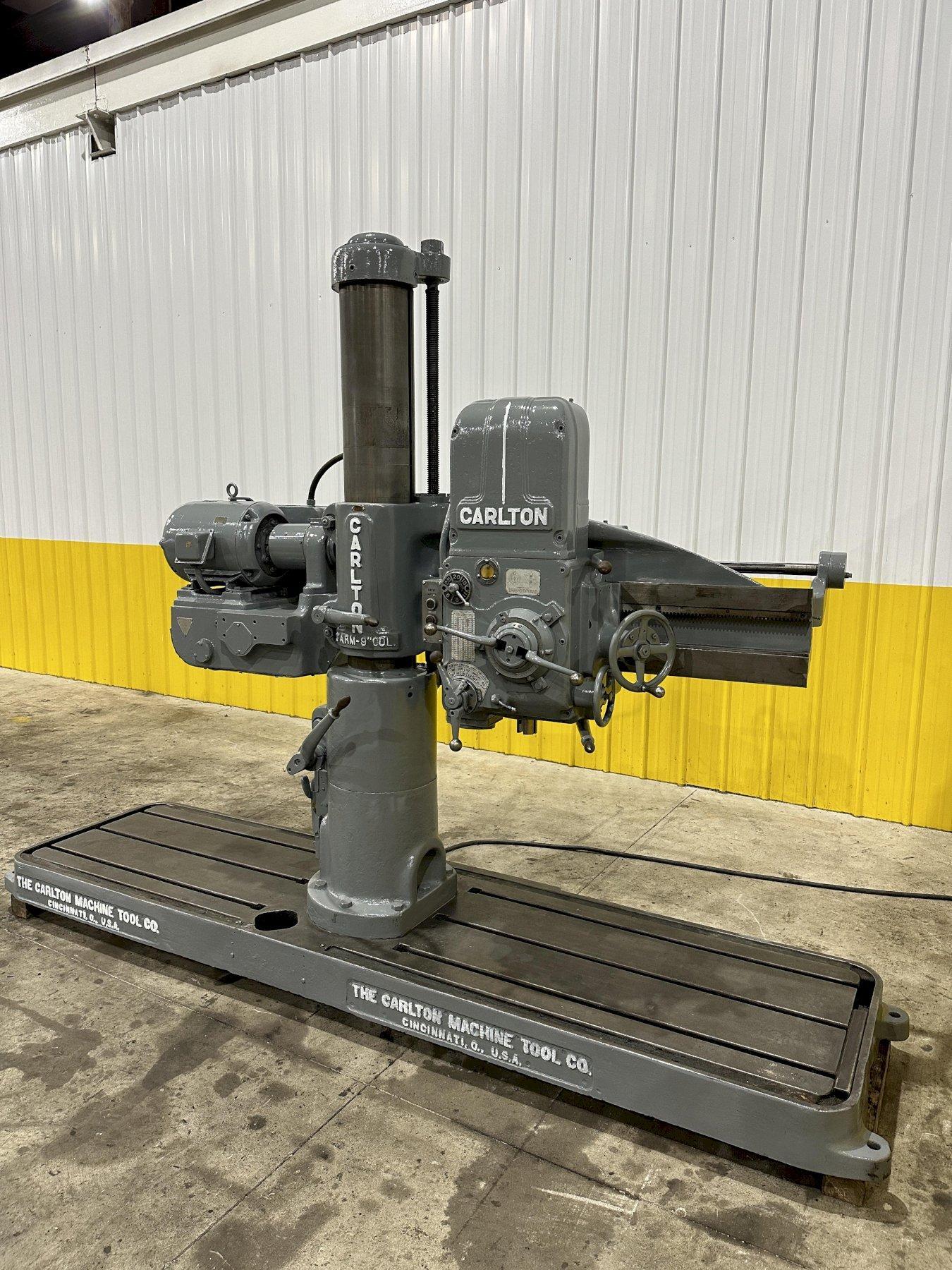

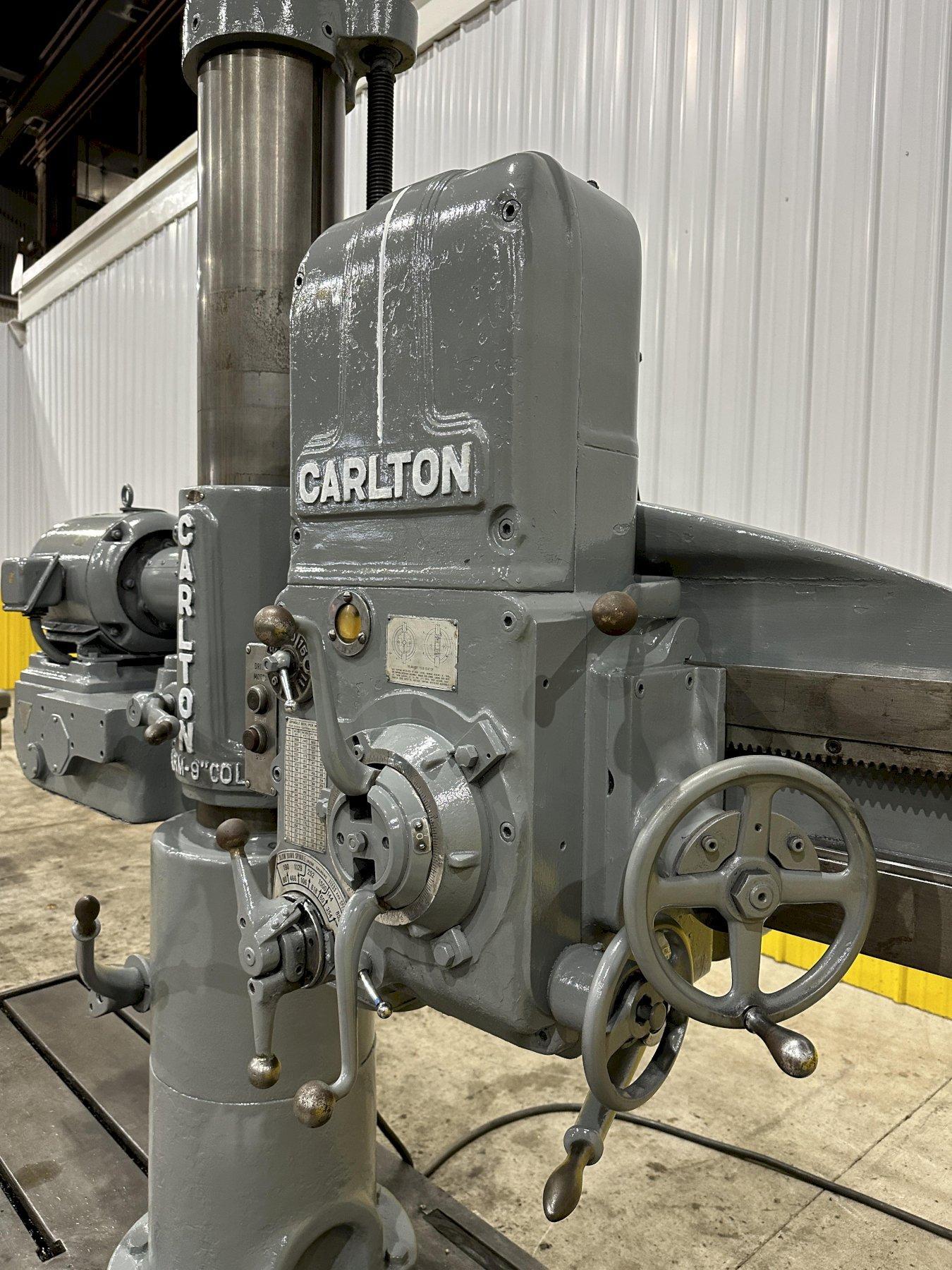

3' X 9" CARLTON MODEL #1A RADIAL ARM DRILL WITH DUAL BASE: STOCK #22001

Manufacturer

CARLTON

Category

Drilling Machines

Type

DRILLS, RADIAL, RAM TYPE

Stock

22001

Model

None listed

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet

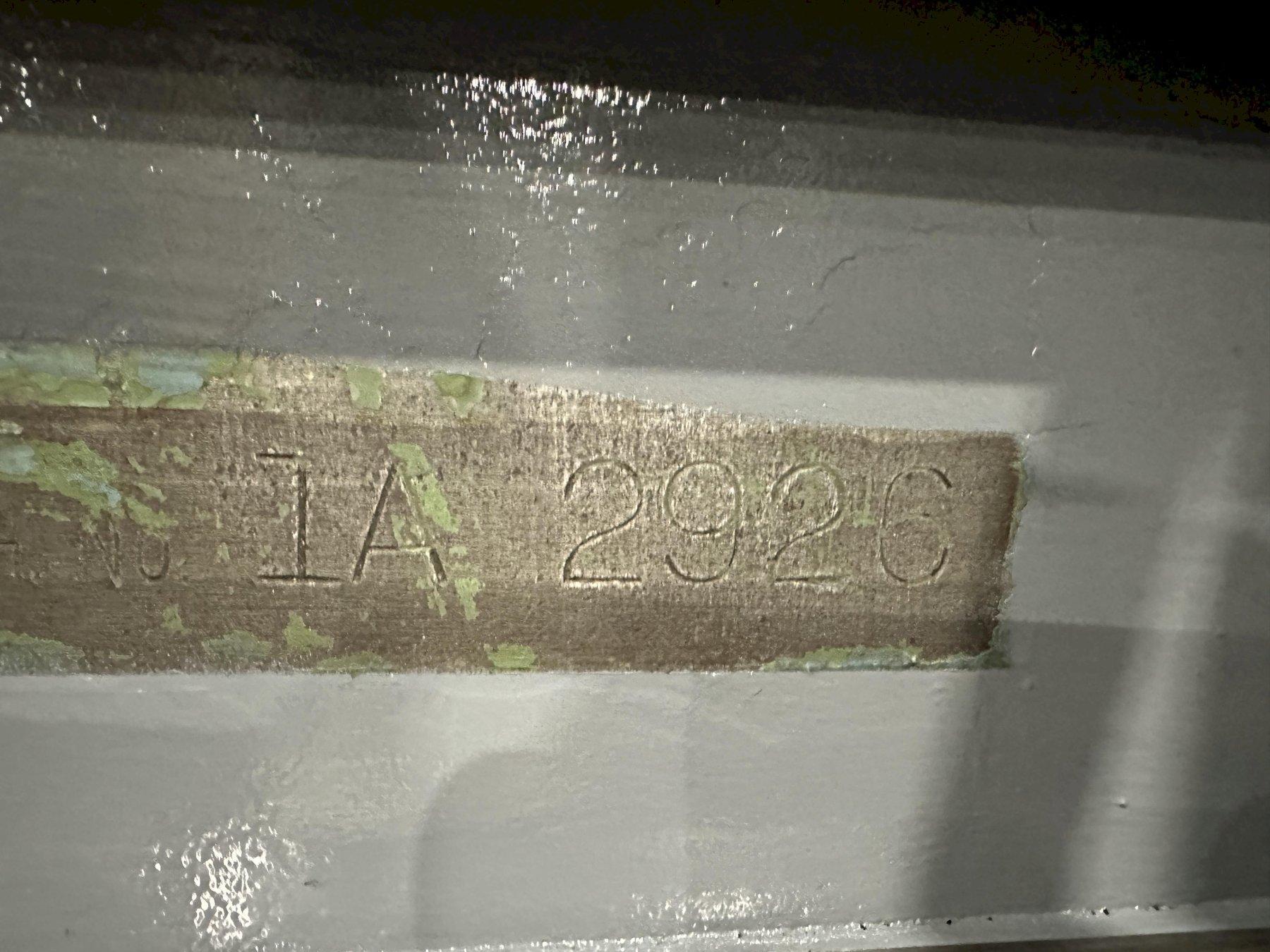

SERIAL .......................... 1A-2926
MODEL ........................... 1A
SIZE ............................ 3' X 9"

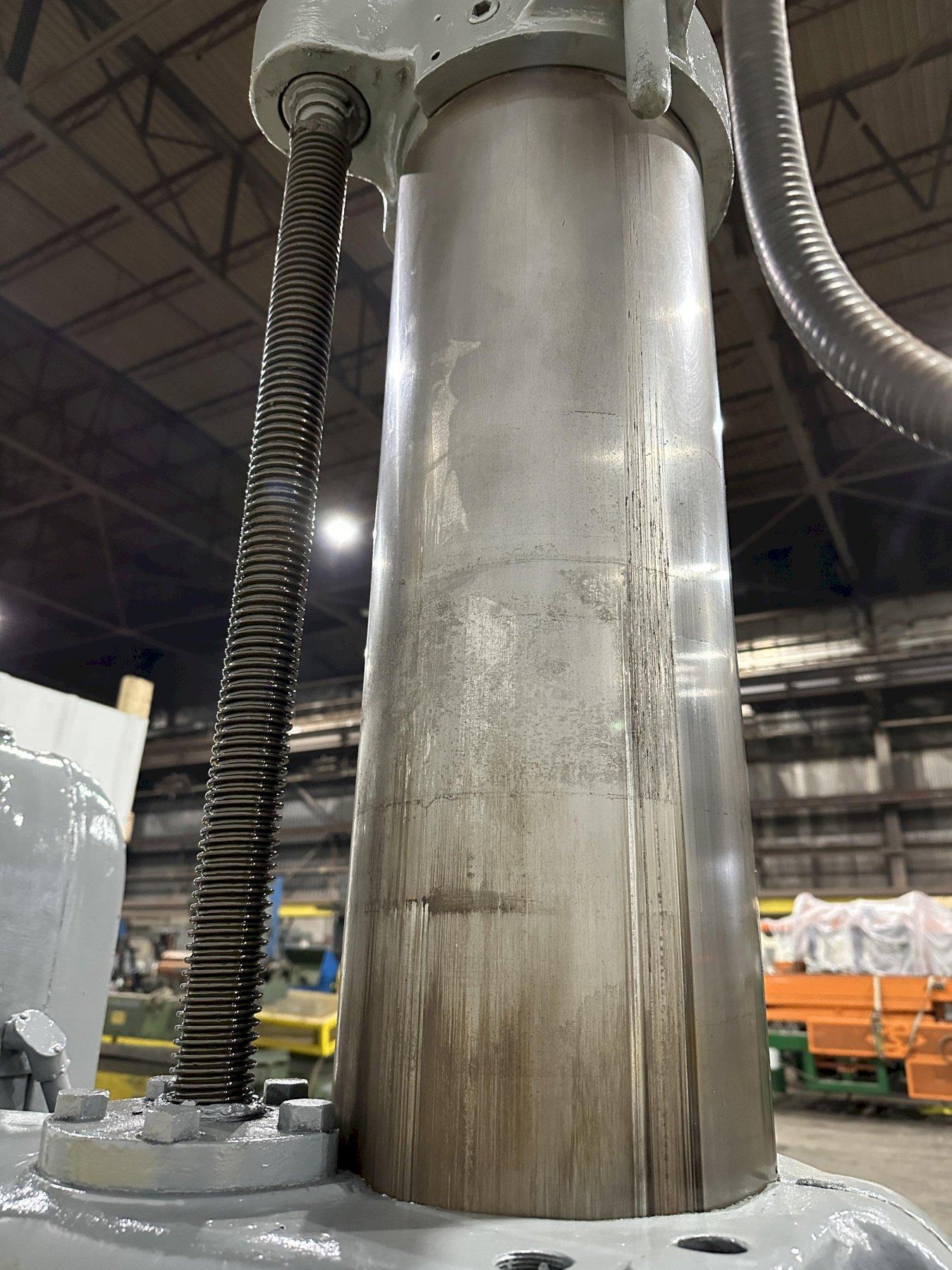

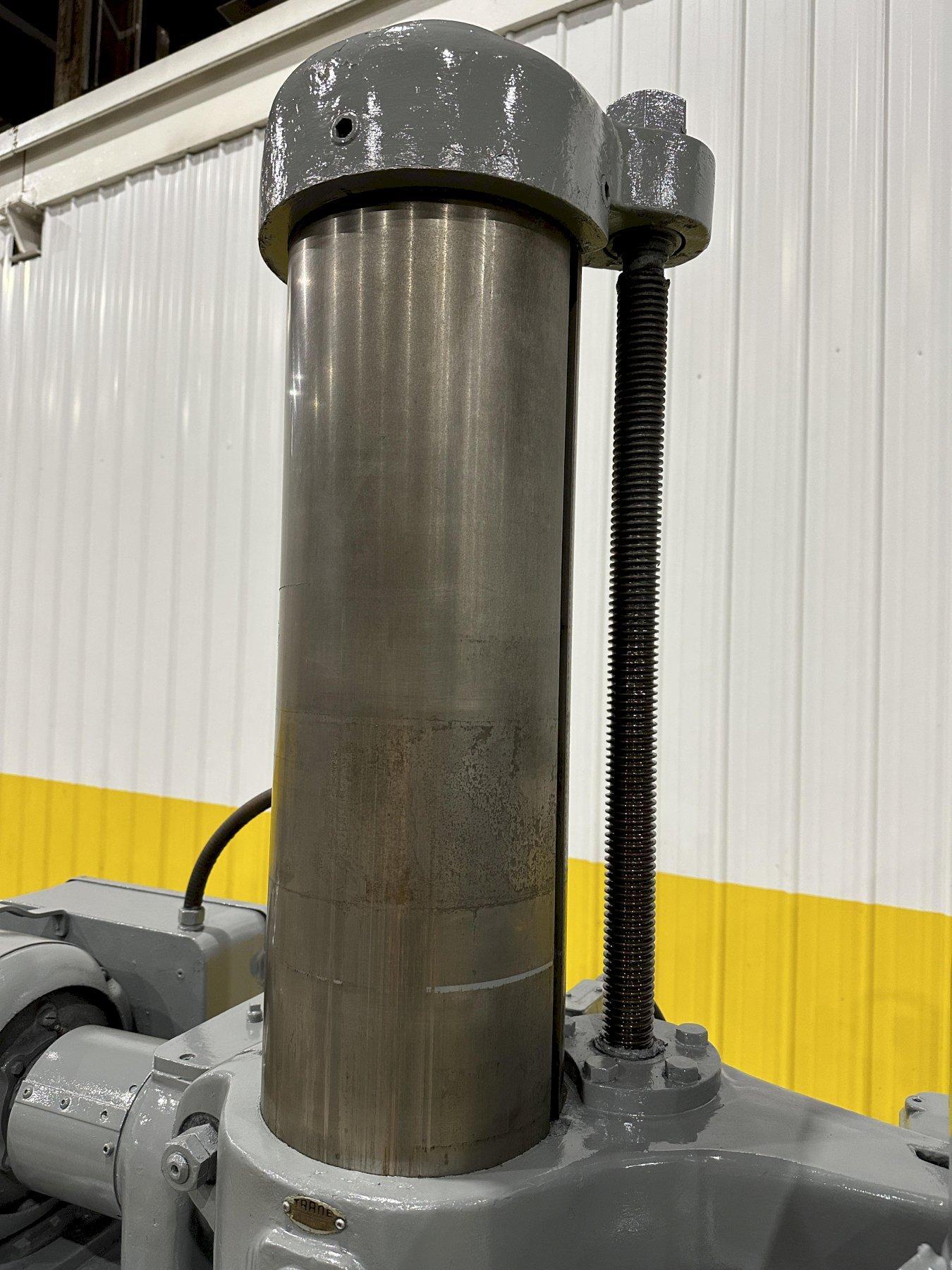

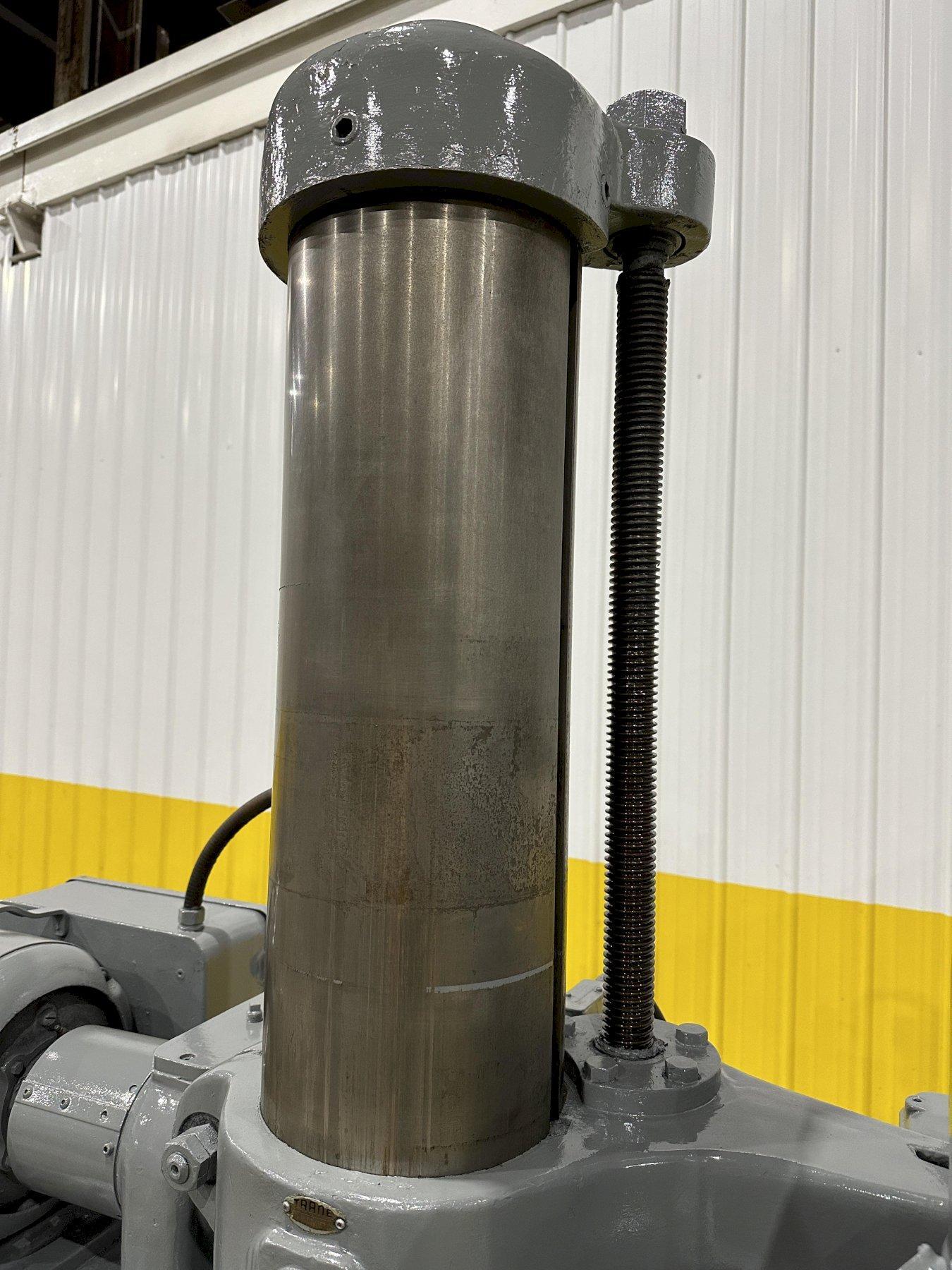

COLUMN DIAMETER ................. 9"
ARM LENGTH ...................... 36"

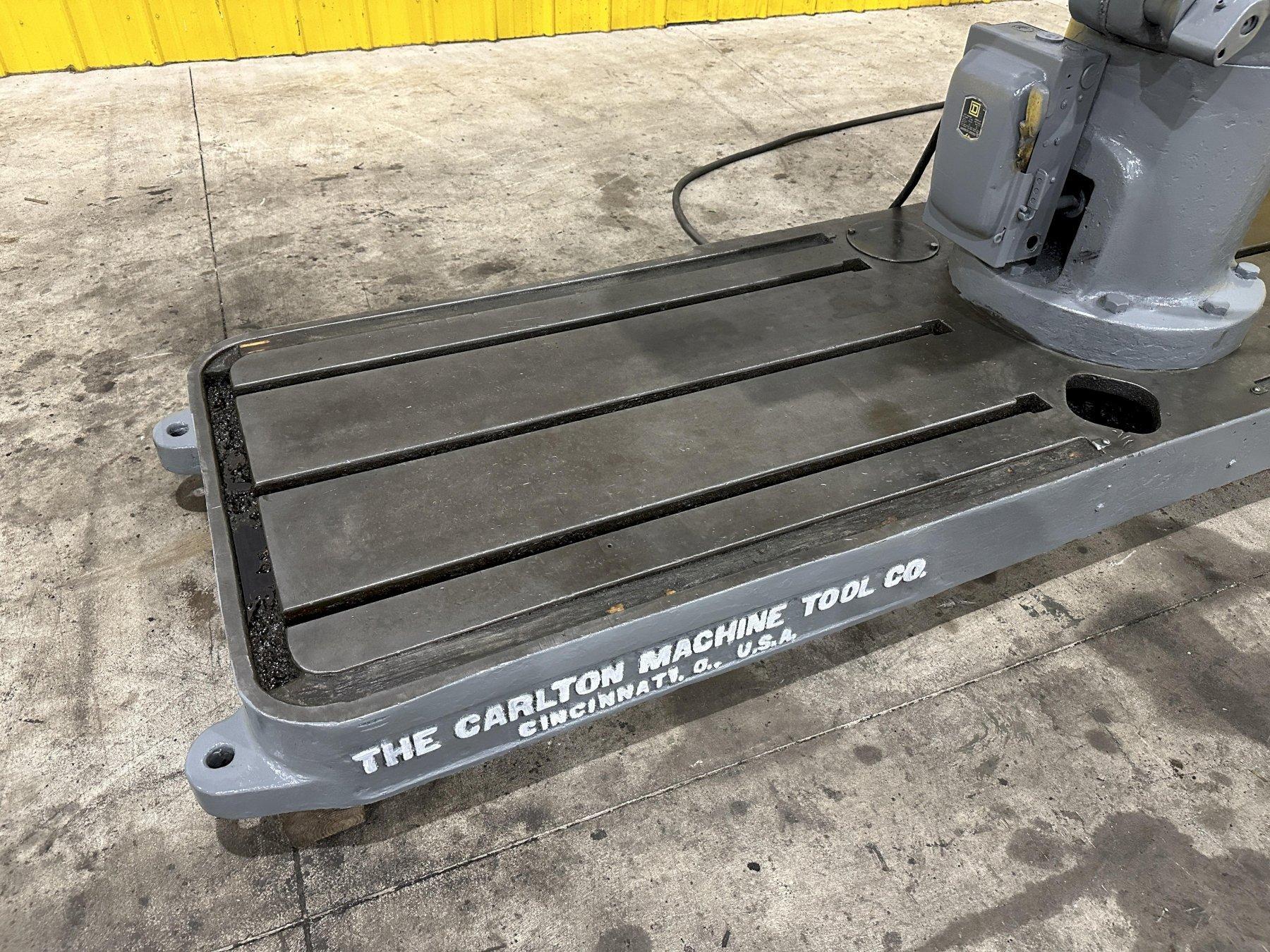

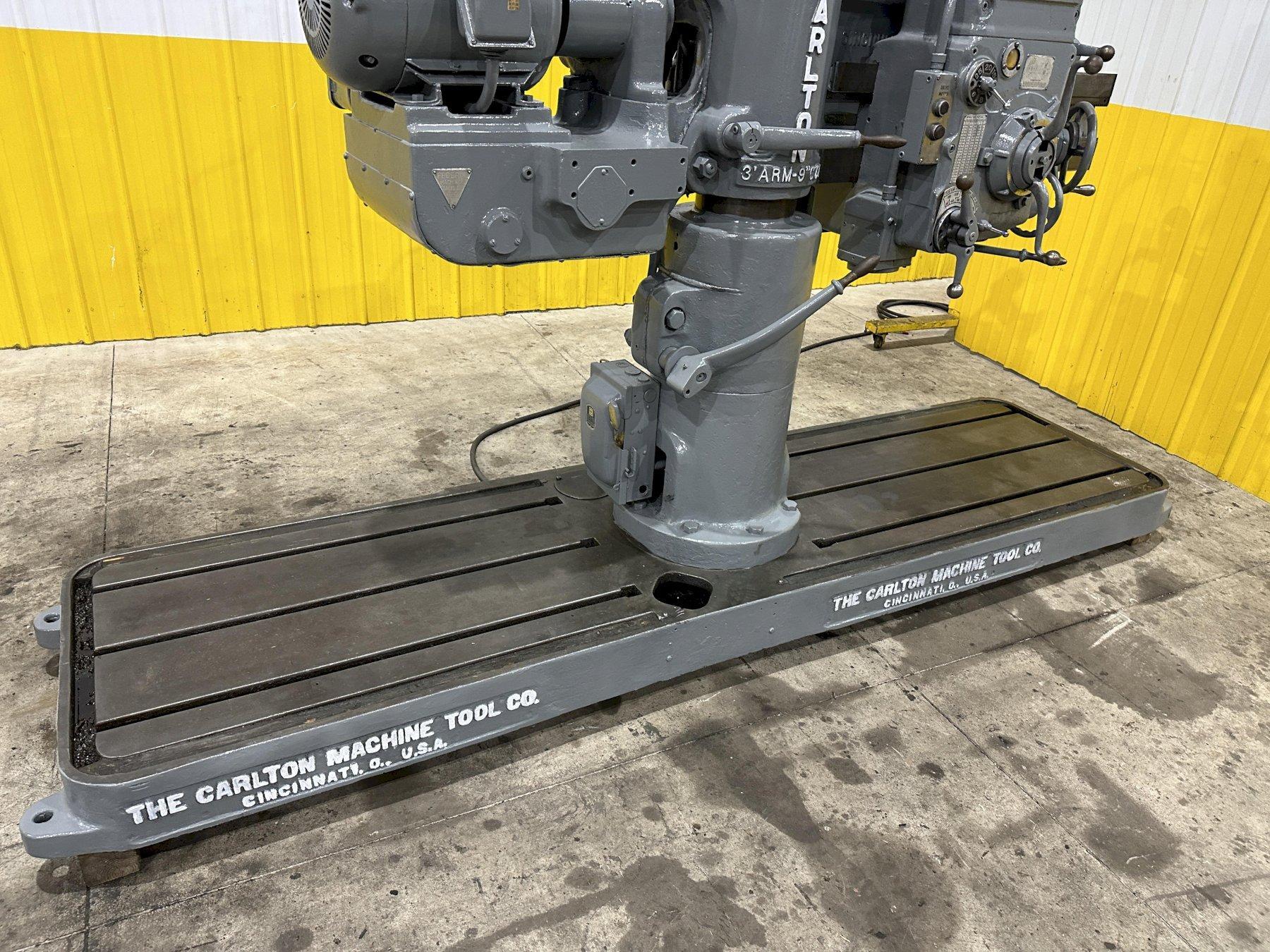

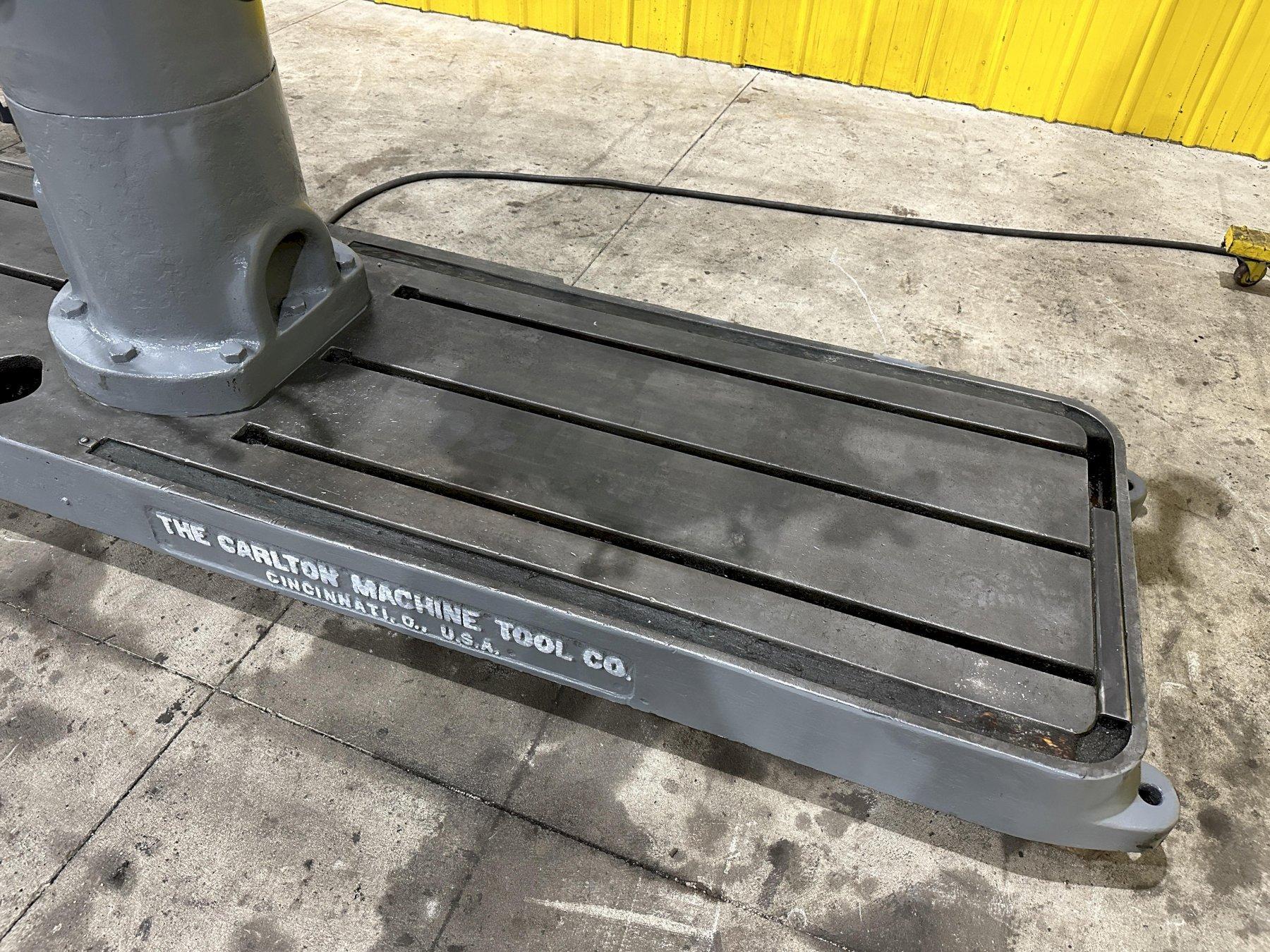

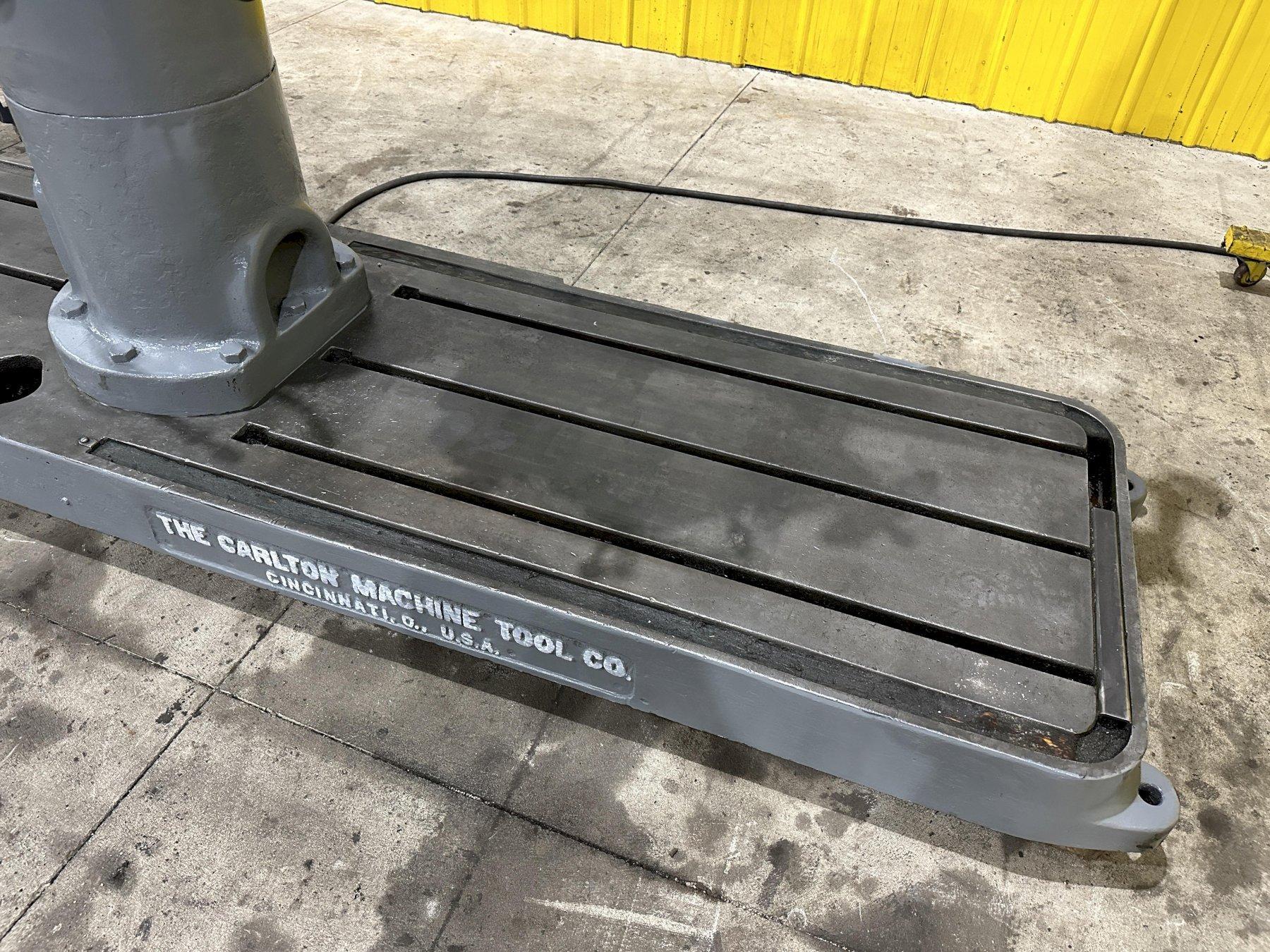

DUAL BASE ....................... YES
AREA OF EACH BASE ............... 31" X 39 1/2"

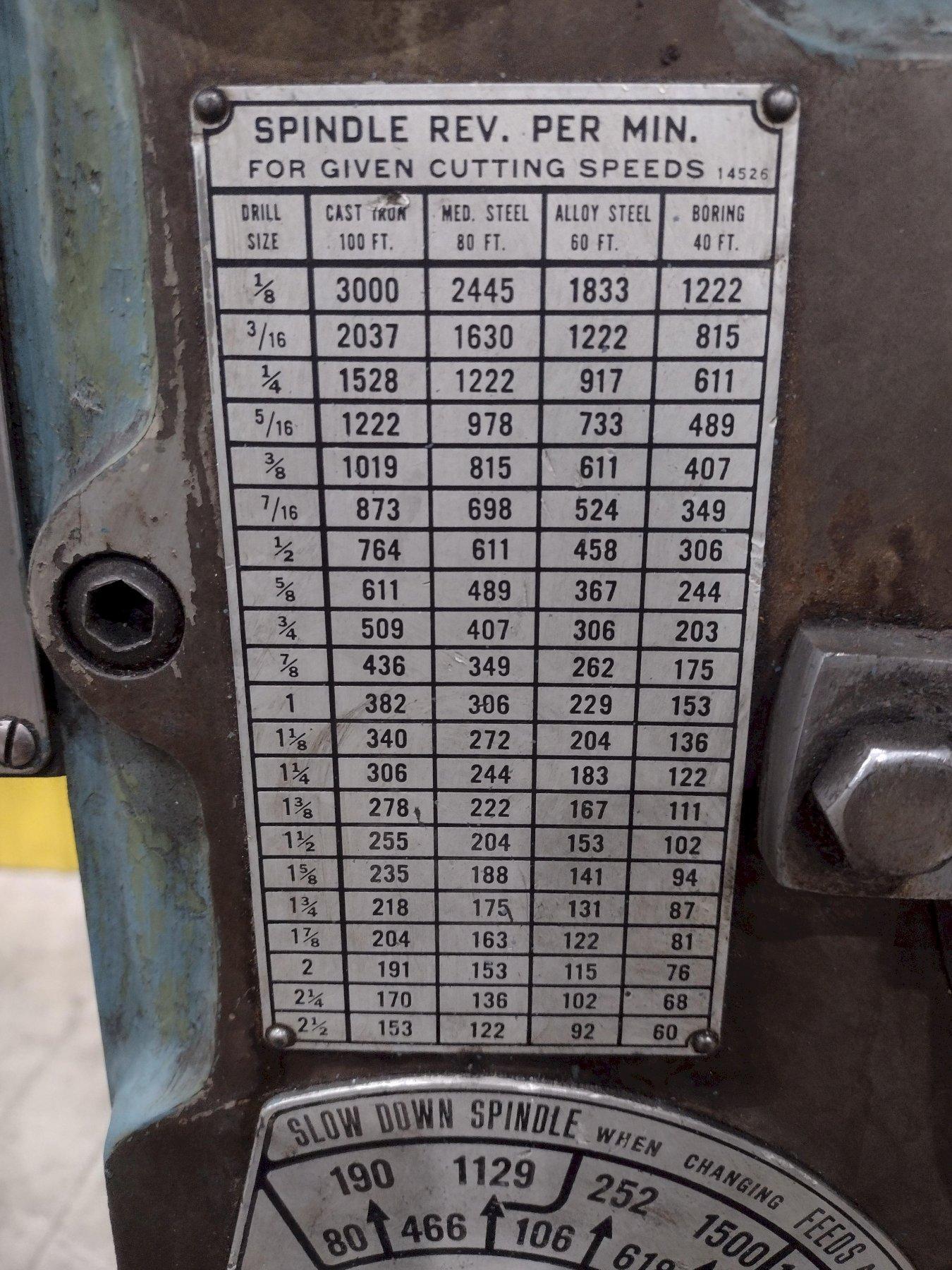

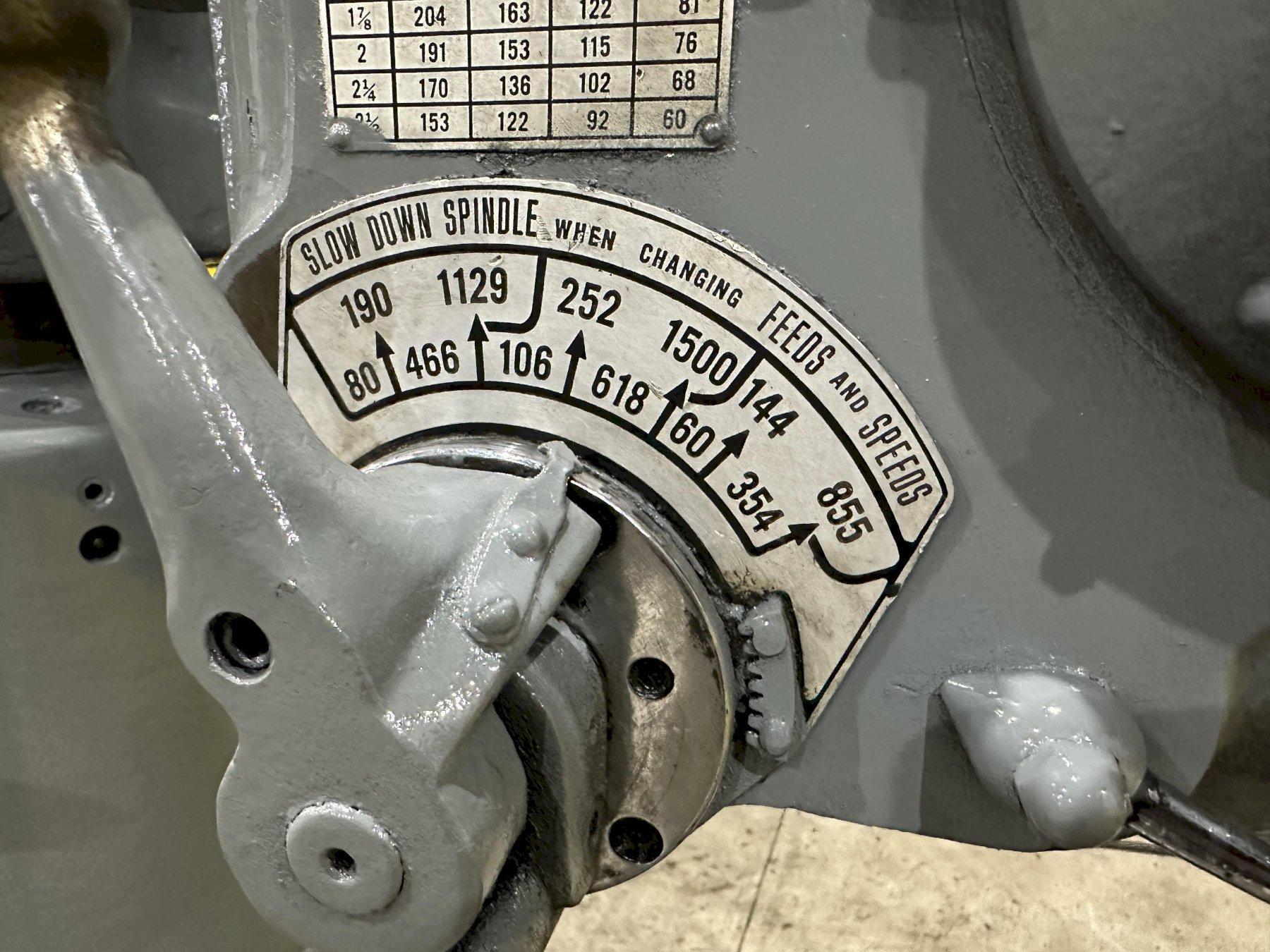

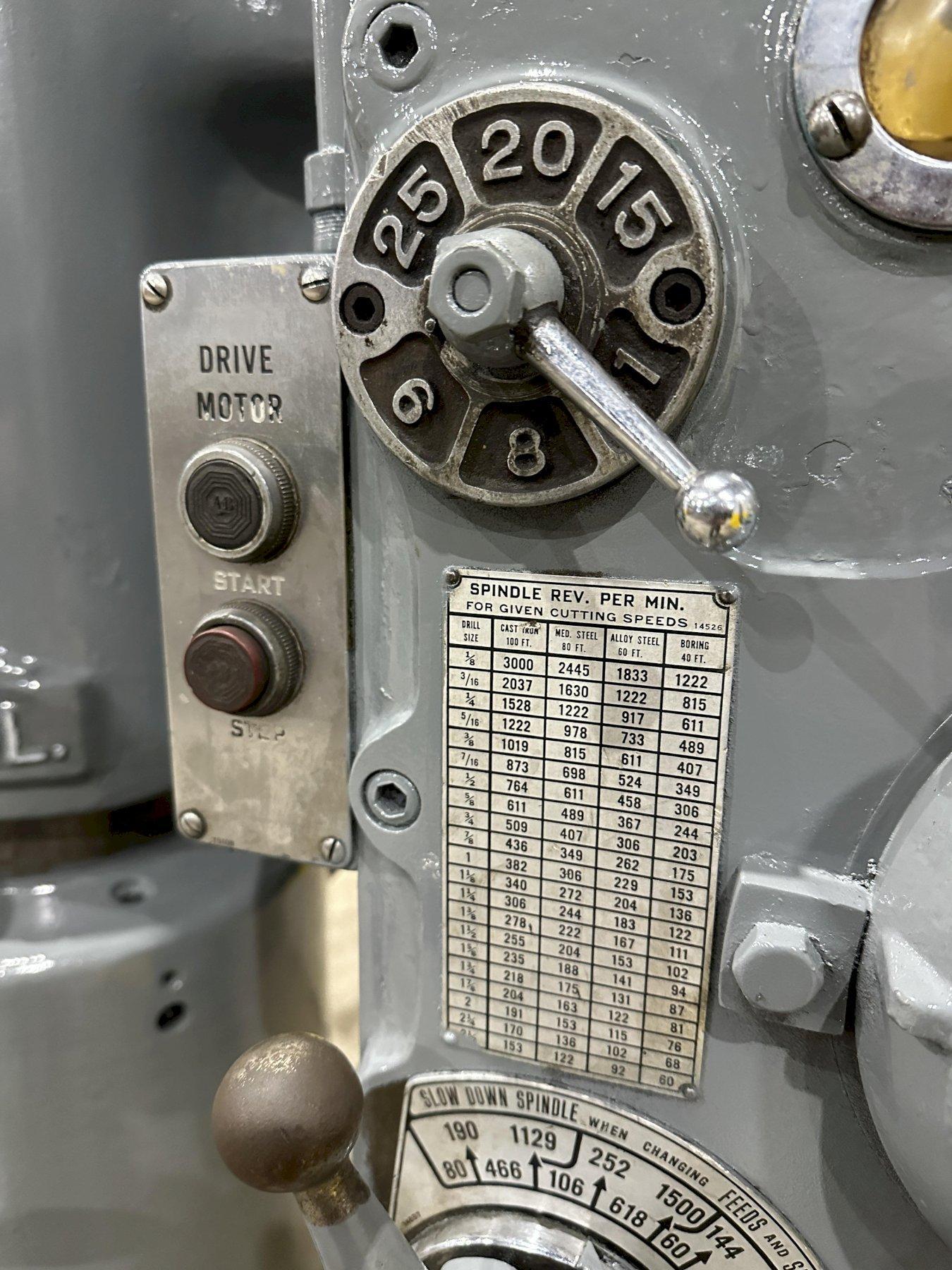

SPINDLE SPEEDS .................. (12) 80 TO 1500 RPM
FEEDS ........................... (12) .004 TO .0025 IPR

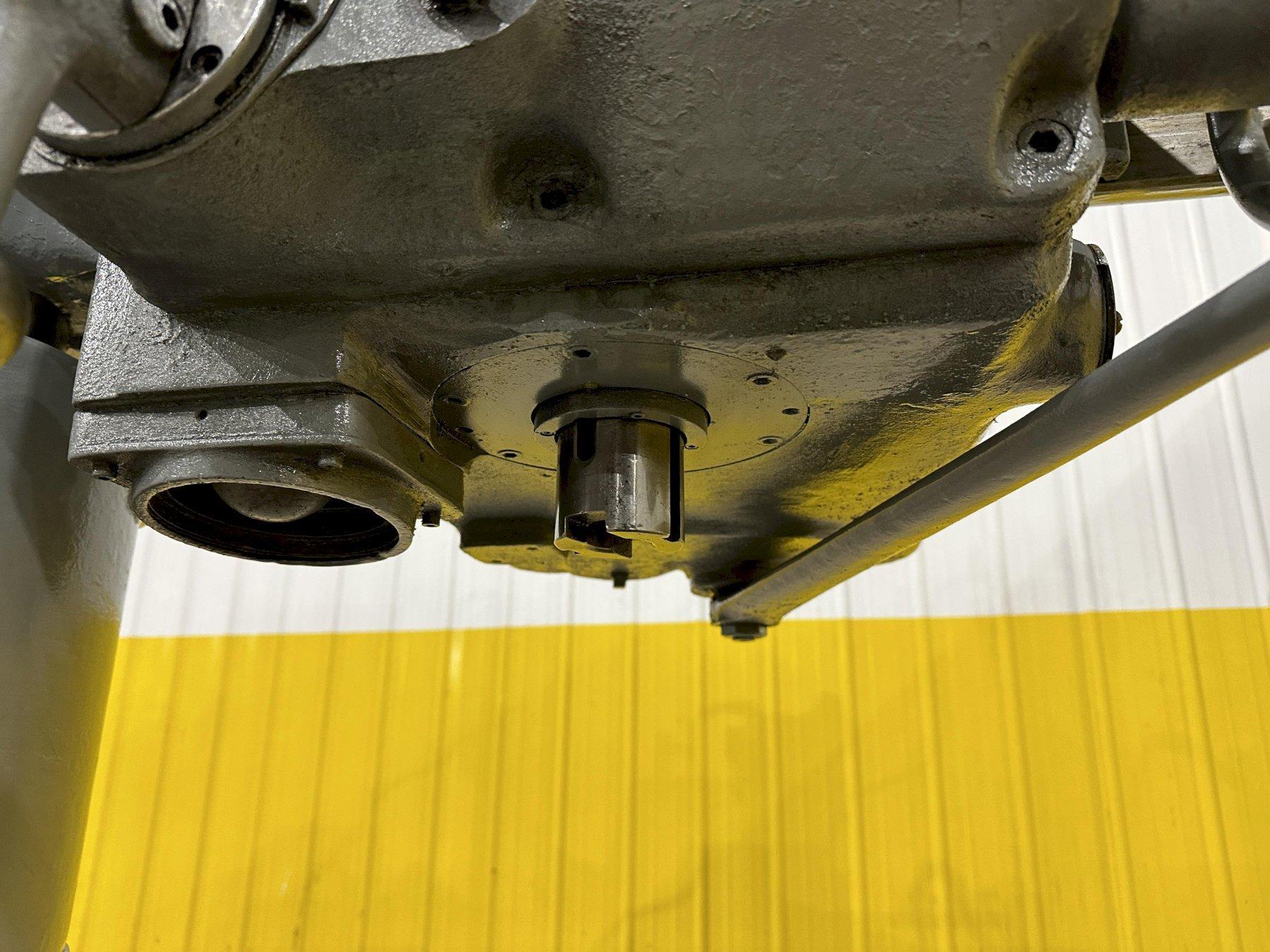

TAPER IN SPINDLE ................ #4 MT

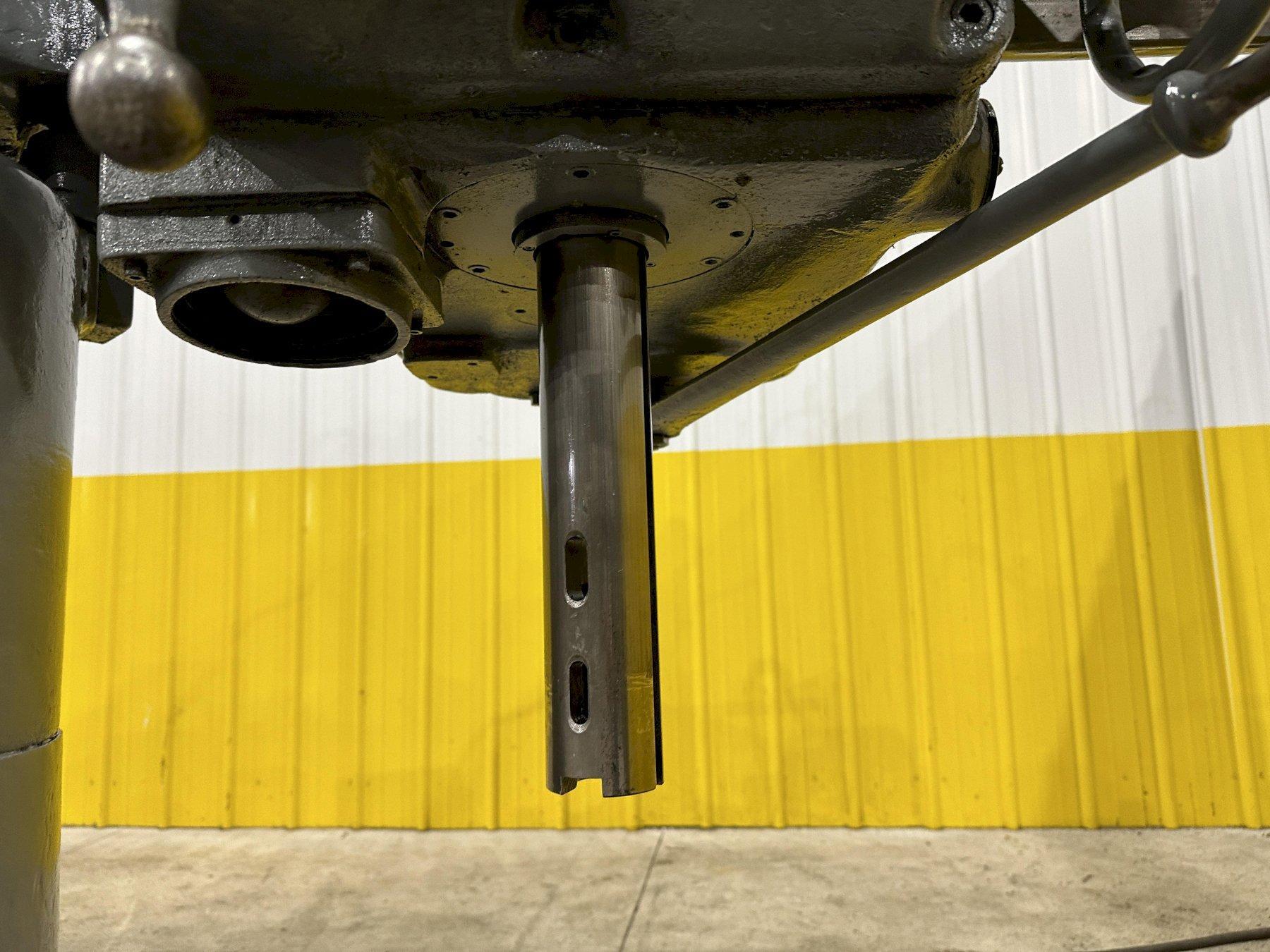

DIAMETER OF SPINDLE ............. 2-1/2"
SPINDLE TRAVEL .................. 12"
TRAVEL OF ARM ON COLUMN ......... 28"
TRAVEL OF HEAD ON ARM ........... 29"
DISTANCE SPINDLE TO BASE ........ 28" MINIMUM, 56" MAXIMUM
DISTANCE SPINDLE TO COLUMN ...... 9" MINIMUM, 36" MAXIMUM
POWER ELEVATION ................. YES
COOLANT ......................... YES

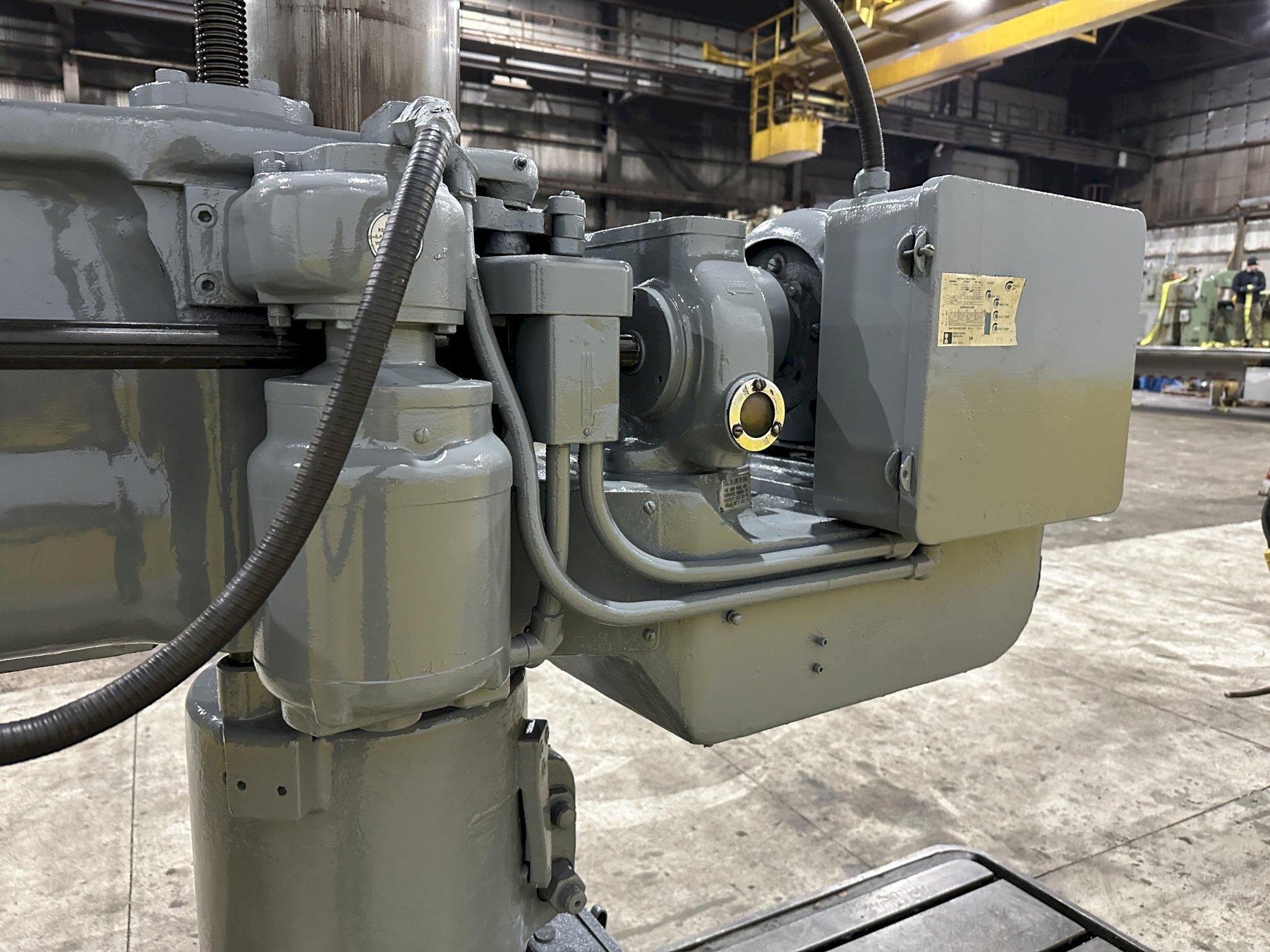

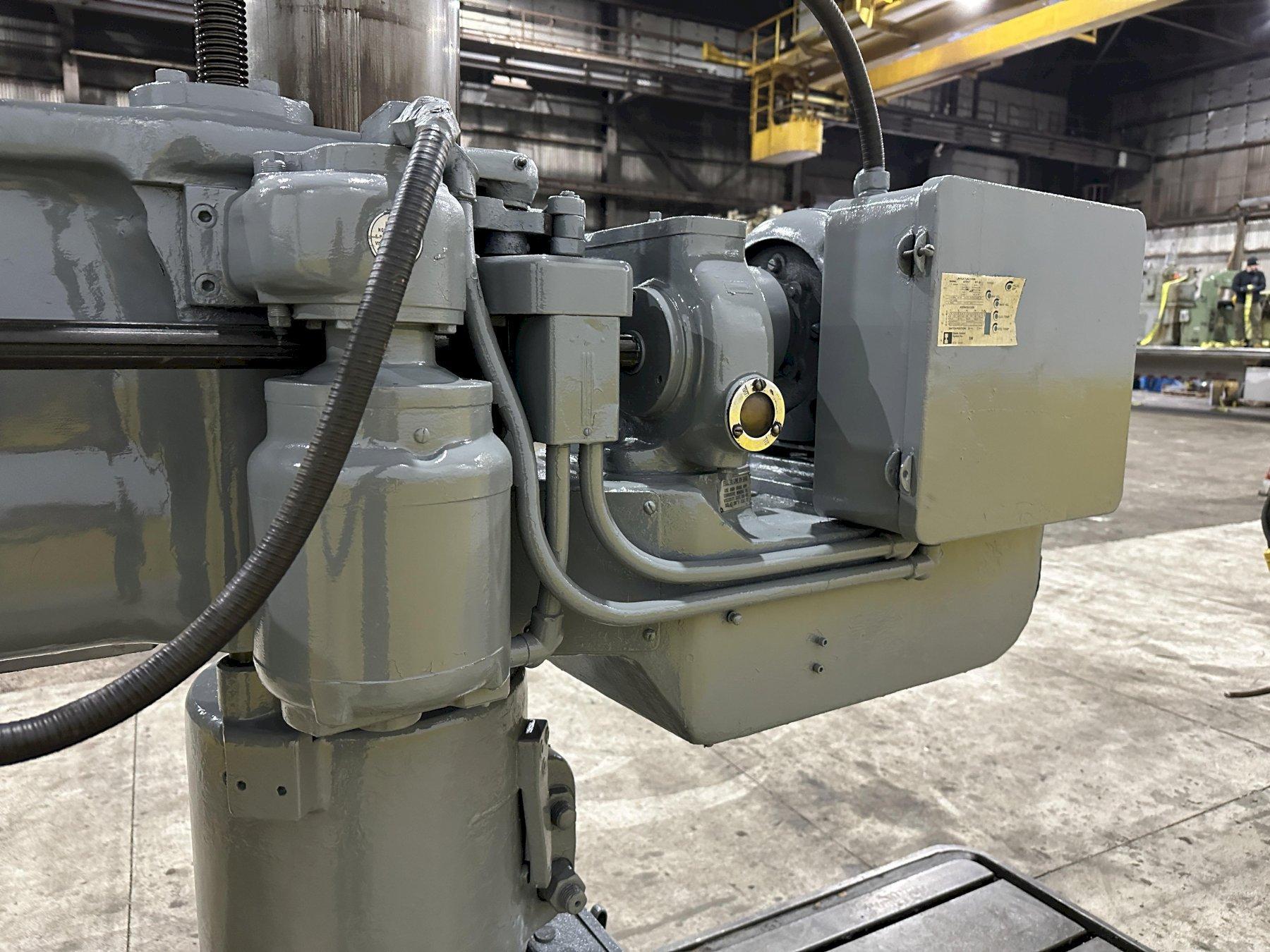

MOTOR ........................... 5 HORSEPOWER
