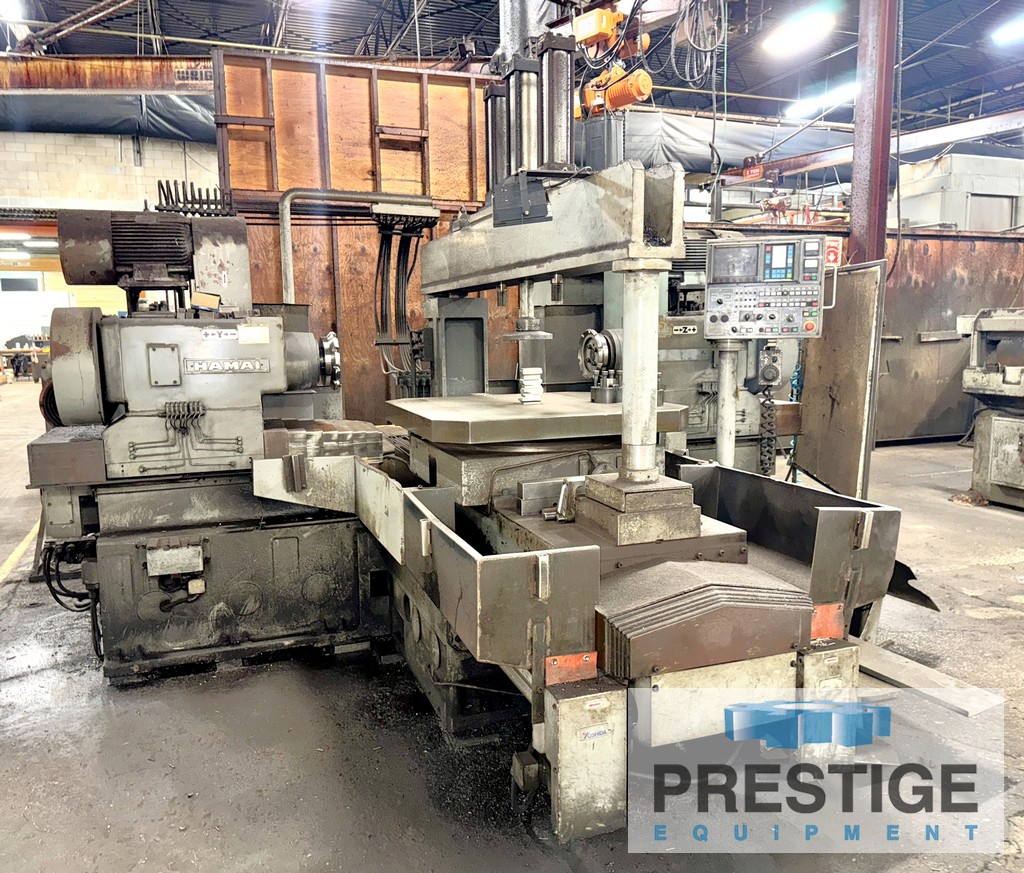

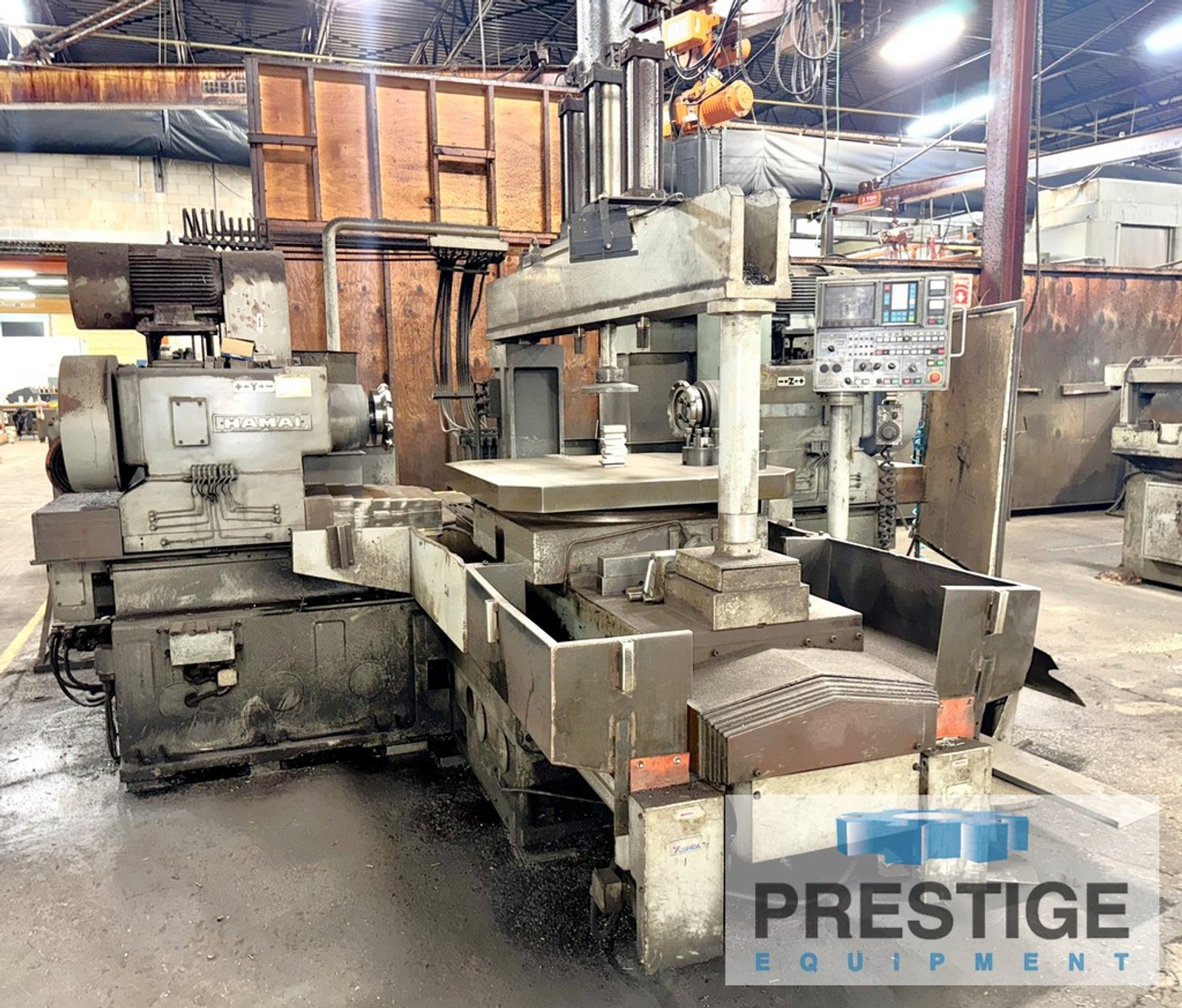

Hamai 6DS-A, 55" Between Spindles, 23.62" x 88.58" Tbl, 70 - 1200 RPM, X-55", Y/Z-15.74", Fanuc 0-Mate M CNC, #44053

Stock

44053

Model

6DS-A

Dealer Location

New York

Spec Sheet

FEATURES:

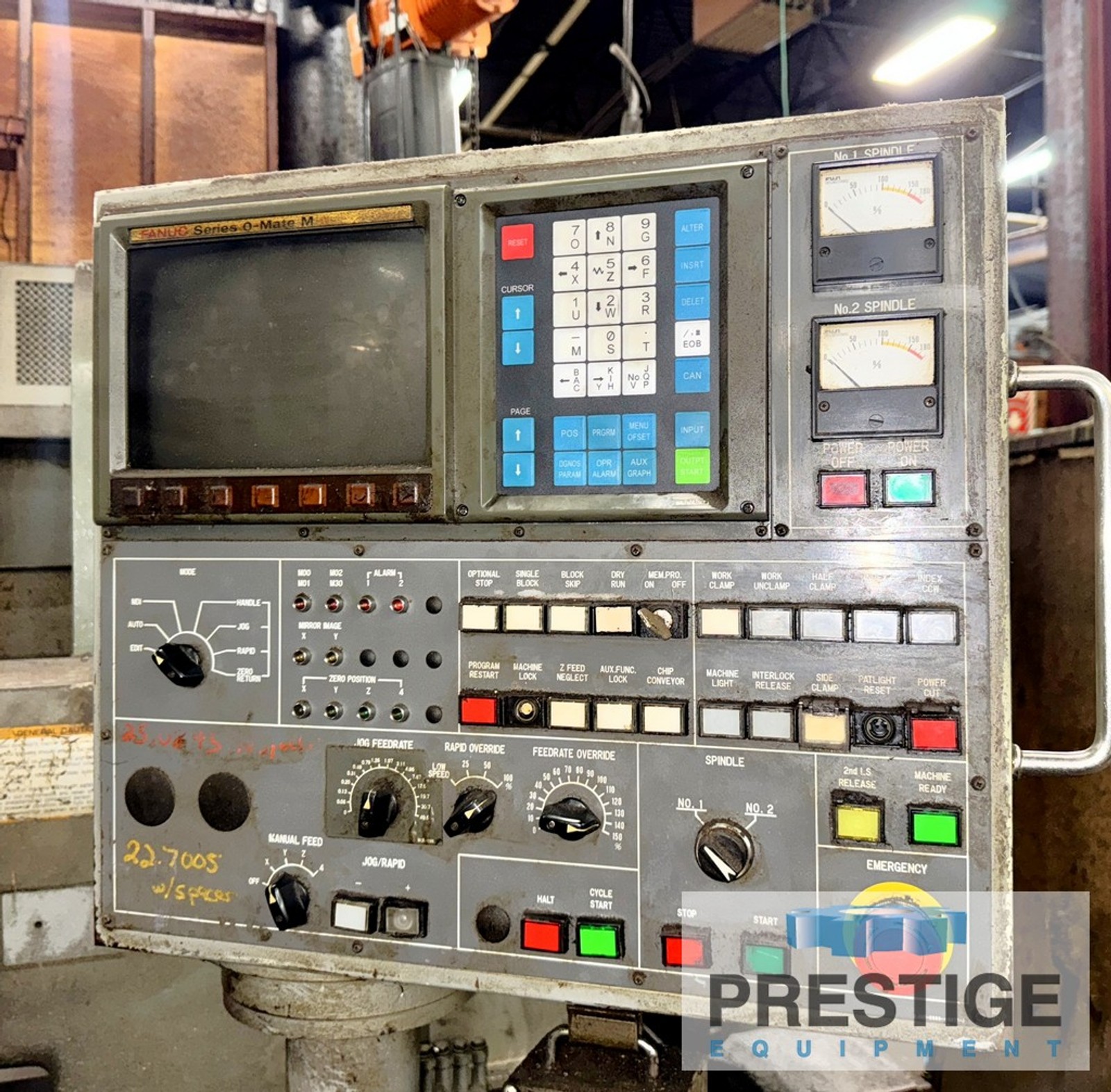

Fanuc 0-Mate M CNC Control

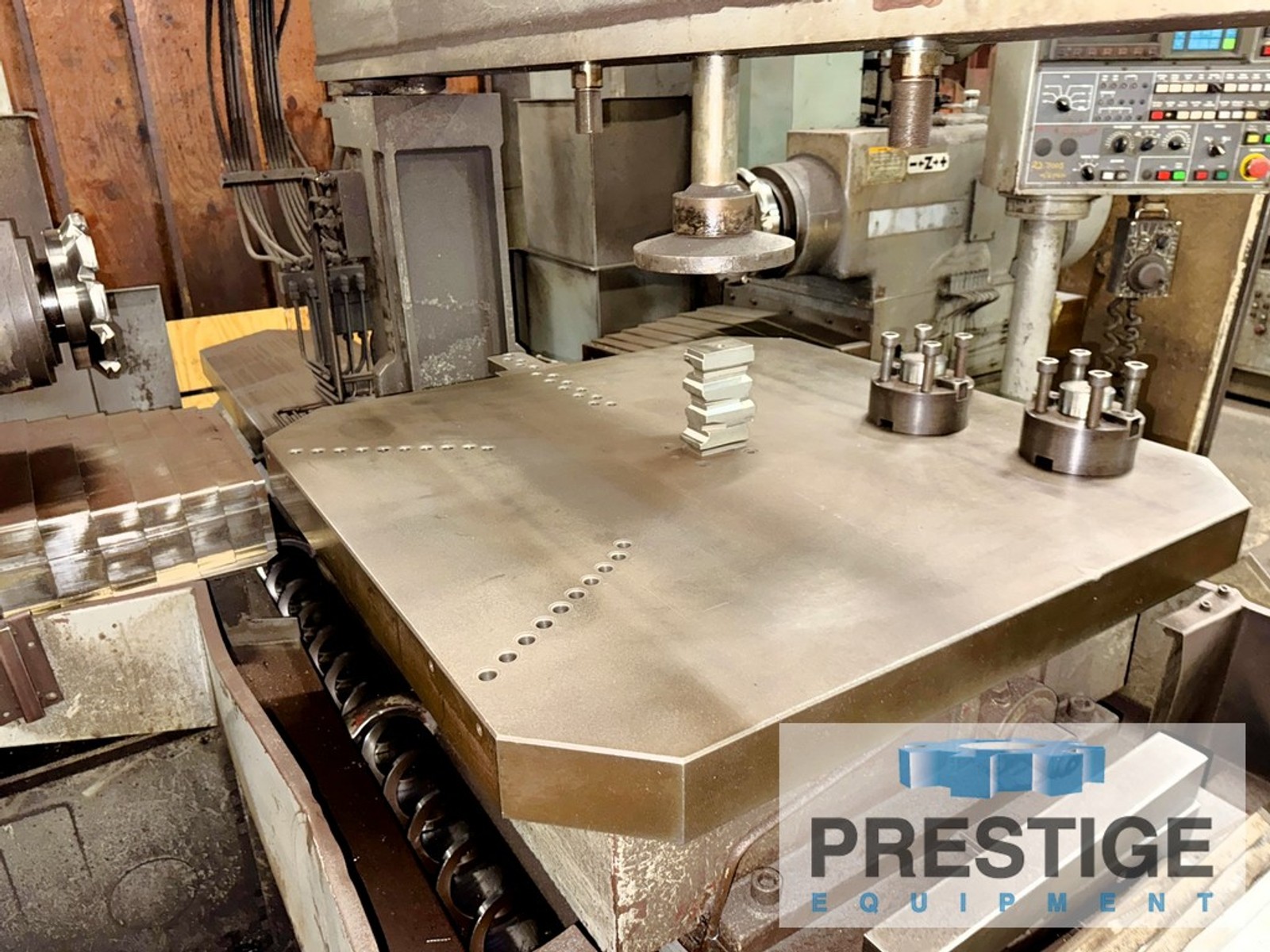

39.37" x 39.37" Rotary Table

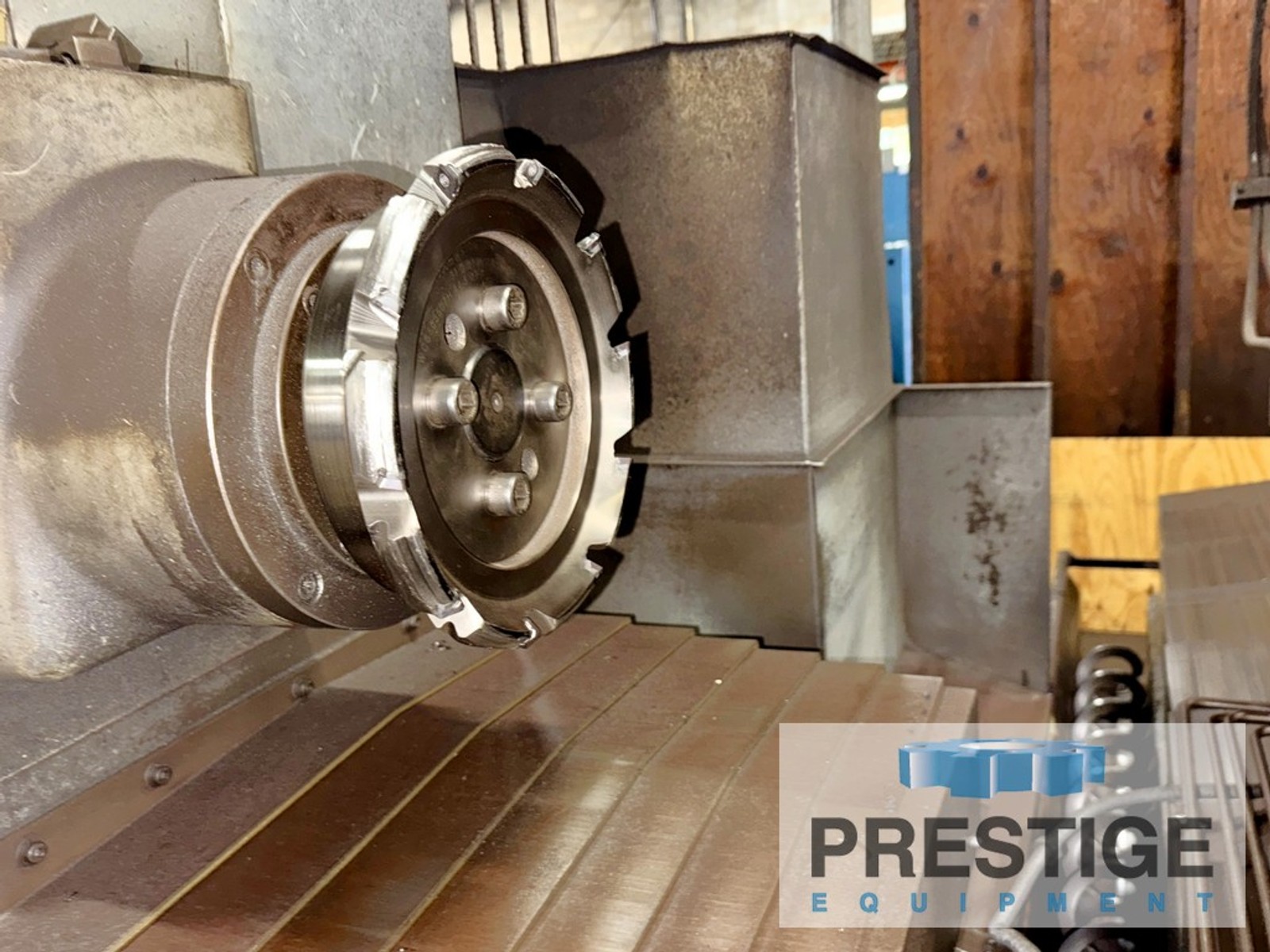

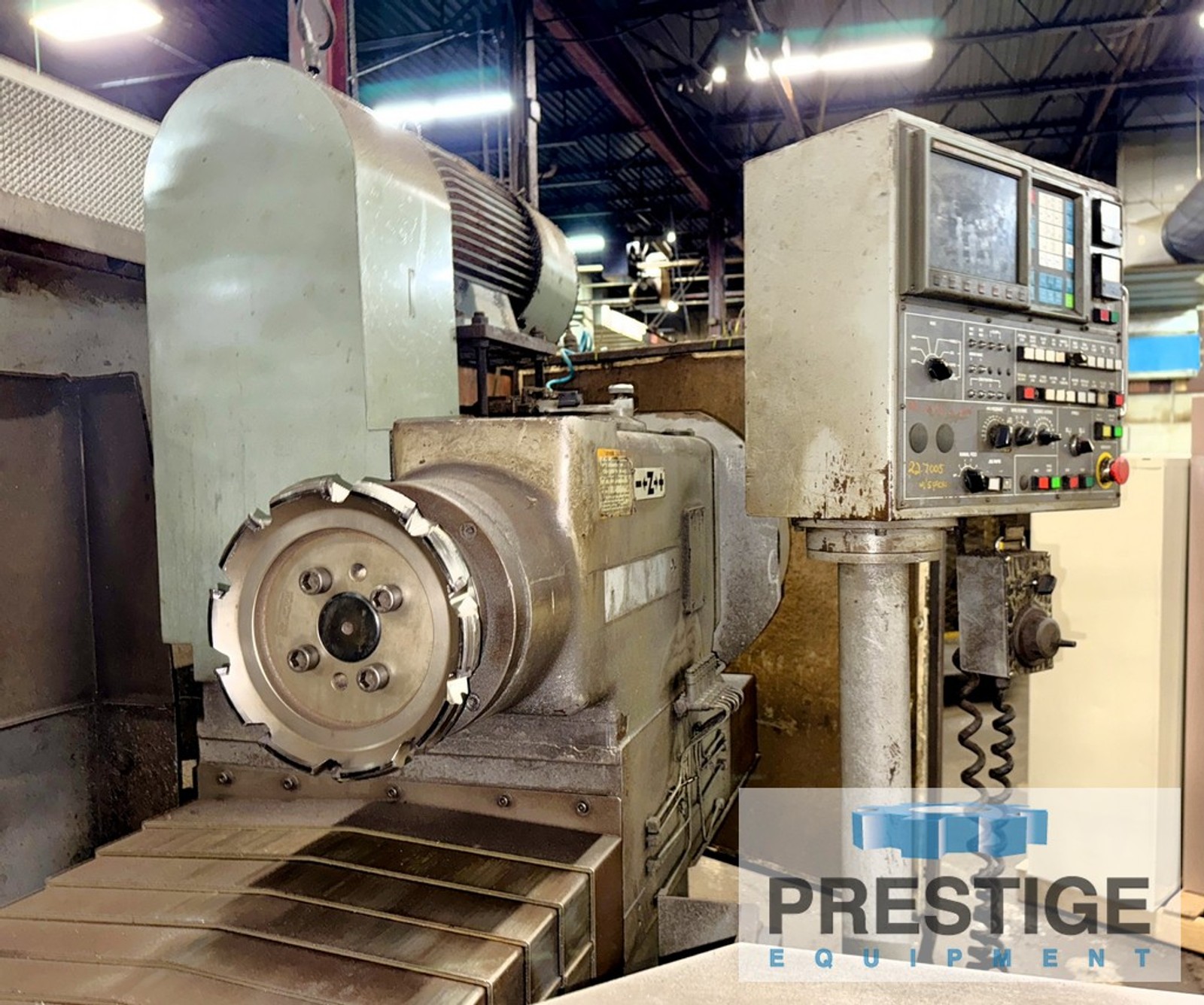

Dual Opposing Milling Heads

SPECIFICATION:
Distance Between Milling Heads ........ 55.11"
Table Dimensions ...................... 23.62" x 88.58"
Table Travel, X-Axis .................. 55.11"
Spindle Travel, Y/Z Axes .............. 15.74"
Spindle Speeds ........................ 70 - 1200 RPM
Spindle Motor ......................... 14.75 HP

EQUIPPED WITH:
Fanuc 0-Mate M CNC Control
39.37" x 39.37" Rotary Table
Dual Opposing Milling Heads
14.75 HP Spindle Motor
