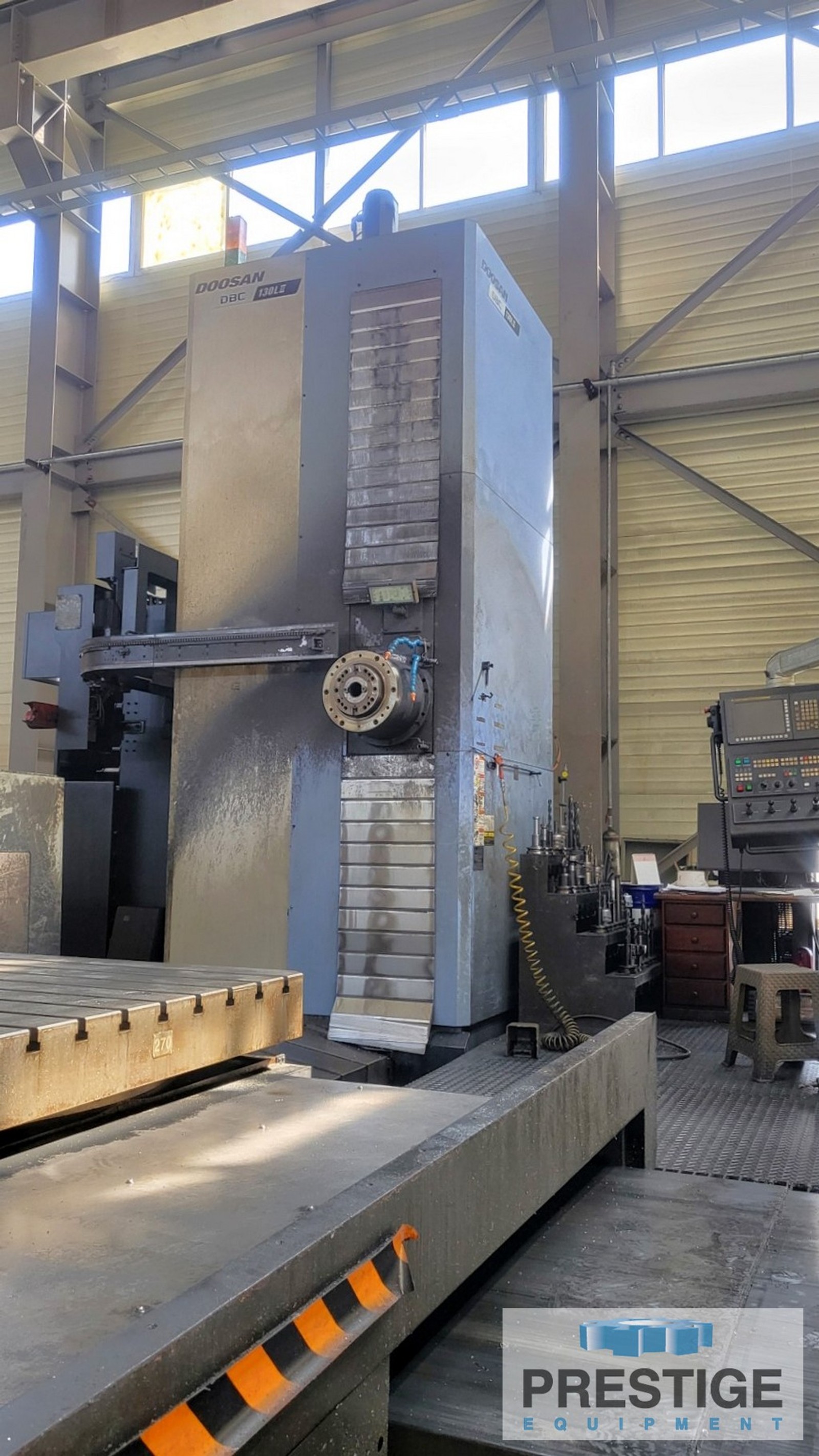

5.12" Doosan DBC-130LII, 40 ATC,X-157", Y-98", 86" x 78" Table, B-Axis, 2500 RPM,TSC, Fanuc 31i CNC, 2017, #44048

Manufacturer

DOOSAN

Category

Boring Mills

Type

BORING MILLS, HORIZONTAL, TABLE TYPE, CNC

Stock

44048

Model

DBC-130LII

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

FFEATURES:

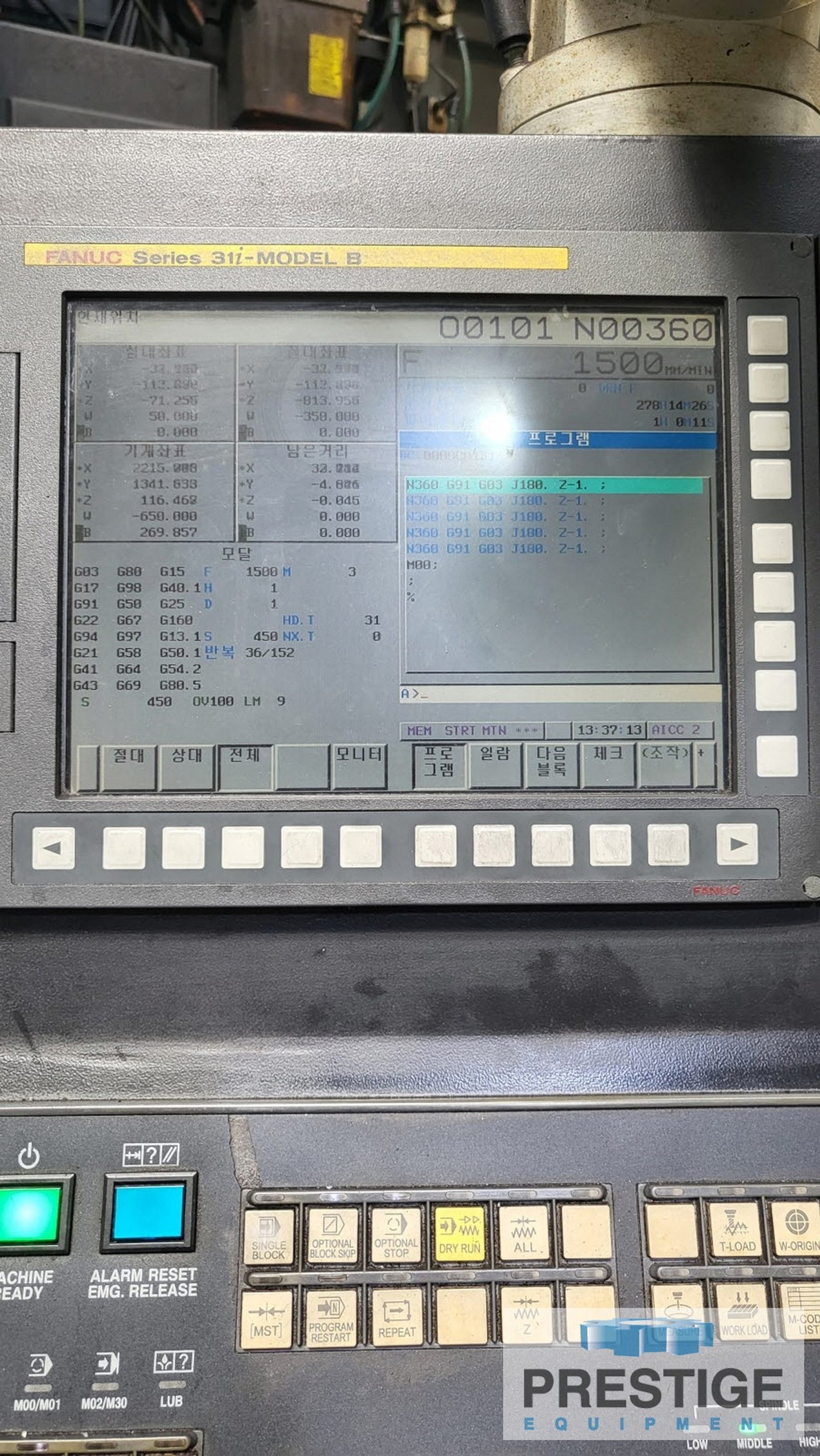

Fanuc 31iB CNC Control

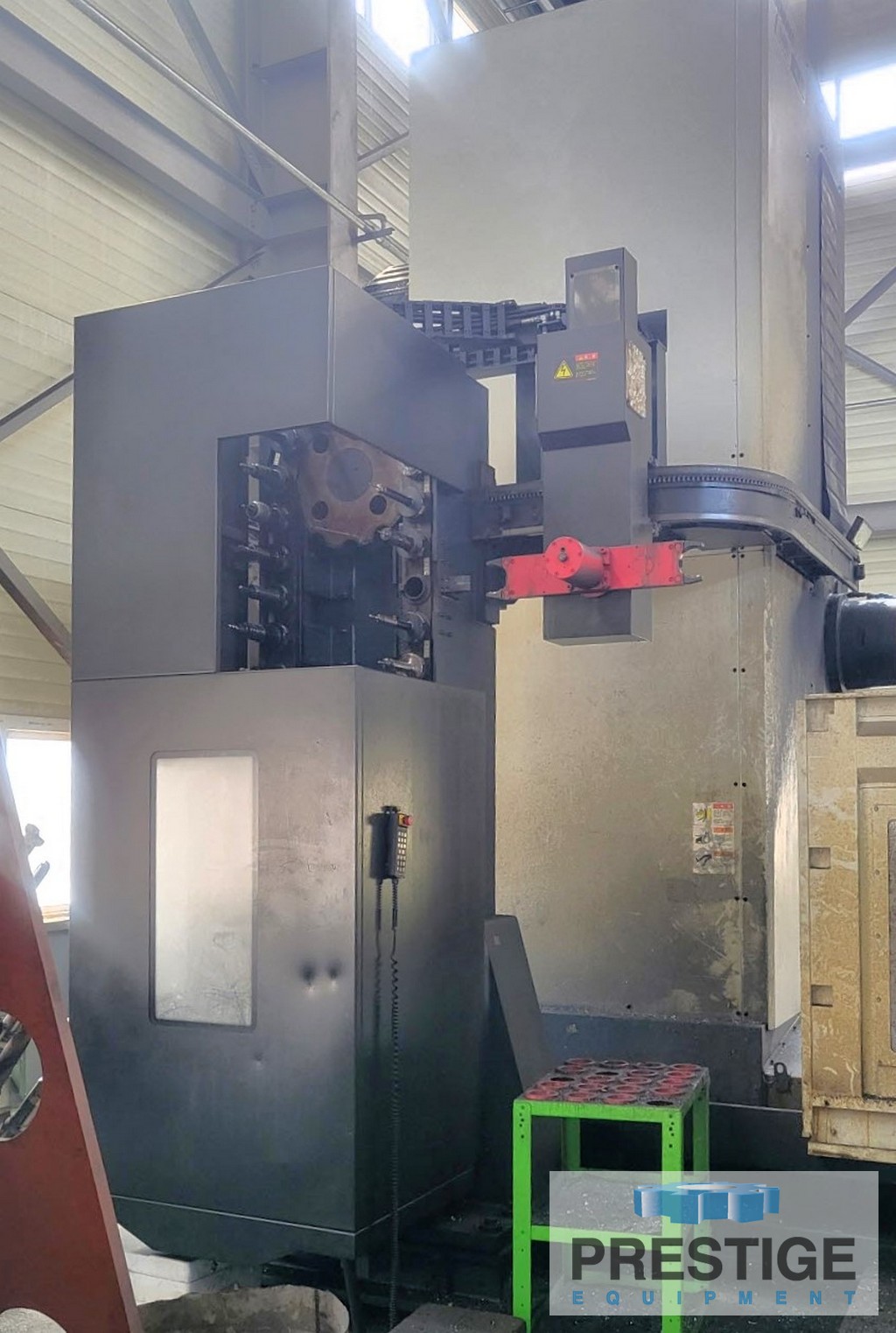

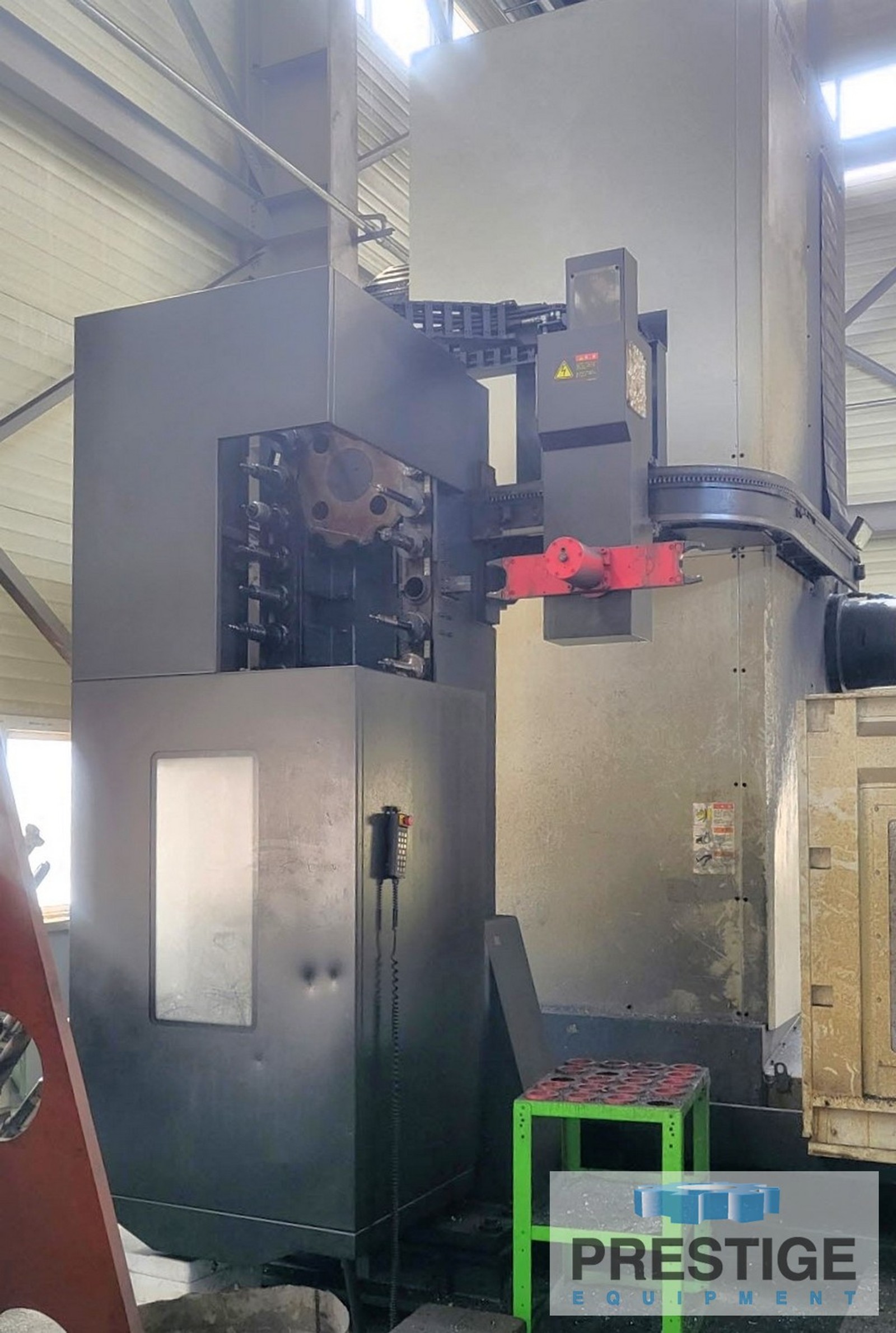

40-Station Automatic Tool Changer
B-Axis Contouring Rotary Table

SPECIFICATION:
Spindle Diameter ...................... 5.12"
Taper In Spindle ...................... #50
Vertical Headstock Travel,Y-Axis ...... 98.42"
Table Cross Travel, X-Axis ............ 157.48"
Spindle Travel, W-Axis ................ 27.55"
Column Infeed Travel, Z-Axis .......... 78.74"
Distance Spindle Center to Table Top .. 0-90.55"
Distance Spindle Nose to Table Center . 29.52"-108.26"

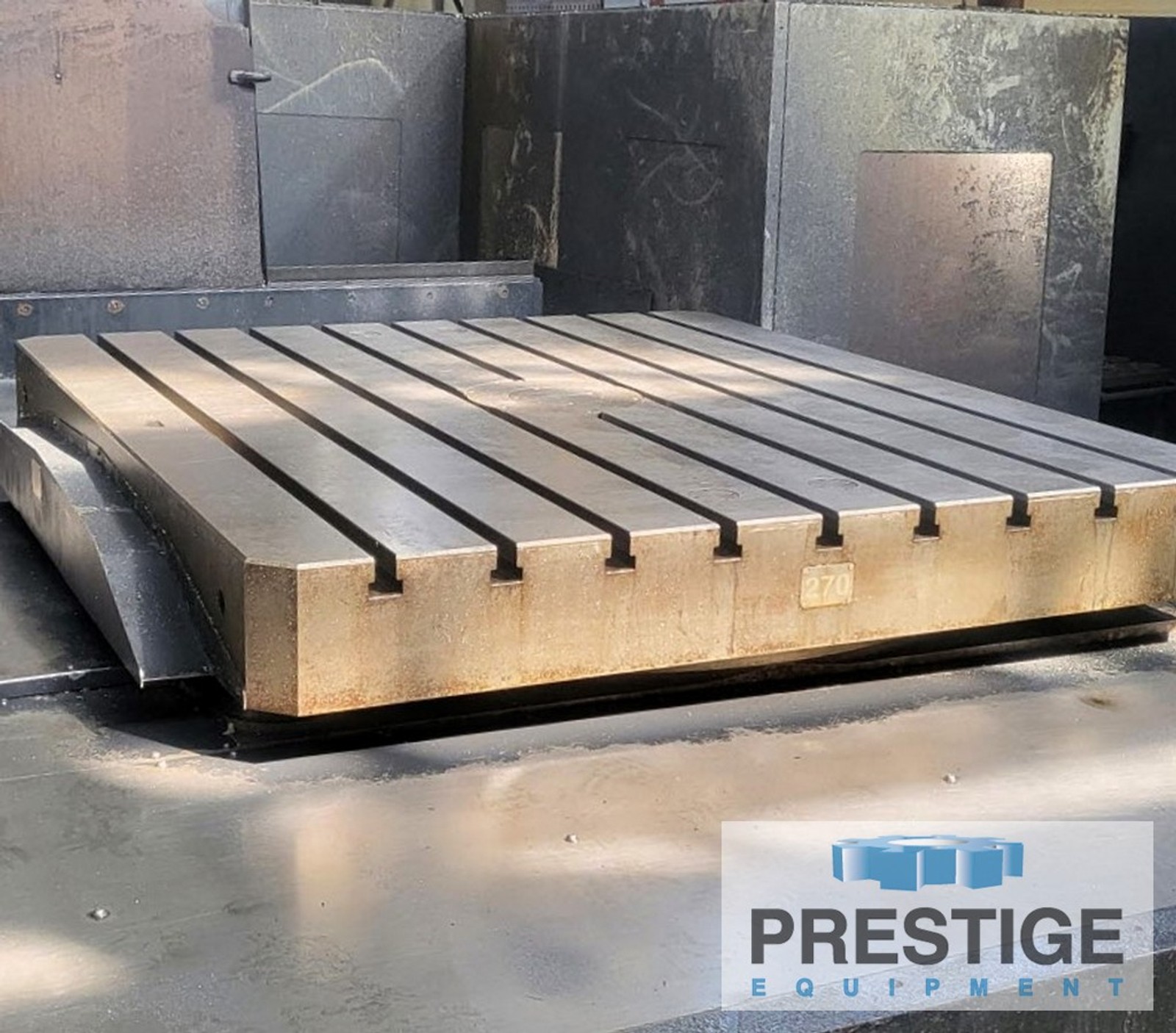

Table Size, B-Axis .................... 86.61" x 78.74"
Rotary Table Weight Capacity .......... 28,659 Lbs.
B-Axis Table Rotation ................. 0.001 Degree
Spindle Speeds ........................ to 2500 RPM
Rapid Traverse Rate ................... 393.70 IPM
Cutting Feedrate ...................... 1-157.48 IPM
Overall Height ........................ 212.6"
Floor Space ........................... 307.1" x 370.1"
Approx. Machine Weight ................ 110,300 Lbs

EQUIPPED WITH:
Fanuc 31iB CNC Control
40-Station Automatic Tool Changer
B-Axis Contouring Rotary Table
Way Covers
Chip Conveyor
35 HP/ 30 HP Spindle Motor
