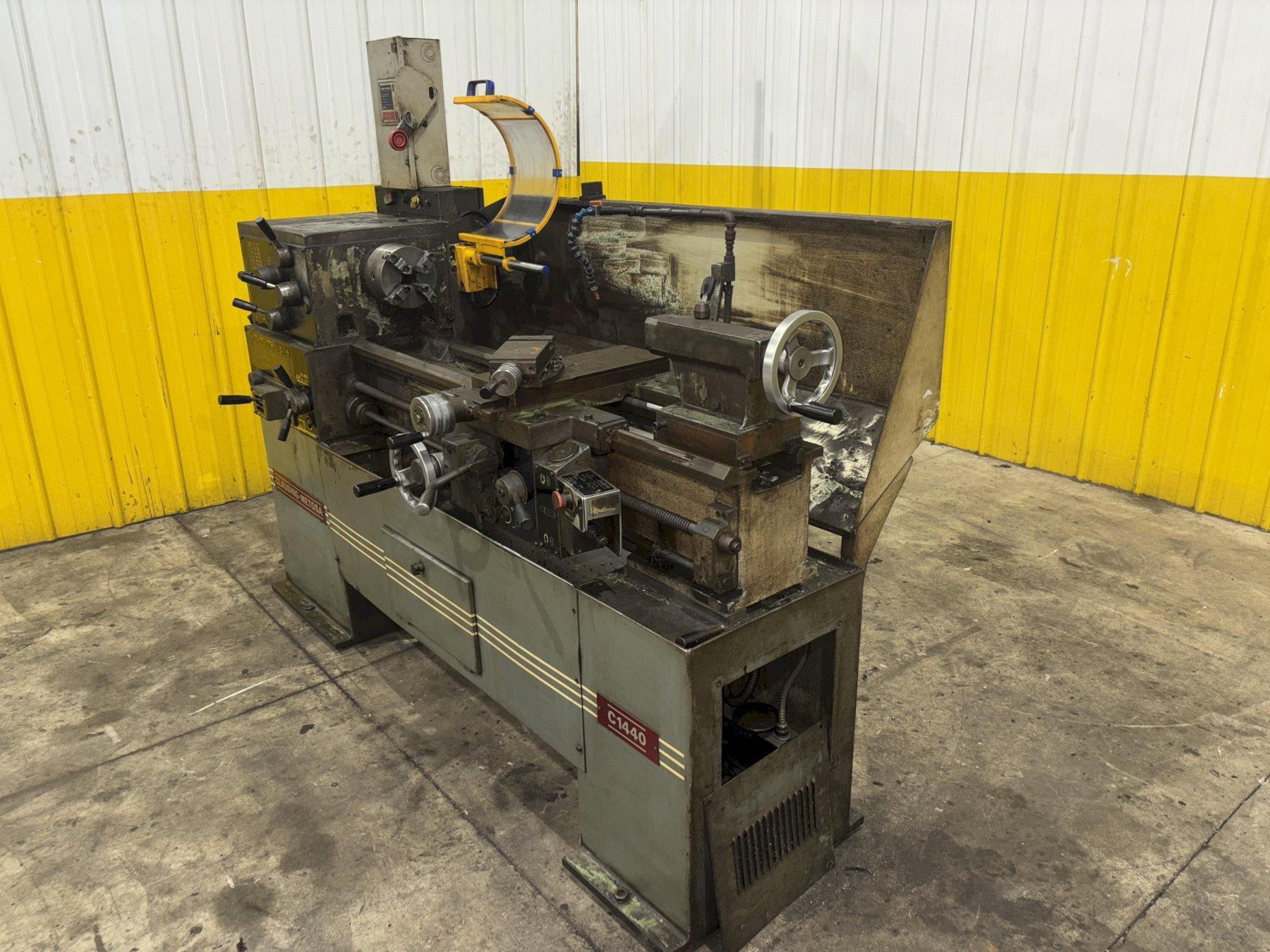

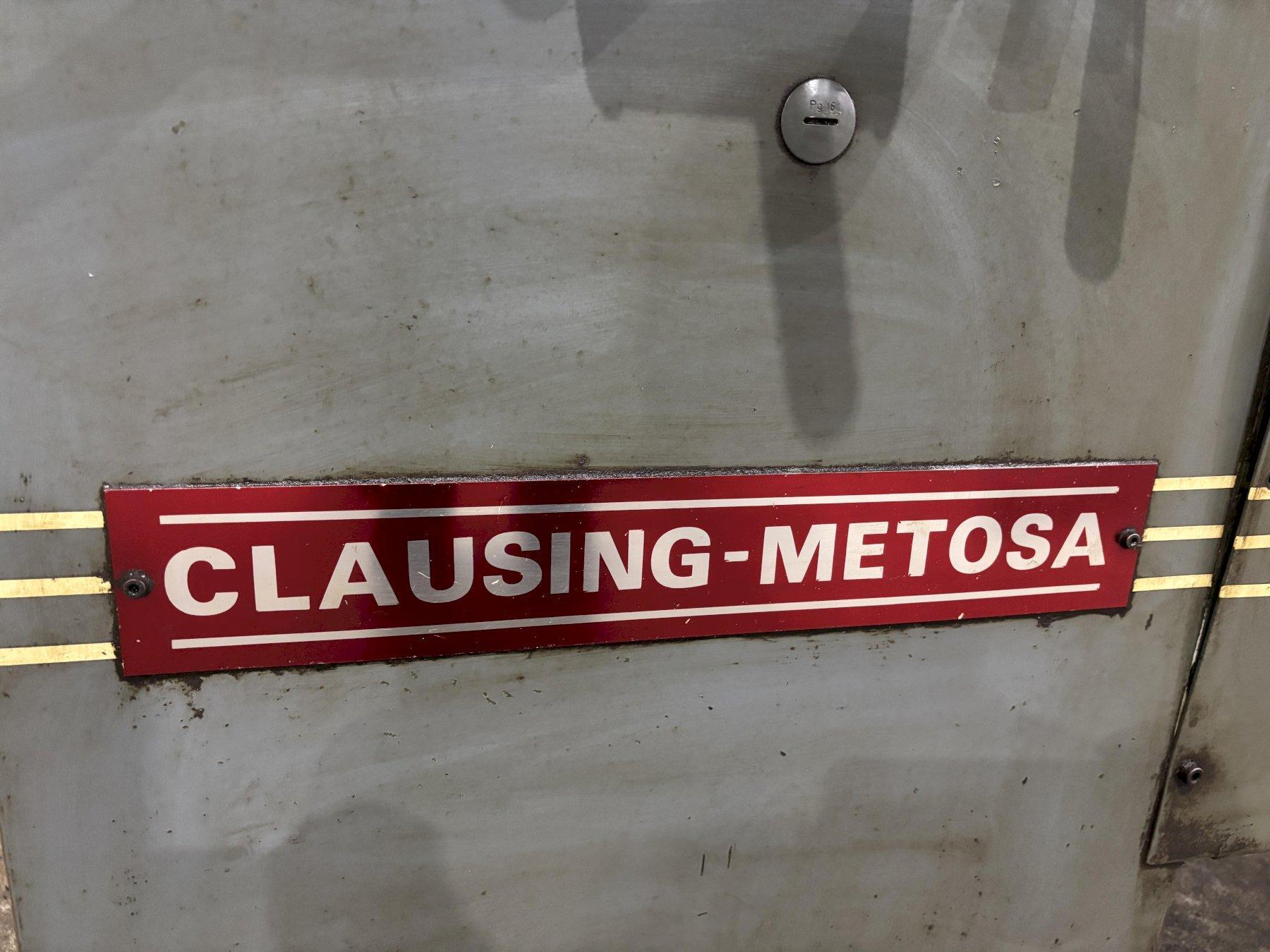

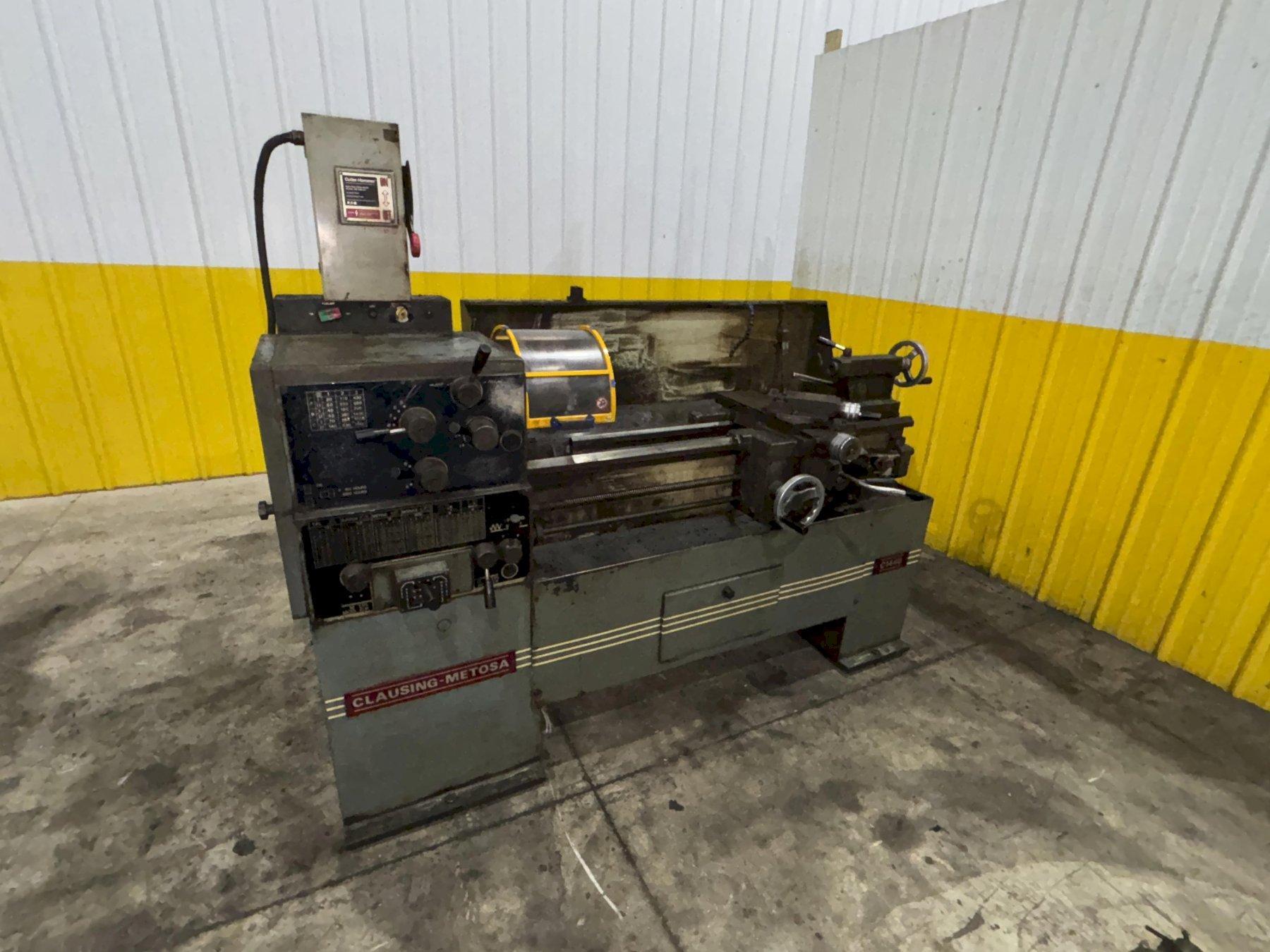

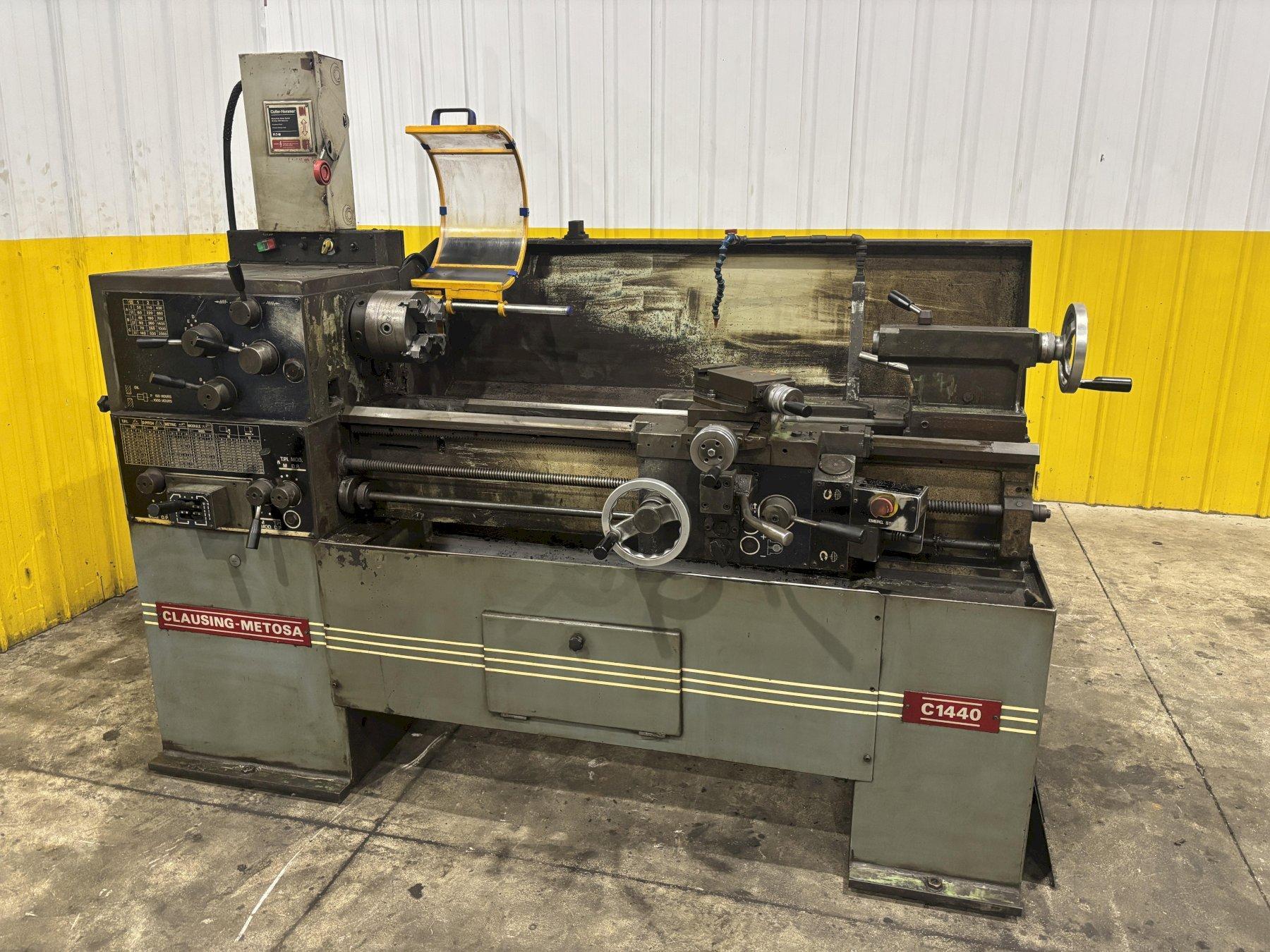

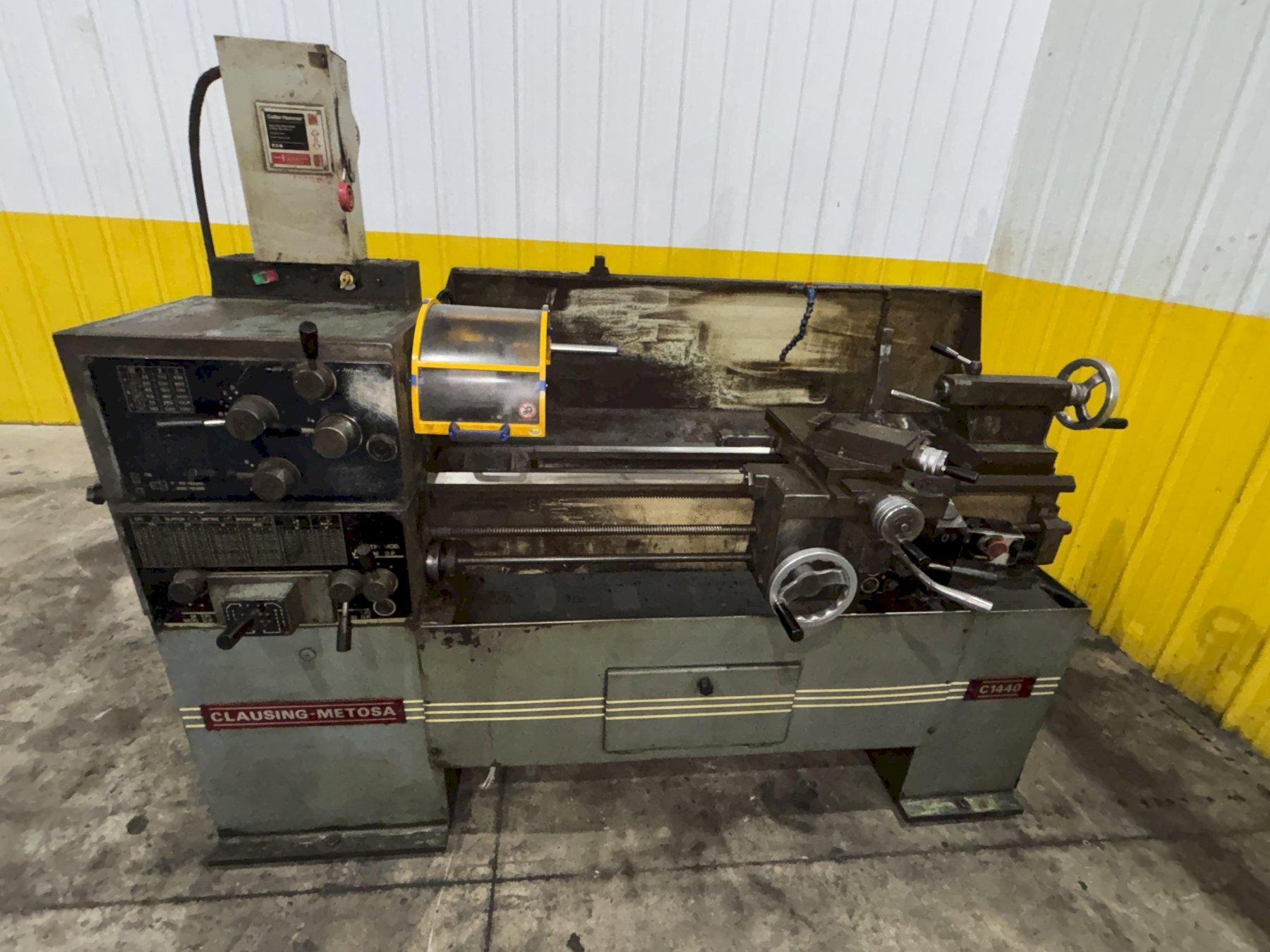

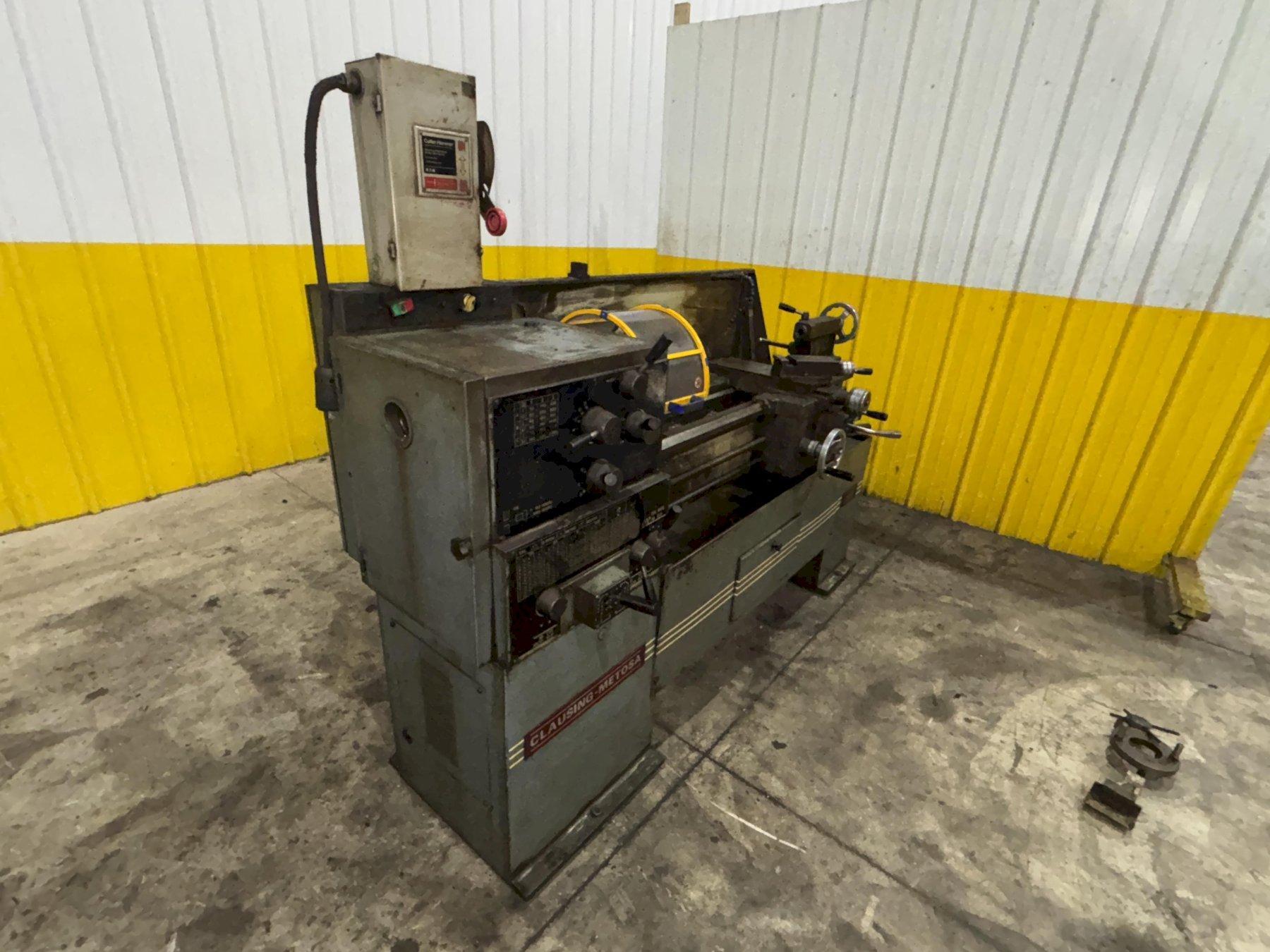

14" X 40" CLAUSING METOSA MODEL #C1440 TOOLROOM ENGINE LATHE, 1-5/8": YOBRO #23849

Manufacturer

CLAUSING

Category

Lathes

Type

LATHES, ENGINE

Stock

23849

Model

C1440

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet

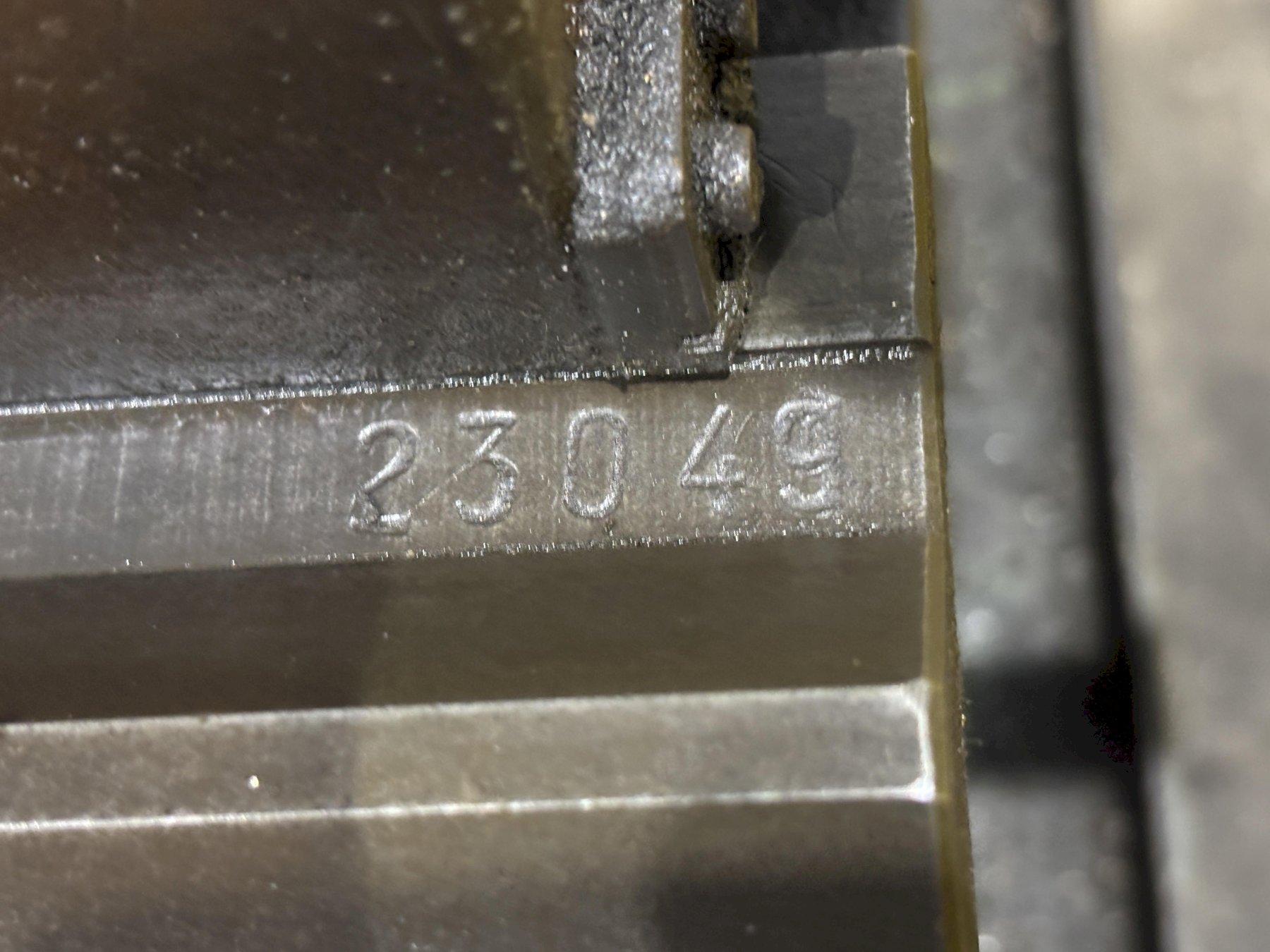

SERIAL ........... 23049

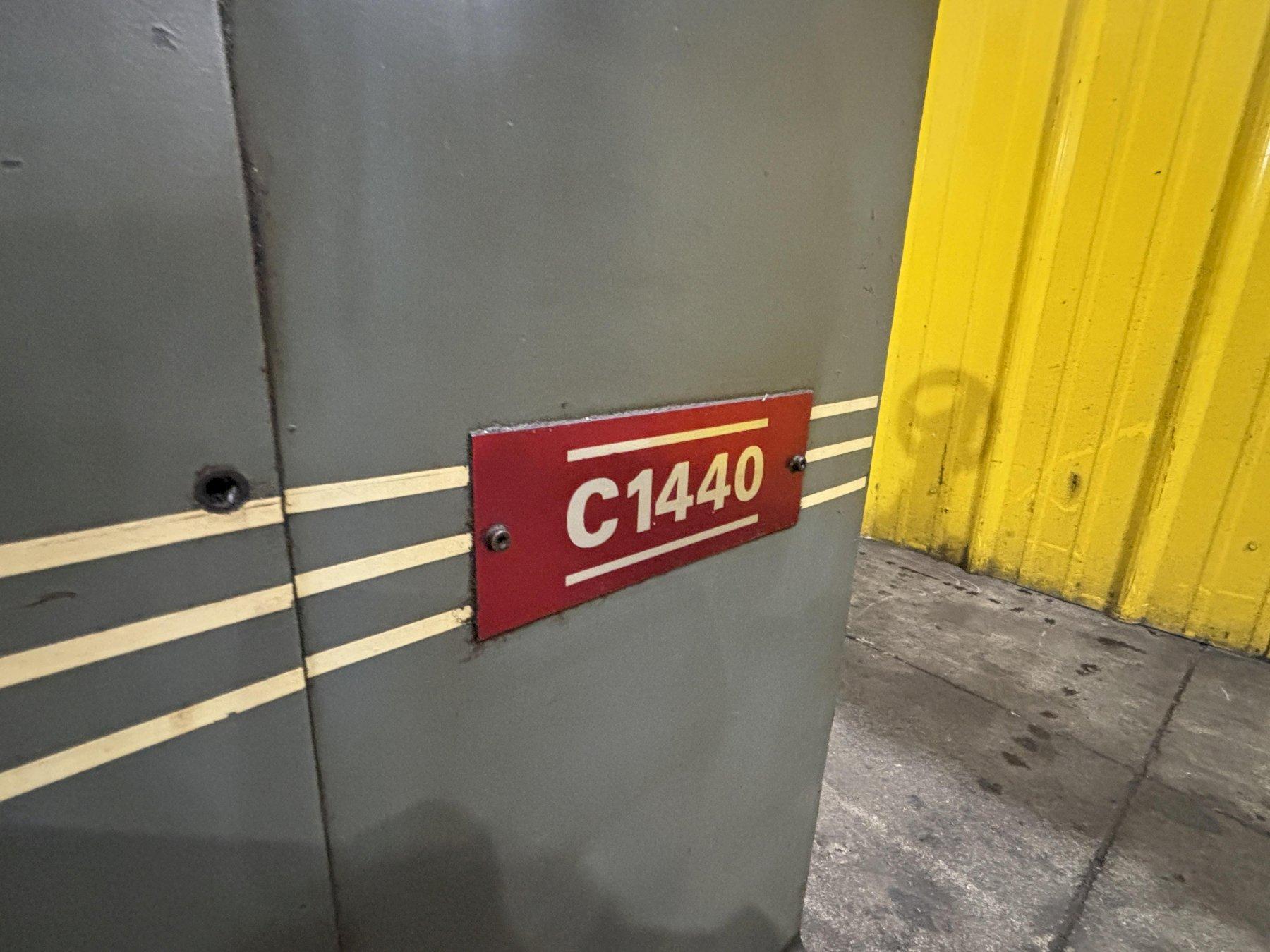

Model # C1440
Swing over bed- 14.17”
Swing over bed- 20”
Swing over cross slide- 8.07”
Cross slide travel-9.65”
Bed width- 10”
Spindle bore- 1-5/8”
Spindle taper- D1-5 Camlock
Spindle Morse taper - #4 Morse

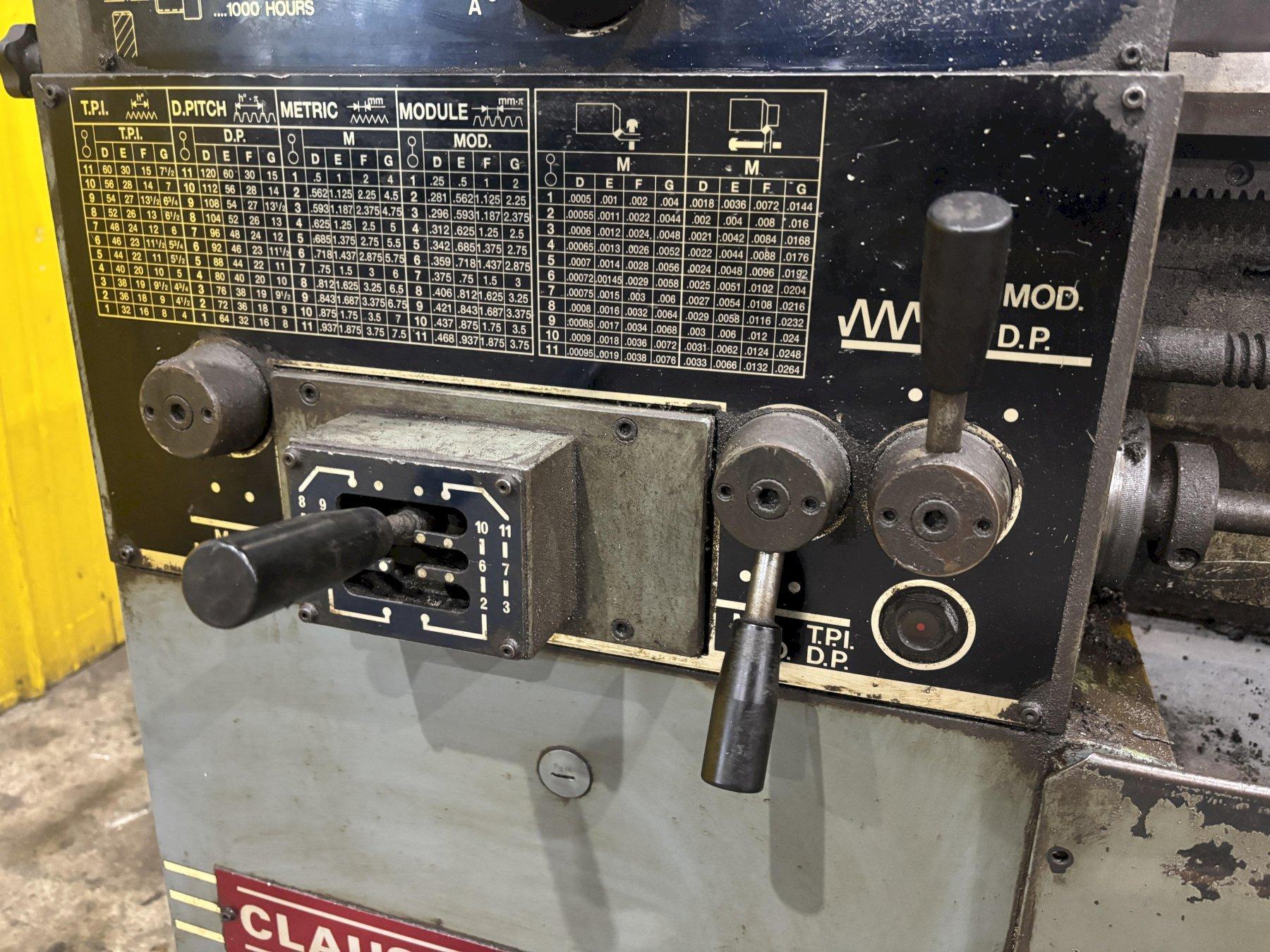

Longitudinal feeds- (44) .0018” TO .026”
Cross feeds- (44) .0005” TO .0076”
Metric threads- .5mm TO 7.5mm
Whitmore threads- 60 TO 4 T.P.I.
Modular threads- .25 TO 3.75
Diametral threads- 120 TO 8

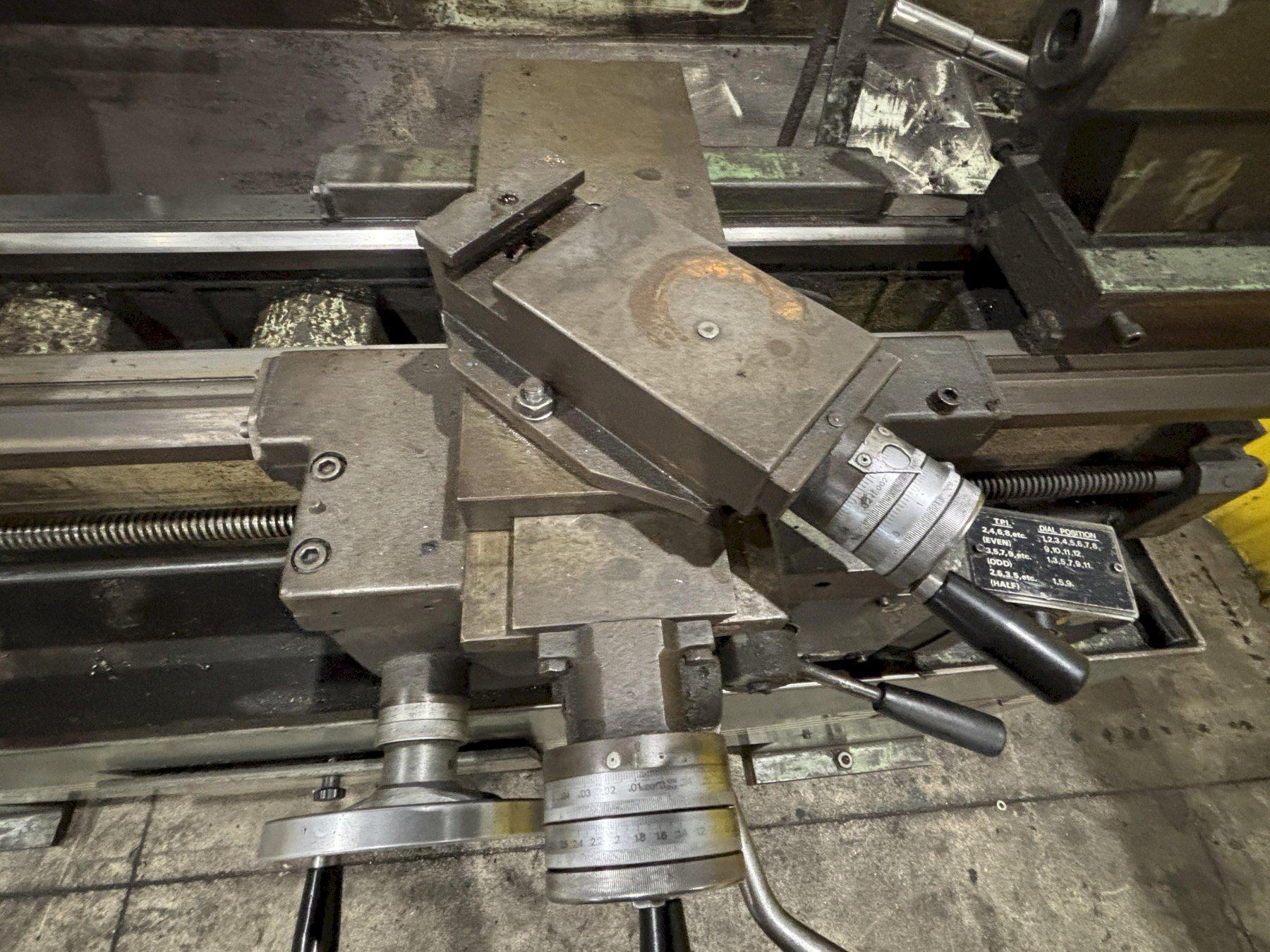

Tool post slide travel- 4-3/4”

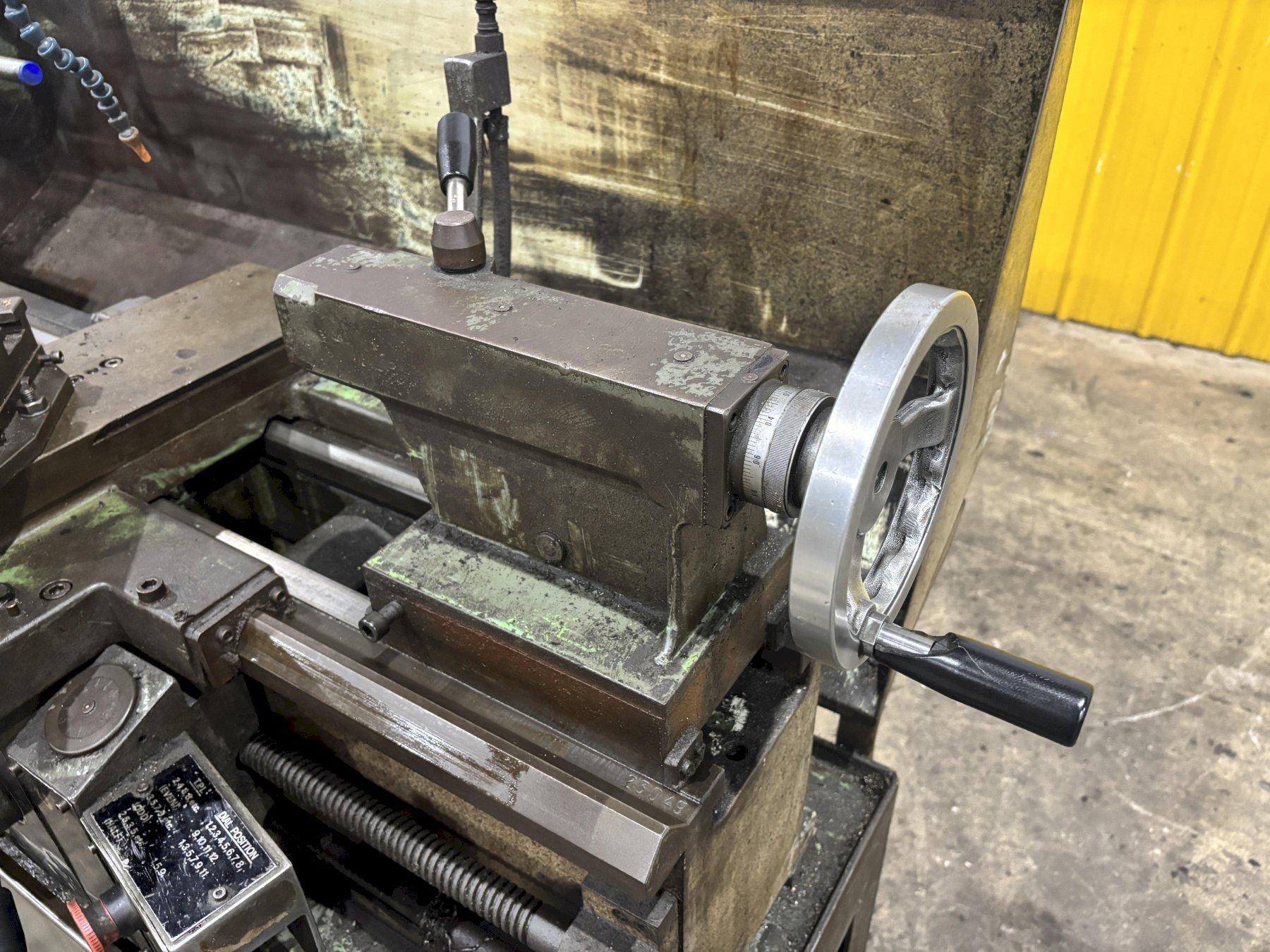

Tailstock quill diameter- 1-7/8”
Tailstock quill travel- 5-1/2”
Tailstock taper- #3 Morse

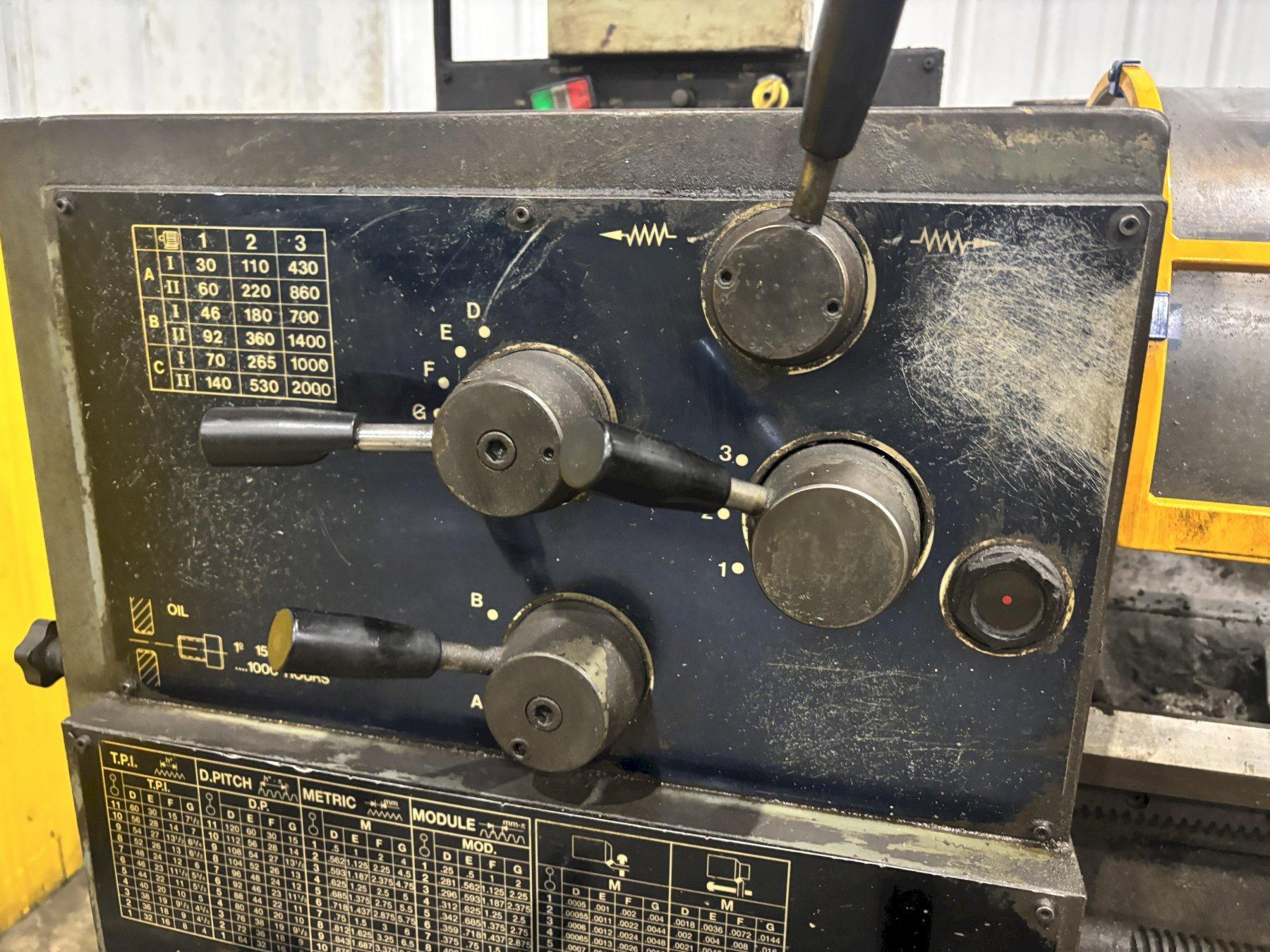

Spindle speeds- (18) 30 TO 2,000 R.P.M.
Threading dial
Inch / metric hand dials
Micrometer stop

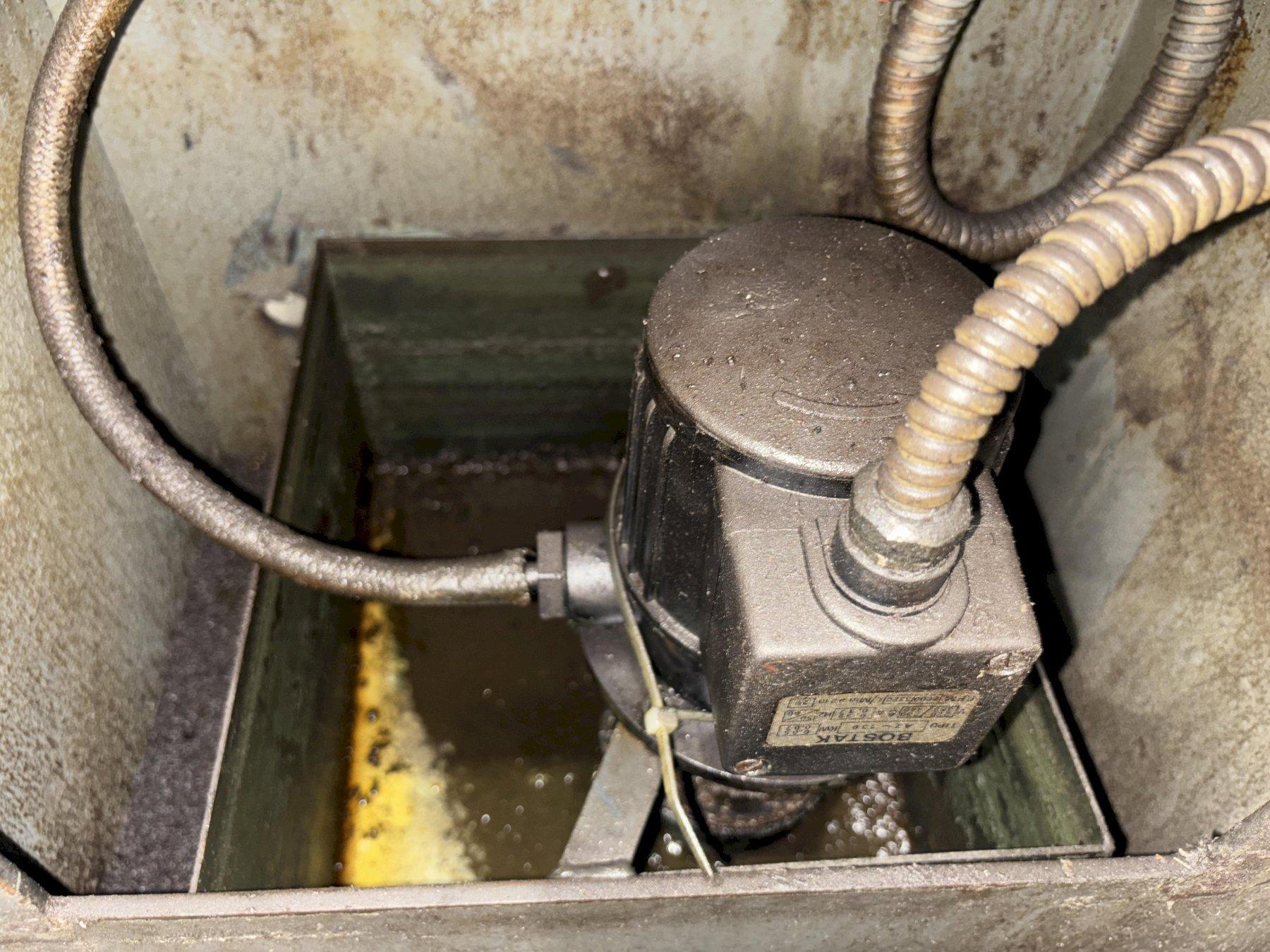

Coolant pump
4.5 H.P. Motor

Machine weight- 2500 Lbs.
Machine dimensions- 81” L x 38” W x 67”H
