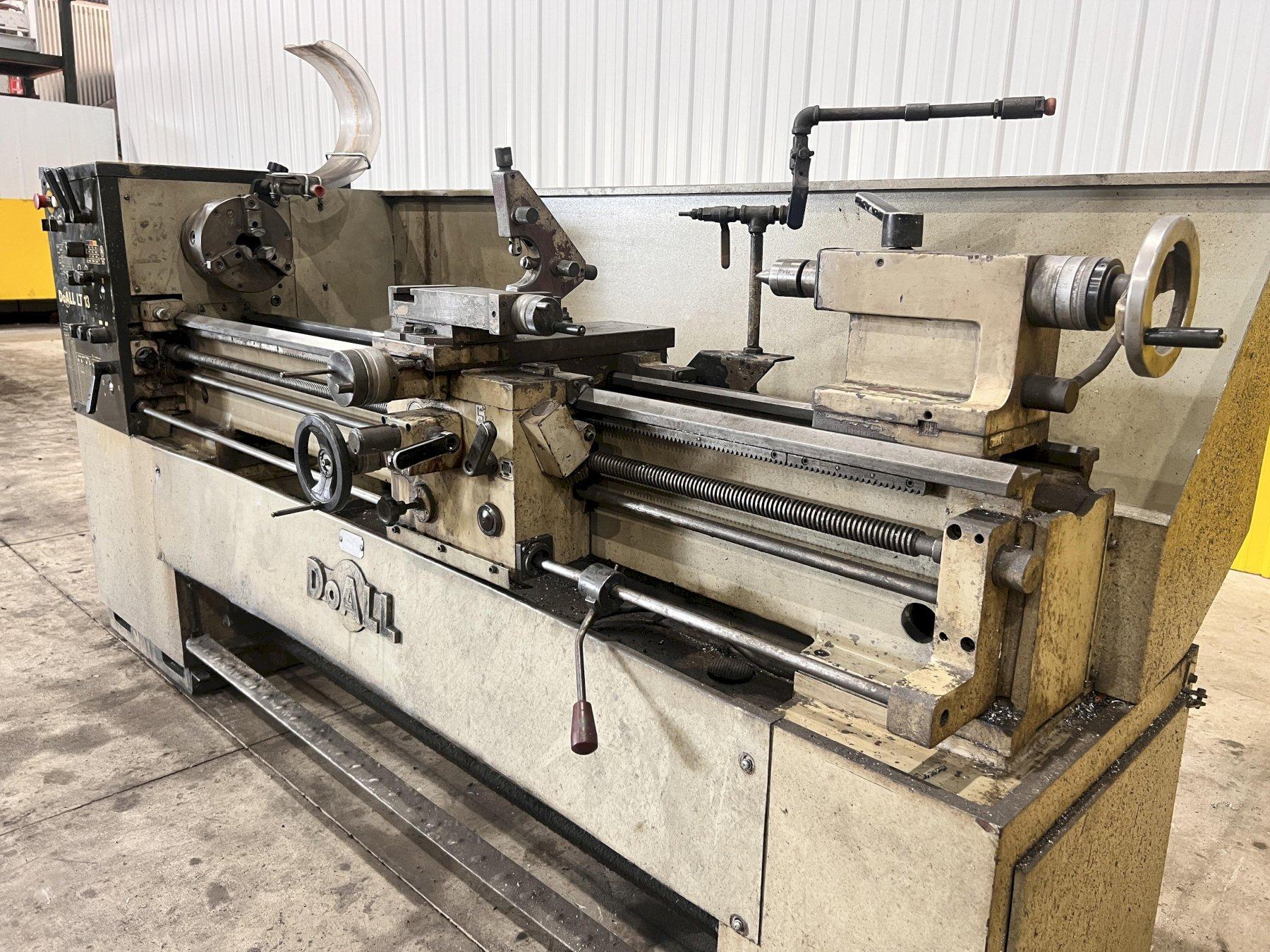

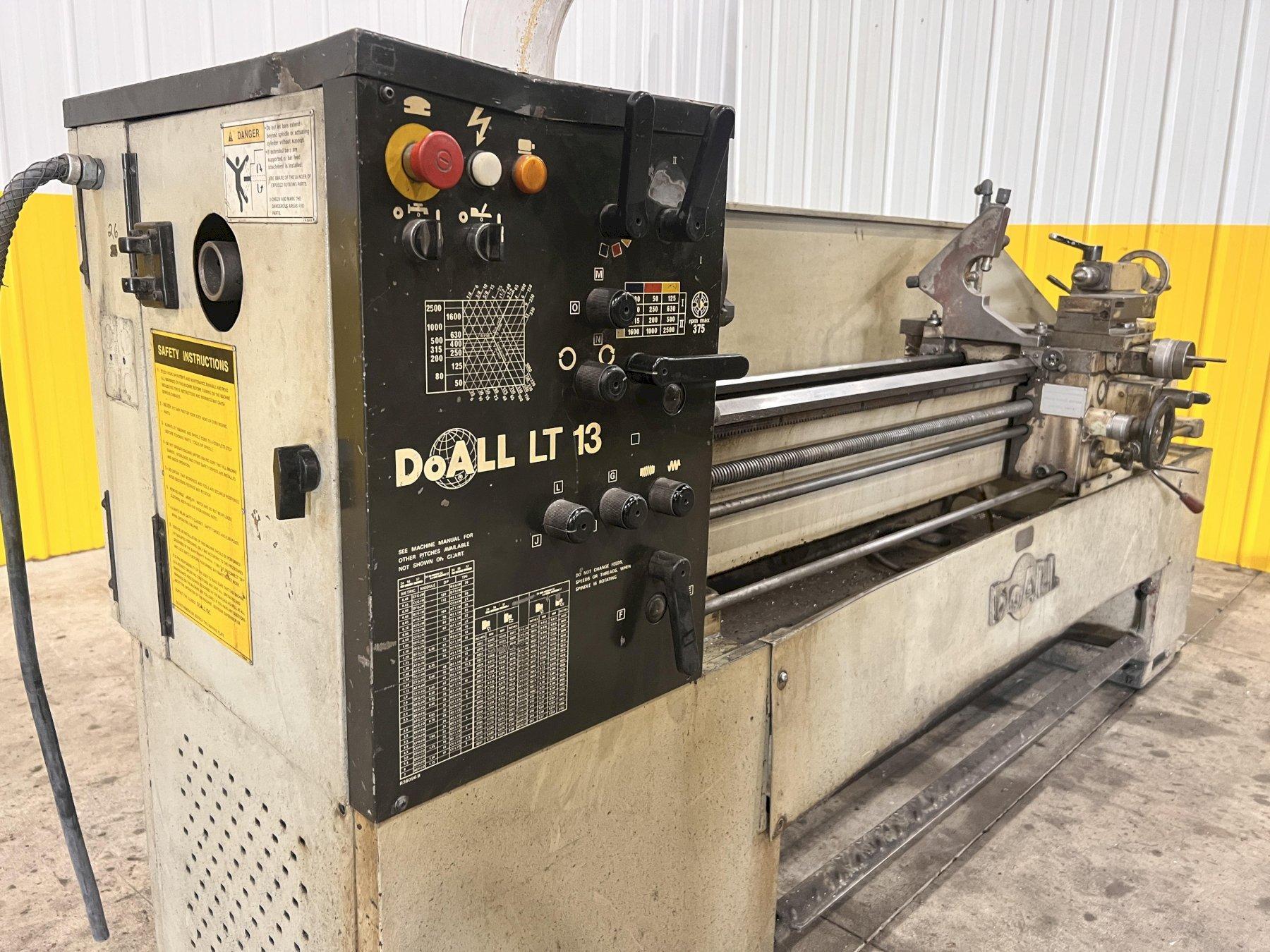

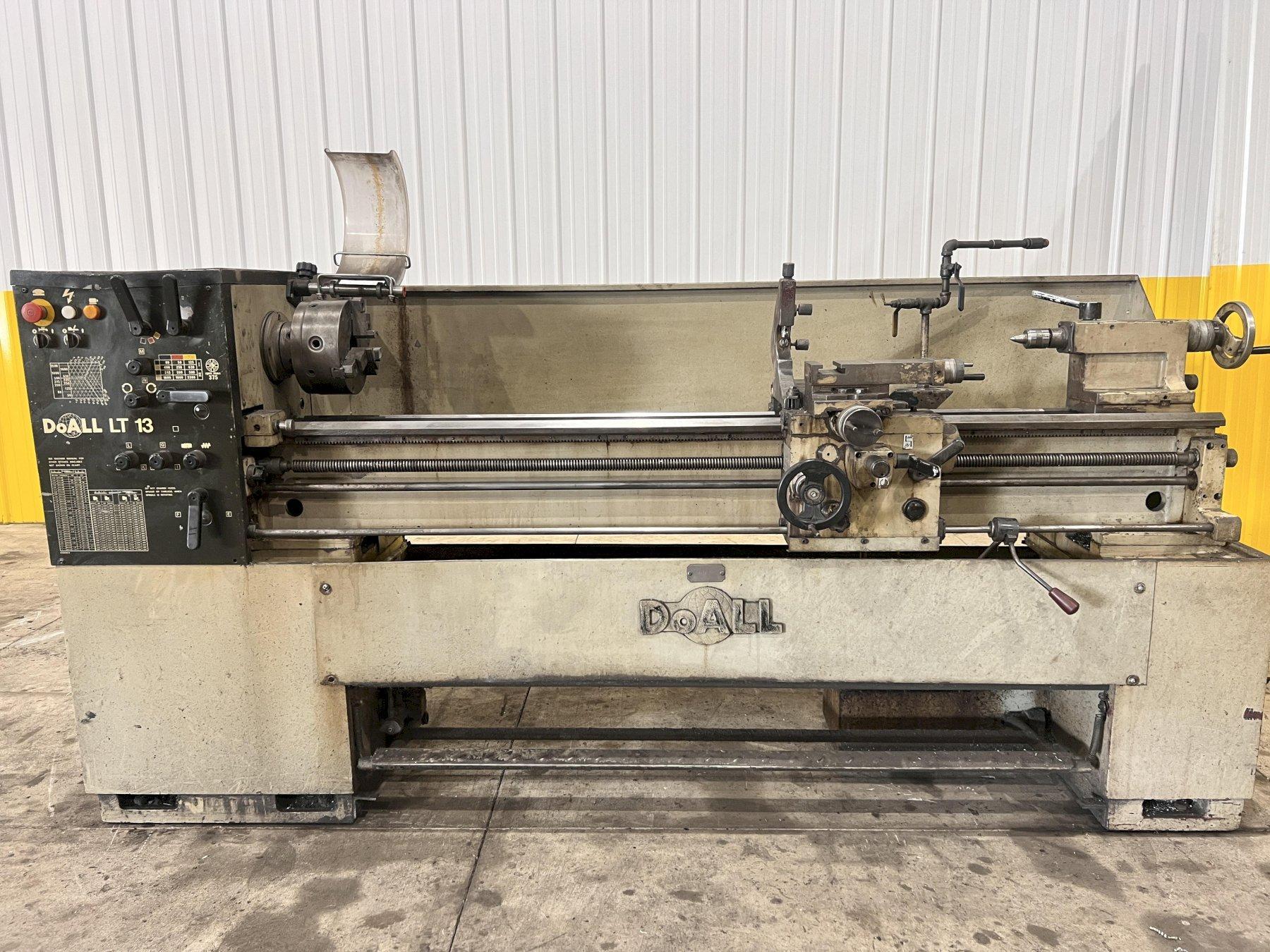

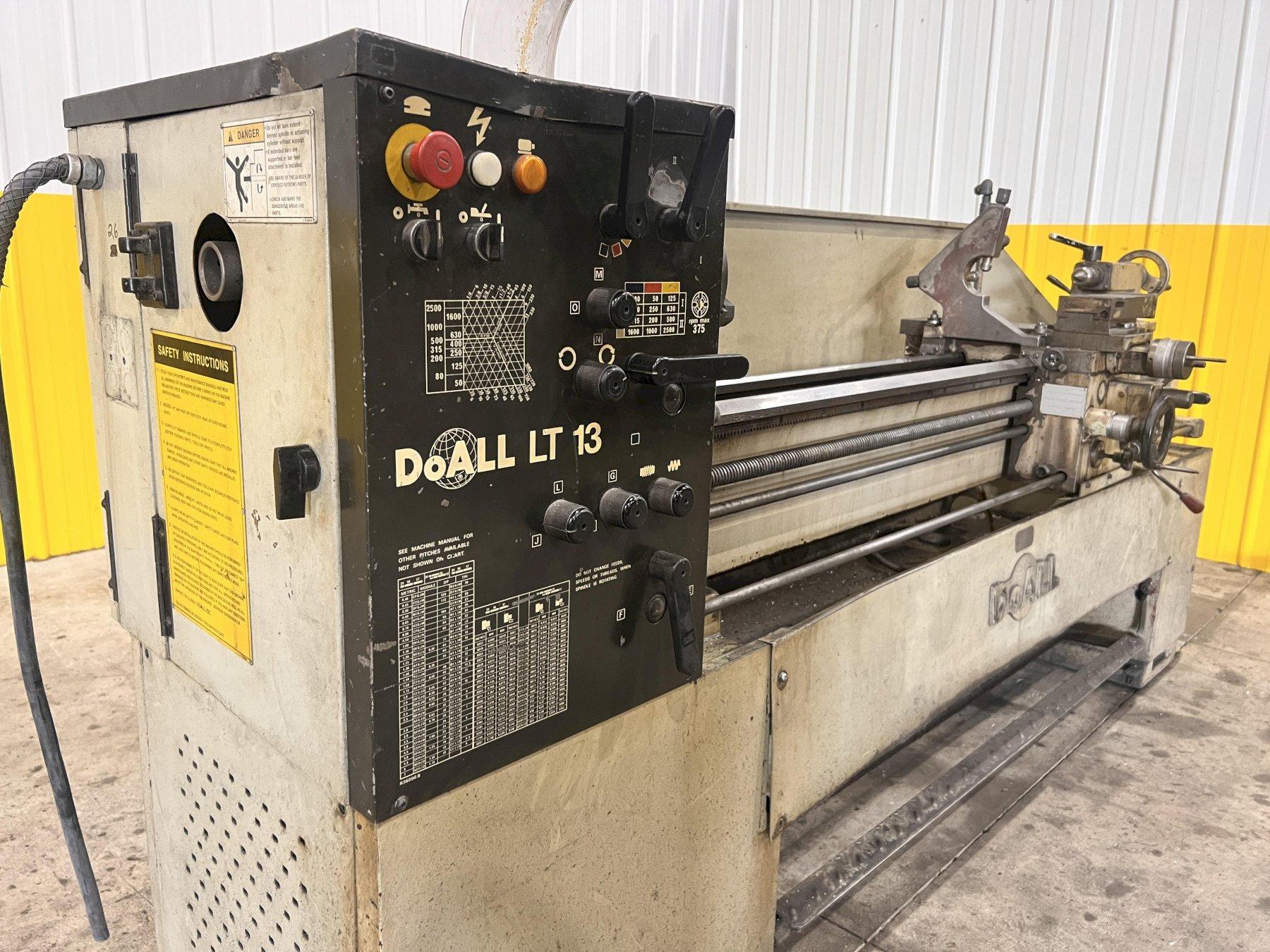

13" X 60" DOALL MODEL #LT13 ENGINE LATHE, 1-9/16" HOLE: STOCK #21727

Manufacturer

DOALL

Category

Lathes

Type

LATHES, ENGINE

Stock

21727

Model

LT 13

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



MODEL ......................... LT13
SWING OVER BEDWAYS ............ 13"
SWING OVER CROSS SLIDE ........ 7-11/16"
HOLE THRU SPINDLE ............. 1-9/16"
SPINDLE NOSE .................. D1-4
DISTANCE BETWEEN CENTERS ...... 60"
BED WIDTH ..................... 8-7/8"
SPINDLE SPEED RANGE (12) ...... 50 TO 2,500 RPM
ENGLISH THREADING RANGE (61) .. 4 TO 84 TPI
METRIC THREADING RANGE (63) ... .2 TO 7 mm
LONGITUDINAL FEED RANGE (40) .. .0017" TO .0287" IPR
CROSS FEED RANGE (40) ......... .0008" TO .0130" IPR
TAILSTOCK SPINDLE TAPER ....... #3 MT
TAILSTOCK SPINDLE TRAVEL ...... 4-3/8"

Spindle motor ................. 5 HP
